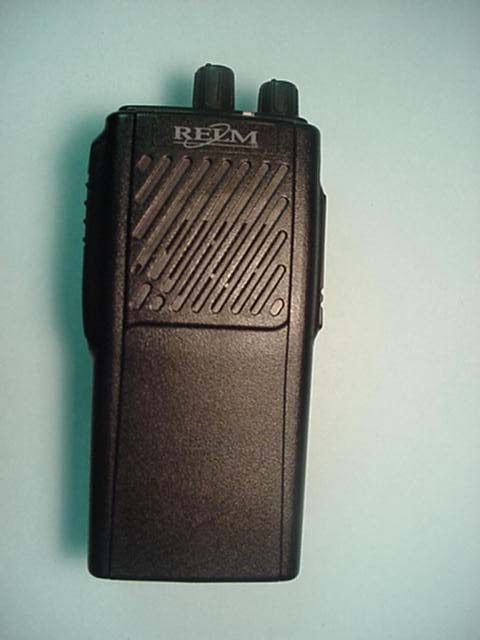

ARURPU416BUHF Transceiver

ÞßÔ²ú TWO-WAY RADIO TM RPV516/RPU416 Owner's Manual RPV516/RPU416 Owner's Manual TM 1 OWNER’S MANUAL RELM Wireless Corporation Thank you! We are grateful that you choose RELM for your land mobile applications . We believe this easy- to-use transceiver will provide dependable communications to keep personnel operating at peak efficiency . Please read and understand this manual carefully for efficient operation. Applied model: RPV516: VHF FM Transceiver RPU416: UHF FM Transceiver 268ACManual.pm601-11-21, 11:061 RELM Wireless Corporation OWNER’S MANUAL Contents User Safety, Training, and General Information ...................... 1 Compliance with RF Energy Exposure Standards ................... 1 FCC Compliance ..................................................................... 3 Precautions............................................................................ 4 Preparations ........................................................................... 4 Supplied Accessories ............................................................... 5 Battery/Antenna and Other Accessories ............................ 5 Charging the Battery ................................................................ 5 Installing/Removing the Battery .............................................. 6 Installing the Antenna .............................................................. 7 Installing the Belt Clip ............................................................. 7 Installing the Additional Speaker/Microphone ........................ 7 Getting Acquainted ............................................................... 7 Basic Operation..................................................................... 8 Auxiliary Functions.............................................................. 9 Time-out Timer ....................................................................... 9 Battery Save ............................................................................ 9 Low Battery Warning ............................................................ 10 Monitor................................................................................. 10 CTCSS/DCS.......................................................................... 10 Two Tone Signaling ................................................................ 10 Channel Scan.......................................................................... 12 Busy Channel Lockout .......................................................... 12 Optional Accessories.......................................................... 13 Troubleshooting.................................................................. 13 Frequency Chart ................................................................ 14 268ACManual.pm601-11-21, 11:062 OWNER’S MANUAL RELM Wireless Corporation User Safety, Training, and General Information READ THIS IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION BEFORE USING YOUR RELM HANDHELD PORTABLE TWO-WAY RADIO. Compliance with RF Energy Exposure Standards Your RELM two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromag- netic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environ- ment at duty cycles of up to 50% talk-50% listen and should be used for occupational use only. In terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. Note:The approved batteries supplied with this radio are rated for a 5-5-90 duty cycle (5% talk-5% listen-90% standby), even though this radio complies with the FCC occupational RF exposure limits at duty cycles of up to 50% talk. Your RELM two-way radio complies with the following of RF energy exposure standards and guidelines: •United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J •American National Standards Institute (ANS)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 •Institute of Electrical and Electronic Engineers (IEEE) C95. 1- 1999 Edition •International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 268ACManual.pm601-11-21, 11:063 RELM Wireless Corporation OWNER’S MANUAL •Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3kHz to 300GHz, 1999 •Australian Communications Authority Radiocommunications (Electromagnetic Radiation-Human Exposure) Standard 1999 (applicable to wireless phones only) Operational Instructions and Training Guidelines To ensure optimal performance and compliance with the occupa- tional/controlled environment RF energy exposure limits in the above standards and guidelines, users should transmit no more than 50% of the time and always adhere to the following procedures: Transmit and Receive To transmit (talk), push the Push-To-Talk (PTT) button; to re- ceive, release the PTT button. Hand-held radio operation Hold the radio in a vertical position with the microphone one to two inches (2.5 to 5 cm) away from the lips. Body-worn operation •Always place the radio in a RELM approved clip, holder, hol- ster, case, or body harness for this product. Use of non-RELM- approved accessories may exceed FCC RF exposure guidelines. •If you do not use a RELM approved body-worn accessory and are not using the radio in the intended use position in front of the face, then ensure the antenna and the radio are kept 2.5 cm (one inch) from the body when transmitting. Antennas & Batteries •Use only RELM approved, supplied antenna or RELM approved replacement antenna. Unauthorized antennas; modifications, or attachments could damage the radio and may violate FCC regulations. 268ACManual.pm601-11-2…

Text truncated - open the document above for the full version.








!

  "
 #      #    #      !! #$# #%   & # $%         #   '
 %!% (


                ' "
     ' "




  $

 )(


     #  " #  "$ #    %% &     #     #$   #  $  $ !  !  %$ &
 ' " #"    #$   #   ##  %%        #
     %% &      ! " !  !  #   $      ! !

  #!$ $%     #!#% '    #    !  %$ & !
     !( #   #      &  # $" !(     #
 #  $"    !(
 #            #%  $

 %$     #       # $  #$     #

  #


     #    # $%    # $%
    #     #   *
 '

   %        # ""

 + +

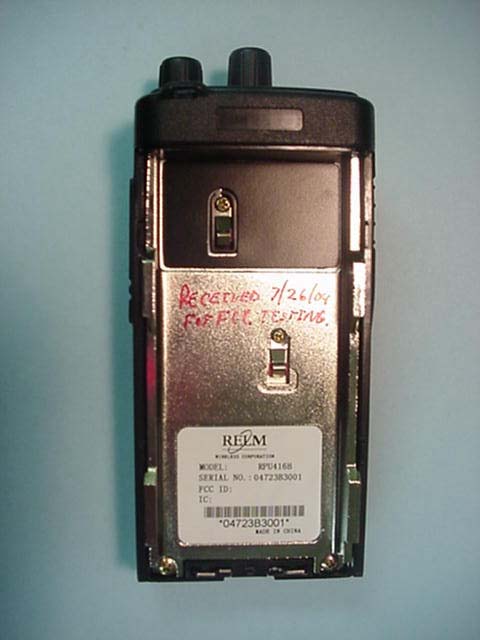

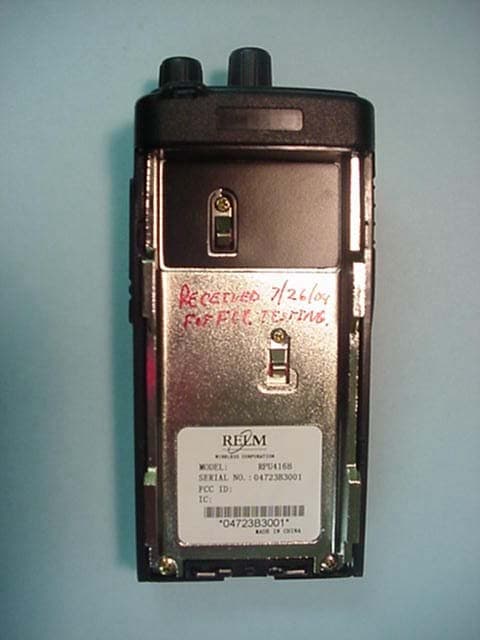

FCC Label Drawing

© 2004 Celltech Labs Inc. 1 of 20 Test Report S/N: 110404ARU-T582-S90U Test Date(s): November 9-10, 2004 Test Type: FCC/IC SAR Evaluation Performed By: Spencer Watson Compliance Technologist Celltech Labs Inc. Reviewed By: Russell W. Pipe Senior Compliance Technologist Celltech Labs Inc. Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 1 (Provisional) for the Occupational / Controlled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information RELM COMMUNICATIONS INC. 7100 Technology Drive West Melbourne, Florida 32904 United States FCC IDENTIFIER: ARURPU416B IC IDENTIFIER: 491C-RPU416B Model(s): RPU416B Rule Part(s): FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) Device Classification: Licensed Non-Broadcast Transmitter Held to Face (TNF) Device Description: Portable FM UHF PTT Radio Transceiver Modulation Type: FM (UHF) Tx Frequency Range: 400 - 420 MHz Max. RF Output Power Tested: 4.90 Watts Conducted (410.05 MHz) Antenna Type(s) Tested: Detachable Whip Battery Type(s) Tested: NiMH 7.2 V, 1100 mAh (P/N: BPRP1100) Body-Worn Accessories Tested: Plastic Belt-Clip with Metal Spring Speaker-Microphone (P/N: SMRP) Max. SAR Levels Evaluated: 3.82 W/kg - Face-held (50% Duty Cycle) 3.74 W/kg - Body-worn (50% Duty Cycle) © 2004 Celltech Labs Inc. 2 of 20 Test Report S/N: 110404ARU-T582-S90U Test Date(s): November 9-10, 2004 Test Type: FCC/IC SAR Evaluation TABLE OF CONTENTS 1.0INTRODUCTION.....................................................................3 2.0DESCRIPTION OF DUT............................................................ 3 3.0SAR MEASUREMENT SYSTEM................................................ 4 4.0MEASUREMENT SUMMARY..................................................... 5 5.0DETAILS OF SAR EVALUATION............................................... 6 6.0EVALUATION PROCEDURES................................................... 6 7.0SYSTEM PERFORMANCE CHECK............................................. 7 8.0SIMULATED EQUIVALENT TISSUES.......................................... 8 9.0SAR SAFETY LIMITS............................................................... 8 10.0ROBOT SYSTEM SPECIFICATIONS........................................... 9 11.0PROBE SPECIFICATION.......................................................... 10 12.0PLANAR PHANTOM................................................................. 10 13.0VALIDATION PHANTOM........................................................... 10 14.0DEVICE HOLDER.................................................................... 10 15.0TEST EQUIPMENT LIST............................................................ 11 16.0MEASUREMENT UNCERTAINTIES............................................. 12-13 17.0REFERENCES.........................................................................14 APPENDIX A - SAR MEASUREMENT DATA............................................... 15 APPENDIX B - SYSTEM PERFORMANCE CHECK DATA............................ 16 APPENDIX C - SYSTEM VALIDATION PROCEDURES................................. 17 APPENDIX D - PROBE CALIBRATION...................................................... 18 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................... 19 APPENDIX F - SAR TEST SETUP & DUT PHOTOGRAPHS.......................... 20 Applicant: RELM Communications Inc. FCC ID: ARURPU416B IC ID: 491C-RPU416B Model:RPU416BPortable FM UHF PTT Radio Transceiver 400 - 420 MHz 2004 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 3 of 20 Test Report S/N: 110404ARU-T582-S90U Test Date(s): November 9-10, 2004 Test Type: FCC/IC SAR Evaluation This measurement report demonstrates that the RELM Communications Inc. Model: RPU416B Portable FM UHF PTT Radio Transceiver FCC ID: ARURPU416B complies with the SAR (Specific Absorption Rate) RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]), and Health Canada’s Safety Code 6 (see reference [2]) for the Occupational / Controlled Exposure environment. The measurement procedures described in FCC OET Bulletin 65, Supplement C (Edition 01-01) (see reference [3]) and IC RSS-102 Issue 1 (Provisional) (see reference [4]), were employed. A description of the product, operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. FCC Rule Part(s) 47 CFR §2.1093 IC Rule Part(s) RSS-102 Issue 1 (Provisional) Test Procedure(s) FCC OET Bulletin 65, Supplement C (01-01) Device Type Portable FM UHF PTT Radio Transceiver FCC IDENTIFER ARURPU416B Model(s) RPU416B Serial No. 04723B3…

Text truncated - open the document above for the full version.








                                          !" #$%&   '' '              %    () *                  ' +,'-               )) *      )) *  )) *              ' '  ' '      +.                                     * %      %    %  %                ( *                                                     *    %  %    %                   -  *             *                      +  0,* 0,* /) * * 1  * *                                   / / /  /
/  2             *                -                                          *                                        /
 #  0 #22 #0
#3) 223  + +)223  +       0 #2
  )2221 ) *   0 #20)23    ) )22 )220(
       4 4














               !







 "
    #

 $




                               &


  " ! &

&  " !


' &

  &  ( &  )



                '        *'

           )))))))




%!



















  ++
 ++




















      ++

            $









       $




   %

     %


 %     (


 '
            !
   %


















    ! " "         '







    +









 (        %#!














  %   %
    (





















 %!



 %!

     ,







 ++


































   …

Text truncated - open the document above for the full version.

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: RELM WIRELESS CORPORATION FCC ID: ARURPU416B REPORT #: R\RELM_ARU\1588AUT4\1588AUT4TestReport.doc COVER PAGE Test Report Product Name: UHF TRANSCEIVER Frequency Range: 400 – 420 MHz FCC ID: ARURPU416B Applicant: RELM WIRELESS CORPORATION 7100 TECHNOLOGY DRIVE W. MELBOURNE FLORIDA 32904 Date Receipt: SEPTEMBER 28, 2004 Date Tested: OCTOBER 19, 2004 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: RELM WIRELESS CORPORATION FCC ID: ARURPU416B REPORT #: R\RELM_ARU\1588AUT4\1588AUT4TestReport.doc TABLE OF CONTENTS APPLICANT: RELM WIRELESS CORPORATION FCC ID: ARURPU416B TABLE OF CONTENTS LIST TEST REPORT: PAGE 1...........GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2...........TECHNICAL DESCRIPTION CONTINUED RF POWER OUTPUT PAGE 3...........MODULATION CHARACTERISTICS AUDIO FREQUENCY RESPONSE PAGE 4...........AUDIO LOW PASS FILTER PAGE 5...........MODULATION LIMITING PLOT PAGE 6-7.........OCCUPIED BANDWIDTH PAGE 8-11........OCCUPIED BANDWIDTH PLOTS PAGE 12..........SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 13..........METHOD OF MEASURING SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 14-15.......FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 16..........METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 17..........FREQUENCY STABILITY PAGE 18-19.......TRANSIENT FREQUENCY BEHAVIOR PAGE 20-23.......TRANSIENT FREQUENCY RESPONSE PLOTS PAGE 24-29.......EQUIPMENT LIST EXHIBITS CONTAINING: BLOCK DIAGRAM SCHEMATIC PARTS LIST USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS TUNING PROCEDURE OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPH TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: RELM WIRELESS CORPORATION FCC ID: ARURPU416B REPORT #: R\RELM_ARU\1588AUT4\1588AUT4TestReport.doc Page 1 of 29 GENERAL INFORMATION REQUIRED FOR CERTIFICATION OF A LICENSED TRANSMITTER 2.1033(c)(1)(2) RELM WIRELESS CORPORATION will manufacture the FCCID: ARURPU416B UHF TRANSCEIVER in quantity, for use under FCC RULES PART 90. RELM WIRELESS CORPORATION 7100 TECHNOLOGY DRIVE W. MELBOURNE, FLORIDA 32904 2.1033(c) TECHNICAL DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included. 2.1033(c)(4) Type of Emission: 10K8F3E 90.209 90.207 Bn = 2M + 2DK M = 3000 D = 2400 Bn = 2(3000) + 2(2400) = 10.8k 2.1033(c)(5) Frequency Range: 400 - 420 MHz 90.209 (b)(5) 2.1033(c)(4) Type of Emission: 14K0F3E 90.209 90.207 Bn = 2M + 2DK M = 3000 D = 4000 Bn = 2(3000) + 2(4000) = 14k 2.1033(c)(5) Frequency Range: 400 - 420 MHz 90.209 (b)(5) 2.1033(c)(6)(7) Power Output shall not exceed 59 Watts into a 50 ohm 90.205 resistive load. There are no user power controls. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: POWER INPUT: FINAL AMPLIFIER ONLY INPUT POWER: (7.2V)(2.00A) = 14.40 Watts 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included. 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram is included. The block diagram is included. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: RELM WIRELESS CORPORATION FCC ID: ARURPU416B REPORT #: R\RELM_ARU\1588AUT4\1588AUT4TestReport.doc Page 2 of 29 2.1033(c)(11) Description of all circuitry and devices provided for determining and stabilizing frequency is included in the circuit description. 2.1033(c)(12) A photograph or drawing of the equipment identification label is included. 2.1033(c)(13) Photographs of the equipment of sufficient clarity to reveal equipment construction and layout and label location are included. 2.1033(c)(14) Digital Modulation is not allowed 2.1033(c)(15) The data required for 2.1046 through 2.1057 is submitted below. 2.1046(a) RF POWER OUTPUT RF power is measured by connecting a 50-ohm, resistive wattmeter to the RF output connector. With a nominal battery voltage, and the transmitter properly adjusted the RF output measures: OUTPUT POWER: 4.9 Watts TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: RELM WIRELESS CORPORATION FCC ID: ARURPU416B REPORT #: R\RELM_ARU\1588AUT4\1588AUT4TestReport.doc Page 3 of 29 2.1047(a)(b) Modulation characteristics : AUDIO FREQUENCY RESPONSE The audio frequency response was measured in accordance with TIA/EIA Specification 603. A curve or equivalent data showing the frequency response of the audio modulating circuit over a range of 100 – 5000Hz shall be submitted. The audio frequency response curve is shown below. Audio Frequency Response -2 +4 -0 +2 d B 100 3k 200 300 400 500 700 1k 2k Hz TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: RELM WIRELESS CORPORATION FCC ID: ARURPU416B REPORT #: R\RELM_ARU\1588AUT4\1588AUT4TestReport.doc Page 4 of 29 2.1047(a) Voice modulated communication equipment: For equipment required to have an audio low-pass filter, a curve showing the frequency response of the filter, or of all the circuitry installed between the modulation limiter and the modulated stage shall be submitted. Audio Low Pass Filter -2 +4 -0 +2 d B 3k 20k 4k 5k 6k 7k 8k 9k Hz TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: RELM WIRELESS CORPORATION FCC ID: ARURPU416B REPORT #: R\RELM_ARU\1588AUT4\1588AUT4TestReport.doc Page 5 of 29 2.1047(b) Audio input versus modulation The audio input level needed for a particular percentage of modulation was measured in …
