AX206CMBLT370Handsfree Bluetooth Receiver

Owner’s manual Manuel d’ installation et ode d’emploi Manual de Instalación/Propietario BLUETOOTH ® AUDIO/MOBILE-PHONE TRANSCEIVER FOR AUX INPUT EMETTEUR-RECEPTEUR AUDIO/TEL- EPHONE MOBILE BLUETOOTH ® POUR ENTREE AUX TRANSCEPTOR DE TELÉFONO MÓVIL/ AUDIO BLUETOOTH ® PARA ENTRADA AUXILIAR 1EN_OM_Receiver BLT370.indd 14/5/07 2:14:27 PM 1EN_OM_Receiver BLT370.indd 24/5/07 2:14:28 PM FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Clarion BLT370 This manual is published by Clarion, without any warranty. Improvements any changes to this manual necessitated by typographical errors, inaccuracies of current information or improvements to programs and/or equipment, may be made by Clarion at any time and without notice. Such changes will, however, be incorporated into new editions of this manual. iPod is for legal or right holder-authorized copying only. Don’t steal music. iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. The Bluetooth ® word mark and logos are owned by the Bluetooth ® SIG, Inc. and any use of such marks by Clarion is under license. Other trademarks and trade names are those of their respective owners. 1EN_OM_Receiver BLT370.indd 34/5/07 2:14:28 PM 2 BLT370 CONTENTS 1. WHAT IS INCLUDED IN THIS PACKAGE? .......................................... 3 2. PRODUCT FEATURES OVERVIEW ..................................................... 4 Clarion Bluetooth ® Audio/Mobile-phone Transceiver (BLT370) ............ 4 3. INSTALLATION ...................................................................................... 6 Installing BLT370 .................................................................................. 6 4. INTRODUCTION TO BLUETOOTH ® “PAIRING” ................................. 9 Pairing Sequence ............................................................................... 10 Automatic Connection ........................................................................ 12 5. OPERATIONS FOR BLUETOOTH ® AUDIO/MOBILE-PHONE TRANSCEIVER UNIT ........................................................................ 13 Buttons Terminology ........................................................................... 13 Understanding The Transceiver Unit Indicators ................................. 15 Basic Operations ................................................................................ 16 Music Streaming and Playback Control ............................................. 18 Using Handsfree with Bluetooth ® Wireless Technology ..................... 20 6. COMPATIBLE MODELS ...................................................................... 23 7. TROUBLESHOOTING ......................................................................... 24 8. SPECIFICATION .................................................................................. 26 9. ADDITIONAL INFORMATION ............................................................. 27 1EN_OM_Receiver BLT370.indd 24/5/07 2:14:28 PM 3 BLT370 1. WHAT IS INCLUDED IN THIS PACKAGE? A complete BLT370 package consist of the following items: Bluetooth ® Audio/Mobile-phone Transceiver unit with 2.5m cable and LC box Visor clip RCA to 3.5mm jack cable (1m) Velcro hook (x2) with double- sided tape attached Velcro loop (x2) with double- sided tape attached 1EN_OM_Receiver BLT370.indd 34/5/07 2:14:29 PM 4 BLT370 2. PRODUCT FEATURES OVERVIEW Clarion Bluetooth ® Audio/Mobile-phone Transceiver (BLT370) The BLT370 is a handsfree car kit featuring Bluetooth ® wireless technology that allows you to utilize your car’s built-in audio system for wireless music streaming and wireless mobile phone handsfree communication. • Auto features: • Auto-power up when car is started • Auto-connect with last paired mobile phone, upon power up (Depends on multiple re-connection mode). • Auto-switching between music streaming and handsfree mode with Bluetooth ® technology • Music streaming features: • High quality wireless digital music streaming (dependent on paired device capabilities) • Remote control for remote device (dependent on paired device capabilities) • Volume adjustment • Car kit features: • Auxiliary output for plugging into car stereo system • Tel-interrupt pin to switch car stereo to auxiliary-mode for mobile phone communication • Built-in microphone, with optional external microphone support. • Acoustic Echo Cancellation (AEC) and noise suppression • Left/Right channel switch (to set speaker output channel) • One-press pick-up/end/reject call and volume controls • Call transfer • Volume adjustment 1EN_OM_Receiver BLT370.indd 44/5/07 2:14:29 PM 5 BLT370 Clarion Bluetooth ® Audio/Mobile-phone Transceiver (BLT370) Telephone interrupt pin The cable on the Transceiver is equipped with a telephone interrupt pin (TEL- INT). Such mechanism can be used to notify the car stereo unit to switch mode when it detects incoming call and transferring call. Automatic Bluetooth ® profile switch If the Transceiver is paired to both a …

Text truncated - open the document above for the full version.

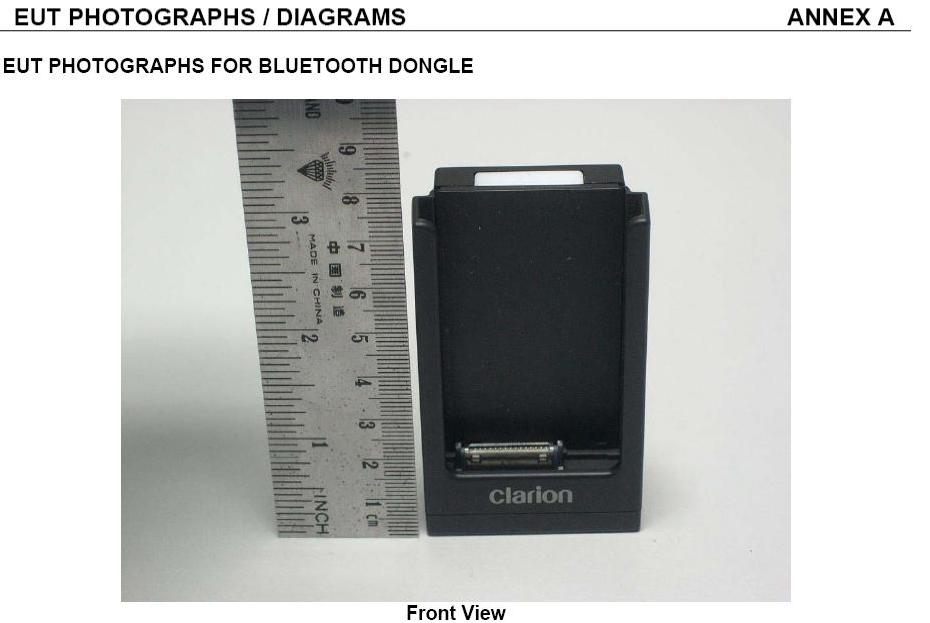

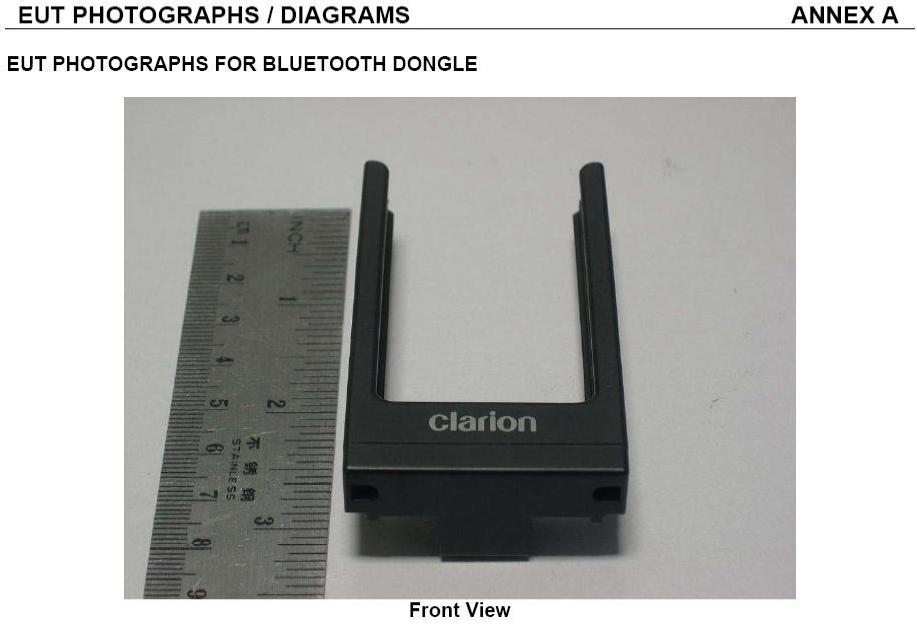

Ext Photos Ext Photos Ext Photos

Labelsmpl & LOC.pdf Labelsmpl & LOC.pdf

Int Photos Int Photos Int Photos Int Photos Int Photos Int Photos

Clarion PDR Bluetooth Car Audio System Version 1.0 BITwave Confidential © BITwave Pte Ltd, 2005, All rights reserved. 1 / 4 February 2, 2007 1. Receiver Block Diagram Block diagram above shows the interconnects and IO interfaces of Clarion receiver unit. The system consists of following functional units a) Bluetooth functions (SIW3500) All Bluetooth protocols, profiles are implemented in this module. It communicates with other Bluetooth device (audio gateway). b) DSP (ADSST-BITW-2000) It is the onboard digital processor that handles all audio processing such as noise suppression, echo cancellation, sub-band coding (SBC) etc. c) Codec (TLV320AIC23B) Converts audio data from digital to analog form and vice-versa. d) IO interfaces IO Pins Definition 1 Microphone in There are 2 inputs for microphone. However, only one channel is supported. 2 Auxiliary output Audio output for both music and communication mode. It should be connected to the aux-in of car stereo unit. Audio Decoding DAC Acoustic Echo Canceller/noise suppression/speech enhancement ADC Bluetooth stacks (HF/HS A2DP AVRCP) Microphone Auxiliary Output Control buttons LEDs DSP Bluetooth Chip Codec Tel-int Left/right select Reset Clarion PDR Bluetooth Car Audio System Version 1.0 BITwave Confidential © BITwave Pte Ltd, 2005, All rights reserved. 2 / 4 February 2, 2007 3 Reset Perform system reset, factory default settings will be restored. 4 Left/right mono audio select Controls whether the audio signal should come out from the auxiliary left or right channel during hands- free mode. The pin will be checked only during device initialization. After that changing the pin status will have no impact until the device is re-started. 5 Tel-int This pin will be asserted (active low) when there is incoming call and through out the duration hands-free mode. It can be used to notify the car stereo unit to switch to hands-free mode when there is incoming call. 6 Control buttons These are navigation buttons to control various operation of the device eg pairing, volume up/down, play/pause, skip track etc. 7 LEDs 2 LEDs (red and blue) to indicate current operating mode of the device. For blue LED, there are 2 level of brightness. Brighter blue indicates operation of Bluetooth, dimmer blue indicates operation of DSP. The LED sequence is controlled by software. Clarion PDR Bluetooth Car Audio System Version 1.0 BITwave Confidential © BITwave Pte Ltd, 2005, All rights reserved. 3 / 4 February 2, 2007 2. Dongle Block Diagram Block diagram above shows the interconnects and IO interfaces of Clarion dongle and adaptor. The system consists of following functional units a) Bluetooth functions (SIW3500) All Bluetooth protocols, profiles are implemented in this module. It communicates with other Bluetooth device. b) DSP (ADSST-BITW-2000) It is the onboard digital processor that handles all audio processing such as audio compression using sub-band encoding (SBC). c) Codec (TLV320AIC23B) Converts audio data from analog to digital form. d) IO interfaces IO Pins Definition 1 Uart tx This is the communication channel between the dongle and iPod. AVRCP commands are translated to appropriate format before it is transmitted from dongle to the DAC Audio Compression ADC Bluetooth stacks (A2DP AVRCP) Line in Control button LEDs DSP Bluetooth Chip Codec Reset Uart tx Adaptor Dongle 30-pin connector Clarion PDR Bluetooth Car Audio System Version 1.0 BITwave Confidential © BITwave Pte Ltd, 2005, All rights reserved. 4 / 4 February 2, 2007 iPod. 2 Line in Analog output signal from external source eg iPod is fed to the line-in so that it can be converted to digital format and transmitted to the audio sink. 3 Reset Perform system reset. All current setting will be erased and factory defaults will be restored. 4 Control button This is a multi-function button that controls various operation of dongle such as on/off, pairing. 5 LEDs 2 LEDs (red and blue) to indicate current operating mode of the device. For blue LED, there are 2 level of brightness. Brighter blue indicates operation of Bluetooth, dimmer blue indicates operation of DSP. The LED sequence is controlled by software.

BITwave Pte Ltd Address: 2 Ang Mo Kio Ave 12 Singapore 569707 Tel: 65-6484 3496Fax: 65-6484 3495 Project: BS03R Date:20/12/2006 Version: 3.3A S/N CommentPatternQuantityComponents1st SupplierManufacturer P/N2nd SupplierManufacturer P/NRemark 1 DIELECTRIC ANTANT_7.8x3.61A1YAGEOCAN4311115002451K 2 MIC Socket(bundle with mic) 20 3001 002 2011MICGAGNER 20 3001 002 201 3MIC with connector 1GAGNERACM G6022-02C20-443 42.5mm JackLGK20091J1KUNMINGKM 03011 5CON6S6B-ZR1J2JSTS6B-ZR 6 100n040215 C1 C2 C7 C11 C23 C24 C25 C30 C42 C43 C44 C50 C62 C70 C71 YAGEO or MURATA C0402KRX7R7BB104 GRM 155R61A104KA01D 71p504021C28MURATAGRM 1555C1H1R5CZ01D 88p204021C29MURATAGRM 1552C1H8R2CZ01D 912p04021C32MURATAGRM 1555C1H120JZ01D 1018p04021C31MURATAGRM 1555C1H180JZ01D 1122p04021C21MURATAGRM 1555C1H220JZ01D 1247p04022C13 C14MURATAGRM 1552C1H470JZ01D 13180p04022C5 C22MURATAGRM 1555C1H181JA01D 14220p04022C35 C36MURATAGRM 1555C1H221JA01D 150.5p04021C20MURATAGRM 1555C1HR50CZ01D 1622n04021C45MURATAGRM 155R71H223KA12D 17100n 50V06032C4 C12MURATAGRM 188R71H104KA93D 18470n06033C15 C16 C19MURATAGRM 188R71C474KA88Dchange value to 0.47uF 191u06035C8 C17 C18 C27 C49 MURATAGRM 188R61A105KA12D 202.7p04021L4MURATAGRM 1555C1H2R7CZ01D 214.7u06032C26 C39MURATAGRM 188R60J475KE19D 2210u08053C38 C58 C60NICNTC-T106M 6.3TRP 234.7u 25V08052C3 C51MURATAGRM 21BR61E475KA12L 24100u 6.335281C10NICNTC-T107K6.3TRBF 25 0R004028R7 R10 R13 R25 R55 R57 R59 R60KOARK73Z1ETTP 260R006032C53 C54KOARK73Z1JTTP 27120R04021R4KOARK73B1ETTP121J 28560R04021R3KOARK73B1ETTP561J 29470k04021R42KOARK73B1ETTP474J 302.2k04021R54KOARK73B1ETTP222J 313.3k04021R12KOARK73B1ETTP332J 325.6k04022R11 R29KOARK73B1ETTP562J 335.1k04021R8KOARK73B1ETTP512J 3427k04026R1 R2 R22 R23 R24 R27KOARK73B1ETTP273J 3547k04023R20 R33 R36 KOARK73B1ETTP473J 3656k04021R19KOARK73B1ETTP563J 37 100k0402 9 R6 R15 R28 R31 R32 R34 R49 R50 R51 KOA RK73B1ETTP104J 3818k04022R40 R41KOARK73B1ETTP183J 391M04023R14 R21 C34KOARK73B1ETTP105J 400R3306031R9KOASR731JTTP0R33F 41120R06034R37 R38 R39 R48 KOARK73B1JTTP121J 42 43 1n004021L3TAIYO YUDENHK1005 1N0S-T 442n704021L6MURATALQG15HS2N7S02D 45BLM18BD601SN106034L7 L10 L11 L13MURATABLM 18BD601SN1 46LQH32CN101K21LQH321L8MURATALQH32CN101K21 47DLM2HGDLM2HG2L2 L12MURATADLM 2HGN601SZ3 48LQH43CN150K03LQH43C1L1MURATALQH43CN150K03 49 12MHz DSX321SLXTAL-X421Y1KDS DSX321G 12M Hz 12pf +/- 15ppm JAS X42 12M Hz 12pf +/- 10ppm 50 5136MHzCSTCZ1Y3MURATACSTCZ36M 0X12R**-B0 52 BC847BSSC701Q1Lionex: PhilipsBC847BS 53 0R0SOD801D7KOA RK73Z2BTTD 54 Slide SwitchMMP121-R1S1GAGNERIS-1290AP 55SW-PBTACT1S6GAGNER IT-1186AU2 56SW-PBTACT4S2 S3 S4 S5GAGNERIT-1185AU1 57 LED REDHT-S911D1SOURCEONEHT-S91USD 58LED BLUEHT-S911D2SOURCEONE HT-S91NB5 59 LED WHITEHT-S914D3 D4 D5 D6SOURCEONE HT-S91TW Clarion Everlight: 19-217/W1D- ANPHY/3T 60RB491DTSOT-231D8Lionex: PhilipsPM EG4005ET 61 LMV321IDCKRSC701U8SerialMicro: TILM V321IDCKR 62 74LVC1G04SC70-51U3SerialMicro: TI SN74LVC1G04DCKR Lionex:Philips 74LVC1G04GW 3rd supplier:Yosun Manucfaturer:Fairchild : NC7SZ04P5X 63 74LVC1G32SC70-51U10SerialMicro: TI SN74LVC1G32DCKR Lionex:Philips 74LVC1G32GW 3rd supplier:Yosun Manucfaturer:Fairchild : NC7SZ32P5X 64BT200SOT23-61U12BITwave BT200 65L6902DSOP81U2Lionex: STE-L6902D013TR 66ADSST-BITW2000MBGA1441U6YosunADSST-BITW2000 67RF3505VFBGA961U4YosunRF3505G1-T13YosunSiW3500GIG1 68 SST39VF800-TFBGA48TFBGA481U5Avnet: SpansionAm29SL400CT100RWAFSerialMicro: SSTSST39WF400A-90-4IB3KE 69TLV320AIC23BQFN281U7SerialMicro: TITLV320AIC23BIRHDR 70PESD12VS1ULSOD8821D9Lionex: PhilipsPESD12VS1UL 71FDY301NZSC89 1Q3Yosun:FAIRCHILDFDY301NZ 72Receiver Cable1REKA 73PCB1 TOTAL:139 Microphone wiring specification for ACMG6022-02C25-443 DescriptionSpecification Mic part numACMG6022-02C25-443 Connectorsplug harness + receptacle should be included leadwire length20mm wire orientation on plug harness: see pic on the irght: red wire(+ve) on the left side, black wire(-ve) on the right side 10/05/06: 1. Item 56, change part number from IT-1185AU2 to IT-1185AU1 or IT-1185AP1. 12/06/06: 1. item 51, change part number from "X42 36MHz 18pf 30ppm" to "CSTCZ36M0X". 2. item 5, change part number from S5B-ZR to S6B-ZR. 3. Add D9 and Q3 in item 70 and 71. 19/06/06: 1. REMOVE COMPONENTS: ITEM 53 BC847BPN ITEM 34 R7 27K ITEM 27 R43 120R ITEM 42 R44 680R ITEM 38 R53 150K ITEM 61 UA78L08ACPK ITEM 20 C5 C6 1u/25V ITEM 26 R18 10R ITEM 28 R30 560R ITEM 15 C66 560P 2. ADD COMPONENTS: ITEM 61 LMV321IDCKR. 3. CHANGE VALUE: R40 R41 FROM 4.7K TO 18K. R42 FROM 1.5k TO 470K. 22/06/06: 1. Item 49, Change crystal load capacitor value from 18pF to 12pF. 2. Item 3, Change mic part number as ACMG6022-02C25-443. 23/06/06: 1. Modify some part numbers as vendor recommended. 2. Item 72, add Receiver cable. 3. Add microphone wiring specification for mic ACMG6022-02C25-443. 4. Item 59, add 2nd supplier. 26/06/06: 1. Added supplier contact for receiver cable 2. Item 51, add part number detail. 3. Item 71, Change 2N7002 to Si1032R-T1-E3. 4. item 11, remove C40 and C41. 29/06/06: 1. Item 71, change Si1032R-T1-E3 to FDY301NZ 2. Supplier list, bitwave contact email addr change to [email protected] 3. item 22 part number GRM21BR60A106KE19L change to GRM21BR61A106KE19L 4. Item 12, 47p part num changed from GRM1555C1H470JZ01D to GRM1552C1H470JZ01D 5. Item 8, 8.2pF part num changed from GRM1555C1H8R2CZ01D to GRM1552C1H8R2DZ01D 6. Item 62,63, new supplier added 03/07/06: 1. Item 70, part num changed from ESDALC6V1-1M2 to PESD5V0S1UL 05/07/06: 1. Item 8, part num changed from GRM1552C1H8R2DZ01D to GRM1552C1H8R2CZ01D 2. Item 3, part num changed from ACMG6022-02C25-443 to ACMG6022-02C20-443 14/07/06: 1. Item 39, added R14 to 1M ohm 10/08/06: 1. Item 70, part num changed from PESD5V0S1UL to PESD12VS1UL 2. Item 50, added 2nd supplier 15/08/06: 1. Item 39, R22,R23,R24,R27 changed from 1M ohm to 27k (item 34) 17/08/06: 1. update the quantity for item 39, 34 2. item 50, remove Y2. 3. item 10, remove C33. 4. item 39, change C34 value from 18pF (item 10) to 1M (item 39). 5. item 15, add C20 0.5pF. New …

Text truncated - open the document above for the full version.

Test Report No. 56S061141/02 dated 27 Dec 2006 Note: This report is issued subject to TÜV SÜD PSB Corporation's "Terms and Conditions Governing Technical Services". The terms and conditions governing the issue of this report are set out as attached within this report. LA-2001-0212-A LA-2001-0213-F LA-2001-0214-E LA-2001-0215-B LA-2001-0216-G LA-2001-0217-G LA-2006-0355-C The results reported herein have been performed in accordance with the laboratory’s terms of accreditation under the Singapore Accreditation Council - Singapore Laboratory Accreditation Scheme. Tests/Calibrations marked "Not SAC-SINGLAS Accredited" in this Report are not included in the SAC-SINGLAS Accreditation Schedule for our laboratory. Laboratory: TÜV SÜD PSB Corporation Pte. Ltd. Testing Group No.1 Science Park Drive Singapore 118221 Phone : +65-6885 1333 Fax : +65-6776 8670 E-mail: [email protected] www.psbcorp.com Co. Reg : 199002667R Regional Head Office: TÜV SÜD Asia Pacific Pte. Ltd. 3 Science Park Drive #04-01/05 The Franklin Singapore 118223 Page 1 of 94 FORMAL REPORT ON TESTING IN ACCORDANCE WITH FCC Parts 15B & C : 2006 OF A CLARION BLUETOOTH DONGLE WITH iPOD ADAPTOR & HANDSFREE BLUETOOTH RECEIVER [ Models : BD03 & BS03 ] [ FCC IDs : AX206CMDGL370 & AX206CMBLT370 ] TEST FACILITY Telecoms & EMC, Testing Group, PSB Corporation Pte Ltd 1 Science Park Drive, Singapore 118221 FCC REG. NO. 90937 (3m & 10m OATS) 99142 (10m Anechoic Chamber) 871638 (5m Anechoic Chamber) 325572 (10m Anechoic Chamber) IND. CANADA REG. NO. IC 4257 (3m and 10m Anechoic Chambers) PREPARED FOR Clarion (Malaysia) Sdn Bhd Phase 3, Free Industrial Zone, 11900 Bayan Lepas, Penang. Malaysia. Tel : 604-6148400Fax : 604-6439108 QUOTATION NUMBER 56Q0600297 & 56Q0601397A JOB NUMBER 56S060766 & 56S0601411 TEST PERIOD 21 Aug 2006 – 15 Sep 2006 & 17 Dec 2006 - 22 Dec 2006 PREPARED BYAPPROVED BY ____________________ Quek Keng Huat Associate Engineer ____________________ Lim Cher Hwee Assistant Vice President Test Report No. 56S061141/02 dated 27 Dec 2006 Clarion (Malaysia) Sdn. Bhd.Page 2 of 94 Clarion Bluetooth Dongle with iPOD Adaptor & Handsfree Bluetooth Receiver [ Models : BD03 & BS03 ] [ FCC IDs : AX206CMDGL370 & AX206CMBLT370 ] TABLE OF CONTENTS TEST SUMMARY PRODUCT DESCRIPTION SUPPORTING EQUIPMENT DESCRIPTION EUT OPERATING CONDITIONS CONDUCTED EMISSION TEST RADIATED EMISSION TEST CARRIER FREQUENCY SEPARATION TEST SPECTRUM BANDWIDTH (20dB BANDWIDTH MEASUREMENT) TEST NUMBER OF HOPPING FREQUENCIES TEST AVERAGE FREQUENCY DWELL TIME TEST MAXIMUM PEAK POWER TEST RF CONDUCTED SPURIOUS EMISSIONS TEST BAND EDGE COMPLIANCE (CONDUCTED) TEST BAND EDGE COMPLIANCE (RADIATED) TEST PEAK POWER SPECTRAL DENSITY TEST MAXIMUM PERMISSIBLE EXPOSURE (MPE) TEST DUTY CYCLE FACTOR COMPUTATION ANNEX A- EUT PHOTOGRAPHS / DIAGRAMS ANNEX B- FCC LABEL & POSITION ANNEX C- USER MANUAL, TECHNICAL DESCRIPTION, BLOCK & CIRCUIT DIAGRAMS Test Report No. 56S061141/02 dated 27 Dec 2006 Clarion (Malaysia) Sdn. Bhd.Page 3 of 94 Clarion Bluetooth Dongle with iPOD Adaptor & Handsfree Bluetooth Receiver [ Models : BD03 & BS03 ] [ FCC IDs : AX206CMDGL370 & AX206CMBLT370 ] TEST SUMMARY The product was tested in accordance with the customer's specifications. Test Results Summary Test StandardDescriptionPass / Fail FCC Part 15: 2006 15.107(a), 15.207Conducted EmissionsPass * see Modification 1 15.109(a), 15.205, 15.209 Radiated Emissions (Spurious Emissions inclusive Restricted Bands Requirement) Pass Carrier Frequency SeparationPass15.247(a)(1) Spectrum Bandwidth (20dB Bandwidth Measurement) Pass Number of Hopping FrequenciesPass15.247(a)(1)(iii) Average Frequency Dwell TimePass 15.247(b)(1)Maximum Peak PowerPass 15.247(d)RF Conducted Spurious EmissionsPass 15.247(d)Band Edge Compliance (Conducted)Pass 15.247(d)Band Edge Compliance (Radiated)Pass 15.247(e)Peak Power Spectral DensityPass 1.1310Maximum Permissible Exposure Pass 15.35(c)Duty Cycle Factor ComputationRefer to page 76-81 for details Test Report No. 56S061141/02 dated 27 Dec 2006 Clarion (Malaysia) Sdn. Bhd.Page 4 of 94 Clarion Bluetooth Dongle with iPOD Adaptor & Handsfree Bluetooth Receiver [ Models : BD03 & BS03 ] [ FCC IDs : AX206CMDGL370 & AX206CMBLT370 ] TEST SUMMARY Notes 1.Three channels as listed below, which respectively represent the lower, middle and upper channels of the Equipment Under Test (EUT) were chosen and tested. For each channel, the EUT was configured to operate in the test mode. Transmit Channel Frequency (GHz) Channel 02.402 Channel 392.441 Channel 782.480 2.All the measurements in section 15.247 were done based on conducted measurements. 3.The EUT is a Class B device when in non-transmitting state and meets the FCC Part15B Class B requirements. 4.All test measurement procedures are according to ANSI C63.4: 2003. Modifications The EUT was brought to compliance to Conducted Emissions by following modifications: 1. Adding a rectifier diode (1N4002) and a 100uH inductor in +12V input line. 2. Removed dangling serial cable from the PCB board. Test Report No. 56S061141/02 dated 27 Dec 2006 Clarion (Malaysia) Sdn. Bhd.Page 5 of 94 Clarion Bluetooth Dongle with iPOD Adaptor & Handsfree Bluetooth Receiver [ Models : BD03 & BS03 ] [ FCC IDs : AX206CMDGL370 & AX206CMBLT370 ] PRODUCT DESCRIPTION Description: The Equipment Under Test (EUT) is a Clarion Bluetooth Dongle with iPOD Adaptor (BD03) and Handsfree Bluetooth Receiver (BS03). Manufacturer: Clarion (Malaysia) Sdn Bhd Phase 3, Free Industrial Zone, 11900 Bayan Lepas, Penang. Malaysia. Model Number: BD03 (Bluetooth Dongle with iPOD Adaptor) BS03 (Handsfree Bluetooth Receiver) FCC ID: BD03 AX206CMDGL370 BS03 AX206CMBLT370 Serial Number: Nil Microprocessor: Refer to manufacturer Operating / Transmitting Frequency : 2.402GHz (lower channel) to 2.480GHz (upper channel) 79 channels in total Clock / Oscillator Frequency: 12MHz, 36MHz & 72MHz Modulation: Gaussian Frequency Shift Keying (GFSK) Port / Connectors: Bluetooth Dongle with iPOD Adaptor 1. Audio Jack Input …

Text truncated - open the document above for the full version.

1 CHEN, Colin From: LIM, Cher Hwee Sent: 03 May 2007 12:21 To: CHEN, Colin; '[email protected]' Cc: TAN, Lee Tuan; HONG, Richard Subject: RE: Review for Clairon FCC certification Colin, See reply below. Note: My email address has changed [email protected] Kind Regards, Lim Cher Hwee TÜV SÜD PSB Pte Ltd Telecoms & EMC, Testing Group, 1 Science Park Drive Singapore 118 221 Phone: +65 6885 1459 Fax: +65 6774 1459 Mobile: +65 9780 3107 mailto:[email protected] http://www.tuv-sud-psb.com From: CHEN, Colin Sent: Thursday, May 03, 2007 11:29 AM To: LIM, Cher Hwee; [email protected] Cc: TAN, Lee Tuan; HONG, Richard Subject: Review for Clairon FCC certification Dear Cher Hwee, I need you to let me know the following information for the FCC Certification for Clairon. Thanks 1.Antenna Gain for BLT 370 >>CH’s rely: 4.1dBi 2.Antenna Gain for DGL 370 >>CH’s rely: 4.1dBi 3.FCC 15.247(h) – Does the frequency hopping system comply with the non-coordination requirements? >>CH’s reply: The product is a Bluetooth device. It meets this requirement. Dear Danny, I will need you to provide me the following information for Certification purpose asap. Your reply through email will be sufficient. I will not be able to proceed until I receive your feedback. Thanks 1.15.247(a) – Is the hopping sequence pseudorandom, based on the technical description?(Fixed channel increments are not allowed) 2.15.247(a) – Is each channel used equally on average, based on the technical description? (Beacon channels are permitted for isochronous systems only, not for asynchronous systems or dual-mode systems) 3.15.247(a) – Does the associated system receiver have the ability to hop in synchronisation with the transmitter, based on the technical description? (Fast scanning between hops is permitted) Thanks and have a nice day 2 Colin Chen TUV SUD PSB Corporation Pte Ltd 1 Science Park Drive Singapore 118221 Phone: +65 68851271 Fax: +65 67792577 mailto:[email protected] http:/www.tuv-sud-psb.com 1 CHEN, Colin From: Danny [[email protected]] Sent: 03 May 2007 13:52 To: CHEN, Colin; LIM, Cher Hwee Cc: TAN, Lee Tuan; HONG, Richard Subject: RE: Review for Clairon FCC certification Good day Colin, please note answers in red Bold below. Regards, Chu Guangzhi R&D DSP Engineer BITwave Pte Ltd 2 Ang Mo Kio Ave 12 Singapore 569707 Tel : (65) 6484 3496 Fax : (65) 6484 3495 Email :[email protected] [This e-mail is confidential and may also be privileged. If you are not the intended recipient, please delete it and notify us immediately; you should not copy or use it for any purpose, nor disclose its contents to any other person. Thank you.] -----Original Message----- From: CHEN, Colin [mailto:[email protected]] Sent: Thursday, May 03, 2007 11:29 AM To: LIM, Cher Hwee; [email protected] Cc: TAN, Lee Tuan; HONG, Richard Subject: Review for Clairon FCC certification Dear Cher Hwee, I need you to let me know the following information for the FCC Certification for Clairon. Thanks 1.Antenna Gain for BLT 370 2.Antenna Gain for DGL 370 3.FCC 15.247(h) – Does the frequency hopping system comply with the non-coordination requirements? Dear Danny, I will need you to provide me the following information for Certification purpose asap. Your reply through email will be sufficient. I will not be able to proceed until I receive your feedback. Thanks 1.15.247(a) – Is the hopping sequence pseudorandom, based on the technical description?(Fixed channel increments are not allowed) Yes 2.15.247(a) – Is each channel used equally on average, based on the technical description? (Beacon channels are permitted for isochronous systems only, not for asynchronous systems or dual- mode systems) Yes 3.15.247(a) – Does the associated system receiver have the ability to hop in synchronisation with the transmitter, based on the technical description? (Fast scanning between hops is permitted) Yes Thanks and have a nice day Colin Chen 2 TUV SUD PSB Corporation Pte Ltd 1 Science Park Drive Singapore 118221 Phone: +65 68851271 Fax: +65 67792577 mailto:[email protected] http:/www.tuv-sud-psb.com

Set up photos Set Up Photos Set Up Photos Set Up Photos Set Up Photos Set Up Photos Set Up Photos
