AX206CMDGL370Clarion Bluetooth Dongle with iPod Adapter

Owner’s manual BLUETOOTH ® AUDIO TRANSMITTER FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Clarion DGL370 This manual is published by Clarion, without any warranty. Improvements any changes to this manual necessitated by typographical errors, inaccuracies of current information or improvements to programs and/or equipment, may be made by Clarion at any time and without notice. Such changes will, however, be incorporated into new editions of this manual. iPod is for legal or right holder-authorized copying only. Don’t steal music. iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. The Bluetooth ® word mark and logos are owned by the Bluetooth ® SIG, Inc. and any use of such marks by Clarion is under license. Other trademarks and trade names are those of their respective owners. 3 DGL370 CONTENTS 1. WHAT IS INCLUDED IN THIS PACKAGE? ............................................4 2. PRODUCT FEATURES OVERVIEW .......................................................5 Clarion Bluetooth ® Audio Transmitter (DGL370) with iPod ® Cradle Support ..................................................................................................5 3. SETTING UP ............................................................................................ 7 Setting Up DGL370 ................................................................................7 4. INTRODUCTION TO BLUETOOTH ® “PAIRING” .................................10 Pairing Sequence .................................................................................10 Automatic Connection ..........................................................................11 5. OPERATIONS FOR BLUETOOTH ® AUDIO TRANSMITTER ..............12 Buttons Terminology .............................................................................12 Understanding The Transmitter Unit Indicators ....................................13 Basic Operations ..................................................................................14 Music Streaming and Playback Control ...............................................17 6. COMPATIBLE MODELS ........................................................................ 18 7. TROUBLESHOOTING ...........................................................................19 8. SPECIFICATION .................................................................................... 20 9. ADDITIONAL INFORMATION ............................................................... 21 4 DGL370 A complete DGL370 package consists of the following items: Bluetooth ® Audio Transmitter Cigarette charger 1. WHAT IS INCLUDED IN THIS PACKAGE? Transmitter and charger connecting cable (500mm) 5 DGL370 2. PRODUCT FEATURES OVERVIEW The DGL370 is a Audio Transmitter featuring Bluetooth ® wireless technology that support iPod Cradle¹ to allow you to stream your favourite music from your iPod or alternative music source to your car’s audio system. It can also be used for streaming audio to your wireless headset with Bluetooth ® technology when you are out of your car for a full wireless music experience. • Auto features: • Auto-power off after 3 minutes of no activity state. • iPod will auto-power off when Bluetooth ® Audio Transmitter (used with iPod Cradle) is powered off. • Auto-connect with last paired device. • Music streaming features: • Music streaming from any music source (e.g. MP3 player, laptop) using audio stereo cable. • Music streaming and remote control with iPod when used with iPod Cradle. • Charging features: • Dual charging (Transmitter and iPod) when used with iPod Cradle. • Uninterrupt streaming when charging. The DGL370 can be used as: • iPod transmitter with Bluetooth ® wireless technology You can dock your iPod onto the Transmitter unit (used with iPod Cradle) and stream music directly from your iPod to your car stereo with Clarion Bluetooth ® Audio/Mobile-phone Transceiver for AUX Input (BLT370)² or compatible wireless headset³. Clarion Bluetooth ® Audio Transmitter (DGL370) with iPod ® Cradle Support A complete DGL370 package consists of the following items: 6 DGL370 2. PRODUCT FEATURES OVERVIEW • General purpose transmitter with Bluetooth ® wireless technology You can connect any external audio player to the Transmitter unit via an audio stereo cable. Music can be streamed through the car stereo with Clarion Bluetooth ® Audio/Mobile-phone Transceiver for AUX Input or compatible wireless headset. Notes: ¹ iPod Cradle is an iPod docking base, which is one of the Clarion products (sold separately) that works best with DGL370 to provide wireless audio streaming capability for iPod. Cradle will be vary depends on iPod model. Please make sure you get the correct Cradle for your iPod. ² Clarion Bluetooth ® Audio/Mobile-phone Transceiver for AUX Input (BLT370) is one of the Clarion products (sold separately) that allows music streaming via Bluetooth ® wireless technology in the car stereo. Please consult yo…

Text truncated - open the document above for the full version.

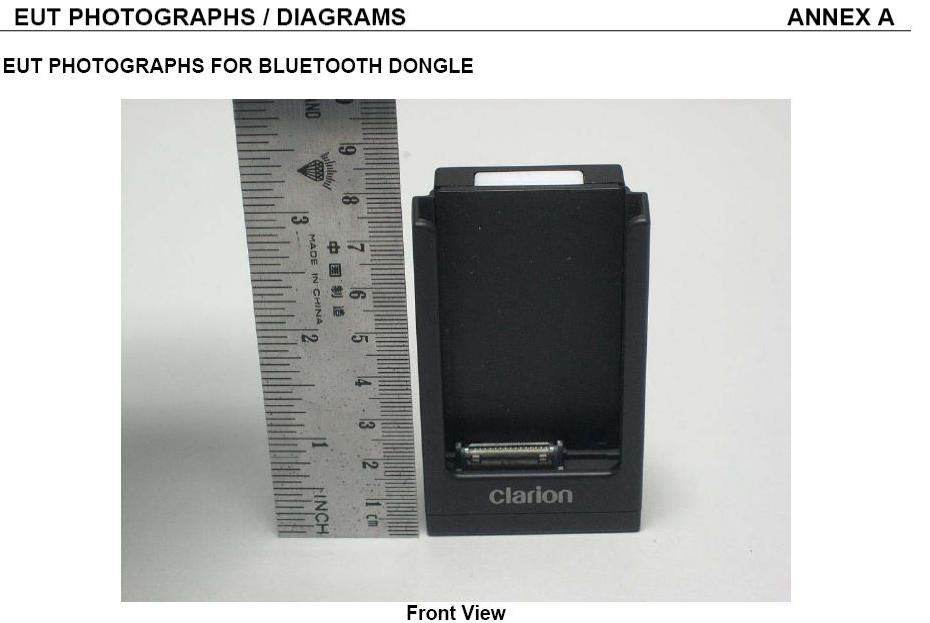

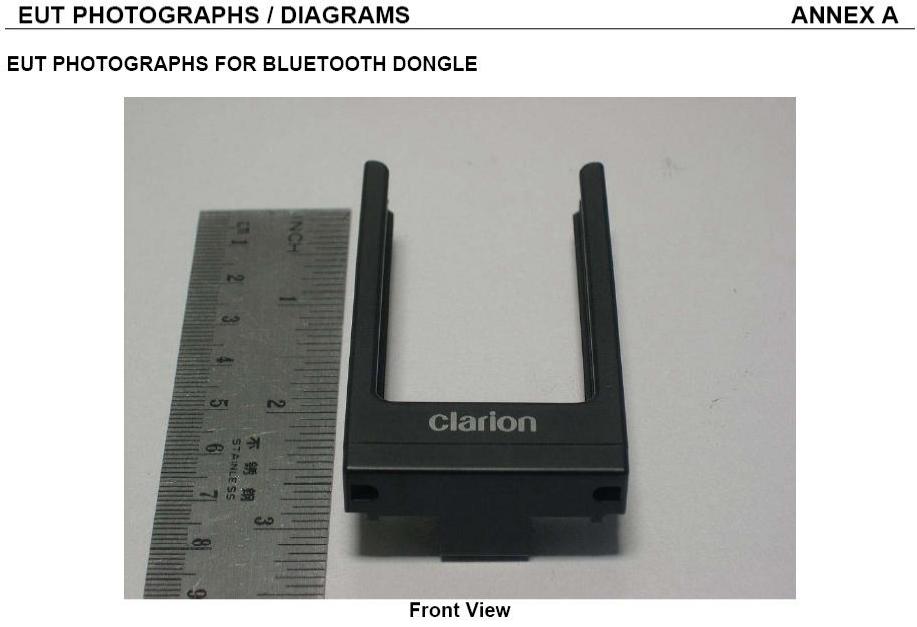

Ext Photos Ext Photos Ext Photos

Labelsmpl & LOC.pdf Labelsmpl & LOC.pdf

Int Photos Int Photos Int Photos Int Photos Int Photos Int Photos

BITwave Pte Ltd Address: 2 Ang Mo Kio Ave 12 Singapore 569707 Tel: 65-6484 3496Fax: 65-6484 3495 Project: BS03D Date: 05/03/2007 Version: 2.7 S/N CommentPatternQuantityComponents1st SupplierManufacturer P/N2nd SupplierManufacturer P/NRemark 1 0R0040211 R27, R25, R33, R38, R42, R44, R46, R47, C70, C71, L8 KOARK73Z1ETTP 2560 R04022R3, R4 KOARK73B1ETTP561J 33.3k04023R28, R29, R48KOARK73B1ETTP332J 44.7 K04021R14KOARK73B1ETTP472J 5470k04021R13KOARK73B1ETTP474J 6 27 K04027 R2, R18, R19, R21, R22, R23, R24 KOARK73B1ETTP273J 733 K04021R15 KOARK73B1ETTP333J 847 K04025R16, R17, R20, R52, R53KOARK73B1ETTP473J 956 K04021R1KOARK73B1ETTP563J 10 100 K040210 R6, R12, R31, R32, R34, R37, R49, R50, R51, R54 KOARK73B1ETTP104J 11 1 M04021R5 KOA RK73B1ETTP105J 12 1 p 504021C 28 MURATA GRM1555C1H1R5CZ01D 138 p 20402 2C29 L4MURATAGRM1552C1H8R2CZ01D 1418 p04023C31, C33, C34MURATAGRM1555C1H180JZ01D 1522 p04021C21MURATAGRM1555C1H220JZ01D 1612p04021C32MURATAGRM1555C1H120JZ01D 17180 p04021C22 MURATAGRM1555C1H181JA01D 18 10 n04022C2, C9 MURATA GRM155R71H103KA88D 19 100 n040210 C1, C5, C7, C23, C24, C25, C30, C44, C50, C62 YAGEO or MURATA C0402KRX7R7BB104 GRM155R61A104KA01D 20390n06032C66, C67 MURATAGRM188R71C394KA88D 211 u06035C4, C8, C12, C26, C49MURATAGRM188R61C105KA12D 224.7 u06034C3, C43, C57, C58MURATAGRM188R60J475KE19D 23 10 uECAP4C6, C10, C27, C60 MURATA GRM21BR60A106KE19L 24 251n004021L3TAIYO YUDENHK1005 1N0S-T 262 n 704021L6MURATALQG15HS2N7S02D 27600 R0603 1L7MURATABLM18BD601SN1 28 4.7 uINDUCT1L1 MURATA LQH32CN4R7M53L 29 12MHz DSX321SLXTAL-X421Y1KDS DSX321G 12MHz 12pf +/- 15ppm JAS X42-12.000 12pf +/- 10ppm 30 32K768 MC146XTAL 1Y2EPSON MC146 32.768kHz 12.5pF 20ppm SIISSPT 7 F 31 36MHzXTAL-X421Y3 MURATA CSTCZ36M0X12R**-B0 32 BC847BSSC701Q1 Lionex: Philips BC847BS 33 34 74LVC1G04SC70-51U3SerialMicro: TISN74LVC1G04DCKRLionex: Philips74LVC1G04GW 3rd supplier:Yosun Manucfaturer:Fairchild : NC7SZ04P5X 3574LVC1G07SC70-51U11SerialMicro: TISN74LVC1G07DCKRLionex: Philips74LVC1G07GW 36 74LVC1G32SC70-52U1, U10SerialMicro: TISN74LVC1G32DCKRLionex: Philips74LVC1G32GW 3rd supplier:Yosun Manucfaturer:Fairchild : NC7SZ32P5X 37BQ25012RHL201U14SerialMicro: TIBQ25012RHLRG4 38 TPS73030SOT23-51U15SerialMicro: TITPS73030DBVRSIIS-1200B30-M5T1G 3rd supplier: Gagner Manufacturer: AAT: AAT3215IGV-3.0-T1 39BT200SOT23-61U12BITwaveBT200 40RF3505VFBGA961U4 YosunRF3505G1-T13YosunSiW3500GIG1 41 SST39VF800-TFBGA48TFBGA481U5Avnet: SpansionAm29SL400CT100RWAFSerialMicro: SST SST39WF400A-90- 4IB3KE 42 ADSST-BTW 2000MBGA1441U6 Yosun ADSST-BTW2000 431PS76SB70DIODE1D5Lionex:Philips1PS76SB70 44LED BLUEHT-S911D2SOURCEONEHT-121NB 45 LED REDHT-S911D1 SOURCEONE HT-121USD 46 TLV320AIC23BQFN281U7 SerialMicro: TI TLV320AIC23BIRHDR 47SW -PBTACT2S1, S2GAGNERIT-1186AU2 482.5mm jackKM030111J1KUNMINGKM03011 49CON14MOLEX50101414741J2 WPI5010141474 50USB_MINI_BMINI-USB1J3Molex675031020KUNMINGKM13100010922451 51DIELECTRIC ANTANT_7.8x3.61A1YAGEOCAN4311115002601K 52 Battery connector (bundle with battery) 1BTCLELCO:24 8005 002 100 867 53 Battery 1 TCL SP043043-01 TOTAL:109 Battery wiring specification DescriptionSpecification 1Part numSP043043-01 2Connectorsplug harness + receptacle should be included 3leadwire length25mm 4wire orientation on plug harness: see pic on the irght: red wire(+ve) on the left side, black wire(-ve) on the right side 5W ire thicknessAW G 28,AW G 30, AW G 32 (in running priority) 6W ire exit pointFrom right 7Protection circuit(PCM) To be determined by Clarion 10/05/06: 1. Item 50, change part number from KM13112W0 to KM13106 or KM13109. 2. Item 47, IT-1186AP2 or IT-1186AU2. 23/05/06: 1. Item 49, change part number from 5008821470 to 5010141474. 12/06/06: 1. item 31, change part number from "X42 36MHz 18pf 30ppm" to "CSTCZ36M0X". 19/06/2006: 1. ITEM 52, add battery connector. 2. item 38, add 2nd supplier. 22/06/2006: 1. item 10, add R54 100k. 2. item 19, add C1 100nF. 3. item 1, add R10 and L8 0R0. remove R27. 4. item 27, add L2. 5. item 7, remove R36. 6. item 29, change crystal load capacitor value from 18pF to 12pF. 23/06/2006: 1. Modify some part number as vendor recommended. 2. Item 52, modify part number as free bundled with battery. 3. Item 53, add Battery. 4. Add TCL supplier in Supplier Contact sheet. 5. Add Battery wiring specification. 6. Item 44 and 45, change LED from top view type HT-S91 series to side view type HT-121 series. 26/06/2006: 1. Added more parameters for battery 2. Item 31, add part number detail. 3. Item 33, Change 1st Supplier and part number. 4. Item 15, remove C40 and C41. 29/06/06: 1. Item 13, 8.2pF part num changed from GRM1555C1H8R2CZ01D to GRM1552C1H8R2DZ01D 2. Item 34,36, new supplier added 3. Item 50 change from KM13106 to KM13100010922451 30/06/06: 1. Remove R9 from item 1 (0R0). 2. Remove R8 from item 6 (27K). 3. Remove Q2 in item 33 (2N7002). 05/07/06: 1. Item 13, part num changed from GRM1552C1H8R2DZ01D to GRM1552C1H8R2CZ01D 2. Item 37, part num changed from BQ25012RHLR to BQ25012RHLRG4 14/07/06: 1.Item 11, add R5 to 1M ohm 10/08/06: 1. Item 30, added 2nd supplier 17/08/06: 1. Item 13, change value L4 from 1n2 (item 24) to 8p2 (item 13). 15/09/06: 1. Item 38, add 2nd supplier and part number. 02/11/06: 1. Item 25, change part number from LQG15HS1N8S02D (Murata) to HK1005 1N8S-T (TAIYO YUDEN). 10/11/06: 1. Update this BOM for PCB V2.1. 2. Item 10, add R51 to 100k. 3. Item 36, add U1 to 74LVC1G32. 11/12/06: 1. Item 41, add Spansion flash Am29SL400CT100RWAF. 2. Item 40, change part number from SiW3500 to RF3505. 3. Item 50, add supplier Molex - part num 0675031020 18/12/06: 1. Item 25, change value from 1n8 to 1n0. New Part. 05/03/07: 1. Item 27, remove L2 . 2. Item 1, remove R10 and add R27. 3. Item 11, remove R21, R22, R23, R24. 4. Item 6, add R21, R22, R23, R24. plug harness receptable wire exit from right

Test Report No. 56S061141/02 dated 27 Dec 2006 Note: This report is issued subject to TÜV SÜD PSB Corporation's "Terms and Conditions Governing Technical Services". The terms and conditions governing the issue of this report are set out as attached within this report. LA-2001-0212-A LA-2001-0213-F LA-2001-0214-E LA-2001-0215-B LA-2001-0216-G LA-2001-0217-G LA-2006-0355-C The results reported herein have been performed in accordance with the laboratory’s terms of accreditation under the Singapore Accreditation Council - Singapore Laboratory Accreditation Scheme. Tests/Calibrations marked "Not SAC-SINGLAS Accredited" in this Report are not included in the SAC-SINGLAS Accreditation Schedule for our laboratory. Laboratory: TÜV SÜD PSB Corporation Pte. Ltd. Testing Group No.1 Science Park Drive Singapore 118221 Phone : +65-6885 1333 Fax : +65-6776 8670 E-mail: [email protected] www.psbcorp.com Co. Reg : 199002667R Regional Head Office: TÜV SÜD Asia Pacific Pte. Ltd. 3 Science Park Drive #04-01/05 The Franklin Singapore 118223 Page 1 of 94 FORMAL REPORT ON TESTING IN ACCORDANCE WITH FCC Parts 15B & C : 2006 OF A CLARION BLUETOOTH DONGLE WITH iPOD ADAPTOR & HANDSFREE BLUETOOTH RECEIVER [ Models : BD03 & BS03 ] [ FCC IDs : AX206CMDGL370 & AX206CMBLT370 ] TEST FACILITY Telecoms & EMC, Testing Group, PSB Corporation Pte Ltd 1 Science Park Drive, Singapore 118221 FCC REG. NO. 90937 (3m & 10m OATS) 99142 (10m Anechoic Chamber) 871638 (5m Anechoic Chamber) 325572 (10m Anechoic Chamber) IND. CANADA REG. NO. IC 4257 (3m and 10m Anechoic Chambers) PREPARED FOR Clarion (Malaysia) Sdn Bhd Phase 3, Free Industrial Zone, 11900 Bayan Lepas, Penang. Malaysia. Tel : 604-6148400Fax : 604-6439108 QUOTATION NUMBER 56Q0600297 & 56Q0601397A JOB NUMBER 56S060766 & 56S0601411 TEST PERIOD 21 Aug 2006 – 15 Sep 2006 & 17 Dec 2006 - 22 Dec 2006 PREPARED BYAPPROVED BY ____________________ Quek Keng Huat Associate Engineer ____________________ Lim Cher Hwee Assistant Vice President Test Report No. 56S061141/02 dated 27 Dec 2006 Clarion (Malaysia) Sdn. Bhd.Page 2 of 94 Clarion Bluetooth Dongle with iPOD Adaptor & Handsfree Bluetooth Receiver [ Models : BD03 & BS03 ] [ FCC IDs : AX206CMDGL370 & AX206CMBLT370 ] TABLE OF CONTENTS TEST SUMMARY PRODUCT DESCRIPTION SUPPORTING EQUIPMENT DESCRIPTION EUT OPERATING CONDITIONS CONDUCTED EMISSION TEST RADIATED EMISSION TEST CARRIER FREQUENCY SEPARATION TEST SPECTRUM BANDWIDTH (20dB BANDWIDTH MEASUREMENT) TEST NUMBER OF HOPPING FREQUENCIES TEST AVERAGE FREQUENCY DWELL TIME TEST MAXIMUM PEAK POWER TEST RF CONDUCTED SPURIOUS EMISSIONS TEST BAND EDGE COMPLIANCE (CONDUCTED) TEST BAND EDGE COMPLIANCE (RADIATED) TEST PEAK POWER SPECTRAL DENSITY TEST MAXIMUM PERMISSIBLE EXPOSURE (MPE) TEST DUTY CYCLE FACTOR COMPUTATION ANNEX A- EUT PHOTOGRAPHS / DIAGRAMS ANNEX B- FCC LABEL & POSITION ANNEX C- USER MANUAL, TECHNICAL DESCRIPTION, BLOCK & CIRCUIT DIAGRAMS Test Report No. 56S061141/02 dated 27 Dec 2006 Clarion (Malaysia) Sdn. Bhd.Page 3 of 94 Clarion Bluetooth Dongle with iPOD Adaptor & Handsfree Bluetooth Receiver [ Models : BD03 & BS03 ] [ FCC IDs : AX206CMDGL370 & AX206CMBLT370 ] TEST SUMMARY The product was tested in accordance with the customer's specifications. Test Results Summary Test StandardDescriptionPass / Fail FCC Part 15: 2006 15.107(a), 15.207Conducted EmissionsPass * see Modification 1 15.109(a), 15.205, 15.209 Radiated Emissions (Spurious Emissions inclusive Restricted Bands Requirement) Pass Carrier Frequency SeparationPass15.247(a)(1) Spectrum Bandwidth (20dB Bandwidth Measurement) Pass Number of Hopping FrequenciesPass15.247(a)(1)(iii) Average Frequency Dwell TimePass 15.247(b)(1)Maximum Peak PowerPass 15.247(d)RF Conducted Spurious EmissionsPass 15.247(d)Band Edge Compliance (Conducted)Pass 15.247(d)Band Edge Compliance (Radiated)Pass 15.247(e)Peak Power Spectral DensityPass 1.1310Maximum Permissible Exposure Pass 15.35(c)Duty Cycle Factor ComputationRefer to page 76-81 for details Test Report No. 56S061141/02 dated 27 Dec 2006 Clarion (Malaysia) Sdn. Bhd.Page 4 of 94 Clarion Bluetooth Dongle with iPOD Adaptor & Handsfree Bluetooth Receiver [ Models : BD03 & BS03 ] [ FCC IDs : AX206CMDGL370 & AX206CMBLT370 ] TEST SUMMARY Notes 1.Three channels as listed below, which respectively represent the lower, middle and upper channels of the Equipment Under Test (EUT) were chosen and tested. For each channel, the EUT was configured to operate in the test mode. Transmit Channel Frequency (GHz) Channel 02.402 Channel 392.441 Channel 782.480 2.All the measurements in section 15.247 were done based on conducted measurements. 3.The EUT is a Class B device when in non-transmitting state and meets the FCC Part15B Class B requirements. 4.All test measurement procedures are according to ANSI C63.4: 2003. Modifications The EUT was brought to compliance to Conducted Emissions by following modifications: 1. Adding a rectifier diode (1N4002) and a 100uH inductor in +12V input line. 2. Removed dangling serial cable from the PCB board. Test Report No. 56S061141/02 dated 27 Dec 2006 Clarion (Malaysia) Sdn. Bhd.Page 5 of 94 Clarion Bluetooth Dongle with iPOD Adaptor & Handsfree Bluetooth Receiver [ Models : BD03 & BS03 ] [ FCC IDs : AX206CMDGL370 & AX206CMBLT370 ] PRODUCT DESCRIPTION Description: The Equipment Under Test (EUT) is a Clarion Bluetooth Dongle with iPOD Adaptor (BD03) and Handsfree Bluetooth Receiver (BS03). Manufacturer: Clarion (Malaysia) Sdn Bhd Phase 3, Free Industrial Zone, 11900 Bayan Lepas, Penang. Malaysia. Model Number: BD03 (Bluetooth Dongle with iPOD Adaptor) BS03 (Handsfree Bluetooth Receiver) FCC ID: BD03 AX206CMDGL370 BS03 AX206CMBLT370 Serial Number: Nil Microprocessor: Refer to manufacturer Operating / Transmitting Frequency : 2.402GHz (lower channel) to 2.480GHz (upper channel) 79 channels in total Clock / Oscillator Frequency: 12MHz, 36MHz & 72MHz Modulation: Gaussian Frequency Shift Keying (GFSK) Port / Connectors: Bluetooth Dongle with iPOD Adaptor 1. Audio Jack Input …

Text truncated - open the document above for the full version.

1 CHEN, Colin From: LIM, Cher Hwee Sent: 03 May 2007 12:21 To: CHEN, Colin; '[email protected]' Cc: TAN, Lee Tuan; HONG, Richard Subject: RE: Review for Clairon FCC certification Colin, See reply below. Note: My email address has changed [email protected] Kind Regards, Lim Cher Hwee TÜV SÜD PSB Pte Ltd Telecoms & EMC, Testing Group, 1 Science Park Drive Singapore 118 221 Phone: +65 6885 1459 Fax: +65 6774 1459 Mobile: +65 9780 3107 mailto:[email protected] http://www.tuv-sud-psb.com From: CHEN, Colin Sent: Thursday, May 03, 2007 11:29 AM To: LIM, Cher Hwee; [email protected] Cc: TAN, Lee Tuan; HONG, Richard Subject: Review for Clairon FCC certification Dear Cher Hwee, I need you to let me know the following information for the FCC Certification for Clairon. Thanks 1.Antenna Gain for BLT 370 >>CH’s rely: 4.1dBi 2.Antenna Gain for DGL 370 >>CH’s rely: 4.1dBi 3.FCC 15.247(h) – Does the frequency hopping system comply with the non-coordination requirements? >>CH’s reply: The product is a Bluetooth device. It meets this requirement. Dear Danny, I will need you to provide me the following information for Certification purpose asap. Your reply through email will be sufficient. I will not be able to proceed until I receive your feedback. Thanks 1.15.247(a) – Is the hopping sequence pseudorandom, based on the technical description?(Fixed channel increments are not allowed) 2.15.247(a) – Is each channel used equally on average, based on the technical description? (Beacon channels are permitted for isochronous systems only, not for asynchronous systems or dual-mode systems) 3.15.247(a) – Does the associated system receiver have the ability to hop in synchronisation with the transmitter, based on the technical description? (Fast scanning between hops is permitted) Thanks and have a nice day 2 Colin Chen TUV SUD PSB Corporation Pte Ltd 1 Science Park Drive Singapore 118221 Phone: +65 68851271 Fax: +65 67792577 mailto:[email protected] http:/www.tuv-sud-psb.com 1 CHEN, Colin From: Danny [[email protected]] Sent: 03 May 2007 13:52 To: CHEN, Colin; LIM, Cher Hwee Cc: TAN, Lee Tuan; HONG, Richard Subject: RE: Review for Clairon FCC certification Good day Colin, please note answers in red Bold below. Regards, Chu Guangzhi R&D DSP Engineer BITwave Pte Ltd 2 Ang Mo Kio Ave 12 Singapore 569707 Tel : (65) 6484 3496 Fax : (65) 6484 3495 Email :[email protected] [This e-mail is confidential and may also be privileged. If you are not the intended recipient, please delete it and notify us immediately; you should not copy or use it for any purpose, nor disclose its contents to any other person. Thank you.] -----Original Message----- From: CHEN, Colin [mailto:[email protected]] Sent: Thursday, May 03, 2007 11:29 AM To: LIM, Cher Hwee; [email protected] Cc: TAN, Lee Tuan; HONG, Richard Subject: Review for Clairon FCC certification Dear Cher Hwee, I need you to let me know the following information for the FCC Certification for Clairon. Thanks 1.Antenna Gain for BLT 370 2.Antenna Gain for DGL 370 3.FCC 15.247(h) – Does the frequency hopping system comply with the non-coordination requirements? Dear Danny, I will need you to provide me the following information for Certification purpose asap. Your reply through email will be sufficient. I will not be able to proceed until I receive your feedback. Thanks 1.15.247(a) – Is the hopping sequence pseudorandom, based on the technical description?(Fixed channel increments are not allowed) Yes 2.15.247(a) – Is each channel used equally on average, based on the technical description? (Beacon channels are permitted for isochronous systems only, not for asynchronous systems or dual- mode systems) Yes 3.15.247(a) – Does the associated system receiver have the ability to hop in synchronisation with the transmitter, based on the technical description? (Fast scanning between hops is permitted) Yes Thanks and have a nice day Colin Chen 2 TUV SUD PSB Corporation Pte Ltd 1 Science Park Drive Singapore 118221 Phone: +65 68851271 Fax: +65 67792577 mailto:[email protected] http:/www.tuv-sud-psb.com

Set up photos Set Up Photos Set Up Photos Set Up Photos Set Up Photos Set Up Photos Set Up Photos
