AX2CZ301Car CD Player

Clarion Co Ltd Date:2010-09-01 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: AX2CZ301 To Whom It May Concern: This letter is to ascertain that Coby Communications Ltd. Product: Car CD Player (M/N: CZ301) has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, ------------------------------------------------ Masahiko Shibata Manager Tel: 81-48-601-4121 Fax: 81-48-601-3802 Clarion Co Ltd 7-2,Shintoshin,Chuo-ku,Saitama-Shi Saitama 330-0081

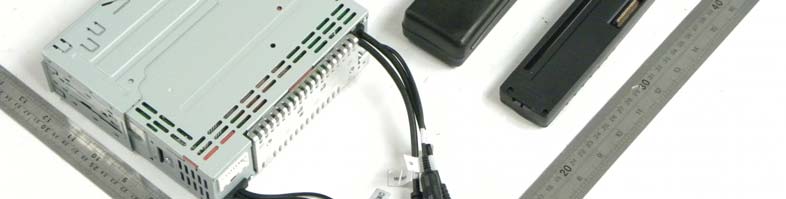

General Appearance of the EUT

CHINA 530-1710kHz87.9-107.9MHz THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THIS DEVICE COMPLIES WITH DHHS RULES 21 CFR CHAPTER I SUBCHAPTER J APPLICABLE AT DATE OF MANUFACTURE. CLARION CO.,LTD. 7-2,SHINTOSHIN,CHUO-KU,SAITAMA-SHI,SAITAMA-KEN,JAPAN MANUFACTURED: URF PN:127070006827TX-1063B-A This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from MSLGP. FCC ID: AX2CZ301 65 mm 65 mm

FCC ID Lable Location On EUT

Antenna Antenna Antenna

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) FCC ID： AX2CZ301 EUT Specification EUT Car CD Player Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power -1.75dBm (0.668mW) Antenna gain (Max) 4 dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 High 2480 0.259 4 1.29e-4 1 Middle 2441 0.668 4 3.34e-4 1 Low 2402 0.615 4 3.07e-4 1 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in Mw G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Antenna gain: 4 dBi Channel Channel Frequency (MHz) Output Peak power (mW) Antenna Gain (dBi) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 )

DONGGUAN EMTEK CO., LTD. REPORT NO:KAD100824036E FCC ID: AX2CZ301 DATE: 09/01/2010 Page 1 of 42 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Car CD Player MODEL No.: CZ301 BRAND NAME: Clarion FCC ID: AX2CZ301 REPORT NO: KAD100824036E ISSUE DATE: September 01, 2010 Prepared for Clarion Co Ltd 7-2,Shintoshin,ChuO-ku,Saitama-Shi Saitama 330-0081 Prepared by DONGGUAN EMTEK CO., LTD No.281, Guantai Road, Nancheng District, Dongguan, Guangdong, China TEL: 86-769-22807078 FAX: 86-769-22807079 DONGGUAN EMTEK CO., LTD. REPORT NO:KAD100824036E FCC ID: AX2CZ301 DATE: 09/01/2010 Page 2 of 42 VERIFICATION OF COMPLIANCE Applicant: Clarion Co Ltd 7-2,Shintoshin,Chuo-ku,Saitama-Shi Saitama 330-0081 Product Description: Car CD Player Brand Name: Clarion Model Number: CZ301 Serial Number: N/A File Number: KAD100824036E Date of Test: August 24, 2010 to September 01, 2010 We hereby certify that: The above equipment was tested by DONGGUAN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Approved By Nicol Lee / Q.A. Manager DONGGUAN EMTEK CO., LTD. DONGGUAN EMTEK CO., LTD. REPORT NO:KAD100824036E FCC ID: AX2CZ301 DATE: 09/01/2010 Page 3 of 42 Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ................................................................................................. 5 1.1 PRODUCT DESCRIPTION........................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S) ..................................................................................................... 5 1.3 TEST METHODOLOGY.............................................................................................................................. 5 1.4 SPECIAL ACCESSORIES............................................................................................................................ 5 1.5 EQUIPMENT MODIFICATIONS.................................................................................................................. 5 1.6 TEST FACILITY........................................................................................................................................ 6 2. SYSTEM TEST CONFIGURATION .................................................................................... 7 2.1 EUT CONFIGURATION............................................................................................................................. 7 2.2 EUT EXERCISE........................................................................................................................................ 7 2.3 TEST PROCEDURE.................................................................................................................................... 7 2.4 LIMITATION............................................................................................................................................. 7 2.5 CONFIGURATION OF TESTED SYSTEM................................................................................................... 11 3. SUMMARY OF TEST RESULTS ....................................................................................... 12 4. DESCRIPTION OF TEST MODES .................................................................................... 12 5. RADIATED EMISSION TEST ............................................................................................ 13 5.1 MEASUREMENT PROCEDURE................................................................................................................. 13 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 14 5.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 15 5.4 MEASUREMENT RESULT........................................................................................................................ 15 5.5 RADIATED MEASUREMENT PHOTOS: ......................................................................................................... 19 6. CHANNEL SEPARATION TEST ....................................................................................... 20 6.1 MEASUREMENT PROCEDURE................................................................................................................. 20 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 20 6.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 20 6.4 MEASUREMENT RESULTS:..................................................................................................................... 20 7. 20DB BANDWIDTH TEST .................................................................................................. 23 7.1 MEASUREMENT PROCEDURE................................................................................................................. 23 7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 23 7.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 23 7.4 MEASUREMENT RESULTS:..................................................................................................................... 23 8. QUANTITY OF HOPPING CHANNEL TEST.............................................................…

Text truncated - open the document above for the full version.

Radiated Emission Setup Photos
