AX2PF3292Car Audio

SUBARU Standard model Operation 100126.doc - 1 / 183 - SUBARU CAR AUDIO STANDARD MODEL OPERATION SPECIFICATION Standard model FCC ID : AX2PF3292 IC ID : 419C-PF3292 Model name : PF-3*** series 26, Jan. 2010 Ver.0.09 SUBARU Standard model Operation 100126.doc - 2 / 183 - １． Table of Contents １． Table of Contents...................................................................................................................................................................................................................................................................2 ２． OUTLINE..........................................................................................................................................................................................................................................................................................6 ２-１． Destination / Model Set Name............................................................................................................................................................................................................................6 ２-２． Warning...............................................................................................................................................................................................................................................................................6 ２-３． Surface Image.................................................................................................................................................................................................................................................................7 ３． Feature List....................................................................................................................................................................................................................................................................................8 ４． Key Disposition.......................................................................................................................................................................................................................................................................11 ４-１． Body..................................................................................................................................................................................................................................................................................11 ４-２． Remote Controller....................................................................................................................................................................................................................................................12 ５． Operation Specification.....................................................................................................................................................................................................................................................13 ５-１． Audio Common Operation...................................................................................................................................................................................................................................13 ５-１-１． VOLUME UP / DOWN.....................................................................................................................................................................................................................................13 ５-１-２． Switch to TONE / BALANCE Adjustment Mode..........................................................................................................................................................................14 ５-１-３． Adujust TONE / BALANCE UP / DOWN...................................................................................................................................................................................15 ５-２． Operation of MENU...............................................................................................................................................................................................................................................16 ５-２-１． Switch to MENU Mode..................................................................................................................................................................................................................................16 ５-２-２． BT Audio Setting..................................................................................................................................................................................................................................................17 ５-２-３． Adjust REG...............................................................................................................................................................................................................................................................19 ５-２-４． Adjust Interrupt Volume...............................................................................................................................................................................................................................20 ５-２-５． Adjust SPEED VOLUME CONTROL (SVC).....................................................................................................................................................................................21 ５-２-６． Adjust BEEP............................................................................................................................................................................................................................................................22 ５-３． Operation of RADIO （RBDS）................................................................................................................…

Text truncated - open the document above for the full version.

Car audio Model No.: PF-3292A-A, PF-3297B-A Difference between PF-3292A-A and PF-3297B-A is only model of vehicles in which the equipment is installed. Therefore, there is no difference of the radio characteristics between these models.

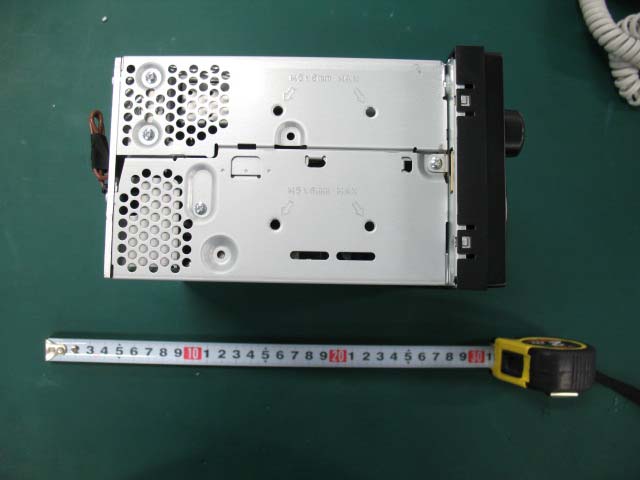

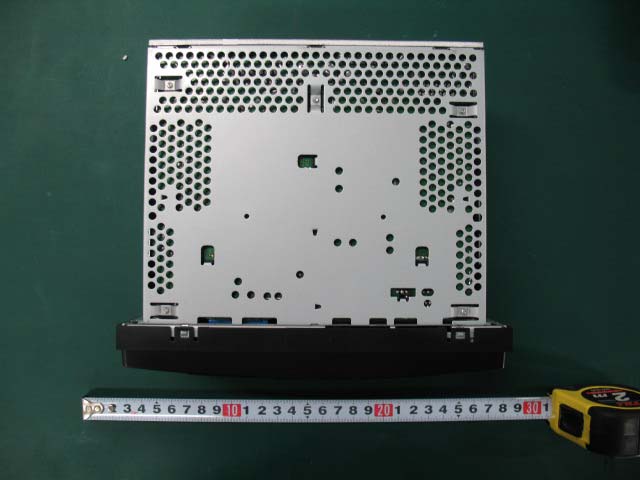

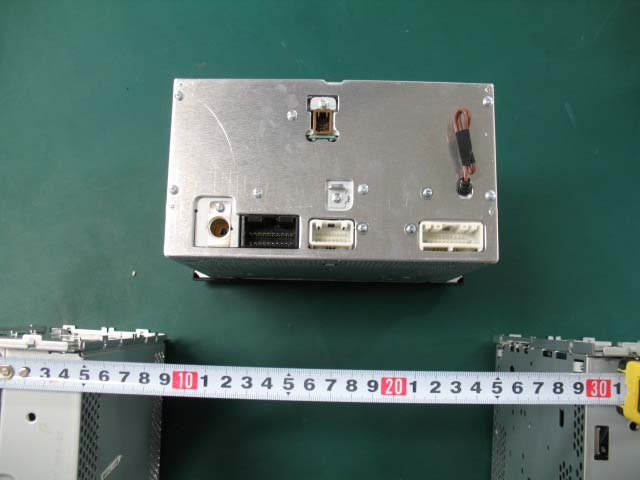

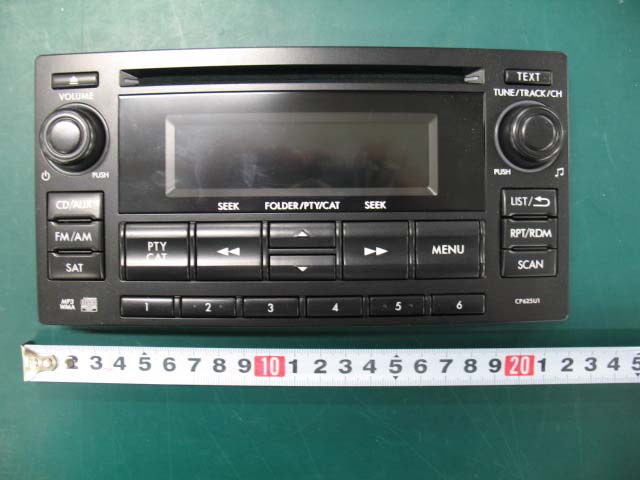

External Photo Clarion Co., Ltd. Car audio [Model: PF-3292A-A] Front Rear External Photo Clarion Co., Ltd. Car audio [Model: PF-3292A-A] Top Bottom External Photo Clarion Co., Ltd. Car audio [Model: PF-3292A-A] Right Left

External Photo Clarion Co., Ltd. Car audio [Model: PF-3297B-A] Front Rear External Photo Clarion Co., Ltd. Car audio [Model: PF-3297B-A] Top Bottom External Photo Clarion Co., Ltd. Car audio [Model: PF-3297B-A] Right Left

Internal Photo Clarion Co., Ltd. Car audio 㪬㪞㪱㪱㪘㪄㪊㩷㪧㪿㫆㫋㫆 TOP VIEW BOTTOM VIEW TOP VIEW without Cover

UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 Applicant: Clarion Co., Ltd. Type of Equipment : Car audio M odel No. : PF-3292A-A FCC ID: AX2PF3292 Clarion Co., Ltd. declares that Model : Car audio complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “PF-3292A-A“ has 0.94 mW of conducted Peak Output power and 1.24 mW of EIRP. This equipment is considered as a mobile device so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “PF-3292A-A“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exp o su re lim it. T he F riis fo rm u la u sed w as: S = (P * G) / (4* π * r 2 ) Where P = 0.94 mW (M aximum peak output power) G = 1.31 Numerical Antenna gain; equal 1.18 dBi r =20.0 cm For: PF-3292A-AS = 0.00025 mW/cm 2 No. : 29HE0144-YK-A RF Exposure / SAR Statement

FCC ID : AX2PF3292 Test report No. : 29HE0144-YK-A Page : 2 of 71 Issued date : December 25, 2009 UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 Table of Contents Page 1 Applicant information 3 2 Equipment under test (E.U.T.) 3 3 Test specification, procedures and results 4 4 System test configuration 6 5 Carrier frequency separation 9 6 20dB bandwidth & Occupied bandwidth (99%) 9 7 Number of hopping frequency 9 8 Dwell time 9 9 Maximum peak output power 9 10 Out of band emissions (Antenna port conducted) 9 11 Out of band emissions (Radiated) 10 Contents of Appendixes 11 APPENDIX 1: Photographs of test setup 12 APPENDIX 2: Test data 13 APPENDIX 3: Test instruments 71 FCC ID : AX2PF3292 Test report No. : 29HE0144-YK-A Page : 3 of 71 Issued date : December 25, 2009 UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 1 Applicant information Company Name : Clarion Co., Ltd. Address : 7-2 Shintoshin, Chuo-ku, Saitama-shi, Saitama, 330-0081 Japan Telephone Number : +81-48-601-4121 Facsimile Number : +81-48-601-3802 Contact Person : Masahiko Shibata 2 Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Car audio Model No. : PF-3292A-A Serial No. : PF3292AA118 Rating : DC13.2V Country of Mass-production : China Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. Receipt Date of Sample : December 3 and 14, 2009 2.2 Product description Model: PF-3292A-A (referred to as the EUT in this report) is a Car audio. Clock frequency: 32.768kHz, 9MHz, 10MHz, 16.92MHz, 20.5MHz, 26MHz, 41.6MHz Similar Model of the EUT: PF-3297B-A Difference between PF-3292A-A and PF-3297B-A: Model of vehicles in which the equipment is installed Equipment type : Transceiver Frequency of operation : 2402-2480MHz Bandwidth & channel spacing : 79MHz & 1MHz Type of modulation : FHSS Antenna type : Chip Antenna gain with cable loss : +1.18dBi Antenna connector type : None ITU code : F1D, G1D Operation temperature range : -20 to +60 deg.C. FCC Part15.31 (e) The equipment provides the Bluetooth transmitter with stable power supply (DC 1.5V and DC 3.3V), therefore, the equipment complies power supply regulation. FCC Part15.203 Antenna requirement The equipment and its antenna comply with this requirement since this antenna is built in the equipment and it cannot be replaced by end users. FCC ID : AX2PF3292 Test report No. : 29HE0144-YK-A Page : 4 of 71 Issued date : December 25, 2009 UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 3 Test specification, procedures and results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2009, final revised on December 2, 2009 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz The EUT complies with FCC Part 15 Subpart B: 2009, final revised on December 2, 2009. Refer to the test report: 29HE0144-YK-C. 3.2 Procedures & Results Item Test Procedure Specification Remarks DeviationWorst Margin Results Conducted emission ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC Section 15.207 - N/A *1) N/A N/A Carrier frequency separation FCC Public Notice DA 00-705 & ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.247 (a)(1) Conducted N/A Complied 20dB bandwidth FCC Public Notice DA 00-705 & ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.247 (a)(1) Conducted N/A Complied Number of hopping frequency FCC Public Notice DA 00-705 & ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.247 (a)(1)(iii) Conducted N/A Complied Dwell time FCC Public Notice DA 00-705 & ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.247 (a)(1)(iii) Conducted N/A Complied Maximum peak output power FCC Public Notice DA 00-705 & ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.247 (b)(1) Conducted N/A *See data. Complied Band edge compliance & Spurious emission FCC Public Notice DA 00-705 & ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.247 (d) Section15.209 Conducted/ Radiated N/A 8.0dB (9764.00MHz, Horizontal, Tx 2441MHz, DH5) Complied Note: UL Japan’s EMI Work Procedures No.QPM05 and QPM15. *1) The test is not applicable since the EUT has no AC mains. FCC ID : AX2PF3292 Test report No. : 29HE0144-YK-A Page : 5 of 71 Issued date : December 25, 2009 UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 3.3 Addition to standard Item Test Procedure Specification Remarks Worst Margin Results Occupied bandwidth (99%) ANSI C63.4:2003 13. Measurement of intentional radiators RSS-Gen 4.6.1 RSS-Gen 4.6.1 Conducted- Complied * Other than above, no addition, exclusion nor deviation has been made from the standard. 3.4 Uncertainty The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. No.1 open site ( ± ) No.2 open site ( ± ) No.1 anechoic chamber ( ± ) Radiated emission (3m) <30MHz 2.4 dB 2.4 dB 2.7 dB 30-300MHz 4.3 dB 4.3 dB 4.6 dB 300-1000MHz 4.3 dB 4.3 dB 4.5 dB 1GHz< 5.7 dB 5.8 dB 5.7 dB The data listed in this test report has enough margin, more than site margin. Antenna port conducted test ( ± ) Below 1GHz 0.4dB 1GHz and above 0.7dB 3.5 Test location UL Japan, Inc. Yamakita EMC Lab. 907, Kawanishi, Yamakita-machi, Ashigarakami-gu…

Text truncated - open the document above for the full version.

Company: Clarion Co., Ltd. Report No.: 29HE0144 -YK-A Kind of Equipment: Car Audio Model No.: PF-3292A-A Serial No.: PF3292AA118 Power: DC12.0V Page: 13 Channel Separation (Regulation: FCC 15.247(a)(1)) UL Japan, Inc. Yamakita EMC lab. No.4 shielded room Date: 2009.12.14 Temp./Humid.: 21 deg. C. / 35 % Engineer: Minoru Nakatake Test mode: Transmitting Limit: ≥25kHz or 2/3 * 20dB Bandwidth (Power: No greater than 125mW) 1. Hopping, DH5: 1.004MHz (2/3*20dB Bandwidth:2/3*932.5kHz = 621.7kHz) 2. Hopping, 3DH5: 1.008MHz (2/3*20dB Bandwidth:2/3*1.2475MHz = 831.7kHz) Company: Clarion Co., Ltd. Report No.: 29HE0144-YK-A Kind of Equipment: Car Audio Model No.: PF-3292A-A Serial No.: PF3292AA118 Power: DC12.0V Page: 20dB Bandwidth (Regulation: FCC 15.247(a)(1)) UL Japan, Inc. Yamakita EMC lab. No.4 shielded room Date: 2009.12.15 Temp./Humid.: 22 deg. C. / 30 % Engineer: Minoru Nakatake Test mode: Transmitting [Hopping off, DH5] 1. ch : 2402MHz/20dB Bandwidth:932.5kHz 2. ch : 2441MHz/20dB Bandwidth:922.5kHz 3. ch : 2480MHz/20dB Bandwidth:920.0kHz 14 Company: Clarion Co., Ltd. Report No.: 29HE0144-YK-A Kind of Equipment: Car Audio Model No.: PF-3292A-A Serial No.: PF3292AA118 Power: DC12.0V Page: [Hopping off, 3DH5] 4. ch : 2402MHz/20dB Bandwidth:1.2450MHz 5. ch : 2441MHz/20dB Bandwidth:1.2450MHz 6. ch : 2480MHz/20dB Bandwidth:1.2475MHz 15 Company: Clarion Co., Ltd. Report No.: 29HE0144-YK-A Kind of Equipment: Car Audio Model No.: PF-3292A-A Serial No.: PF3292AA118 Power: DC12.0V Page: Channel Utilization (Regulation: FCC 15.247(a)(1)(iii)) UL Japan, Inc. Yamakita EMC lab. No.4 shielded room Date: 2009.12.14 Temp./Humid.: 21 deg. C. / 35 % Engineer: Minoru Nakatake Test mode: Transmitting Hopping, DH5: 79ch 1. 2. 3. 16 Company: Clarion Co., Ltd. Report No.: 29HE0144-YK-A Kind of Equipment: Car Audio Model No.: PF-3292A-A Serial No.: PF3292AA118 Power: DC12.0V Page: 4. 5. 17 Company: Clarion Co., Ltd. Report No.: 29HE0144-YK-A Kind of Equipment: Car Audio Model No.: PF-3292A-A Serial No.: PF3292AA118 Power: DC12.0V Page: Hopping, 3DH5: 79ch 1. 2. 3. 18 Company: Clarion Co., Ltd. Report No.: 29HE0144-YK-A Kind of Equipment: Car Audio Model No.: PF-3292A-A Serial No.: PF3292AA118 Power: DC12.0V Page: 4. 5. 19 Company: Clarion Co., Ltd. Report No.: 29HE0144-YK-A Kind of Equipment: Car Audio Model No.: PF-3292A-A Serial No.: PF3292AA118 Power: DC12.0V Page: Dwell Time (Regulation: FCC 15.247(a)(1)(iii)) UL Japan, Inc. Yamakita EMC lab. No.4 shielded room Date: 2009.12.15 Temp./Humid.: 22 deg. C. / 30 % Engineer: Minoru Nakatake Test mode: Transmitting Hopping (DH1): Count 1 Count 2 Count 3 20 Company: Clarion Co., Ltd. Report No.: 29HE0144-YK-A Kind of Equipment: Car Audio Model No.: PF-3292A-A Serial No.: PF3292AA118 Power: DC12.0V Page: Count 4 Count 5 Duty cycle(Hopping DH1) Average times of rising in 5 sec. of sweep = (50 + 49 + 48 + 48 + 46) / 5 = 48.2 Average times of rising in 1 sec. = 48.2 / 5s = 9.64 Average times of rising in 0.4x = 0.4 * 79ch * 9.64 = 304.62 Dwell time = 304.62 * 0.450 = 137.08 [ms] Limit : Dwell Time < 0.4[s] 21 Company: Clarion Co., Ltd. Report No.: 29HE0144-YK-A Kind of Equipment: Car Audio Model No.: PF-3292A-A Serial No.: PF3292AA118 Power: DC12.0V Page: Hopping (DH3): Count 1 Count 2 Count 3 22 Company: Clarion Co., Ltd. Report No.: 29HE0144-YK-A Kind of Equipment: Car Audio Model No.: PF-3292A-A Serial No.: PF3292AA118 Power: DC12.0V Page: Count 4 Count 5 Duty cycle(Hopping DH3) Average times of rising in 5 sec. of sweep = (22 + 22 + 25 + 25 + 26) / 5 = 24.0 Average times of rising in 1 sec. = 24.0 / 5s = 4.80 Average times of rising in 0.4x = 0.4 * 79ch * 4.80 = 151.68 Dwell time = 151.68 * 1.70 = 257.86 [ms] Limit : Dwell Time < 0.4[s] 23 Company: Clarion Co., Ltd. Report No.: 29HE0144-YK-A Kind of Equipment: Car Audio Model No.: PF-3292A-A Serial No.: PF3292AA118 Power: DC12.0V Page: Hopping (DH5): Count 1 Count 2 Count 3 24 Company: Clarion Co., Ltd. Report No.: 29HE0144-YK-A Kind of Equipment: Car Audio Model No.: PF-3292A-A Serial No.: PF3292AA118 Power: DC12.0V Page: Count 4 Count 5 Duty cycle(Hopping DH5) Average times of rising in 5 sec. of sweep = (15 + 21 + 16 + 17 + 18) / 5 = 17.4 Average times of rising in 1 sec. = 17.4 / 5s = 3.48 Average times of rising in 0.4x = 0.4 * 79ch * 3.48 = 109.97 Dwell time = 109.97 * 2.96 = 325.51 [ms] Limit : Dwell Time < 0.4[s] 25 Company: Clarion Co., Ltd. Report No.: 29HE0144-YK-A Kind of Equipment: Car Audio Model No.: PF-3292A-A Serial No.: PF3292AA118 Power: DC12.0V Page: Hopping (3DH1): Count 1 Count 2 Count 3 26 Company: Clarion Co., Ltd. Report No.: 29HE0144-YK-A Kind of Equipment: Car Audio Model No.: PF-3292A-A Serial No.: PF3292AA118 Power: DC12.0V Page: Count 4 Count 5 Duty cycle(Hopping 3DH1) Average times of rising in 5 sec. of sweep = (46 + 49 + 50 + 48 + 50) / 5 = 48.6 Average times of rising in 1 sec. = 48.6 / 5s = 9.72 Average times of rising in 0.4x = 0.4 * 79ch * 9.72 = 307.15 Dwell time = 307.15 * 0.45 = 153.58 [ms] Limit : Dwell Time < 0.4[s] 27 Company: Clarion Co., Ltd. Report No.: 29HE0144-YK-A Kind of Equipment: Car Audio Model No.: PF-3292A-A Serial No.: PF3292AA118 Power: DC12.0V Page: Hopping (3DH3): Count 1 Count 2 Count 3 28 Company: Clarion Co., Ltd. Report No.: 29HE0144-YK-A Kind of Equipment: Car Audio Model No.: PF-3292A-A Serial No.: PF3292AA118 Power: DC12.0V Page: Count 4 Count 5 Duty cycle(Hopping 3DH3) Average times of rising in 5 sec. of sweep = (22 + 22 + 26 + 23 + 27) / 5 = 24.0 Average times of rising in 1 sec. = 24.0 / 5s = 4.80 Average times of rising in 0.4x = 0.4 * 79ch * 4.80 = 151.68 Dwell time = 151.68 * 1.70 = 257.86 [ms] Limit : Dwell Time < 0.4[s] 29 Company: Clarion Co., Ltd. Report No.: 29HE0144-YK-A Kind of Equipment: Car Audio Model No.: PF-3292A-A Serial No.: PF3292AA118 Power: DC12.0V Page: Hopping (3DH5): Count 1 Count 2 Count 3 30 Company: Clarion Co., Ltd. Report No.: 29HE0144-YK-A Kind of Equipment: Car Audio Model No.: PF-3292A-A Serial No.: PF3292AA118 Power: D…

Text truncated - open the document above for the full version.

FCC ID : AX2PF3292 Test report No. : 29HE0144-YK-A Page : 12 of 71 Issued date : December 25, 2009 UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 Radiated emission Front view (30-1000MHz) Front view (1-26GHz) Rear view
