AX2PF3302Car Audio

SUBARU CAR AUDIO DISPLAY MODEL OPERATION MANUAL Display model : PF-3302 PF-3303 PF-3304 PF-3305 CAUTION: * Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.. * This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). * This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. 1. Key Function Specification & Explanation 1.2 Escutcheon Ke y 1.3 Steering remote control Key ・All the steering remote control keys are A/D keys. The priority depends on the circuit. SW2-2ST-ON HOOK SW2-1ST-MODE SW1-1 SW1-2 SW1-3 SW1-4ST-VOL DOWN(VOL-) T.I/NEWS TUNE/TRACK >>/SCAN T.I/NEWS CD Eject VOLUME CD/AUX Preset 2/RDM RDS TUNE/TRACK ST-VOL UP(VOL+) ST-DOWN(∨) >>/SCAN>>/SCAN <</A.S TEXTCD Eject VOLUME CD/AUX Preset 6/RPT POWER Preset 4 Preset 5/RDM Preset 6/RPT POWER T.I/NEWS Preset 2 Preset 3 Preset 2 Preset 3 CD Eject POWER VOLUME CD/AU X SAT HD/TAG FM/AM MENU/ENTE RMENU/ENTER TUNE/TRACK >>/SCANCD/AU X FM AM Preset 4 Preset 1/RPT Preset 2/RDM Preset 1/RPT Preset 4 Preset 3Preset 3 Preset 4 Preset 5/RDM ST-UP(∧) AMAM SW2-4ST-TALK SW2-3ST-OFF HOOK E-8 E-9 E-10 E-11 NoKey name E-12 E-13 E-15 SUBARU PD 5 LIST/BACK E-18<</A.S Preset 5 E-19LIST/BAC K E-1 E-3 E-4 E-17 E-14 E-16 E-5 E-6 E-7 E-2 TUNE/TRACK/CH Preset 5 Preset 6 MENU/ENTE RMENU/ENTER VOLUME Preset 1Preset 1 <</A.S LIST/BAC KLIST/BACK <</A.S FMFM Preset 6 CD Eject POWER RDSRDS SUBARU PD5 Key name No USA(LH)EU(LH)EU(RH)AUS(RH) E-1 E-2 E-4 E-3 E-5 E-14 E-6 E-7 E-17 E-15 E-16 E-18 E-19 E-8 E-9 E-10E-13 E-12 E-11 SW1-1 SW2-2 SW2-3 SW2-1 SW1-4 SW1-3 SW1-2 SW2-4 Clarion1/25 2. Power Mode 2.1 ACC On/Off Details of o perations 2.2 Power On/Off Details of o perations 3.1 Radio (RBDS HD) Details of operations FunctionVolume U p/Down ModePower On Ke y operationRotating Volume key FunctionACC On Mode ACC Off Key operationACC On operation Outline of functions "ACC Oｎ" operation is executed. Function ACC Off ModeACC On Ke y operationACC Off operation Outline of functions "ACC Off" operation" is executed. FunctionPower On Mode ACC On (except for TEL mode) Key operation・Pressing Power key ・Pressin g ST-Mode key Outline of functions Power is set to On. FunctionPower Of f ModePower On (except for TEL mode) Key operationPressing Power key Outline of functions Power is set to Of Outline of functions Volume is controlled. FunctionRadio On ModeExcept for FM/AM mode Ke y operationPressing FM/AM key Outline of functions Radio mode is set to On. FunctionSwitch of BAND ModeDurin g FM/AM mode Ke y operationPressing FM/AM key Outline of functions Radio band is changed. FunctionTune U p/Down Outline of functions Receivable frequency is detected. Ke y operationShort pressing of >>/SCAN key Outline of functions Stations are received sequentially. Outline of functions FunctionSeek Up/Down ModeDurin g FM/AM mode Ke y operationRotating Volume key ModeDuring FM/AM mode Ke y operationPressing Seek Up/Down key FunctionSCAN ModeDurin g FM/AM mode Ke y operationPressing Set Up/Down key Outline of functions Preset-ch is changed by 1ch. FunctionPreset-ch U p/Down ModeDurin g FM/AM mode Ke y operationHolding of Preset key Outline of functions Receiving frequency is registered. FunctionPreset re gistration ModeDurin g FM/AM mode Ke y operationShort pressing of Preset key Outline of functions Registered frequency is called. FunctionCallin g Preset ModeDuring FM/AM mode Ke y operation- Outline of functions Seek/Scan is stopped. FunctionSeek sto p / Scan stop ModeDuring FM/AM mode (During Seek/Scan) Clarion2/25 Outline of functions Preset channel list in the received band is displayed. Key operation■Holding of List/Back ： ・Preset channel list mode is switched between ON and OFF. → When main screen is displayed: Preset channel list is displayed. (List mode ON) → When Preset ｃｈ list is displayed： Main screen is displayed. (List mode OFF) ■Short pressing of Menu/Enter： ・The highlighted item is selected. ■Rotation of Tune/Track ： ・The list cursor moves up or down. →In the case of the counterclockwise turn from the list top (P.ch1), the cursor moves to the end of the list (P.ch6). →In the case of the clockwise turn from the list end (P.ch6), the cursor moves to the top (P.ch1). * After operating the cursor, the cursor position selection icon is lighted. ■Holding of P.ch1～P.ch6 ： ・The selection icon corresponding to the pressed P.ch key is lighted. * After pressing P.ch key, the cursor position does not change. ■Pressing of station control Up： ・If the received frequency is between P.ch1 and P.ch5, P.ch(+1) selection icon is lighted. ・If the received frequency is P.ch6, P.ch1 selection icon is lighted. ・If the received frequency is not P.ch, P.ch1 selection icon is lighted. * After pressing the key, the cursor position does not change. ■Pressing of station control Down： ・If the received frequency is between P.ch2 and P.ch6, P.ch(-1) selection icon is lighted. ・If the received frequency is P.ch1, P.ch6 selection icon is lighted. ・If the received frequency is not P.ch, P.ch6 selection icon is lighted. * After pressing the key, the cursor position does not change. FunctionPreset channel list mode ModeDurin g FM/AM mode Ke y operationHolding of HD/TAG key Outline of functions On-air music information is memorized. FunctioniTunes Ta gging ModeDuring FM/AM mode (During receiving Digital data) Key operationRotation of Tune key Outline of functions HD Radio is switched between ON …

Text truncated - open the document above for the full version.

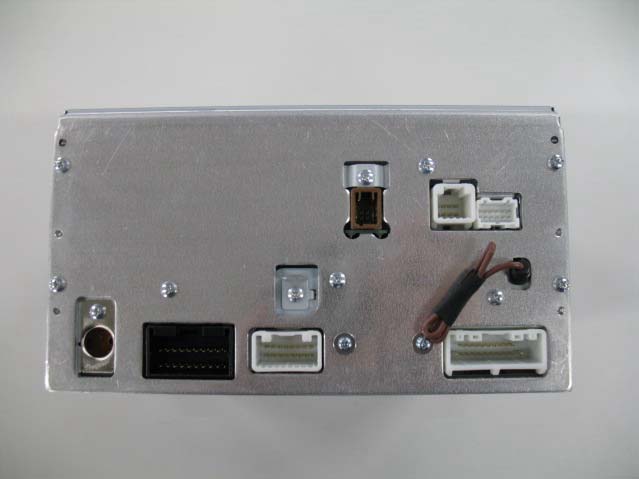

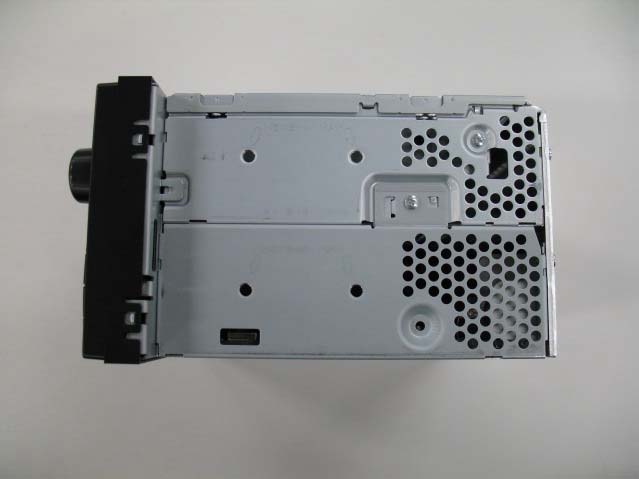

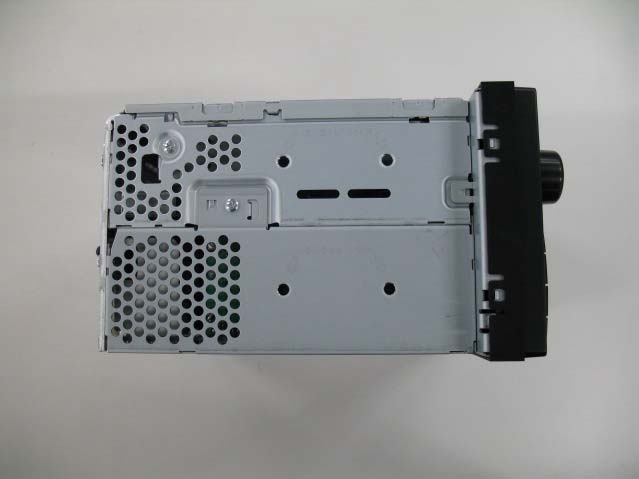

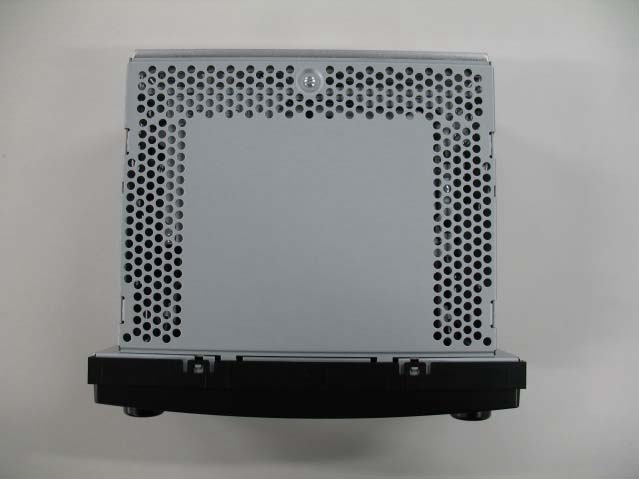

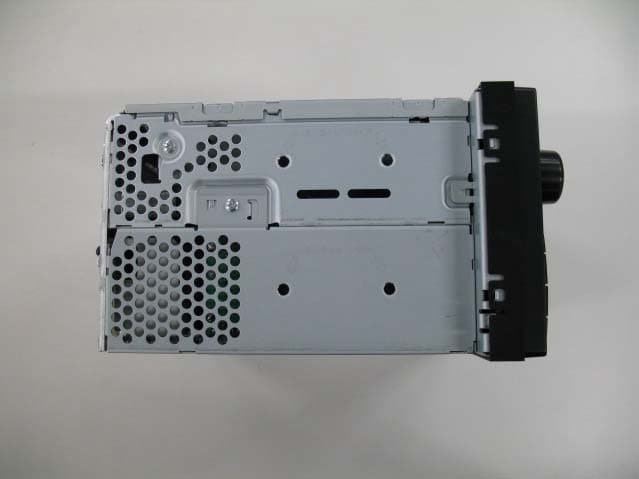

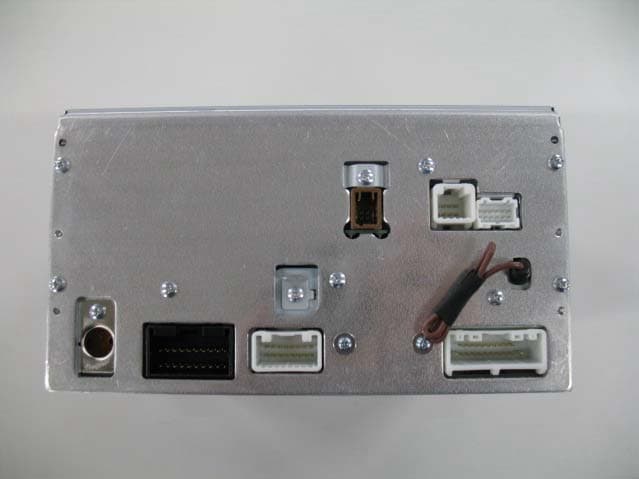

External Photo Clarion Co., Ltd. Car audio [Model: PF-3302B-A] Front Back External Photo Clarion Co., Ltd. Car audio [Model: PF-3302B-A] Top Bottom External Photo Clarion Co., Ltd. Car audio [Model: PF-3302B-A] Right Left

Internal Photo Clarion Co., Ltd. Car audio [Model: PF-3302B-A] Front Back 㪘㫅㫋㪼㫅㫅㪸㩷

UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 Applicant: Clarion Co., Ltd. Type of Equipment : Car audio M odel No. : PF-3302B-A FCC ID: AX2PF3302 Clarion Co., Ltd. declares that Model : Car audio complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “PF-3302B-A“ has 1.1 mW of conducted Peak Output power and 1.45 mW of EIRP. This equipment is considered as a mobile device so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “PF-3302B-A“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exp o su re lim it. T he F riis fo rm u la u sed w as: S = (P * G) / (4* π * r 2 ) Where P = 1.10 mW (M aximum peak output power) G = 1.31 Numerical Antenna gain; equal 1.18 dBi r =20.0 cm For: PF-3302B-AS = 0.00029 mW/cm 2 No. : 30DE0216-YK-B RF Exposure / SAR Statement

FCC ID : AX2PF3302 Test report No. : 30DE0216-YK-B Page : 2 of 72 Issued date : March 31, 2010 UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 Table of Contents Page 1 Applicant information 3 2 Equipment under test (E.U.T.) 3 3 Test specification, procedures and results 4 4 System test configuration 6 5 Carrier frequency separation 10 6 20dB bandwidth & Occupied bandwidth (99%) 10 7 Number of hopping frequency 10 8 Dwell time 10 9 Maximum peak output power 10 10 Out of band emissions (Antenna port conducted) 10 11 Out of band emissions (Radiated) 11 Contents of Appendixes 12 APPENDIX 1: Photographs of test setup 13 APPENDIX 2: Test data 14 APPENDIX 3: Test instruments 72 FCC ID : AX2PF3302 Test report No. : 30DE0216-YK-B Page : 3 of 72 Issued date : March 31, 2010 Revised date : April 16, 2010 UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 1 Applicant information Company Name : Clarion Co., Ltd. Address : 7-2 Shintoshin, Chuo-ku, Saitama-shi, Saitama, 330-0081 Japan Telephone Number : +81-48-601-4121 Facsimile Number : +81-48-601-3802 Contact Person : Masahiko Shibata 2 Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Car audio Model No. : PF-3302B-A Serial No. : Refer to 4.2 in this report. Rating : DC13.2V Country of Mass-production : China Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. Receipt Date of Sample : March 2, 2010 2.2 Product description Model: PF-3302B-A (referred to as the EUT in this report) is a Car audio. Clock frequency: 3.98MHz, 12.29MHz, 14.32MHz, 16.92MHz, 22.58MHz, 25.8048MHz, 26MHz, 41.6MHz Equipment type : Transceiver Frequency of operation : 2402-2480MHz Bandwidth & channel spacing : 79MHz & 1MHz Type of modulation : FHSS Antenna type : Chip Antenna gain with cable loss : +1.18dBi Antenna connector type : None ITU code : F1D, G1D Operation temperature range : -20 to +60 deg.C. FCC Part15.31 (e) The equipment provides the Bluetooth transmitter with stable power supply (DC 1.5V and DC 3.3V), therefore, the equipment complies power supply regulation. FCC Part15.203 Antenna requirement The equipment and its antenna comply with this requirement since this antenna is built in the equipment and it cannot be replaced by end users. FCC ID : AX2PF3302 Test report No. : 30DE0216-YK-B Page : 4 of 72 Issued date : March 31, 2010 UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 3 Test specification, procedures and results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2010, final revised on January 22, 2010 and effective March 1, 2010 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz The EUT complies with FCC Part 15 Subpart B: 2010. Refer to the test report: 30DE0216-YK-A. 3.2 Procedures & Results Item Test Procedure Specification Remarks DeviationWorst Margin Results Conducted emission ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC Section 15.207 - N/A *1) N/A N/A Carrier frequency separation FCC Public Notice DA 00-705 & ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.247 (a)(1) Conducted N/A Complied 20dB bandwidth FCC Public Notice DA 00-705 & ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.247 (a)(1) Conducted N/A Complied Number of hopping frequency FCC Public Notice DA 00-705 & ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.247 (a)(1)(iii) Conducted N/A Complied Dwell time FCC Public Notice DA 00-705 & ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.247 (a)(1)(iii) Conducted N/A Complied Maximum peak output power FCC Public Notice DA 00-705 & ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.247 (b)(1) Conducted N/A *See data. Complied Band edge compliance & Spurious emission FCC Public Notice DA 00-705 & ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.247 (d) Section15.209 Conducted/ Radiated N/A 7.1dB (480.02MHz, Vertical, Tx 2480MHz, 3DH5) Complied Note: UL Japan’s EMI Work Procedures No.QPM05 and QPM15. *1) The test is not applicable since the EUT has no AC mains. FCC ID : AX2PF3302 Test report No. : 30DE0216-YK-B Page : 5 of 72 Issued date : March 31, 2010 UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 3.3 Addition to standard Item Test Procedure Specification Remarks Worst Margin Results Occupied bandwidth (99%) ANSI C63.4:2003 13. Measurement of intentional radiators RSS-Gen 4.6.1 RSS-Gen 4.6.1 Conducted- Complied * Other than above, no addition, exclusion nor deviation has been made from the standard. 3.4 Uncertainty The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. No.1 open site (±) No.2 open site (±) No.1 semi-anechoic chamber (±) Radiated emission (3m) 9kHz-30MHz3.3 dB 3.2 dB 3.0 dB 30-300MHz4.4 dB 4.5 dB 4.6 dB 300-1000MHz4.6 dB 4.7 dB 4.7 dB 1-18GHz3.8 dB 4.2 dB 4.5 dB 18-26.5GHz4.4 dB 4.5 dB 4.5 dB The data listed in this test report has enough margin, more than site margin. Antenna port conducted test (±) Below 1GHz0.4 dB 1GHz and above0.7 dB 3.5 Test location UL Japan, Inc. Yamakita EMC Lab. 907, Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken 258-0124 JAPAN Telephone number : +81 465 77 1011 F…

Text truncated - open the document above for the full version.

Company: Clarion Co., Ltd. Report No.: 30DE0216-YK-B Kind of Equipment: Car Audio Model No.: PF-3302B-A Serial No.: PF3302BA 136 Power: DC12.0V Page: Channel Separation (Regulation: FCC 15.247(a)(1)) UL Japan, Inc. Yamakita EMC lab. No.2 shielded room Date: 2010.3.4 Temp./Humid.: 21 deg. C. / 36 % Engineer: Akira Sato Test mode: Transmitting Limit:•25kHz or 2/3 * 20dB Bandwidth (Power: No greater than 125mW) 1. Hopping, DH5: 1.008MHz (2/3*20dB Bandwidth:2/3*852.5kHz = 568.3kHz) 2. Hopping, 3DH5: 1.000MHz (2/3*20dB Bandwidth:2/3*1.235MHz = 823.3kHz) 14 Company: Clarion Co., Ltd. Report No.: 30DE0216-YK-B Kind of Equipment: Car Audio Model No.: PF-3302B-A Serial No.: PF3302BA 136 Power: DC12.0V Page: 20dB Bandwidth (Regulation: FCC 15.247(a)(1)) UL Japan, Inc. Yamakita EMC lab. No.2 shielded room Date: 2010.3.4 Temp./Humid.: 21 deg. C. / 36 % Engineer: Akira Sato Test mode: Transmitting [Hopping off, DH5] 1. ch : 2402MHz/20dB Bandwidth:852.5kHz 2. ch : 2441MHz/20dB Bandwidth:852.5kHz 3. ch : 2480MHz/20dB Bandwidth:852.5kHz 15 Company: Clarion Co., Ltd. Report No.: 30DE0216-YK-B Kind of Equipment: Car Audio Model No.: PF-3302B-A Serial No.: PF3302BA 136 Power: DC12.0V Page: [Hopping off, 3DH5] 4. ch : 2402MHz/20dB Bandwidth:1.230MHz 5. ch : 2441MHz/20dB Bandwidth:1.2275MHz 6. ch : 2480MHz/20dB Bandwidth:1.235MHz 16 Company: Clarion Co., Ltd. Report No.: 30DE0216-YK-B Kind of Equipment: Car Audio Model No.: PF-3302B-A Serial No.: PF3302BA 136 Power: DC12.0V Page: Channel Utilization (Regulation: FCC 15.247(a)(1)(iii)) UL Japan, Inc. Yamakita EMC lab. No.2 shielded room Date: 2010.3.4 Temp./Humid.: 21 deg. C. / 36 % Engineer: Akira Sato Test mode: Transmitting Hopping, DH5: 79ch 1. 2. 3. 17 Company: Clarion Co., Ltd. Report No.: 30DE0216-YK-B Kind of Equipment: Car Audio Model No.: PF-3302B-A Serial No.: PF3302BA 136 Power: DC12.0V Page: 4. 5. 18 Company: Clarion Co., Ltd. Report No.: 30DE0216-YK-B Kind of Equipment: Car Audio Model No.: PF-3302B-A Serial No.: PF3302BA 136 Power: DC12.0V Page: Hopping, 3DH5: 79ch 1. 2. 3. 19 Company: Clarion Co., Ltd. Report No.: 30DE0216-YK-B Kind of Equipment: Car Audio Model No.: PF-3302B-A Serial No.: PF3302BA 136 Power: DC12.0V Page: 4. 5. 20 Company: Clarion Co., Ltd. Report No.: 30DE0216-YK-B Kind of Equipment: Car Audio Model No.: PF-3302B-A Serial No.: PF3302BA 136 Power: DC12.0V Page: Dwell Time (Regulation: FCC 15.247(a)(1)(iii)) UL Japan, Inc. Yamakita EMC lab. No.2 shielded room Date: 2010.3.4 Temp./Humid.: 21 deg. C. / 36 % Engineer: Akira Sato Test mode: Transmitting Hopping (DH1): Count 1 Count 2 Count 3 21 Company: Clarion Co., Ltd. Report No.: 30DE0216-YK-B Kind of Equipment: Car Audio Model No.: PF-3302B-A Serial No.: PF3302BA 136 Power: DC12.0V Page: Count 4 Count 5 Duty cycle(Hopping DH1) Average times of rising in 5 sec. of sweep = (52 + 51 + 51 + 50 + 51) / 5 = 51.0 Average times of rising in 1 sec. = 51.0 / 5s = 10.2 Average times of rising in 0.4x = 0.4 * 79ch * 10.2 = 322.32 Dwell time = 322.32 * 0.460 = 148.27 [ms] Limit : Dwell Time < 0.4[s] 22 Company: Clarion Co., Ltd. Report No.: 30DE0216-YK-B Kind of Equipment: Car Audio Model No.: PF-3302B-A Serial No.: PF3302BA 136 Power: DC12.0V Page: Hopping (DH3): Count 1 Count 2 Count 3 23 Company: Clarion Co., Ltd. Report No.: 30DE0216-YK-B Kind of Equipment: Car Audio Model No.: PF-3302B-A Serial No.: PF3302BA 136 Power: DC12.0V Page: Count 4 Count 5 Duty cycle(Hopping DH3) Average times of rising in 5 sec. of sweep = (24 + 25 + 26 + 26 + 28) / 5 = 25.8 Average times of rising in 1 sec. = 25.8 / 5s = 5.16 Average times of rising in 0.4x = 0.4 * 79ch * 5.16 = 163.06 Dwell time = 163.06 * 1.72 = 280.46 [ms] Limit : Dwell Time < 0.4[s] 24 Company: Clarion Co., Ltd. Report No.: 30DE0216-YK-B Kind of Equipment: Car Audio Model No.: PF-3302B-A Serial No.: PF3302BA 136 Power: DC12.0V Page: Hopping (DH5): Count 1 Count 2 Count 3 25 Company: Clarion Co., Ltd. Report No.: 30DE0216-YK-B Kind of Equipment: Car Audio Model No.: PF-3302B-A Serial No.: PF3302BA 136 Power: DC12.0V Page: Count 4 Count 5 Duty cycle(Hopping DH5) Average times of rising in 5 sec. of sweep = (16 + 13 + 15 + 18 + 13) / 5 = 15.0 Average times of rising in 1 sec. = 15.0 / 5s = 3.0 Average times of rising in 0.4x = 0.4 * 79ch * 3.0 = 94.8 Dwell time = 94.8 * 2.96 = 280.61 [ms] Limit : Dwell Time < 0.4[s] 26 Company: Clarion Co., Ltd. Report No.: 30DE0216-YK-B Kind of Equipment: Car Audio Model No.: PF-3302B-A Serial No.: PF3302BA 136 Power: DC12.0V Page: Hopping (3DH1): Count 1 Count 2 Count 3 27 Company: Clarion Co., Ltd. Report No.: 30DE0216-YK-B Kind of Equipment: Car Audio Model No.: PF-3302B-A Serial No.: PF3302BA 136 Power: DC12.0V Page: 28 Revised date: April 16, 2010 Count 4 Count 5 Duty cycle(Hopping 3DH1) Average times of rising in 5 sec. of sweep = (48 + 48 + 49 + 47 + 51) / 5 = 48.6 Average times of rising in 1 sec. = 48.6 / 5s = 9.72 Average times of rising in 0.4x = 0.4 * 79ch * 9.72 = 307.15 Dwell time = 307.15 * 0.46 = 141.29 [ms] Limit : Dwell Time < 0.4[s] Company: Clarion Co., Ltd. Report No.: 30DE0216-YK-B Kind of Equipment: Car Audio Model No.: PF-3302B-A Serial No.: PF3302BA 136 Power: DC12.0V Page: Hopping (3DH3): Count 1 Count 2 Count 3 29 Company: Clarion Co., Ltd. Report No.: 30DE0216-YK-B Kind of Equipment: Car Audio Model No.: PF-3302B-A Serial No.: PF3302BA 136 Power: DC12.0V Page: 30 Revised date: April 16, 2010 Count 4 Count 5 Duty cycle(Hopping 3DH3) Average times of rising in 5 sec. of sweep = (26 + 23 + 24 + 25 + 28) / 5 = 25.2 Average times of rising in 1 sec. = 25.2 / 5s = 5.04 Average times of rising in 0.4x = 0.4 * 79ch * 5.04 = 159.26 Dwell time = 159.26 * 1.72 = 273.93 [ms] Limit : Dwell Time < 0.4[s] Company: Clarion Co., Ltd. Report No.: 30DE0216-YK-B Kind of Equipment: Car Audio Model No.: PF-3302B-A Serial No.: PF3302BA 136 Power: DC12.0V Page: Hopping (3DH5): Count 1 Count 2 Count 3 31 Company: Clarion Co., Ltd. Report No.: 30DE0216-YK-B Kind of Equipment: Car Audio Model No.: PF-330…

Text truncated - open the document above for the full version.

FCC ID : AX2PF3302 Test report No. : 30DE0216-YK-B Page : 13 of 72 Issued date : March 31, 2010 UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 Radiated emission Front view (30-1000MHz) Front view (1-26GHz) Rear view
