AX2QY5092Navigation Unit

Faurecia Clarion Electronics Co., Ltd.
Navigation Unit - FCC ID AX2QY5092 - Faurecia Clarion Electronics Co., Ltd.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Feb 12, 2015
Application Purpose
Original Equipment
Date of Application
Feb 12, 2015
Equipment Note
Navigation Unit
Frequency Range
2412.00000000 - 2462.00000000
Company
Faurecia Clarion Electronics Co., Ltd.
Country
Japan

Documents & Files

Select a file to view

Users Manual

โ†—

Cover Letter(s)

โ†—
โ†—
โ†—

External Photos

โ†—
โ†—
โ†—
โ†—
โ†—
โ†—

ID Label/Location Info

โ†—
โ†—
โ†—
โ†—
โ†—
โ†—
โ†—

Internal Photos

โ†—

RF Exposure Info

โ†—
โ†—

Test Report

โ†—

Test Setup Photos

โ†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Capacitive Touch Panel Switch Power Button HOME Button Volume Up Button Information Volume Down Button MENU Button Back Button Dimmer Button NavigationAudioSettingsPhone (Navigation Unit Only)Button touch "Settngs" Bluetooth (Wi-Fi) Settings touch "Bluetooth / Wi-Fi " touch "Bluetooth Device List" Wi-Fi setting On :Active USB Audio touch "Add Bluetooth Device" touch selectyour device touch "Audio" data folder up/down touch "USB Audio" track up/down mp3 play USB cable your USB Memory Device (mp3) Power Cable

External Photos

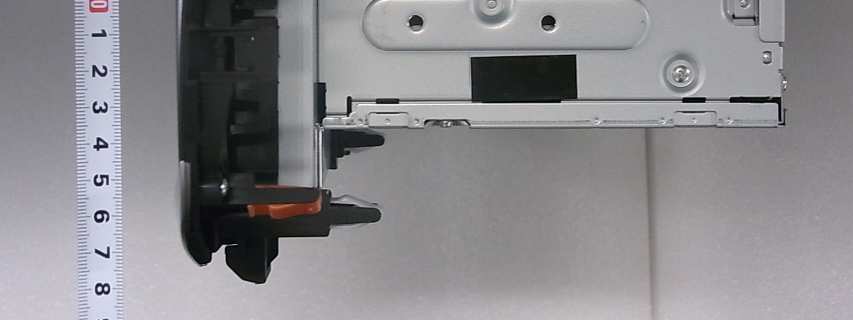

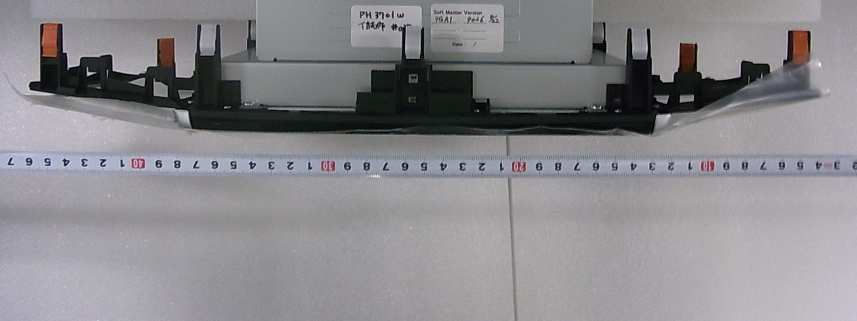

PH-3701 External Photos Front View Rear View Top View Bottom View Left side View Right side View

External Photos

QY-5090 External Photos Front View Rear View Top View Bottom View Left side View Right side View

External Photos

QY-5091 External Photos Front View Rear View Top View Bottom View Left side View Right side View

External Photos

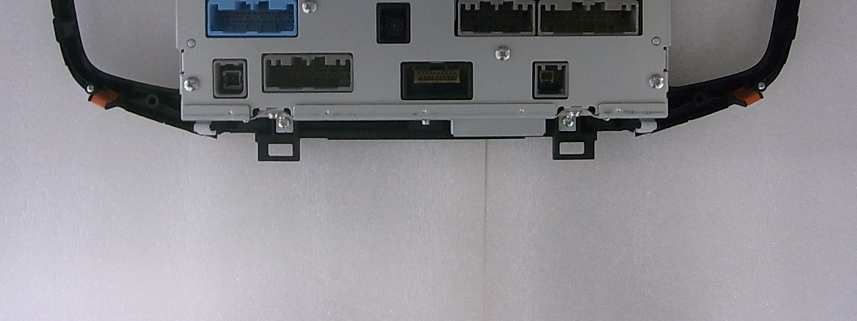

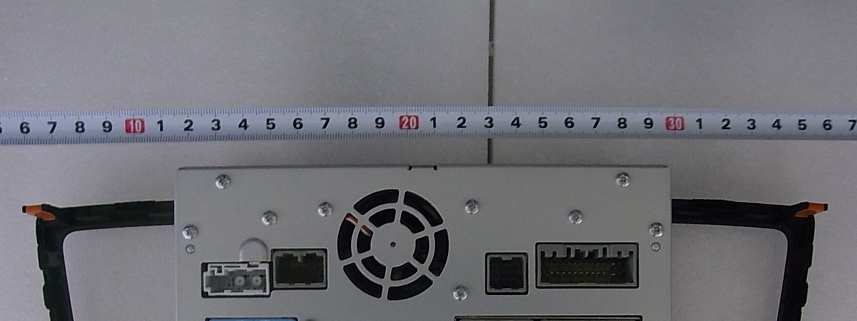

QY-5092 External Photos Front View Rear View Top View Bottom View Left side View Right side View

External Photos

PH-3831 External Photos Front View Rear View Top View Bottom View Left side View Right side View

External Photos

PH-3700 External Photos Front View Rear View Top View Bottom View Left side View Right side View

ID Label/Location Info

Label position

Internal Photos

Internal Photos (Module and Antenna position Photos) LCD PCB ASSY Component - F2 View LCD PCB ASSY - F1 View Wi-Fi and Bluetooth ComboModule Bluetooth Antenna mount position Bluetooth RF Antenna Connector Wi-Fi RF antenna Connector Wi-Fi Antenna mount position

RF Exposure Info

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: Clarion Co., Ltd. Type of Equipment: Navigation Unit M odel No. : QY-5092 FCC ID: AX2QY5092 Clarion Co., Ltd. declares that M odel : QY-5092 complies with FC C radiation exposure requirement specified in the FC C R ules 2.1091. RF Exposure Calculations: The following inform ation provides the m inim um separation distance for the highest gain antenna provided with the โ€œQY-5092โ€œ as calculated from FCC Part 1, ยง1.1310, TABLE 1 (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system , considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G ) / (4* ฯ€ * r 2 ) Where P = 22.08 mW (M aximum average output power) G = 0.77 Numerical Antenna gain; equal to -1.11 dBi r =20.0 cm For: QY-5092S = 0.00340 mW/cm 2 Even taking into account the tolerance, this device can be satisfied with the lim its. No. : 10399701S-H-R1 RF Exposure / SAR Statement

RF Exposure Info

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: Clarion Co., Ltd. Type of Equipment : Navigation Unit M odel No. : QY-5092 FCC ID: AX2QY5092 Clarion Co., Ltd. declares that M odel : QY-5092 complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. RF Exposure Calculations: The following inform ation provides the m inim um separation distance for the highest gain antenna provided with the โ€œQY-5092โ€œ as calculated from FCC Part 1, ยง1.1310, TABLE 1 (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system , considering maximum power and antenna gain, and considering a 1.0mW /cm^2 uncontrolled exposure lim it. The Friis form ula used was: S = ( (P1 + P2 ) * G ) / (4* ฯ€ * r 2 ) Where P1 = 22.08 mW (M aximum average output power ) *1) P2 = 1.44 mW (M aximum average output power) *2) G = 0.77 Numerical Antenna gain; equal to -1.11 dBi r =20.0 cm For: QY-5092S = 0.00362 mW/cm 2 Even taking into account the tolerance, this device can be satisfied with the limits. *1) W ireless LAN value *2) Bluetooth value This calculation was m ade to show that the EUT com plies with the lim it in sim ultaneous transm itting of W ireless LAN and Bluetooth. No. : 10399701S-F/H-R1 RF Exposure / SAR Statement (Reference)

Test Report

Test report No. : 10399701S-H-R1 Page : 2 of 52 Issued date : January 21, 2015 FCC ID : AX2QY5092 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10399701S-H Revision Test report No. Date Page revised Contents - (Original) 10399701S-H November 4, 2014 - - 1 10399701S-H-R1 January 21, 2015 - (Full-revision) Update Test report No. : 10399701S-H-R1 Page : 3 of 52 Issued date : January 21, 2015 FCC ID : AX2QY5092 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ........................................................................................ 4 SECTION 2: Equipment under test (E.U.T.) .......................................................................... 4 SECTION 3: Test specification, procedures & results ........................................................... 6 SECTION 4: Operation of E.U.T. during testing .................................................................... 8 SECTION 5: 6dB bandwidth & Occupied bandwidth (99%) .............................................. 11 SECTION 6: Maximum peak output power .......................................................................... 11 SECTION 7: Out of band emissions (Antenna port conducted) ......................................... 11 SECTION 8: Peak power density ........................................................................................... 11 SECTION 9: Radiated emission ............................................................................................. 12 Contents of APPENDIXES ....................................................................................................... 14 APPENDIX 1: Data of Radio tests .......................................................................................... 15 APPENDIX 2: Test instruments ............................................................................................. 51 APPENDIX 3: Photographs of test setup ............................................................................... 52 Test report No. : 10399701S-H-R1 Page : 4 of 52 Issued date : January 21, 2015 FCC ID : AX2QY5092 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Clarion Co., Ltd. Address : 7-2 Shintoshin, Chuo-ku, Saitama-shi, Saitama, 330-0081 Japan Telephone Number : +81-48-601-3602 Facsimile Number : +81-48-601-3802 Contact Person : Matsuhiro Hirano SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Navigation Unit Model Number : QY-5092 Serial Number : Refer to Section 4.2 Rating : DC10-16V Country of Mass-production : China Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : September 8, 2014 Modification of EUT : No modification by the test lab. 2.2 Product description Model: QY-5092 (referred to as the EUT in this report) is a Navigation Unit. Clock frequency(ies) in the system : 5.6448MHz, 6.144MHz, 8.192MHz, 12.2896MHz, 12.8MHz, 24.576MHz, 26MHz, 27MHz, 28.224MHz, 33.231MHz, 41.6MHz, 48MHz Test report No. : 10399701S-H-R1 Page : 5 of 52 Issued date : January 21, 2015 FCC ID : AX2QY5092 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 <Bluetooth part> Equipment type : Transceiver Frequency of operation : 2402-2480MHz Bandwidth & channel spacing : 79MHz & 1MHz Type of modulation : GFSK, ฯ€/4DQPSK, 8DPSK Antenna type : Metal Sheet Antenna gain : -1.11dBi Antenna connector type : U.FL Operation temperature range : -30 to +70 deg.C. ITU code : F1D, G1D <Wireless LAN part> Equipment type : Transceiver Frequency of operation : 2412-2462MHz Bandwidth & channel spacing : 20MHz & 5MHz Type of modulation : CCK, OFDM Antenna type : Metal Sheet Antenna gain : -1.11dBi Antenna connector type : U.FL Operation temperature range : -30 to +70 deg.C. ITU code : G1D, D1D * For Bluetooth part, refer to the test report: 10399701S-F. FCC 15.31 (e) The EUT provides stable voltage (DC3.3V) constantly to the wireless transmitter regardless of input voltage. Instead of a new battery, DC power supply was used for the test. That does not affect the test result, therefore the EUT complies with the requirement. FCC 15.203 The equipment and its antenna comply with the requirement since the antenna is built in the equipment and it cannot be replaced by end users. Test report No. : 10399701S-H-R1 Page : 6 of 52 Issued date : January 21, 2015 FCC ID : AX2QY5092 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2014, final revised on December 23, 2014 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz * The revision on December 23, 2014 does not affect the test specification applied to the EUT. The EUT has been tested for compliance with FCC Part 15 Subpart B. Refer to the test report 10399701S-J. 3.2 Procedures & Results Item Test Procedure *1) SpecificationRemarksDeviationWorst Margin Results Conducted emission ANSI C63.10:2009 FCC 15.207 - N/A *2) - - 6dB bandwidth ANSI C63.10:2009 FCC 15.247 (a)(2) ConductedN/A * See data Complied Maximum peak output power ANSI C63.10:2009 FCC 15.247 (b)(3) ConductedN/A Complied Ouโ€ฆ

Text truncated - open the document above for the full version.

Test Setup Photos

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz) END OF REPORT Test Report No 10399701S-H-R1 52 of 52

Contact Information

Applicant

Makoto Okubo
[email protected]81-48-601-3700Fax: 81-48-601-3802

Technical Contact

UL Japan, Inc.Toyokazu Imamura
[email protected]81-463-50-6400

1-22-3 Megumigaoka, Hiratsuka-shi ยท Kanagawa-ken ยท Japan

Test Firm

UL Japan, Inc. Shonan EMC EMC Lab.Tetsuya Hashimoto
[email protected]+81-596-24-8116Fax: +81-596-24-8095

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz114.60 mW
Confidentiality
Long Term
Grant Notes
Output power listed is Conducted(Peak). The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except the conditions shown in this filing and/or in accordance with FCC multi-transmitter product guidelines. End-users and installers must be provided with transmitter operating conditions for satisfying RF exposure compliance.
