AX2QZ6072B12DIN DVD Audio-Visual Unit

2008/2 *MAX6 85BT(001-cover)E 280-8622-00 2-DIN DVD MULTIMEDIA STATION WITH CeNET & 7-inch TOUCH PANEL CONTROL STATION MULTIMEDIA DVD 2 DIN AVEC COMMANDE PAR ECRAN TACTILE 7 pouces & CeNET EQUIPO DVD MULTIMEDIA 2-DIN CON CeNET y PANEL DE CONTROL TÁCTIL DE 7 pulgadas Owner’s manual & Installation manual Mode d’emploi et manuel d’installation Manual de instrucciones y de instalación QZ-6072B Clarion Co., Ltd. All Rights Reserved.Copyright © 2008: Clarion Co., Ltd. Printed in China / Imprimé en Chine / Impreso en China 1 MAX685BT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. MAX685BT *MAX685BT(001-cover)E1 CLARION PRODUCT REGISTRATION INFORMATION For USA and Canada only www.clarion.com Dear Customer: Congratulations on your purchase of a Clarion mobile electronic product. We are confident that you’ll enjoy your Clarion experience. There are many benefits to registering your product. We invite you to visit our website at www.clarion.com to register your Clarion product. We have made product registration simple with our easy to use website. The registration form is short and easy to complete. Once you’re registered, we can keep you informed of important product information. Register at www.clarion.com - it’s easy to keep your Clarion product up to date. INFORMATIONS DE L’ENREGISTREMENT DE PRODUITS CLARION Pour les Étas Unis et le Canada seulement www.clarion.com Cher client: Nous vous remercions d’avoir acheté ce produit électronique mobile Clarion. Nous sommes confiants que vous apprécierez votre expérience Clarion. Il y a beaucoup d’avantage à enregistrer votre produits. Nous vous invitons à visiter notre site Web www.clarion.com pour enregistrer votre produit Clarion. Nous avons facilité la tache d’enregistrement de produit simple et facile grâce à notre site Web. Le formulaire d’enregistrement est court et facile à compléter. Lorsque vous êtes enregistrer, nous pouvons vous tenir informé des informations important de produits. Enregistrer à www.clarion.com - c’est facile de mettre à jour votre produit Clarion. INFORMACIÓN DEL REGISTRO DE PRODUCTO DE CLARION Para USA y Canada nomas www.clarion.com Querido Cliente: Felicitaciones por su compra de producto electrónico móvil de Clarion. Estamos seguros que usted gozará de su experiencia con el producto de Clarion. Hay muchas ventajas al registrar su producto. Le invitamos a que visite nuestro sitio en internet www.clarion.com para registrar su producto de Clarion. Hemos hecho el registro de producto fácil en nuestro sitio. La forma de registro es corta y fácil de completar. Una vez que lo registre, podremos proporcionarle la información de su producto. Registrese en www.clarion.com - es fácil mantener su producto de Clarion actualizado. 1 MAX685BT English Owner’s manual Thank you for purchasing the Clarion MAX685BT. • Please read this owner’s manual thoroughly before operating this equipment. • After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). • Check the contents of the enclosed warranty card and keep it carefully with this manual. Contents 1. FEATURES .................................................................................................................... 2 Expanding Systems........................................................................................................ 2 Playable discs ................................................................................................................ 3 DVD video features ........................................................................................................ 4 2. PRECAUTIONS ............................................................................................................. 5 Operation panel/Generalities.......................................................................................... 6 Cleaning ......................................................................................................................... 6 About the registered marks, etc. .................................................................................... 7 3. CONTROLS ................................................................................................................... 8 Functions of Buttons....................................................................................................... 8 Outline of Button and Touchkey Operation .................................................................. 10 Remote Control Unit ..................................................................................................... 16 4. BASIC OPERATIONS.................................................................................................. 18 Turning On and Off the Power ..................................................................................... 18 Adjusting the Volume .................................................................................................. 18 Opening the operation panel and adjusting the angle .................................................. 18 Turning the Audio OFF ................................................................................................ 19 Turning the Monitor OFF ............................................................................................. 19 Setting/Ejecting a Disc ................................................................................................. 20 Connecting/Disconnecting an USB Media Device........................................................ 22 Selecting a Media Source ..........................................................................…

Text truncated - open the document above for the full version.

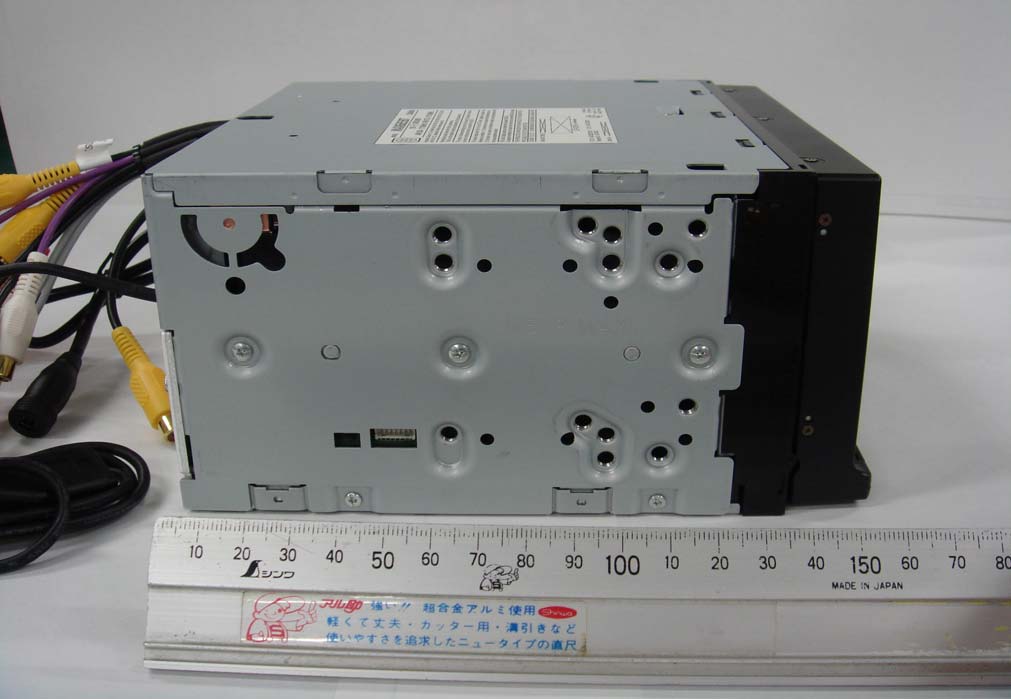

MAX685BT External Photos Product 2DIN DVD AUDIO-VISUAL UNIT Model MAX685BT FCC ID AX2QZ6072B1 IC ID 419C-QZ6072 Page 1-2 External Photos Car Stereo Front View Car Stereo Rear View Page 2-2 External Photos Car Stereo side View

MAX685BT Label Information Product 2DIN DVD AUDIO-VISUAL UNIT Model MAX685BT FCC ID AX2QZ6072B1 IC ID 419C-QZ6072 This label base make by YUPO. The ink used is DURA ink DLH. About YUPO YUPO is a synthetic paper made from polypropylene resin as its primary material. Synthetic paper, from its early development and historical evolution, has typically been manufactured using synthetic resin derived from petroleum as its primary material. Naturally, this has given it characteristics similar to those of plastic film, but its appearance is remarkably similar to that of regular paper made from wood pulp. In addition, many synthetic papers have properties similar to those of regular paper. Characteristics of YUPO. ・Withstands repeated water exposure. ・Resistant to tearing. ・Resistant to oils and chemicals. About DURA ink DLH DURA ink Use for label on optical connectors, hard disks, CD-ROM, cellular phones, batteries, LCD, CCD, car navigation systems, electric home appliances. Features ・Use with DURA DHL Ink for excellent scratch-resistant labels.

MAX685BT Internal Photos Product 2DIN DVD AUDIO-VISUAL UNIT Model MAX685BT FCC ID AX2QZ6072B1 IC ID 419C-QZ6072 Page 1-11 <Car Stereo Assembly> <DVD Mechanism> Internal Photos Page 2-11 Internal Photos <DVD Mechanism PCB solder side> <DVD Mechanism PCB Conponent side> Page 3-11 Internal Photos <Car Stereo Main PCB Component side> Page 4-11 <Car Stereo Main PCB solder side> Internal Photos Page 5-11 <Car Stereo Radio Tuner PCB Component side> Internal Photos Page 6-11 Internal Photos <Car Stereo Radio Tuner PCB solder side> Page 7-11 Internal Photos <Car Stereo Eject control PCB solder side> <Car Stereo Eject control PCB Component side> Page 8-11 Internal Photos <Car Stereo LCD monitor Panel PCB solder side> <Car Stereo LCD monitor Panel PCB Component side> Page 9-11 Internal Photos <Bluetooth module> <Car Stereo LCD monitor Panel Assembly> RF Antennr Bluetooth module Page 10-11 Internal Photos <Car Stereo Control Panel PCB Component side> <Car Stereo Control Panel PCB solder side> Page 11-11 Internal Photos <Car Stereo USB PCB Conponent side> <Car Stereo USB PCB Solder side>

UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 Applicant: C larion C o., L td. T ype of Equipment : 2DIN DVD AUDIO-VISUAL UNIT M odel No. : M AX685BT FCC ID: AX2QZ6072B1 Clarion Co., Ltd. declares that Model : 2DIN DVD AUDIO-VISUAL UNIT complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “M AX685BT“ has 1.35 mW of conducted Peak Output power and 2.96 mW of EIRP. This equipment is considered as a mobile device so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Ex posure Calculations: The follow ing inform ation provides the m inim um separation distance for the highest gain antenna provided with the “M AX685BT“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW /cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) W here P = 1.35 mW (Maximum peak output power) G = 2.20 Numerical Antenna gain; equal 3.42 dBi r =20.0 cm For: M AX685BTS = 0.00059 mW/cm 2 No. : 28GE0050-YK-A RF Ex posure / SAR Statement

FCC ID : AX2QZ6072B1 Test report No. : 28GE0050-YK-A Page : 2 of 85 Issued date : February 29, 2008 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (09.01.08) Table of Contents Page 1 Applicant information 3 2 Equipment under test (E.U.T.) 3 3 Test specification, procedures and results 4 4 System test configuration 7 5 Carrier frequency separation 9 6 20dB bandwidth & Occupied bandwidth (99%) 9 7 Number of hopping frequency 9 8 Dwell time 9 9 Maximum peak output power 9 10 Out of band emissions (Antenna port conducted) 9 11 Out of band emissions (Radiated) 10 Contents of Appendixes 11 APPENDIX 1: Photographs of test setup 12 APPENDIX 2: Test data 13 APPENDIX 3: Test instruments 84 APPENDIX 4: EUT clock frequencies 85 FCC ID : AX2QZ6072B1 Test report No. : 28GE0050-YK-A Page : 3 of 85 Issued date : February 29, 2008 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (09.01.08) 1 Applicant information Company Name : Clarion Co., Ltd. Address : 7-2, Shintoshin, Chuo-ku, Saitama-shi, Saitama-ken 330-0081, Japan Telephone Number : +81 48 601 3627 Facsimile Number : +81 48 601 3818 Contact Person : Kunihiro Nakajima 2 Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : 2DIN DVD AUDIO-VISUAL UNIT Model No. : MAX685BT Serial No. : 259X (Antenna port conducted test), 258X (Radiated emission test) Rating : DC 10.8-15.6V (directly from a car battery) Country of Manufacture : China Receipt Date of Sample : February 1, 2008 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product description Model: MAX685BT (referred to as the EUT in this report) is a 2DIN DVD AUDIO-VISUAL UNIT. Equipment type : Transceiver Frequency of operation : 2402-2480MHz Clock frequency : Refer to Appendix 4. Bandwidth & channel spacing : 79MHz & 1MHz Type of modulation : FHSS (GFSK) Antenna type : inverted-F antenna Antenna gain : +3.418dBi Antenna connector type : None ITU code : F1D Operation temperature range : -20 to +70 deg.C. FCC Part15.31 (e) The equipment provides the Bluetooth module with stable power supply (DC 3.3 V), therefore, the equipment complies power supply regulation. FCC Part15.203 Antenna requirement The equipment and its antenna comply with this requirement since this antenna is built in the equipment and it cannot be replaced by end users. FCC ID : AX2QZ6072B1 Test report No. : 28GE0050-YK-A Page : 4 of 85 Issued date : February 29, 2008 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (09.01.08) 3 Test specification, procedures and results 3.1 Test specification Test Specification : FCC Part 15 Subpart B: 2008 Title : FCC 47CFR Part 15 Radio Frequency Device Subpart B Unintentional Radiators Test specification : FCC Part15 Subpart C: 2008 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz FCC ID : AX2QZ6072B1 Test report No. : 28GE0050-YK-A Page : 5 of 85 Issued date : February 29, 2008 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (09.01.08) 3.2 Procedures & Results <Part 15 Subpart B, Radio requirement> Item Test Procedure Limits DeviationWorst margin Result Conducted emission ANSI C63.4: 2003 7. AC powerline conducted emission measurements FCC Section 15.107 N/A *1) N/A N/A Radiated emission ANSI C63.4: 2003 8. Radiated emission measurements FCC Section 15.109 N/A 2.9dB (286.02MHz, Horizontal, Rx, Display: Open) Complied Note: UL Japan’s EMI Work Procedures No.QPM05. <Part 15 Subpart C> Item Test Procedure Specification Remarks DeviationWorst Margin Results Conducted emission ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC Section 15.207 - N/A *1) N/A N/A Carrier Frequency Separation FCC Public Notice DA 00-705 & ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.247 (a)(1) ConductedN/A Complied 20dB Bandwidth FCC Public Notice DA 00-705 & ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.247 (a)(1) ConductedN/A Complied Number of Hopping Frequency FCC Public Notice DA 00-705 & ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.247 (a)(1)(iii) ConductedN/A Complied Dwell time FCC Public Notice DA 00-705 & ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.247 (a)(1)(iii) ConductedN/A Complied Maximum Peak Output Power FCC Public Notice DA 00-705 & ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.247 (b)(1) ConductedN/A *See data. Complied Spurious Emission FCC Public Notice DA 00-705 & ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.209 & Section15.247 (d) Conducted/ Radiated N/A 2.7dB (286.01MHz, Horizontal, Tx 2480MHz, Display: Open) Complied Note: UL Japan’s EMI Work Procedures No.QPM05 and QPM15. *1) The test is not applicable since the EUT has no AC mains. FCC ID : AX2QZ6072B1 Test report No. : 28GE0050-YK-A Page : 6 of 85 Issued date : February 29, 2008 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (09.01.08) 3.3 Addition to standard Item Test Procedure Specification Remarks Worst Margin Results Occupied Bandwidth (99%) ANSI C63.4:2003 13. Measurement of intentional radiators & RSS-Gen 4.6.1 RSS-…

Text truncated - open the document above for the full version.

FCC ID : AX2QZ6072B1 Test report No. : 28GE0050-YK-A Page : 12 of 85 Issued date : February 29, 2008 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (09.01.08) Radiated emission Display: Close Display: Open
