AXI11143030VHF MOBILE TWO-WAY RADIO

Programmable Functions/Features  Available Programmable Function Keys  2-Tone Encode/Decode ø 1  5-Tone Encode/Decode ø 1  MDC-1200 ® Encode/Decode ø 1  Horn Alert  PA ( Public Address )  Scan  Group Scan ø 3  Dual Watch  FM-Scan ( Follow-Me Scan )  TA Scan  Encryption ø 1  Privacy ( Basic/Enhanced ) ø 2  VOX  Talk Around  Emergency  Lone Worker  TX Save Disable  Direct Channel Entry ø 3, 4  Code Up/Down ø 1, 3  Code Set ø 1, 3  Speed Dial ø 1  DTMF Code Set ø 1, 3, 4  ID Check ø 1, 3  Text Message ø 2, 3  ARTS TM ø 1 /ARTS II TM ( Auto Range Transpond System ) ø 1: Analog mode only ø 2: Digital mode only ø 3: EVX-5400 only ø 4: Requires Optional MH-75 A8J EVX-5300 EVX-5400 oPerating manual EVX-5300EVX-5400 FCC ID: AXI11143030 IC: 10239A-11143030 Vertex Standard LMR, Inc. Unsafe Radiation Distance Congratulations! You now have at your fingertips a valuable communications tool: a Vertex Stan- dard two-way radio! Rugged, reliable and easy to use, your Vertex Standard radio will keep you in constant touch with your colleagues for years to come, with negli- gible maintenance downtime. Please take a few minutes to read this manual carefully. The information presented here will allow you to derive maximum performance from your radio. We’re glad you joined the Vertex Standard team. Call on us anytime, because com- munications is our business. Let us help you get your message across. Notice ! There are no owner-serviceable parts inside the transceiver. All service jobs must be referred to an authorized Vertex Standard Service Representative. Consult your Authorized Vertex Standard dealer for installation of optional accessories. Safety/WarNiNg iNformatioN WARNING - DO NOT operate the EVX-5300/-5400 radio when any person(s) (bystanders) outside the vehicle are within the distances shown in the chart at the bottom of this section. Safety Training information: Antennas used for this transmitter must not exceed an antenna gain of 0 dBi. The radio must be used in vehicle-mount configurations with a maxi- mum operating duty cycle not exceeding 50 %, in typical Push-to-Talk con- figurations. This radio is restricted to occupational use, work related operations only where the radio operator must have the knowledge to control the exposure limits of passengers and bystanders by maintaining the minimum separa- tion distance shown below. Failure to observe these restrictions will result in exceeding the FCC RF exposure limits. Antenna Installation: For rear deck trunk installation, the antenna must be located at least the fol- lowing distance away from rear-seat passengers in order to comply with the FCC RF exposure requirements. For roof top installations, the antenna must be placed in the center of the roof. VHF ModelUHF Model 2.1 Feet ( 0.63 m ) 1.6 Feet ( 0.48 m ) FCC ID: AXI11143030 IC: 10239A-11143030 Vertex Standard LMR, Inc. EVX-5300/-5400 OpErating Manual1 EVX-5300EVX-5400 IntroductIon The EVX-5300/-5400 series are a full-featured Digital/Analog transceiver de- signed for flexible mobile and base station business communications in the VHF/ UHF Land Mobile bands. These transceivers are designed for reliable business communications in a wide variety of applications for a wide range of operating ca- pabilities. The EVX-5300/-5400 series operate using the TDMA protocol for spectrum and power efficiency resulting in lower total equipment cost compared to FDMA. Digital eliminates noise and static from voice transmit to deliver only the in- tended voice message crisply and clearly. The EVX-5300/-5400 series feature the AMBE+2™ vocoder for enhanced voice quality. The EVX-5300 allows up to 8 memory channels. The EVX-5400 allows up to 512-channel capacity and 32 groups which can each be programmed with an 8-character Alpha-Numeric Tag. Important channel frequency data is stored in the flash memory, and is easily programmable by a Vertex Standard licensed dealer using a personal computer with Vertex Standard Programming equipment: FIF- 12 USB Programming Interface, CT-104A (or CT-171 ) Connection Cable with CE142 Software. Or, once a single radio is programmed, cloning cable CT-4 can be used to program additional radios directly. The pages which follow will detail the many advanced features provided by the EVX-5300/-5400 series transceiver. After reading this manual, you may wish to consult with your Network Administrator regarding precise details of the configu- ration of this equipment for use in your application. For North American Users Regarding 406 MHz Guard Band The U.S. Coast Guard and National Oceanographic and Atmospheric Ad- ministration have requested the cooperation of the U.S. Federal Communi- cations Commission in preserving the integrity of the protected frequency range 406.0 to 406.1 MHz, which is reserved for use by distress beacons. Do not attempt to program this apparatus, under any circumstances, for op- eration in the frequency range 406.0 - 406.1 MHz if the apparatus is to be used in or near North America. FCC ID: AXI11143030 IC: 10239A-11143030 Vertex Standard LMR, Inc. EVX-5300/-5400 OpErating Manual2 WarnIng! Fcc rF ExposurE rEquIrEmEnts THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERA- TION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFI- CATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and…

Text truncated - open the document above for the full version.

FCC ID: AXI 11143030 VERTEX STANDARD USA, INC. Exhibit 13a 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 Date: May 22, 2014 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AXI 11143030 Dear Sir or Madam: Vertex Standard USA, Inc. (8000 West Sunrise Boulevard, Fort Lauderdale, Florida) herein submits application for certification of the subject transmitter. This transmitter is intended for use in a Mobile Radio environment and is capable of operating at the frequency range and power listed below: Frequency Rated Power FCC Rule Parts 136 - 174 MHz 5 - 25 W 90, 22 The subject transmitter complies with Section 90.203 of the Rules in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. Enclosed is a complete Certification Application. Please contact me if you require any additional information. Sincerely, Kim Uong FCC/IC Liaison 8000 West Sunrise Blvd Fort Lauderdale, FL33322 Tel: (954) 723-5422 E-mail: [email protected]

FCC ID: AXI 11143030 VERTEX STANDARD USA, INC. Exhibit 13b 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 CONFIDENTIALITY REQUESTED Date: May 22, 2014 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request Regarding Application for Transmitter with FCC ID: AXI 11143030 Dear Sir or Madam: Vertex Standard USA, Inc. (8000 West Sunrise Boulevard, Fort Lauderdale, Florida) is requesting for the following Exhibits be held as Permanently Confidential, and not be made routinely available for public inspection: Block diagram Schematics The information in these exhibits considers to be classified as trade secrets, pursuant to 47 CFR Sections 0.457(d), 0.459 and 552(b)(4) of the Freedom of Information Act. Please mark these Exhibits as “Confidential.” Please contact me if you require any additional information. Sincerely, Kim Uong FCC/IC Liaison 8000 West Sunrise Blvd Fort Lauderdale, FL33322 Tel: (954) 723-5422 E-mail: [email protected]

FCC ID: AXI 11143030 VERTEX STANDARD USA, INC. Exhibit 13a 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 Date: May 22, 2014 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Extended Frequencies Justification for Certification of Transmitter with FCC ID: AXI 11143030 Dear Sir or Madam: This transmitter was design to operate in the frequency range of 136 -174 MHz. To aid equipment authorization in other countries that accept the United States FCC Grant for Certification, Vertex Standard USA Inc is requesting that the FCC list the above frequency/frequencies under FCC Rule Parts 22 and 90 on the Grant. For the FCC’s Rule Parts 22 and 90 applications, this radio is used in systems by Federal and Public Safety agencies including Police, Fire, and Emergency Medical Services, etc. as indicated in the table below. Equipment programming is the responsibility of Authorized Service Personnel. Also, the radio complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Per the FCC’s KDB634817 guidance, as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Frequency Range (MHz) Part 90 Part 22 Federal Emission Designator 138-150.8* x 11K0F3E 7K60F1D 7K60F1E 7K60FXD 7K60FXE 7K60F1W 150.8-154 x 154-156.2475 x 156.2475-157.1875* 157.1875-161.575 x 157.77-158.67 x x 161.575-161.775* 161.775-161.9625 x x 161.9625-162.0375 x 162.0375-173.4 x x 173.4-174* x *Canada Please contact me if you require any additional information. Sincerely, Kim Uong FCC/IC Liaison 8000 West Sunrise Blvd. Fort Lauderdale, FL33322 Tel: (954) 723-5422 E-mail: [email protected]

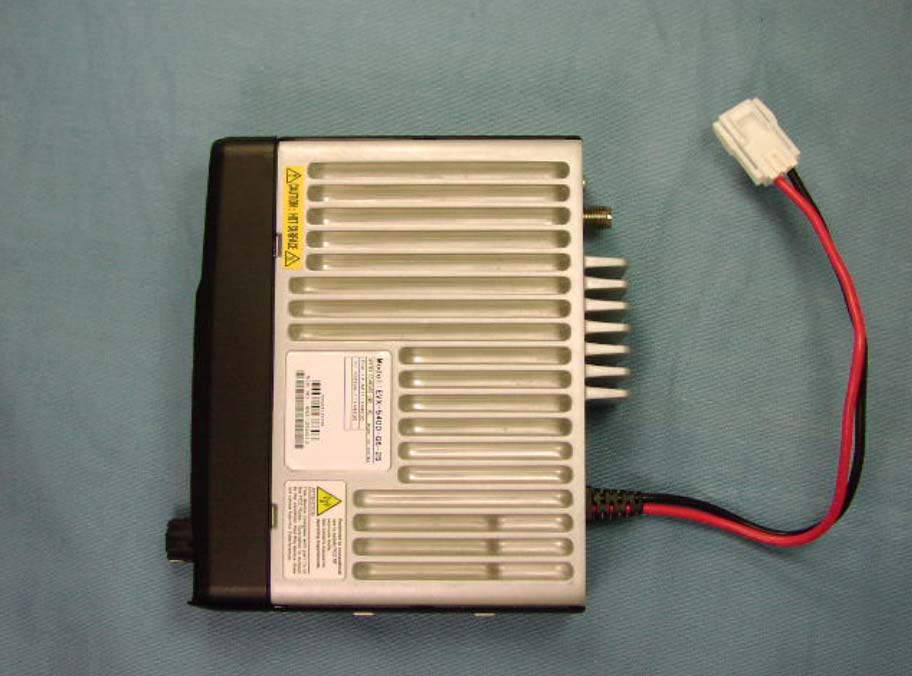

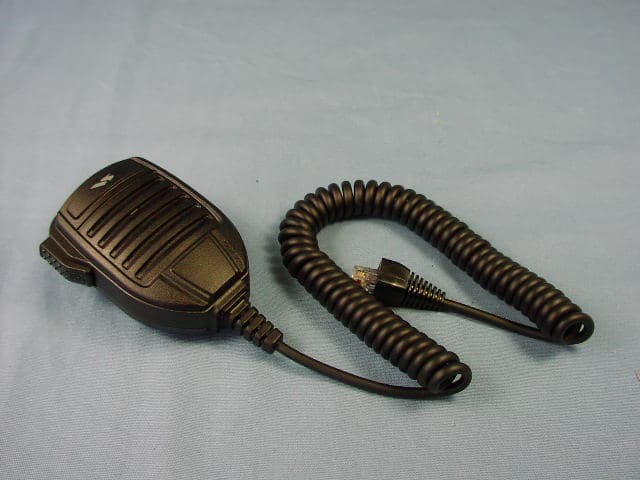

FCC ID: AXI11143030 IC: 10239A-11143030 Vertex Standard LMR, Inc. Front view (EVX-5300) Front view (EVX-5400) FCC ID: AXI11143030 IC: 10239A-11143030 Vertex Standard LMR, Inc. Rear view Left view FCC ID: AXI11143030 IC: 10239A-11143030 Vertex Standard LMR, Inc. Right view Top view FCC ID: AXI11143030 IC: 10239A-11143030 Vertex Standard LMR, Inc. Bottom view Microphone FCC ID: AXI11143030 IC: 10239A-11143030 Vertex Standard LMR, Inc. DC Power Cable

EVX-5300-D0-25 / EVX-5400-D0-25 EVX-5300-D0-25 / EVX-5400-D0-25 LABEL DRAWINGLABEL DRAWING Vertex Standard LMR, Inc.Vertex Standard LMR, Inc. ID / Part 15.19 and CAUTION drawings ID drawing Part 15.19 and CAUTION drawings Label location 2014. 2.17 2014. 2.17 EVX-5300-D0-25 4M3M050018 SER.NO. Model:EVX-5300-D0-25 FCC ID: AXI11143030 IC: 10239A-11143030 VERTEX STANDARD LMR,INC. MADE IN CHINA 788026140176 EVX-5400-D0-25 4M3M050036 SER.NO. Model:EVX-5400-D0-25 FCC ID: AXI11143030 IC: 10239A-11143030 VERTEX STANDARD LMR,INC. MADE IN CHINA 788026140190

FCC ID: AXI11143030 IC: 10239A-11143030 Removed top cover Removed Shield Cover Vertex Standard LMR, Inc. FCC ID: AXI11143030 IC: 10239A-11143030 Side-A of MAIN-Unit with shield case Side-A of MAIN-Unit without shield case Vertex Standard LMR, Inc. FCC ID: AXI11143030 IC: 10239A-11143030 Side-B of MAIN-Unit with shield case Side-B of MAIN-Unit without shield case Vertex Standard LMR, Inc. FCC ID: AXI11143030 IC: 10239A-11143030 Insi de of FRONT panel with Unit and SP (EVX-5300) Side-A of FRONT-Unit and Rubber Key top (EVX-5300) Vertex Standard LMR, Inc. FCC ID: AXI11143030 IC: 10239A-11143030 Side-B of FRONT-Unit (EVX-5300) Insi de of FRONT panel with Unit and SP (EVX-5400) Vertex Standard LMR, Inc. FCC ID: AXI11143030 IC: 10239A-11143030 Side-A of FRONT-Unit and Rubber Key top (EVX-5400) Side-B of FRONT-Unit (EVX-5400) Vertex Standard LMR, Inc. FCC ID: AXI11143030 IC: 10239A-11143030 Side-A of FRONT-Unit Without LCD (EVX-5400) Side-A of LCD (EVX-5400) Vertex Standard LMR, Inc. FCC ID: AXI11143030 IC: 10239A-11143030 Side-B of LCD (EVX-5400) Insi de of FRONT panel (EVX-5300) Vertex Standard LMR, Inc. FCC ID: AXI11143030 IC: 10239A-11143030 Insi de of FRONT panel EVX-5400) Inside of chassis Vertex Standard LMR, Inc. FCC ID: AXI11143030 IC: 10239A-11143030 Insi de of micr ophone Vertex Standard LMR, Inc.

FCC ID: AXI 11143030 IC: 10239A- 11143030 Circuit Description Vertex Standard LMR, Inc. EVX-5300/5400 (VHF) Circuit Description 1. Receiver System 1-1. Front-end RF amplifier Incoming RF signal from the antenna passes through the Low-pass filter, antenna switching diode D5014, D5016 (both JDP2S12CR), and the 1st RF attenuator Q5037 (SKY12338), and then removed undesired frequencies by the varactor tuned band-pass filter D5022, D5023, D5026, D5027 (all 1SV323). The filtered RF signal is amplified by Q5045 (2SC3356) and then passes through the Band-pass filter and the 2nd RF attenuator Q5050 (SKY12338), and then applied to the 1st mixer Q5053 (AK1220). 1-2. First Mixer The RF signal is mixed with the 1st local signal between 186.85 MHz and 224.85 MHz in the 1st mixer Q5053(AK1220), to produce 50.85 MHz 1st IF signal. The 1st local signal is generated by the VCO, which consists of Q5055 (2SK508), varactor diodes D1029, D1032, D1036, and D1037 (all 1SV282). The 1st local signal is supplied to the 1st mixer Q5053(AK1220) through the buffer amplifier Q5064(2SC5006) and Q5066 (2SC5226). 1-3. IF Amplifier & Demodulator The 1st IF signal is applied to the monolithic crystal filter XF5001 to strip away all but the desired signal, and then supplied to the custom IC Q5070 ( RFIC ) through the IF amplifier Q5068 (2SC5226). The custom IC Q5070 ( RFIC ) converts the 1st IF signal into the Base Band signal. The Base Band signal from the custom IC Q5070 ( RFIC ) is applied to another custom IC Q5001 (OMAP), which is demodulated by the Digital Signal Processor. 1-4. Audio amplifier The demodulated signal from the custom IC Q5001 (OMAP) is applied to another custom IC Q5044 ( PMAIC ), which convert to analog signal. The custom IC Q5044 ( PMAIC ) convert to analog signal. The output signal from the custom IC Q5044 ( PMAIC ) is applied to the AF amplifier which is constructed Q5015(NJM12902) and Q5027(TDA1519CTH). The output of Q5027(TDA1519CTH) is applied to the front panel audio speaker or external speaker. FCC ID: AXI 11143030 IC: 10239A- 11143030 Circuit Description Vertex Standard LMR, Inc. 2. Transmitter System 2-1. MIC Amplifier and modulator The speech signal from external microphone which connected J2001 (EVX-5300) or J3001 (EVX-5400) is supplied to AF amplifier Q2005 (NJM2125 / EVX-5300) or Q3010 (NJM2125 / EVX-5400), and then applied to the custom IC Q5044 ( PMAIC ), which is amplified the speech signal. The amplified speech signal from the custom IC Q5044 ( PMAIC ) is supplied to another custom IC Q5001 ( OMAP ), which process the speech signal by the Digital Signal Processor. The processed speech signal from the custom IC Q5001 (OMAP) is supplied to the modulator section of the custom IC Q5070 ( RFIC ), which modulates the speech signal into the FM or digital signal. 2-2. Drive and Final Amplifier Stages The modulated signal from the custom IC Q5070 ( RFIC ) is buffered by Q5061 (2SK3077) and amplified by Q5052 (RD01MUS1). The Low-level signal is then applied to Power Module Q1046 (RA30H3847M1A) for final amplification up to 25 watts output power. The transmit signal then passes through the antenna switch D5018, D5019 (both MA4P959) and is low pass filtered to suppress away harmonic spurious radiation before delivery to the antenna. 2-3. Automatic Transmit Power Control The forward power of the Power Module Q5046 (RA30H1317M1A) is detected by D5020 (HSM88AS) and then applied to the comparator Q5074 (ADM8566ARM), The comparator Q5074 (ADM8566ARM) compares detected voltage of forward power and power control voltage from custom IC Q5070 (RFIC), makes output power stable by controlling the bias voltage RF amplifier Q5052 (RD01MUS1). Additionally, output voltage of operational amp Q5043 (ADM8566ARM) is supplied to Power Module. The output level is controlled by Q5070 (RFIC) to three level (50 watt model) or two level (25 watt model). The Reflection power from the antenna is detected by D5021 (HSM88AS), Automatic transmission power control circuit protect equipment. For example, when the antenna is not connected. FCC ID: AXI 11143030 IC: 10239A- 11143030 Circuit Description Vertex Standard LMR, Inc. 3. PLL Frequency Synthesizer The frequency synthesizer consists of VCO, TCXO (X5002), and the custom IC Q5070 ( RFIC ). The output frequency from TCXO is 19.2 MHz and the tolerance is ±1.5 ppm in the temperature range –22 °F to +140 °F (–30 °C to +60 °C). 3-1. VCO (Voltage Controlled Oscillator) While the radio is receiving, the RX oscillator Q5055 (2SK508) generates a programmed frequency between 186.85 and 224.85 MHz as 1st local signal. While the radio is transmitting, the TX oscillator Q5054 (2SK508) generates a frequency between 136 and 174 MHz . The output from oscillator is amplified by buffer amplifier Q5064 (2SC5006) and then is divided, one is fed back to the PLL Circuit in the custom IC Q5070 ( RFIC ). The other one is supplied to the 1st mixer Q5053 (AK1220) in case of the reception. In the transmission, the output is modulated to the FM (or digital) in the custom IC Q5070 ( RFIC ), and then supplied to the transmitter section described previously. 3-2. VCV (Varactor Control Voltage) Control The tuning voltage (VCV) of the VCO establishes the lock range of VCO by controlling the cathode of varactor diode (D5029, D5032, D5036, D5037 (all 1SV282) for receiving, and D5028, D5031, D5034, D5035 (all 1SV282) for transmitting) from the custom IC Q5070 ( RFIC ). 3-3. PLL The main constitution product of the PLL is equipped all with in the custom IC Q5070 ( RFIC ), so that all processing regarding the frequency control is performed in the custom IC Q5070 ( RFIC ).

FCC ID: AXI11143030 IC: 10239A-11143030 Alignment Vertex Standard LMR, Inc. EVX-5300/5400(VHF)Alignment FCC ID: AXI11143030 IC: 10239A-11143030 Alignment Vertex Standard LMR, Inc. FCC ID: AXI11143030 IC: 10239A-11143030 Alignment Vertex Standard LMR, Inc. FCC ID: AXI11143030 IC: 10239A-11143030 Alignment Vertex Standard LMR, Inc. FCC ID: AXI11143030 IC: 10239A-11143030 Alignment Vertex Standard LMR, Inc. FCC ID: AXI11143030 IC: 10239A-11143030 Alignment Vertex Standard LMR, Inc. FCC ID: AXI11143030 IC: 10239A-11143030 Alignment Vertex Standard LMR, Inc. FCC ID: AXI11143030 IC: 10239A-11143030 Alignment Vertex Standard LMR, Inc. FCC ID: AXI11143030 IC: 10239A-11143030 Alignment Vertex Standard LMR, Inc. FCC ID: AXI11143030 IC: 10239A-11143030 Alignment Vertex Standard LMR, Inc. FCC ID: AXI11143030 IC: 10239A-11143030 Alignment Vertex Standard LMR, Inc.

1 FCC ID: AXI11143030/IC: 10239A-11143030 EVX-5300 / 5400 Series (VHF)Semi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL MAIN-3-UNIT D 5001 G2071378 Zener DiodeUDZS27B D 5002 G2071378 Zener DiodeUDZS27B D 5003 G2071378 Zener DiodeUDZS27B D 5004 G2071378 Zener DiodeUDZS27B D 5005 G2071378 Zener DiodeUDZS27B D 5006 G2071378 Zener DiodeUDZS27B D 5007 G2071378 Zener DiodeUDZS27B D 5008 G2071378 Zener DiodeUDZS27B D 5009 G2071378 Zener DiodeUDZS27B D 5010 G2071378 Zener DiodeUDZS27B D 5011 G2071378 Zener DiodeUDZS27B D 5012 G2071378 Zener DiodeUDZS27B D 5013 G2071378 Zener DiodeUDZS27B D 5014 G2071446 DiodeUDZS27B D 5015 G2071322 DiodeSM8S24AHE3/2D D 5016 G2071446 DiodeSM8S24AHE3/2D D 5017 G2070634 Diode1SS400 TE61 D 5018 G2071320 DiodeMA4P959 D 5019 G2071320 DiodeMA4P959 D 5020 G2070170 DiodeHSM88AS TR-E D 5021 G2070170 DiodeHSM88AS TR-E D 5022 G2071006 Diode1SV323(TPH3.F) D 5023 G2071006 Diode1SV323(TPH3.F) D 5024 G2070634 Diode1SS400 TE61 D 5025 G2070910 Zener DiodeUDZS TE-17 5.6B D 5026 G2071006 Diode1SV323(TPH3.F) D 5027 G2071006 Diode1SV323(TPH3.F) D 5028 G2070778 Diode1SV282(TPH3.F) D 5029 G2070778 Diode1SV282(TPH3.F) D 5031 G2070778 Diode1SV282(TPH3.F) D 5032 G2070778 Diode1SV282(TPH3.F) D 5034 G2070778 Diode1SV282(TPH3.F) D 5035 G2070778 Diode1SV282(TPH3.F) D 5036 G2070778 Diode1SV282(TPH3.F) D 5037 G2070778 Diode1SV282(TPH3.F) D 5040 G2070914 Zener DiodeUDZS TE-17 16B D 5041 G2071380 Zener DiodeKDZ5.1B D 5042 G2070174 DiodeDAN222 TL D 5043 G2070178 DiodeDA221 TL D 5044 G2070942 Diode1SV305(TPH3) D 5045 G2070942 Diode1SV305(TPH3) D 5046 G2070850 DiodeRB751S-40TE61 D 5047 G2070850 DiodeRB751S-40TE61 D 5048 G2070850 DiodeRB751S-40TE61 D 5049 G2070850 DiodeRB751S-40TE61 D 5050 G2070850 DiodeRB751S-40TE61 D 5051 G2070178 DiodeDA221 TL D 5052 G2070910 Zener DiodeUDZS TE-17 5.6B D 5055 G2071004 Zener DiodeEDZ TE-61 3.9B D 5056 G2070178 DiodeDA221 TL D 5057 G2070178 DiodeDA221 TL D 5058 G2070178 DiodeDA221 TL D 5059 G2070178 DiodeDA221 TL Vertex Standard LMR, Inc. 2 FCC ID: AXI11143030/IC: 10239A-11143030 EVX-5300 / 5400 Series (VHF)Semi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL D 5060 G2070910 Zener DiodeUDZS TE-17 5.6B D 5061 G2070910 Zener DiodeUDZS TE-17 5.6B D 5062 G2070178 DiodeDA221 TL D 5063 G2070178 DiodeDA221 TL D 5064 G2070178 DiodeDA221 TL D 5065 G2070178 DiodeDA221 TL D 5066 G2070178 DiodeDA221 TL D 5067 G2070178 DiodeDA221 TL D 5069 G2070170 DiodeHSM88AS TR-E D 5070 G2070634 Diode1SS400 TE61 Q 5001 G1095004 ICOMAPL138BZCEA3R Q 5002 G1094963 ICTS3USB221ARSER Q 5003 G1094993 ICSN74AVC2T245RSWR Q 5004 G3070075 TransistorDTC144EE TL Q 5005 G3070075 TransistorDTC144EE TL Q 5006 G3070075 TransistorDTC144EE TL Q 5007 G1094993 ICSN74AVC2T245RSWR Q 5008 G3070075 TransistorDTC144EE TL Q 5009 G1094993 ICSN74AVC2T245RSWR Q 5010 G1095000 ICMT29F1G16ABBDAH4-ITX:D Q 5011 G1094918 ICMT46H32M16LFBF-6IT:C Q 5012 G1095007 ICNL27WZU04DFT2G Q 5013 G1094915 ICSN74AUC1GU04YZPR Q 5014 G3070455 MOSFETRUM002N02T2L Q 5015 G1093592 ICNJM12902V-TE1 Q 5016 G3070075 TransistorDTC144EE TL Q 5017 G3070075 TransistorDTC144EE TL Q 5018 G3070075 TransistorDTC144EE TL Q 5019 G3070075 TransistorDTC144EE TL Q 5020 G3070075 TransistorDTC144EE TL Q 5021 G3070455 MOSFETRUM002N02T2L Q 5022 G3070455 MOSFETRUM002N02T2L Q 5023 G3070455 MOSFETRUM002N02T2L Q 5024 G3070455 MOSFETRUM002N02T2L Q 5025 G3070455 MOSFETRUM002N02T2L Q 5026 G4070015 MOSFETRTQ030P02 Q 5027 G1093778 ICTDA1519CTH Q 5028 G1093802 ICNJM7808DL1A-TE1 Q 5029 G3070075 TransistorDTC144EE TL Q 5030 G3070075 TransistorDTC144EE TL Q 5031 G1091325 ICNJM78L05UA-TE1 Q 5032 G3346178R Transistor2SC4617 TL R Q 5033 G4070015 MOSFETRTQ030P02 Q 5034 G3070075 TransistorDTC144EE TL Q 5035 G4070015 MOSFETRTQ030P02 Q 5036 G3070455 MOSFETRUM002N02T2L Q 5037 G1094962 ICSKY12338-337LF Q 5038 G1094909 ICST1S10PUR Q 5039 G3070075 TransistorDTC144EE TL Q 5040 G3070075 TransistorDTC144EE TL Q 5041 G1091325 ICNJM78L05UA-TE1 Q 5042 G3070225 TransistorDTC114TE TL Q 5043 G1094983 ICAD8566ARMZ-REEL Q 5044 G1095005 ICPMAIC Vertex Standard LMR, Inc. 3 FCC ID: AXI11143030/IC: 10239A-11143030 EVX-5300 / 5400 Series (VHF)Semi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL Q 5045 G3333567D Transistor2SC3356-T2B R24 Q 5046 G1095439 MODULERA30H1317M1A-122 Q 5047 G1094097 ICTAR5S50U(TE85L.F) Q 5049 G3070075 TransistorDTC144EE TL Q 5050 G1094962 ICSKY12338-337LF Q 5051 G3070225 TransistorDTC114TE TL Q 5052 G3070321 MOSFETRD01MUS1-T113 Q 5053 G1094777 ICAK1220 Q 5054 G3805087B FET2SK508-T2B K52 A Q 5055 G3805087B FET2SK508-T2B K52 A Q 5056 G3805087B FET2SK508-T2B K52 A Q 5058 G3070137 TransistorUMC5N TR Q 5059 G3070137 TransistorUMC5N TR Q 5061 G3830778 MOSFET2SK3077(TE85L,F) Q 5063 G4070015 MOSFETRTQ030P02 Q 5064 G3350068 Transistor2SC5006-T1-A/YFB Q 5065 G3070075 TransistorDTC144EE TL Q 5066 G3352268Z Transistor2SC5226-4/5-TL Q 5067 G3346178R Transistor2SC4617 TL R Q 5068 G3352268Z Transistor2SC5226-4/5-TL Q 5069 G3350068 Transistor2SC5006-T1-A/YFB Q 5070 G1095006 ICRFIC Q 5071 G3820357 FET2SK2035 TE85R Q 5072 G3070075 TransistorDTC144EE TL Q 5074 G1094983 ICAD8566ARMZ-REEL Q 5075 G1094983 ICAD8566ARMZ-REEL Q 5076 G3070455 MOSFETRUM002N02T2L Q 5078 G3070075 TransistorDTC144EE TL Q 5080 G3070455 MOSFETRUM002N02T2L Q 5082 G3346178R Transistor2SC4617 TL R Q 5083 G1093894 ICNJM2125F-TE1 Q 5084 G3070075 TransistorDTC144EE TL Q 5085 G3070455 MOSFETRUM002N02T2L Q 5086 G3070075 TransistorDTC144EE TL Q 5087 G3070075 TransistorDTC144EE TL Q 5088 G3070075 TransistorDTC144EE TL Q 5091 G3352268Z Transistor2SC5226-4/5-TL Q 5092 G1091593 ICTA75S01F(TE85R.F) Q 5093 G3352268Z Transistor2SC5226-4/5-TL Q 5094 G3070225 TransistorDTC114TE TL FRONT-A-UNITCH 8 D 2001 G2071358 LEDHSML-C191 D 2002 G2071358 LEDHSML-C191 D 2003 G2071358 LEDHSML-C191 D 2004 G2071358 LEDHSML-C191 D 2005 G2070910 Zener DiodeUDZS TE-17 5.6B D 2006 G2070910 Zener DiodeUDZS TE-17 5.6B D 2007 G2071378 Zener DiodeUDZS27B D 2008 G2070910 Zener DiodeUDZS TE-17 5.6B D 2009 G2…

Text truncated - open the document above for the full version.

RF Exposure Evaluation Report APPLICANT VERTEX STANDARD USA, INC. 8000 WEST SUNRISE BLVD. FT. LAUDERDALE FL 33322 USA FCC ID AXI11143030 MODEL NUMBER EVX-5300-DO-25, EVX-5400-DO-25 PRODUCT DESCRIPTION VHF MOBILE RADIO STANDARD APPLIED CFR 47 Part 2.1091 PREPARED BY Nam Nguyen APPROVED BY Sid Sanders TIMCO REPORT NO. 397AUT14RF Exposure Rpt.docx We, TIMCO ENGINEERING, INC. would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1091 and meets the requirements. The attached report shall not be reproduced except in full without the written approval of TIMCO ENGINEERIN, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Applicant: VERTEX STANDARD USA, INC. FCC ID: AXI11144730 Report: V:\V\VERTEX STANDARD USA\397AUT14\EXTRA397AUT14\397AUT14 RF EXPOSURE STMNT.DOCX Page 2 of 5 GENERAL REMARKS Attestations This equipment has been evaluated in accordance with the standards identified in this test report. To the best of my knowledge and belief, these evaluations were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. I attest that the necessary evaluations were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Nam Nguyen Engineering Project Manager Date: 3/ 26/2014 Applicant: VERTEX STANDARD USA, INC. FCC ID: AXI11144730 Report: V:\V\VERTEX STANDARD USA\397AUT14\EXTRA397AUT14\397AUT14 RF EXPOSURE STMNT.DOCX Page 3 of 5 GENERAL INFORMATION EUT Specification EUT Description VHF MOBILE TRANSCEIVER FCC ID AXI11143030 IC 10239A-11143030 Model Number EVX-5300-D0-25, EVX-5400-D0-25 Frequency Range 138-174 MHz Type of Emission 11K0F3E, 7K60F1D, 7K60F1E 7K60F1W, 7K60FXE, 7K60FXD Modulation FM EUT Power Source 110–120Vac/50– 60Hz DC Power 12V Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Test Conditions The temperature was 26ºC with a relative humidity of 50%. Revision History to the EUT None Test Facility Timco Engineering Inc. at 849 NW State Road 45 Newberry, FL 32669 USA. Applicant: VERTEX STANDARD USA, INC. FCC ID: AXI11144730 Report: V:\V\VERTEX STANDARD USA\397AUT14\EXTRA397AUT14\397AUT14 RF EXPOSURE STMNT.DOCX Page 4 of 5 RF Exposure Requirements General information Device type: Part 90 RF amplifier designed to increase the RF output power of a mobile push to talk type of radio. Device category: Mobile Environment: Controlled Exposure Mobile devices that operate under Part 90 of this chapter are subject to RF exposure evaluation prior to equipment authorization or use. Antenna Configuration Antenna p/n Type Max. Gain (dBi) mobile mounted Any omni 0 Operating configuration and exposure conditions: The conducted output power is 25 Watts. Typical use qualifies for a maximum duty cycle factor of 50%. - Mobile operation: A typical installation consists of an antenna system with a coaxial cable of the type RG 213/ U type which has a loss of 1dB for a length of 30 feet at UHF frequencies. MPE Calculation: The minimum separation distance is calculated as follows: The limit for general population/uncontrolled exposure environment below 300 MHz is 0.2 mW/cm 2 . Applicant: VERTEX STANDARD USA, INC. FCC ID: AXI11144730 Report: V:\V\VERTEX STANDARD USA\397AUT14\EXTRA397AUT14\397AUT14 RF EXPOSURE STMNT.DOCX Frequency: 138-174 MHz The conducted power output is 25 watt. 50% talk time in 30 minutes Max P ow e r 25WequalsMax P ow e r 25000mW Duty Cycle50%equalsDuty Factor0.5numeric Antenna Gain0 dBiGain numeric0.794328numeric Coax Loss1 dB Power Density0.2 mW/cm 2 (use chart below) Frequency range (MHz)Power density 0.3-1.34100 1.34-30 180/f 2 30-3000.2 300-1,500f /1500 1,500-100,0001 f = frequency in MHz 63cm 0.63m 24.80315Inches Minimum Separation Distance for Mobile or Fixed Devices General Population/Uncontrolled Exposure Minimum Separation Distance

FCC PART 90 and PART 22 TEST REPORT APPLICANT VERTEX STANDARD USA, INC. 8000 WEST SUNRISE BLVD. FT. LAUDERDALE FL 33322 USA FCC ID AXI11143030 MODEL NUMBER EVX-5300-D0-25, EVX-5400-D0-25 PRODUCT DESCRIPTION VHF MOBILE TRANSCEIVER Standard Applied CFR 47 Part 90 and Part 22 DATE SAMPLE RECEIVED 3/18/2014 DATE TESTED 3/21/2014 REPORT ISSUE DATE 3/26/2014 TESTED BY Nam Nguyen APPROVED BY Nam Nguyen TIMCO REPORT NO. 397AUT14TestReport TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Applicant: VERTEX STANDARD US…
