AXI11283020VHF HANDHELD LAND MOBILE RADIO

Programmable Functions / Features  IP55 Waterproof  Available Two Programmable Function Keys  2-Tone Encode/Decode  5-Tone Encode/Decode  MDC-1200 ® Encode ( ANI Encode )  Scan  Dual Watch  Follow-Me Scan  Talk Around Scan  VOX  Talk Around  Emergency  Lone Worker  TX Save Disable  Speed Dial  Lock  ARTS™ ( Auto Range Transpond System ) VX-261 oPerating manual FCC ID: AXI11283020 IC: 10239A-11283020 Vertex Standard LMR, Inc. Introduction......................................................................1 Warning!.FCC.RF.Exposure.Requirements..................2 Warning!.IC.RSS.General.Requirement.......................4 Before.You.Begin..............................................................6 Battery Pack Installation and Removal .......................6 Battery Charging .........................................................6 Low Battery Indication ................................................7 Belt Clip Installation and Removal .............................8 MIC/SP Cap Installation .............................................8 Controls.&.Connectors....................................................9 Operation........................................................................10 Preliminary Steps ......................................................10 Operation Quick Start ................................................10 Automatic Time-Out Timer .......................................12 Advanced.Operation......................................................13 Programmable Key Functions ..................................13 Description of Operating Functions .........................14 Lock.................................................................................19 ARTS™. ( Auto.Range.Transpond.System ) ..................19 Optional.Accessories......................................................20 contents Congratulations! You now have at your fingertips a valuable communications tool, a Vertex Standard two-way radio! Rugged, reliable and easy to use, your Vertex Standard radio will keep you in constant touch with your colleagues for years to come, with negli- gible maintenance down-time. Please take a few minutes to read this manual carefully. The information presented here will allow you to derive maximum performance from your radio, in case questions arise later on. Important.Note r There are no owner-serviceable parts inside the radio. All service jobs must be referred to an authorized Vertex Standard Service Representative. r In order to maintain the specified water integrity performance, periodic maintenance is recommended. r Should the radio sustain a severe shock (e.g. if it is dropped), the water integrity may be compromised, requiring service. Should this occur, contact your Authorized Vertex Standard Dealer. FCC ID: AXI11283020 IC: 10239A-11283020 Vertex Standard LMR, Inc. VX-261 Operating Manual1 Important.Notice.for.North.American.Users.Regarding.406.MHz.Guard.Band The U.S. Coast Guard and National Oceanographic and Atmospheric Administration have requested the cooperation of the U.S. Federal Communications Commission in preserving the integrity of the protected frequency range 406.0 to 406.1 MHz, which is reserved for use by distress beacons. Do not attempt to program this apparatus, under any circumstances, for operation in the frequency range 406.0 - 406.1 MHz if the apparatus is to be used in or near North America. Warning - Frequency band 406 - 406.1 MHz is reserved for use ONLY as a distress beacon by the US Coast Guard and NOAA. Under no circumstance should this frequency band be part of the pre programmed operating frequencies of this radio. introduction The VX-261 is full-featured Hand-Held Analog Transceiver designed for business communications in the VHF/UHF Land Mobile bands. This transceiver is designed for reliable business communications in a wide variety of applications with a wide range of operating capability provided by their leading-edge design, and allows up to 16-channel capacity. Important channel frequency data is stored in the flash memory, and is easily programmable by a Vertex Standard licensed dealers using a personal computer with Vertex Standard Programming equipment: FIF-12 USB Programming Interface, and CT-106 Connection cable with CE150 Software. Or, once a single radio is programmed, cloning cable CT-27 can be used to program additional radios directly. We describes the details of the many advanced features of the VX-261 in this manual. After reading this manual, you may wish to consult with your Network Administrator regarding precise details of the configuration of this equipment for use in your application. FCC ID: AXI11283020 IC: 10239A-11283020 Vertex Standard LMR, Inc. 2VX-261 Operating Manual Warning! Fcc rF exPosure requirements This Radio has been tested and complies with the Federal Communications Commission (FCC) RF exposure limits for Oc- cupational Use/Controlled exposure environment. In addition, it complies with the following Standards and Guidelines: r FCC 96-326, Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation. r FCC OET Bulletin 65 Edition 97-01 (2001) Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. r ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Elec- tromagnetic Fields, 3 kHz to 300 GHz. r ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave. .WARNING: This radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as Occupational Use Only, meaning it must be used only during the course of employment by individuals aware of the hazards, and the ways to minimize such hazards. This radio is not intended for use by the General Population in an uncontrolled environment. .CAUTION: To ensure that…

Text truncated - open the document above for the full version.

FCC ID: AXI11283020 VERTEX STANDARD USA, INC. Exhibit 13a 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 Date: December 16, 2014 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AXI11283020 Dear Sir or Madam: Vertex Standard USA, Inc. (8000 West Sunrise Boulevard, Fort Lauderdale, Florida) herein submits application for certification of the subject transmitter. This transmitter is intended for use in a Portable Radio environment and is capable of operating at the frequency range and power listed below: Model Frequency Rated Power FCC Rule Parts VX-261-D0-5 136-174 MHz 1-5 W 90 The subject transmitter complies with Section 90.203 of the Rules in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. Enclosed is a complete Certification Application. Please contact me if you require any additional information. Sincerely, Kim Uong Regulatory Compliance Engineer Tel: (954) 723-5422 E-mail: [email protected]

FCC ID: AXI 11283020 VERTEX STANDARD USA, INC. Exhibit 13b 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 CONFIDENTIALITY REQUESTED Date: December 24, 2014 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request Regarding Application for Transmitter with FCC ID: AXI 11283020 Dear Sir or Madam: Vertex Standard USA, Inc. (8000 West Sunrise Boulevard, Fort Lauderdale, Florida) is requesting for the following Exhibits be held as Permanently Confidential, and not be made routinely available for public inspection: Block diagram Circuit diagram The information in these exhibits considers to be classified as trade secrets, pursuant to 47 CFR Sections 0.457(d), 0.459 and 552(b)(4) of the Freedom of Information Act. Please mark these Exhibits as “Confidential.” Please contact me if you require any additional information. Sincerely, Kim Uong Regulatory Compliance Engineer Tel: (954) 723-5422 E-mail: [email protected]

FCC ID: AXI11283020 VERTEX STANDARD USA, INC. Exhibit 13a 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 Date: December 16, 2014 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Extended Frequencies Justification for Certification of Transmitter with FCC ID: AXI11283020 Dear Sir or Madam: This transmitter was design to operate in the frequency range of 136 -174 MHz. To aid equipment authorization in other countries that accept the United States FCC Grant for Certification, Vertex Standard USA Inc is requesting that the FCC list the above frequency/frequencies under FCC Rule Part 90 on the Grant. For the FCC’s Rule Part 90 application, this radio is used in systems by Federal and Public Safety agencies including Police, Fire, and Emergency Medical Services, etc. as indicated in the table below. Equipment programming is the responsibility of Authorized Service Personnel. Also, the radio complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Per the FCC’s KDB634817 guidance, as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Frequency Range (MHz) Part 90 Federal Emission Designator 138-150.8* x 11K0F3E 150.8-154 x 154-156.2475 x 156.2475-157.1875* 157.1875-161.575 x 157.77-158.67 x 161.575-161.775* 161.775-161.9625 x 161.9625-162.0375 162.0375-173.4 x 173.4-174* *Canada Please contact me if you require any additional information. Sincerely, Kim Uong Regulatory Compliance Engineer Tel: (954) 723-5422 E-mail: [email protected]

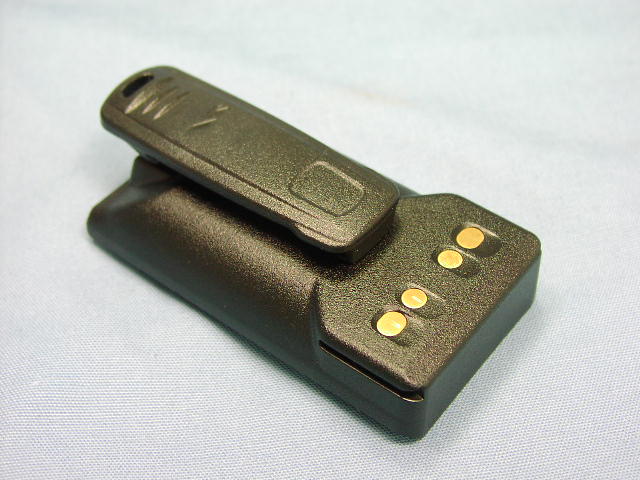

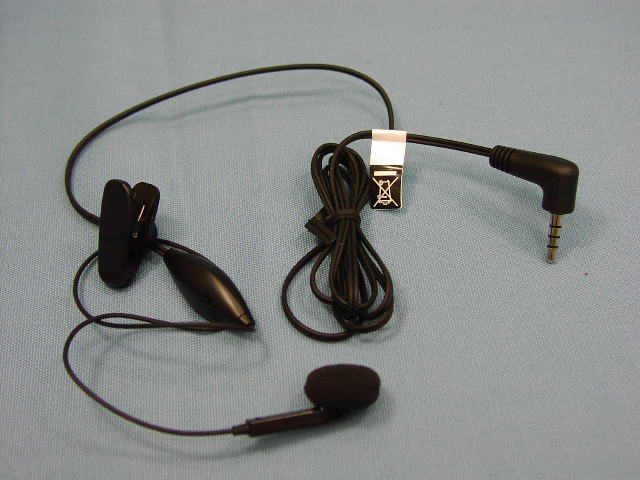

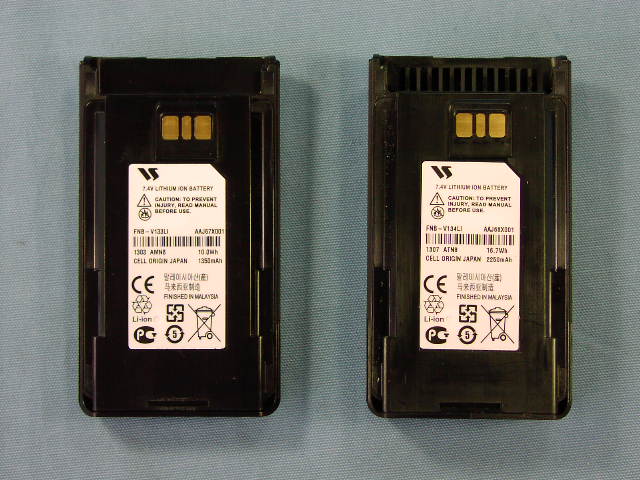

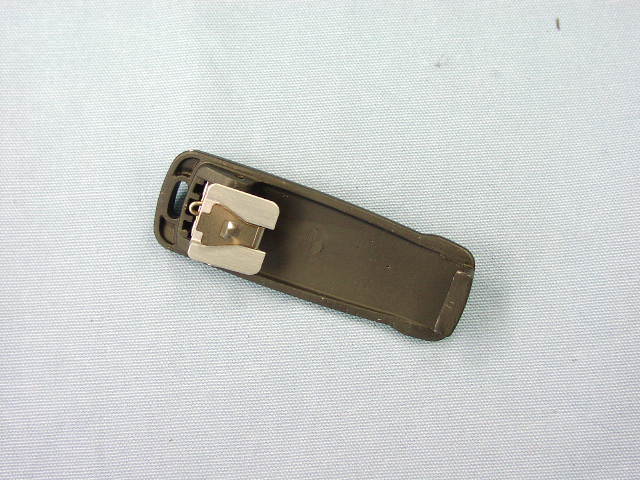

FCC ID: AXI11283020 IC: 10239A-11283020 Vertex Standard LMR, Inc. Front view with antenna Front view FCC ID: AXI11283020 IC: 10239A-11283020 Vertex Standard LMR, Inc. Rear view Rear view without Battery FCC ID: AXI11283020 IC: 10239A-11283020 Vertex Standard LMR, Inc. Left side Right side FCC ID: AXI11283020 IC: 10239A-11283020 Vertex Standard LMR, Inc. Top Bottom FCC ID: AXI11283020 IC: 10239A-11283020 Vertex Standard LMR, Inc. Battery Pack FNB-V133LI -UNI(1350mAh) and FNB-V134LI-UNI (2250mAh) Battery Charger FCC ID: AXI11283020 IC: 10239A-11283020 Vertex Standard LMR, Inc. AC Adapter Speaker/Microphone MH-45B4B FCC ID: AXI11283020 IC: 10239A-11283020 Vertex Standard LMR, Inc. Speaker/Microphone MH-360S Speaker/Microphone MH-450S FCC ID: AXI11283020 IC: 10239A-11283020 Vertex Standard LMR, Inc. Earpiece Microphone MH-37A4B Antenna FCC ID: AXI11283020 IC: 10239A-11283020 Vertex Standard LMR, Inc. Belt Clip Installation View of Belt Clip (Bottom)

VX-261-D0-5VX-261-D0-5 LABEL DRAWINGLABEL DRAWING Vertex Standard LMR, Inc.Vertex Standard LMR, Inc. ID / Part 15.19 and CAUTION drawings ID drawing Part 15.19 and CAUTION drawings Label location 2014. 11. 192014. 11. 19 VX-261-D0-5 FCC ID: AXI11283020 YYYYYYYYYYYY VERTEX STANDARD LMR,INC. ASSEMBLED IN CHINA 274K290011 SER. NO. 6.7-8.1V IC:10239A-11283020 DESIGNED IN JAPAN FCC ID: AXI11283020 IC: 10239A-11283020

FCC ID: AXI11283020 IC: 10239A-11283020 Vertex Standard LMR, Inc. Side-A of MAIN-UNIT with Shield Side-A of MAIN-UNIT without Shield FCC ID: AXI11283020 IC: 10239A-11283020 Vertex Standard LMR, Inc. Side-B of MAIN-UNIT Inside of front panel FCC ID: AXI11283020 IC: 10239A-11283020 Vertex Standard LMR, Inc. Inside of chassis Outside of chassis FCC ID: AXI11283020 IC: 10239A-11283020 Vertex Standard LMR, Inc. PWB of Battery Charger

Circuit Description 1. Receiver System 1-1. Front-end RF amplifier Incoming RF signal from the antenna is delivered to the Main Unit and passes through low-pass filter, antenna switching diode D1004 and D1005 (both 1SS390 ), high- pass filter and removed undesired frequencies by varactor tuned band-pass filter D1007 and D1009 (both 1SV325 ). The filtered RF signal is amplified by Q1015 ( BFS505 ) and then passes through another varactor tuned band-pass filter D1013 and D1014 (both 1SV325 ) to remove the undesired frequencies, and then applied to the 1st mixer Q1020 ( 3SK293 ). 1-2. First Mixer The RF signal is mixed with the 1st local signal be- tween 186.85 and 224.85 MHz in the 1st mixer Q1020 ( 3SK293 ), to produce 50.85 MHz 1st IF signal. The 1st local signal is generated by the VCO, which consists of Q1029 ( CPH3910 ), varactor diodes D1021, D1022, D1023, and D1025 (all 1SV282 ). The 1st lo- cal signal is supplied to the 1st mixer Q1020 ( 3SK293 ) through the buffer amplifier Q1021 and Q1026 (both 2SC5010 ). 1-3. IF Amplifier & Demodulator The 1st IF signal passes through monolithic crystal filters XF1001 (±7.5 kHz BW) to strip away all but the desired signal, and then supplied the buffer amplifier Q1035 ( 2SC5226 ). The amplified 1st IF signal is applied to the FM IF subsys- tem IC Q1040 ( AA32416 ) which contains the 2nd mixer, 2nd local oscillator, limiter amplifier, noise amplifier, and RSSI amplifier. The signal from reference oscillator X1002 (16.8 MHz) becomes three times of frequencies in Q1040 ( AA32416 ), it is mixed with the 1st IF signal and becomes 450 kHz. The 2nd IF signal passes through the ceramic filter CF1001 ( LTM450GW ) or CF1002 ( LTM450EW ) to strip away unwanted mixer products, and is supplied to the limiter amplifier in Q1040 ( AA32416 ), which removes amplitude variations in the 450 kHz IF, before detection of the speech by the ceramic discriminator CD1001 ( JT- BM450CX24 ). 1-4. Audio amplifier The detected signal from Q1040 ( AA32416 ) is supplied to the AF adder Q1045-1 ( NJM12902V ) through the TX/ RX switch Q1057-2 ( SN74LV4066A ), high-pass filter Q1045-2 ( NJM12902V ), and mute switch Q1057-4 ( SN74LV4066A ). The audio signal from Q1045-1 ( NJM12902V ) is sup- plied to the audio amplifier Q1008 ( TDA2822L ) through the AF volume potentiometer (VR1001). As a result, the audio signal provides up to 700 mW (@16-ohm BTL) for internal speaker or up to 500 mW (@4-ohm OTL) for ex- ternal speaker. 1-5. Squelch Circuit There are 16 levels of squelch setting from “0” to “15”. The level “0” means open the squelch. The level “1” means the threshold setting level and level “14” means tight squelch. From level “2” to level “13” is established in the middle of threshold and tight. The level “15” be- comes setting of carrier squelch. 1-5-1. Noise Squelch The noise squelch circuit is consisted of the band-path fil- ter, noise amplifier Q1047 ( 2SC4617 ), and noise detector D1035 ( DA221 ). When a carrier isn’t received, the noise ingredient which goes out of the demodulator section of Q1040 ( AA32416 ) is amplified by noise amplifier Q1047 ( 2SC4617 ) through the band-path filter, and then is detected to DC voltage by D1035 ( DA221 ). The DC voltage is inputted to pin 54 (A/D port) of the CPU Q1028 ( R5F100LHDFB ). When a carrier is received, the DC voltage becomes low because the noise is compressed. When the detected voltage to CPU is “High”, the CPU stops the AF output of Q1013 ( DTC144EE ) by making to “low” of the pin 39 of CPU. When the detection voltage to CPU is “low”, the CPU al- lows the AF output of Q1013 ( DTC144EE ) by making to “High” of the pin 39 of CPU. 1-5-2. Carrier Squelch The detected RSSI voltage from pin 12 of Q1040 ( AA32416 ) supplied to pin 53 (A/D port) of Q1028 ( R5F100LHDFB ). It is controls the AF output. The RSSI output voltage changes according to the signal strength of carrier. The stronger signal makes the RSSI voltage to be higher voltage. The process of the AF signal control is same as Noise Squelch. The shipping data is ad- justed 3 dBμ (EMF) higher than squelch tight sensitivity. FCC ID: AXI11283020 IC: 10239A-11283020 Vertex Standard LMR, Inc. 2. Transmitter System 2-1. MIC Amplifier The speech signal from internal microphone MC1001 or external microphone J1003 is amplified by Q1044-2 ( NJM12902V ). The amplified speech signal from Q1044-2 ( NJM12902V ) is supplied to pin 14 of Electric Volume IC Q1018 ( AK2330 ) which adjusts the microphone gain through the TX/RX switch Q1057-2 ( SN74LV4066A ), high-pass filter Q1045-2 ( NJM12902V ), and other TX/RX switch Q1057-3 ( SN74LV4066A ). The adjusted speech signal is output from pin 15 of Q1018 ( AK2330 ), and then passed through the limiter ampli- fier Q1044-1 ( NJM12902V ), low-pass filter Q1044-2/-3 ( NJM12902V ), and AF adder Q1052-3 ( NJM12902V ). The processed speech signal from Q1052-3 ( NJM12902V ) is supplied to pin 22 of Electric Volume IC Q1018 ( AK2330 ) which adjusts the maximum devia- tion. The adjusted speech signal is amplified by Q1052- 2 ( NJM12904R ), and then is made FM modulation to transmit carrier by the modulator D1019 ( BB208 ) of VCO Q1037 ( 2SC4227 ). 2-2. Drive and Final Amplifier Stages The modulated signal from the VCO Q1037 ( 2SC4227 ) is buffered by Q1026 ( 2SC5010 ). Then the signal is buffered by Q1021 ( 2SC5010 ) and Q1019 ( 2SK3077 ) for the driver amplifier Q1016 ( RQA0004PXDQS ). The low-level transmit signal is then applied to Q1012 ( RQA- 0011DNS ) for final amplification up to 5 watts output power. The transmit signal then passes through the antenna switch D1003 ( RN1425 ) and is low-pass filtered to sup- press away harmonic spurious radiation before delivery to the antenna. 2-3. Automatic Transmit Power Control The current detector Q1053-1 ( NJM12902V ) detects the current of the driver amplifier Q1016 ( RQA0004PXDQS ) and final amplifier Q1012 ( RQA0011DNS ), and converts the current difference to the voltage difference. The output from the c…

Text truncated - open the document above for the full version.

1 FCC ID: AXI11283020/IC: 10239A-11283020 VX-261-D0-5Semi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL D 1003 G2070994 DiodeRN142S TE61 D 1004 G2071226 Diode1SS390 D 1005 G2071226 Diode1SS390 D 1006 G2070178 DiodeDA221 TL D 1007 G2070848 Diode1SV325(TPH3.F) D 1008 G2070178 DiodeDA221 TL D 1009 G2070848 Diode1SV325(TPH3.F) D 1010 G2070934 Diode1SS400G T2R D 1012 G2071004 Zener DiodeEDZ TE-61 3.9B D 1013 G2070848 Diode1SV325(TPH3.F) D 1014 G2070848 Diode1SV325(TPH3.F) D 1015 G2070174 DiodeDAN222 TL D 1016 G2070934 Diode1SS400G T2R D 1017 G2070934 Diode1SS400G T2R D 1018 G2070874 Zener DiodeUDZS TE-17 4.3B D 1019 G2071523 DiodeBB208-02, 115 D 1020 G2070934 Diode1SS400G T2R D 1021 G2070848 Diode1SV325(TPH3.F) D 1022 G2070848 Diode1SV325(TPH3.F) D 1023 G2070848 Diode1SV325(TPH3.F) D 1024 G2070178 DiodeDA221 TL D 1025 G2070848 Diode1SV325(TPH3.F) D 1027 G2070848 Diode1SV325(TPH3.F) D 1028 G2070848 Diode1SV325(TPH3.F) D 1030 G2071276 LEDFSL-1615055GR-ZC4 D 1031 G2070934 Diode1SS400G T2R D 1032 G2070174 DiodeDAN222 TL D 1033 G2070174 DiodeDAN222 TL D 1034 G2070934 Diode1SS400G T2R D 1035 G2070178 DiodeDA221 TL D 1036 G2070178 DiodeDA221 TL Q 1001 G3070347 MOSFETRTM002P02(TAPE) Q 1002 G3346178R Transistor2SC4617 TL R Q 1003 G3070347 MOSFETRTM002P02(TAPE) Q 1004 G3070075 TransistorDTC144EE TL Q 1005 G3070075 TransistorDTC144EE TL Q 1006 G1094097 ICTAR5S50U(TE85L.F) Q 1007 G1092116 ICTC7S66FU(TE85R.F) Q 1008 G1094497 ICTDA2822L-S08-R Q 1009 G3070075 TransistorDTC144EE TL Q 1010 G3070347 MOSFETRTM002P02(TAPE) Q 1011 G4070015 MOSFETRTQ030P02 Q 1012 G3070392 MOSFETRQA0011DNS Q 1013 G3070075 TransistorDTC144EE TL Q 1014 G3117748R Transistor2SA1774 TL R Q 1015 G3070489 TransistorBFS505 Q 1016 G3070391 MOSFETRQA0004PXDQS Q 1017 G3070075 TransistorDTC144EE TL Q 1018 G1094583 ICAK2330-L Q 1019 G3830778 MOSFET2SK3077(TE85L,F) Q 1020 G4802938A FET3SK293(TE85L.F) Q 1021 G3350108 Transistor2SC5010-T1-A/YFB Q 1022 G3070075 TransistorDTC144EE TL Q 1023 G3070225 TransistorDTC114TE TL Vertex Standard LMR, Inc. 2 FCC ID: AXI11283020/IC: 10239A-11283020 VX-261-D0-5Semi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL Q 1024 G1093606 ICS-80835CNMC-B8U-T2-G Q 1025 G1094096 ICTAR5S35U(TE85L.F) Q 1026 G3350108 Transistor2SC5010-T1-A/YFB Q 1027 G3070225 TransistorDTC114TE TL Q 1028 G1095503 ICR5F100LHDFB#V0 Q 1029 G3070486 FETCPH3910-TL-E Q 1030 G3070225 TransistorDTC114TE TL Q 1031 G3070225 TransistorDTC114TE TL Q 1032 G3350108 Transistor2SC5010-T1-A/YFB Q 1033 G3070074 TransistorDTA144EE TL Q 1034 G3070075 TransistorDTC144EE TL Q 1035 G3070420 Transistor2SC5226A-4-TL-E Q 1036 G3346178R Transistor2SC4617 TL R Q 1037 G3342278B Transistor2SC4227-T1 R32 Q 1038 G3070074 TransistorDTA144EE TL Q 1039 G1095485 ICBR93G86FVM-3TR Q 1040 G1094857 ICAA32416 Q 1041 G3340818 Transistor2SC4081 T106 Q 1042 G3070225 TransistorDTC114TE TL Q 1043 G3070225 TransistorDTC114TE TL Q 1044 G1093592 ICNJM12902V-TE1 Q 1045 G1093592 ICNJM12902V-TE1 Q 1046 G1094713 ICAK1541 Q 1047 G3346178R Transistor2SC4617 TL R Q 1048 G1093336 ICNJM12903R-TE1 Q 1049 G3070075 TransistorDTC144EE TL Q 1050 G3070075 TransistorDTC144EE TL Q 1051 G1093592 ICNJM12902V-TE1 Q 1052 G1093592 ICNJM12902V-TE1 Q 1053 G1093337 ICNJM12904R-TE1 Q 1055 G3070075 TransistorDTC144EE TL Q 1056 G3070075 TransistorDTC144EE TL Q 1057 G1093871 ICSN74LV4066APWR Q 1059 G3070075 TransistorDTC144EE TL Q 1062 G3346178R Transistor2SC4617 TL R Vertex Standard LMR, Inc.

Introduction The VX-261 is carefully aligned at the factory for the specified performance across the frequency range speci- fied for each version. Realignment should therefore not be necessary except in the event of a component failure, or altering version type. All component replacement and service should be performed only by an authorized Vertex Standard representative, or the warranty policy may be void. The following procedures cover the sometimes critical and tedious adjustments that are not normally required once the transceiver has left the factory. However, if damage occurs and some parts subsequently are replaced, realign- ment may be required. If a sudden problem occurs during normal operation, it is likely due to component failure; realignment should not be done until after the faulty com- ponent has been replaced. We recommend that servicing be performed only by au- thorized Vertex Standard service technicians who are ex- perienced with the circuitry and fully equipped for repair and alignment. Therefore, if a fault is suspected, contact the dealer from whom the transceiver was purchased for instructions regarding repair. Authorized Vertex Standard service technicians realign all circuits and make complete performance checks to ensure compliance with factory specifications after replacing any faulty components. Those who do undertake any of the following alignments are cautioned to proceed at their own risk. Problems caused by unauthorized attempts at realignment are not covered by the warranty policy. Also, Vertex Standard reserves the right to change circuits and alignment pro- cedures in the interest of improved performance, without notifying owners. Under no circumstances should any alignment be attempt- ed unless the normal function and operation of the trans- ceiver are clearly understood, the cause of the malfunction has been clearly pinpointed and any faulty components replaced, and realignment determined to be absolutely necessary. The following test equipment (and thorough familiarity with its correct use) is necessary for complete realign- ment. Correction of problems caused by misalignment resulting from use of improper test equipment is not covered under the warranty policy. While most steps do not require all of the equipment listed, the interactions of some adjustments may require that more complex adjust- ments be performed afterwards. Do not attempt to perform only a single step unless it is clearly isolated electrically from all other steps. Have all test equipment ready before beginning, and follow all of the steps in a section in the order presented. Required Test Equipment  RF Signal Generator with calibrated output level at 600 MHz  Oscilloscope  Deviation Meter (linear detector)  In-line Wattmeter with 5 % accuracy at 600 MHz  50 Ohm RF Dummy Load with power rating 10 W at 600 MHz  Regulated DC Power Supply (standard 7.5 V DC, 3 A)  Frequency Counter with 0.2 ppm accuracy at 600 MHz  Audio Signal Generator  AC Voltmeter  DC Voltmeter  UHF Sampling Coupler  IBM ® PC/compatible Computer with Microsoft ® Win- dows ® 2000, XP, Vista or Windows7  Vertex Standard CE150 PC Programming Software  Vertex Standard FIF-12 USB Programming Interface and CT-104A, CT-106, or CT-171 PC Programming Cable.  Vertex Standard FRB-6 Tuning Interface Box and CT- 160 Connection Cable.  Vertex Standard CN-3 (P/N: A08760001) Antenna Connector Alignment Preparation & Precautions A 50-Ohm RF Dummy Load and in-line wattmeter must be connected to the main antenna jack in all procedures that call for transmission, except where specified other- wise. Correct alignment is not possible with an antenna. Because of the BTL (Bridged Trans Less) Amplifier cir- cuit used in the VX-261, do not connect earth side of the speaker leads to chassis “ground”. After completing one step, read the following step to de- termine whether the same test equipment will be required. If not, remove the test equipment (except dummy load and wattmeter, if connected) before proceeding. Correct alignment requires that the ambient temperature be the same as that of the transceiver and test equipment, and that this temperature be held constant between 68 and 86 °F (20 ~ 30 °C). When the transceiver is brought into the shop from hot or cold air, it should be allowed time to come to room temperature before alignment. Whenever possible, alignments should be made with os- cillator shields and circuit boards firmly affixed in place. Also, the test equipment must be thoroughly warmed up before beginning. Note: Signal levels in dB referred to in the alignment pro- cedure are based on 0 dBμ EMF = 1 μV. Alignment FCC ID: AXI11283020 IC: 10239A-11283020 Vertex Standard LMR, Inc. Test Setup Setup the test equipment as shown below for transceiver alignment, then apply 7.5 V DC power to the transceiver. The Alignment Tool Outline Installation of the alignment tool  Install the CE150 (PC Programming Software) to your PC.  “Alignment“ function in the “Radio“ menu tab of CE150. Action of the switches When the transceiver is in the “Alignment mode,“ the ac- tion of the SIDE-1, SIDE-2, and PTT keys are ignored. All of the action is controlled by the PC. Caution Please never turn off the power supply during alignment. If the power supply is turned off during alignment, the alignment data will be corrupted. Alignment Alignment Mode In the “Alignment Mode”, the aligned data written in the radio will be able to re-align its alignment data. The value of each parameter can be changed to desired position by “ ‘ ”/“ ’ ” arrow key for data up/down, “ “ ”/“ ” ” arrow key for channel up/down, direct number input, and drag the mouse. Note: when all items are aligned, it is strongly recom- mended to align according to following order. The detail information is written in the help document of CE150 PC Programming Software. 1. PLL Reference Frequency (Frequency) 2. RX Sensitivity (RX Tune) 3. Squelch (SQL/RSSI) 4. TX Power <High/L…
