AXI112746202-WAY PORTABLE RADIO

Programmable Functions / Features  IP55 Submersible  Available Six Programmable Function Keys  2-Tone Encode/Decode  5-Tone Encode/Decode  MDC-1200 ® Encode ( ANI Encode )  Scan  Group Scan  Dual Watch  Follow-Me Scan  Talk Around Scan  Encryption  VOX  Talk Around  Emergency  Lone Worker  TX Save Disable  Code Up/Down  Code Set  Speed Dial  Duty  Lock  ARTS™ ( Auto Range Transpond System ) VX-264 oPerating manual FCC ID: AXI11274620 IC: 10239A-11274620 Vertex Standard LMR, Inc. Introduction......................................................................1 Warning!.FCC.RF.Exposure.Requirements..................2 Warning!.IC.RSS.General.Requirement.......................4 Before.You.Begin..............................................................6 Battery Pack Installation and Removal .......................6 Battery Charging .........................................................6 Low Battery Indication ................................................7 Belt Clip Installation and Removal .............................8 MIC/SP Cap Installation .............................................8 Controls.&.Connectors..................................................10 LCD.Icons.&.Indicators................................................11 Operation........................................................................12 Preliminary Steps ......................................................12 Operation Quick Start ................................................12 Automatic Time-Out Timer .......................................14 Advanced.Operation......................................................15 Programmable Key Functions ..................................15 Description of Operating Functions .........................18 Lock.................................................................................26 ARTS™. ( Auto.Range.Transpond.System ) ..................26 Optional.Accessories......................................................27 contents Congratulations! You now have at your fingertips a valuable communications tool, a Vertex Standard two-way radio! Rugged, reliable and easy to use, your Vertex Standard radio will keep you in constant touch with your colleagues for years to come, with negli- gible maintenance down-time. Please take a few minutes to read this manual carefully. The information presented here will allow you to derive maximum performance from your radio, in case questions arise later on. Important.Note r There are no owner-serviceable parts inside the radio. All service jobs must be referred to an authorized Vertex Standard Service Representative. r In order to maintain the specified water integrity performance, periodic maintenance is recommended. r Should the radio sustain a severe shock (e.g. if it is dropped), the water integrity may be compromised, requiring service. Should this occur, contact your Authorized Vertex Standard Dealer. FCC ID: AXI11274620 IC: 10239A-11274620 Vertex Standard LMR, Inc. VX-264 Operating Manual1 Important.Notice.for.North.American.Users.Regarding.406.MHz.Guard.Band The U.S. Coast Guard and National Oceanographic and Atmospheric Administration have requested the cooperation of the U.S. Federal Communications Commission in preserving the integrity of the protected frequency range 406.0 to 406.1 MHz, which is reserved for use by distress beacons. Do not attempt to program this apparatus, under any circumstances, for operation in the frequency range 406.0 - 406.1 MHz if the apparatus is to be used in or near North America. Warning - Frequency band 406 - 406.1 MHz is reserved for use ONLY as a distress beacon by the US Coast Guard and NOAA. Under no circumstance should this frequency band be part of the pre programmed operating frequencies of this radio. introduction The VX-264 is full-featured Hand-Held Analog Transceiver designed for business communications in the VHF/UHF Land Mobile bands. This transceiver is designed for reliable business communications in a wide variety of applications with a wide range of operating capability provided by their leading-edge design, and allows up to 128-channel capacity within a maximum 8 groups. Each channel can be programmed with an 8-character Alpha-Numeric Tag. Important channel frequency data is stored in the flash memory, and is easily programmable by a Vertex Standard licensed dealers using a personal computer with Vertex Standard Programming equipment: FIF-12 USB Programming Interface, and CT-106 Connection cable with CE150 Software. Or, once a single radio is programmed, cloning cable CT-27 can be used to program additional radios directly. We describes the details of the many advanced features of the VX-264 in this manual. After reading this manual, you may wish to consult with your Network Administrator regarding precise details of the configuration of this equipment for use in your application. FCC ID: AXI11274620 IC: 10239A-11274620 Vertex Standard LMR, Inc. 2VX-264 Operating Manual Warning! Fcc rF exPosure requirements This Radio has been tested and complies with the Federal Communications Commission (FCC) RF exposure limits for Oc- cupational Use/Controlled exposure environment. In addition, it complies with the following Standards and Guidelines: r FCC 96-326, Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation. r FCC OET Bulletin 65 Edition 97-01 (2001) Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. r ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Elec- tromagnetic Fields, 3 kHz to 300 GHz. r ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave. .WARNING: This radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as Occupational Use Only, meaning it must be used o…

Text truncated - open the document above for the full version.

FCC ID: AXI11274620 VERTEX STANDARD USA, INC. Exhibit 13a 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 Date: December 27, 2014 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AXI11274620 Dear Sir or Madam: Vertex Standard USA, Inc. (8000 West Sunrise Boulevard, Fort Lauderdale, Florida) herein submits application for certification of the subject transmitter. This transmitter is intended for use in a Portable Radio environment and is capable of operating at the frequency range and power listed below: Model Frequency Rated Power FCC Rule Parts VX-264-G6-5 403-470 MHz 1-5 W 90 The subject transmitter complies with Section 90.203 of the Rules in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. Enclosed is a complete Certification Application. Please contact me if you require any additional information. Sincerely, Kim Uong Regulatory Compliance Engineer Tel: (954) 723-5422 E-mail: [email protected]

FCC ID: AXI11274620 VERTEX STANDARD USA, INC. Exhibit 13b 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 CONFIDENTIALITY REQUESTED Date: December 27, 2014 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request Regarding Application for Transmitter with FCC ID: AXI11274620 Dear Sir or Madam: Vertex Standard USA, Inc. (8000 West Sunrise Boulevard, Fort Lauderdale, Florida) is requesting for the following Exhibits be held as Permanently Confidential, and not be made routinely available for public inspection: Block diagram Circuit diagram The information in these exhibits considers to be classified as trade secrets, pursuant to 47 CFR Sections 0.457(d), 0.459 and 552(b)(4) of the Freedom of Information Act. Please mark these Exhibits as “Confidential.” Please contact me if you require any additional information. Sincerely, Kim Uong Regulatory Compliance Engineer Tel: (954) 723-5422 E-mail: [email protected]

FCC ID: AXI11274620 VERTEX STANDARD USA, INC. Exhibit 13a 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 Date: December 27, 2014 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Extended Frequencies Justification for Certification of Transmitter with FCC ID: AXI11274620 Dear Sir or Madam: This transmitter was design to operate in the frequency range of 403-470 MHz. To aid equipment authorization in other countries that accept the United States FCC Grant for Certification, Vertex Standard USA Inc is requesting that the FCC list the above frequency/frequencies under FCC Rule Part 90 on the Grant. For the FCC’s Rule Part 90 application, this radio is used in systems by Federal and Public Safety agencies including Police, Fire, and Emergency Medical Services, etc. as indicated in the table below. Equipment programming is the responsibility of Authorized Service Personnel. Also, the radio complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Per the FCC’s KDB634817 guidance, as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Frequency Range (MHz) Part 90 Emission Designator 403-406.1 11K0F3E 406.1-454 x 454-456* 456-459.025 x 459.025-459.650 x 459.650-462.5375 x 462.5375-462.7375* 462.7375-467.5375 x 467.5375-467.7375* 467.7375-470 x *Canada Please contact me if you require any additional information. Sincerely, Kim Uong Regulatory Compliance Engineer Tel: (954) 723-5422 E-mail: [email protected]

Federal Communications Commission Washington, D.C. 20554 June 26, 2015 DA 15-754 Yukimasa Tomita Executive Manager Vertex Standard LMR, Inc. 4-6-8 Shibaura Minato-ku, Tokyo 108-0023 Japan Re: Request for Waiver of Vertex Standard LMR, Inc. Dear Mr. Tomita: This letter addresses the request you filed on behalf of Vertex Standard LMR, Inc. (Vertex) for a waiver of the requirement Section 90.203(j)(5) of the Commission’s rules 1 that all Part 90 certification applications in specified VHF and UHF bands include a 6.25 kHz operating mode or equivalent efficiency. 2 Vertex seeks this waiver for equipment certification applications for two 5 watt 12.5 kHz UHF radios that are not capable of operating in a 6.25 kHz operating mode. 3 For the reasons set forth below, we grant the request. Background.Section 90.203(j)(5) of the Commission’s Rules states that applications for Part 90 certification of transmitters designed to operate in certain VHF/UHF bands filed on or after January 1, 2011 must be capable of meeting a spectrum efficiency standard of one voice channel per 6.25 kHz of channel bandwidth or equivalent efficiency. In 2010, the Commission temporarily waived this requirement until January 1, 2013. 4 In 2013, the Wireless Telecommunications Bureau, the Public Safety and Homeland Security Bureau, and the Office of Engineering and Technology (collectively the Bureaus) extended the waiver until January 1, 2015. 5 The requirement that applications for certification of Part 90 private land mobile radio equipment in the 150-174 MHz and 421-512 MHz bands include acertification that the equipment can operate in a 6.25 kHz mode or with equivalent efficiency is now in effect. Vertex states that it successfully completed and submitted applications for four out of six products in a new product line, without 6.25 kHz capability, prior to the January 1, 2015 1 See47 C.F.R. § 90.203(j)(5). 2 SeeRequest for Waiver of Vertex Standard LMR, Inc., filed Apr. 30, 2015 (Waiver Request); see also Request for Waiver of Vertex Standard LMR, Inc., filed Mar. 5, 2015. 3 FCC IDs AXI11274620 and AXI11284620. 4 See Implementation of Sections 309(j) and 337 of the Communications Act of 1934 as Amended, Order, WT Docket No. 99-87, 25 FCC Rcd 8861, 8866 ¶ 11 (2010). 5 SeeImplementation of Sections 309(j) and 337 of the Communications Act of 1934 as Amended, Order, WT Docket No. 99-87, 28 FCC Rcd 2811, 2814 ¶ 12 (WTB/PSHSB/OET 2013). Vertex Standard LMR, Inc.Page 2 deadline. 6 With respect to the other two models, it explains that it submitted equipment to the test facility early enough for an application to be submitted before the deadline, but the test facility unexpectedly requested additional material, which delayed the completion of the testing. 7 Because of this delay, Vertex was unable to submit equipment approval applications for these two models before January 1, 2015. A waiver is therefore sought for the two remaining models in the product line without 6.25 kHz capability. Discussion. To obtain a waiver of the Commission’s rules a petitioner must demonstrate either that (i) the underlying purpose of the rule(s) would not be served or would be frustrated by application to the present case, and that a grant of the waiver would be in the public interest; 8 or (ii) in view of unique or unusual factual circumstances of the instant case, application of the rule(s) would be inequitable, unduly burdensome, or contrary to the public interest or the applicant has no reasonable alternative. 9 We conclude that Vertex has presented sufficient facts to meet the high standard for grant of the requested waiver under the second prong of the waiver standard. Vertex has shown diligence in planning and has invested substantial resources in its new product line. If the waiver were denied, Vertex would continue to market its existing products without 6.25 kHz capability, but, according to Vertex, “rejecting the waiver request would denyusers the benefit of using radios with improved performance and design. It would also require Vertex Standard to develop new devices to replace the VX-264-G6-5 and VX-261-G6-5 outside of the company’s typical development cycles.” 10 Moreover, users seeking 6.25 kHz capability can obtain such equipment from Vertex and other manufacturers. 11 Accordingly, we grant Vertex Standard a waiver of the requirement that all Part 90 certification applications in specified UHF and VHF bands include a 6.25 kHz operatingmode, or equivalent efficiency. Accordingly, IT IS ORDERED pursuant to Section 4(i) of the Communications Act of 1934, as amended, 47 U.S.C. § 154(i), and Section 1.925(b)(3)(ii) of the Commission’s rules, 47 C.F.R.§ 1.925(b)(3)(ii), that the Request forWaiver, filed on April 30, 2015 by Vertex Standard LMR, Inc. IS GRANTED. 6 SeeWaiver Request at 2. 7 Id. 8 47 C.F.R. § 1.925(b)(3)(i). 9 47 C.F.R. § 1.925(b)(3)(ii). 10 Waiver Request at 3. 11 See id. Vertex Standard LMR, Inc.Page 3 This action is taken under delegated authority pursuant to Sections 0.131, 0.191, 0.331, and 0.392 of the Commission’s rules, 47 C.F.R. §§ 0.131, 0.191, 0.331, 0.392. FEDERAL COMMUNICATIONS COMMISSION Scot Stone Deputy Chief, Mobility Division Wireless Telecommunications Bureau Michael J. Wilhelm Deputy Chief, Policy and Licensing Division Public Safety and Homeland Security Bureau

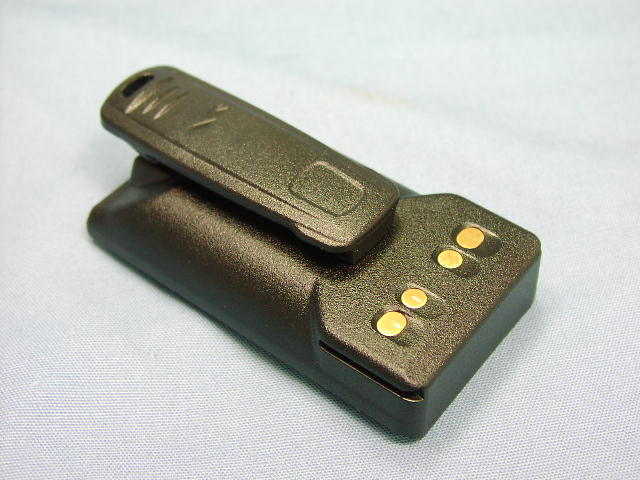

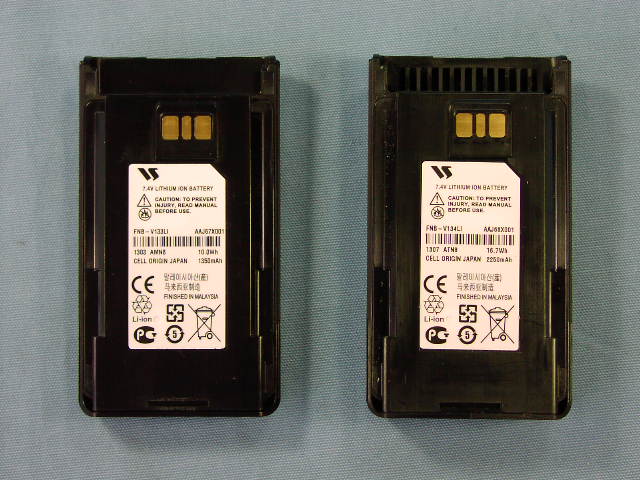

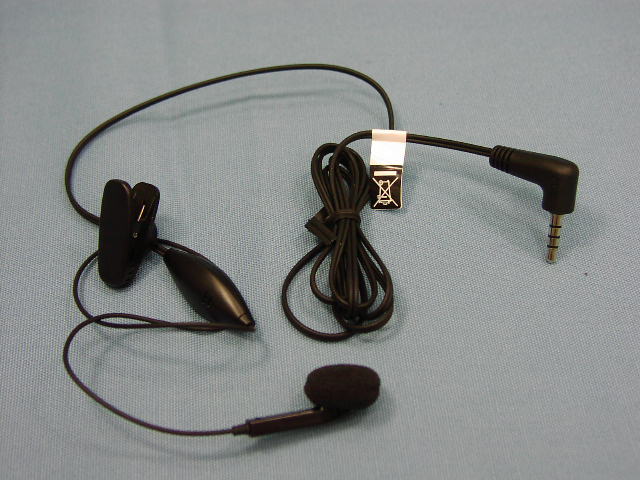

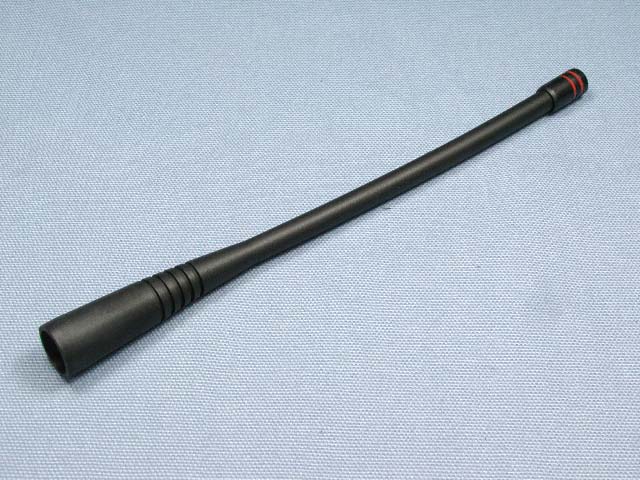

FCC ID: AXI11274620 IC: 10239A-11274620 Front view with antenna Front view Vertex Standard LMR, Inc. FCC ID: AXI11274620 IC: 10239A-11274620 Rear view Rear view without Battery Vertex Standard LMR, Inc. FCC ID: AXI11274620 IC: 10239A-11274620 Left side Right side Vertex Standard LMR, Inc. FCC ID: AXI11274620 IC: 10239A-11274620 Top Bottom Vertex Standard LMR, Inc. FCC ID: AXI11274620 IC: 10239A-11274620 Battery Pack FNB-V133LI (1350mAh) and FNB-V134LI (2250mAh) Battery Charger Vertex Standard LMR, Inc. FCC ID: AXI11274620 IC: 10239A-11274620 AC Adapter Speaker/Microphone MH-45B4B Vertex Standard LMR, Inc. FCC ID: AXI11274620 IC: 10239A-11274620 Speaker/Microphone MH-360S Speaker/Microphone MH-450S Vertex Standard LMR, Inc. FCC ID: AXI11274620 IC: 10239A-11274620 Earpiece Microphone MH-37A4B Antenna Vertex Standard LMR, Inc. FCC ID: AXI11274620 IC: 10239A-11274620 Belt Clip Installation View of Belt Clip (Bottom) Vertex Standard LMR, Inc.

VX-264-G6-5VX-264-G6-5 LABEL DRAWINGLABEL DRAWING Vertex Standard LMR, Inc.Vertex Standard LMR, Inc. ID / Part 15.19 and CAUTION drawings ID drawing Part 15.19 and CAUTION drawings Label location 2014. 12. 52014. 12. 5 VX-264-G6-5 FCC ID: AXI11274620 YYYYYYYYYYYY VERTEX STANDARD LMR,INC. ASSEMBLED IN CHINA 254N800021 SER. NO. 6.7-8.1V IC:10239A-11274620 DESIGNED IN JAPAN FCC ID: AXI11274620 IC: 10239A-11274620

FCC ID: AXI11274620 IC: 10239A-11274620 Side-A of MAIN-UNIT with LCD and Shield Side-A of MAIN-UNIT without LCD and Shield Vertex Standard LMR, Inc. FCC ID: AXI11274620 IC: 10239A-11274620 Side-B of MAIN-UNIT Top of LCD Vertex Standard LMR, Inc. FCC ID: AXI11274620 IC: 10239A-11274620 Bottom of LCD Inside of front panel Vertex Standard LMR, Inc. FCC ID: AXI11274620 IC: 10239A-11274620 Inside of chassis Outside of chassis Vertex Standard LMR, Inc. FCC ID: AXI11274620 IC: 10239A-11274620 PWB of Battery Charger Vertex Standard LMR, Inc.

1 FCC ID: AXI11274620/IC: 10239A-11274620 VX-264-G6-5Semi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL MAIN-UNIT D 1003 G2070994 DiodeRN142S TE61 D 1004 G2071226 Diode1SS390 D 1005 G2071226 Diode1SS390 D 1006 G2070178 DiodeDA221 TL D 1007 G2070942 Diode1SV305(TPH3) D 1008 G2070178 DiodeDA221 TL D 1009 G2070942 Diode1SV305(TPH3) D 1010 G2070934 Diode1SS400G T2R D 1012 G2071004 Zener DiodeEDZ TE-61 3.9B D 1013 G2070942 Diode1SV305(TPH3) D 1014 G2070942 Diode1SV305(TPH3) D 1015 G2070174 DiodeDAN222 TL D 1016 G2070934 Diode1SS400G T2R D 1017 G2070934 Diode1SS400G T2R D 1018 G2070908 Zener DiodeUDZS TE-17 5.1B D 1019 G2071523 DiodeBB208-02, 115 D 1020 G2070934 Diode1SS400G T2R D 1021 G2071006 Diode1SV323(TPH3.F) D 1022 G2070848 Diode1SV325(TPH3.F) D 1023 G2070848 Diode1SV325(TPH3.F) D 1024 G2070178 DiodeDA221 TL D 1025 G2071006 Diode1SV323(TPH3.F) D 1026 G2070942 Diode1SV305(TPH3) D 1027 G2070942 Diode1SV305(TPH3) D 1028 G2070942 Diode1SV305(TPH3) D 1029 G2070942 Diode1SV305(TPH3) D 1030 G2071276 LEDFSL-1615055GR-ZC4 D 1031 G2071358 LEDHSML-C191 D 1032 G2070174 DiodeDAN222 TL D 1033 G2070174 DiodeDAN222 TL D 1034 G2070934 Diode1SS400G T2R D 1035 G2070178 DiodeDA221 TL D 1036 G2070178 DiodeDA221 TL D 1037 G2070934 Diode1SS400G T2R DS1001 G6090194A LCDDTE105793CWZ Q 1001 G3070347 MOSFETRTM002P02(TAPE) Q 1002 G3346178R Transistor2SC4617 TL R Q 1003 G3070347 MOSFETRTM002P02(TAPE) Q 1004 G3070225 TransistorDTC114TE TL Q 1005 G3070075 TransistorDTC144EE TL Q 1006 G1094097 ICTAR5S50U(TE85L.F) Q 1007 G1091675 ICTC4W53FU(TE12L_F) Q 1008 G1094497 ICTDA2822L-S08-R Q 1009 G3070075 TransistorDTC144EE TL Q 1010 G3070343 TransistorUMD5N TR Q 1011 G4070015 MOSFETRTQ030P02 Q 1012 G3070392 MOSFETRQA0011DNS Q 1013 G3070075 TransistorDTC144EE TL Q 1014 G3117748R Transistor2SA1774 TL R Q 1015 G3070489 TransistorBFS505 Q 1016 G3070391 MOSFETRQA0004PXDQS Q 1017 G3070075 TransistorDTC144EE TL Q 1018 G1094791 ICFQ0801 Vertex Standard LMR, Inc. 2 FCC ID: AXI11274620/IC: 10239A-11274620 VX-264-G6-5Semi-Conductor Parts List Address Parts Code Device NameDescriptionTYP VAL Q 1019 G3830778 MOSFET2SK3077(TE85L,F) Q 1020 G4802938A FET3SK293(TE85L.F) Q 1021 G3350108 Transistor2SC5010-T1-A/YFB Q 1022 G3070225 TransistorDTC114TE TL Q 1023 G3070225 TransistorDTC114TE TL Q 1024 G1093606 ICS-80835CNMC-B8U-T2-G Q 1025 G1094096 ICTAR5S35U(TE85L.F) Q 1026 G3350108 Transistor2SC5010-T1-A/YFB Q 1027 G3070225 TransistorDTC114TE TL Q 1028 G1095503 ICR5F100LHDFB#V0 Q 1029 G3070486 FETCPH3910-TL-E Q 1030 G3070225 TransistorDTC114TE TL Q 1031 G3070225 TransistorDTC114TE TL Q 1032 G3350108 Transistor2SC5010-T1-A/YFB Q 1033 G3070074 TransistorDTA144EE TL Q 1034 G3070075 TransistorDTC144EE TL Q 1035 G3070420 Transistor2SC5226A-4-TL-E Q 1036 G3346178R Transistor2SC4617 TL R Q 1037 G3342278B Transistor2SC4227-T1 R32 Q 1038 G3070074 TransistorDTA144EE TL Q 1039 G1095485 ICBR93G86FVM-3TR Q 1040 G1094857 ICAA32416 Q 1041 G3340818 Transistor2SC4081 T106 Q 1042 G3070225 TransistorDTC114TE TL Q 1043 G3070225 TransistorDTC114TE TL Q 1044 G3070075 TransistorDTC144EE TL Q 1045 G3346178R Transistor2SC4617 TL R Q 1046 G1094713 ICAK1541 Q 1047 G3346178R Transistor2SC4617 TL R Q 1048 G1095483 ICBU9795AKV-E2 Q 1049 G3070075 TransistorDTC144EE TL Q 1050 G3070075 TransistorDTC144EE TL Q 1051 G1093592 ICNJM12902V-TE1 Q 1052 G1093337 ICNJM12904R-TE1 Q 1053 G1093592 ICNJM12902V-TE1 Vertex Standard LMR, Inc.

802 N. Twin Oaks Valley Road, Suite 105 • San Marcos, CA 92069 • U.S.A. TEL (760) 471-2100 • FAX (760) 471-2121 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION Vertex Standard USA Inc. Dates of Test: January 12-13, 2015 8000 West Sunrise Blvd. Test Report Number: SAR.20150102 Ft. Lauderdale, FL 33322 This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2003, IEC62209 and RSS-102 (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application is subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President Testing Cert. # 2387.01 FCC ID: AXI11274620 IC Certificate: 10239A-11274620 Model(s): VX-264-G6-5 Test Sample: Engineering Unit Same as Production Serial Number: 254L800026 Equipment Type: Push-To-Talk Handheld Radio for Occupational Use Classification: Portable Transmitter Next to Face and Body TX Frequency Range: 403 – 470 MHz (FCC); 406.1 – 470 MHz (IC) Frequency Tolerance: ± 2.5 ppm Maximum RF Output: 450 MHz – 37.4 dB Conducted Signal Modulation: FM Body Worn Accessories: Model CLIP-20 (Belt Clip) Audio Accessories: Model MH-360S SP/MIC; MH-37A4B Earpiece Mic; MH-450S SP/MIC; MH-45B4B SP/MIC Antenna Type: ATU-6 A (400-430 MHz); ATU-6B (420-450 MHz); ATU-6C (440-470 MHz) Battery: Model(s) FNB-V133LI-UNI, FNB-V134LI-UNI Application Type: Certification FCC Rule Parts: Part 2, 90 KDB Test Methodology: KDB 447498 D01 v05r02, KDB 643646 D01 v01r01 Maximum SAR Value: Face – 4.27 W/kg (Reported); Body – 7.20 W/kg (Reported) Separation Distance: 25 mm for Face; 0 mm for Body © 2015 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Report Number: SAR.20150102 Table of Contents 1. Introduction ........................................................................................................................ 3 SAR Definition [5] ................................................................................................................... 4 2. SAR Measurement Setup ................................................................................................... 5 Robotic System ...................................................................................................................... 5 System Hardware ................................................................................................................... 5 System Electronics ................................................................................................................. 6 Probe Measurement System .................................................................................................. 6 3. Probe and Dipole Calibration .............................................................................................14 4. Phantom & Simulating Tissue Specifications .....................................................................15 Head & Body Simulating Mixture Characterization ................................................................15 5. ANSI/IEEE C95.1 – 1992 RF Exposure Limits [2] ..............................................................16 Uncontrolled Environment .....................................................................................................16 Controlled Environment .........................................................................................................16 6. Measurement Uncertainty .................................................................................................17 7. System Validation..............................................................................................................18 Tissue Verification .................................................................................................................18 Test System Verification ........................................................................................................18 8. SAR Test Data Summary ..................................................................................................19 Procedures Used To Establish Test Signal ...........................................................................19 Device Test Condition ...........................................................................................................19 Radio Body Test .......................................................................................................................20 SAR Data Summary – Head SAR in Front of Face Measurements .......................................23 SAR Data Summary – Body SAR Measurements .................................................................24 9. Test Equipment List ...........................................................................................................25 10. Conclusion ....................................................................................................................26 11. References ....................................................................................................................27 Appendix A – System Validation Plots and Data .......................................................................28 Appendix B – SAR Test Data Plots ...........................................................................................33 Appendix C – SAR Test Setup Photos .............…

Text truncated - open the document above for the full version.

FCC PART 90 UHF PORTABLE TEST REPORT APPLICANT VERTEX STANDARD USA, INC. 8000 WEST SUNRISE BLVD. FT. LAUDERDALE FL 33322 USA FCC ID AXI11274620 MODEL NUMBER VX-264-G6 -5 PRODUCT DESCRIPTION UHF PORTABLE RADIO STANDARD APPLIED CFR 47 Part 90 DATE SAMPLE RECEIVED 1/6/2015 DATE TESTED 1/15/2015 – 1/25/2015 REPORT ISSUE DATE 2/11/2015 TESTED BY Cory Leverett APPROVED BY Sid Sanders TEST RESULTS PASS FAIL Report Number Version Number Description Issue Date 35AUT15TestReport.docx Rev.1 Initial Issue 2/11/2015 THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Applicant: VERTEX STANDARD USA, INC. FCC ID: AXI11274620 Report: V\VERTEX STANDARD USA\35AUT15\35AUT15TestReport.docx Page 2 of 33 Table of Contents GENERAL REMARKS ........................................................................................ 3 GENERAL INFORMATION ................................................................................. 4 TEST REPORT SUMMARY ................................................................................. 5 TEST PROCEDURE .......................................................................................... 6 RF POWER OUTPUT ........................................................................................ 7 MODULATION CHARACTERISTICS .................................................................... 8 VOICE MODULATED COMMUNICATION EQUIPMENT .......................................... 10 OCCUPIED BANDWIDTH ................................................................................ 12 UNWANTED EMISSIONS / EMISSION MASKS ................................................... 13 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED) ....................... 22 FIELD STRENGTH OF SPURIOUS EMISSIONS ................................................... 27 FREQUENCY STABILITY ................................................................................. 29 TRANSIENT FREQUENCY BEHAVIOR ............................................................... 30 EQUIPMENT LIST ......................................................................................... 33 Applicant: VERTEX STANDARD USA, INC. FCC ID: AXI11274620 Report: V\VERTEX STANDARD USA\35AUT15\35AUT15TestReport.docx Page 3 of 33 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025: 2005 requirements. I attest that the necessary measurements were made, under my supervision, at: Timco…
