E23/2250S(Novtek) Block diagram INPUT: 120V 60Hz FUNDAMENTAL OPERATION FREQUENCY IS 0.030-0.083 MHz . L V D SL V D S Analog I(R/G/B) D-Sub 3.3V ule EEPROM (EDID) 1920X1080@60Hz 148.5Mhz Display Processing Engine Response Time Enhancement LVDS Panel Interface NT68668U Vcc5V Modu (EDID) Dual Interface Engine DRAM KEY OSD Clock Generator MCU SDA/SCL EEPROM ( S y stem ) Flash ROM Crystal 14.318MHz Adapter 5V Re g ulator 3.3V (y ) 3.3V 3.3V DC to DC 12 V 5V g 1.8V LED drive LED LED B+ Crystal ： HLX-U-F ; HC-49/U (alternate) Regulation ： 14.31818MHz+/- 30PPM

Power of Attorney Federal Communication Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 We, Company: LG Electronics U.S.A., Inc. Address: 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 Would like to inform you that we nominated Audix Technology (Shanghai) Co., Ltd, Mr. Byron Kwo to act on behalf of our LG Electronics Inc. to apply FCC ID for the LCD Monitors with LG brand. Kind Regards, Place, date Signature 2009-12-21 Jae Cheon Lee ________________ ________________

Statement FCC ID: BEJE2250SV Data: Dec 21, 2009 We LG Electronics U.S.A., Inc. declare under our own responsibility that the product LCD Monitor to which this declaration refers conforms with all electrical and mechanical devices employed for spurious radiation suppression, including any modifications made during certification testing, must be incorporated in each unit marked. 2009.12.21 [Data] [Name and Signature of person responsible]

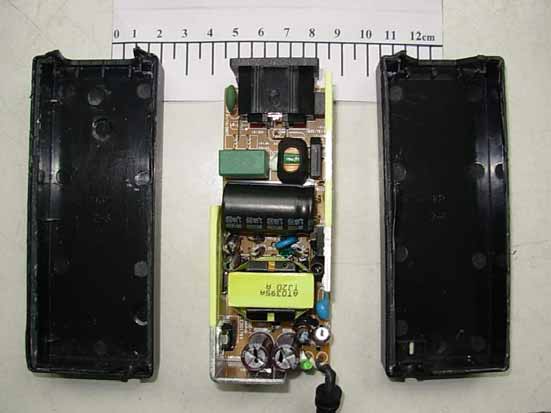

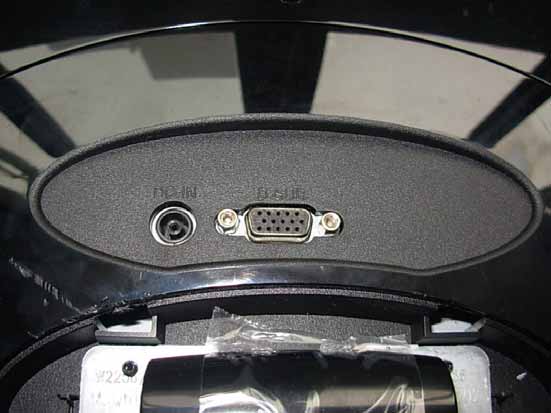

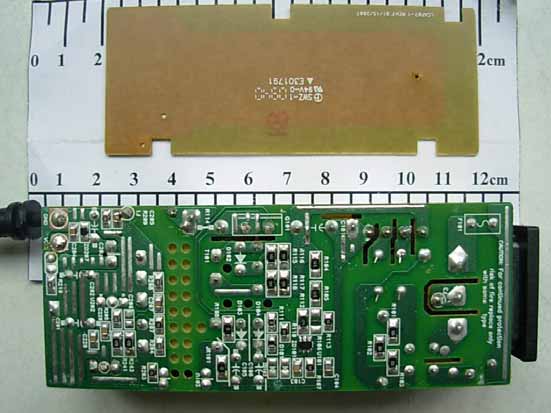

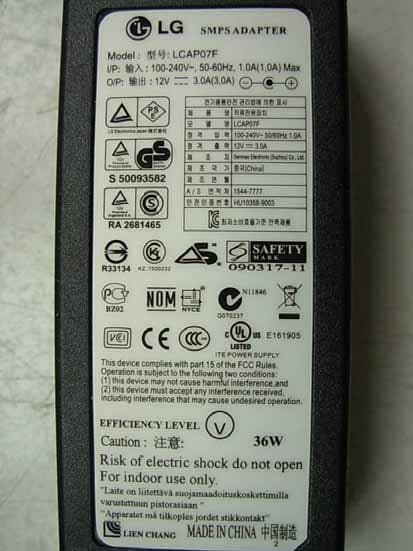

FIGURE 1 LCD MONITOR (M/N: E2250SV) GENERAL APPEARANCE (FRONT VIEW) F IGURE 2 LCD MONITOR (M/N: E2250SV) GENERAL APPEARANCE (BACK VIEW) FIGURE 3 LCD MONITOR (M/N: E2250SV) PORTS F IGURE 4 LCD MONITOR (M/N: E2250SV) D-SUB CABLE #1 F IGURE 5 LCD MONITOR (M/N: E2250SV) D-S UB CABLE #2 FIGURE 6 LCD MONITOR (M/N: E2250SV) POWER CORD FIGURE 7 LCD MONITOR (M/N: E2250SV) ADAPTER (GENERAL APPEARANCE) F IGURE 8 LCD MONITOR (M/N: E2250SV) ADAPTER (POWER PORT) FIGURE 9 LCD MONITOR (M/N: E2250SV) ADAPTER (LABEL) FIGURE 10 LCD MONITOR (M/N: E2250SV) ADAPTER (COVER REMOVED) FIGURE 11 LCD MONITOR (M/N: E2250SV) ADAPTER (MAIN BOARD – COMPONENT SIDE) F IGURE 12 LCD MONITOR (M/N: E2250SV) ADAPTER (MAIN BOARD –SOLDERED SIDE GENERAL) FIGURE 13 LCD MONITOR (M/N: E2250SV) ADAPTER (MAIN BOARD –SOLDERED SIDE)

Label Location Information Refer to the below red arrow: (For example)

E2050SV BEJE2050SV OCTOBER 2009 MADE IN CHINA FLATRON E2050S-PF E2050S-PFV.SUFFIX 12V 2.0A E2250SV BEJE2250SV OCTOBER 2009 MADE IN CHINA FLATRON E2250S-PF E2250S-PFV.SUFFIX 12V 3.0A E2350SV BEJE2350SV OCTOBER 2009 MADE IN CHINA FLATRON E2350S-PF E2350S-PFV.SUFFIX 12V 3.0A LT LT LT

FIGURE 1 LCD MONITOR (M/N: E2250SV) COVER REMOVED FIGURE 2 LCD MONITOR (M/N: E2250SV) MAIN BOARD (COMPONENT SIDE) F IGURE 3 LCD MONITOR (M/N: E2250SV) MAIN BOARD (SOLDERED SIDE) FIGURE 4 LCD MONITOR (M/N: E2250SV) CHIP & CRYSTAL ON MAIN BOARD FIGURE 5 LCD MONITOR (M/N: E2250SV) KEY BOARD (COMPONENT SIDE) F IGURE 6 LCD MONITOR (M/N: E2250SV) KEY BOARD (SOLDERED SIDE) FIGURE 7 LCD MONITOR (M/N: E2250SV) LCD PANEL LABEL FIGURE 8 LCD MONITOR (M/N: E2250SV) LCD PANEL MAIN BOARD (COMPONENT SIDE) F IGURE 9 LCD MONITOR (M/N: E2250SV) LCD PANEL MAIN BOARD (SOLDERED SIDE) FIGURE 10 LCD MONITOR (M/N: E2250SV) DEBUG #1 F IGURE 11 LCD MONITOR (M/N: E2250SV) DEBUG #2 FIGURE 12 LCD MONITOR (M/N: E2250SV) DEBUG #3

LG Electronics U.S.A., Inc. FCC ID: BEJE2250SV 1 Equipment Description The Equipment Under Test (EUT) is the LG Electronics U.S.A., Inc. LCD Monitor. General Specification LG Electronics U.S.A., Inc. FCC ID: BEJE2250SV 2 EUT Operating Conditions a. Setup the EUT and Peripherals as shown in Sec. 3.2 of the test report. b. Turn on the power of all equipment and the EUT. c. Set the contrast & brightness of EUT to maximum. d. PC system ran the self-test program “EMC Test” by windows XP and sent “H” characters to EUT through graphic card, the EUT’s screen displayed and filled with “H” pattern by its resolution (Via D-Sub Input). e. Repeat above procedure from c to d for difference test mode. f. The other peripherals devices were driven and operated during the test. g. The test modes are as follows: Test Mode D-Sub 640*480@60Hz D-Sub 1024*768@60Hz D-Sub 1680*1050@60Hz D-Sub 1920*1080@60Hz
