Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
LG-TM540 User Guide CDMA/AMPS/PCS TRI-MODE PHONE For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.5 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. WARNING! Read this information before using your phone Contents Introduction Highlights Important Information Check Accessories Before You Start FCC RF EXPOSURE INFORMATION Chapter 1. Getting Started Cautions Phone Overview On screen Icons Chapter 2. Basic Functions Turning the Phone On and Off Making a Call Correcting Dialing Mistakes Receiving Calls Using Quick Mode Call Waiting Mute Redialing Calls Adjusting the Volume Power Save Mode Signal Strength Emergency Dialing Mini Display Speed Dialing Caller ID Phone Book Features Chapter 3. Menu Features General Guidelines to MENU Access and Settings Sound Display System Features Utility Security Voice Services Browser Start Chapter 4. Book Features Call History Phone Book Function of Scheduler General Guidelines to Scheduler Access and Settings Scheduler Item Descriptions Schedule Wake Up Viewing Your Telephone Number Chapter 5. Message Features Voice Send Msg New Text Old Text Erase All Setting Chapter 6. Functions used during a call Mute Memo Recording Key Tone Voice Privacy Chapter 7. Accessories Chapter 1. Getting Started Cautions l Using the phone in proximity to receiving equipment (i.e., TV or radio) may cause interference. l Keep your phone in a safe place when not in use. l Only use the batteries, antennas, and chargers provided by LG. Using the wrong accessories could void your warranty. l Only authorized personnel should service the phone and its accessories. Faulty installation or service may result in accidents and consequently invalidate the warranty. l Do not hold the antenna while the phone is in use. l Do not use the phone in designated “no cellular phone use” areas. l Do not expose the phone to high temperature or humidity. l Avoid getting your phone wet. If the phone gets wet, turn the power off immediately and remove the battery pack. If the phone is mal-functional, return it to the dealer for service. l Avoid shock or impact on the phone. Phone Overview Function Key Descriptions Lamp The red light goes on when you use the power key to turn on the phone and when there are incoming calls and messages. LCD screen Displays messages & indicator icons. END/PWR Used to turn power on/off. This key disconnects a call. Using this key, you can also exit out of a menu back to the phone’s standby display without changing the setting. SEND Allows user to place or answer calls. Mouse Key This mouse key allows quick access to text and voice mail notification messages. calendar, outgoing call log, phonebook Find name. Cellcase Close the active cellcase to the terminate a call in progress. Open the active cellcase to answer an incoming call. Soft Keys The current operation of a soft key is defined by the word at the bottom of the display. Soft Keys 2 : If you press this key once in a menu, you can go back one level and if you press and hold the key in a menu, you can go back to the standby display. Side Keys These keys enable you to adjust keybeep volume (in standby mode) and earpiece volume (in a call status). Scroll Keys These keys are used to scroll through the memory locations and menu items. - In the standby status, set the manner mode by pressing the button. (for 2 seconds) - In the standby status, set the lock function by pressing the button. (for 2 seconds) Alphanumeric Keypad These keys enable you to enter numbers and characters and choose menu items. Clear Key On screen Icons The phone screen displays several onscreen icons and onscreen icons appears when the phone is power on. Icons Descriptions Displays the strength of the signal received by the phone and current signal strength is indicated as the number of bars displayed on the screen. No service The phone is not receiving a system signal. In use A call is in progress. No icon indicates the phone is in standby mode. Digital indicator Digital service is available. Analog indicator Analog service is available Indicates that a text message or voice mail has been received Roaming The phone is outside of its home service area. Charge level Indicates battery charge level. D Chapter 2. Basic Functions Turning the Phone On and Off Turning the Phone On 1. Install a charged battery pack or connect the phone to an external power source such as the cigarette lighter adapter or car kit. 2. Press [END/PWR] for a few seconds until the red light on the top of the …
Text truncated - open the document above for the full version.
@ LG Electronics Inc.& February 21, 2002 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, General Manager of New York Office LG Electronics Inc. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the LGE Handheld Portable Cellular Telephone(FCC ID: BEJTM540) is so designed that it complies with all the requirements for ESN protection specified in section 22.919 of the FCC Rules. A) The transmitter in service has a unique ESN. B) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3861 Fax : 82-2-850-3855 [email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE March 25, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS INC. FCC ID: BEJTM540 Users Manual RF Exposure Warning Statement Gentlemen: LG Electronics Inc. hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652. Sincerely, E.S. Park Research Engineer CDMA Handset Lab. LG Electronics Inc. 459-9 Kasan-dong Kumchun-gu Seoul 153-023 Korea Tel : 82-2-850-3861 Fax : 82-2-850-3856 E_mail : [email protected] LGE LG Electronics Inc.
March 25. 2002 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : LG Electronics Inc.. FCC ID: BEJTM540 Dual-Band Tri-Mode Cellular Phone (AMPS&CDMA&PCS) Part 22, 24 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Electronics, Inc. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams & Circuit Description attachment, Operational Description attachment, and Parts List/Tune-Up Procedure attachment for the above-referenced Type Acceptance application. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3861 Fax : 82-2-850-3855 [email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE
April 16, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS, INC. FCC ID: BEJTM540 Part 22 & 24 Certification Gentlemen: Attached herewith, on behalf of LG ELECTRONICS, INC. is an application for Part 22/24 Certification of the Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA). Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 Compliance Statement, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), circuit description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: LG ELECTRONICS, INC.
© 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone
© 2002 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LG Electronics. 2. 983 (f) Equipment Identification: LG Electronics, Inc. LGE Model No. : LG-TM540 FCC ID : BEJTM540 S/N : Made in Korea

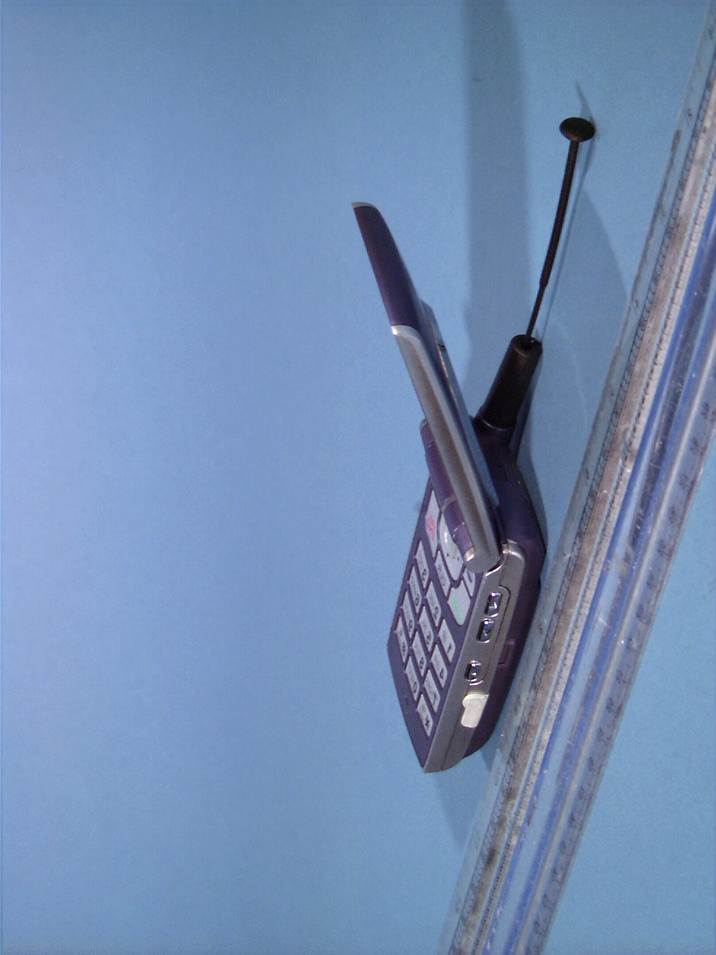

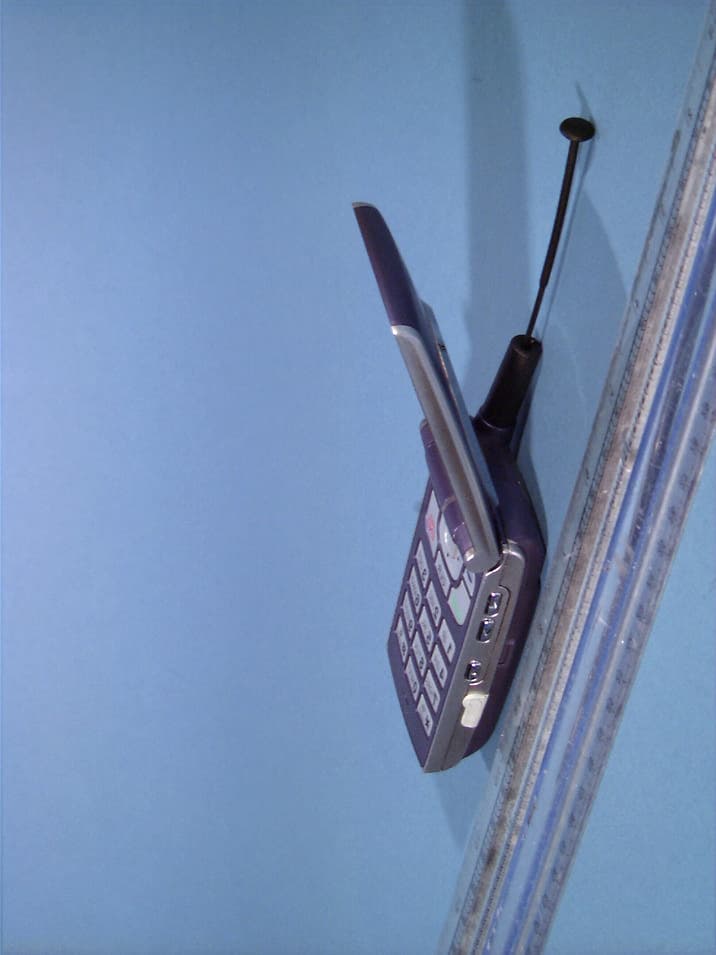

© 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone
LG Electronics FCC ID: BEJTM540 -- AMPS Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1560; ConvF(6.78,6.78,6.78) Med. Parameters 835 MHz Brain: σ = 0.87 mho/m ε r = 43.6 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.24 mW/g, SAR (10g): 0.794 mW/g LGE Tri Mode Model: LG-TM540 AMPS Mode, Ch.383 [836.49MHz]; Standard Battery Conducted Power = 27.0dBm; Right Head SAR, Cheek/Touch position; Ambient Temp. = 22.4°C / Meas. Tissue Temp. = 22.5° Test Date -- 03/27/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.23E-1 3.69E-1 6.15E-1 8.61E-1 1.11E+0 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID: BEJTM540 -- AMPS Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1560; ConvF(6.78,6.78,6.78) Med. Parameters 835 MHz Brain: σ = 0.87 mho/m ε r = 43.6 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.325 mW/g, SAR (10g): 0.235 mW/g LGE Tri Mode Model: LG-TM540 AMPS Mode, Ch.383 [836.49MHz]; Standard Battery Conducted Power = 27.0dBm; Right Head SAR, Ear/15 degree Tilt position; Ambient Temp. = 22.4°C / Meas. Tissue Temp. = 22.5° Test Date -- 03/27/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 3.29E-2 9.87E-2 1.65E-1 2.30E-1 2.96E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID: BEJTM540 -- AMPS Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1560; ConvF(6.78,6.78,6.78) Med. Parameters 835 MHz Brain: σ = 0.87 mho/m ε r = 43.6 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.24 mW/g, SAR (10g): 0.788 mW/g LGE Tri Mode Model: LG-TM540 AMPS Mode, Ch.383 [836.49MHz]; Standard Battery Conducted Power = 27.0dBm; Left Head SAR, Cheek/Touch position; Ambient Temp. = 22.4°C / Meas. Tissue Temp. = 22.5° Test Date -- 03/27/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.19E-1 3.58E-1 5.97E-1 8.35E-1 1.07E+0 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID: BEJTM540 -- AMPS Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1560; ConvF(6.78,6.78,6.78) Med. Parameters 835 MHz Brain: σ = 0.87 mho/m ε r = 43.6 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.304 mW/g, SAR (10g): 0.215 mW/g LGE Tri Mode Model: LG-TM540 AMPS Mode, Ch.383 [836.49MHz]; Standard Battery Conducted Power = 27.0dBm; Left Head SAR, Ear/15 degrees Tilt position; Ambient Temp. = 22.4°C / Meas. Tissue Temp. = 22.5° Test Date -- 03/27/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 3.11E-2 9.33E-2 1.56E-1 2.18E-1 2.80E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID: BEJTM540 -- Cellular CDMA Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1560; ConvF(6.78,6.78,6.78) Med. Parameters 835 MHz Brain: σ = 0..87 mho/m ε r = 43.6 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.00 mW/g, SAR (10g): 0.648 mW/g LGE Tri Mode Model: LG-TM540 Cellular CDMA Mode, Ch.363 [835.89MHz]; Standard Battery Conducted Power = 25.0dBm; Right Head SAR, Cheek/Touch position; Ambient Temp. = 22.4°C / Meas. Tissue Temp. = 22.5° Test Date -- 03/27/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.02E-1 3.05E-1 5.08E-1 7.11E-1 9.14E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID: BEJTM540 -- Cellular CDMA Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1560; ConvF(6.78,6.78,6.78) Med. Parameters 835 MHz Brain: σ = 0.87 mho/m ε r = 43.6 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.956 mW/g, SAR (10g): 0.609 mW/g LGE Tri Mode Model: LG-TM540 Cellular CDMA Mode, Ch.363 [835.89MHz]; Standard Battery Conducted Power = 25.0dBm; Left Head SAR, Cheek/Touch position; Ambient Temp. = 22.4°C / Meas. Tissue Temp. = 22.5° Test Date -- 03/27/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 9.52E-2 2.86E-1 4.76E-1 6.66E-1 8.57E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID: BEJTM540 -- PCS CDMA Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1560; ConvF(5.16,5.16,5.16) Med. Parameters 1900 MHz Brain: σ = 1.37 mho/m ε r = 40.1 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.472 mW/g, SAR (10g): 0.266 mW/g LGE Tri Mode Model: LG-TM540 PCS CDMA Mode, Ch.0025 [1851.25MHz]; Standard Battery Conducted Power = 24.5dBm; Right Head SAR, Cheek/Touch position; Ambient Temp. = 22.5°C / Meas. Tissue Temp. = 20.3° Test Date -- 03/28/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 3.63E-2 1.09E-1 1.81E-1 2.54E-1 3.27E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID: BEJTM540 -- PCS CDMA Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1560; ConvF(5.16,5.16,5.16) Med. Parameters 1900 MHz Brain: σ = 1.37 mho/m ε r = 40.1 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.150 mW/g, SAR (10g): 0.0893 mW/g LGE Tri Mode Model : LG-TM540 PCS CDMA Mode, Ch.0025 [1851.25MHz]; Standard Battery Conducted Power = 24.5dBm; Right Head SAR, Ear/15 degree Tilt position; Ambient Temp. = 22.5°C / Meas. Tissue Temp. = 20.3° Test Date -- 03/28/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.45E-2 4.35E-2 7.25E-2 1.01E-1 1.31E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID: BEJTM540 -- PCS CDMA Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1560; ConvF(5.16,5.16,5.16) Med. Parameters 1900 MHz Brain: σ = 1.37 mho/m ε r = 40.1 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.438 mW/g, SAR (10g): 0.268 mW/g LGE Tri Mode Model: LG-TM540 PCS CDMA Mode, Ch.0025 [1851.25MHz]; Standard Battery Conducted Power = 24.5dBm; Left Head SAR, Cheek/Touch position; Ambient Temp. = 22.5°C / Meas. Tissue Temp. = 20.3° Test Date -- 03/28/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 3.48E-2 1.04E-1 1.74E-1 2.44E-1 3.13E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID: BEJTM540 -- PCS CDMA Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1560; ConvF(5.16,5.…
Text truncated - open the document above for the full version.
© 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone © 2002 PCTEST Lab LG Electronics Inc. (Model: TM-540) FCC ID: BEJTM540 Tri-Mode Dual-Band Phone
PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-220325131.BEJ Test Dates: March 27-28, 2002 Phone Type: Tri-Mode Dual-Band FCC ID: BEJTM540 Page 1 of 33 © 2002 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: LG ELECTRONICS INC. Dates of Tests: March 27-28, 2002 Communication Terminal Research Lab Test Report S/N: SAR. 220325131.BEJ 459-9, Kasan-dong, Keumchun-Ku Test Site: PCTEST Lab, Columbia MD U.S.A. Seoul 153-023, Korea Attn: E.S. Park, Research Engineer FCC ID: BEJTM540 APPLICANT: LG ELECTRONICS INC. EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 — 848.97 MHz (AMPS) / 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 — 893.97 MHz (AMPS) / 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.424 W ERP AMPS (26.273 dBm) / 0.278 W ERP CDMA (24.433 dBm) 0.322 W EIRP PCS CDMA (25.081 dBm) Max. SAR Measurement: 1.24mW/g AMPS Head SAR; 1.18mW/g AMPS Body SAR; 1.00mW/g CDMA Head SAR; 0.82W/g CDMA Body SAR; 0.47mW/g PCS CDMA Head SAR; 0.32mW/g PCS CDMA Body SAR Trade Name/Model(s): TM-540 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220325131.BEJ PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-220325131.BEJ Test Dates: March 27-28, 2002 Phone Type: Tri-Mode Dual-Band FCC ID: BEJTM540 Page 2 of 33 © 2002 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION .................................................................................................. 3 SAR DEFINITION ................................................................................................. 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware ................................................................................................... 4 System Electronics .................................................................................................. 4 3. DASY3 E-FIELD PROBE SYSTEM ............................................................................ 5 Probe Measurement System.................................................................................... 5 Probe Specifications ............................................................................................... 5 4. Probe Calibration Process....................................................................................... 6 Dosimetric Assessment Procedure .......................................................................... 6 Free Space Assessment ........................................................................................... 6 Temperature Assessment ........................................................................................ 6 5. PHANTOM & EQUIVALENT TISSUES .................................................................... 7 SAM Phantom ........................................................................................................ 7 Brain & Muscle Simulating Mixture Characterization ............................................. 7 Device Holder for Transmitters............................................................................... 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................. 8 Automated Test System Specifications .................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................. 9 Measurement Procedure......................................................................................... 9 Specific Anthropomorphic Mannequin (SAM) Specifications.................................. 9 8. DEFINITION OF REFERENCE POINTS ................................................................. 10 EAR Reference Point............................................................................................. 10 Handset Reference Points ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS .................................................................. 11 Positioning for Cheek/Touch ................................................................................ 11 Positioning for Ear / 15° Tilt .................................................................................. 12 Body Holster /Belt Clip Configurations ................................................................. 13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS .......................…
Text truncated - open the document above for the full version.
Probe ET3DV6 SN: 1560 Manufactured: Ca I i brated : December 1,2000 February 20,2002 Calibrated for System DASY3 PCTEST Calibration Laboratory Approved By: h Alfred Cirwithian Vice President Engineering ET3DV6 SN:1560 DASY3 - Parameters of Probe: ET3DV6 SN:1560 Sensitivity in Free Space Diode Compression NormX 1.48 μV/(V/m) 2 DCP X 98 mV NormY1.51 μV/(V/m) 2 DCP Y98mV NormZ1.43 μV/(V/m) 2 DCP Z98mV Sensitivity in Tissue Simulating Liquid Head 835 MHz Brain ε r = 41.5 ± 5% σ = 0.90 ± 5% mho/m ConvF X 6.78 Boundary effect: ConvF Y 6.78 Alpha 0.30 ConvF Z 6.78 Depth 2.90 Body 835 MHz Muscle ε r = 56.2 ± 5% σ = 0.95 ± 5% mho/m ConvF X 6.52 ± 7% (k=2) Boundary effect: ConvF Y 6.52 ± 7% (k=2) Alpha 0.30 ConvF Z 6.52 ± 7% (k=2) Depth 2.90 Head 1900 MHz Brain ε r = 40.0 ± 5% σ = 1.40 ± 5% mho/m ConvF X 5.16 Boundary effect: ConvF Y 5.16 Alpha 0.48 ConvF Z 5.16 Depth 2.40 Body 19 00 MHz Muscle ε r = 54.2 ± 5% σ = 1.50 ± 5% mho/m ConvF X 4.70 ± 7% (k=2) Boundary effect: ConvF Y 4.70 ± 7% (k=2) Alpha 0.48 ConvF Z 4.70 ± 7% (k=2) Depth 2.40 Sensor Offset Probe Tip to Sensor Center2.7mm Optical Surface Detection2.0 ± 0.2mm Page 2 of 5 ET3DV6 SN:1560 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R26 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 3 of 5 Conversion Factor Assessment Head 835 MHz Brain ε r = 42 ± 5% σ = 0.90 ± 5% mho/m ConvF X 6.78 ± 7% (k=2) Boundary effect: ConvF Y 6.78 ± 7% (k=2) Alpha 0.30 ConvF Z 6.78 ± 7% (k=2) Depth 2.90 Head 1900 MHz Brain ε r = 40 ± 5% σ = 1.40 ± 5% mho/m ConvF X 5.16 ± 7% (k=2) Boundary effect: ConvF Y 5.16 ± 7% (k=2) Alpha 0.48 ConvF Z 5.16 ± 7% (k=2) Depth 2.40 ET3DV6 SN:1560 f = 835 MHz, WG 835 (head) 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1900 MHz, WG 1900 (head) 0.00 1.00 2.00 3.00 4.00 5.00 6.00 7.00 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets Page 4 of 5
The low pass filter inserted after the amplifier reduces the effect of harmonics and noise from the amplifier. For most amplifiers in normal operation the filter is not necessary. The attenuator after the amplifier improves the source matching and the accuracy of the power sensor. (Consult the power meter manual.) The directional coupler (recommended -20 dB coupling coefficient) is used to monitor the forward power and adjust the signal generator output for constant forward power. A medium -quality coupler is sufficient because the loads (dipole and power head) are both well -matched. The power meters PM2 and PM3 should have low drift and a resolution of 0.01 am, but otherwise the accuracy has negligible impact on the power setting. (Absolute calibration is not required.) The power meter PM1 and attenuator Attl must be high-quality components. These should be calibrated, preferably together. The attenuator ( -10 dB) improves the …
Text truncated - open the document above for the full version.
6660-B Dobbin Road · Columbia, Maryland · United States
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 4 | 24E | 1.85 GHz - 1.91 GHz | 322.00 mW | 1M25F9W | 2.5 ppm |
