BGBCP9000DWDigital Color Printer

DIGITAL COLOR PRINTER MODEL CP9000DW OPERATION MANUAL THIS OPERATION MANUAL IS IMPORTANT TO YOU. PLEASE READ IT BEFORE USING YOUR DIGITAL COLOR PRINTER. POWERALARM PAPER/INK RIBBON DATA READY CANCEL DOOR OPEN FEED&CUT COOLING This digital color printer complies with the requirements and other relevant provisions of the EC Directive 89/336/EEC, 73/23/EEC, 93/68/EEC and 1999/ 5/EC. The electro-magnetic susceptibility has been chosen at a level that gains proper operation in residential areas, on business and light industrial premises and on small-scale enterprises, inside as well as outside of the buildings. All places of operation are characterised by their connection to the public low voltage power supply system. WARNING: Use the included AC power cord so as not to interfere with radio and television reception. If you use other cables, it may cause interference with radio and television reception. WARNING : TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. INFORMATION This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. CONNECTIONS OTHERS PRECAUTIONS FEATURES PREPARATION TROUBLE- SHOOTING CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute the risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. The “Caution, hot surface” symbol indicates that the marked item may be hot and should not be touched. The “ON/OFF” symbol indicates connection to or disconnection from the mains, at least for mains switches. The “Alternating current” symbol indicates that the equipment is suitable for alternating current only. CAUTION CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his or her own expense. Operation is subject to the following two conditions; (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. WARNING: In the USA or Canada, use the AC power cord according to the recommendations as below, in order to comply with UL60950 and CAN/CSA C22.2 No. 60950-00. Case 1. Connect to the 120V receptacle of the room or the host equipment. The AC power cord should be UL or CSA approved and consist of type SJT or SVT, size 16 or 18AWG, length 2.5m or shorter cord with IEC320/C13 type, 125V 10A or higher rating connector and NEMA 5-15 type, 125V 10A or higher rating plug. Case 2. Connect to the 230V receptacle of the room or the host equipment. The AC power cord should be UL or CSA approved and consist of type SJT or SVT, size 16 or 18AWG, length 2.5m or shorter cord with IEC320/C13 type, 250V 10A or higher rating connector and NEMA 6-15 type, 250V 10A or higher rating plug. WARNING: In Europe, use the AC power cord according to the recommen- dations as below, in order to comply with EN60950. Connect to the 230V receptacle of the room or the host equip- ment. The AC power cord should be VDE approved and consist of core size 1mm 2 or bigger, length 2.5m or shorter cord with IEC320/C13 type, 250V 10A or higher rating connector and CEE(7)VII type or IEC 320-2.2/E type, 250V 10A or higher rating plug. 1 CONNECTIONS OTHERS PRECAUTIONS FEATURES PREPARATION TROUBLE- SHOOTING CONTENTS Contents ................................................................................................ 1 Safety precautions ................................................................................ 2-4 Special features .................................................................................... 5 Unpacking ............................................................................................. 6 Features and functions ......................................................................... 7-8 Front panel ............................................................................................. 7 Side and rear panel ................................................................................ 8 Connections .......................................................................................... 9-11 Connection with SCSI data signal equipment ........................................ 9 Connection with USB data signal equipment ......................................... 10 Setting of DIP switches .......................................................................... 11 Before operation .................................................................................... 12-17 Paper / ink ribbon set ............................................................................. 12 Installation of print paper ........................................................................ 12-14 Ins…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 3, 2003 RE: FCC ID: BGBCP9000DW_ATCB000811 Attention: Yukari Ito I have a few comments on this Application. 1. Please provide a photo of the bottom side of the PCB. - 2. Please note that it is not clear from the photos where the antenna is located in the printer. Please indicate the location of the antenna in relation to the printer. - 3. Please explain how the label is permanently affixed to the device? - 4. Please note that Class A is not for home use. On page 14 of the manual you state the device can be connected to a “Personal Computer”. This suggests use in the home which would be Class B. Please explain. - 5. Please note that the limit at 30 meters for the fundamental is 80dBuV/m. Testing at a closer distance is to use 40dB/decade. The limit then should be 120dBuV/m not 99dBuV/m. (40log(d1/d2) = 40dB. 80dB + 40dB=120dB.) Please review your calculations and provide test data referenced to the correct limit. Alternately please explain and justify the limits you have used. - 6. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

October 9, 2003 RE: Mitsubishi Electric Corporation Kyoto Works FCC ID: BGBCP9000DW Dear Dennis, Regarding the above referenced application, please find our reply to the comments dated October 3, 2003: 1.& 2. Please find revised Internal Photo. 3. Please see the following label information: - Label Material: TS-Y (UL Recognized) Base material: Yupo 80 (FGS) Adhesive material: PA-T1 - Label Manufacturer: Taniguchi Seal Co., Ltd. Label is permanently attached to the equipment. 4. Although the device is connected with Personal Computer, it is used in commercial environment only. 5. Please find revised Test report. We hope the above reply is satisfactory. If any problems, please let us know. Best regards, Yukari Ito (Ms.) UL Apex Co., Ltd.

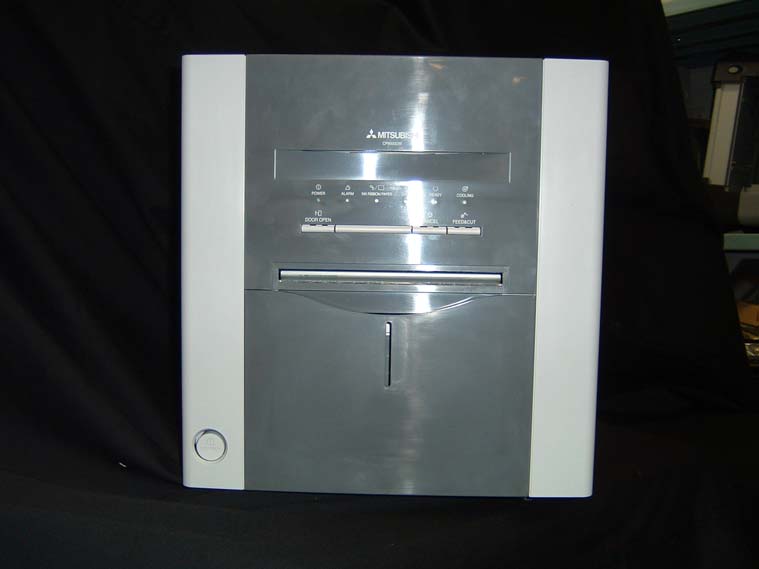

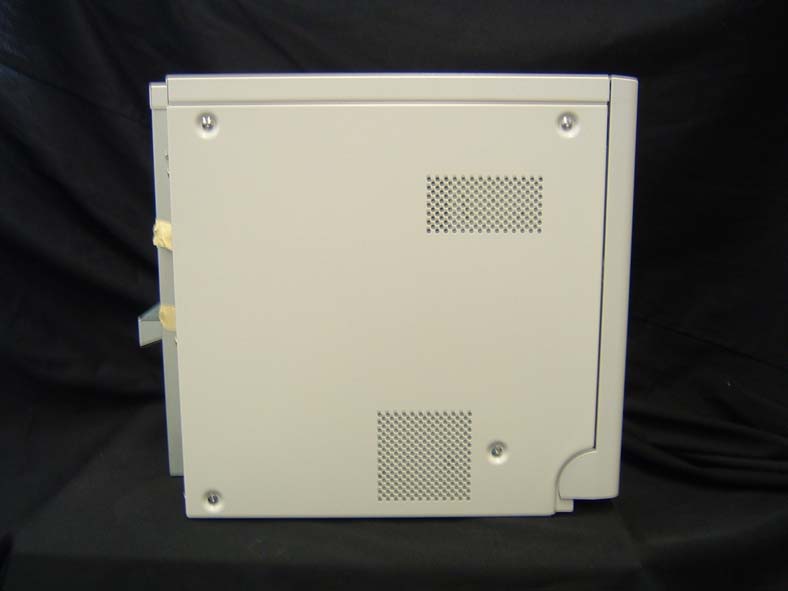

Mitsubishi Electric Corporation Kyoto Works Digital Color Printer with RFID module FCC ID: BGBCP9000DW External Photo Front Rear Mitsubishi Electric Corporation Kyoto Works Digital Color Printer with RFID module FCC ID: BGBCP9000DW Left Right Mitsubishi Electric Corporation Kyoto Works Digital Color Printer with RFID module FCC ID: BGBCP9000DW Top Bottom

CAUTION AT TENTION DIGITAL COLOR PRINTER IMPRIMANTE NUMERIQUE COULEUR MODEL NO. /MODÈLE NO. CP9000DW 220-240V 120V THIS CLASS A DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003. CET APPAREIL NUMÉRIQUE DE LA CLASSE A EST CONFORME À LA NORME NMB-003 DU CANADA. 50/60Hz 1.1A50/60Hz 2A : RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR. : BEFORE CONNECTING READ INSTRUCTIONS. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. CAUTION : SHOCK HAZARD. DO NOT OPEN. 776C290A10 UL 1950 UL60950 19LF EN 60950 OO FCC ID : BGBCP9000DW THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN JAPAN/FABRIQUE AU JAPON FABBRICATO IN GIAPPONE 1 ZUSHO BABA, NAGAOKAKYO CITY, KYOTO, JAPAN IC : 662-CP9000DW

Mitsubishi Electric Corporation Kyoto Works Digital Color Printer with RFID module FCC ID: BGBCP9000DW Internal Photo Digital Board (Side A) Mitsubishi Electric Corporation Kyoto Works Digital Color Printer with RFID module FCC ID: BGBCP9000DW Digital Board (Side B) Mitsubishi Electric Corporation Kyoto Works Digital Color Printer with RFID module FCC ID: BGBCP9000DW RFID part and Antenna (Side A) Mitsubishi Electric Corporation Kyoto Works Digital Color Printer with RFID module FCC ID: BGBCP9000DW RFID part and Antenna (Side B) Mitsubishi Electric Corporation Kyoto Works Digital Color Printer with RFID module FCC ID: BGBCP9000DW Location of Digital Board Mitsubishi Electric Corporation Kyoto Works Digital Color Printer with RFID module FCC ID: BGBCP9000DW Location of Antenna

Technical Specification The equipment is RFID built-in Digital Color Printer. RFID is used for getting Ink-Ribbon information from RFID-Tag built in the Ink-Ribbon. Class Digital Color Printer Printing Method Sublimation Dye Thermal Transfer line print 3-color faces progressive printing (yellow, magenta, and cyan) and surface lamination Print’s resolution 346 x 346 DPI (Fine mode), 346 x 692 PPI (Super Fine Mode) (DPI: Dots per inch) Ink-ribbon Special cartridge Supply method Automatic Interface SCSI-II (Micro mini 50 pins), USB Power Supply 220-240 V AC 50/60 Hz, 120 V AC 50/60 Hz Power Consumption 1.1A (220-240 V AC, 50/60Hz), 2.0A (120 V AC 50/60 Hz) during printing 0.4A (220-240 V AC, 50/60Hz), 0.4A (120 V AC 50/60 Hz) when not printing Operating conditions Temperature: 5 - 40 degrees C Humidity: 30% - 80% (no dewing) Radio Specification Operating Frequency: 13.56MHz Output Power: 80mW ITU code: 13M6FID Antenna Type: Loop Antenna

Test report No.: 24AE0055-HO-1 Page : 1 of 22 FCC ID : BGBCP9000DW Issued date : September 26, 2003 UL Apex Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 EMI TEST REPORT Test Report No. : 24AE0055-HO-1 Applicant: Mitsubishi Electric Corporation Type of Equipment: Digital Color Printer Model No.: CP9000DW* and CP9500DW* series FCC ID BGBCP9000DW Test standard: FCC Part 15 Subpart C Section 15.225 Test Result: Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this report are traceable to the national or international standards. 5. This test report does not constitute an endorsement by NIST/NVLAP or U.S. Government. Date of test: September 26, 27 and 28, 2003 Tested by: Naoki Sakamoto Leader of EMC Head Office Division Approved by: Hironobu Shimoji Group Leader of EMC Head Office Division Test report No.: 24AE0055-HO-1 Page : 2 of 22 FCC ID : BGBCP9000DW Issued date : September 26, 2003 UL Apex Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 CONTENTS PAGE SECTION 1: Client information 3 SECTION 2: Equipment under test (E.U.T.) 3 SECTION 3: Test specification, methods & procedures 5 SECTION 4: Operation of E.U.T. during testing 6 SECTION 5: Summary of test results 7 SECTION 6: Conducted emissions 8 SECTION 7: Radiated emissions 9 SECTION 8: Frequency stability 10 APPENDIX 1: Photographs of test setup 11 APPENDIX 2: Test instruments 11 APPENDIX 3: Data of EMI test 11 Test report No.: 24AE0055-HO-1 Page : 3 of 22 FCC ID : BGBCP9000DW Issued date : September 26, 2003 UL Apex Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 1: Client information Company name : Mitsubishi Electric Corporation Address : 1 Zusho Baba Nagaokakyo-City, Kyoto-Pref., 617-8550 Japan Telephone Number : +81-75-958-3249 Facsimile Number : +81-75-958-3709 Contact Person : Shoji Yasui SECTION 2: Equipment under test (E.U.T.) Type of Equipment : RFIID Built-in Printer Model No. : CP9000DW Sample No. : Transceiver Number of Channel : 1 Frequency Characteristics : 13.56MHz Modulation : ASK Information antenna : Internal / Loop antenna Rating : AC100V – 240V 50/60Hz *RF ID Module DC3.3V Country of Manufacture : Japan Receipt Date of Sample : September 24, 2002 Condition of EUT : Engineering prototype Test report No.: 24AE0055-HO-1 Page : 4 of 22 FCC ID : BGBCP9000DW Issued date : September 26, 2003 UL Apex Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 2.2 Product Description Model CP9000DW* and CP9500DW* series(referred to as the EUT in this report)are RFID built-in Printer. The RFID is used for getting Ink-Ribbon information from RFID-Tag built in the Ink-Ribbon. CP9000DW* series image size L size 1212*1730pixels 89*127mm KG size 1388*2077pixels (102*152mm) Interface SCSI- & USB 2.0(High Speed) RAM SDRAM x 1(IC7200) CP9500DW* series image size L size 1212*1730pixels 89*127mm KG size 1388*2077pixels (102*152mm) 2L size 1730*2424pixels (127*178mm) W size 2070*3118pixels (152*229mm) Interface USB 2.0(High Speed) RAM SDRAM x 2(IC7200 & IC7201) Remarks: These series models have the same specifications on radio parts. The testing by the "FCC15C Intentional Radiators" standard is performed on the CP9000DW out of these series models. These series model were applied to the Class A and verified in addition since it is not used in the residential environment according to the "FCC15B Unintentional Radiators" standard. Furthermore, the *mark at the end of the model name is applicable to the appropriate letters or numbers when the similar models which have different print sizes or functions is developed in the future. In that case, the testing by the "FCC15B Unintentional Radiators" standard is performed again if necessary. Test report No.: 24AE0055-HO-1 Page : 5 of 22 FCC ID : BGBCP9000DW Issued date : September 26, 2003 UL Apex Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 3: Test specification, methods & procedures 3.1 Test Specification Test Specification : FCC Part 15 Subpart C Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.225 Operation within the band 13.553MHz – 13.567MHz 3.2 Methods & Procedures No. Item Test Procedure Specification Remarks 1 Electric Field Strength of Fundamental Emission ANSI C63.4:2000 FCC Section 15.225(a) Radiated 2 Electric Field Strength of Spurious Emission ANSI C63.4:2000 FCC Section 15.225(b) FCC Section 15.205 FCC Section 15.209 Radiated 3 Frequency stability vs. temperature vs. input voltage ANSI C63.4:2000 FCC Section 15.225(c) - 4 Conducted Emission ANSI C63.4:2000 FCC Section 15.207 AC Mains only 3.3 FCC Part 15.203 Antenna requirement Since type of Equipment uses a transmitting antenna that is an integral part of the equipment. it is impossible for end Users to replace the antenna without use of a special tool. Therefore the equipment complies with the requirement of 15.203. 3.4 Addition from standard No addition, deviation nor exclusion have been made from standards. Test report No.: 24AE0055-HO-1 Page : 6 of 22 FCC ID : BGBCP9000DW Issued date : September 26, 2003 UL Apex Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 4: Operation of E.U.T. during testing 4.1 Operating Modes The …

Text truncated - open the document above for the full version.

Test report No.: 24AE0055-HO-1 Page : 12 of 22 FCC ID : BGBCP9000DW Issued date : September 26, 2003 UL Apex Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 1: Photographs of test setup Conducted emission Test report No.: 24AE0055-HO-1 Page : 13 of 22 FCC ID : BGBCP9000DW Issued date : September 26, 2003 UL Apex Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Radiated emission(<30MHz) Test report No.: 24AE0055-HO-1 Page : 14 of 22 FCC ID : BGBCP9000DW Issued date : September 26, 2003 UL Apex Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Radiated emission(30 –1000MHz)
