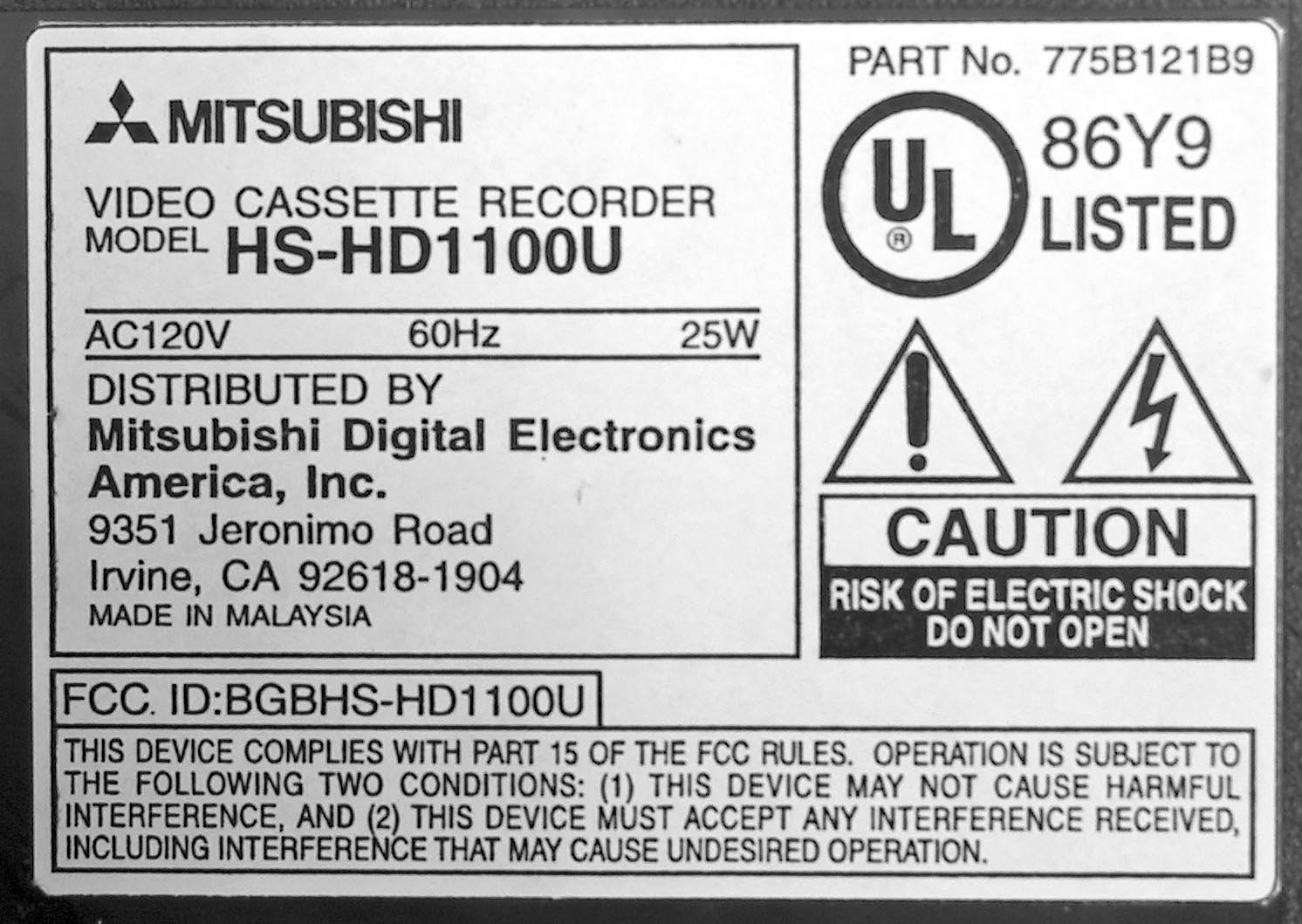

BGBHS-HD1100UVideo Cassette Recorder

VIDEO CASSETTE RECORDER OWNER’S GUIDE MODEL HS-HD1100U This Video Cassette Recorder is based on the D-VHS and VHS formats. Only video cassette tapes with the mark or the mark may be used with this model. However, D-VHS recordings are possible only with cassettes marked . D-VHS tapes recorded on video products not using the D-VHS MTP/NTSC standard cannot be played back on this unit. MTP NTSC VCR Plus+ IEEE 1394 INPUT VCR POWER EJECT CM SKIP QUICK PROGRAM INPUT PLAY STOP PAUSE INDEX ADJUST AUDIO/VIDEO MENU ADJUST CANCEL ENTER SP/EP VCR/TV DISPLAY REW REC FF MUTE TV POWER CHANNEL VOLUME 2 13 5 46 8 79 0 VCR TV HIGH DEFINITION DIGITAL VCR VCR Plus and PlusCode are registered trademarks of Gemstar Development Corporation. The VCR Plus+ system is manufactured under license from Gemstar Development Corporation. ♦High-Definition Digital Recording and Playback ♦VCR Plus+ easy programming system ♦Rew/FF at 500X speed! (:43 seconds for a T-120 tape) CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi- cient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. IMPORTANT: RECORDING OF COPYRIGHTED TELEVISION PROGRAMS MAY VIOLATE COPYRIGHT LAW. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION: TO PREVENT ELECTRIC SHOCK HAZARD, DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD, RECEP- TACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. NOTE TO CATV SYSTEM INSTALLER: THIS REMINDER IS PROVIDED TO CALL THE CATV SYSTEM INSTALLER’S ATTENTION TO SECTION 820-40 OF THE NEC WHICH PROVIDES GUIDELINES FOR PROPER GROUNDING AND, IN PARTICULAR, SPECIFIES THAT THE CABLE GROUND SHALL BE CONNECTED TO THE GROUNDING SYSTEM OF THE BUILDING, AS CLOSE TO THE POINT OF CABLE ENTRY AS PRACTICAL. ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○ CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Special Features HS-HD1100U 1 To connect your VCR, go to page 4. To play a tape, go to page 11. To record a program, go to page 20. To learn about Advanced Features, go to page 42. SHORTCUTS ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○ IMPORTANT SAFEGUARDS...................... 2 Hooking Up Your VCR................................. 4 Playback...................................................... 11 Setting Up Your VCR................................... 15 Memorizing Channels Automatically...... 15 Adding and Deleting Channels .............. 16 Setting the Clock.................................... 17 Recording .................................................... 20 Recording a Current Digital Broadcast .. 26 Recording a Current Broadcast in VHS (analog) Format ................................. 22 OTR ....................................................... 23 OTR 2 ...................................................... 24 Notes about Available Tape and Recording Time ................................................... 25 Using Audio and Video Functions .......... 26 Timer Recording.......................................... 28 D-VHS (digital) Timer Recording ........... 28 VHS (analog) Timer Recording of Digital Broadcast........................................... 29 Conventional VCR Timer Recording...... 31 VCR Plus+ ® System Programming ........ 33 Quick Program....................................... 34 Timer Recording Hints ........................... 35 Editing Features .......................................... 38 Copying a Tape from D-VHS to D-VHS.... 38 Copying a Tape from D-VHS to Analog.... 39 Copying a Tape from Analog to Analog.... 40 Advanced Features ..................................... 42 Advanced Playback Controls ................. 42 Searching Techniques ........................... 43 Displaying Time Gauge, Remaining Time, Current Time ............................ 46 Customize Choices Menu...................... 47 Advanced Options ................................. 50 Location of Controls .................................... 52 Important Information .................................. 56 Trouble Checks ........................................... 57 Specifications .............................................. 59 Index ........................................................... 59 Warranty...................................................... 62 TABLE OF CONTENTS 2 IMPORTANT SAFEGUARDS Please read all these instructions carefully regarding your VCR before you begin operating it. Follow all warnings and instructions marked on the VCR. Thank you. 1 Read Instructions All the safety and operating in- structions should be read before the product is operated. 2 Retain Instructions The safety and operating instruc- tions should be retained for future reference. 3 Heed Warnings All warnings on the product and in the operating instructions should be adhered to. 4 Follow Instructions All operating and use instructions should be followed. 5 Cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol clean- ers. Use a damp cloth for clean- ing. 6 Attachments Do not use attachments not rec- ommended by the product manu- facturer as they may cause haz- ards. 7 Water and Moisture Do not use this product near wa- ter — for example, near a bath tub, wash bowl, kitchen sink, laun- dry tub, in a wet basement, or near a swimming pool, and the like. 8 Accessories Do not place this product on an unstable cart, stand, tripod, bracket, o…

Text truncated - open the document above for the full version.

A-031-01-C Page 8 of 35 KEC Ikoma Testing Laboratory 12128 Takayama-cho Ikoma-city Nara 630-0101 Japan 3.4. Block Diagram of EUT System (for Conducted and Radiated Emission Measurements) (1) Playback mode (Test mode a ) EUT 75 Ω Termination 75 Ω TerminationANT OUT ANT IN 1 Open 3 i- LINK i- LINK Open 1k Ω Termination 75 Ω Termination 75 Ω Termination 47k Ω Termination VIDEO OUT AUDIO OUT (L) AUDIO OUT (R) VIDEO IN AUDIO IN (L) AUDIO IN (R) 2 VIDEO IN AUDIO IN (L) AUDIO IN (R) 1k Ω Termination 75 Ω Termination 4 REAR SIDE FRONT SIDE (2) Record mode (Test mode b ~ g) Test mode b ~ g was based on test mode a, and changed only the condition of the VIDEO IN and ANT IN from mode a. Test condition of each Recording mode are as follows. REAR SIDE VIDEO IN FRONT SIDE VIDEO IN ANT IN b, c VITS Signal Generator 75Ω Termination 75Ω Termination d, e 75Ω Termination VITS Signal Generator 75Ω Termination f, g 75Ω Termination 75Ω Termination NTSC TV Signal Generator [Note] See 3.5 List of Cables. Terminal Test Mode

A-031-01-C Page 1 of 35 KEC Ikoma Testing Laboratory 12128 Takayama-cho Ikoma-city Nara 630-0101 Japan Designated by Ministry of international Trade and industry KANSAI ELECTRONIC INDUSTRY DEVELOPMENT CENTER HEAD OFFICE IKOMA TESTING LABORATORY 6-8-7 NISHITENMA 12128 TAKAYAMA-CHO KITA-KU OSAKA 530-0047 JAPAN IKOMA-CITY NARA 630-0101 JAPAN Corporate Juridical Person TEST REPORT Report No.A-031-01-C Date: 27 November 2001 This test report is to certify that the tested device properly complies with the requirements of: FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All the tests necessary to show compliance to the requirements were performed and these results met the specifications of requirement. The results of this report should not be construed to imply compliance of equipment other than that, which was tested. Unless the laboratory permission, this report should not be copied in part. 1. Applicant Company Name : MITSUBISHI ELECTRIC CORP. Kyoto Works Imaging Storage Products Department Mailing Address : 1 Baba-Zusyo Nagaokakyo-City Kyoto 617-8550 Japan 2. Identification of Tested Device Type of Device : TV Interface Device Kind of Equipment Authorization : : DoC : Certification : Verification FCC ID : BGBHS-HD1100U Device Name : Video Cassette Recorder (Test for RF Modulator) Trade Name : MITSUBISHI Model Number : HS-HD1100U Serial Number : P004 : Prototype : Pre-production : Production Date of Manufacture : September 2001 3. Test Items and Procedure : AC Power Line Conducted Emission Measurement : Radiated Emission Measurement : Output Signal Level Measurement : Output Terminal Conducted Spurious Emission Measurement : Transfer Switch Measurement Above all tests were performed under: ANSI C63.4 – 1992 : without deviation, : with deviation(details are found inside of this report) 4. Date of Test Receipt of Test Sample : 1 November 2001 Test Completed on : 15 November 2001 Eizo Hariya General Manager/ Ikoma Testing Laboratory A-031-01-C Page 2 of 35 KEC Ikoma Testing Laboratory 12128 Takayama-cho Ikoma-city Nara 630-0101 Japan Table of Contents 0. LABORATORY ACCREDITATION AND MEASUREMENT UNCERTAINTY------------ 3 0.1. Laboratory Accreditation ------------------------------------------------------------------------------ 3 0.2. Measurement Uncertainty ---------------------------------------------------------------------------- 3 1. CERTIFICATION OF THE COMPLIANCE--------------------------------------------------------- 3 2. GENERAL INFORMATION ----------------------------------------------------------------------------- 4 2.1. Product Description ------------------------------------------------------------------------------------- 4 2.2. Description for Equipment Authorization-------------------------------------------------------- 5 2.3. Test Facility------------------------------------------------------------------------------------------------ 5 3. TESTED SYSTEM------------------------------------------------------------------------------------------ 6 3.1. Test Mode--------------------------------------------------------------------------------------------------- 6 3.2. Operation of EUT System ----------------------------------------------------------------------------- 7 3.3. Characterization and condition of EUT System------------------------------------------------ 7 3.4. Block Diagram of EUT System ---------------------------------------------------------------------- 8 3.5. List of Cables ---------------------------------------------------------------------------------------------- 9 4. AC POWER LINE CONDUCTED EMISSION MEASUREMENT -------------------------- 10 4.1. Test Procedure ------------------------------------------------------------------------------------------ 10 4.2. Test Results ---------------------------------------------------------------------------------------------- 11 4.3. Photographs of EUT System Configuration --------------------------------------------------- 13 5. RADIATED EMISSION MEASUREMENT-------------------------------------------------------- 17 5.1. Test Procedure ------------------------------------------------------------------------------------------ 17 5.2. Test Results ---------------------------------------------------------------------------------------------- 18 5.3. Photographs of EUT System Configuration --------------------------------------------------- 19 6. OUTPUT SIGNAL LEVEL MEASUREMENT --------------------------------------------------- 23 6.1. Test Procedure ------------------------------------------------------------------------------------------ 23 6.2. Test Results ---------------------------------------------------------------------------------------------- 24 6.3. Photographs of EUT System Configuration --------------------------------------------------- 25 7. OUTPUT TERMINAL CONDUCTED SOURIOUS EMISSION MEASUREMENT --- 27 7.1. Test Procedure ------------------------------------------------------------------------------------------ 27 7.2. Test Results ---------------------------------------------------------------------------------------------- 28 7.3. Photographs of EUT System Configuration --------------------------------------------------- 29 8. TRANSFER SWITCH MEASUREMENT ---------------------------------------------------------- 30 8.1. Test Procedure ------------------------------------------------------------------------------------------ 30 8.2. Test Results ---------------------------------------------------------------------------------------------- 31 8.3. Photographs of EUT System Configuration --------------------------------------------------- 32 9. USED TEST EQUIPMENTS AND CALIBRATION STATUS -------------------------------- 34 A-031-01-C Page 3 of 35 KEC Ikoma Testing Laboratory 12128 Takayama-cho Ikoma-city Nara 630-0101 Japan 0. LABORATORY ACCREDITATION AND MEASUREMENT UNCERTAINTY 0.1. Laboratory Accreditation KEC is accredited by the National Voluntary Laboratory Accreditation Program (NVL…

Text truncated - open the document above for the full version.
