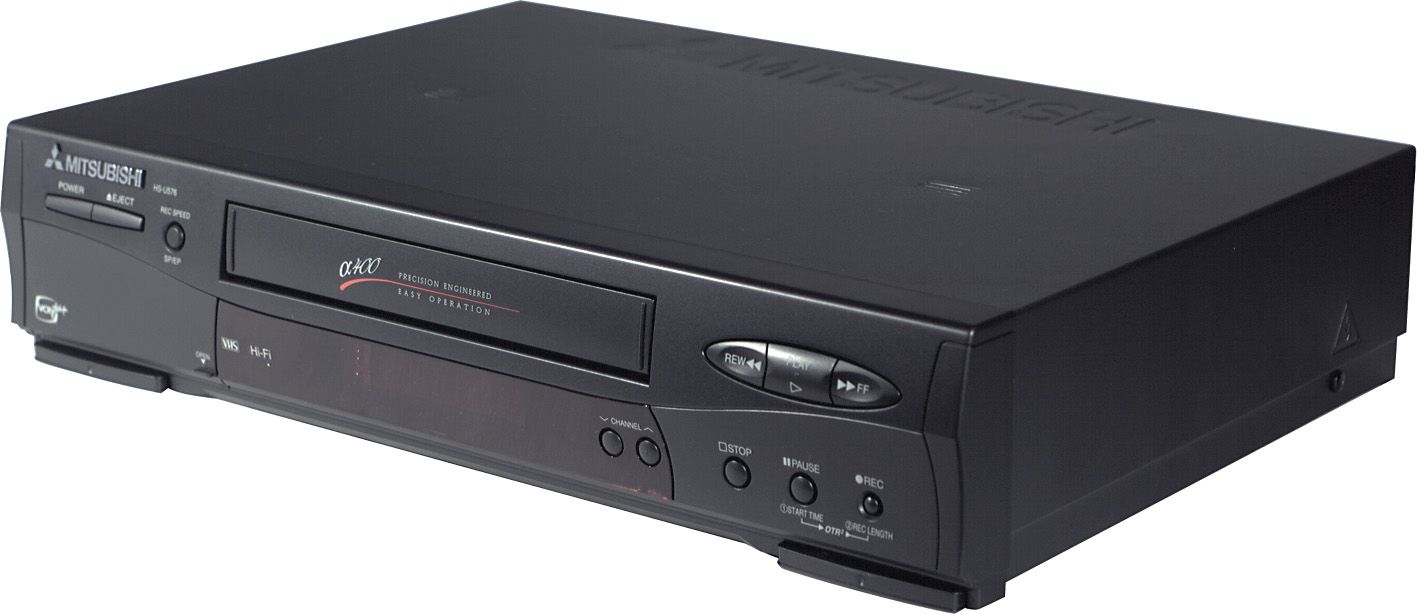

VIDEO CASSETTE RECORDER OWNER’S GUIDE MODEL HS-U576 This Video Cassette Recorder is based on the VHS format. Only video cassette tapes with the mark may be used with this model. As an ENERGY STAR ® Partner, Mitsubishi Digital Electronics America, Inc. has determined that this product or product model meets the ENERGY STAR ® guidelines for energy efficiency. VCR Plus+ ® and PlusCode ® are registered trademarks of Gemstar Development Corporation. The VCR Plus+ system is manufactured under license from Gemstar Development Corporation. With VCR Plus+C 3 ® system, this video cassette recorder can automatically select the appropriate channel on your compatible cable box or satellite receiver. C 3 and VCR Plus+C 3 ® are trademarks of Gemstar Development Corporation. VCR POWER EJECT CM SKIP QUICK PROGRAM VCR Plus+ INPUT PLAY STOP PAUSE INDEX ADJUST AUDIO/VIDEO MENU ADJUST CANCEL ENTER SP/EP VCR/TV DISPLAY REW REC LIGHTING FF MUTE TV POWER CHANNEL VOLUME 2 13 5 46 8 79 0X2 VCR TV SMART: ♦Self Diagnostic System ♦Program Conflict Warning ♦S-VHS Quasi Playback ♦VHS Hi-Fi audio record/ playback ♦VCR Plus+ C3 ® with cable converter control ♦Satellite Receiver Control CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. IMPORTANT: RECORDING OF COPYRIGHTED TELEVISION PROGRAMS MAY VIOLATE COPYRIGHT LAW. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION: TO PREVENT ELECTRIC SHOCK HAZARD, DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD, RECEP- TACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. NOTE TO CATV SYSTEM INSTALLER: THIS REMINDER IS PROVIDED TO CALL THE CATV SYSTEM INSTALLER’S ATTENTION TO SECTION 820-40 OF THE NEC WHICH PROVIDES GUIDELINES FOR PROPER GROUNDING AND, IN PARTICULAR, SPECIFIES THAT THE CABLE GROUND SHALL BE CONNECTED TO THE GROUNDING SYSTEM OF THE BUILDING, AS CLOSE TO THE POINT OF CABLE ENTRY AS PRACTICAL. FAST: ♦Alfa 400 Precision High Speed Mechanism with 400x rewind/fast for- ward speed ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○ Special Features HS-U576 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN EASY: ♦ViewPoint ® Menu Oper- ating System ♦VCR Plus+ ® easy pro- gramming system ♦OTR 2 Advanced One Touch Recording with delayed start time ♦Auto Clock Set 1 To connect your VCR, go to page 4. To play a tape, go to page 10. To record a program, go to page 22. To learn about Advanced Features, go to page 37. SHORTCUTS ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○ IMPORTANT SAFEGUARDS .................... 2 Hooking Up Your VCR ................................ 4 Playback .......................................................... 10 Setting Up Your VCR ................................... 13 Selecting the On-screen Language .... 13 Memorizing Channels Automatically ... 14 Satellite Receiver Control .................. 16 Adding and Deleting Channels .......... 17 Setting the Clock .................................. 19 Recording ...................................................... 22 Recording a Current Broadcast ........ 22 OTR ......................................................... 23 OTR 2 ........................................................ 24 Audio and Video Functions ................ 25 Timer Recording .......................................... 27 Conventional VCR Timer Recording .......................................... 27 Quick Program ...................................... 29 VCR Plus+ ® System Programming ..................................... 30 Timer Recording Hints ........................ 32 Editing Features ............................................ 35 Using Two VCRs to Copy .................... 35 Advanced Features ...................................... 37 Advanced Playback Controls .............. 37 Searching Techniques ............................ 39 Displaying Time Gauge, Remaining Time, Current Time ......................... 41 Customize Choices Menu................... 42 Advanced Options ................................ 46 Location of Controls .................................. 49 Trouble Checks ............................................ 53 Specifications of VCR ................................. 55 Index ............................................................. 55 Guía de Operación Básica de la Videograbadora ............................................ 57 Warranty ....................................................... 61 TABLE OF CONTENTS 2 IMPORTANT SAFEGUARDS Please read all these instructions carefully regarding your VCR before you begin operating it. Follow all warnings and instructions marked on the VCR. Thank you. 1Read Instructions All the safety and operating in- structions should be read before the product is operated. 2Retain Instructions The safety and operating instruc- tions should be retained for future reference. 3Heed Warnings All warnings on the product and in the operating instructions should be adhered to. 4Follow Instructions All operating and use instructions should be followed. 5Cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 6Attachments Do not use attachments not rec- ommended by the product manu- facturer as they may cause hazards. 7Water and Moisture Do not use this product near wa- ter — for example, near a bath tub, …

Text truncated - open the document above for the full version.

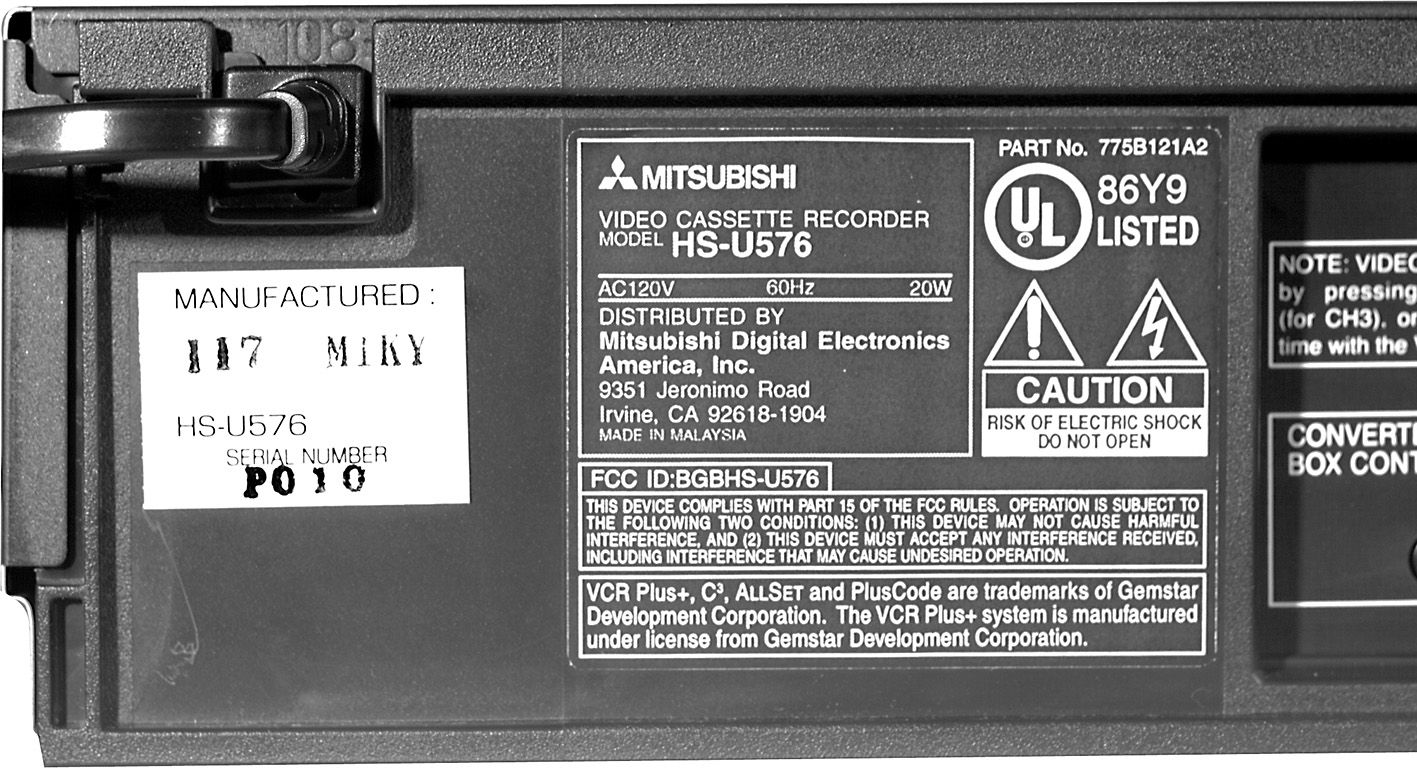

HS-U576 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN FCC ID:BGBHS-U576 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. VCR Plus+, C 3 , ALLSET and PlusCode are trademarks of Gemstar Development Corporation. The VCR Plus+ system is manufactured under license from Gemstar Development Corporation. PART No. 775B121A2 HS-U576 VIDEO CASSETTE RECORDER DISTRIBUTED BY Mitsubishi Digital Electronics America, Inc. MADE IN MALAYSIA MODEL AC120V 60Hz 20W 9351 Jeronimo Road Irvine, CA 92618-1904

A-032-99-C1Page 1 of 26 KEC Ikoma Testing Laboratory 12128 Takayama-cho Ikoma-city Nara 630-0101 Japan Designated by Ministry of international Trade and industry KANSAI ELECTRONIC INDUSTRY DEVELOPMENT CENTER HEAD OFFICE IKOMA TESTING LABORATORY 6-8-7 NISHITENMA 12128 TAKAYAMA-CHO KITA-KU OSAKA 530-0047 JAPAN IKOMA-CITY NARA 630-0101 JAPAN Corporate Juridical Person TEST REPORT Report No.A-032-99-C1Date: 1 October 1999 This test report is to certify that the tested device properly complies with the requirements of: FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All the tests necessary to show compliance to the requirements were performed and these results met the specifications of requirement. The results of this report should not be construed to imply compliance of equipment other than that, which was tested. Unless the laboratory permission, this report should not be copied in part. 1. Applicant Company Name:MITSUBISHI ELECTRIC CORP. Audio-Visual Systems Business Division Mailing Address:1 Baba-Zusyo Nagaokakyo-City Kyoto 617-8550 Japan 2. Identification of Tested Device Type of Device:TV Broadcasting Receiver Kind of Equipment Authorization : Verification Device Name:Video Cassette Recorder Trade Name: MITSUBISHI Model Number: HS-U576 Serial Number:P010 : Prototype : Pre-production: Production Date of Manufacture:August 1999 3. Test Items and Procedure : AC Power Line Conducted Emission Measurement : Radiated Emission Measurement : Antenna Power Conduction Measurement : Picture Sensitivity Measurement : Noise Figure Measurement Above all tests were performed under: ANSI C63.4 – 1992, FCC/OET MP-2 IEEE Std 187-1990, IEEE Std 190 and IEEE Std 213-1987 : without deviation, : with deviation(details are found inside of this report) 4. Date of Test Receipt of Test Sample:6 September 1999 Test Completed on: 20 September 1999 Fumitoshi Nagaoka Associate Director/ Ikoma Testing Laboratory A-032-99-C1Page 2 of 26 KEC Ikoma Testing Laboratory 12128 Takayama-cho Ikoma-city Nara 630-0101 Japan Table of Contents 1GENERAL INFORMATION------------------------------------------------3 1.1Product Description-------------------------------------------------------------------------------------------------3 1.2Description for Equipment Authorization----------------------------------------------------------------4 1.3Test Facility------------------------------------------------------------------------------------------------------------4 2TESTED SYSTEM---------------------------------------------------------5 2.1Test Planning and Test Mode-----------------------------------------------------------------------------------5 2.2Connection of EUT System--------------------------------------------------------------------------------------5 2.3Characterization and condition of EUT System-------------------------------------------------------5 2.4List of Cable------------------------------------------------------------------------------------------------------------5 3AC POWER LINE CONDUCTED EMISSION MEASUREMENT-------------6 3.1Test Procedure---------------------------------------------------------------------------------------------------------6 3.2Test Results-------------------------------------------------------------------------------------------------------------7 3.3Photographs of EUT System Configuration-------------------------------------------------------------8 4RADIATED EMISSION MEASUREMENT----------------------------------9 4.1Test Procedure---------------------------------------------------------------------------------------------------------9 4.2Test Results-----------------------------------------------------------------------------------------------------------10 4.3Photographs of EUT System Configuration-----------------------------------------------------------14 5ANTENNA POWER CONDUCTION MEASUREMENT---------------------15 5.1Test Procedure-------------------------------------------------------------------------------------------------------15 5.2Test Results-----------------------------------------------------------------------------------------------------------16 6PICTURE SENSITVITY MEASUREMENT--------------------------------20 6.1Test Procedure-------------------------------------------------------------------------------------------------------20 6.2Test Configuration-------------------------------------------------------------------------------------------------20 6.3Test Results-----------------------------------------------------------------------------------------------------------21 7NOISE FIGURE MEASUREMENT----------------------------------------22 7.1Test Procedure-------------------------------------------------------------------------------------------------------22 7.2Test Configuration-------------------------------------------------------------------------------------------------23 7.3Test Results-----------------------------------------------------------------------------------------------------------24 8LIST OF TEST INSTRUMENTS-------------------------------------------25 A-032-99-C1Page 3 of 26 KEC Ikoma Testing Laboratory 12128 Takayama-cho Ikoma-city Nara 630-0101 Japan 1 GENERAL INFORMATION 1.1 Product Description The MITSUBISHI Model No.HS-U576 (referred to as the EUT in this report) is a Video Cassette Recorder containing RF modulator and Tuner. (1) Provided Terminals 1) ANT Input Terminal 2) ANT Output Terminal 3) A/V Input Terminals(front side and rear side) 4) A/V Output Terminals 5) ACTIVE AV NETWORK Input Terminal 6) ACTIVE AV NETWORK Output Terminal 7) CABLE BOX CONTROL Terminal (2) Tuning Range and Local Oscillating Frequencies TV : VHF/213ch(101-257 MHz), UHF/1469ch(517-847 MHz). CATV : VHF/5A(119 MHz), LOW/A-5A-1(137-161 MHz), MID/AI(167-215 MHz),SUPER/JW(263-341 MHz), HYPER/W+1W+58(347-689 MHz), W+59W+84(695-845 MHz). (3) Type of Circuit Superheterodyne, IF : 45.75 MHz/Picture and 41.25 MHz/Sound (4) Type of Antenna Input Connector : Typ…

Text truncated - open the document above for the full version.

A-032-99-C1Page 1 of 26 KEC Ikoma Testing Laboratory 12128 Takayama-cho Ikoma-city Nara 630-0101 Japan Designated by Ministry of international Trade and industry KANSAI ELECTRONIC INDUSTRY DEVELOPMENT CENTER HEAD OFFICE IKOMA TESTING LABORATORY 6-8-7 NISHITENMA 12128 TAKAYAMA-CHO KITA-KU OSAKA 530-0047 JAPAN IKOMA-CITY NARA 630-0101 JAPAN Corporate Juridical Person TEST REPORT Report No.A-032-99-C1Date: 1 October 1999 This test report is to certify that the tested device properly complies with the requirements of: FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All the tests necessary to show compliance to the requirements were performed and these results met the specifications of requirement. The results of this report should not be construed to imply compliance of equipment other than that, which was tested. Unless the laboratory permission, this report should not be copied in part. 1. Applicant Company Name:MITSUBISHI ELECTRIC CORP. Audio-Visual Systems Business Division Mailing Address:1 Baba-Zusyo Nagaokakyo-City Kyoto 617-8550 Japan 2. Identification of Tested Device Type of Device:TV Broadcasting Receiver Kind of Equipment Authorization : Verification Device Name:Video Cassette Recorder Trade Name: MITSUBISHI Model Number: HS-U576 Serial Number:P010 : Prototype : Pre-production: Production Date of Manufacture:August 1999 3. Test Items and Procedure : AC Power Line Conducted Emission Measurement : Radiated Emission Measurement : Antenna Power Conduction Measurement : Picture Sensitivity Measurement : Noise Figure Measurement Above all tests were performed under: ANSI C63.4 – 1992, FCC/OET MP-2 IEEE Std 187-1990, IEEE Std 190 and IEEE Std 213-1987 : without deviation, : with deviation(details are found inside of this report) 4. Date of Test Receipt of Test Sample:6 September 1999 Test Completed on: 20 September 1999 Fumitoshi Nagaoka Associate Director/ Ikoma Testing Laboratory A-032-99-C1Page 2 of 26 KEC Ikoma Testing Laboratory 12128 Takayama-cho Ikoma-city Nara 630-0101 Japan Table of Contents 1GENERAL INFORMATION------------------------------------------------3 1.1Product Description-------------------------------------------------------------------------------------------------3 1.2Description for Equipment Authorization----------------------------------------------------------------4 1.3Test Facility------------------------------------------------------------------------------------------------------------4 2TESTED SYSTEM---------------------------------------------------------5 2.1Test Planning and Test Mode-----------------------------------------------------------------------------------5 2.2Connection of EUT System--------------------------------------------------------------------------------------5 2.3Characterization and condition of EUT System-------------------------------------------------------5 2.4List of Cable------------------------------------------------------------------------------------------------------------5 3AC POWER LINE CONDUCTED EMISSION MEASUREMENT-------------6 3.1Test Procedure---------------------------------------------------------------------------------------------------------6 3.2Test Results-------------------------------------------------------------------------------------------------------------7 3.3Photographs of EUT System Configuration-------------------------------------------------------------8 4RADIATED EMISSION MEASUREMENT----------------------------------9 4.1Test Procedure---------------------------------------------------------------------------------------------------------9 4.2Test Results-----------------------------------------------------------------------------------------------------------10 4.3Photographs of EUT System Configuration-----------------------------------------------------------14 5ANTENNA POWER CONDUCTION MEASUREMENT---------------------15 5.1Test Procedure-------------------------------------------------------------------------------------------------------15 5.2Test Results-----------------------------------------------------------------------------------------------------------16 6PICTURE SENSITVITY MEASUREMENT--------------------------------20 6.1Test Procedure-------------------------------------------------------------------------------------------------------20 6.2Test Configuration-------------------------------------------------------------------------------------------------20 6.3Test Results-----------------------------------------------------------------------------------------------------------21 7NOISE FIGURE MEASUREMENT----------------------------------------22 7.1Test Procedure-------------------------------------------------------------------------------------------------------22 7.2Test Configuration-------------------------------------------------------------------------------------------------23 7.3Test Results-----------------------------------------------------------------------------------------------------------24 8LIST OF TEST INSTRUMENTS-------------------------------------------25 A-032-99-C1Page 3 of 26 KEC Ikoma Testing Laboratory 12128 Takayama-cho Ikoma-city Nara 630-0101 Japan 1 GENERAL INFORMATION 1.1 Product Description The MITSUBISHI Model No.HS-U576 (referred to as the EUT in this report) is a Video Cassette Recorder containing RF modulator and Tuner. (1) Provided Terminals 1) ANT Input Terminal 2) ANT Output Terminal 3) A/V Input Terminals(front side and rear side) 4) A/V Output Terminals 5) ACTIVE AV NETWORK Input Terminal 6) ACTIVE AV NETWORK Output Terminal 7) CABLE BOX CONTROL Terminal (2) Tuning Range and Local Oscillating Frequencies TV : VHF/2 to 3ch(101-257 MHz), UHF/14 to 69ch(517-847 MHz). CATV : VHF/5A(119 MHz), LOW/A-5 to A-1(137-161 MHz), MID/A to I(167-215 MHz),SUPER/J to W(263-341 MHz), HYPER/W+1 to W+58(347-689 MHz), W+59 to W+84(695-845 MHz). (3) Type of Circuit Superheterodyne, IF : 45.75 MHz/Picture and 41.25 MHz/Sound (4) Type of An…

Text truncated - open the document above for the full version.

[HS-U576] 1 September 1999 HOME VIDEO CASSETTE RECORDER - HIFI TYPE ************************************************** --HS-U576-- Features (Tentative) 1. Front loading system 2. Superb picture quality with advanced 4 video heads -DJ4- 3. High Quality picture (HQ) *White clip level up *Detail emphancer *Y-Noise Reduction 4. High Fidelity stereo sound quality with rotating 2 audio heads *Dynamic range 90 dB with noise reduction system *Frequency response 20 Hz - 20k Hz *Total harmonic distortion less than 0.3% *Wow and flatter less than 0.005% *CH-separation better than 60 dB 5. Multi channel sound decoder integrated 6. SAP(Separate Audio Program system) 7. Twin digital tracking 8. Multi mode display *REC, PLAY *Cassette-In *Running Indicator *Interactive Clock/Tape Counter Display *Channels 9. Channel program list on screen (8 program) 10. Cable TV compatible (181 channels) 11. Auto Head Cleaning Mechanism [HS-U576] # Tape position index search system *UP to +/- 19 programs *By CTL signal *400/250 times normal speed (Non ctl signal 75 times normal speed) #Linear time counter By counting CTL signals, it indicates elapsed time (hours, minutes, seconds) #TV/VIDEO/AUDIO Unified remote #High reliability - Minimum number of parts used in deck and circuit - Good resetability #Auto functions *Auto Power On *Power off Eject *Auto Clock *Auto Rewind *Auto Canceler *Short Pause *Power Off Program Record #Reverse Play #Speed Search *10 times normal speed in the EP mode *5 times normal speed in the SP mode *Noise bar reduced system #Hi-speed speed search *27 times normal speed in the EP mode #Perfect still *Without noise nor vibration in the EP/SP mode [HS-U576] #Variable speed slow motion without noise in the EP/SP mode(1/5 - 1/30) *Without noise nor vibration in the EP/SP mode #8 Independent Program Recording Function #One-touch Timer Recording *Rec time is available for multiple 30 min up to 4 hours or end tape #Single Time Counter #Time back up *30 minutes #SQPB #Child Lock #Cable box control #VCR Plus+ #Remain #One key program #System 2 #One Key Play #Quick View #3 Color On-Screen #Twin Perfec Tape #2 Color Display #Star Sight Ready #1 key D.T. #Navi #Rental PB #Head Cleaning Warning [HS-U576] Specifications(tentative) Tape formatVHS 1/2” width high-density video cassette tape Power Source120V : 60Hz Television SystemEIA standard NTSC type color signal (M/NTSC) 525 lines, 60 fields Video Recording System4 rotary heads, azimuth helical scanning system LuminanceFrequency modulation recording Color SignalLow frequency conversion, sub-carrier phase shift recording Audio Recording System Hifi Stereo2 rotary heads, azimuth helical scanning system Frequency modulation, deep layer recording Linear Audio1 stationary head, 1 track Tape Speed33.35mm/s (standard play) 11. 12mm/s (extended play) Relative Head to Tape Speed19.03ft./s Record/Playback Time160 min. with T-160 cassette 60 min. with T-60 cassette Time is tripled in the EP mode Fast Forward/Rewind TimeApprox. 2.0 min. with T-120 cassette Heads:Video4 rotary single crystal heads Hifi Audio2 rotary single crystal heads Audio/Control1 stationary head Erase1 full track Video Input0.5 to 2.0 Vp-p, 75 ohm unbalanced, RCA socket Audio Input Line-7 dBs, 50K ohm unbalanced, RCA socket [HS-U576] Video Output1.0 Vp-p, 75 ohm unbalanced, RCA socket Audio Output-7dBs, 1K ohm unbalanced, RCA socket Aerial InputUHFinput CH 2-13, CH 14-83 VHSCH A-5 -- W+10 75 ohm unbalanced, F connector Aerial OutputChannel 3 or 4, switchable F connector Horizontal ResolutionSP: More than 240 lines (monoscope test pattern)EP: More than 220 lines Video Signal to Noise Ratiobetter than 45 dB Audio Frequency Response50Hz - 10KHz (Linear) (SP mode) Audio Signal to Noise Ratiobetter than 40 dB (Linear) Hifi Sound performance Frequency Response20 Hz - 20K Hz Harmonic Distortionless than 0.3% Dynamic Rangebetter than 90 dB Wow and Flutterless than 0.005% Channel Separationbetter than 60 dB Operating Temperature41F to 104F (5 to 40) Weightapprox. 3.6 kg Dimensions425mm (W), 300mm (D), 93mm (H) Timer8 programmers for any channel in 4 weeks/week day 24 hour digital type Timer AccuracySynchronized with Crystal Oscilator Channel Selection125 position frequency synthesized auto tuning system Recording Band Width (-3dB)2.2 MHz Timer for scanning 1 horizontal lineapprox. 17 mS Use in WaterImpossible
