BGBMT289XG01AHand Held Cellular Telephone

1 TABLE OF CONTENTS USING THIS GUIDE .......... 2 P HONE OVERVIEW ........ 3 D ISPLAY ICONS ............. 4 G ETTING STARTED ......... 6 INSERTING THE SIM CARD.....6 A TTACHING THE BATTERY .... 6 C HARGING BATTERY ........... 7 B ATTERY SAFETY TIPS ......... 8 BASIC PHONE O PERATIONS .............. 9 TURNING ON THE PHONE ..... 9 S TANDBY SCREEN .............. 9 M AKING A CALL ................ 9 C ONVERSATION OPTIONS .. 10 A NSWERING A CALL ......... 10 E NDING A CALL ............... 11 K EYPAD LOCK ................. 11 T URNING OFF THE PHONE .. 11 N ETWORK MESSAGES ....... 12 SAFETY INFORMATION .. 13 CARE AND MAINTENANCE . 18 S ECURITY CODES ............. 19 GENERAL FEATURES ..... 20 DIALING STORED NUMBERS.20 S PEED DIALING ............... 21 S ILENT ALERT MODE ........ 21 M UTING ........................ 22 V OLUME ADJUSTMENT ...... 22 H ANDSFREE SPEAKING ...... 22 S ENDING DTMF T OUCH TONES ........... 22 H OLDING/RETRIEVING CALL 23 C ALL WAITING ................ 24 C ONFERENCE CALLS ......... 24 MENU SYSTEM ........... 26 MENU MAP ................... 26 E NTERING TEXT ............... 27 T9 ® TEXT INPUT METHOD .. 27 N ETWORK SERVICES OR D IRECT LINKS ............ 30 P HONE BOOK ................. 31 M ESSAGES .................... 34 C ALLS & TIMERS ............. 39 S ETTINGS ...................... 43 O FFICE TOOLS ................ 60 G AMES ......................... 63 I NTERNET MODE ............. 64 APPENDIX .................. 70 USING THE HEADSET ....... 70 C HANGING THE F RONT COVER ......... 71 A CCESSORIES LIST ........... 72 G LOSSARY ..................... 73 T ROUBLESHOOTING .......... 75 E RROR MESSAGES ........... 76 INDEX ....................... 78 W ARRANTY ................. 82 2 USING THIS GUIDE Your G320 phone operates on the GSM network which provides fraud protection, short message service (SMS), integrated voice mail, superior voice quality and clear, static-free sound. One of the most important GSM advantages is the removable SIM (subscriber identity module) card, which holds your personal information such as phone numbers, missed calls, voice mail notifications and text messages. Your phone uses a built-in micro browser to reach the Internet and other services such as e-mail. This micro browser uses the WAP (Wireless Application Protocol) specification, which standarizes the way that wireless devices can access the Internet and many services. WAP uses WML (Wireless Markup Language), a language that translates Web pages into a format that can be viewed on wireless devices. While online, your phone can also view pictures, jump to other links, and enter information into a Web page or service. When available, your phone will use GPRS (General Packet Radio Service) technology. GPRS is the fastest way yet to transmit data over mobile phone networks. With GPRS, the information is split into separate but related "packets" before being transmitted and reassembled at the receiving end. Packet switching means that GPRS radio resources are used only when users are actually sending or receiving data. No dial-up modem connection is necessary. This is why GPRS users are sometimes referred to be as being "always connected." Certain features included in this guide called Network Services are supplied by wireless service providers. You must order a subscription to the services from your home service provider to be able to use them. Please ask your service provider for details of Network Services. Key Symbols Left softkeyRight arrow on Express Key Right softkeyLeft arrow on Express Key SEND keyUp arrow on Express Key END/Power keyDown arrow on Express Key Store Press softkey below the term to perform that action. For example, Store means press the softkey under the word Store. Softkey actions and labels change with each new screen. Select ___Use and on the Express Key to scroll to the desired item in the menu and choose by pressing . For example, select Phone Book means scroll to the menu item Phone Book and choose by pressing . 3 G320 PHONE OVERVIEW LED Call and battery charge indicator Headset socket Connect the headset here Graphic display screen Phone numbers, menus, messages, etc. are displayed here Left softkey Performs action indicated by text directly above it Send, Answer key Dials displayed number or name and answers calls. Press to see Last dialed number list Alphanumeric keys Enter telephone numbers and text Microphone AC Adapter socket Earpiece Right softkey Performs action indicated by text directly above it Express Key Navigates around the Phone book and menus. Press up or down during conversation to adjust volume Power, End key Press and hold to turn the phone on or off. Press to end a call or return to standby screen Accessories socket Fixed antenna 4 Display Icons The display screen shows pictures, icons, numbers, text and animations. The softkey labels are words in bold appearing on the bottom line. See softkey descriptions on pages 2 and 3. Display screen in standby mode Icon ItemDescription Signal strength level Four levels indicate the strength of the received signal from network on which phone is currently registered. If no network is available, the icon does not appear Phone Book SIM card Accessing names stored in the SIM Phone Book Phone Book Phone card Accessing names stored in the phone Phone Book RoamingPhone is logged on to a network other than its home network Short message service (SMS) or Text message SMS text message has been received and stored. Must be offered by service provider and subscription purchased SMS message bank is full SMS message bank is full and cannot store new messages Voice mailVoice mail message has been received and stored by the network’s voice mail center. Must be offered by service provider and subscription purchased Unanswered CallIncoming call is missed (unanswered) Call ForwardingIncoming calls are being forwarded. Must be offered by service provider and subscription purchased 5 T9 ® is a registered trademark of Tegic Communicat…

Text truncated - open the document above for the full version.

1 TABLE OF CONTENTS USING THIS GUIDE .......... 2 P HONE OVERVIEW ........ 3 D ISPLAY ICONS ............. 4 G ETTING STARTED ......... 6 INSERTING THE SIM CARD.....6 A TTACHING THE BATTERY .... 6 C HARGING BATTERY ........... 7 B ATTERY SAFETY TIPS ......... 8 BASIC PHONE O PERATIONS .............. 9 TURNING ON THE PHONE ..... 9 S TANDBY SCREEN .............. 9 M AKING A CALL ................ 9 C ONVERSATION OPTIONS .. 10 A NSWERING A CALL ......... 10 E NDING A CALL ............... 11 K EYPAD LOCK ................. 11 T URNING OFF THE PHONE .. 11 N ETWORK MESSAGES ....... 12 SAFETY INFORMATION .. 13 CARE AND MAINTENANCE . 18 S ECURITY CODES ............. 19 GENERAL FEATURES ..... 20 DIALING STORED NUMBERS.20 S PEED DIALING ............... 21 S ILENT ALERT MODE ........ 21 M UTING ........................ 22 V OLUME ADJUSTMENT ...... 22 H ANDSFREE SPEAKING ...... 22 S ENDING DTMF T OUCH TONES ........... 22 H OLDING/RETRIEVING CALL 23 C ALL WAITING ................ 24 C ONFERENCE CALLS ......... 24 MENU SYSTEM ........... 26 MENU MAP ................... 26 E NTERING TEXT ............... 27 T9 ® TEXT INPUT METHOD .. 27 N ETWORK SERVICES OR D IRECT LINKS ............ 30 P HONE BOOK ................. 31 M ESSAGES .................... 34 C ALLS & TIMERS ............. 39 S ETTINGS ...................... 43 O FFICE TOOLS ................ 60 G AMES ......................... 63 I NTERNET MODE ............. 64 APPENDIX .................. 70 USING THE HEADSET ....... 70 C HANGING THE F RONT COVER ......... 71 A CCESSORIES LIST ........... 72 G LOSSARY ..................... 73 T ROUBLESHOOTING .......... 75 E RROR MESSAGES ........... 76 INDEX ....................... 78 W ARRANTY ................. 82 2 USING THIS GUIDE Your G320 phone operates on the GSM network which provides fraud protection, short message service (SMS), integrated voice mail, superior voice quality and clear, static-free sound. One of the most important GSM advantages is the removable SIM (subscriber identity module) card, which holds your personal information such as phone numbers, missed calls, voice mail notifications and text messages. Your phone uses a built-in micro browser to reach the Internet and other services such as e-mail. This micro browser uses the WAP (Wireless Application Protocol) specification, which standarizes the way that wireless devices can access the Internet and many services. WAP uses WML (Wireless Markup Language), a language that translates Web pages into a format that can be viewed on wireless devices. While online, your phone can also view pictures, jump to other links, and enter information into a Web page or service. When available, your phone will use GPRS (General Packet Radio Service) technology. GPRS is the fastest way yet to transmit data over mobile phone networks. With GPRS, the information is split into separate but related "packets" before being transmitted and reassembled at the receiving end. Packet switching means that GPRS radio resources are used only when users are actually sending or receiving data. No dial-up modem connection is necessary. This is why GPRS users are sometimes referred to be as being "always connected." Certain features included in this guide called Network Services are supplied by wireless service providers. You must order a subscription to the services from your home service provider to be able to use them. Please ask your service provider for details of Network Services. Key Symbols Left softkeyRight arrow on Express Key Right softkeyLeft arrow on Express Key SEND keyUp arrow on Express Key END/Power keyDown arrow on Express Key Store Press softkey below the term to perform that action. For example, Store means press the softkey under the word Store. Softkey actions and labels change with each new screen. Select ___Use and on the Express Key to scroll to the desired item in the menu and choose by pressing . For example, select Phone Book means scroll to the menu item Phone Book and choose by pressing . 3 G320 PHONE OVERVIEW LED Call and battery charge indicator Headset socket Connect the headset here Graphic display screen Phone numbers, menus, messages, etc. are displayed here Left softkey Performs action indicated by text directly above it Send, Answer key Dials displayed number or name and answers calls. Press to see Last dialed number list Alphanumeric keys Enter telephone numbers and text Microphone AC Adapter socket Earpiece Right softkey Performs action indicated by text directly above it Express Key Navigates around the Phone book and menus. Press up or down during conversation to adjust volume Power, End key Press and hold to turn the phone on or off. Press to end a call or return to standby screen Accessories socket Fixed antenna 4 Display Icons The display screen shows pictures, icons, numbers, text and animations. The softkey labels are words in bold appearing on the bottom line. See softkey descriptions on pages 2 and 3. Display screen in standby mode Icon ItemDescription Signal strength level Four levels indicate the strength of the received signal from network on which phone is currently registered. If no network is available, the icon does not appear Phone Book SIM card Accessing names stored in the SIM Phone Book Phone Book Phone card Accessing names stored in the phone Phone Book RoamingPhone is logged on to a network other than its home network Short message service (SMS) or Text message SMS text message has been received and stored. Must be offered by service provider and subscription purchased SMS message bank is full SMS message bank is full and cannot store new messages Voice mailVoice mail message has been received and stored by the network’s voice mail center. Must be offered by service provider and subscription purchased Unanswered CallIncoming call is missed (unanswered) Call ForwardingIncoming calls are being forwarded. Must be offered by service provider and subscription purchased 5 T9 ® is a registered trademark of Tegic Communicat…

Text truncated - open the document above for the full version.

Mitsubishi Wireless Communications, Inc.FCC ID: BGBMT289XG01A Exhibit 2 Attestation Statements Page 1 of 2 Exhibit 2 Attestation Statements We hereby apply, with the requisite information on the Mitsubishi Cellular Mobile Telepho ne, type MT-289XG01A for type acceptance by the FCC under the provision of FCC Rules and Regulations. This equipment is the cellular mobile telephone and is expected to operate under Broadband PCS, Personal Communications Service governed by 47 CFR 24 Subpart E. The equipment also conforms to 47 CFR 2, 47 CFR 15, and J-STD-007. The equipment will also conform to IEEE Std C95.1-1992: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3KHz to 300GHz . We certify that this application was prepared by us, and that to the best of our knowledge and belief the facts set forth in this application and technical data accompanied are true and correct. We also certify that the equipment was tested in our plant using the system simulator which was provided by us. The equipment satisfied all functional requirements during test and operations. In case of acceptance of a grant of these equipment authorization, we warrant that each unit under the grant and bearing the name and type or model number specified in the grant will conform to the unit that was measured and that the data filed with the application for type acceptance co ntinues to be representative of the equipment being produced under such grant within the variation that can be expected due to quantity production and testing on a statistical basis. Applicant {2.983(a)} Mitsubishi Electric Corporation Marunouchi 2 - Chome Chiyoda - Ku Tokyo 100, Japan Mailing Address: Mitsubishi Digital Electronics America, Inc. 1240 West Northwest Highway Palatine, IL 60067-1897 Manufacturer Mitsubishi Wireless Communications Inc. 3805 Crestwood Parkway, Suite 350 Duluth, GA 30096 Mitsubishi Wireless Communications, Inc.FCC ID: BGBMT289XG01A Exhibit 2 Attestation Statements Page 2 of 2 Equipment {2.983(b)} Class I PCS 1900 Mobile Telephone Type: MT-289XG01A Identification of the Equipment FCC ID: BGBMT289XG01A One sample used Service 47 CFR 24 Subpart E Broadband PCS Personal Communications Service Quantity Production {2.983(c)} Quantity production is planned. Sincerely, Oscar Dayani Senio r M a nage r Hardware & Software Mobile Communications Design Center Mitsubishi Wireless Communications Inc.

WIRELESS COMMUNICATIONS DOCUMENT Project: M5 Mars PCS Date: 05/03/00 Reference: WCB0032A1B Status: Revision: B M5 MARS PCS RF BLOCK DIAGRAM KEYWORDS : ABSTRACT : WRITTEN This confidential document is the property of MITSUBISHI WIRELESS and may not be copied or circulated without permission. CHECKED APPROVED Dale Douglas Shige Honjo K. Furuno RF Block Diagram, M5, MARS Block Diagram Dale S. Douglas WIRELESS COMMUNICATIONS vccifvco ifloin φ ÷2 Σ φ ÷2 ÷6 ÷2 BandSW dcs/pcs gsm 1080 MHz 2nd LO 270 MHz PD 90 MHz 45 MHz Discrete BPF 225 MHz SAW RXIP RXIN RXQP RXQN TXQP TXQN TXIP TXIN ser'l intf EN CLK SDATA vrf vtx1 TX3SW vrf vrf gsmc pll1 pll2 pstcxo pstcxo 13MHz FADJ mechanical switch vbat VBAT Vreg vbat SPSRF vrf gsm 540 MHz dcs/pcs 270 MHz EPCOS -N460 ÷2 vbat apc vtx1 RX LO Band Ch RX (MHz) TX (MHz) PCS L (512) 1705.2 1715.2 M (661) 1735 1745 H (810) 1764.8 1774.8 PCS TX 1850 ~ 1910 MHz gsm 270 MHz dcs/pcs 135 MHz vtx1 vrfvrf vrfvrfvrf dcsc vccpll/lna vcccomp /reset vcciq vccrfsyn vccif vccrflo mix1out mix1outb vrf vccmix APC_CNT Harmonic Filter vtx1 vrx vsynth vsyn vccifsyn vsynth vsyn vtx1 vrf TX3SW Vreg vbat PLLON PSTCXO PUPLO2 TX1SW_DCS vsynth pstcxo vrx vsynth vtx1 vrf PCS_LNA DCS/PCS PCS RX 1930 ~ 1990 MHz EPCOS -F460

Mitsubishi Wireless Communications, Inc.FCC ID: BGBMT289XG01A Exhibit 13 Cover Letters Page 1 of 5 Exhibit 13 Cover letters 13.a Application overview We hereby apply, with the requisite information on the Mitsubishi Cellular Mobile Telephone, type MT-289XG01A for type acceptance by the FCC under the provision of FCC Rules and Regulations. This equipment is the cellular mobile telephone and is expected to operate under Broadband PCS, Personal Communications Service governed by 47 CFR 24 Subpart E. The equipment also conforms to 47 CFR 2, 47 CFR 15, and J-STD-007. The equipment will also conform to IEEE Std C95.1-1992: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3KHz to 300GHz. We certify that this application was prepared by us, and that to the best of our knowledge and belief the facts set forth in this application and technical data accompanied are true and correct. We also certify that the equipment was tested in our plant using the system simulator which was provided by us. The equipment satisfied all functional requirements during test and operations. In case of acceptance of a grant of these equipment authorization, we warrant that each unit under the grant and bearing the name and type or model number specified in the grant will conform to the unit that was measured and that the data filed with the application for type acceptance continues to be representative of the equipment being produced under such grant within the variation that can be expected due to quantity production and testing on a statistical basis. Applicant {2.983(a)}Mailing Address Mitsubishi Electric CorporationMitsubishi Digital Electronics America, Inc. Marunouchi 2 – Chome1240 West Northwest Highway Chiyoda – KuPalatine, IL 60067-1897 Tokyo 100, Japan ManufacturerEquipment {2.983(b)} Mitsubishi Wireless Communications Inc.Class I PCS 1900 Mobile Telephone 3805 Crestwood Parkway, Suite 350Type: MT-289XG01A Duluth, GA 30096 Quantity Production {2.983(c)}Service Quantity production is planned.47 CFR 24 Subpart E Broadband PCS Personal Communications Ser vice Mitsubishi Wireless Communications, Inc.FCC ID: BGBMT289XG01A Exhibit 13 Cover Letters Page 2 of 5 13.bREQUEST FOR CONFIDENTIALITY CONT AINED WITHIN January 24, 2001 Federal Communicatio ns Co mmission Equipment Approval Services P. O. Box 358315 Pittsburgh, PA 15251-5315 Subject:Application for Cellular Mobile Telephone FCC ID: BGBMT289XG01A Gentle me n: We wish to submit our Application for Certification of the subject Broadband PCS Handheld Transceiver. This equipment is a cellular handheld mobile telephone intended for operations under the Broadband Personal Communications Service governed by 47CFR24 Subpart E. The equipment also conforms to 47CFR2, 47CFR15, J-STD-007 and IEEE Standard C95.1-1992: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 Hz. A completed Form 159 will be mailed separately to the Mellon Bank, along with a check in the amount of $640.00: $495.00 for Fee Code EFT (Certification), and $145.00 for Fee Code EBC (Confidentiality Request). CONFIDENTIALITY REQUEST - Pursuant to 47CFR0.459 of the Commission’s Rules, we request that all information contained in the following exhibits be withheld from public disclosure. This mate rial is CO N FID EN TIAL i nformatio n, a nd co ntai ns tra de se crets and de tails t hat wo ul d not be typica lly ava ila ble to the public. • Exhibit 5 (Sche matics) • Exhibit 10 (Parts List Tune-Up Info) • Exhibit 12 (Operational Description) If you have any questions or require additional information, please contact the undersigned at: Tel.:847-963-9401 (Ext. 23) Fax:847-963-9406 E-mail:[email protected] Tha nk yo u for yo ur a tte ntio n to this matter. Ver y trul y yo urs, J. VollmerReviewed by: R. Gruhlke Team Leader/Director Regulatory Liaison DivisionRegulatory Li ai son JV:jv cc: MWCI, Ms. L. Rosenhauer V01A0122-3A Mitsubishi Wireless Communications, Inc.FCC ID: BGBMT289XG01A Exhibit 13 Cover Letters Page 3 of 5 13.c Agent Designation / Authorization Subject:Application for Cellular Mobile Telephone FCC ID: BGBMT289XG01A Gentle me n: We wish to designate the following as the primary contact. Richard Gruhlke Director Regulatory Liaison Division Mitsubishi Digital Electronics America, Inc. 1240 West Northwest Highway Palatine, IL 60067-1897 If you have any questions or require additional information, please contact me by telephone (847) 963-9401, Facsimile at (847) 963-9406 or by e-mail at [email protected] Sincerely, R. Gruhlke Director Regulatory Liaison Division RG/e cc:Mitsubishi Wireless Communications, O. Dayani G99A0611-3A Encl. Mitsubishi Wireless Communications, Inc.FCC ID: BGBMT289XG01A Exhibit 13 Cover Letters Page 4 of 5 13.d Table of Contents Exhibit 1ID Label/LocationEx1_MT289Label Exhibit 2Attestation StatementsEx2_MT289_Attestation Exhibit 3External PhotosEx3_MT289Ex3_Ext_Photo Exhibit 4Block DiagramEx4_MT289RF_Block Diagram Exhibit 5SchematicsEX5_Mt289_SCHEM Exhibit 6Test Report Exhibit 6 Test ProceduresMT289Ex6_testproc.doc Exhibit 6M 1900MHz/Part 24: RF PowerEx6M_RFPower_1850Level0 Ex6M_RFPower_1850Level7 Ex6M_RFPower_1850Level15 Ex6M_RFPower_1880Level0 Ex6M_RFPower_1880Level7 Ex6M_RFPower_1880Level15 Ex6M_RFPower_1909Level0 Ex6M_RFPower_1909Level7 Ex6M_RFPower_1909Level15 Exhibit 6N 1900MHz/Part 24: Mod CharEx6N_ModChar.doc Exhibit 6O 1900MHz/Part 24: Occup.BWEx6O_OccBandwidth1 Ex6O_OccBandwidth2 Ex6O_OccBandwidth3 Exhibit 6P 1900MHz/Part 24: Spur Emis (cond)Ex6P_CondEmisBandEdges Ex6P_SpurEmisConducted Exhibit 6Q 1900MHz/Part 24: Spur Emis (radiated) Ex6P_SpurEmisRadiated Exhibit 6R 1900MHz/Part 24: Freq StabilityEx6R_FreqStability Exhibit 7Test Setup PhotosEx7_MT289_Test_setup_photos Exhibit 8Users ManualEx8_MT289G320_User Manual Exhibit 9Internal PhotosEx9_MT289Ex9_Internal photos Exhibit 10 Parts List/Tune Up Info/Proc.Ex10_MT289EX10APartsL…

Text truncated - open the document above for the full version.

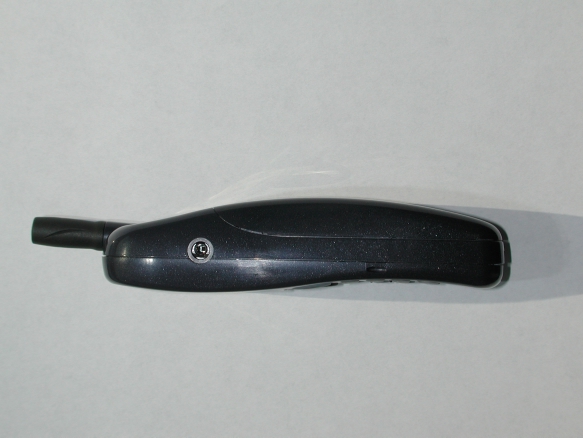

Mitsubishi Wireless Communications, Inc. FCC ID: BGBMT289XG01A Exhibit 3 External Photos External Photos Page 1 of 3 Photograph 1 – MT289XG01A (Cover On) Mitsubishi Wireless Communications, Inc. FCC ID: BGBMT289XG01A Exhibit 3 External Photos External Photos Page 2 of 3 Photograph 2 -- MT289XG01A (Cover Off) Mitsubishi Wireless Communications, Inc. FCC ID: BGBMT289XG01A Exhibit 3 External Photos External Photos Page 3 of 3 Photograph 3 -- MT289XG01A (Side View – Cover on)

Mitsubishi Wireless Communications, Inc. FCC ID: BGBMT289XG01A Exhibit 3 External Photos External Photos Page 1 of 3 Photograph 4 -- MT289XG01A (Back View With Battery Cover) Mitsubishi Wireless Communications, Inc. FCC ID: BGBMT289XG01A Exhibit 3 External Photos External Photos Page 2 of 3 Photograph 5 -- MT289XG01A (Back View with Battery and Battery Cover Removed) Mitsubishi Wireless Communications, Inc. FCC ID: BGBMT289XG01A Exhibit 3 External Photos External Photos Page 3 of 3 Photograph 6 -- AC Adapter with Label

Mitsubishi Wireless Communications Inc. FCC ID: BGBMT289XG01A Exhibit 1 ID Label/Location Identification Plate Drawing and Location Page 1 of 2 Exhibit 1 Identification Plate {2.983(f)}Ex1.1 Identification Plate Drawing Mitsubishi Wireless Communications Inc. FCC ID: BGBMT289XG01A Exhibit 1 ID Label/Location Identification Plate Drawing and Location Page 2 of 2 Ex1.2 Identification Plate Location

Mitsubishi Wireless Communications Inc. FCC ID: BGBMT289XG01A Exhibit 1 ID Label/Location Identification Plate Drawing and Location Page 1 of 2 Exhibit 1 Identification Plate {2.983(f)}Ex1.1 Identification Plate Drawing Mitsubishi Wireless Communications Inc. FCC ID: BGBMT289XG01A Exhibit 1 ID Label/Location Identification Plate Drawing and Location Page 2 of 2 Ex1.2 Identification Plate Location

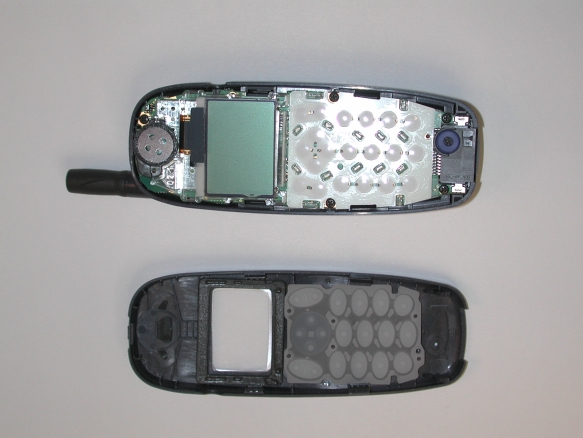

Mitsubishi Wireless Communications, Inc. FCC ID: BGBMT289XG01A Exhibit 9 Internal Photos Internal Photos Part 1 of 2 Page 1 of 5 Photograph 1 MT289XG01A (Back Cover Removed) Mitsubishi Wireless Communications, Inc. FCC ID: BGBMT289XG01A Exhibit 9 Internal Photos Internal Photos Part 1 of 2 Page 2 of 5 Photograph 2 MT289XG01A (Front Cover Removed) Mitsubishi Wireless Communications, Inc. FCC ID: BGBMT289XG01A Exhibit 9 Internal Photos Internal Photos Part 1 of 2 Page 3 of 5 Photograph 3 MT289XG01A (Front PWB LCD and Metal Dome Installed) Mitsubishi Wireless Communications, Inc. FCC ID: BGBMT289XG01A Exhibit 9 Internal Photos Internal Photos Part 1 of 2 Page 4 of 5 Photograph 4 MT289XG01A (Front PWB with Shield Cover and Metal Dome) Mitsubishi Wireless Communications, Inc. FCC ID: BGBMT289XG01A Exhibit 9 Internal Photos Internal Photos Part 1 of 2 Page 5 of 5 Photograph 5 MT289XG01A (Front PWB with Shield and Metal Dome Removed)

Mitsubishi Wireless Communications, Inc. FCC ID: BGBMT289XG01A Exhibit 9 Internal Photos Internal Photos part 2 of 2 Page 1 of 4 Photograph 6 MT289XG01A (Back PWB with Shields) Mitsubishi Wireless Communications, Inc. FCC ID: BGBMT289XG01A Exhibit 9 Internal Photos Internal Photos part 2 of 2 Page 2 of 4 Photograph 7 MT289XG01A (Back PWB with Shields Removed) Mitsubishi Wireless Communications, Inc. FCC ID: BGBMT289XG01A Exhibit 9 Internal Photos Internal Photos part 2 of 2 Page 3 of 4 Photograph 8 MT289XG01A (Front PWB without Shield) Mitsubishi Wireless Communications, Inc. FCC ID: BGBMT289XG01A Exhibit 9 Internal Photos Internal Photos part 2 of 2 Page 4 of 4 Photograph 9 MT289XG01 (Back PWB)

2 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] January 05, 2001 MITSUBISHI WIRELESS COMMUNICATION INC. 3805 Crestwood Parkway, Suite 400 Duluth, Georgia, 30096 USA Attn.:Mr. Simon Jung Subject:Verification Testing in accordance with SAR (Specific Absorption Rate) requirements using guidelines established in: IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C) Industry Canada RSS-102 (Issue 1) ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) Product:Cellular Phone Model:MT-289 Dear Mr. Jung The product sample has been tested in accordance with SAR (Specific Absorption Rate) requirements using guidelines established in IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102 (Issue 1)and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1), and the results and observation were recorded in the engineering report, Our File No.: MWC-004-SAR Enclosed you will find a copy of the engineering report. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P.Eng Vice President - Engineering Encl. UltraTech Group of Labs January 05, 2001 MITSUBISHI WIRELESS COMMUNICATION INC. 3805 Crestwood Parkway, Suite 400File No.: MWC-004-SAR Duluth, Georgia, 30096 USA NOT TRANSFERABLE This Verification Certificate is hereby issued to the named GRANTEE and is VALID ONLY for the equipment identified hereon for use under the rules and regulations listed below: GRANTEE'S NAME:Mitsubishi Wireless Communication INC PRODUCT UNDER TEST:Cellular phone MODEL NO.:MT-289 FCC ID:BGBMT289XG01A OPERATING FREQUENCY RANGE:1,850.2 ~ 1,909.7 MHz NOMINAL RF OUTPUT POWER:1.0 W pk (30.0 dBm pk ) MAXIMUM S.A.R.:0.966 W/Kg APPLICABLE STANDARDS:SAR (Specific Absorption Rate) requirements using guidelines established in IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102 (Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2001 (No. 1) • Assessed by ITI (UK) Competent Body, NVLAP (USA) Accreditation Body & ACA/AUSTEL (Australia), VCCI (Japan) • Accredited by Industry Canada (Canada) under ACC-LAB (Europe/Canada MRA and APEC/Canada MRA) • Recognized/Listed by FCC (USA ) • All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST Technology ( NIST ) Approved by: Tri M. Luu, P.Eng. V.P. – Engineering UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] Cellular Phone Model No.: MT-289 Tested For MITSUBISHI WIRELESS COMMUNICATION INC. 3805 Crestwood Parkway, Suite 400 Duluth, Georgia, 30096 USA In Accordance With SAR (Specific Absorption Rate) Requirements using guidelines established in IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102 (Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2001 (No. 1) UltraTech's File No.: MWC-004-SAR This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: January 05, 2001 Report Prepared by: JaeWook ChoiTested by: JaeWook Choi, SAR Engineer Issued Date: January 05, 2001Test Dates: December 22, 2000 The results in this Test Report apply only to the sample(s) tested, which has been randomly selected. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] SPECIFIC ABSORPTION RATIO (SAR)Page 1 IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2001 (No. 1) Cellular PhoneModel No.: MT-289 ULTRATECH GROUP OF LABS File #: MWC-004-SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4January 08, 2001 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com • Assessed by ITI (UK) Competent Body, NVLAP (USA) Accreditation Body & ACA/AUSTEL (Australia), VCCI (Japan) • Accredited by Industry Canada (Canada) under ACC-LAB (Europe/Canada MRA and APEC/Canada MRA) • Recognized/Listed by FCC (USA ) • All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1.INTRODUCTION......................................................................................................................................…
