BOOKP-810-16Mini Air Mouse&Keyboard

Mini Air Mouse and Keyboard with IR Remote Model: KP-810-16 Introduction: Mini air mouse and keyboard with IR remote, named as iPazzPort, combo of wireless keyboard, air mouse, and remote for other home electric appliance, is designed small and portable, it is widely used for: ■ people who need to be apart from their personal computer and yet control it for their training, teaching, presentation, lecturing. ■ Multi media home theater, people can sit in their easy chair or sofa even in bed to enjoy the film, music, surf the internet instead of change its channel physically. ■ Remote of other home electric appliance, such as DVD PLAYER, CD PLAYER, TV, Air Conditioner, with the feature of IR learning, Mini Air Mouse and Keyboard can quickly learn original code from other home electric appliance remote. Package: Mini Air Mouse and Keyboard with IR Remote USB Receiver USB cable for recharge the unit User manual Feature and specifications: ■R.F 2.4G connection ■rechargeable lithium-ion battery ■backlit for operation in darken room ■Plug and play ■Ultra sensitive 3 axial Gyro-sensor - in-air cursor control using natural hand motions ■Battery capacity: 800mA ■charge voltage: DC 5V/300mA ■standby time: 400 hours ■QWERTY keyboard ■Quick learning original code from other remote ■Size: 126.5mm*56.5mm*13mm ■Weight: 81.5g English System requirement: - Windows 2000/XP/ vista/ 7/win CE - Linux -Android - Mac How to use 1. Lift up back case from the bottom, and take USB Receiver out, Insert USB rceiver into USB port on the computer 2. Take USB Receiver out 3. Bottom view 4. Bottom view ON 2. Turn unit on by switching power button to on, Blue LED will flash one time then go out. 3. Recharge your keyboard: when your keyboard backlit flash without any operation that means your keyboard is in low charge, and need to recharge connect your keyboard to your computer with mini end of USB cable to your keyboard and another end to computer, then orange led will light up with steady on, and go out when it is fully recharged. off USB RECEIVER English 1. Lift back case up ON off 4. Air Mouse 4.1 air mouse has two mode: a: press to move: in this mode, please press mouse button and move you hand, then mouse cursor on the screen will move with your hand motion, when mouse cursor arrive the place you want, then release mouse button and mouse cursor will stop where it is, no matter how you move the keyboard, mouse cursor will not move with your hand motion. B. Press-release to move, in this mode, press mouse button one time then release mouse button, then mouse cursor will move with your hand motion, you can switch between two mode by tapping mouse button one time. F 1 1 F 1 1 F 1 2 F 1 2 P r t S c F 1 F 2 F 3 F 4 F 5 F 6 F 7 F 8 F 9 F 1 0 Mouse right Mouse left Mouse button Press to active mouse 4.2 Change mouse operation directions: As we know, some times, we want to operate the wirelss keyboard vertically, and some times horizontally, when operation direction is changed from vertical to horizontal, but touchpad will not, for example and supposed your operation direction is vertical, now change your operation direction to horizontal, then move your hand vertically, and moue cursor still move horizontally, in this situation, press key Fn+Esc to change its operation direction, then mouse cursor will move with your hand motions. Binds key: Fn+Esc to change operation direction 5. Front view English Input A V T V MENU t S e VOL+ VOL– H C + C H - OK 5. Feature of IR learning: with feature of IR learning, this Air Mouse and Keyboard can be used as remote for other home electric appliance, such as DVD/CD player, TV, air conditioner, refrigerator. In order to be a remote for other electric appliance, Air Mouse and Keyboard must learn the original code from other electric appliance, take TV remote as an example: 5.1. Push the switch for remote to on, 5.2. set the device to be learned by pressing key “AV” or “TV”, if you want to learn TV Remote please press key TV, LED blue will flash, if AV, LED orange will flash 5.3. Press key “set” for about 2 seconds till LED on to enter learning mode, then tap the key you want and LED will flash one time then light on that means keyboard is waiting signal to learning.(LED will go out and quit learning mode if no operation within 10seconds) 5.4. Take TV remote and aim them at IR Emitter, press KEY on the TV remote for about 1 seconds, then release this key and you will see LED on the keyboard flash 3 time quickly then light up with a steady on, that means your keyboard has learned the original code of the TV Remote successfully. 5.5. Repeat step 1 and 2 to complete other key original code learning. 5.6. Press key “set” to save and quit learning mode when all key finish original code learning Indicator 6. Back view 7. Top view IR Sensor 8. Right view Switch for remote on English 6. Function description of keyboard Item Function Operation Page down Page up Mouse left Press to operate like left mouse key Mouse right Press to operate like right mouse key Key R.F Press to pair keyboard and USB receiver Cursor up,down left, right Press the four keys to move cursor up, down, left,and right Page up Press to scroll page up Page down Press to scroll page down Activate mouse Press to activate mouse 9. Front view 10. Right view English R.F Equal “back space” Tap F11F11 F12F12 PrtSc F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 Navigate key Mouse left Mouse button Mouse right Key R.F Back sapce F12F12 F12F12 PrtScPrtSc 7. Binds keys description all binds key must work with Fn, for example: if you want to operate key “Home”, you have to press key “Fn” and key “9” together, F11F11 F12F12 PrtSc F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 Work with other binds keys Press this key and other binds key together Change operation directions Press “Esc” and “Fn” together Press “F1” and “Fn” together Press “F2” and “Fn” together Press “F3” and “Fn” together Press “F4” and “Fn” together Press “F5” and “Fn” together Press “F6” and “Fn” together P…

Text truncated - open the document above for the full version.

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 07.03.2008 Datum: 00.00.00 Seite 1 von 1 PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date:2012-10-18 FCC ID: BOOKP-810-16 Subject: Attestation Letter “Declaration of Conformity” Dear Sirs, Our products with the above FCC ID are defined as composite device. The transmitter is authorized under the “Certification” procedure. The device is also defined as “PC Periphery” acc to §15.101 Equipment authorization of unintentional radiators, where we hereby declare, that we apply and follow the “Declaration of Conformity” procedure. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Signature Name Yi Deng Title Engineer Unisen Limited Room 907, Fook Hong Industrial Bldg.,19 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong

Authorization Letter We, (the approval holder) Company name Unisen Limited Addresss Room 907, Fook Hong Industrial Bldg.,19 Sheung Yuet Road, Kowloon Bay City Kowloon Country Hong Kong declare that the following representative (agent): Name (person) Bovey.yang Company name Shenzhen NTEK Testing Technology Co., Ltd. Addresss 1/F, Building E, Fenda Science Park Sanwei Community, Xixiang Street, Baoan District City Shenzhen Country China to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Description Mini Air Mouse&Keyboard Type or Model(s) KP-810-16, KP-810-XXX (XXX in the model designation may be any alphanumeric characters denoting different configuration options) Tradename or Brand(s) iPazzPort We also authorize BZT – TCP Certification GmbH, Ms.Wanida Patthanavoj (address: Hermann - Loens - Weg 6, 15859 Storkow b. Berlin Germany) to process the application. Attestation: City and Country: Date:Name: (this must be a person) Function:Signature: (or official company stamp) Hong Kong 2012/10/18 Yi DengEngineer

FCC Confidentiality Request To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Unisen Limited Addresss Room 907, Fook Hong Industrial Bldg.,19 Sheung Yuet Road, Kowloon Bay City Kowloon Country Hong Kong request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: BOO KP-810-16 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) x Operational Description x Block Diagrams x Schematics Diagrams Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Hong Kong 2012/ 10/18 Yi DengEngineer

Unisen Limited Room 907, Fook Hong Industrial Bldg.,19 Sheung Yuet Road,Kowloon Bay,Kowloon, Hong Kong TEL: 13378617850 Email: jimmy@unisenusa. com Statement We (Unisen Limited) hereby state that XXX in the model(KP-810- XXX) designation may be any alphanumeric characters denoting different configuration options. Sincerely, 2012/10/18 Yi Deng Engineer Unisen Limited Room 907, Fook Hong Industrial Bldg.,19 Sheung Yuet Road,Kowloon Bay,Kowloon, Hong Kong Tel: 13378617850 E-mail: jimmy@unisenusa. com

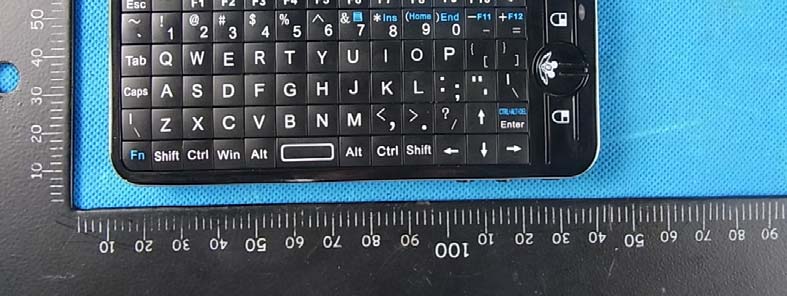

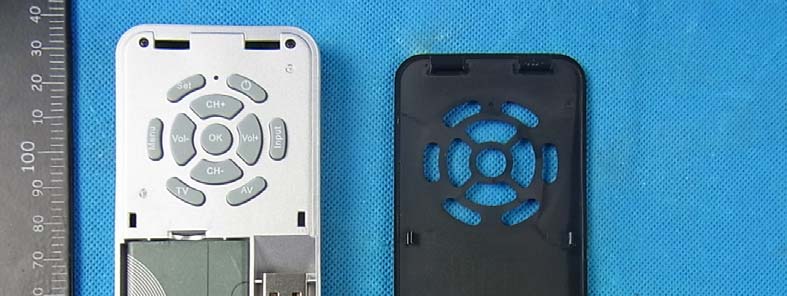

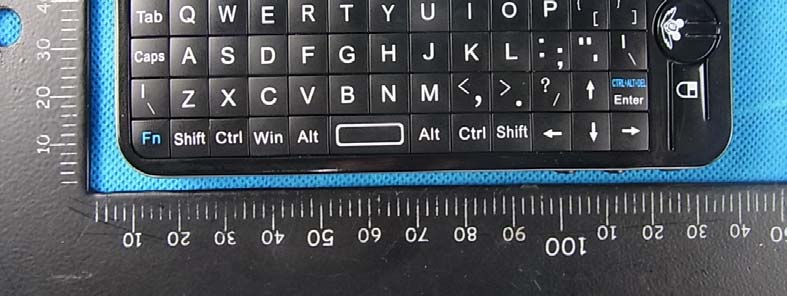

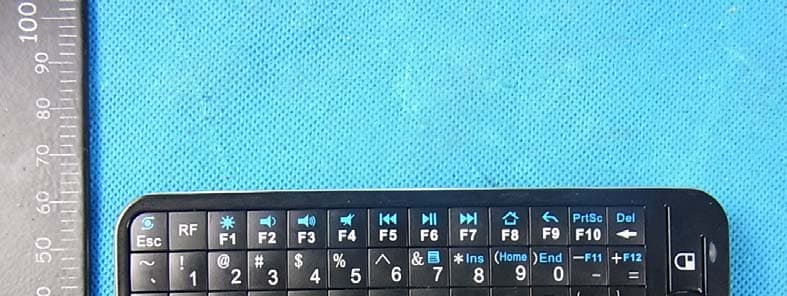

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17 Photo 18

FCC RADIO TEST REPORT FCC ID: BOOKP-810-16 Product： Mini Air Mouse&Keyboard Trade Name： iPazzPort Model Name： KP-810-16 Serial Model： KP-810-XXX(XXX in the model designation may be any alphanumeric characters denoting different configuration options) Report No.： NTEK-2012NT1016112F Prepared for Unisen Limited Room 907, Fook Hong Industrial Bldg.,19 Sheung Yuet Road, Kowloon Bay,Kowloon, Hong Kong Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 39 Report No.: NTEK-2012NT1016112F ` TEST RESULT CERTIFICATION Applicant’s name ................. : Unisen Limited Address ................................. : Room 907, Fook Hong Industrial Bldg.,19 Sheung Yuet Road,Kowloon Bay,Kowloon, Hong Kong Manufacture's Name ............ : Unisen Limited Address ................................. : Room 907, Fook Hong Industrial Bldg.,19 Sheung Yuet Road,Kowloon Bay,Kowloon, Hong Kong Product description Product name ........................... : Mini Air Mouse&Keyboard Model and/or type reference : KP-810-16 Serial Model： KP-810-XXX(XXX in the model designation may be any alphanumeric characters denoting different configuration options) Standards ............................. : FCC Part15.249 Test procedure .............................. ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 16 Oct. 2012 ~23 Oct. 2012 Date of Issue ........................................... : 24 Oct. 2012 Test Result ............................................... : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 39 Report No.: NTEK-2012NT1016112F ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 10 3 . TEST RESULT 12 3.1 ANTENNA REQUIREMENT 12 3.1.1 STANDARD REQUIREMENT 12 3.1.2 EUT ANTENNA 12 3.2 CONDUCTED EMISSION MEASUREMENT 13 3.2.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.2.2 TEST PROCEDURE 14 3.2.3 DEVIATION FROM TEST STANDARD 14 3.2.4 TEST SETUP 14 3.2.5 TEST RESULT 15 3.3 RADIATED EMISSION MEASUREMENT 17 3.3.1 RADIATED EMISSION LIMITS 17 3.3.2 TEST PROCEDURE 18 3.3.3 DEVIATION FROM TEST STANDARD 18 3.3.4 TEST SETUP 19 3.3.5 TEST RESULTS (BLOW 30MHZ) 21 3.3.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 22 3.3.7 TEST RESULTS (ABOVE 1000 MHZ) 24 4 . BANDWIDTH TEST 34 4.1 TEST PROCEDURE 34 4.2 DEVIATION FROM STANDARD 34 4.3 TEST SETUP 34 4.4 TEST RESULTS 35 5 . EUT TEST PHOTO 38 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 39 Report No.: NTEK-2012NT1016112F ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.249) Standard Section Test Item Judgment Remark 15.207 Conducted Emission Pass 15.203 Antenna Requirement Pass 15.249 Radiated Spurious Emission Pass 15.249 Occupied Bandwidth Pass Page 5 of 39 Report No.: NTEK-2012NT1016112F ` 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC FRN Registration Nombre:238937; IC Registration Nombre:9270A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 6 of 39 Report No.: NTEK-2012NT1016112F ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Mini Air Mouse&Keyboard Trade Name iPazzPort Model Name KP-810-16 Serial Model KP-810-XXX(XXX in the model designation may be any alphanumeric characters denoting different configuration options) Model Difference Only different configuration options Product Description The EUT is a Mini Air Mouse&Keyboard Operation Frequency: 2402~2480MHz Modulation Type: GFSK Channel Number 79(See Note 2) Antenna Designation: PCB Antenna Antenna Gain(Peak) 0.66 dBi EIRP 101.5dbuv/m@3m Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List Please refer to the Note 2. Rating DC 3.7V Adapter N/A Battery Rated Voltage: 3.7V Charge Limit: 4.2V Capacity :800mah Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 7 of 39 Report No.: NTEK-2012NT1016112F ` 2. Channel number Channel Frequency (MHz) 01 2402 02 2403 ...... ...... 40 2441 41 2442 ...... ...... 78 2479 79 2480 Frequency =2402+(n-1), n(Max)=79, n represents the channel number. 3. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A N/A PCB Antenna NA 0.66 Antenna Page 8 of 39 Report No.: NTEK-2012NT1016112F ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates fro…

Text truncated - open the document above for the full version.

Page 38 of 39 Report No.: NTEK-2012NT1016112F ` 5. EUT TEST PHOTO Radiated Measurement Photos Page 39 of 39 Report No.: NTEK-2012NT1016112F ` Conducted Measurement Photos
