Wireless Keyboard with Built-In Multi-Touch Touchpad Model (型号):KP-810-25 无线键盘+多点触摸板 www.iPazzPort.com 联力胜科技 Contents 目录 English Portion Introduction Package Feature Specifications System Requirement Starting up Touchpad mode Function description of keyboard Binds keys description WEEE Directive & Product Disposal Notice to customers Caution Compliance statement 中文部分 应用 包装清单 特点 规格 支持系统 开机 触摸板模式 键盘功能描述 组合键 Introduction iPazzPort slim is a wireless keyboard with built-in,Multiple touchpad .You can type touch and swipe comfortably in 8m away from computer or big HD screen. Package: Wireless Keyboard with Built-In Multi-Touch Touchpad 1 User manual 1 Feature: - Sleek, low-profile keys: Easy and comfortable typing on quiet keys with bold, easy-to-read characters - Touch panel switch to digital mode or mouse touchpad mode - Ultra-sensitive mouse touchpad - Built-in multi-touch touchpad: Large touchpad with multi-touch navigation for easier web browsing - Supports multi language Specifications: - Long-range wireless: Control your TV-connected laptop from the couch with 33 feet/10 meter wireless range - Power Supply:DC 3V(1.5V 3A battery x 2) - Size:262x84x34mm - Weight:170g System Requirement: - Windows - iOS - Android Note:Pressing Fn+ios/Android/Windows, you can switch to the corresponding key layout system. Starting up: 1.Remove battery cover to install battery. Battery lid 2.Turn on the keyboard by switching power button to on. Power Switch ON OFF Touchpad mode Move finger on the touchpad,from left to right is Touchpad mode; from right to left is Numeric keypad. Left/right/down/up Backspace Win Hot key for shorcut Function description of keyboard Turn on “Touchpad mode” Turn on “Numeric keypad” System Keys F1 ESC F2 F3 F4 F5 F6 F7 F8 F9 Fn+F1 (iOS) Fn+F2 (Android) Fn+F3(windows) ESC ESC ESC Ejest Ejest Scarch Scarch Screen Save Black Screen Screen Lock Mail Previous Track Play/Pause Next Track F1 F2 F3 F4 F5 F6 F7 F8 F9 Screen Lock Previous Track Play/Pause Next Track Insert Main Page Insert Main Page F11 F10 F12 PrtScr SysRq Volume Down Mute Volume Up F11 F10 F12 PrtScr SysRq PrtScr SysRq Volume Down Mute Volume Up Binds keys description all binds key must work with Fn, for example: if you want to operate key “Home”, you have to press key “Fn” and key “ ” together, Item Fuction Operation Ios Android Windows IOS Android Windows Page Down Page Up End Home Press “F1” and “Fn” together Press “F2” and “Fn” together Press “F3” and “Fn” together Press “ ” and “Fn” together Press “ ” and “Fn” together Press “ ” and “Fn” together Press “ ” and “Fn” together WEEE Directive & Product Disposal At the end of its serviceable life, this product should not be treated as household or genaral waste. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or returned to the supplier for disposal. Notice to customers This symbol on the battery indicates that the battery is to be collected separately. The following applies only to users in European countries. This battery is designed for scperate collection at an appropriate collection point. Do not diapose of as household waste. For more information,contact the retailer or local authorities in charge of waste,management. Caution : Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Compliance statement: 1: This device is verified to comply with Part 15 of the FCC Rules. Operation subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if installed And used in accordance with the instructions, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help

Unisen limited Model Difference FCC ID: BOOKP-810-XXXX Model : KP-810-25，BOOKP-810-XXXX(XXXX in the model designation may be any alphanumericcharacters denoting different configuration options) All the models are the same circuit and RF module, except the mode names. Regards, Client’s signature Signature Client’s name / title : Dengyi / Engineer Contact information / address : Room 907, Fook Hong Industrial Bldg.,19 Sheung Yuet Road, Kowloon Bay,Kowloon, Hong Kong

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Unisen limited 2014/1/3 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: BOOKP-810-XXXX We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Signature Client’s name / title : Dengyi / Engineer Contact information / address : Room 907, Fook Hong Industrial Bldg.,19 Sheung Yuet Road, Kowloon Bay,Kowloon, Hong Kong

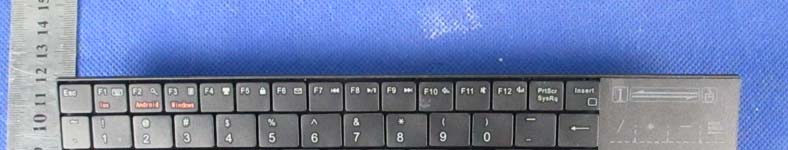

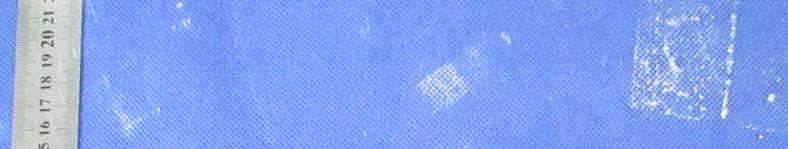

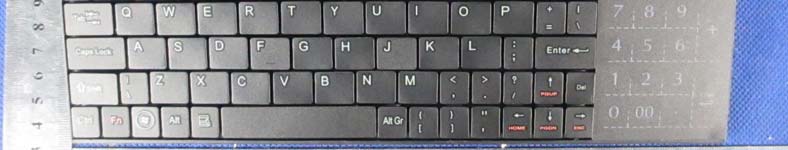

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4

FCC ID LABELING AND LOCATION FCC ID Label WIRELESS KEYBOARD Model NO.: KP-810-25 Input Rating: DC 3V FCC ID: BOOKP-810-XXXX Unisen limited Made in China This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

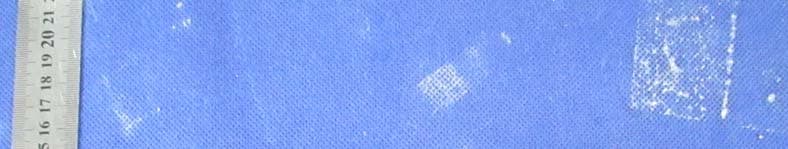

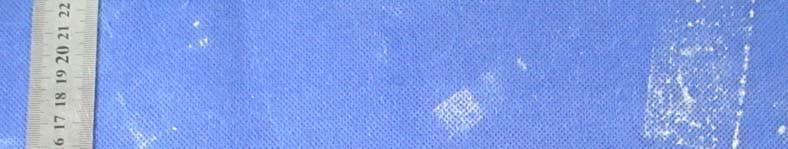

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Antenna Photo 3 Photo 4 Photo 5

FCC RADIO TEST REPORT FCC ID: BOOKP-810-XXXX Product： WIRELESS KEYBOARD Trade Name： N/A Model Name： KP-810-25 Serial Model： BOOKP-810-XXXX(XXXX in the model designation may be any alphanumericcharacters denoting different configuration options) Report No.： NTEK-2013NT1218799F Prepared for Unisen limited Room 907, Fook Hong Industrial Bldg.,19 Sheung Yuet Road, Kowloon Bay,Kowloon, Hong Kong Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 37 Report No.: NTEK-2013NT1218799F ` TEST RESULT CERTIFICATION Applicant’s name.................Unisen limited Address ................................ . Room 907, Fook Hong Industrial Bldg.,19 Sheung Yuet Road, Kowloon Bay,Kowloon, Hong Kong Manufacture's Name........... .Unisen limited Address ................................ . Room 907, Fook Hong Industrial Bldg.,19 Sheung Yuet Road, Kowloon Bay,Kowloon, Hong Kong Product description Product name ..........................WIRELESS KEYBOARD Model and/or type reference .............................................. . KP-810-25 Serial Model： BOOKP-810-XXXX(XXXX in the model designation may be any alphanumericcharacters denoting different configuration options) Standards............................ . FCC Part15.249 Test procedure ......................... ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test............................................ Date (s) of performance of tests ............. 18 Dec. 2013 ~30 Dec. 2013 Date of Issue........................................... 30 Dec. 2013 Test Result............................................... Pass Testing Engineer : (Apple Huang) Technical Manager : (Brown Lu) Authorized Signatory : (Bovey Yang) Page 3 of 37 Report No.: NTEK-2013NT1218799F ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 10 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 3 . ANTENNA REQUIREMENT 12 3.1 STANDARD REQUIREMENT 12 3.2 EUT ANTENNA 12 3.3 CONDUCTED EMISSION MEASUREMENT 13 3.3.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.3.2 TEST PROCEDURE 14 3.3.3 DEVIATION FROM TEST STANDARD 14 3.3.4 TEST SETUP 14 3.2.5 TEST RESULT 15 3.4 RADIATED EMISSION MEASUREMENT 16 3.4.1 RADIATED EMISSION LIMITS 16 3.4.2 TEST PROCEDURE 17 3.4.3 DEVIATION FROM TEST STANDARD 17 3.4.4 TEST SETUP 18 3.4.5 TEST RESULTS (BELOW 30MHZ) 20 3.4.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 21 3.4.7 TEST RESULTS (ABOVE 1000 MHZ) 23 3.4.8 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 29 4 . BANDWIDTH TEST 33 4.1 TEST PROCEDURE 33 4.2 DEVIATION FROM STANDARD 33 4.3 TEST SETUP 33 4.4 TEST RESULTS 34 5 . EUT TEST PHOTO 37 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 37 Report No.: NTEK-2013NT1218799F ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.249) Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.203 Antenna Requirement Pass 15.249 Radiated Spurious Emission Pass 15.205 Band Edge Emission Pass 15.249 Occupied Bandwidth Pass NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 5 of 37 Report No.: NTEK-2013NT1218799F ` 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 6 of 37 Report No.: NTEK-2013NT1218799F ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment WIRELESS KEYBOARD Trade Name N/A Model Name KP-810-25 Serial Model BOOKP-810-XXXX(XXXX in the model designation may be any alphanumericcharacters denoting different configuration options) Model Difference All models are identical except model names. Product Description The EUT is a WIRELESS KEYBOARD Operation Frequency: 2402~2480MHz Modulation Type: GFSK Antenna Designation: PCB Antenna Antenna Gain(Peak) 0.5 dBi ETRP 78.71dBμV/m Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List Please refer to the Note 2. Adapter N/A Battery 1.5V*2cell “AA” alkaline battery Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 7 of 37 Report No.: NTEK-2013NT1218799F ` 2. Channel Frequency (MHz) 01 2402 02 2440 03 2480 3. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A N/A PCB Antenna N/A 0. 5 Antenna Page 8 of 37 Report No.: NTEK-2013NT1218799F ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the te…
