Unisen Group 联力胜 Android Stick Player with feature of voice www.ipazzport.com www.unisengroup.com 1 USER MANUAL Android Mini PC MODEL:NC-812-16A VER.: 01 “All trademarks here belong to their respective company's” Unisen Group 联力胜 Android Stick Player with feature of voice www.ipazzport.com www.unisengroup.com 2 iPazzport Android 4.0 ICS voice Smart TV with customized Voice Driver which can allow user select Audio output to iPazzPort voice mini wireless keyboard(voice remote) for audio playback. With iPazzPort wireless audio keyboard mouse and touchpad (voice remote), you can either use the speaker and microphone of the voice remote like the phone for Skype or use the headset that plugged into the voice remote for enjoy movie at night that not disturb families sleeping, also it is very well for voice control, voice search, voice input and talk.Wanting to watch any movie, only to speak toward the voice remote. Of course, with the customized voice driver, it can allow user select selectable Audio output between voice remote or TV audio out (TV HDMI) for audio playback. iPazzport Android 4.0 ICS voice Smart TV connects to the HDMI interface of any regular TV and converts it into a Smart TV. It's basically a fully functioning micro-computer with the size of your thumb which runs at Android 4.0 ICS as today's latest Smart TV or smart phones. The TV becomes a giant tablet and you can control it through the USB wired/wireless/voice keyboard. You can download apps from the Google Play Store to stream videos, play games, connect with your friends on Facebook, catch up on news, do some work or simply surf the web. You can even attach the iPazzPort voice wireless keyboard(Voice remote) and a video camera to do Skype call. Yes, all that on your TV! iPazzport Android 4.0 ICS voice Smart TV is so small that it can fits inside your pocket and you can conveniently take it anywhere you go, even when you travel abroad. And when you get to your destination, hotel room or office you can easily plug it into any monitor or TV and you will get access to all your information, games, TV streaming channels, work documents and your entire digital life. Imagine walking into a meeting and doing a presentation without a laptop. All you need to do is plug it into the projector and your presentation can be played from the cloud (like a Dropbox account) or locally from the SD Card. Of course, when friends and family can come together to share the collection HD movies, stored in their own computers, mobile hard disk, connect iPazzport Android 4.0 ICS voice Smart TV to HD TV, you can play now. Unisen Group 联力胜 Android Stick Player with feature of voice www.ipazzport.com www.unisengroup.com 3 1.Features and specifications： 1.1.Features z Ultra-mini, thumb Android Smart TV z Supports voice mini wireless keyboard(remote) for Skype QQ, MSN, Google Voice search, voice input and voice control. z Play voice at remote as watching video alone, no effect family z Supports video call z Android 4.0 OS, rich preloaded applications software for home education, entertainment, travel presentation, etc. z WiFi inside 1.2. Specifications: 1.2.1 CPU: 1.0G, GPU inside -HD video decoder(1080P@ 60FPS) -HD video encoder(1080P@ 30FPS) 1.2.2. Memory：DDR3: 1G 1.2.3. Flash：8G 1.2.4. Network：WiFi 802/.11 b/g 1.2.5. Interface： --HDMI 1.4 1 --USB HOST 1 --Mini USB 1 --SD Slot 1 1.2.6. Operations system：Android4.0, support multi language 1.2.7. Power supply：MINI USB，DC:5V 1.2.8. Size：77.2*26*13.5mm 1.2.9. Weight：26g Unisen Group 联力胜 Android Stick Player with feature of voice www.ipazzport.com www.unisengroup.com 4 2. Product overview 3. How to use: 3.1 Slide the HDMI switch, Rise the external antenna, and push out the HDMI port.Don’t push theantenna 3.2 Power on Android Stick Player: plug USB cable into Mini USB port of your HD TV, and another mini end to your Stick, (please note, if USB power output of HD TV is less than 5V/500mA, please buy one power adaptor to make it work.), then green Indicator will be on, that means your device successfully started. 3.3Plug Android Stick Player into HDMI slot of your TV, power on your TV and set signal source to “HDMI”(you also can connect them via HDMI extension cable) Unisen Group 联力胜 Android Stick Player with feature of voice www.ipazzport.com www.unisengroup.com 5 After push( below chart) 3.3 input device: This device support standard USB keyboard and mouse, also support RF 2.4G Voice Wireless keyboard. Left mouse for click, right mouse for back. 3.3.1. iPazzPort Voice Wireless Keyboard and Mouse, please read its manual for install instruction. 3.3.2. RF 2.4G wireless keyboard and mouse: plug USB receiver into USB port of Android Stick Player 3.3.3 Standard wired USB keyboard or mouse: plug USB keyboard or mouse into USB port of Android Stick Player. Unisen Group 联力胜 Android Stick Player with feature of voice www.ipazzport.com www.unisengroup.com 6 3.3.4. Device does not support “double click to open”, just “click-to-open” 3.3.5. For more input device interfacing, Android Stick Player can plug with USB hub to share the physical USB socket with more device. Although it can support hub for more interface, it cannot be too much as the output power of the socket is limited. 3.4 Wi-fi connect: 3.4.1 Click “Settings” on the main interface. 3.4.2 Select “Wi-Fi” and turn it to on, then the available open SSID will shown. Select the preferred SSID for connection and then follow through the normal WiFi setup for connection 3.4.3 If the required SSID not shown on the list then requires searching the wireless network again to make sure that the required SSID is found. 3.5 Application software management: 3.5.1 Voice Search is one of free apps, you can get it at APPCHINA. Please search it in APPCHINA by typing “voice search” and install it. 3.5.2 after Voice Search is installed, an icon appear at the end of the input field, press this icon and a pop up will show you that you require to speak. Voice out what you want to inp…

Text truncated - open the document above for the full version.

Date:2012-10-24 FCC ID: BOONC-812-16XX Subject: Ad Hoc Mode Function Declaration To Whom it may concern, This device is acting as slave and operating in the 2.4 GHz (2412 – 2462 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Yours sincerely, Signatory Signature Name Yi Deng Title Engineer Unisen Limi Room 907, Fook Hong Industrial Bldg.,19 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong ted Unisen Limi Room 907, Fook Hong Industrial Bldg.,19 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong ted

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 07.03.2008 Datum: 00.00.00 Seite 1 von 1 PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date:2012-10-24 FCC ID: BOONC-812-16XX Subject: Attestation Letter “Declaration of Conformity” Dear Sirs, Our products with the above FCC ID are defined as composite device. The transmitter is authorized under the “Certification” procedure. The device is also defined as “PC Periphery” acc to §15.101 Equipment authorization of unintentional radiators, where we hereby declare, that we apply and follow the “Declaration of Conformity” procedure. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Signature Name Yi Deng Title Engineer Unisen Limited Room 907, Fook Hong Industrial Bldg.,19 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong Room 907, Fook Hong Industrial Bldg.,19 S Unisen Limi heung Yuet Road, Kowloon Bay, Kowloon, Hong Kong ted

Authorization Letter We, (the approval holder) Company name Unisen Limited Addresss Room 907, Fook Hong Industrial Bldg.,19 Sheung Yuet Road, Kowloon Bay City Kowloon Country Hong Kong declare that the following representative (agent): Name (person) Bovey.yang Company name NTEK Testing Technology Co., Ltd. Addresss 1/F, Building E, Fenda Science Park Sanwei Community, Xixiang Street, Baoan District City Shenzhen Country China to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Description Android mini PC Type or Model(s) NC-812-16XX Tradename or Brand(s) N/A Attestation: City and Country: Date:Name: (this must be a person) Function:Signature: (or official company stamp) Hong Kong 2012/10/24 Yi Deng Engineer

FCC Confidentiality Request To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Unisen Limited Addresss Room 907, Fook Hong Industrial Bldg.,19 Sheung Yuet Road, Kowloon Bay City Kowloon Country Hong Kong request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: BOO NC-812-16XX of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) x Operational Description x Block Diagrams x Schematics Diagrams Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Hong Kong 2012/10/24 Yi Deng Engineer

Letter of Certification This is to formally certify that: The tune up procedures of Android mini PC (NC-812-16XX 0)is not open to end user. The end user is not allowed to perform finaltune. All the power and frequency set up were finished at the manufacturer stage. IEEE 802.11b max possible output power (PK,conducted) ：12±1dbm IEEE 802.11g/n(20) max possible output power(PK, conducted) ：11±1dbm IEEE 802.11n(40) max possible output power(PK, conducted) ：11±1dbm Regards, Yours sincerely, Signatory Signature Name Yi Deng Title Engineer Unisen Limited Room 907, Fook Hong Industrial Bldg.,19 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong

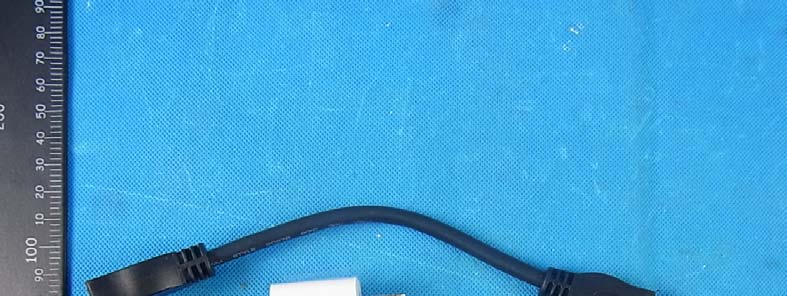

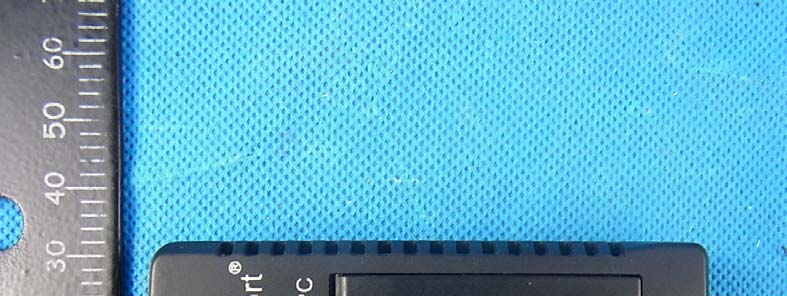

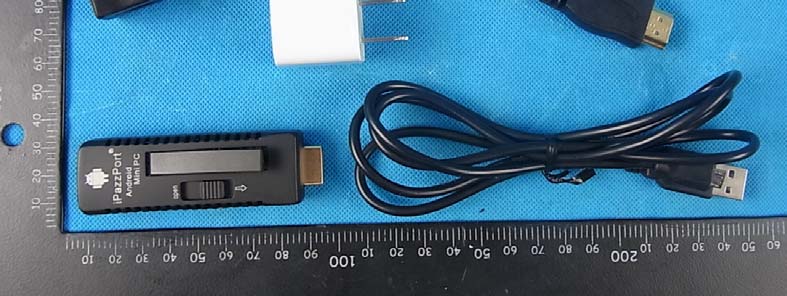

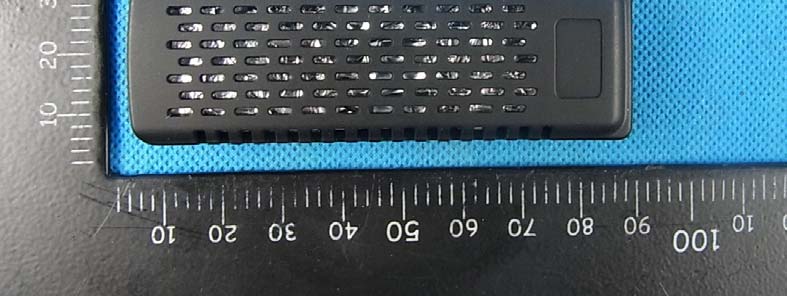

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

1.2*1.8cm

Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17 Photo 18 Photo 19 Photo 20

Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 (2)(a)(i) For portable device,the power limit is 60/f(in GHz) mW For limit 60/f is equal: 60/2.402=24.97mW 60/2.441=24.58 mW 60/2.480=24.19mW Maximum measured transmitter power Model MAX Conducted Power (dBm) Max Antenna Gain (dBi)EIRP (mW) EIRP (mW) 802.11b 12.65 0 18.40 24.19 802.11g 11.92 0 15.56 24.19 802.11n/20 11.87 0 15.38 24.19 802.11n/40 11.68 0 14.72 24.19 To Tune Up information max possible output power (PK)：12±1dbm MAX possible Conducted Power (dBm) Max Antenna Gain (dBi) EIRP (dBm) EIRP (mW) limit(mW) 13 0 13 19.95 24.19 The max.output power E.I.R.P is 19.95mW<24.19mW Conclusion: No SAR is required.

FCC RADIO TEST REPORT FCC ID: BOONC-812-16XX Product： Android mini PC Trade Name： N/A Model Name： NC-812-16XX Serial Model： N/A Report No.： NTEK- 2012NT1016110F Prepared for Unisen limited Room 907, Fook Hong Industrial Bldg., 19 Sheung Yuet Road, Kowloon Bay,Kowloon, Hong Kong Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 86 Report No.: NTEK-2012NT1016110F TEST RESULT CERTIFICATION Applicant’s name ................. : Unisen limited Address ................................. : Room 907, Fook Hong Industrial Bldg.,19 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong Manufacture's Name ............ : Unisen limited Address ................................. : Room 907, Fook Hong Industrial Bldg.,19 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong Product description Product name ........................... : Android mini PC Model and/or type reference : NC-812-16XX Serial Model .............................. : N/A Standards ............................. : FCC Part15.247 Test procedure ..............................ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 16 Oct. 2012 ~23 Oct. 2012 Date of Issue ........................................... : 24 Oct. 2012 Test Result ............................................... : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 86 Report No.: NTEK-2012NT1016110F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 4 . POWER SPECTRAL DENSITY TEST 64 4.1 APPLIED PROCEDURES / LIMIT 64 4.1.1 TEST PROCEDURE 64 4.1.2 DEVIATION FROM STANDARD 64 4.1.3 TEST SETUP 64 4.1.4 EUT OPERATION CONDITIONS 64 4.1.5 TEST RESULTS 65 5 . BANDWIDTH TEST 73 5.1 APPLIED PROCEDURES / LIMIT 73 5.1.1 TEST PROCEDURE 73 Page 4 of 86 Report No.: NTEK-2012NT1016110F Table of Contents Page 5.1.2 DEVIATION FROM STANDARD 73 5.1.3 TEST SETUP 73 5.1.4 EUT OPERATION CONDITIONS 73 5.1.5 TEST RESULTS 74 6 . PEAK OUTPUT POWER TEST 82 6.1 APPLIED PROCEDURES / LIMIT 82 6.1.1 TEST PROCEDURE 82 6.1.2 DEVIATION FROM STANDARD 82 6.1.3 TEST SETUP 82 6.1.4 EUT OPERATION CONDITIONS 82 6.1.5 TEST RESULTS 83 7 . ANTENNA REQUIREMENT 84 7.1 STANDARD REQUIREMENT 84 7.2 EUT ANTENNA 84 8 . EUT TEST PHOTO 85 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 86 Report No.: NTEK-2012NT1016110F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 86 Report No.: NTEK-2012NT1016110F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 86 Report No.: NTEK-2012NT1016110F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Android mini PC Trade Name N/A Model Name NC-812-16XX Serial Model N/A Model Difference N/A Product Description The EUT is a Android mini PC Operation Frequency: 802.11b/g/n 20:2412~2462 MHz 802.11n 40: 2422~2452MHz Modulation Type: CCK/OFDM/DBPSK/DAPSK Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6 Mbps 802.11n(20/40MHz):150/144.44/130 /117/115.56/104/86.67/78/52/6.5 Mbps Number Of Channel 802.11b/g/n20: 11CH 802.11n 40: 7CH Antenna Designation: Please see Note 3. Output Power(Conducted): 802.11b: 12.65 dBm (Max.) 802.11g: 11.92 dBm (Max.) 802.11n20: 11.87 dBm (Max.) 802.11n40: 11.68 dBm (Max.) Antenna Gain (dBi) 0dbi Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More detai…
