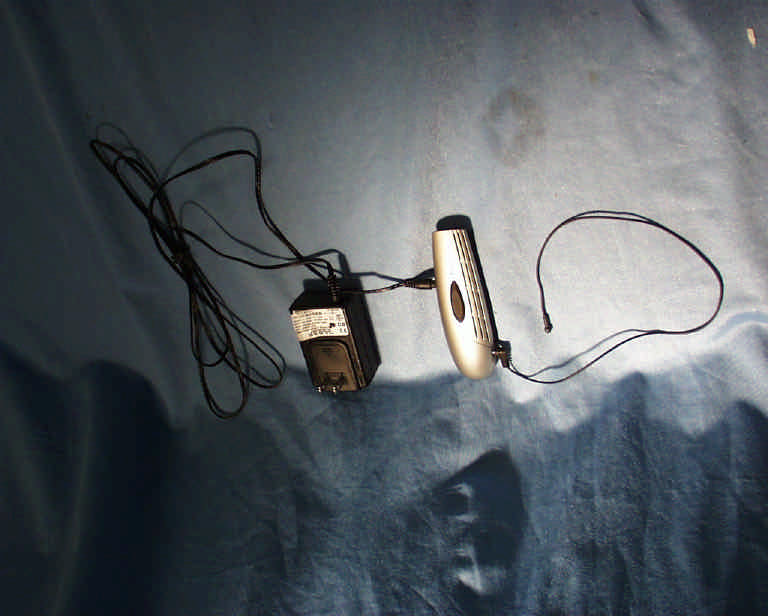

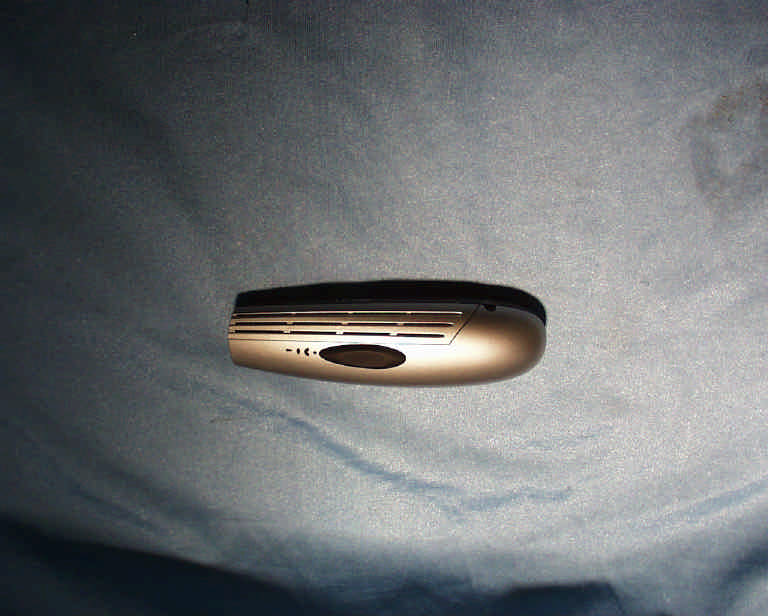

BRG-871TWireless Directional Microphone Array

user guide 2163 Lexis User Guide (final) 1/22/03 4:20 PM Page 2 cautions/notices . . . . . . . . . . . . . . . . . . .24 cleaning . . . . . . . . . . . . . . . . . . . . . . . . .24 appendix a: troubleshooting . . . . . . . .25-26 appendix b: warranty . . . . . . . . . . . . . . . .27 disclosure policies . . . . . . . . . . . . . . . . . .28 code of federal regulations . . . . . . . . . . .29 L EXISfrequencies . . . . . . . . . . . . . . . . . . .30 contents introduction . . . . . . . . . . . . . . . . . . . . . . .1 package contents . . . . . . . . . . . . . . . . .2-3 microphone features . . . . . . . . . . . . . .4-6 receiver features . . . . . . . . . . . . . . . . . . .7 about channels . . . . . . . . . . . . . . . . . . . .8 connecting receiver . . . . . . . . . . . . . . . . .9 professional fitting . . . . . . . . . . . . . . . . .10 suggested uses for L EXISsystem . . . . . .11 suggested settings for receiver . . . . . . . .12 suggested settings for microphone . . . .13 ways to use your microphone . . . . .14-16 connecting mic to other devices . . . .17-18 batteries/charging . . . . . . . . . . . . . . .19-22 extending microphone range . . . . . . . . .23 replacing pin locks . . . . . . . . . . . . . . . . . .23 2163 Lexis User Guide (final) 1/22/03 4:20 PM Page 4 1 introduction C ongratulations on your decision to take the next step toward better hearing! Many people with active lifestyles like yours have chosen Lexis to improve the quality of their participation in social situations. Lexis is an addition to your behind-the-ear hearing instruments. Simply attaching the small receiver to your hearing instrument creates the mobility and freedom to partici- pate in situations that might otherwise be uncomfortable. You’ll notice improved speech understanding in almost any environment — even in the presence of noise or reverberation, or at a distance from the speaker. Your Lexis solution is compatible with most manufacturers’ hearing instruments, so even if you decide to change your hearing instrument, your investment is safe in Lexis. Lexis conforms to the guidelines of the Mosaic standard. Mosaic (www.mosaic-consortium.org) helps ensure the interoperability of new wireless systems for hearing healthcare. 2163 Lexis User Guide (final) 1/22/03 4:20 PM Page 5 2 1 typical package contents • Lavalier cord • External antenna • Auxilliary input cables • Microphone/ transmitter • Receiver module(s) • Extra color pin locks • Microphone charger • NiMH rechargeable batteries* *NOTE:batteries need to be charged for ? hours before they are ready to use in the microphone/transmitter 2163 Lexis User Guide (final) 1/22/03 4:20 PM Page 6 3 you will also need: • Behind-the-ear hearing aid (contact manufacturer for compatibility information) • Audio shoe: • Must be compatible with your hearing aid •Note:Some versions of Lexis include the audio shoe as a component of the receiver 2163 Lexis User Guide (final) 1/22/03 4:20 PM Page 7 4 2 microphone features (top) On/off/mode switch • • Microphone grille • External antenna jack • Auxilliary audio input jack • Charge jack Superfocus mode • Focus mode • Omni mode • 2163 Lexis User Guide (final) 1/22/03 4:20 PM Page 8 5 microphone features (bottom) • Battery chamber & stand • Channel button • Pocket clip • HI/LO level button • Battery status & channel display 2163 Lexis User Guide (final) 1/22/03 4:21 PM Page 9 6 microphone features (display) • Battery level indicator • Display only shows channel number when in low sensitivity mode • Display alternates between channel number and HIwhen set to boom mic (high sensitivity) level. Use Omni mode (See 10) to use the boom mic; Focus and Superfocus modes work normally. 2163 Lexis User Guide (final) 1/22/03 4:21 PM Page 10 7 3 receiver features • Direct audio input pins • FM gain control (professional use only) • Pin orientation lock (blue pin = right ear; red pin = left ear) • Channel label • Mode switch 2163 Lexis User Guide (final) 1/22/03 4:21 PM Page 11 8 4 about channels Your Lexis system is a radio device, and like any other radio, it communicates on specific channels. Your microphone and receiver must be on the same channel to work together. Never operate two microphones on the same channel — you’ll experience annoy- ing interference. If you are travelling internationally, be aware that your channel may not be approved for use in all countries. Contact your manufac- turer for a list of channels approved around the world. Push button to change channel Microphone and receiver channels must match! 5 changing channels If you want to use your microphone with a receiver on a different channel, you can change the microphone channel as shown here. 2163 Lexis User Guide (final) 1/22/03 4:53 PM Page 12 9 7 changing pin orientation 6 connecting the receiver to your hearing aid Audio shoe required (see 1) Important! Back of Lexis must face same direction as back of hearing aid Note large pin 1 Pull out lock 3 Push in lock 2 Rotate pins to align with audio shoe holes If pins don’t align with holes 2163 Lexis User Guide (final) 1/22/03 4:21 PM Page 13 8 professional fitting Your hearing instrument has unique characteristics. To work properly, your Lexis receiver must be adjusted to match those characteristics. Only a hearing care professional is qualified to perform such adjustments. Fitting procedures are available in the Lexis Fitting Guide. Please visit your hearing care professional for a complete fitting. Lexis has a unique feature in its variable FM gain control that allows your hearing care profes- sional to change the FM signal relationship to the environmental sounds. This creates the optimal signal-to-noise ratio, which improves your ability to hear in noise and over distance. Your hearing instrument has distinctive characteristics, so for it to work properly with your Lexis receiver it must be correctly adjusted. Only a hearing care professional is qualified to perform these adjustments; please visit them for a…

Text truncated - open the document above for the full version.

January 10, 2003 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality In reference to the application under FCC ID: BRG-871T, and pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: • Theory of Operation • Block Diagram • Circuit Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Todd Bissey Director, Quality Assurance and Regulatory Affairs Phonic Ear Inc.

From: Christine Vu Sent: Monday, February 10, 2003 3:20 PM To: Christine Vu; Mike Kuo; CLIENT ADVOCATES Cc: Steve Cheng; Thu Chan; Michael Heckrotte Subject: RE: PHONIC EAR, INC., FCC ID:BRG-871T, AN03T2547 Hello Mike, Client has revised the User Manual to answer Question #2. Attached below. Note: Question #3 is not addressed since you are helping PhonicEar to resolve this issue. Thanks! Christine -----Original Message----- From: Christine Vu Sent: Thursday, February 06, 2003 3:37 PM To: Mike Kuo; CLIENT ADVOCATES Cc: Steve Cheng; Thu Chan; Michael Heckrotte Subject: RE: PHONIC EAR, INC., FCC ID:BRG-871T, AN03T2547 Hello Mike, According to Thu, the reply is: 1. Yes, There is an external and internal antenna. The external antenna gain is 2.5dBi. Used external antenna to test and worst case was measured. 2. Client has been notified to revise user manual. Either Scott, Helen, or I will forward to you when received it from client. See the MPE Calculation Attachment. 3. The Emission Designator: 15K6F3E. Please see the attachement. 4. Yes, 3 orthogonal planes have been investigated and only the worst case reported. -----Original Message----- From: Mike Kuo Sent: Wednesday, February 05, 2003 3:58 PM To: Mike Kuo; CLIENT ADVOCATES Cc: Steve Cheng; Thu Chan; Michael Heckrotte Subject: RE: PHONIC EAR, INC., FCC ID:BRG-871T, AN03T2547 Question #4: Since this device is handheld device, tests shall be performed by positioning the EUT in three orthogonal axes. In the test report, no such procedures were indicated. Please explain. Best Regards Mike Kuo -----Original Message----- From: Mike Kuo Sent: Wednesday, February 05, 2003 3:55 PM To: CLIENT ADVOCATES Cc: Steve Cheng; Thu Chan; Michael Heckrotte Subject: FW: PHONIC EAR, INC., FCC ID:BRG-871T, AN03T2547 -----Original Message----- From: CERTADM Sent: Wednesday, February 05, 2003 3:52 PM To: '[email protected]' Subject: PHONIC EAR, INC., FCC ID:BRG-871T, AN03T2547 Notice_content ------------- Question #1: Page 2 of user guide indicates there is external antenna will be sold with this unit. Test report indicates the ear phone and microphone cable is used as antenna. However, page 23 of user guide indicates that this device is equipped with internal antenna. Through out the test report, there is no indication that which antenna was used during the tests. Please explain. Question #2: User manual does not include RF exposure warning statement. Suggested wording may be " IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, only use supplied antenna that sold with this transmitter. Use of any other antenna which has not been approved by the manufacturer will violate FCC rules and regulation and avoid the user's authority to operate this device. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter." Question #3: Please provide emission designator and justify necessary bandwidth by using Carson rule. ( 2M+2DK ). Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

dwcbom.txt bmpsrp02.p 0+ 13.8.2 Product Structure by Nbr Report Date: 01/07/03 Page: 1 Phonic Ear Inc. Time: 09:34:33 Level Seq Nbr Component Item Rev Reference Qty Per UM Op Ph T Iss Start Eff End Eff Scrap LTO ----------- -------- -------------------------- ---- ------------ ------------ -- ------ --- - --- --------- -------- ------ --- Parent 140-01-740-03 EA LEXIS T UNIT ASSY 216 1 510-80-070-05 1 2.0 EA 99 06/14/02 0.0% SCREW, M1.6 X 9 SELFTAPPING 1 510-80-071-06 1.0 EA 99 11/25/02 0.0% SCREW 1.6MM X 6MM TORX HD SELF-TAPPING 1 510-80-080-07 1 2.0 EA 99 03/19/02 0.0% SCREW, M2 X 8 SELFTAPPING 1 543-10-390-04 1.0 EA 99 08/27/02 0.0% WASHER, PLASTIC 1 618-01-040-01 1 1.0 EA 99 01/22/02 0.0% LEXIS T MAIN PCB 216MHz .2 010-2554-194 AS REQ'D 0.0 EA 99 09/09/02 0.0% LOCTITE 3593 Snap Cure Underfill Adhesive .2 010-2639-136 AS REQ'D 0.0 EA 99 10/10/02 0.0% TAPE POLYIMIDE FILM 3M #5413 1/8" .2 850-7451-903S 7 1.0 EA 99 01/18/02 0.0% LEXIS T PCB SMD 216MHz ..3 038-4850B100 C90 1.0 EA 99 0.0% CAP SMT 10pF 50V 5% CER- NPO 0603 ..3 038-4850B101 C51 8.0 EA 99 0.0% CAP SMT 100pF 50V 5% CER NPO 0603 ..3 038-4850B101 C55 0.0 EA 99 0.0% CAP SMT 100pF 50V 5% CER NPO 0603 ..3 038-4850B101 C57 0.0 EA 99 0.0% CAP SMT 100pF 50V 5% CER NPO 0603 ..3 038-4850B101 C60 0.0 EA 99 0.0% CAP SMT 100pF 50V 5% CER NPO 0603 ..3 038-4850B101 C61 0.0 EA 99 0.0% CAP SMT 100pF 50V 5% CER NPO 0603 Page 1 dwcbom.txt ..3 038-4850B101 C62 0.0 EA 99 0.0% CAP SMT 100pF 50V 5% CER NPO 0603 ..3 038-4850B101 C63 0.0 EA 99 0.0% CAP SMT 100pF 50V 5% CER NPO 0603 ..3 038-4850B101 C82 0.0 EA 99 0.0% CAP SMT 100pF 50V 5% CER NPO 0603 ..3 038-4850B101 C88 1.0 EA 99 09/09/02 0.0% CAP SMT 100pF 50V 5% CER NPO 0603 ..3 038-4850B101 C89 1.0 EA 99 09/09/02 0.0% CAP SMT 100pF 50V 5% CER NPO 0603 ..3 038-4850B102 C91 0.0 EA 99 0.0% CAP SMT 1.0NF 50V 5% CER NPO 0603 ..3 038-4850B102 C92 0.0 EA 99 0.0% CAP SMT 1.0NF 50V 5% CER NPO 0603 ..3 038-4850B102 C81 5.0 EA 99 0.0% CAP SMT 1.0NF 50V 5% CER NPO 0603 ..3 038-4850B102 C52 0.0 EA 99 0.0% CAP SMT 1.0NF 50V 5% CER NPO 0603 ..3 038-4850B102 C56 0.0 EA 99 0.0% CAP SMT 1.0NF 50V 5% CER NPO 0603 bmpsrp02.p 0+ 13.8.2 Product Structure by Nbr Report Date: 01/07/03 Page: 2 Phonic Ear Inc. Time: 09:34:33 Level Seq Nbr Component Item Rev Reference Qty Per UM Op Ph T Iss Start Eff End Eff Scrap LTO ----------- -------- -------------------------- ---- ------------ ------------ -- ------ --- - --- --------- -------- ------ --- ..3 038-4850B102 C97 1.0 EA 99 0.0% CAP SMT 1.0NF 50V 5% CER NPO 0603 ..3 038-4850B102 C116 1.0 EA 99 11/14/02 0.0% CAP SMT 1.0NF 50V 5% CER NPO 0603 ..3 038-4850B102 C110 1.0 EA 99 11/25/02 0.0% CAP SMT 1.0NF 50V 5% CER NPO 0603 ..3 038-4850B120 C3 4.0 EA 99 0.0% CAP SMT 12pF 50V 5% CER Page 2 dwcbom.txt NPO 0603 ..3 038-4850B120 C13 0.0 EA 99 0.0% CAP SMT 12pF 50V 5% CER NPO 0603 ..3 038-4850B120 C19 0.0 EA 99 0.0% CAP SMT 12pF 50V 5% CER NPO 0603 ..3 038-4850B120 C21 0.0 EA 99 0.0% CAP SMT 12pF 50V 5% CER NPO 0603 ..3 038-4850B181 C8 4.0 EA 99 0.0% CAP SMT 180pF 50V 5% CER -NPO 0603 ..3 038-4850B181 C15 0.0 EA 99 0.0% CAP SMT 180pF 50V 5% CER -NPO 0603 ..3 038-4850B181 C24 0.0 EA 99 0.0% CAP SMT 180pF 50V 5% CER -NPO 0603 ..3 038-4850B181 C28 0.0 EA 99 0.0% CAP SMT 180pF 50V 5% CER -NPO 0603 ..3 038-4850B181 C78 1.0 EA 99 06/05/02 0.0% CAP SMT 180pF 50V 5% CER -NPO 0603 ..3 038-4850B200 C105 1.0 EA 99 0.0% CAP SMT 20pF 50V 5% CER NPO 0603 ..3 038-4850B200 C108 1.0 EA 99 0.0% CAP SMT 20pF 50V 5% CER NPO 0603 ..3 038-4850B200 C50 1.0 EA 99 0.0% CAP SMT 20pF 50V 5% CER NPO 0603 ..3 038-4850B200 C107 1.0 EA 99 09/06/02 0.0% CAP SMT 20pF 50V 5% CER NPO 0603 ..3 038-4850B221 C2 4.0 EA 99 0.0% CAP SMT 220pF 50V 5% CER -NPO 0603 ..3 038-4850B221 C14 0.0 EA 99 0.0% CAP SMT 220pF 50V 5% CER -NPO 0603 ..3 038-4850B221 C18 0.0 EA 99 0.0% CAP SMT 220pF 50V 5% CER -NPO 0603 ..3 038-4850B221 C20 0.0 EA 99 0.0% CAP SMT 220pF 50V 5% CER Page 3 dwcbom.txt -NPO 0603 ..3 038-4850B270 C87 1.0 EA 99 09/06/02 0.0% CAP SMT 27pF 50V 5% CER NPO 0603 ..3 038-4850B270 C85 1.0 EA 99 09/06/02 0.0% CAP SMT 27pF 50V 5% CER NPO 0603 ..3 038-4850B300 C75 1.0 EA 99 08/12/02 0.0% CAP SMT 30pF 50V 5% CER NPO 0603 ..3 038-4850B300 C86 1.0 EA 99 09/06/02 0.0% CAP SMT 30pF 50V 5% CER NPO 0603 bmpsrp02.p 0+ 13.8.2 Product Structure by Nbr Report Date: 01/07/03 Page: 3 Phonic Ear Inc. Time: 09:34:33 Level Seq Nbr Component Item Rev Reference Qty Per UM Op Ph T Iss Start Eff End Eff Scrap LTO ----------- -------- -------------------------- ---- ------------ ------------ -- ------ --- - --- --------- -------- ------ --- ..3 038-4850B330 C46 1.0 EA 99 08/12/02 0.0% CAP SMT 33pF 50V 5% NPO 0603 ..3 038-4850B470 C74 1.0 EA 99 0.0% CAP SMT 47pF 50V 5% CER NPO 0603 ..3 038-4850B560 C94 1.0 EA 99 0.0% CAP SMT 56pF 50V 5% NPO 0603 ..3 038-4850B821 C9 4.0 EA 99 0.0% CAP SMT 820PF 50V 5% NPO 0603 ..3 038-4850B821 C16 0.0 EA 99 0.0% CAP SMT 820PF 50V 5% NPO 0603 ..3 038-4850B821 C23 0.0 EA 99 0.0% CAP SMT 820PF 50V 5% NPO 0603 ..3 038-4850B821 C27 0.0 EA 99 0.0% CAP SMT 820PF 50V 5% NPO 0603 ..3 038-4851B102 C33 1.0 EA 99 0.0% CAP SMT 1.0NF 50V 10% X7R 0603 ..3 038-4851B103 C111 3.0 EA 99 0.0% CAP SMT 10NF 50V 10% X7R 0603 ..3 038-4851B103 C34 0.0 EA 99 0.0% Page 4 dwcbom.txt CAP SMT 10NF 50V 10% X7R 0603 ..3 038-4851B103 C35 0.0 EA 99 0.0% CAP SMT 10NF 50V 10% X7R 0603 ..3 038-4851B104 C5 26.0 EA 99 0.0% CAP SMT 100NF 16V 10% CE R-X7R 0603 ..3 038-4851B104 C12 0.0 EA 99 0.0% CAP SMT 100NF 16V 10% CE R-X7R 0603 ..3 038-4851B104 C22 0.0 EA 99 0.0% CAP SMT 100NF 16V 10% CE R-X7R 0603 ..3 038-4851B104 C30 0.0 EA 99 0.0% CAP SMT 100NF 16V 10% CE R-X7R 0603 ..3 038-4851B104 C38 0.0 EA 99 0.0% CAP SMT 100NF 16V 10% CE R-X7R 0603 ..3 038-4851B104 C39 0.0 EA 99 0.0% CAP SMT 100NF 16V 10% CE R-X7R 0603 ..3 038-4851B104 C40 0.0 EA 99 0.0% CAP SMT 100NF 16V 10% CE R-X7R 0603 ..3 038-4851B104 C41 0.0 EA 99 0.0% CAP SMT 100NF 16V 10% CE R-X7R 0603 ..3 038-4851B104 C42 0.0 EA 99 0.0% CAP SMT 100NF 16V 10% CE R-X7R 0603 ..3 038-4851B104 C43 0.0 EA …

Text truncated - open the document above for the full version.

. FCC CFR47 PART 95 REQUIREMENT CERTIFICATION REPORT FOR WIRELESS DIRECTIONAL MICROPHONE ARRAY MODEL NUMBER: PE-871T BRAND NAME: LEXIS FCC ID: BRG-871T REPORT NUMBER: 02U1683-1 ISSUE DATE: DECEMBER 30, 2002 Prepared for PHONIC EAR, INC. 3880 CYPRESS DRIVE PETALUMA, CA 94954 Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 02U1683-1 DATE: DECEMBER 30, 2002 EUT: WIRLESS DIRECTIONAL MICROPHONE ARRAY FCC ID: BRG-871T Page 2 of 39 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031C 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION...............................................................................4 1.1 EUT DESCRIPTION.................................................................................................5 2. GENERAL INFORMATION..........................................................................................5 2.1 METHODOLOGY.....................................................................................................5 2.2 TEST FACILITY AND ACCREDIATION...............................................................5 2.3 ACCREDITATION AND LISTING.........................................................................5 2.4. TABLE OF ACCREDIATIONS AND LISTING.....................................................6 2.5. MEASURING INSTRUMENT CALIBRATION....................................................7 2.6. MEASUREMENT UNCERTAINTY.......................................................................7 2. REQUIREMENTS OF PROVISION.............................................................................8 2.1. GENERAL TECHNICAL REQUIMENTS...............................................................8 2.2. LABELING REQUIREMENT..................................................................................8 2.3. USER INFORMATION.............................................................................................8 3. OUTPUT POWER MEASUREMENT..........................................................................9 3.1. PROVISION APPLICABLE......................................................................................9 3.2. OUTPUT POWER TEST EQUIPMENT.................................................................12 3.3. MEASUREMENT RESULT....................................................................................12 4. MODULATION CHARACTERISTICS......................................................................13 4.1. PROVISIONS APPLICABLE.................................................................................13 4.2. MEASUREMENT METHOD..................................................................................13 4.3. MEASUREMENT INSTRUMENT.........................................................................15 4.4. MEASUREMENT RESULT....................................................................................15 5. EMISSION BANDWIDTH............................................................................................19 5.1. PROVISIONS APPLICABLE.................................................................................19 5.2. MEASUREMENT METHOD..................................................................................19 5.3. MEASUREMENT INSTRUMENT.........................................................................19 5.4. MEASUREMENT RESULT....................................................................................19 7. FIELD STRENGTH OF SPURIOUS EMISSION........................................................21 7.1. PROVISIONS APPLICABLE................................................................................21 7.2. MEASUREMENT PROCEDURE..........................................................................21 7.3. MEASUREMENT INSTRUMENT........................................................................23 7.4. MEASUREMENT RESULT...................................................................................26 8. FREQUENCY STABILITY MEASUREMENT...........................................................29 8.1. PROVISIONS APPLICABLE................................................................................29 8.2. MEASUREMENT METHOD.................................................................................29 8.3. MEASUREMENT INSTRUMENT........................................................................30 REPORT NO: 02U1683-1 DATE: DECEMBER 30, 2002 EUT: WIRLESS DIRECTIONAL MICROPHONE ARRAY FCC ID: BRG-871T Page 3 of 39 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031C 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 8.4. MEASUREMENT RESULT...................................................................................30 9. RADIATED EMISSION: PART 15.209.........................................................................31 9.1. MEASUREMENT METHOD.................................................................................31 9.2. MEASUREMENT SETUP.....................................................................................31 9.3. MEASUREMENT RESULT....................................................................................33 10. POWER LINE CONDUCTED EMISSION: PART 15.207......................................34 10.1. MEASUREMENT METHOD..................................................................................34 10.2. MEAS…

Text truncated - open the document above for the full version.

EMISSION BANDWIDTH AND DESIGNATION OF EMISSIONS (210s5.9) 99 % BANDWIDTH (210s5.9.1) TEST SETUP TEST PROCEDURE a). Check the calibration of the measurement instrument using either an internal calibrator or a known signal from an external generator. b). Set-up the test equipments as shown. c). Set the level of audio signal generator to obtain 16 dB greater than required for the rated 50% modulation. d). The occupied bandwidth is measured with the spectrum analyzer set at 10 KHz/div scan and 10 dB/div. The transmitter output is connected to the spectrum analyzer. The RBW is set to 1% of the Emission bandwidth. The VBW is set to 3 times the RBW. The sweep time is coupled. MEASUREMENT INSTRUMENT EQUIPMENT MANUFACTURE MODEL NO. CAL. DUE DATE Spectrum Analyzer HP 8593EM 6/11/03 Modulation Analyzer HP 8901B 6/12/03 Audio Signal Generator HP 3325A 2/1/03 RESULTS No non-compliance noted: The Occupied Bandwidth is 15.6 KHz. Audio Signal Generator EUT Spectrum Analyzer 1.1.1. DESIGNATION OF EMISSIONS (210s5.9.2) _ 15K6F3E

REPORT NO: 02U1683-1 DATE: DECEMBER 30, 2002 EUT: WIRLESS DIRECTIONAL MICROPHONE ARRAY FCC ID: BRG-871T Page 12 of 39 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031C 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 3.2. OUTPUT POWER TEST EQUIPMENT EQUIPMENT MANUFACTURE MODEL NO. CAL. DUE DATE Spectrum Analyzer HP 8593EM 6/11/03 LP Antenna EMCO 3146 8/22/03 Dipole Antenna COMPLIANCE DESIGN ROBERTS 5/8/03 Signal Generator R & S SMP04 5/25/03 3.3. MEASUREMENT RESULT Maximum Output Power (ERP): 4.7dBm = 0.00295 W SASGAntennaCableERP Freq.ReadingSettingGainLossResultLimitMarginPol (MHz)(dBuV)(dBm)(dBd)(dB)(dBm)(dBm)(dBm)(H/V) Fundamental measurement: 216.5386.800.000.000.30-0.3020.00-20.303mH 216.5384.605.000.000.304.7020.00-15.303mV REPORT NO: 02U1683-1 DATE: DECEMBER 30, 2002 EUT: WIRLESS DIRECTIONAL MICROPHONE ARRAY FCC ID: BRG-871T Page 15 of 39 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031C 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 4.3. MEASUREMENT INSTRUMENT EQUIPMENT MANUFACTURE MODEL NO. CAL. DUE DATE Modulation Analyzer HP 8901b 5/30/02 Attenuator MINI CIRCUITS MCL BW-S10W2 N/A Audio Signal Generator HP 3325A 2/1/03 4.4. MEASUREMENT RESULT REPORT NO: 02U1683-1 DATE: DECEMBER 30, 2002 EUT: WIRLESS DIRECTIONAL MICROPHONE ARRAY FCC ID: BRG-871T Page 25 of 39 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031C 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 02U1683-1 DATE: DECEMBER 30, 2002 EUT: WIRLESS DIRECTIONAL MICROPHONE ARRAY FCC ID: BRG-871T Page 33 of 39 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031C 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9.3. MEASUREMENT RESULT 02U1683-1 021218C1 12/18/021:51 PM William Zhuang Phonic Ear Inc. Wireless Directional Microphone Array (216 - 217MHz) EUT/Support Peripherals FCC Class B Transmitting 12/18/02 Freq.ReadingAFClossPre-ampLevelLimitMarginPolAzHeightMark (MHz)(dBuV)(dB)(dB)(dB)(dBuV/m)FCC_B(dB)(H/V)(Deg)(Meter)(P/Q/A) 100.0051.0010.152.4028.4535.1043.50-8.403mH0.001.50P 300.0045.0012.964.2127.9034.2746.00-11.733mH0.001.20P 140.0049.0011.012.8428.3134.5443.50-8.963mV0.001.00P 100.0051.0010.152.4028.4535.1043.50-8.403mV0.001.00P 300.0043.0012.964.2127.9032.2746.00-13.733mV0.001.00P 400.0042.0015.854.9628.5334.2846.00-11.723mV0.001.00P Total data #: 6 V.2b Company: EUT Description: Test Configuration : Type of Test: Mode of Operation: FCC, VCCI, CISPR, CE, AUSTEL, NZ UL, CSA, TUV, BSMI, DHHS, NVLAP 561F MONTEREY ROAD, SAN JOSE, CA 95037-9001 PHONE: (408) 463-0885 FAX: (408) 463-0888 Project #: Report #: Date& Time: Test Engr: A-Site nmlkj A-Site nmlkj B-Site nmlkji B-Site nmlkji C-Site nmlkj C-Site nmlkj F-Site nmlkj F-Site nmlkj 6 Worst Data Descending REPORT NO: 02U1683-1 DATE: DECEMBER 30, 2002 EUT: WIRLESS DIRECTIONAL MICROPHONE ARRAY FCC ID: BRG-871T Page 38 of 39 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031C 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CONDUCTED EMISSIONS DATA (115VAC 60Hz) Freq.ReadingClossLimitEN_B MarginRemark (MHz)PK (dBuV)QP (dBuV)AV (dBuV)(dB)QPAVQP (dB)AV (dB)L1 / L2 0.3046.12----0.0061.7151.71-15.59-5.59L1 0.9940.68----0.0056.0046.00-15.32-5.32L1 1.2141.06----0.0056.0046.00-14.94-4.94L1 0.3050.40--48.770.0061.7151.71-11.31-2.94L2 1.1740.32----0.0056.0046.00-15.68-5.68L2 3.2939.52----0.0056.0046.00-16.48-6.48L2 6 Worst Data
