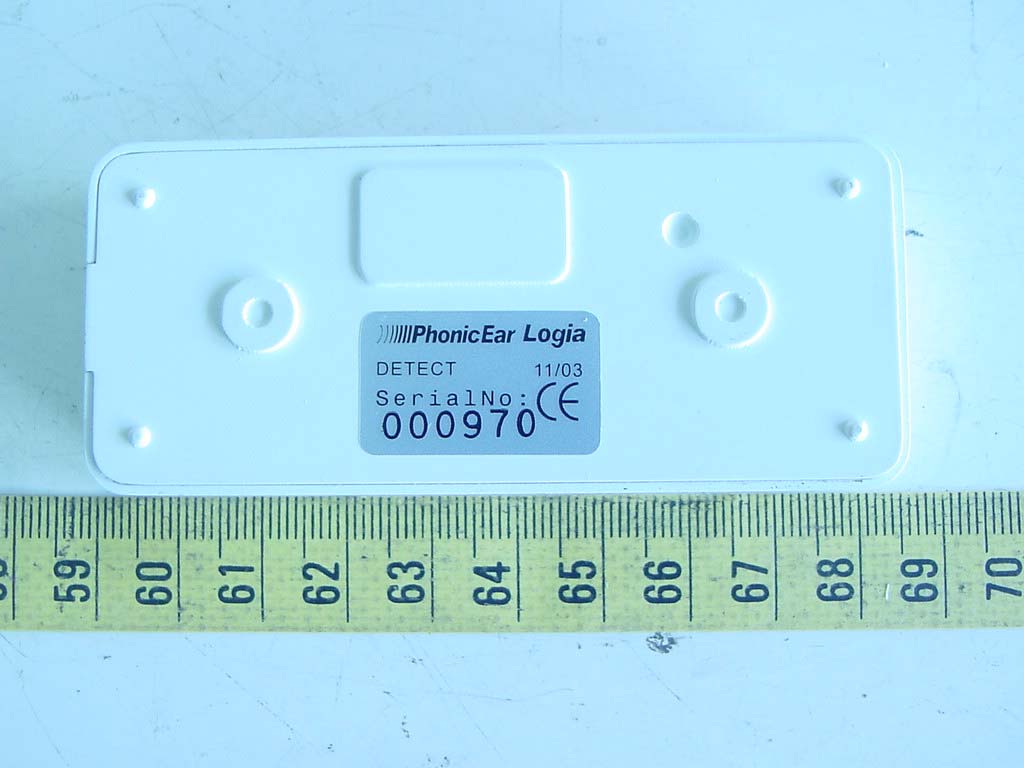

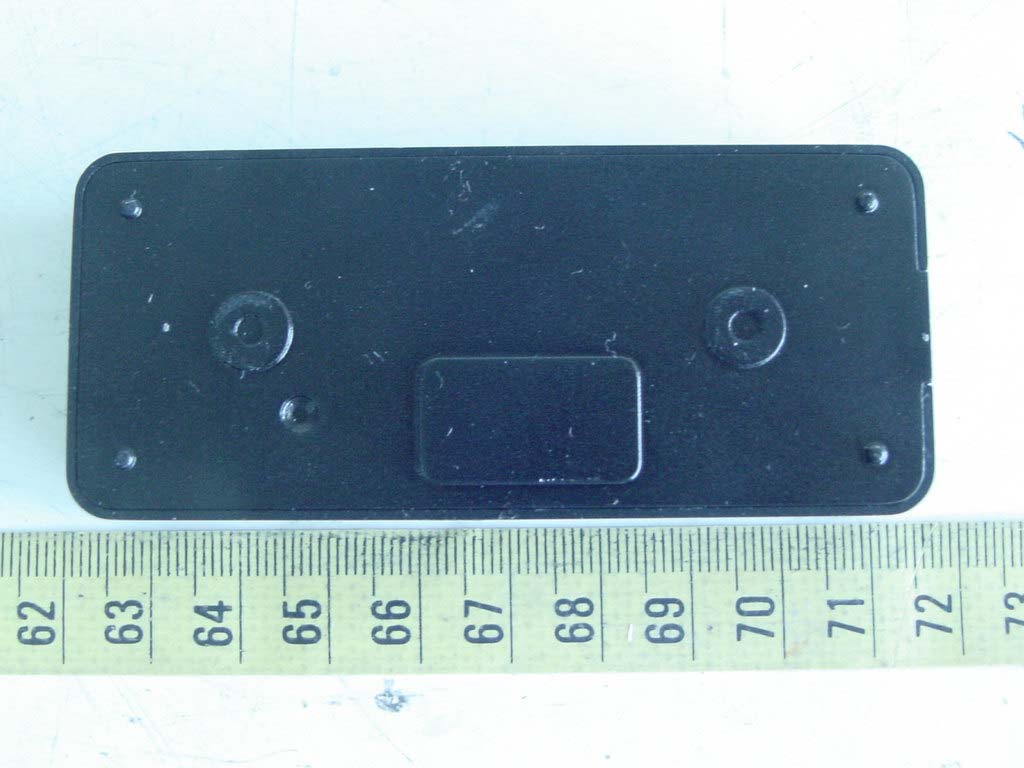

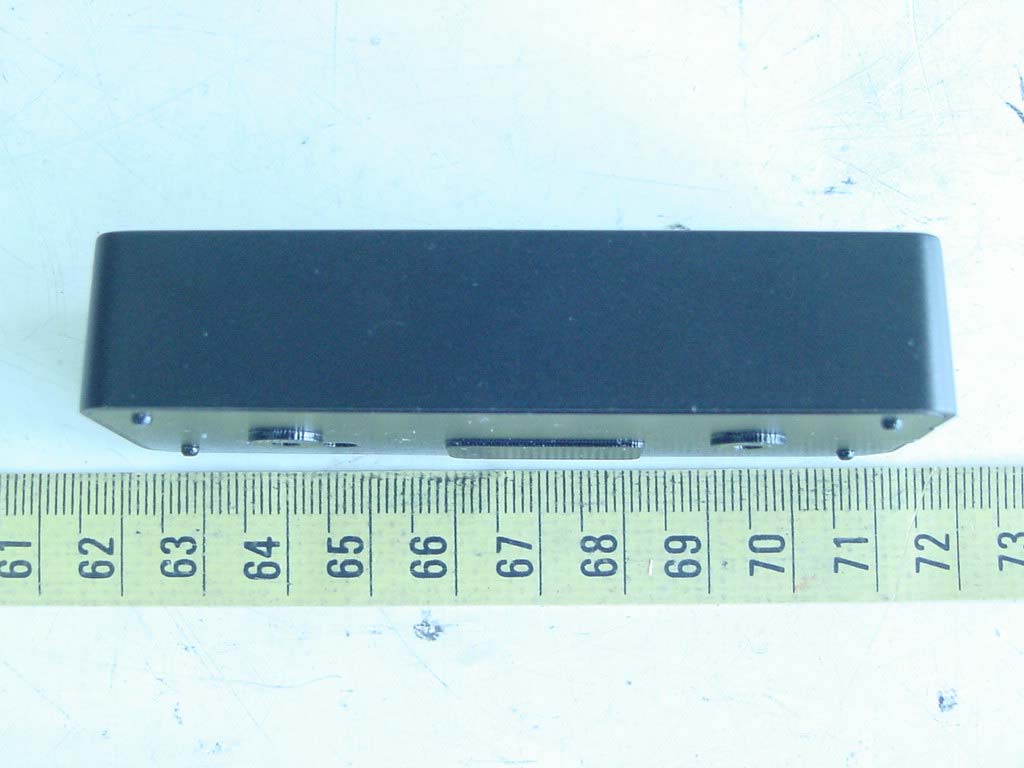

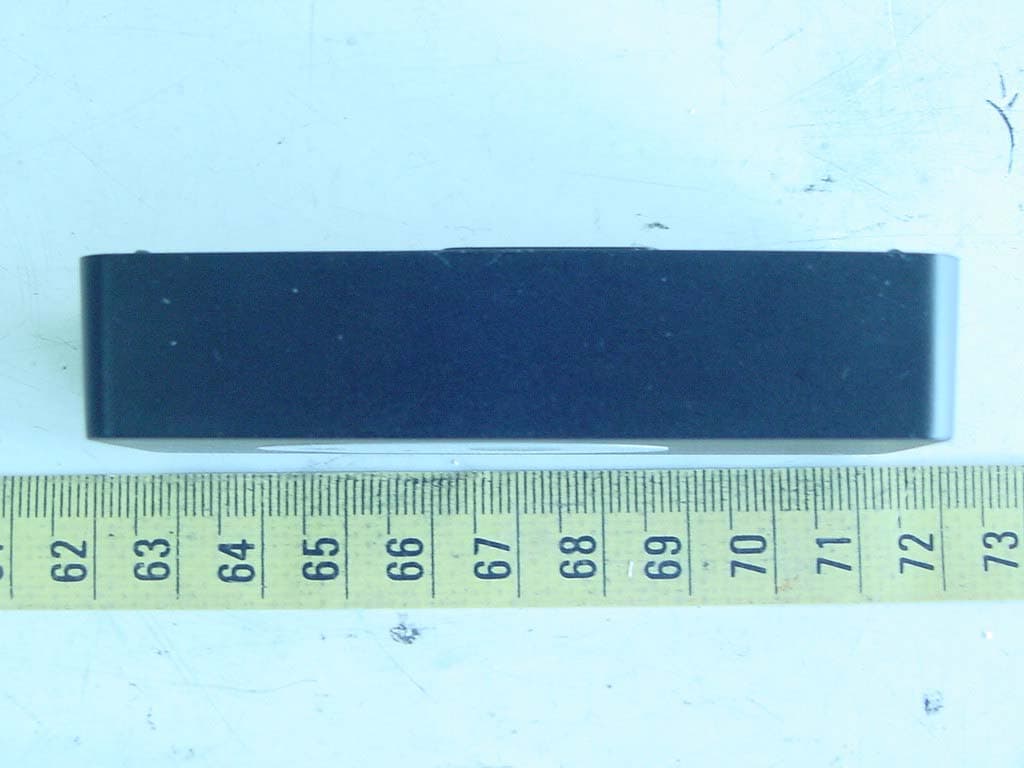

BRGPZO1Wireless Doorbell

wireless doorbell other resources online at www.phonicear.dk © 2004 Phonic Ear A/S 921-03-010-00/Rev. A 0105 Your local representative: international: +45 3917 7101 u.s.: 800.227.0735, then press 7 • canada: 800.263.8700 website: www.phonicear.dk GB user guide D ETECT D OOR function . . . . . . . . . . . . . . . . . . . . . . . . . . 1 D ETECT D OOR features . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 D ETECT D OOR instructions. . . . . . . . . . . . . . . . . . . . . . . . 7 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18Test and approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 table of contents 2 1 push buttonTo activate the unit 5 input connectorTo interface to existing doorbell installation 2 status light To indicate that unit istransmitting D ETECT D OOR features English 3 alarm selector To select alarm pattern 1 D ETECT D OOR function D ETECT D OOR is one of the P UZZLE system’s alerting transmitters. It functions as a wireless doorbell that connects to the existingdoorbell installation and replaces the standard push buttonoutside the door. When a visitor pushes the D ETECT D OOR button, a wireless alarm signal is sent to the P UZZLE system's receiver. D ETECT D OOR works with the following receivers in the P UZZLE system: C ALL , F LASH , W AKE , P OCKET V IB , L OOP , B EAM , and L INK . 6 fail indicator Indicates if the wire to the existing doorbell is not correctly installed 7 battery compartment 8 battery Lithium type ½ AA,3.6V 4 c hannel selector To select personal code 9 mounting holes English D ETECT D OOR features D ETECT D OOR features 3 4 1 front 11 disassembly nub 12 gasket To keep it water resistant 2 13 10 wire hole For wire to existing doorbell installation 13 screwdriver English D ETECT D OOR features D ETECT D OOR features 9 6 10 7 5 11 9 8 front from the inside back from the inside 5 6 3 4 12 English 7 D ETECT D OOR instructions preparation Screw the back ofD ETECT D OOR into desired position usingthe two mounting holes . 1b D ETECT D OOR instructions preparation Disassemble your D ETECT D OOR by lifting the bot- tom end of the front partwhile pushing therelease nub with the screwdriver.If D ETECT D OOR connects to an existing doorbellinstallation remove exist-ing doorbell plate. Thenpush out the material inthe wire hole of D ETECT D OOR using the screw- driver. Run the wiresthrough the hole. Other-wise leave the material inthe wire hole in place. 1a 8 10 English D ETECT D OOR instructions install battery Install the battery into the battery compartment , being sure to orientthe battery accord-ing to the symbols. 2 9 D ETECT D OOR instructions select alarm pattern 3a Alarm patterns thatD ETECT D OOR sends to the P UZZLE sys- tem's receivers areselected with pin 6and 7 (see table).Setting a distinctivepattern for yourD ETECT D OOR will help you distinguishthe arrival of a visi-tor from other alertsyou may have set upP UZZLE transmitters to detect. on off Pattern Pin 6 Pin 7 2367 ononoffoff onoffonoff on off English D ETECT D OOR instructions select alarm pattern 3b If you select e.g. alarmpattern 2 for theD ETECT D OOR at the front door then youshould select alarmpattern 3 for theD ETECT D OOR at the back door, and so on.As each D ETECT D OOR has its own alarm pat-tern you can becomefamiliar with the dif-ferent patterns. NOTE: Use the screwdriver included with D ETECT D OOR to change the position of the pins. D ETECT D OOR instructions 12 11 select personal code Personal code isselected by the pins1, 2, 3, 4 accordingto the table on page13. 4a NOTE: The P UZZLE system's differentreceivers should be setto the same personalcode.NOTE: Use the screwdriver includedwith D ETECT D OOR to change the positionof the pins. on off NOTE: Patterns 1, 4, and 5 are availablewith other P UZZLE transmitters. English 14 D ETECT D OOR instructions 13 D ETECT D OOR instructions select personal code 4b Code Pin 1 Pin 2 Pin 3 Pin 4 0123456789 A B C D E F Off Off Off OffOffOff Off Off On OnOnOn On On On On Off Off Off Off OnOn On On Off OffOffOff On On On On Off Off On On OffOff On On Off Off OnOn Off Off On On Off On Off On Off On Off On Off On Off On Off On Off On connect existing doorbell Cut the wire fromthe existing doorbellinstallation toapproximately 5cmlength and remove3mm of insulationfrom each of thetwo wires. Insertone of the two wiresinto one of theinput connectorholes. Firmly tight-en the screw tosecure the wire. 5a English 16 15 D ETECT D OOR instructions D ETECT D OOR instructions connect existing doorbell Insert the other wireinto the other input connector hole and tighten the screw tosecure this wire. If thefail indicator lights up reverse the connec-tion. 5b NOTE: Extra wire can be fitted into the com-partment if necessary. complete installation Click the front ofD ETECT D OOR firmly into place on the backplate starting with theupper end. 6 NOTE: Ensure that the gasket is fully in placebefore assembly. 18 English complete installation Depress the area ofthe push button . The D ETECT D OOR transmits the signalto any P UZZLE receiver while thestatus light lights up. 7 17 D ETECT D OOR instructions NOTE: If D ETECT D OOR is connected to an existing doorbellinstallation pushingthe push buttonenables the existingdoorbell while thebutton is activated. troubleshooting Should your D ETECT D OOR wireless doorbell not function satisfac- torily, please check the list below: The status light does not light up when pushing theactivation button• Check that the battery is installed correctly. See 2 . • Replace the battery. See 2 . NOTE: The status light lights up only for a short period of time following each activation.The status light does light up, but only some or none ofthe P UZZLE system's receivers emit an alarm • Check that D ETECT D OOR and the P UZZLE system…
