BRGPEPZT003Observer

GBuser guide D Bedienungsanleitung Finstructions Einstrucciones baby alarm and pager Babyphon und Pager alarma et garde bébé alarma para bebé y localizador other resources online at www.phonicearlogia.com 3321 Puzzle Observer User Guide 5/13/03 11:37 AM Page 2 1 OBSERVERfunction OBSERVERis a wireless baby alarm and pager and one of the PUZZLE system’s alerting transmitters. OBSERVERdetects when a baby cries, then activates a red light on top of the unit and sends an alarm signal wirelessly to the PUZZLEsystem’s receivers. There is also a button on top of the unit that lets you use OBSERVERas a pager. OBSERVERsends one alarm pattern when the baby cries and a different alarm pattern when used as a pager. It works with the following receivers in the PUZZLEsystem: CALL, FLASH , WAKE, POCKET VIB, L OOP, BEAM ,and L INK . 3321 Puzzle Observer User Guide 5/13/03 11:37 AM Page 7 8pager button Allows you to use OBSERVERas a pager 1 built-in microphone 2 belt clip 9power switch Turns unit on and off 2 3personal code selector Located inside battery compartment 6sensitivity control To adjust built-in micro- phone sensitivity level 7indicator light Light indicates when a signal is being transmitted by the OBSERVERunit OBSERVERfeatures English 5battery compartment 4alarm switch To select alarm pattern. Located inside battery compartment 3321 Puzzle Observer User Guide 5/13/03 11:37 AM Page 8 3 OBSERVERfeatures 1 frontback 2 4 5 3 3321 Puzzle Observer User Guide 5/13/03 11:37 AM Page 9 4 English OBSERVERfeatures 6 top 789 3321 Puzzle Observer User Guide 5/13/03 11:37 AM Page 10 5 OBSERVERinstructions OBSERVERinstallation OBSERVERshould be placed as near as possi- ble to the baby without being within reach. NOTE: O BSERVERshould not be exposed to wet or damp conditions. 1 3321 Puzzle Observer User Guide 5/13/03 11:37 AM Page 11 6 English OBSERVERinstructions operating O BSERVER OBSERVERis switched on by sliding the switch on the top of the unit from left to right. To turn it off, slide the switch from right to left. 2 3321 Puzzle Observer User Guide 5/13/03 11:38 AM Page 12 7 OBSERVERinstructions selecting alarm patterns If you have two OBSERVERunits and wish to distinguish between the signals sent from each unit, the positions of the switches must be opposite. If you have one or more D ETECT alerting trans- mitters the selection of alarm patterns must be different for all DETECT and OBSERVERalerting transmitters. 3 babypager switch in left positionalarm 3alarm 4 switch in right positionalarm 5alarm 6 3321 Puzzle Observer User Guide 5/13/03 11:38 AM Page 13 8 English OBSERVERinstructions selecting personal code The personal code can be selected using the tuner in the unit’s battery chamber. (See6afor instructions on removing battery compartment door). NOTE: The P UZZLE system’s different alerting transmitters and receivers should be set to the same personal code. 4 3321 Puzzle Observer User Guide 5/13/03 11:38 AM Page 14 9 setting microphone sensitivity Turn the micro- phone sensitivity control, on top of unit up to 8(maxi- mum sensitivity). When receiving false alarms, turn the control one step toward 0. Repeat the above procedure until you only receive alarms when the baby is crying. 5a 1 1 2 2 OBSERVERinstructions 3321 Puzzle Observer User Guide 5/13/03 11:38 AM Page 15 10 English OBSERVERinstructions setting microphone sensitivity NOTE: Sensitivity should be adjusted as low as possible to minimize the possi- bility of false alarms. 5b When red light on top of the unit lights, OBSERVERhas detected a signal and is transmitting a signal. 3321 Puzzle Observer User Guide 5/13/03 11:38 AM Page 16 11 NOTE: OBSERVERsends a signal to the PUZZLE system’s receivers when the batteries need to be changed. OBSERVERinstructions changing batteries Hold OBSERVERin both hands with back facing up and top facing toward you. Press down on the marked areas with your thumbs and push the top away from yourself. 6a 3321 Puzzle Observer User Guide 5/13/03 11:38 AM Page 17 12 English OBSERVERinstructions changing batteries Insert new batteries, being careful to orient the batteries correctly according to the plus and minus symbols in battery chamber. 6b - + - + - + NOTE: Use three IEC LR1 penlight 1,5V batteries. The batteries should be removed ifO BSERVER is not used for an extended period of time. 3321 Puzzle Observer User Guide 5/13/03 11:38 AM Page 18 13 Should your OBSERVERbaby alarm and pager not function satisfactorily, please check the list below. O BSERVER does not react to baby crying • Check that the unit is turned on. See 2 . • Check that the microphone is adjusted correctly. See 5aand5b . O BSERVER does not react to either the baby crying or pushing the pager button • Check that the unit is turned on. See2 . • Check that the batteries are correctly placed in the battery chamber. See 6b . • Change the batteries in O BSERVER . See 6aand6b . OBSERVERreacts to baby’s cries and to pressing the pager button, but none or only some of the P UZZLE system’s receivers give a signal • Check that the personal code on OBSERVERand the PUZZLE system’s receivers are the same. See 4 . troubleshooting 3321 Puzzle Observer User Guide 5/13/03 11:38 AM Page 19 14 English O BSERVER is approved and CE marked in accordance with the R&TTE directive. tests and approvals troubleshooting (cont’d) PUZZLE system’s receivers activate an alarm without apparent reason • Change the personal code using the tuner placed in the battery chamber. See 4 . If you still have trouble after trying the ideas above please contact your local authorized PhonicEar Logia dealer/installer. 3321 Puzzle Observer User Guide 5/13/03 11:38 AM Page 20 warranty A one-year limited warranty is issued to the original consumer of this product(s) by PhonicEar Logia. time period of warranty This warranty will go into effect upon the date of original purchase of this equipment, and will remain in effect for one calendar year from that date as long as the instrument remains the …

Text truncated - open the document above for the full version.

910805 1 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; 910805 2 e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Michael Gibbs Regulatory Affairs & QMS Manager Phonic Ear, Inc. 3880 Cypress Drive Petaluma, CA 94954-7600 vox: 707 769 1110 or 800 227 0735 fax: 707 769 9624 website: www. phonicear.com

Federal Communications Commission FCC ID: BRGPEPZT003 Product Name: Observer Model Name: PEPZT003 Trade Name: PhonicEar Dear Sir: In accordance with 47 C.F.R. Section 0.459, we would like to request confidentiality on some exhibits we submitted for above application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematics and Operation Description. By: By: Michael Gibbs (Signature) (Printed) Title : Regulatory Affairs & QMS Manager Applicant : Phonic Ear, Inc. Address : 3880 Cypress Drive Petaluma, CA 94954-7600 Tel : 707 769 1110 Fax: 707 769 9624 Date : Aug. 25, 2005

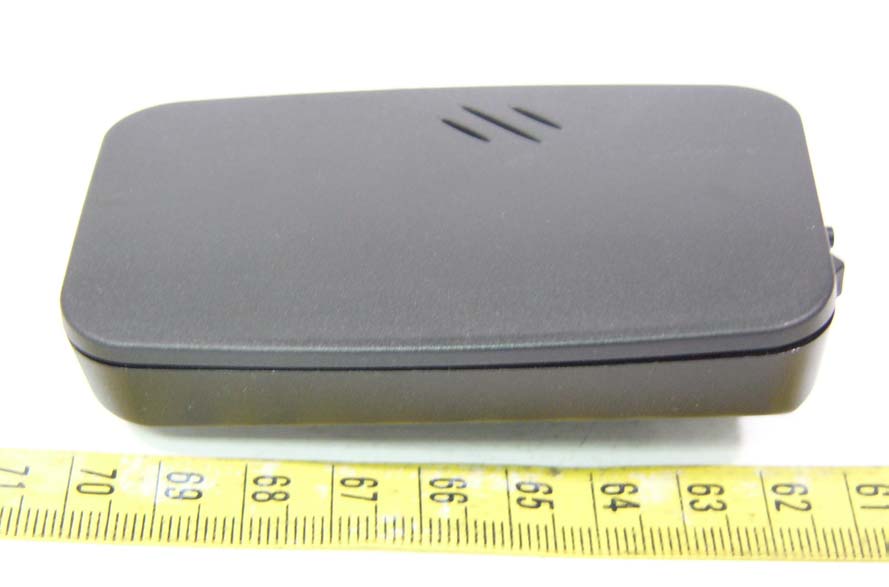

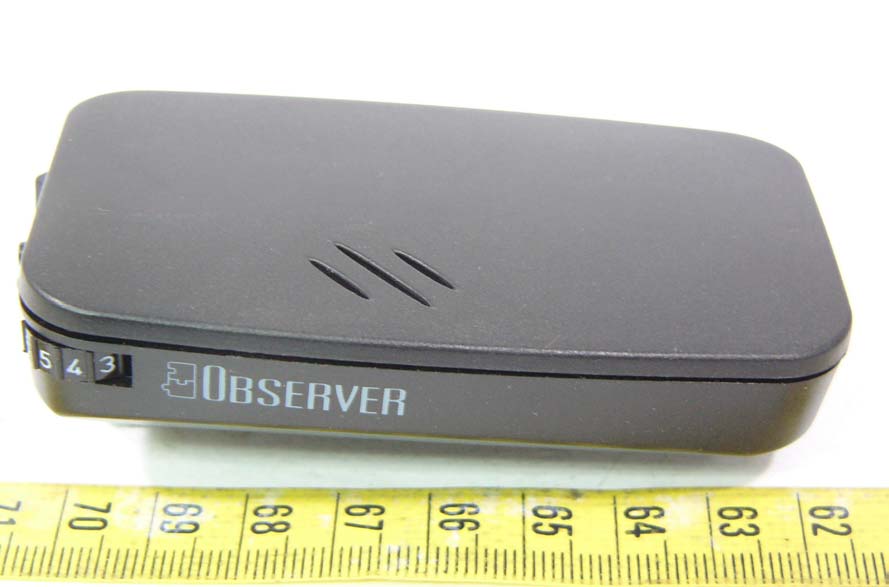

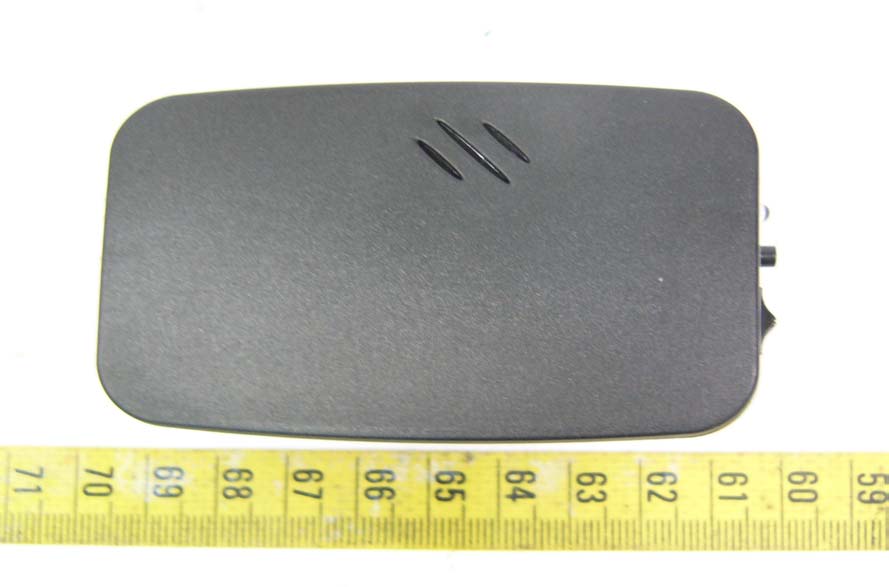

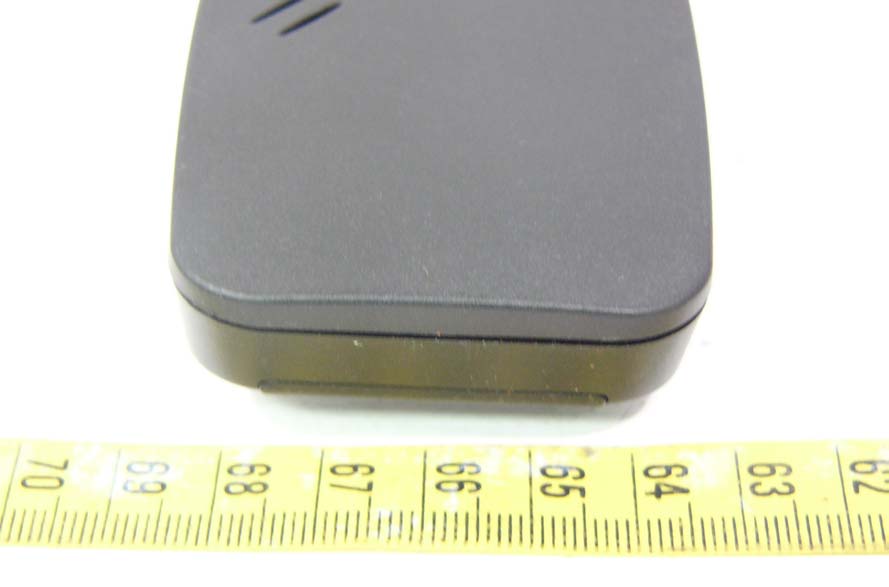

ETC Report No.:ET94R-06-134-01 Sheet 1 of 5 Sheets FCC ID.: BRGPEPZT003 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. Side View of EUT ETC Report No.:ET94R-06-134-01 Sheet 2 of 5 Sheets FCC ID.: BRGPEPZT003 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Side View of EUT 4. Side View of EUT ETC Report No.:ET94R-06-134-01 Sheet 3 of 5 Sheets FCC ID.: BRGPEPZT003 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. Side View of EUT 6. Bottom View of EUT

ETC Report No.:ET94R-06-134-01 Sheet 4 of 5 Sheets FCC ID.: BRGPEPZT003 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 7. Internal View of EUT 8. Internal View of EUT ETC Report No.:ET94R-06-134-01 Sheet 5 of 5 Sheets FCC ID.: BRGPEPZT003 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 9. Component View of Main PCB 10. Solder View of Main PCB

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Observer FCC ID. : BRGPEPZT003 Model : PEPZT003 Working Frequency : 433.92 MHz for APPLICANT : Phonic Ear, Inc. ADDRESS : 3880 Cypress Drive Petaluma, CA 94954-7600 Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail : [email protected] Report Number : ET94R-06-134-01 ETC Report No.:ET94R-06-134-01 FCC ID.: BRGPEPZT003 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Phonic Ear, Inc. 3880 Cypress Drive Petaluma, CA 94954-7600 Manufacturer : Phonic Ear, Inc. 3880 Cypress Drive Petaluma, CA 94954-7600 Description of EUT : a) Type of EUT : Observer b) Trade Name : PhonicEar c) Model No. : PEPZT003 d) FCC ID : BRGPEPZT003 e) Working Frequency : 433.92 MHz f) Power Supply : DC 4.5V Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2005) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Issued Date : Sep. 05, 2005 Test Engineer : ( Tien Lu Liao) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET94R-06-134-01 FCC ID.: BRGPEPZT003 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ............................................................................................................................... 1 1.1 PRODUCT DESCRIPTION.......................................................................................................................................... 1 1.2 CHARACTERISTICS OF DEVICE: ...............................................................................................................................1 1.3 TEST METHODOLOGY............................................................................................................................................. 1 1.4 TEST FACILITY........................................................................................................................................................ 1 2. DEFINITION AND LIMITS................................................................................................................................. 2 2.1 DEFINITION............................................................................................................................................................. 2 2.2 RESTRICTED BANDS OF OPERATION........................................................................................................................ 2 2.3 LIMITATION............................................................................................................................................................. 2 2.4 LABELING REQUIREMENT....................................................................................................................................... 4 2.5 USER INFORMATION................................................................................................................................................ 4 3 SYSTEM TEST CONFIGURATION.................................................................................................................... 5 3.1 JUSTIFICATION........................................................................................................................................................ 5 3.2 DEVICES FOR TESTED SYSTEM................................................................................................................................5 4. RADIATED EMISSION MEASUREMENT....................................................................................................... 6 4.1 APPLICABLE STANDARD.......................................................................................................................................... 6 4.2 MEASUREMENT PROCEDURE.................................................................................................................................. 6 4.3 TEST DATA............................................................................................................................................................. 8 4.3.1 Fundanmental and Harmonics........................................................................................................................ 8 4.3.2 Other Emission ................................................................................................................................................ 9 4.4 FIELD STRENGTH CALCULATION........................................................................................................................... 10 4.5 ACTIVATE TIME.................................................................................................................................................... 10 4.6 CALCULATION OF DUTY FACTOR.......................................................................................................................... 10 4.7 RADIATED TEST EQUIPMENT................................................................................................................................16 4.8 MEASURING INSTRUMENT SETUP.......................................................................................................................... 16 4.9 RADIATED MEASUREMENT PHOTOS...................................................................................................................... 17 5. BANDWIDTH OF EMISSION........................................................................................................................... 18 5.1 APPLICABLE S…

Text truncated - open the document above for the full version.

ETC Report No.:ET94R-06-134-01 Sheet 17 of 21 Sheets FCC ID.: BRGPEPZT003 Rev. No 1.0 4.9 Radiated Measurement Photos
