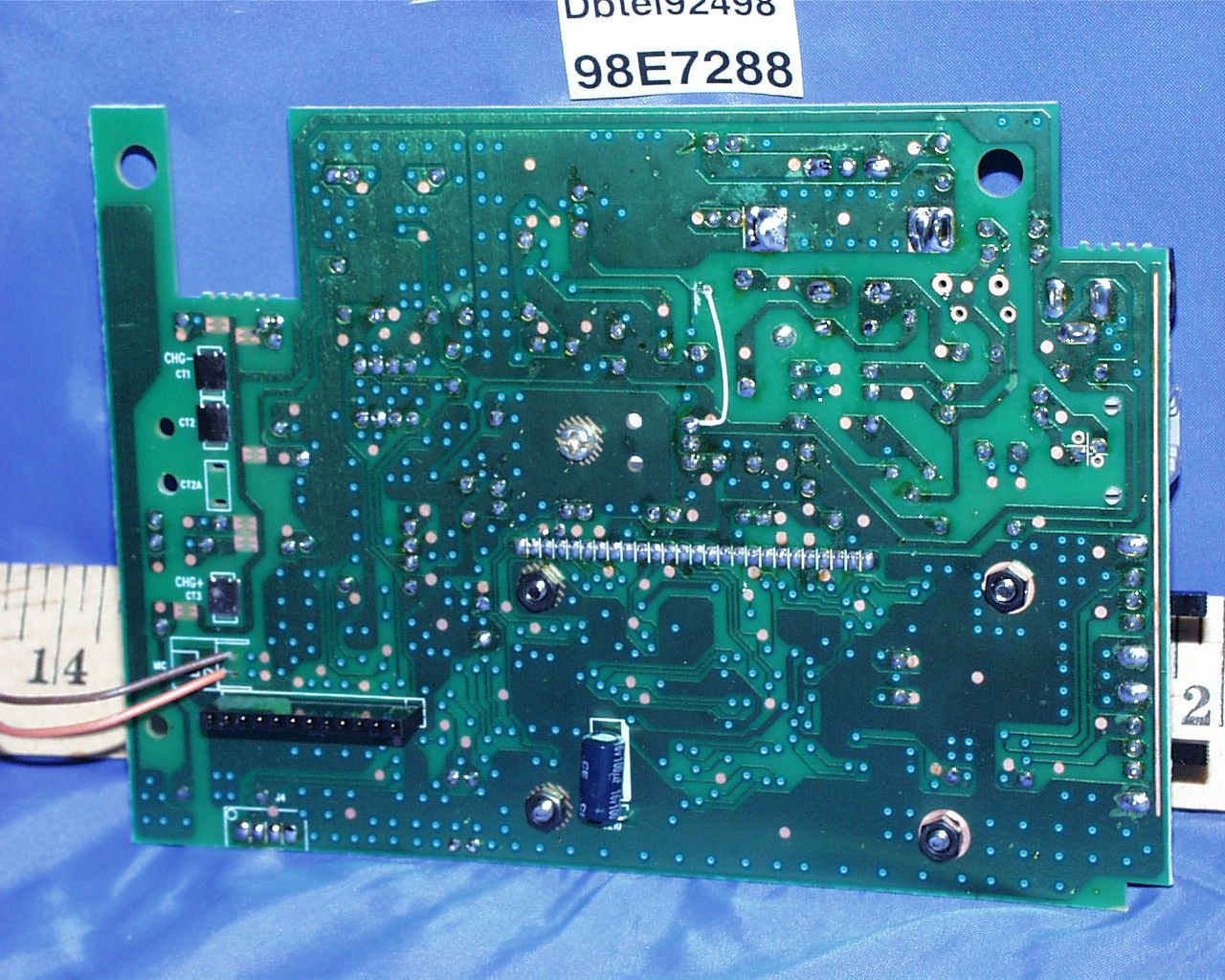

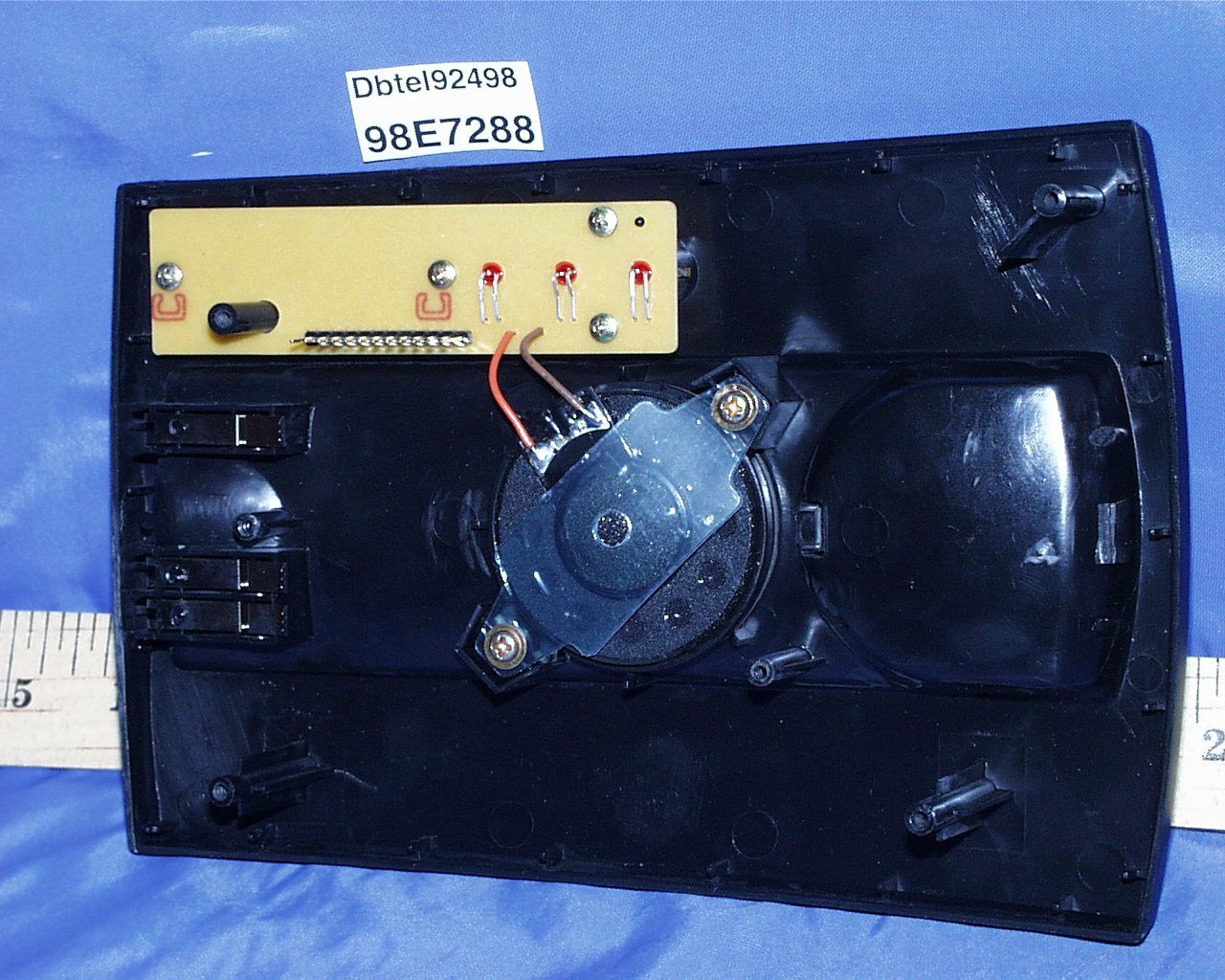

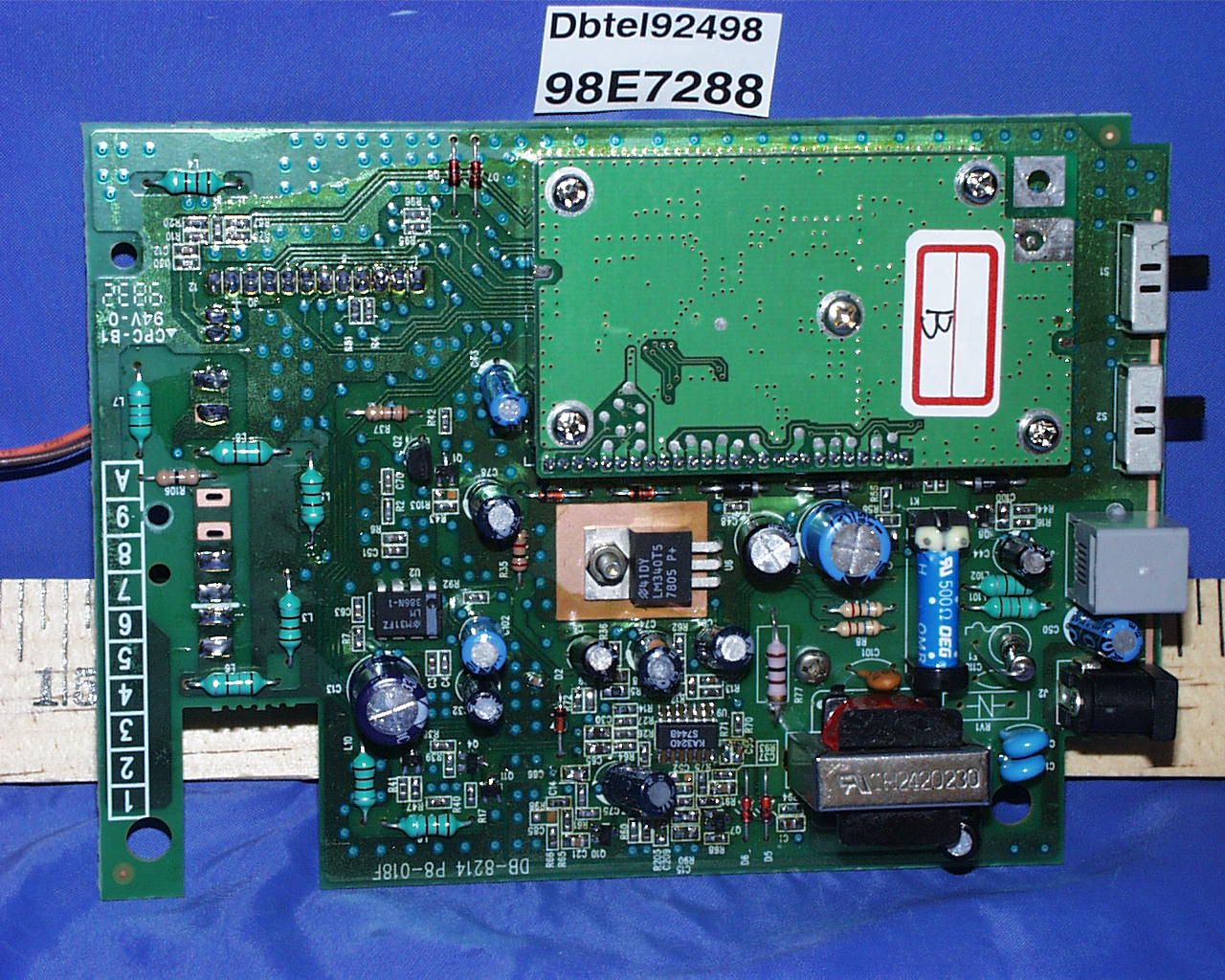

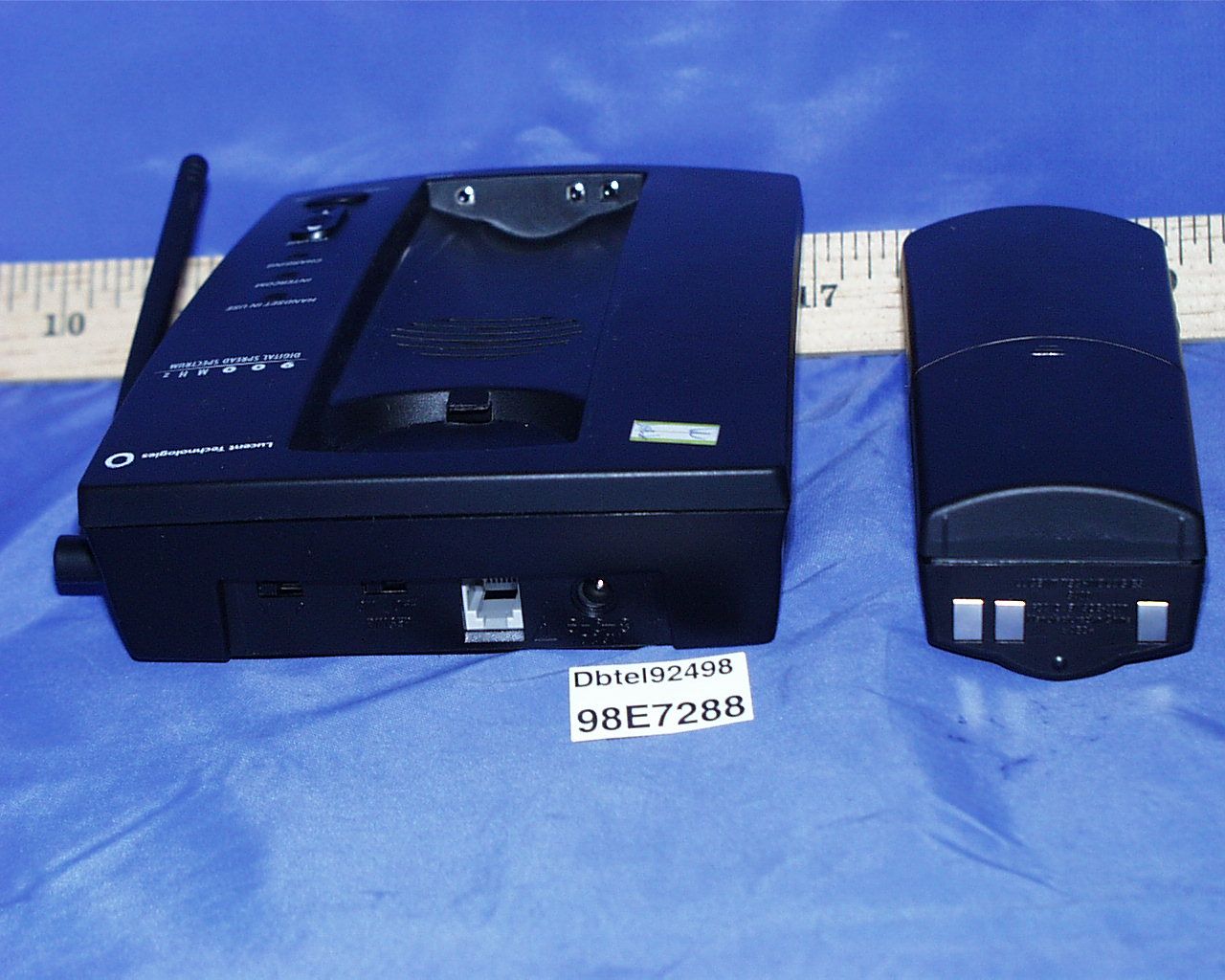

BW3DB-8214Cordless Phone

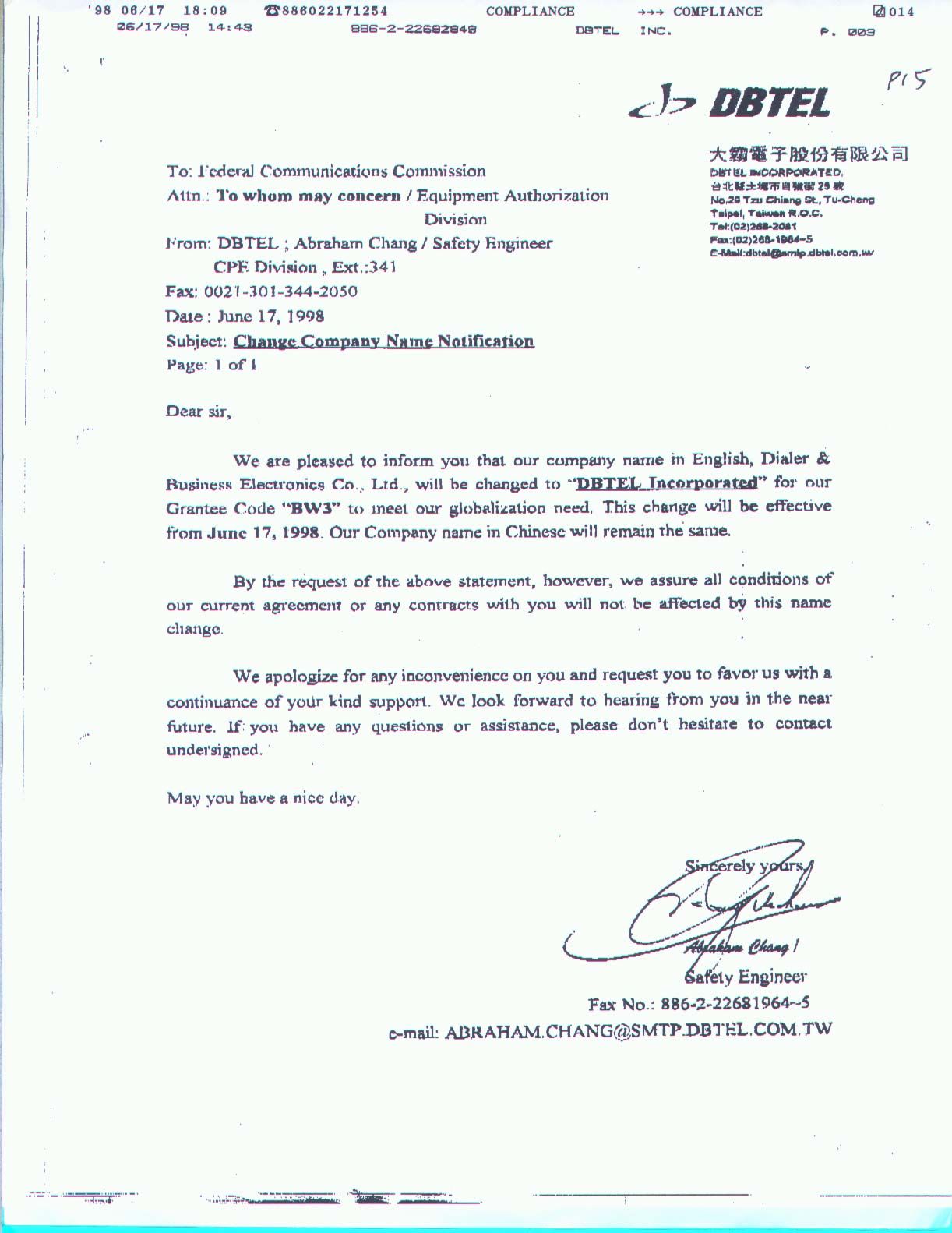

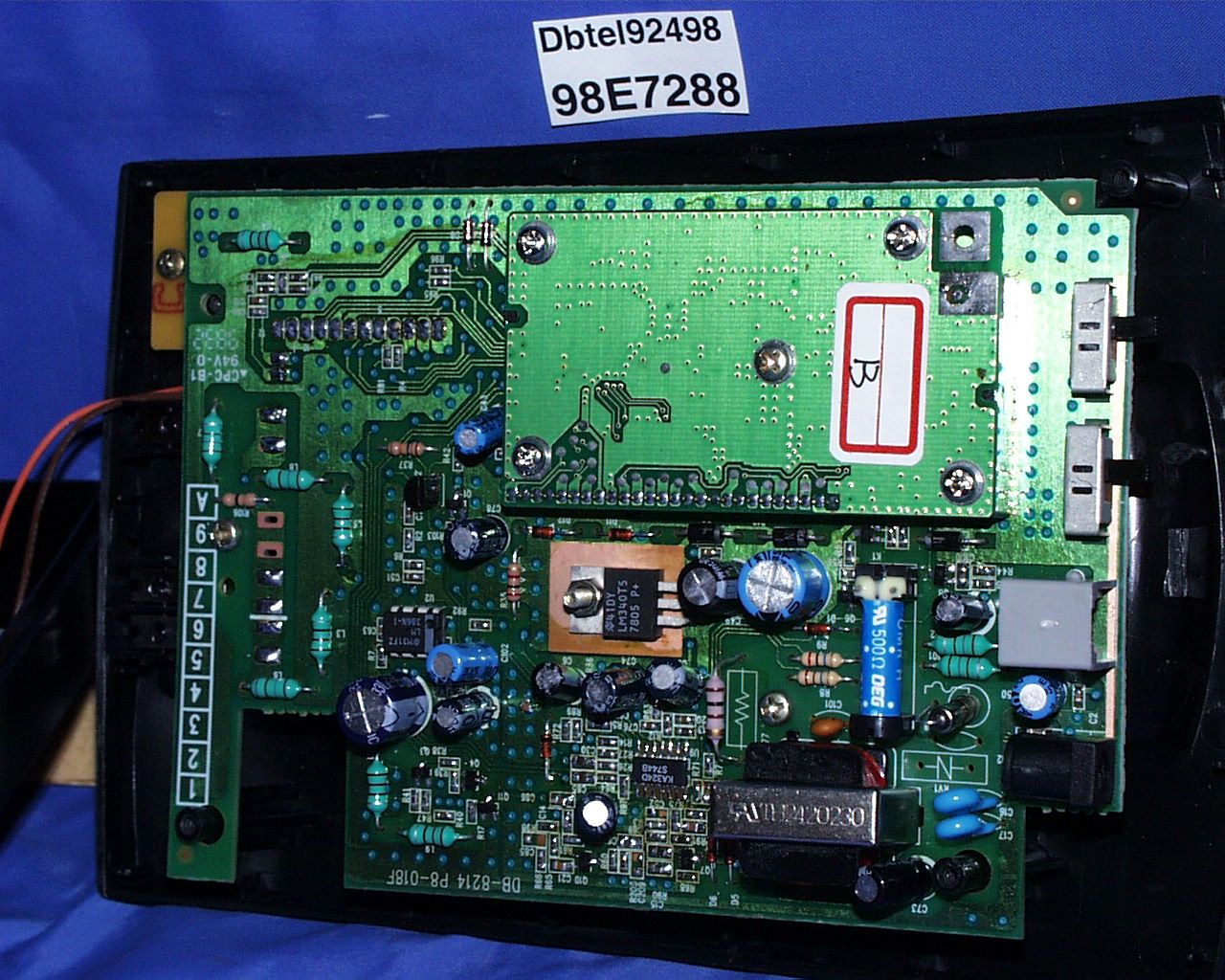

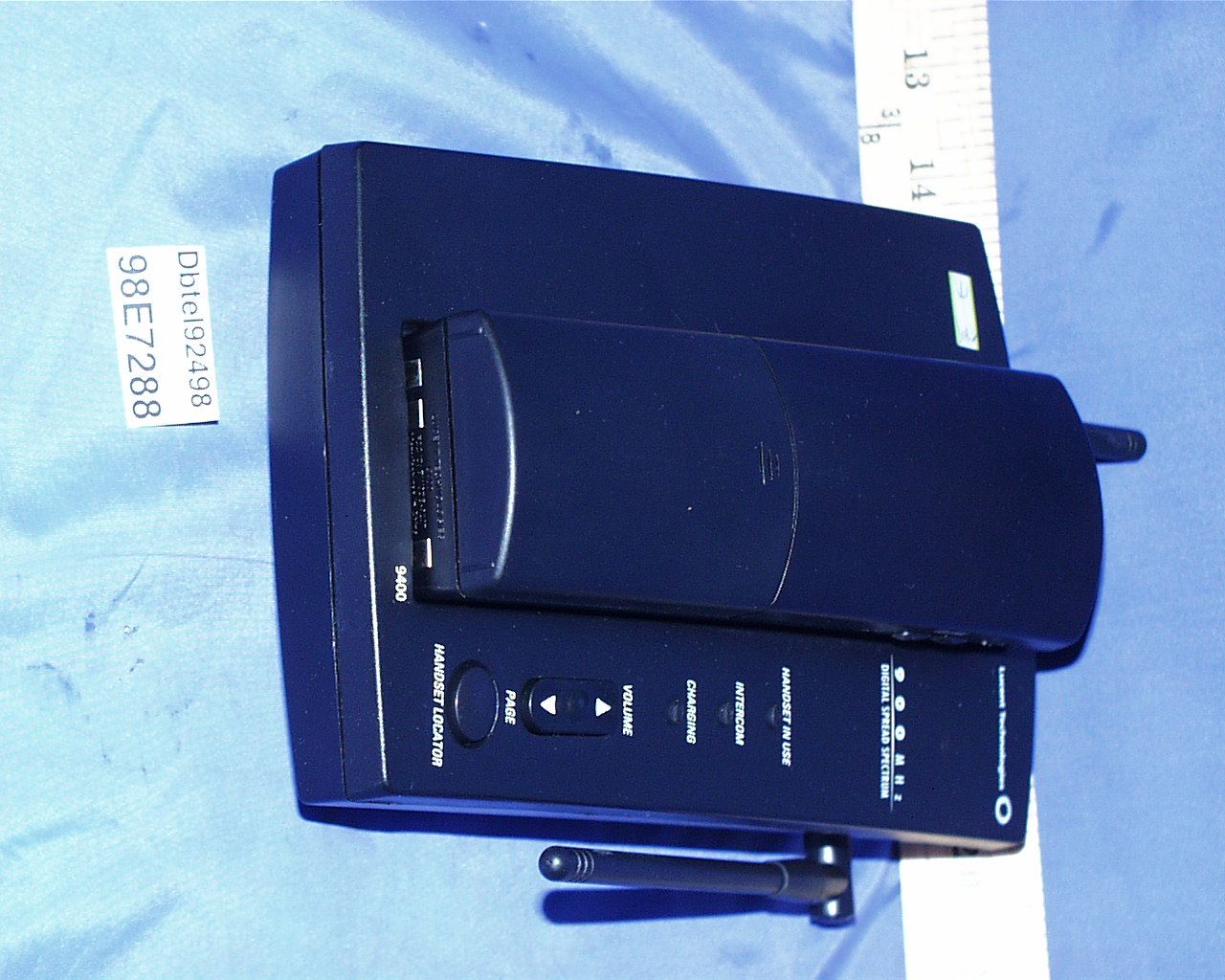

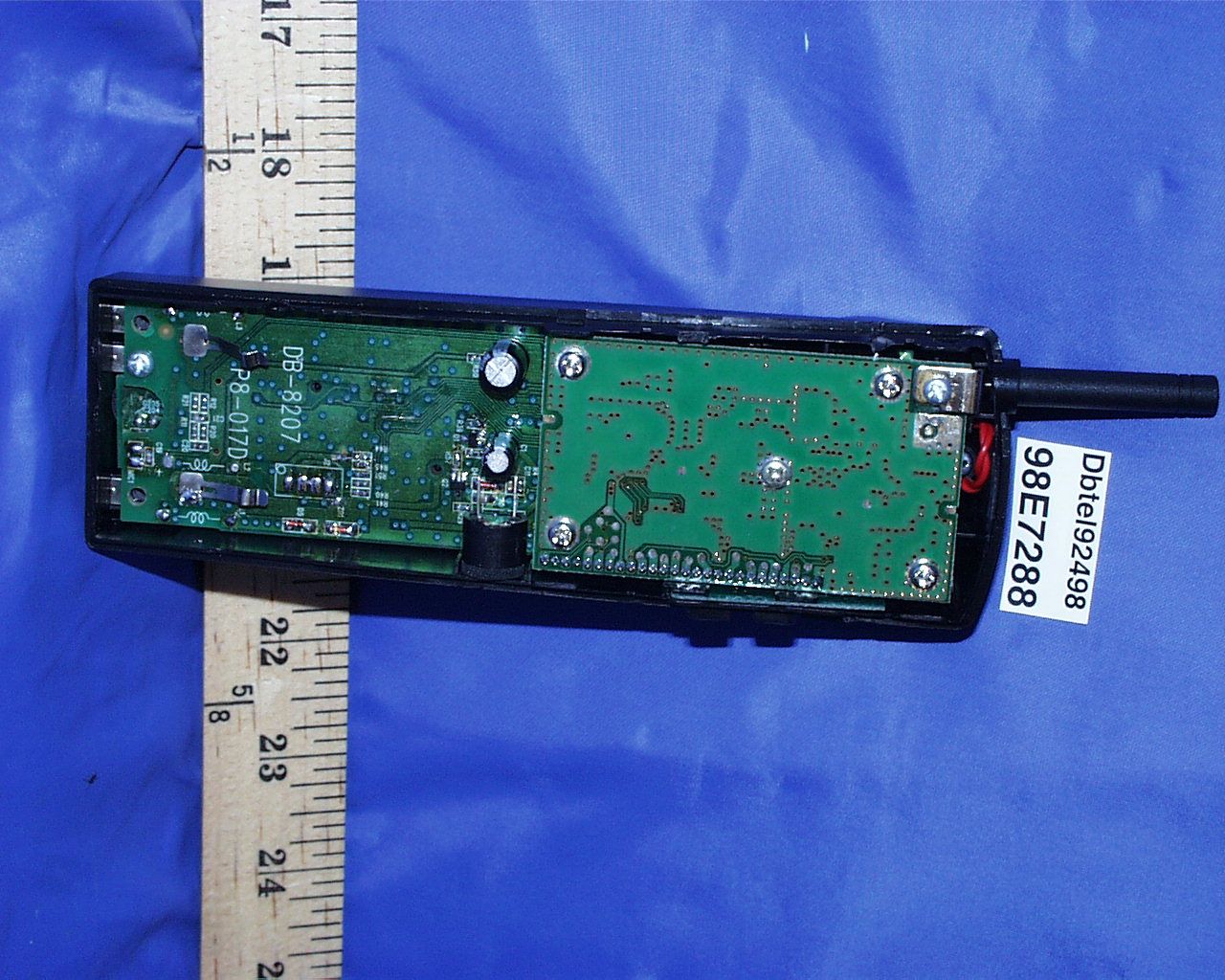

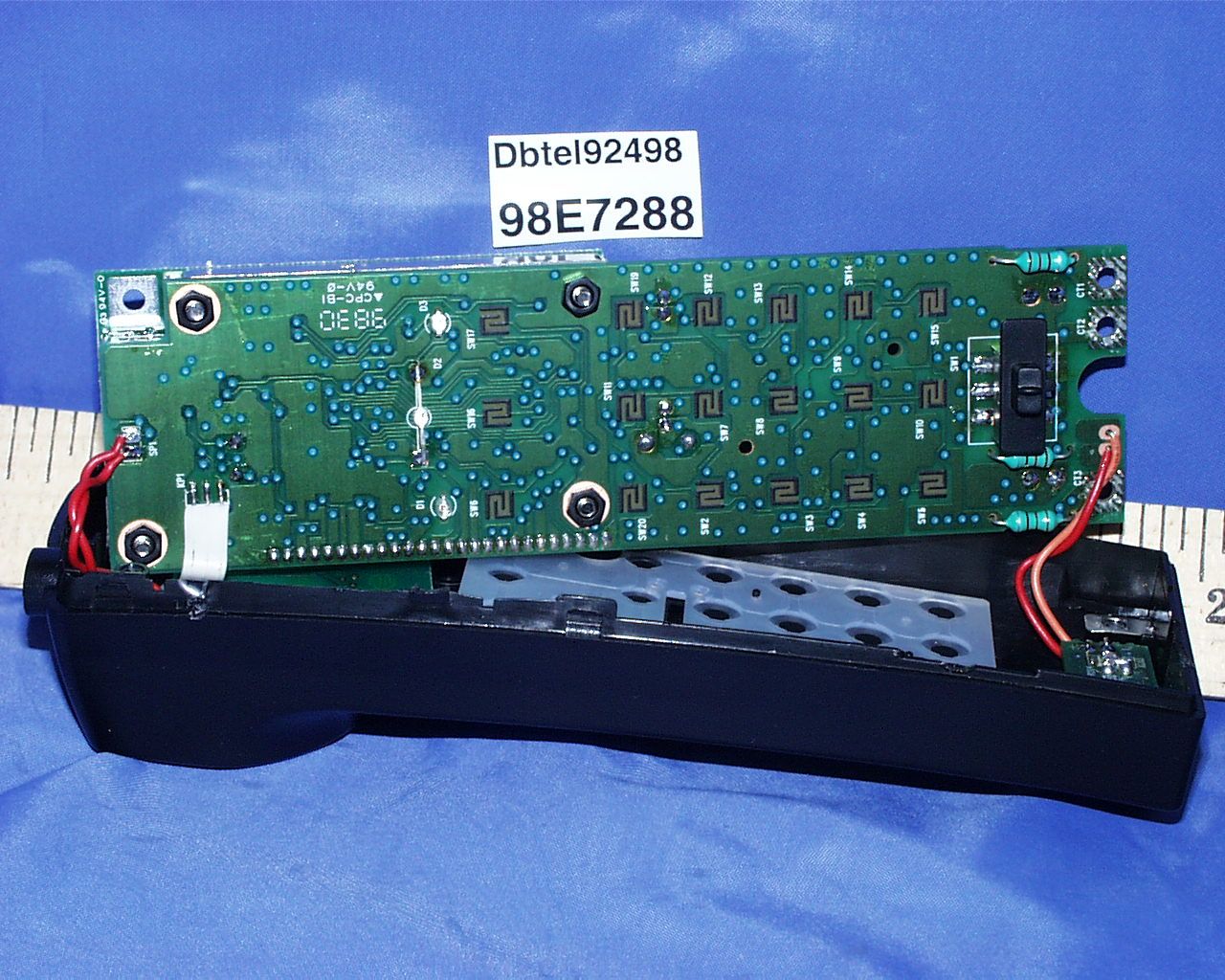

Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Reference :Applicant: DBTEL, Incorporated FCC ID:BW3DB-8214 Subject :Application for FCC certification and request to change Company name Attention:Application Examiner Dear Application Examiner: On behalf of DBTEL, Incorporated, We, Compliance Engineering Services, Inc., request The Commission to update DBTEL, Inc. company name. Pervious Corporate name : Dialer & Business Electronics Co., Ltd. Grantee Code : BW3. New Corporate name : DBTEL, Inc. Grantee Code: BW3 Company address is the same : No.29, Tzu Chiang St., Tu-Cheng, Taipei, Taiwan R.O.C. With this cover letter, we are submit the following attachments for equipment authorization per certification procedures. Attachment 1: This cover letter Attachment 2: Agency authorization and request for company name change Attachment 3: FCC ID label format and location Attachment 4: Schematic Diagram Attachment 5: User Manual Attachment 6: External photo Attachment 7: Internal Photo Attachment 8: Processing Gain Measurement data and procedure Attachment 9: Technical report with setup photo If you have any question, please feel free to contact me. Best Regards Mike Kuo / Vice President Compliance Engineering Services, Inc. [email protected] Tel:(408)752-8166 x:105 Fax:(408)752-8168

PROPOSED FCC ID LABEL FORMAT AND LOCATION APPLICANT :DBTEL, INC. FCC ID:BW3DB-8214 FCC ID:DW3DB-8214 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

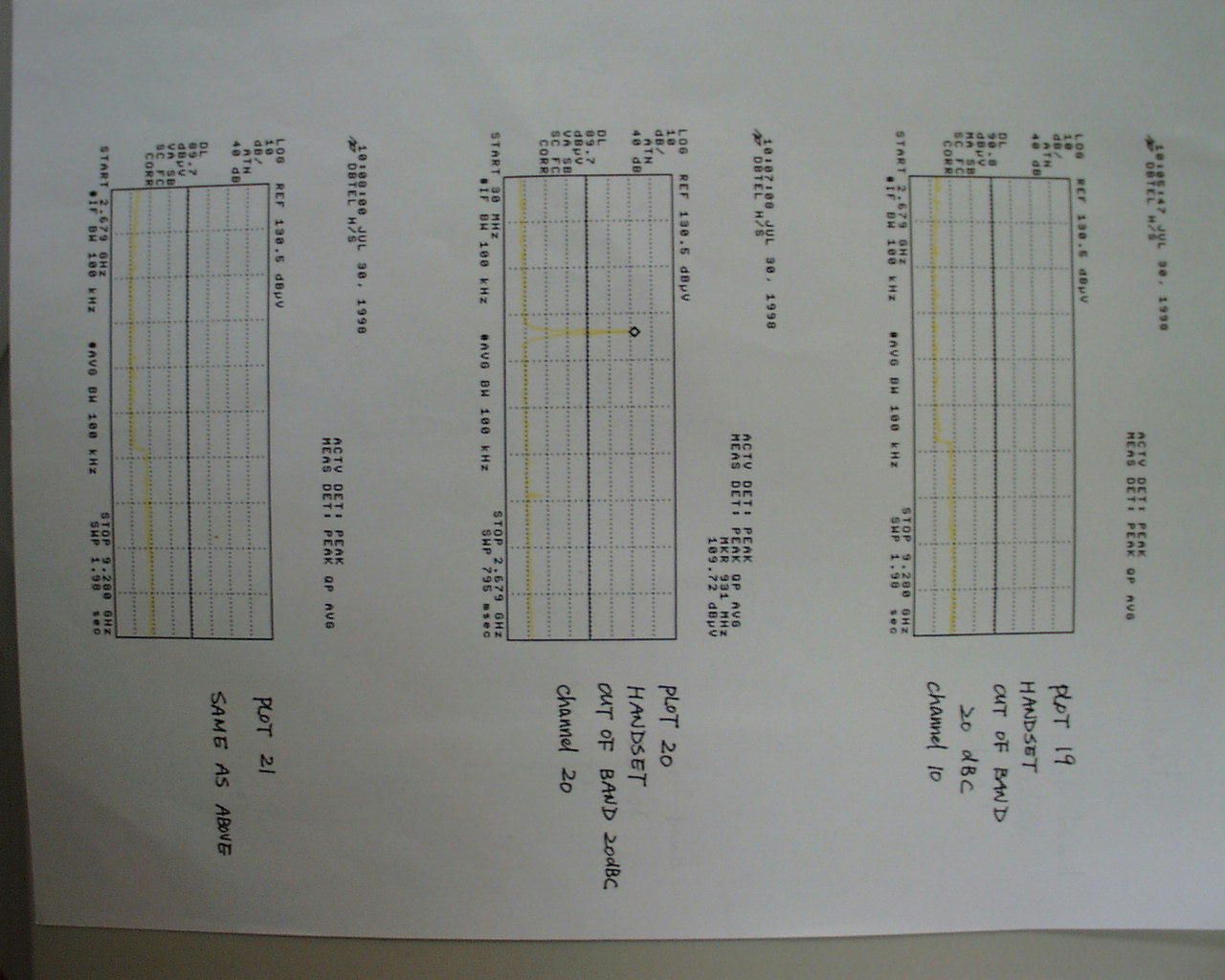

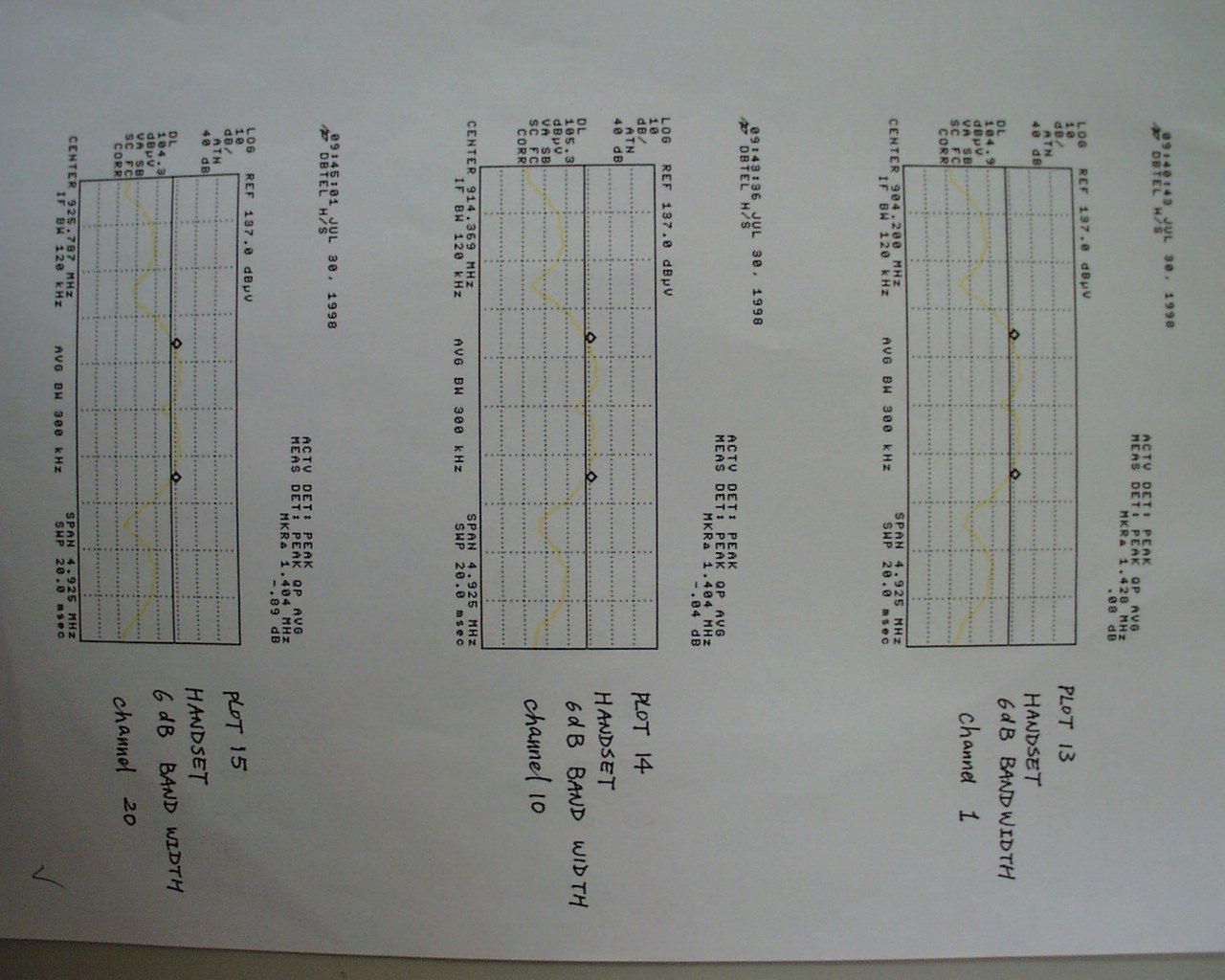

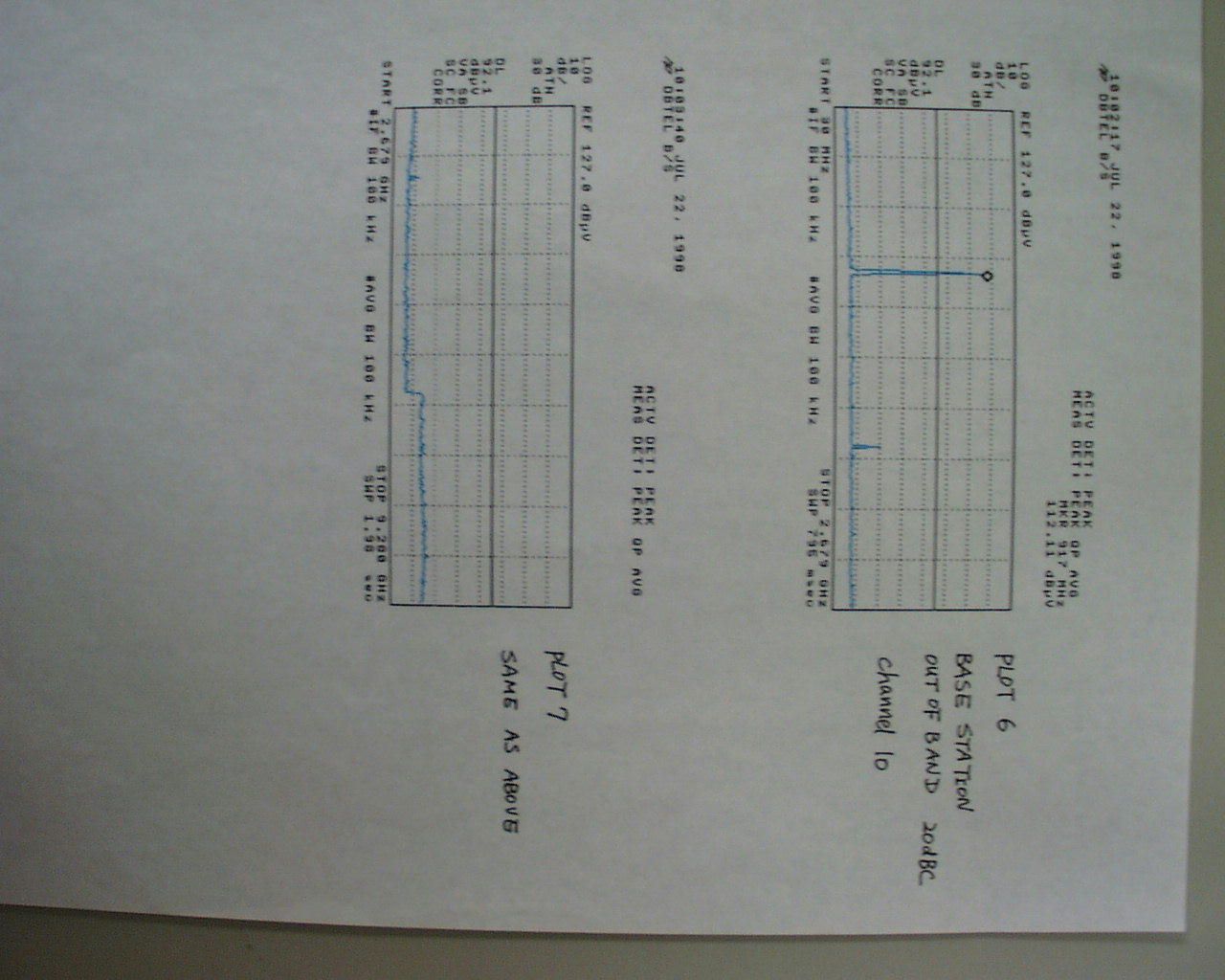

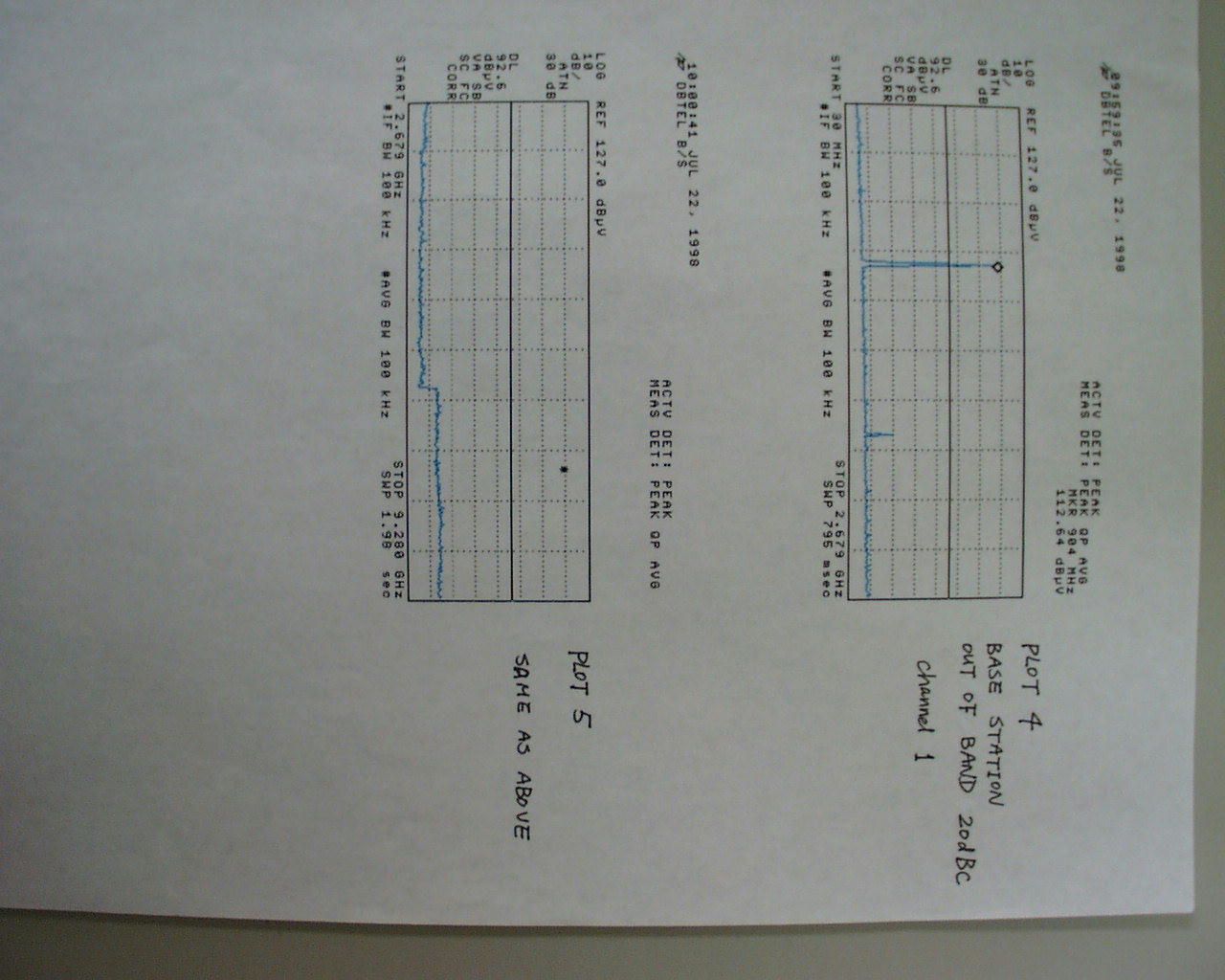

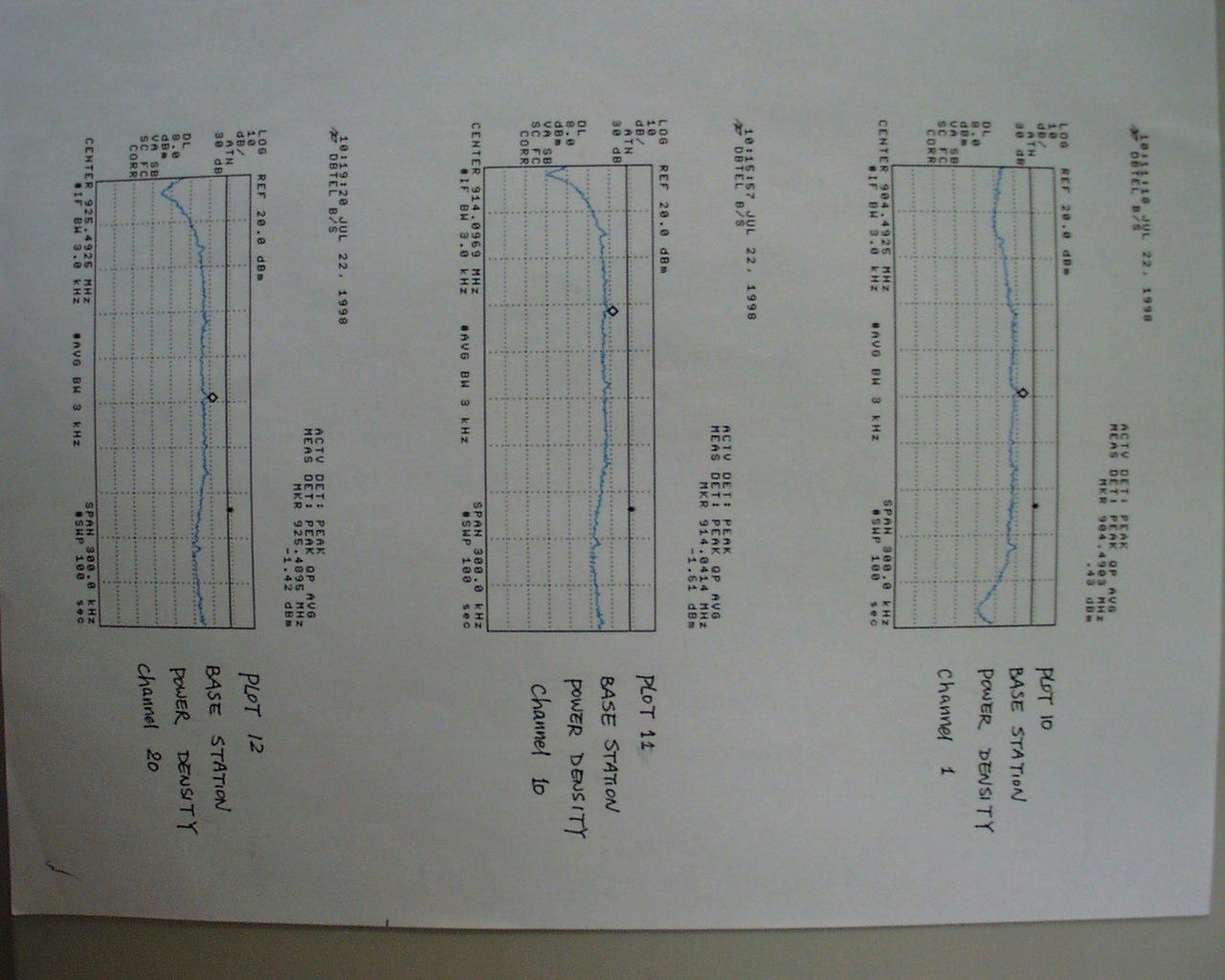

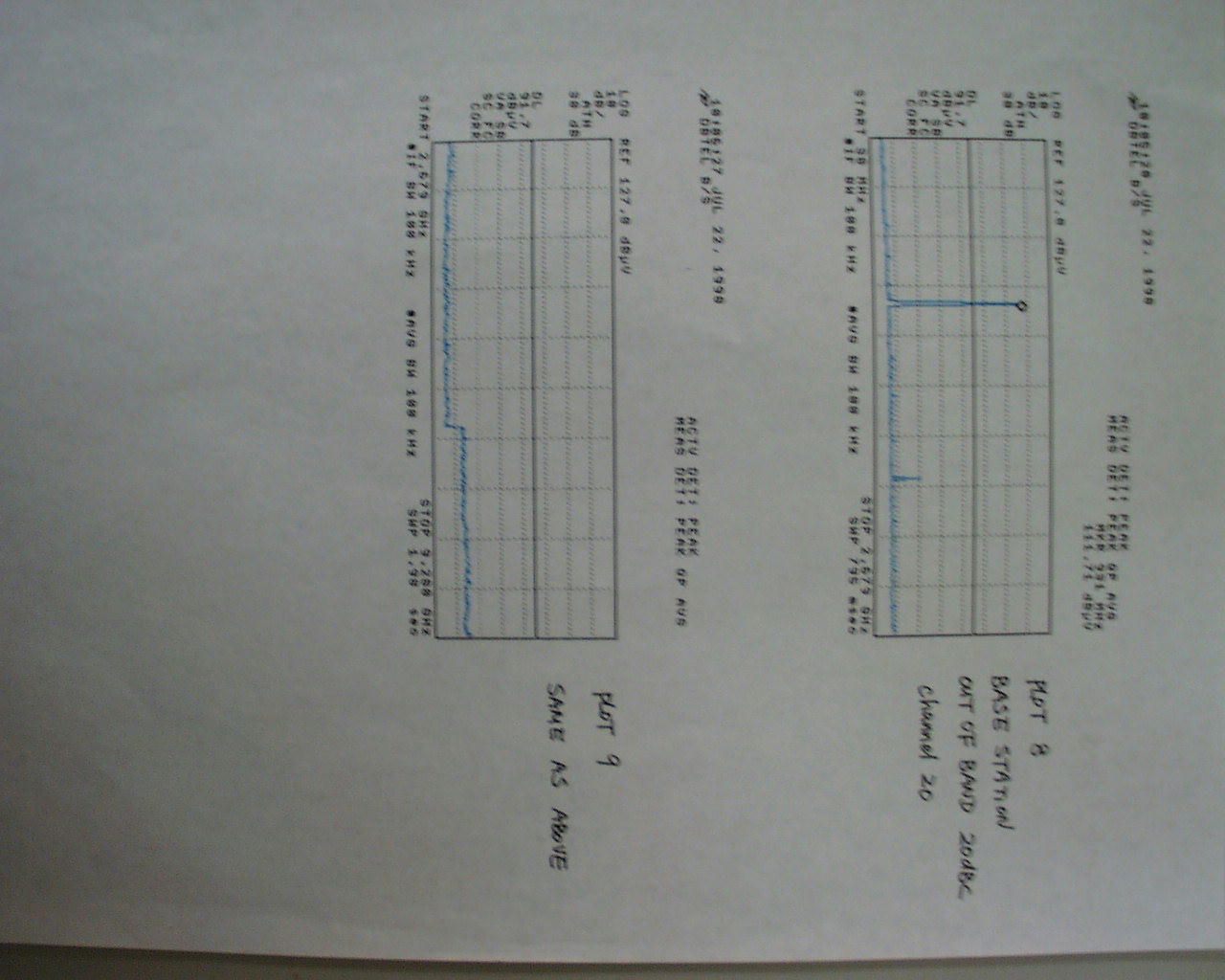

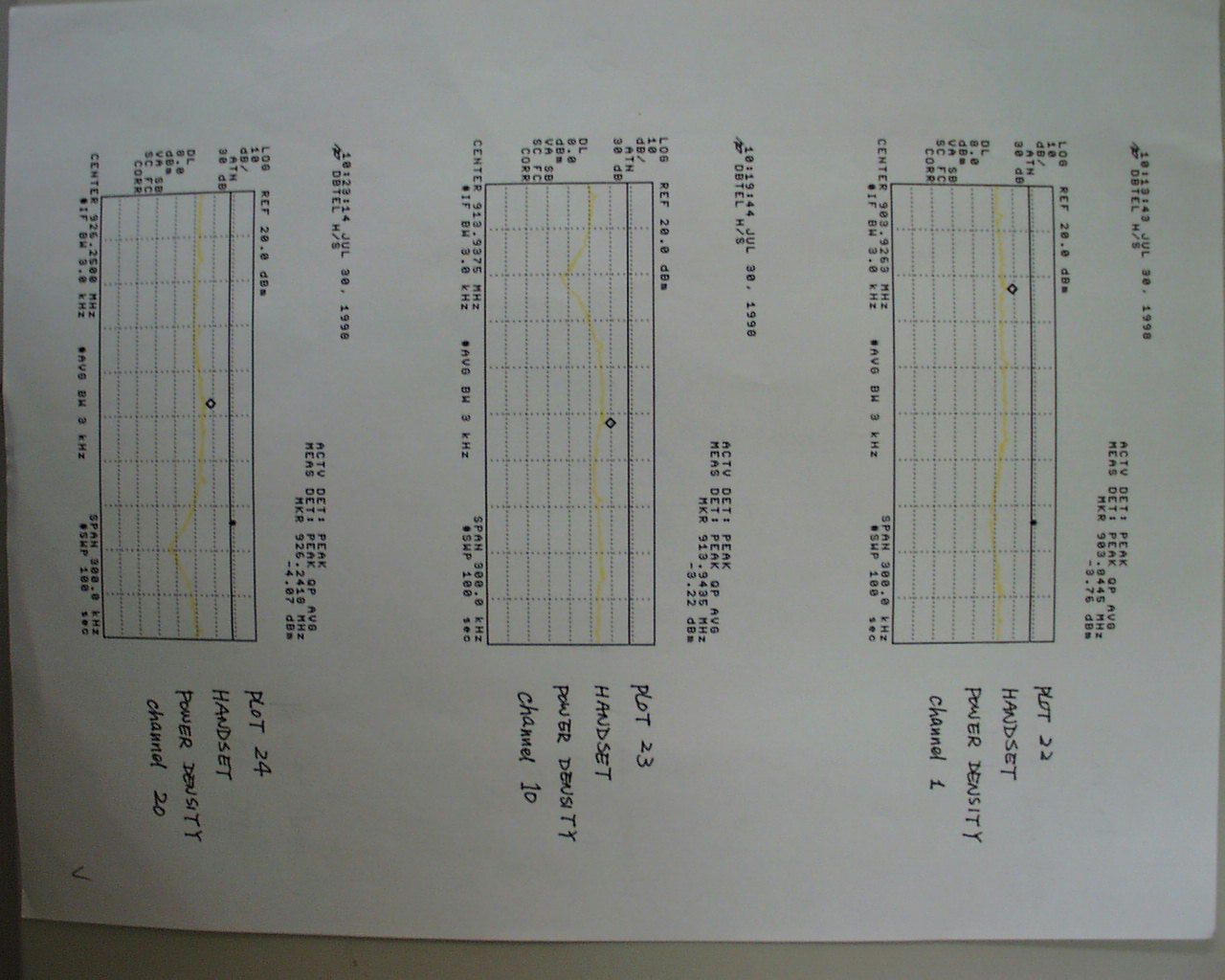

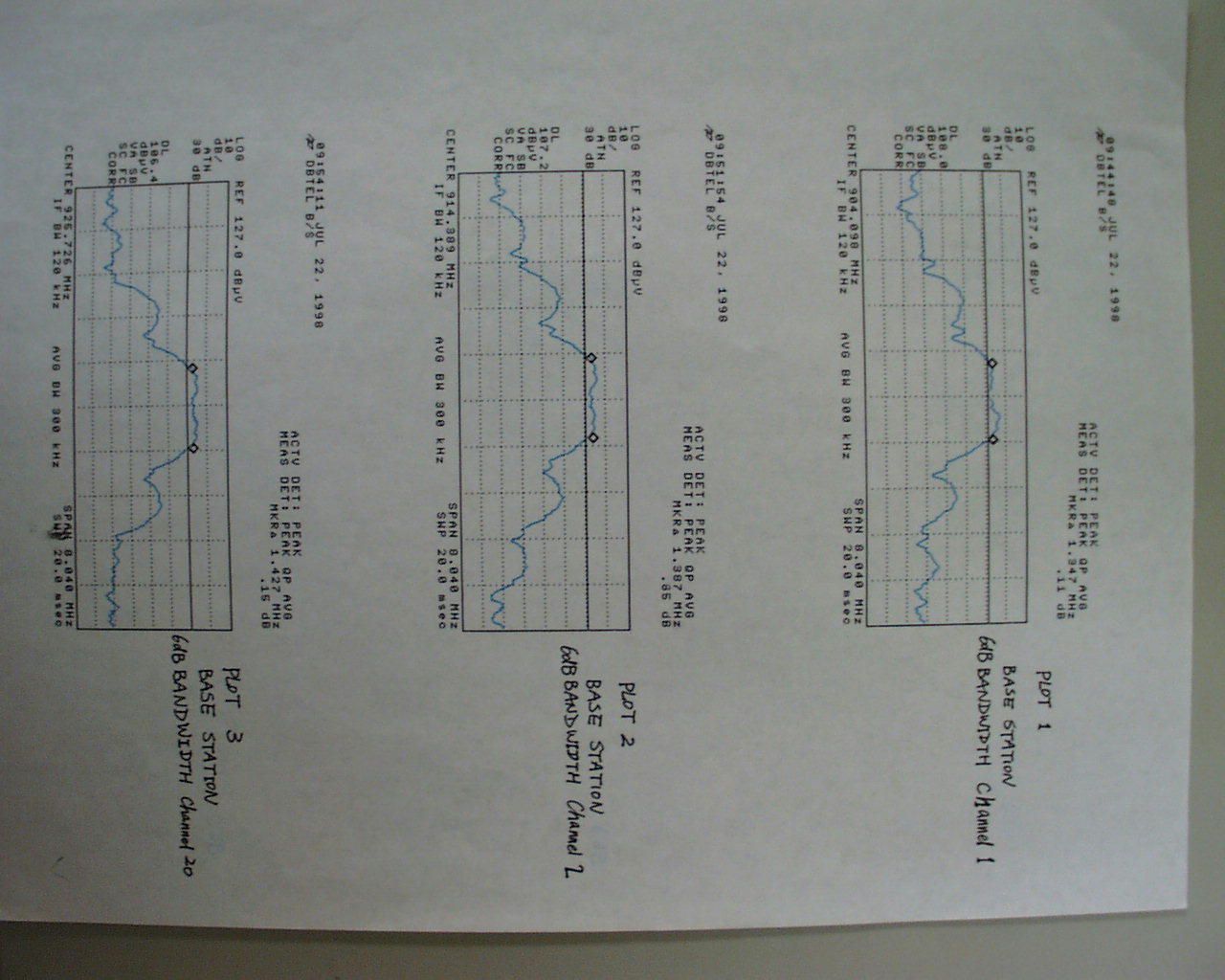

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF FCC ID: BW3DB-8214 DIRECT SEQUENCE SPREAD SPECTRUM CORDLESS PHONE MODEL NO: DB8214 BRAND NAME: DBTEL SERIAL NO: N/A REPORT NO:98E7288 DATE:SEPT 29,1998 Prepared for DBTEL INC. NO. 29 TZU CHIANG ST., TU-CHENG TAIPEI, TAIWAN Prepared by COMPLIANCE ENGINEERING SERVICES, INC. 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, U.S.A. TEL: (408) 752-8166 FAX: (408) 752-8168 TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE................................................................................................................. 1 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) .............................................................................. 2 3. TEST FACILITIES .............................................................................................................................................. 2 4.ACCREDITATION AND LISTING................................................................................................................ 3 5.MEASUREMENT INSTRUMENTATION .................................................................................................... 3 6.MEASURING INSTRUMENT CALIBRATION........................................................................................... 3 7.UNITS OF MEASUREMENT ......................................................................................................................... 3 8.ANTENNAS ....................................................................................................................................................... 4 9.CLASSIFICATION OF DIGITAL DEVICE.................................................................................................. 4 10.RADIATED EMISSION LIMITS.................................................................................................................... 4 11.CONDUCTED EMISSION LIMITS ............................................................................................................... 6 12.CONDUCTED EMISSION TEST PROCEDURE ......................................................................................... 7 13. RADIATED EMISSION TEST PROCEDURE .............................................................................................. 7 14. AMBIENT CONDITIONS ................................................................................................................................ 7 15.TEST PROCEDURES AND TEST RESULTS............................................................................................... 8 T EST R EQUIREMENT : 15.205 .................................................................................................................................... 8 T EST R EQUIREMENT : 15.109 .................................................................................................................................. 14 T EST R EQUIREMENT : 15.207 ................................................................................................................................. 16 T EST R EQUIREMENT : 15.247( A )(2)......................................................................................................................... 19 T EST R EQUIREMENT : 15.247( B )..............................................................................................................................22 T EST R EQUIREMENT : 15.247( C )..............................................................................................................................23 T EST R EQUIREMENT : 15.247( D ) ............................................................................................................................. 26 T EST R EQUIRMENT : 15.247( E )...............................................................................................................................29 REPORT NO:98E7288 FCC ID:BW3DB-8214 DATE:07/22/1998 EUT:SPREAD SPECTRUM DIRECT SEQUENCE CORDLESS TELEPHONE 1 1. VERIFICATION OF COMPLIANCE COMPANY NAME : DBTEL INC. NO. 29 TZU CHIANG ST., TU-CHENG TAIPEI, TAIWAN CONTACT PERSON :ABRAHAM CHANG TELPHONE NO:(02)2268-2081 EUT DESCRIPTION :DIRECT SEQUENCE SPREAD SPECTRUM CORDLESS PHONE MODEM NAME:DB8214 DATE TESTED :JULY 22,1998 LIMIT APPLY TO: FCC PART 15 SECTION 15.247 TECHNICAL LIMITSTEST RESULT Minimum 6dB Bandwidth@ > 500kHzPassed RF Power Output < 1 WattPassed Out of Band MeasurementsPassed DSSS Power Density < 8dBm @ 3kHz bandwidth Passed Processing Gain of a DSSS > 10dBPassed LIMIT APPLY TO: FCC PART 15 SECTION 15.205/SECTION 15.209 Restricted Band of OperationPassed LIMIT APPLY TO: FCC PART 15 SECTION 15.109 Radiated Emission LimitsPassed LIMIT APPLY TO: FCC PART 15 SECTION 15.207 AC Line Conducted EmissionPassed The above equipment was tested by Compliance Engineering Services Inc. for compliance with the requirementa set forth in CFR 47 PART 15 SUBPART C. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. MIKE KUO, VICE PRESIDENT COMPLIANCE ENGINEERING SERVICES, INC. REPORT NO:98E7288 FCC ID:BW3DB-8214 DATE:07/22/1998 EUT:SPREAD SPECTRUM DIRECT SEQUENCE CORDLESS TELEPHONE 2 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) CHASSIS TYPE PLASTIC Frequency Range 904-925MHZ No. Of Channel 20 Modulation Type TDMA/ Spread Spectrum Power Cord Unshielded Security Code 12-Bite P/N code, 8-Bite scramble, 16-bit 2D Channel Mapping Channel No.Base(Frequency)Hand Set(Frequency) 1 904.2 904.2 2 904.8 904.8 3 906.0 906.0 4 907.2 907.2 5 908.4 908.4 6 909.6 909.6 7 910.8 910.8 8 912.0 912.0 9 913.2 913.2 10 914.4 914.4 11 915.6 915.6 12 916.8 916.8 13 918.0 918.0 14 919.2 919.2 15 920.4 920.4 16 921.6 921.6 17 922.8 922.8 18 924.0 924.0 19 925.2 925.2 20 925.8 925.8 3. TEST FACILITIES All emissions tests were performed at: Compliance Consulting Services 561F Monterey Road Morgan Hill, CA 95087 CCS h…

Text truncated - open the document above for the full version.

DB-8214 / 9400A Processing Gain Test Data Frequency Power Jamming Level Mj Processing Gain ( MHz ) Low/Med/Hi Low Medium Hi Low Medium Hi Low Medium Hi 914.2 -54/-45/-37 -42.5 -32.2 -24.8 11.5 12.8 12.2 21.5 22.8 22.2 914.25 -54/-45/-37 -42.8 -34.5 -24.5 11.2 10.5 12.5 21.2 20.5 22.5 914.3 -54/-45/-37 -43.8 -34.3 -25.5 10.2 10.7 11.5 20.2 20.7 21.5 914.35 -54/-45/-37 -44 -34.5 -25.3 10 10.5 11.7 20 20.5 21.7 914.4 -54/-45/-37 -18 -7.5 -0.5 36 37.5 36.5 46 47.5 46.5 914.45 -54/-45/-37 -43.5 -34.5 -25.3 10.5 10.5 11.7 20.5 20.5 21.7 914.5 -54/-45/-37 -47.2 -34.8 -26.5 6.8 10.2 10.5 16.8 20.2 20.5 914.55 -54/-45/-37 -47 -35 -27 7 10 10 17 20 20 914.6 -54/-45/-37 -44.8 -32.5 -25 9.2 12.5 12 19.2 22.5 22 914.65 -54/-45/-37 -47.5 -36.5 -27.9 6.5 8.5 9.1 16.5 18.5 19.1 914.7 -54/-45/-37 -48.5 -36.3 -29 5.5 8.7 8 15.5 18.7 18 914.75 -54/-45/-37 -48.8 -36.8 -28 5.2 8.2 9 15.2 18.2 19 914.8 -54/-45/-37 -47.8 -36.5 -28 6.92 8.5 9 16.92 18.5 19 914.85 -54/-45/-37 -39.4 -29.5 -21 14.6 15.5 16 24.6 25.5 26 914.9 -54/-45/-37 -48.2 -36 -28 5.8 9 9 15.8 19 19 914.95 -54/-45/-37 -48.5 -35.7 -28 5.5 9.3 9 15.5 19.3 19 915 -54/-45/-37 -46.5 -33.8 -26 7.5 11.2 11 17.5 21.2 21 915.05 -54/-45/-37 -45.2 -33.8 -25 8.8 11.2 12 18.8 21.2 22 915.1 -54/-45/-37 -44 -32.8 -24 10 10.2 13 20 20.2 23 915.15 -54/-45/-37 -37.2 -25.5 -17 16.8 19.5 20 26.8 29.5 30 915.2 -54/-45/-37 -39.5 -26.5 -17.2 14.5 18.5 19.8 24.5 28.5 29.8 Test Equipment List Equipment Manuf. Model No. Serial No. Cal Date Due Date POWER SUPPLY TOPWARD 6603D 977220 11/97 98/11 SINGNAL GENERATOR H.P. HP8648A 3623A01966 8/98 8/99 SPECTRUM ANALYZER H.P. 8594E 3624A03200 8/98 8/99 POWER DIVIDER H.P. 87302C 3239A00192 8/98 8/99 ATTENUATOR /70db H.P. 8495B 3308A18136 8/98 8/99 A ATT 20dB COM 1COM 2 25-pin 25-pin9-pin 25-pin Deviation –0.83dB Take out the“Match Circuit” Take out the“Match Circuit” Test Instruments Configuration -3dB Power Divider -3dB Signal Generator (Jammer) PC B/S EUT RS232RS232 SpectrumH/S Power Supply ( 3.8V ) TEST PROCEDURE A. Test setup for Transmit-Only-Test1.Connnected power source for B/S and S/H. “ Park” B/S and S/H.2.Connected B/S to COM1 of RS232 Adapter board, connected H/S to COM2 of RS232 adapter board.3. Activate Test Program and select power level and channel number. Enable B/S and S/H so both are in normaloperating condition. B. Test setup for BER Test and Jamming Margin Test1. Disconnected antenna connection points for B/S and H/S. 2. Connected B/S and H/S as diagram shown above. 3. Activate Test program ( FCCV3_2.exe) and select Transmit-only Test. Disconnected Signal Generator from point“A” of diagram as shown above. Connected Spectrum analyzer to point “A”. Activate program and recordMaximum reading and record as “S”. 4. Disconnected Spectrum analyzer from Point “A” and reconnect back to Signal Generator. 5. “Park” B/S and H/S for one minute and activate test program provided by Rockwell for BER test mode. 6. Press “Start S1-S2 BS Master” starts the tests. 7. Set Signal generator in accordance to FCC requirement with 5kHz step(up to 960KHz away in Rl’s DCT), at thesame time record level ( Jamming level (J))with Bit Error Rate=10e-3 8. Stop BER, increase 5kHz and repeat step 5.

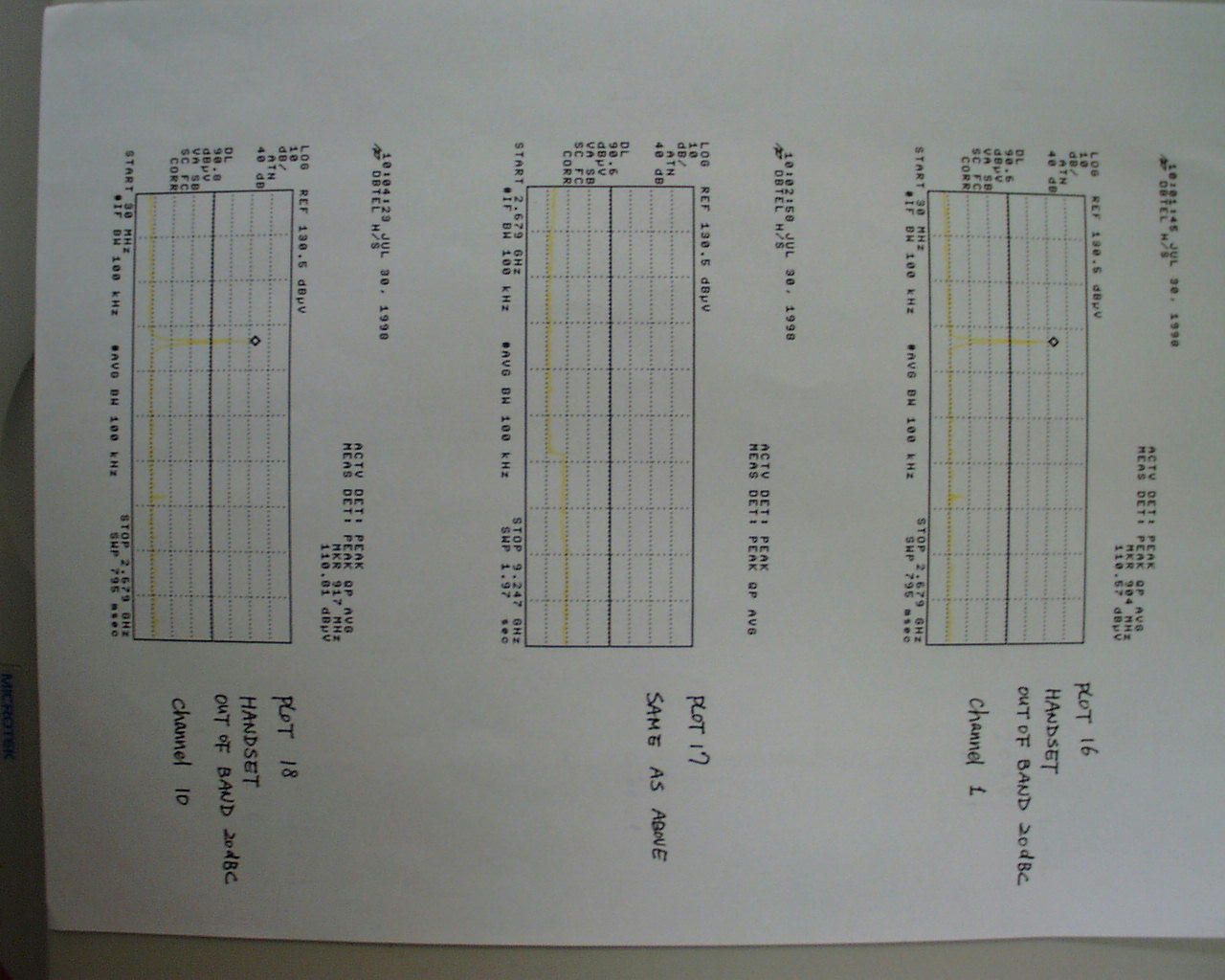

Sheet1 COMPLIANCE CERTIFICATION SERVICE DBTELPETE KREBILL SS CORDLESS PHONE M/N: DB-82147/24/98 FCC 15.247B-SITE F(MHz)LevelAFCLAMPDISTDCFILTERTotalLimitMarginAntenna (dBuV)(dB)(dB)(dB)(dB)(dB)(dB)(dBuV/m)(dBuV/m)(dB)Polarity BASE STATION CH 1- 904.2MHZ 2712PK69.7303.6-35.5-100158.874-15.2V 2712AV66.6303.6-35.5-10-6149.754-4.3V CH 10-914.4MHZ 2743PK71.02303.6-35.5-100160.1274-13.88V 2743AV68.1303.6-35.5-10-6151.254-2.8V CH20-925.9MHZ 2777PK69.8303.6-35.5-100158.974-15.1V 2777AV66.7303.6-35.5-10-6149.854-4.2V HANDSET CH 1- 904.2MHZ 2712PK72.7303.6-35.5-100161.874-12.2H 2712AV68.9303.6-35.5-10-615254-2H CH 10-914.4MHZ 2743PK71.02303.6-35.5-100160.1274-13.88H 2743AV68.1303.6-35.5-10-6151.254-2.8H CH20-925.9MHZ 2777PK69.8303.6-35.5-100158.974-15.1H 2777AV66.7303.6-35.5-10-6149.854-4.2H DC=DUTY CYCLE CORRECTION AF=ANTENNA FACTORRES B/W=1MHZ PEAK CL=CABLE LOSSVID B/W=1MHZ PEAK Page 1 Sheet1 AMP=AMPLIFIER GAINRES B/W=1MHZ AVERAGE DIST=DISTANE CORRECTION TO 3 METERSVID B/W=10HZ AVERAGE FILTER=FILTER LOSS ALL READING ARE MAXIMUM FOR ANTENNA POLARITY AND EUT AXIS Page 2 Sheet1 EUT Axis N/A N/A N/A N/A N/A N/A Z Z Z Z Z Z Page 3 Sheet1 Page 4
