BZB2000BTUHF WIRELESS MICROPHONE

AZDEN 2000BT BODY-PACK TRANSMITTER OPERATING MANUAL ○ 3 ○ 1 ○ 2 ○ 4 ○ 5 ○ 6 ○ 7 ○ 8 ○ 9 ○ 1 Audio Frequency Peak indicator ○ 2 Battery Power indicator The indicator light will change from green to red when the batteries get weak. Replace the batteries. ○ 3 MIC Input Connector 4-pin Hirose connector for microphone ○ 4 Antenna Connector ○ 5 Volume Control ○ 6 Power Switch ○ 7 LCD Display Displays frequencies, channels, groups, and accumulated time. ○ 8 MODE, DOWN, and UP Switches Change modes, channels and groups ○ 9 Battery Compartment Holds 2 “AA” Alkaline batteries SPECIFICATIONS Frequencies: 638.125—661.875MHz (188 channels) Type of Emission: F3E FM Oscillator: Crystal-controlled PLL Synthesizer RF Power Output: 50mW Tone Signal: 32.768kHz Noise Reduction: Compander Audio Input Level: MIC: -60dBV Impedance: 3.3kΩ Power Requirement: DC 3V (two “AA” alkaline batteries-not included) Power Consumption: Less that 130mA (3.0V) Battery Life: Approx. 8 hours with two “AA” alkaline batteries Dimensions: 65W x 90H x 20D (mm) Weight: 170 g (including batteries) * Due to constant improvement of the products, the specifications may change without a notice. AZDEN CORPORATION 147 NEW HYDE PARK RD, FRANKLIN SQUARE, NY 11010 PHONE: 516-328-7500 FAX: 516-328-7506 EMAIL: [email protected] WEBSITE: azdencorp.com

P.O. BOX 10, 1 4 7 N E W H Y D E P A R K R O A D , F R A N K L I N S Q U A R E , N Y 1 1 0 1 0 Tel: 516.328.7500 e-mail:[email protected] Fax: 516.328.7506 web: www.azdencorp.com 7/6/2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21045 Ref: Azden Corporation FCC ID: BZB2000BT To whom it may concern: I hereby appoint Mr. Frank Lopiccolo to be my agent for the purpose of dealing with and signing FCC document Form 731. Date: 6 July 2011 Signature of FCC Holder: Toyohiko Tokitomo AZDEN corporation 1-12-17 Kamirenjaku, Mitaka-shi, Tokyo 181-8533 JAPAN

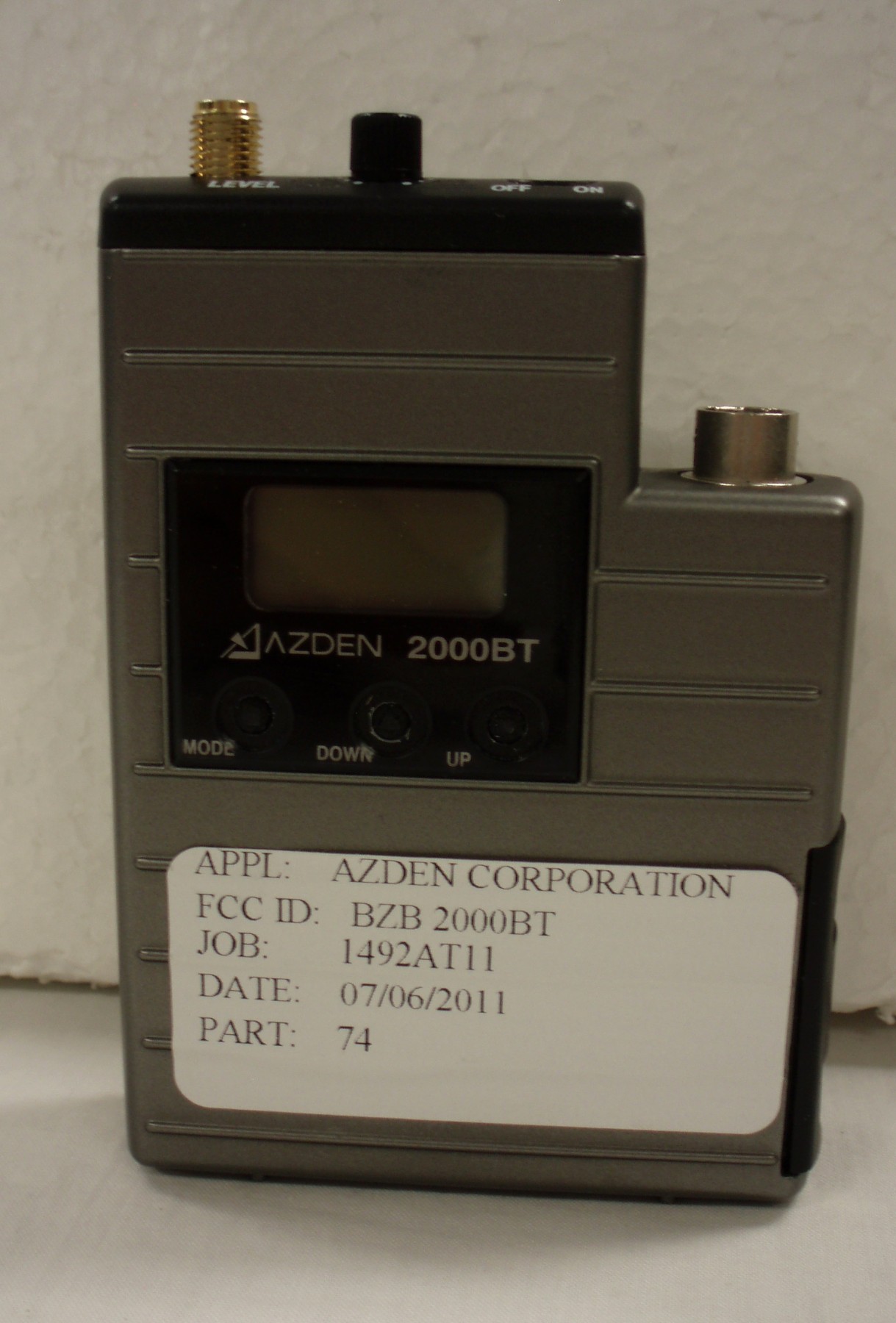

APPLICANT: AZDEN CORPORATION FCC ID: BZB2000BT EXTERNAL PHOTOS

APPLICANT: AZDEN CORPORATION FCC ID: BZB2000BT INTERNAL PHOTOS

2.Voltage and current at RF part 1.Voltage and current at RF part Low(CH42-01)Mid(CH43-47)High(CH45-47) Vce3.2V3.2V3.2V Ic30mA30mA30mA 2.Description of main feature of ciruit (1)Stabilization of frequency Oscillation method :PLL synthesized The stabilization of this oscillation method relies on crystal oscillator performance. Its accecting range is frequency deviation plus-minus 10ppm or less,under -10 degree to +60 degree temperature by using Tokyo Denpa made crystal oscillator. (2)How to reduce the spurious radiation In order to suppress the radiation,LC filter is positioned after current amplification part. It is low passed filter which forms pie shape with third layered. (3)Restriction of Audio modulation In order to restrict audio modulation,diode limiter circuit(ZD101,ZD102) is put into pre-emphasis circuit. 4.Operating Menu 42 -01␣ Push mode key for 1s 638.125 2s later Channel Select Frequency Up or Down 42-15␣ Change the CH 1.4s laterUp or DownMode key Group Select a hyphen brinks Change the Group a hyphen glows 02:15␣␣ Estimated Time [Channel Select mode] Select the channel by Up or Down key. (The frequency will be displayed by pushing a mode key for 1s) [Group Select mode] 1.Select the group by Up or Down key when a hyphen brinks. 2.The selected group will be enabled by pushing a mode key.(a hyphen glows) [Estimated Time] Displays the estimated time from the first power on. ␣Gr␣␣␣␣Gr -0␣␣Gr -1␣␣Gr -1␣ Mode key 5.List of frequency and group 【ＧＲ－０】 FrequencyDisplayFrequencyDisplayFrequencyDisplayFrequencyDisplay 638.12542 - 01644.12543 - 01650.12544 - 01656.12545 - 01 638.25042 - 02644.25043 - 02650.25044 - 02656.25045 - 02 638.37542 - 03644.37543 - 03650.37544 - 03656.37545 - 03 638.50042 - 04644.50043 - 04650.50044 - 04656.50045 - 04 638.62542 - 05644.62543 - 05650.62544 - 05656.62545 - 05 638.75042 - 06644.75043 - 06650.75044 - 06656.75045 - 06 638.87542 - 07644.87543 - 07650.87544 - 07656.87545 - 07 639.00042 - 08645.00043 - 08651.00044 - 08657.00045 - 08 639.12542 - 09645.12543 - 09651.12544 - 09657.12545 - 09 639.25042 - 10645.25043 - 10651.25044 - 10657.25045 - 10 639.37542 - 11645.37543 - 11651.37544 - 11657.37545 - 11 639.50042 - 12645.50043 - 12651.50044 - 12657.50045 - 12 639.62542 - 13645.62543 - 13651.62544 - 13657.62545 - 13 639.75042 - 14645.75043 - 14651.75044 - 14657.75045 - 14 639.87542 - 15645.87543 - 15651.87544 - 15657.87545 - 15 640.00042 - 16646.00043 - 16652.00044 - 16658.00045 - 16 640.12542 - 17646.12543 - 17652.12544 - 17658.12545 - 17 640.25042 - 18646.25043 - 18652.25044 - 18658.25045 - 18 640.37542 - 19646.37543 - 19652.37544 - 19658.37545 - 19 640.50042 - 20646.50043 - 20652.50044 - 20658.50045 - 20 640.62542 - 21646.62543 - 21652.62544 - 21658.62545 - 21 640.75042 - 22646.75043 - 22652.75044 - 22658.75045 - 22 640.87542 - 23646.87543 - 23652.87544 - 23658.87545 - 23 641.00042 - 24647.00043 - 24653.00044 - 24659.00045 - 24 641.12542 - 25647.12543 - 25653.12544 - 25659.12545 - 25 641.25042 - 26647.25043 - 26653.25044 - 26659.25045 - 26 641.37542 - 27647.37543 - 27653.37544 - 27659.37545 - 27 641.50042 - 28647.50043 - 28653.50044 - 28659.50045 - 28 641.62542 - 29647.62543 - 29653.62544 - 29659.62545 - 29 641.75042 - 30647.75043 - 30653.75044 - 30659.75045 - 30 641.87542 - 31647.87543 - 31653.87544 - 31659.87545 - 31 642.00042 - 32648.00043 - 32654.00044 - 32660.00045 - 32 642.12542 - 33648.12543 - 33654.12544 - 33660.12545 - 33 642.25042 - 34648.25043 - 34654.25044 - 34660.25045 - 34 642.37542 - 35648.37543 - 35654.37544 - 35660.37545 - 35 642.50042 - 36648.50043 - 36654.50044 - 36660.50045 - 36 642.62542 - 37648.62543 - 37654.62544 - 37660.62545 - 37 642.75042 - 38648.75043 - 38654.75044 - 38660.75045 - 38 642.87542 - 39648.87543 - 39654.87544 - 39660.87545 - 39 643.00042 - 40649.00043 - 40655.00044 - 40661.00045 - 40 643.12542 - 41649.12543 - 41655.12544 - 41661.12545 - 41 643.25042 - 42649.25043 - 42655.25044 - 42661.25045 - 42 643.37542 - 43649.37543 - 43655.37544 - 43661.37545 - 43 643.50042 - 44649.50043 - 44655.50044 - 44661.50045 - 44 643.62542 - 45649.62543 - 45655.62544 - 45661.62545 - 45 643.75042 - 46649.75043 - 46655.75044 - 46661.75045 - 46 643.87542 - 47649.87543 - 47655.87544 - 47661.87545 - 47 Group Disp – Freq. CH 01CH 02CH 03CH 04CH 05CH 06CH 07CH 08CH 09CH 10CH 11CH 12 638.625639.750641.125643.125643.875645.500646.000647.750648.625649.000649.250 644.125644.625645.375647.125647.500648.500649.125649.375 638.375639.625640.250641.250642.625643.000643.500643.750 650.625651.750653.125655.125655.875657.500658.000659.750660.625661.000661.250 656.125656.625657.375659.125659.500660.500661.125661.375 650.375651.625652.250653.250654.625655.000655.500655.750 Group Disp – CH. CH 01CH 02CH 03CH 04CH 05CH 06CH 07CH 08CH 09CH 10CH 11CH 12 42 - 0542 - 1442 - 2542 - 4142 - 4743 - 1243 - 1643 - 3043 - 3743 - 4043 - 42 43 - 0143 - 0543 - 1143 - 2543 - 2843 - 3643 - 4143 - 43 42 - 0342 - 1342 - 1842 - 2642 - 3742 - 4042 - 4442 - 46 44 - 0544 - 1444 - 2544 - 4144 - 4745 - 1245 - 1645 - 3045 - 3745 - 4045 - 42 45 - 0145 - 0545 - 1145 - 2545 - 2845 - 3645 - 4145 - 43 44 - 0344 - 1344 - 1844 - 2644 - 3744 - 4044 - 4444 - 46 【ＧＲ-１ ～ ６】 GR １ GR ２ GR ３ GR ４ GR ５ GR ６ GR １ GR ２ GR ３ GR ４ GR ５ GR ６

1.Adjustment Manual IssueY M D Azden Adjustment Standard Category Y M D33-542-01 (2000BT) Adjustment ManualNo. Default conditions for the adjustment Power supply:3.0V VR position:center 1.Adjustment of VCO 1) Set the frequency to 42-01(638.125MHz) 2) Connect the DC voltmeter to TP201 3) Confirm the DC voltmeter indicates 1.2V 4) Set the frequency to 45-47(661.875MHz) and confirm the voltage is 2.2V on the DC voltmeter 2.Adjustment of the RF output power 1) Set the frequency to CH43-47(649.875MHz). 2) Connect the power meter to CN2 3) Adjust the power to 50mW by VR201 4) Connect the spectrum analyzer to CN2 5) Confirm that the spurious is at least 40dB lower than the carrier frequency 3.Adjustment of the transmitting frequency 1) Set the frequency to CH43-47 2) Connect the frequency counter to CN2 3) Adjust VC201 so that the frequency counter shows 649.875MHz 4.Adjustment of the AF modulation 1) Connect the RC Oscillator to CN101. 2) Set the oscillator output level -35dBu(The frequency is 1kHz) 3) Connect the AC voltmeter to TP101 and confirm the the voltmeter shows -16dBu. 4) Connect the linear detector to CN2. 5) Adjust VR103 so that the deviation level is plus-minus 20kHz 5.Adjustment of the AF peak indicator 1) Set the oscillator output level -23dBu(The frequency is 1kHz) 2)Confirm Peak LED(LED302) is glow. 6.Adjustment of the tone modulation 1) Set 120kHz(LPF) on the linear detector. 2) Adjust VR301 so that the deviation level becomes plus-minus 3.2kHz 7.Confirming of the battery indicator 1) Supply 2.1V to the transmitter. 2) Confirm the battery indicator turns on Red from Green. 8.Other confirming points 1) Set up the receiver for communication check 2) Connect the lavalier microphone to the transmitter and send the audio to check whether it operates correctly 3) Make an impact on the body and check whether the unit does not show any abnormal sound 4) Check the unit frequency range from 638.125 to 661.875MHz in 125kHz step 5) Factory default conditions - Power : off, Channel : 42-01,VR position:Center Azden corp. Adjusted date

3.FUNCTION REPORT DC Voltage and Current into Final Amplifier FINAL AMPLIFIER Q205 Freq=649.875MHz Power Supply = AA TYPE BATTERY X 2 (3.0V) Vce = 3.2V Ic = 30mA Each function of semiconductors MAIN BOARD REFERENCE NO.TYPECATEGORYFUNCTION IC104 NJM2100M(1/2)ICPRE EMPHASIS NJM2100M(2/2)ICMIC AF AMP IC303NJM2100MICAF LEVEL DETECT IC103TK10690MICCOMPRESSOR IC201MB15E03LPFVICPLL FREQUECY SYNTHESIZER LSI IC501XC9103D091MRICDC-DC CONVERTER IC IC203NJU7250F30ICVOLTAGE REGULATOR IC404NJU7250F30ICVOLTAGE REGULATOR IC401UPD789418AICCPU IC202SV650ETICVCO IC301TC7SU04FUICTONE OSC IC302TC7S66FUICANALOG SW IC402PST597KICRESET IC403M93C46-MN6ICMEMORY D201DA204UDIODEBACK CURRENT BLOCK D501MA111DIODEBACK CURRENT BLOCK D3011SS383DIODERECTIFICATION D502MA22D28DIODERECTIFICATION ZD101MAZ8056DIODELIMITTER ZD102MAZ8056DIODELIMITTER Q1052SA1312BLTRANSISTORAF AMP Q1032SC3324GTRANSISTORAF AMP Q1042SC3324GTRANSISTORAF AMP Q2052SC3356LTRANSISTORRF AMP Q2032SC4227TRANSISTORRF AMP Q2042SC4227TRANSISTORRF AMP Q5012SD1819RTRANSISTORPOWER SWITCH Q502SSM3J13TTRANSISTORPOWER SWITCH Q503XP161A1355PRTRANSISTORDC/DC CONVERTER DRIVE Q1232SA1588Y-ZYTRANSISTORAF MUTE Q122DTC114TUTRANSISTORAF MUTE Q121DTA143ZUTRANSISTORAF MUTE Q201DTA143ZUTRANSISTORVCO MUTE Q208DTC123JUATRANSISTORVCO MUTE Q206DTA143ZUTRANSISTORRF MUTE Q209DTC123JUATRANSISTORRF MUTE Q304DTA143ZUTRANSISTORPEAK LED SWITCH Q207DTC114TUTRANSISTORRF POWER SWITCH(DISABLED) Q302DTC114TUTRANSISTORPOWER LED SWITCH Q303DTC114TUTRANSISTORPOWER LED SWITCH LED302SML-A12DTLEDPEAK LED LED401SML-A12DTLEDLCD BACK LIGHT LED402SML-A12DTLEDLCD BACK LIGHT LED301CL-375HRYGLEDPOWER LED

FCC PART 74 WIRELESS MICROPHONE TEST REPORT APPLICANT AZDEN CORPORATION 1-12-17 KAMI-RENJAKU MITAKA, TOKYO JAPAN 181 FCC ID BZB2000BT PRODUCT DESCRIPTION UHF WIRELESS MICROPHONE DATE SAMPLE RECEIVED 7/6/2011 DATE TESTED 1/31/2011 TESTED BY Nam Nguyen APPROVED BY Mario de Aranzeta TIMCO REPORT NO. 1492AT11TestReport.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Certificate # 0955-01 Applicant: AZDEN CORPORATION FCC ID: BZB2000BT Report: A\AZDEN_BZB\1492AT11\1492AT11TestReport.doc Page 2 of 16 TABLE OF CONTENTS STATEMENT OF COMPLIANCE .................................................................................3 GENERAL INFORMATION .........................................................................................4 TEST PROCEDURES ................................................................................................6 RF POWER OUTPUT .................................................................................................7 MODULATION CHARACTERISTICS ...........................................................................8 VOICE MODULATED COMMUNICATION EQUIPMENT ...............................................9 OCCUPIED BANDWIDTH ........................................................................................ 11 FIELD STRENGTH OF SPURIOUS EMISSIONS ........................................................ 14 FREQUENCY STABILITY ......................................................................................... 15 EMC EQUIPMENT LIST .......................................................................................... 16 Applicant: AZDEN CORPORATION FCC ID: BZB2000BT Report: A\AZDEN_BZB\1492AT11\1492AT11TestReport.doc Page 3 of 16 STATEMENT OF COMPLIANCE This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. No modifications were made to the equipment during testing in order to demonstrate compliance with these standards. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Authorized by: Mario de Aranzeta C.E.T. Signature: Function: Compliance Engineer/ Lab. Supervisor Date: 7/25/11 Applicant: AZDEN CORPORATION FCC ID: BZB2000BT Report: A\AZDEN_BZB\1492AT11\1492AT11TestReport.doc Page 4 of 16 GENERAL INFORMATION RULES PART 2.1033 DUT TECHNICAL DESCRIPTION The test results relate only to the items tested. DUT Description UHF WIRELESS MICROPHONE FCC ID BZB2000BT Modulation FM Type of Emission 110KOF3E Bn = 2M+2DK M = 15000 D = 40 kHz (Peak Deviation) K = 1 Bn = 2(15k) + 2(40k)(1) = 110k Frequency Range (638.125 – 661.875) MHz Test Frequencies (638.125, 650.125, and 661.875) MHz Power range and controls DUT has no controls Maximum Output Power 0.032 Watts DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Applicant: AZDEN CORPORATION FCC ID: BZB2000BT Report: A\AZDEN_BZB\1492AT11\1492AT11TestReport.doc Page 5 of 16 GENERAL INFORMATION Test Facility Timco Engineering, Inc. 849 NW State Road 45, Newberry, FL 32669 Test Condition The temperature was 26ºC with a relative humidity of 50% . Modifications None Test Exercise (e.g software description, test signal, etc.) The DUT was placed in continuous transmit mode of operation. Applicable Standards TIA 603, FCC CFR 47 Parts 2 and 74 Applicant: AZDEN CORPORATION FCC ID: BZB2000BT Report: A\AZDEN_BZB\1492AT11\1492AT11TestReport.doc Page 6 of 16 TEST PROCEDURES Power Line Conducted Interference: The procedure used was TIA 603 using a 50uH LISN. Both lines were observed with the UUT transmitting. The bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. Bandwidth 20 dB: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW) = 1 MHz and the video bandwidth (VBW) = 3 MHz and the span set as shown on plot. Power Output: For a device with a fixed antenna, RF power is measured as ERP as the antenna is permanently attached. The substitution method was used as described in TIA-603- C. Antenna Conducted Emissions: The RBW = 100 kHz, VBW = 300 kHz and the span set to 10.0 MHz and the spectrum was scanned from 30 MHz to the 10 th Harmonic of the fundamental. Above 1 GHz the resolution bandwidth was 1 MHz and the VBW = 3 MHz and the span to 50 MHz. Radiation Interference: The test procedure used was TIA 603 using an Agilent spectrum receiver with pre-selector. The bandwidth (RBW) of the spectrum TIA 603 receiver was 100 kHz up to 1 GHz and 1 MHz above 1 GHz with an appropriate sweep speed. The VBW above 1 GHz was 3 MHz. The analyzer was calibrated in dB above a microvolt at the output of the antenna. Applicant: AZDEN CORPORATION FCC ID: BZB2000BT Report: A\AZDEN_BZB\1492AT11\1492AT11TestReport.doc Page 7 of 16 RF POWER OUTPUT Rule Part No.: Part 2.1046(a), Part 74 Test Requirements: Method of Measurement: For a device that has a permanently attached antenna, RF power is measured as ERP. The substitution method was used. With a nominal battery voltage, and the transmitter properly adjusted, the RF output measures: Test Setup Diagram: Test Data: OUTPUT POWER: 0.032 W Part 2.1033 (C)(8) DC Input into the final amplifier (3.0V)(0. 3A) = 0.9 Watts Applicant: AZDEN CORPORATION FCC ID: BZB2000BT Report: A\AZDEN_BZB\1492AT11\1492AT11TestReport.doc Page 8 of 16 MODULATION CHARACTERISTICS Rule Part No.: Part 2.1047(a)(b) Test Requirements: Method of Measurement: Audi…
