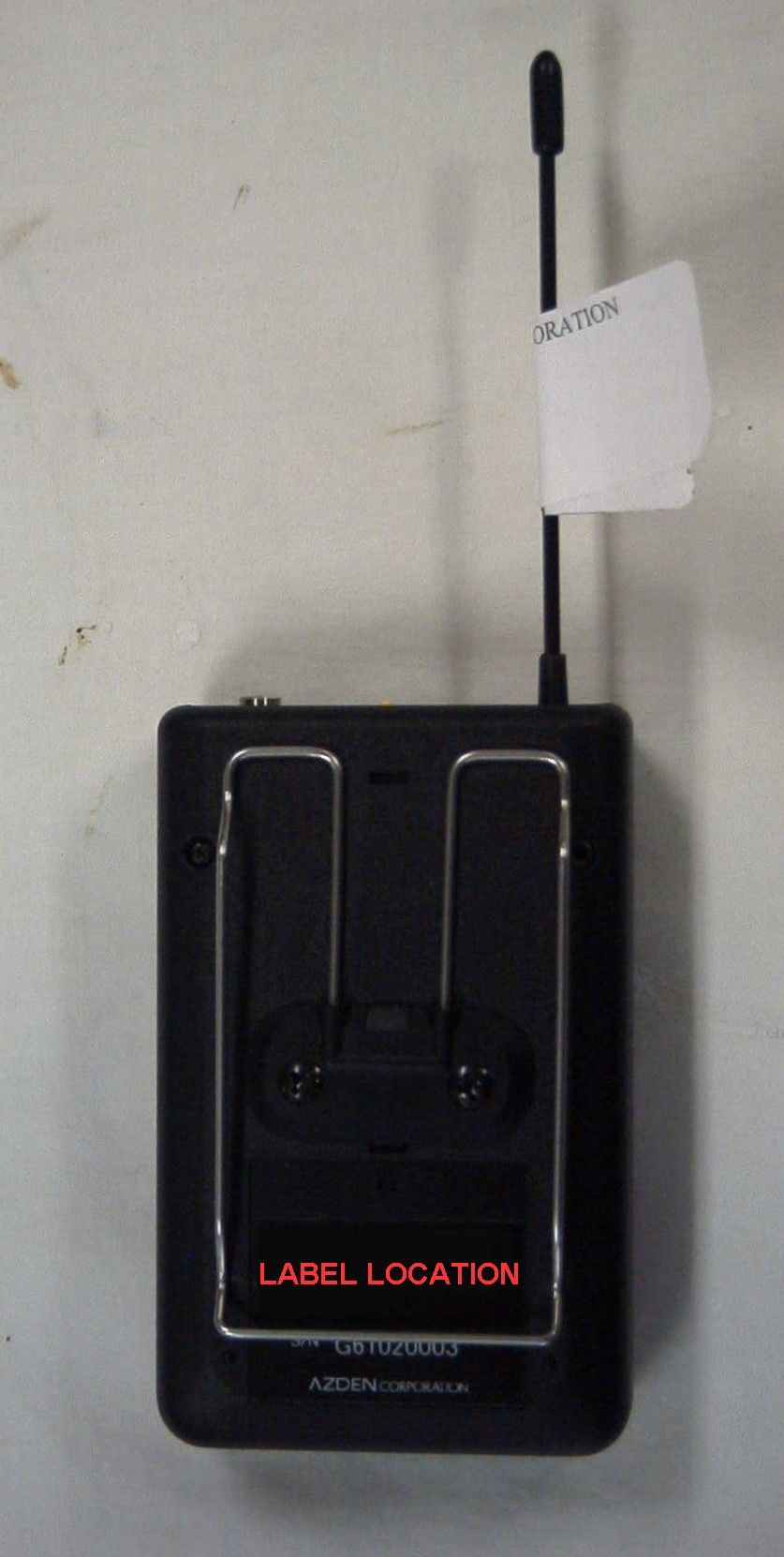

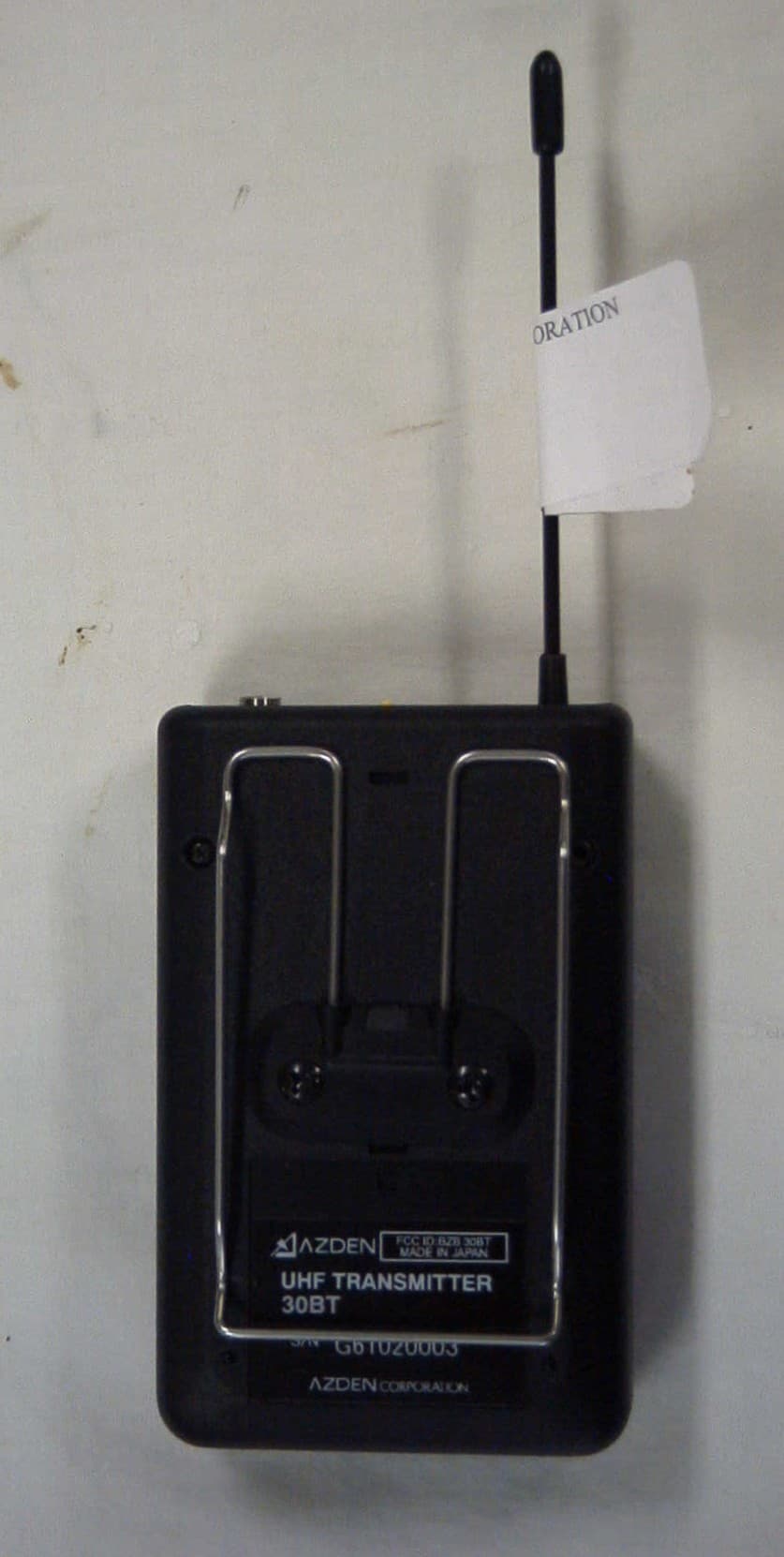

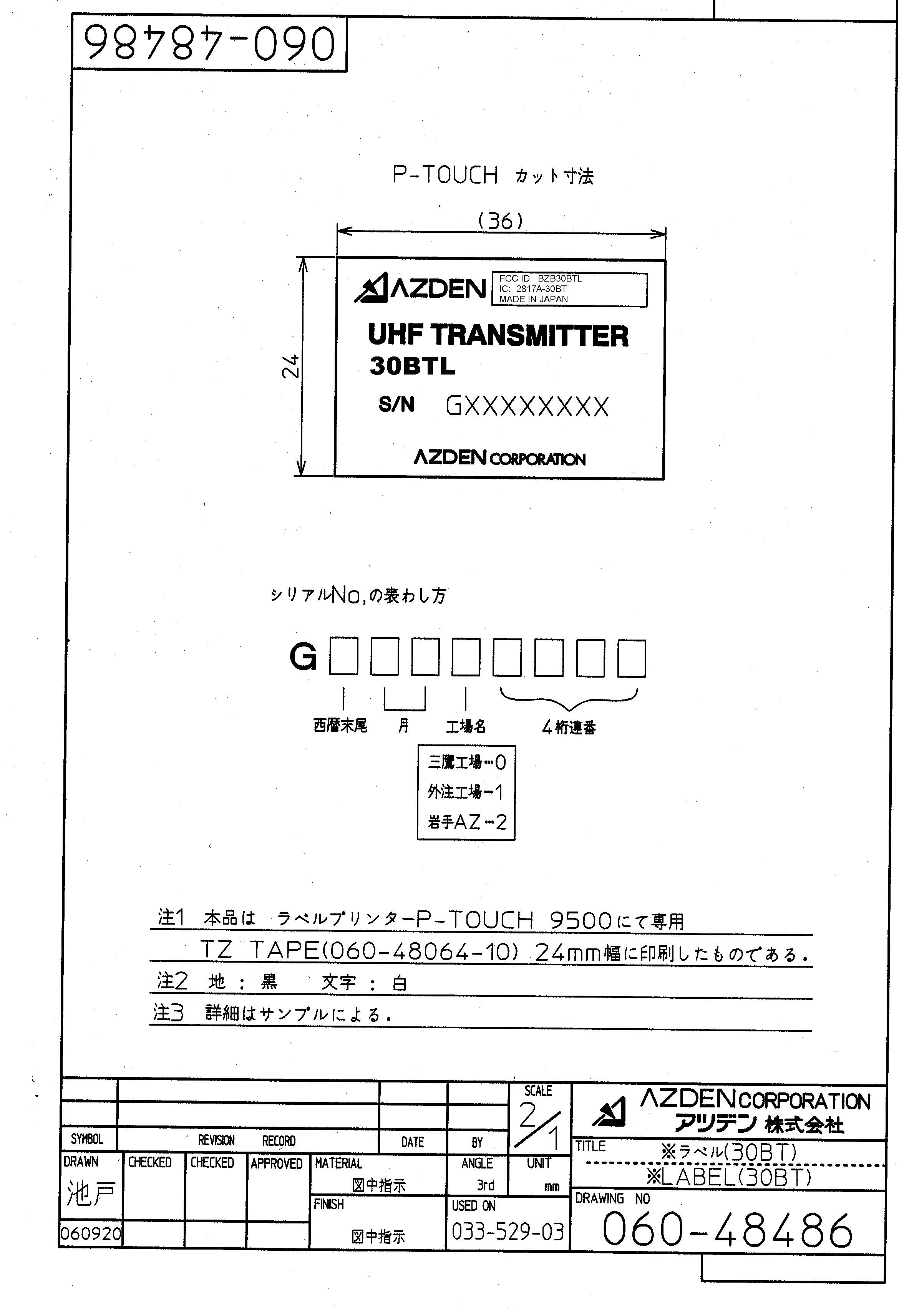

AZDEN CORP. FCC ID: BZB30BTL EXTERNAL PHOTOS
FCC Part 74 And Industry Canada RSS-123 Test Report APPLICANT AZDEN CORPORATION ADDRESS 1-12-17 KAMI-RENJAKU MITAKA, TOKYO 181 JAPAN FCC ID IC CERTIFICATION BZB30BTL 2817A-30BT MODEL NUMBER 30BTL PRODUCT DESCRIPTION Wireless Microphone DATE SAMPLE RECEIVED February 26, 2007 DATE TESTED March 19, 2007 TESTED BY Nam Nguyen APPROVED BY Mario de Aranzeta TIMCO REPORT NO. 481AUT7TestReport.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. Certificate #0955-01 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 Email: [email protected] Email: [email protected] HTTP://WWW.TIMCOENGR.COM APPLICANT: AZDEN CORPORATION FCCID: BZB30BTL IC: 2817A-30BT REPORT #: W:\A\AZDEN_BZB\481AUT7\481AUT7TestReport.doc TABLE OF CONTENTS AZDEN CORPORATION FCC ID: BZB30BTL TABLE OF CONTENTS LIST GENERAL INFORMATION REQUIRED FOR CERTIFICATION................................................ 2 RF POWER OUTPUT 2.1046........................................................................................................... 3 MODULATION CHARACTERISTICS 2.1047(a)(b):...................................................................... 4 OCCUPIED BANDWIDTH:.............................................................................................................. 6 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (conducted) 2.1051: ............................... 8 FIELD STRENGTH OF SPURIOUS EMISSIONS 2.1053(a)(b): ................................................... 9 FREQUENCY STABILITY 2.1055:............................................................................................... 11 EMC EQUIPMENT LIST ................................................................................................................ 12 APPLICANT: AZDEN CORPORATION FCCID: BZB30BTL IC: 2817A-30BT REPORT #: W:\A\AZDEN_BZB\481AUT7\481AUT7TestReport.doc Page 2 of 13 GENERAL INFORMATION REQUIRED FOR CERTIFICATION 2.1033(c)(1) AZDEN CORPORATION will manufacture the BZB30XT in quantity, for use under FCC RULES 2.1033(c)(2) RULES PART 74.801, LOW POWER AUXILIARY STATIONS. AZDEN CORPORATION 1-12-17 KAMI-RENJAKU MITAKA, TOKYO 181 JAPAN 2.1033 TECHNICAL DESCRIPTION (c)(4) Type of Emission: 110K0F3E Bn = 2M + 2DK M = 15000 D = 40 kHz( Peak Deviation) K = 1 Bn = 2(15k) + 2(40k)(1) = 110k ALLOWED AUTHORIZED BANDWIDTH = 200kHz. 74.861(e)(5) (c)(5) Frequency Range: Part 74: 723.00 - 735.00 MHz TEST FREQ = 723.00 MHz, 728.95 MHz, and 734.95 MHz (c)(6) Power Range and Controls: EUT has no controls. (c)(7) Maximum Output Power Rating: 0.018 Watts ERP (c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY INPUT POWER – (3.0V)(0.14A) = 0.42 Watts 2.1033 (c)(14) The data required by 2.1046 through 2.1057 is submitted below. APPLICANT: AZDEN CORPORATION FCCID: BZB30BTL IC: 2817A-30BT REPORT #: W:\A\AZDEN_BZB\481AUT7\481AUT7TestReport.doc Page 3 of 13 RF POWER OUTPUT 2.1046 RF power measured is: 0.018 WATTS ERP For a device with a fixed antenna, RF power is measured as ERP as the antenna is permanently attached. The substitution method was used as described in TIA-603-C. METHOD OF MEASUREMENT: The tabulated data shows the results of the radiated field strength emissions test. The spectrum was scanned from 30 MHz to at least the tenth harmonic of the fundamental. This test was conducted per ANSI/TIA 603-C:2004 using the substitution method. Measurements were made at the test site of Timco Engineering, Inc. located at 849 NW State Road 45, Newberry, FL 32669. APPLICANT: AZDEN CORPORATION FCCID: BZB30BTL IC: 2817A-30BT REPORT #: W:\A\AZDEN_BZB\481AUT7\481AUT7TestReport.doc Page 4 of 13 MODULATION CHARACTERISTICS 2.1047(a)(b): AUDIO FREQUENCY RESPONSE The audio frequency response was measured in accordance with ANSI/TIA 603- C:2004. The audio frequency response curve is shown below. Audio Frequency Response Plot MaxFreq.at1 ColorLine StyleThickDataAxis CyanSolid1Anlr.Level A!Norm alizeLeft -2 +5 -1 +0 +1 +2 +3 +4 d B 10020k2005001k2k5k10k Hz AUDIO LOW PASS FILTER The audio low pass filter is not required in this unit. APPLICANT: AZDEN CORPORATION FCCID: BZB30BTL IC: 2817A-30BT REPORT #: W:\A\AZDEN_BZB\481AUT7\481AUT7TestReport.doc Page 5 of 13 Modulation Limiting Plots: 10 KHz (Green), 2.5 KHz (Blue), and 300 Hz (Yellow) Color Line Style Thick DataAxis Green Solid 3 Anlr.Level ALeft Blue Solid 3 Anlr.Level ALeft Yellow Solid 3 Anlr.Level ALeft 37.0 k H z -40 +5-35 -30 -25-20-15-10-5 +0 dBu APPLICANT: AZDEN CORPORATION FCCID: BZB30BTL IC: 2817A-30BT REPORT #: W:\A\AZDEN_BZB\481AUT7\481AUT7TestReport.doc Page 6 of 13 OCCUPIED BANDWIDTH: Data in the plots show that all sidebands between 50 & 100% for the authorized bandwidth are attenuated by at least 25dB. From 100 to 250% of the authorize3d bandwidth they are attenuated by at least 35dB and beyond 250% 43 log(Po) dB. The plot shows the transmitter modulated with 15000 Hz(the highest modulation frequency), adjusted for 50% modulation plus 16 dB. The spectrum analyzer was set with the unmodulated carrier at the top of the screen. The test procedure diagram and occupied bandwidth plot follows. APPLICANT: AZDEN CORPORATION FCCID: BZB30BTL IC: 2817A-30BT REPORT #: W:\A\AZDEN_BZB\481AUT7\481AUT7TestReport.doc Page 7 of 13 Test procedure diagram OCCUPIED BANDWIDTH MEASUREMENT APPLICANT: AZDEN CORPORATION FCCID: BZB30BTL IC: 2817A-30BT REPORT #: W:\A\AZDEN_BZB\481AUT7\481AUT7TestReport.doc Page 8 of 13 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (conducted) 2.1051: Not Applicable no antenna connector. APPLICANT: AZDEN CORPORATION FCCID: BZB30BTL IC: 2817A-30BT REPORT #: W:\A\AZDEN_BZB\481AUT7\481AUT7TestReport.doc Page 9 of 13 FIELD STRENGTH OF SPURIOUS EMISSIONS 2.1053(a)(b): REQUIREMENTS: Emissions must be 43 +10log(Po) dB below the mean power output of the transmitter. 43 + 10 log(0.018) = 25.55dB TEST DATA: 723.00 MHz 728.95 MHz 734.95 MHz Emission Frequency MHz Ant. Polarity …
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 1 | 74.861 | 723 MHz - 735 MHz | 18.00 mW | 110K0F3 | 50.0000000000 ppm |

WIRELESS MICROPHONE
Equipment Class
TNF - Licensed Non-Broadcast Transmitter Held to Face
UHF WIRELESS MICROPHONE
Equipment Class
TBC - Licensed Broadcast Station Transmitter
HANDHELD WIRELESS MICROPHONE
Equipment Class
TBF - Licensed Broadcast Transmitter Held to Face
BELTPACK WIRELESS MICROPHONE
Equipment Class
TBT - Licensed Broadcast Transmitter Worn on Body
HANDHELD WIRELESS MICROPHONE
Equipment Class
TBF - Licensed Broadcast Transmitter Held to Face
