BZB30BTBELTPACK WIRELESS MICROPHONE

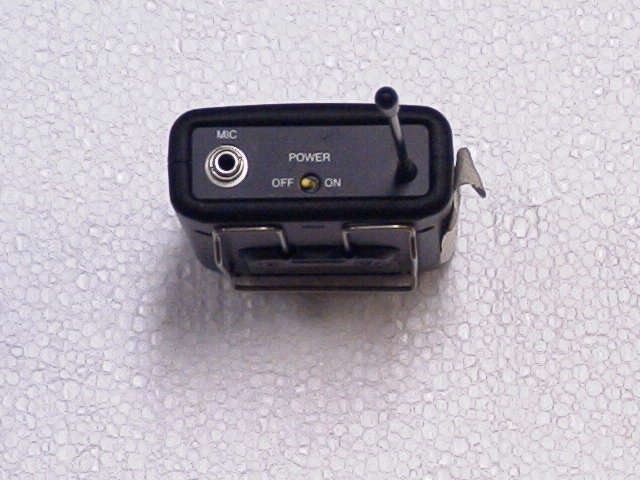

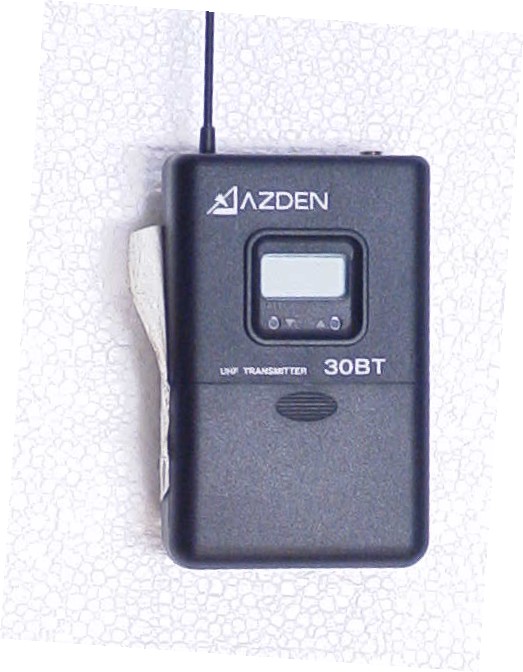

AZDEN CORPORATION FCC ID: BZB30BT EXTERNAL PHOTOS

AZDEN CORPORATION FCC ID: BZB30BT INTERNAL PHOTOS

30BT Tuning Procedure 1) VCO adjustment a) Set a frequency at CH001. b) Connect DC volt-meter to TP1. c) Adjust VC101 until DC volt-meter shows at 0.9V. d) Set a frequency at CH240 and then make sure a DC volt-meter shows at less than 2.1V. 2) RF Output power adjustment a) Set a frequency at CH121. Disconnect an antenna. Set SW2 at CN5. b) Connect a spectrum analyzer and a power meter to CN5. c) Adjust VC2 to minimize a spurious with maintaining carrier. d) Make sure the spurious should be less than 40dB less than carrier. e) Adjust VC3 until power shows at 15mW. 3) TX Frequency adjustment a) Set a frequency at CH 121. b) Connect a frequency counter to CN5. c) Adjust VC1 until frequency counter shows at 800.000MHz + 2kHz. 4) AF Deviation adjustment a) Connect an oscillator output to mic terminal. (Should use 10μF/16V capacitor between them and + side should be connected to mic terminal.) b) Set the output of oscillator at -60dBm at 1kHz. c) Adjust VR1 until level of TP4 become at -33dBm. d) Adjust VR2 until deviation become at 5.0kHz + 0.5kHz. e) Adjust VR5 until one AF level meter (5pcs small square) is shown. 5) Tone modulation adjustment a) Turn off the Audio. b) Connect terminal TP6 to ground. c) Adjust VR4 until the deviation become 3.0kHz + 0.2kHz. d) After adjustment should to set SW2 at antenna.

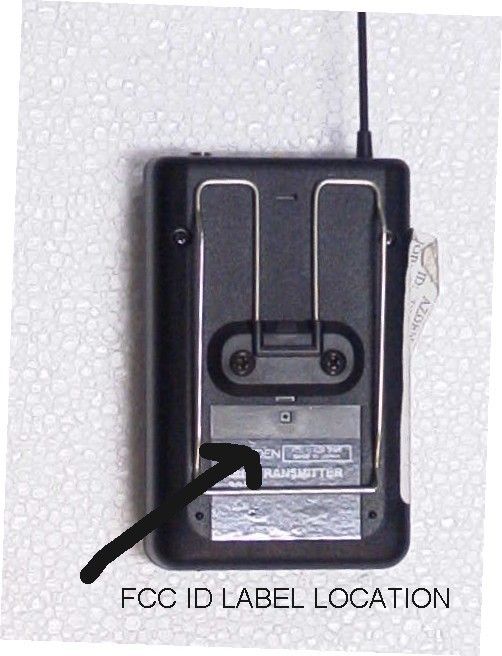

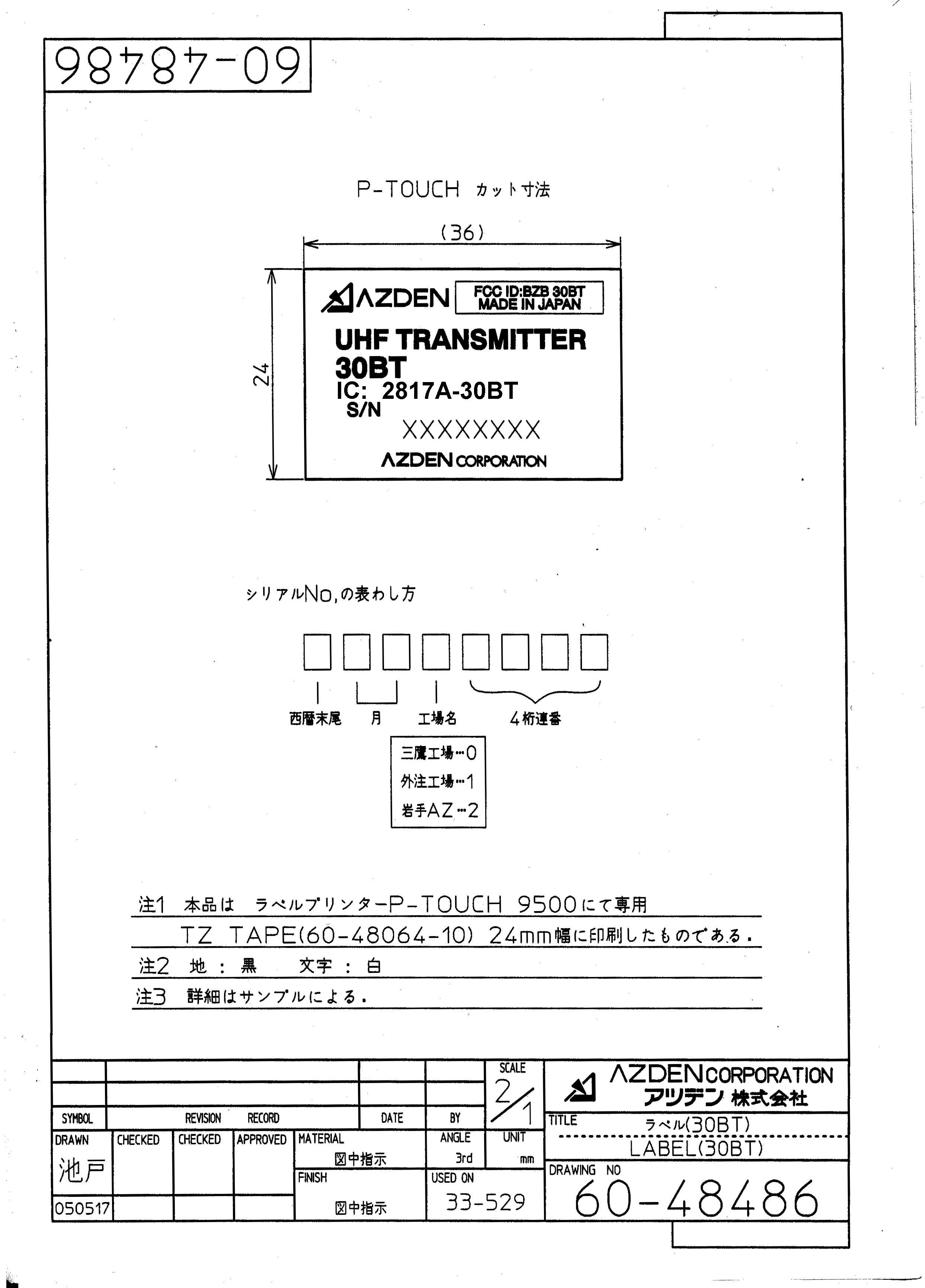

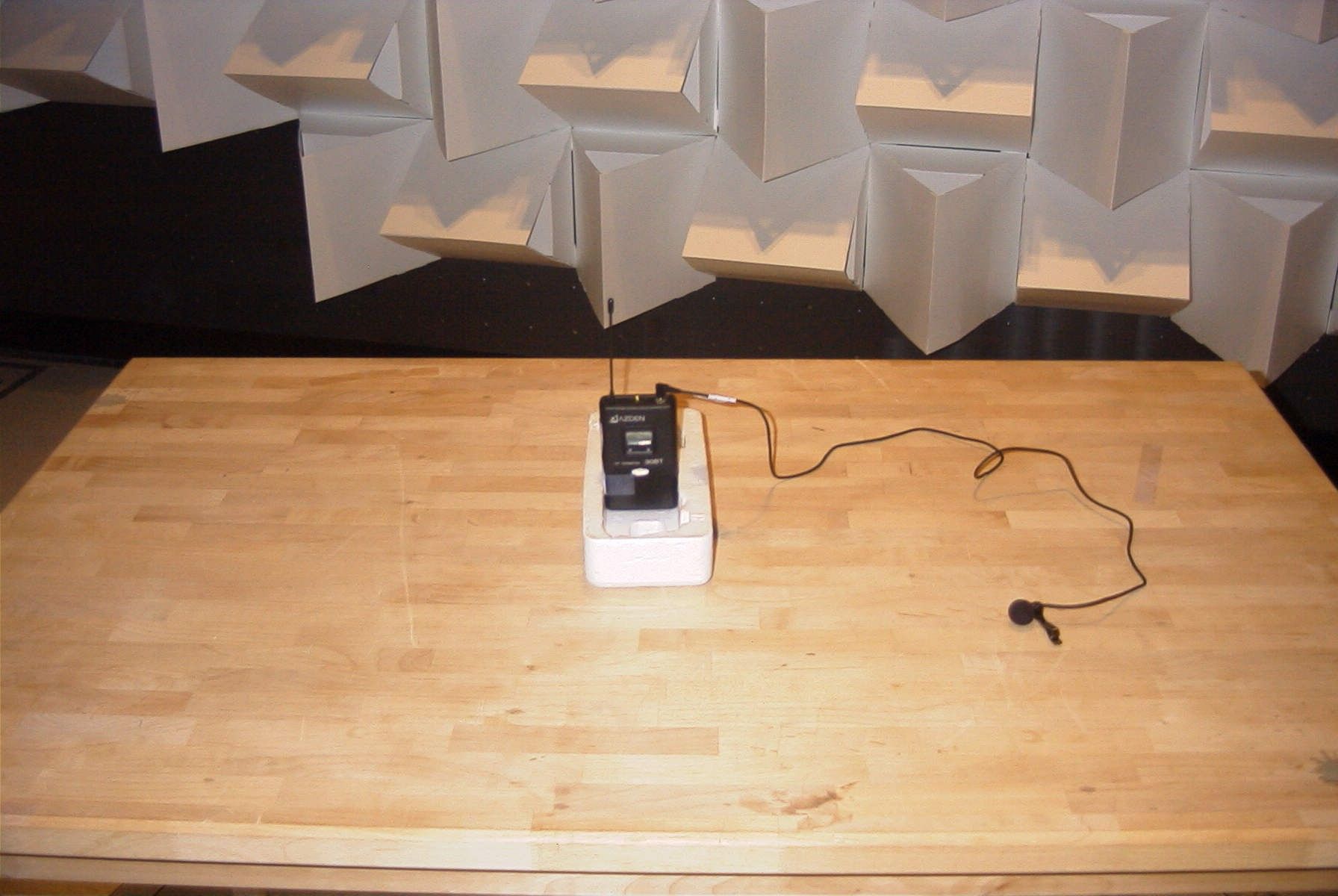

APPLICANT: AZDEN CORPORATION FCCID: BZB30BT REPORT #: A\AZDEN\1249AUT5\1249AUT5TestReport.doc TABLE OF CONTENTS APPLICANT: AZDEN CORPORATION FCC ID: BZB30BT TABLE OF CONTENTS LIST TEST REPORT CONTAINING: PAGE 1-2........GENERAL INFORMATION AND RF POWER OUTPUT PAGE 3..........AUDIO FREQUENCY RESPONSE PLOT PAGE 4..........MODULATION LIMITING PLOT PAGE 5-6........OCCUPIED BANDWIDTH PAGE 7-8........RADIATED EMISSIONS TEST DATA & TEST PROCEDURE PAGE 9..........FREQUENCY STABILITY TEST DATA PAGE 10.........EQUIPMENT LIST EXHIBITS CONTAINING: FCC ID LABEL SAMPLE & ID LABEL LOCATION BLOCK DIAGRAM SCHEMATICS TUNING PROCEDURE CIRCUIT DESCRIPTION USER'S MANUAL TEST SET UP PHOTOGRAPH EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS PARTS LIST APPLICANT: AZDEN CORPORATION FCCID: BZB30BT REPORT #: A\AZDEN\1249AUT5\1249AUT5TestReport.doc Page 1 of 10 GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.1033(c)(1) AZDEN CORPORATION will manufacture the BZB30BT in 2.1033(c)(2) quantity, for use under FCC RULES PART 74.801, LOW POWER AUXILIARY STATIONS. AZDEN CORPORATION 1-12-17 KAMI-RENJAKU MITAKA, TOKYO, 181, JAPAN 2.1033 TECHNICAL DESCRIPTION (c)(3) Instruction book. The instruction manual is included as an Exhibit (c)(4) Type of Emission: 100K0F3E Bn = 2M + 2DK M = 20000 D = 45kHz(Peak Deviation) K = 1 Bn = 2(10k) + 2(40k)(1) = 100k ALLOWED AUTHORIZED BANDWIDTH = 200kHz. 74.861(e)(5) (c)(5) Frequency Range: Part 74: 794-806 MHz (c)(6) Power Range and Controls: UNIT has no controls. (c)(7) Maximum Output Power Rating: 0.033 Watts into 50 ohms resistive load. (c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY 3.0V Vce = 3.0 Volts Ice = 0.14 A. 0.42 WATTS INPUT (c)(9) Tune-up procedure. The tune-up procedure is included. (c)(10) Schematic and Block Diagram are included. APPLICANT: AZDEN CORPORATION FCCID: BZB30BT REPORT #: A\AZDEN\1249AUT5\1249AUT5TestReport.doc Page 2 of 10 2.1033(c)11) Sample of FCC ID Label and sketch of location is included. 2.1033(c)12) Photos of Equipment – Internal and External photos of the equipment are included. (c)(13) Description of all circuitry and devices provided for determining and stabilizing frequency is included in the exhibits. Limiting Power: There is no provision for limiting power. (13) Digital modulation. This unit does not use digital modulation. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is sub- mitted below. 2.1046 RF power output. RF power measured is: OUTPUT POWER: .033 WATTS R.F. POWER OUTPUT TEST PROCEDURE Radiated via substitution method APPLICANT: AZDEN CORPORATION FCCID: BZB30BT REPORT #: A\AZDEN\1249AUT5\1249AUT5TestReport.doc Page 3 of 10 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in accordance with TIA/EIA Specification 603. The audio frequency response curve is shown below. Audio Frequency Response MaxFreq.at1 ColorLine StyleThickDataAxis BlueSolid2Anlr.Level A!Norm alizeLeft -2 +4 -0 +2 d B 10020k2005001k2k5k10k Hz AUDIO LOW PASS FILTER The audio low pass filter is not required in this unit. APPLICANT: AZDEN CORPORATION FCCID: BZB30BT REPORT #: A\AZDEN\1249AUT5\1249AUT5TestReport.doc Page 4 of 10 2.1047(a)(b) Modulation characteristics: MODULATION LIMITING PLOT APPLICANT: AZDEN CORPORATION FCCID: BZB30BT REPORT #: A\AZDEN\1249AUT5\1249AUT5TestReport.doc Page 5 of 10 2.1049(c) Occupied Bandwidth: Data in the plots show that all sidebands between 50 & 100% for the authorized bandwidth are attenuated by at least 25dB. From 100 to 250% of the authorize3d band- width they are attenuated by at least 35dB and beyond 250% 43 log(Po) dB. The plot shows the transmitter modulated with 15000 Hz(the highest modulation frequen- cy), adjusted for 50% modulation plus 16 dB. The spectrum analyzer was set with the un-modulated carrier at the top of the screen. The test procedure diagram and occupied bandwidth plot follow. Wireless Microphone transmitter: Test procedure diagram OCCUPIED BANDWIDTH MEASUREMENT REQUIREMENT: PART 74: 200kHz EMISSION BANDWIDTH. APPLICANT: AZDEN CORPORATION FCCID: BZB30BT REPORT #: A\AZDEN\1249AUT5\1249AUT5TestReport.doc Page 6 of 10 2.1049(c) Occupied Bandwidth: APPLICANT: AZDEN CORPORATION FCCID: BZB30BT REPORT #: A\AZDEN\1249AUT5\1249AUT5TestReport.doc Page 7 of 10 2.1051 Spurious emissions at antenna terminals (conducted): Not Applicable no antenna connector. 2.1053(a)(b) Field strength of spurious emissions: NAME OF TEST: RADIATED SPURIOUS EMISSIONS REQUIREMENTS: Emissions must be 43 +10log(Po) dB below the mean power output of the transmitter. 43 + 10 log(0.033) = 28.19 dB TEST DATA: Emission Frequency MHz Ant. Polarity dB Below Carrier (dBc) 794.00V 0 1588.00V 45.81 2382.00H 37.78 3176.00H 39.32 3970.00H 44.97 4764.00H 35.52 5558.00H 29.65 6352.00H 36.28 7146.00H 37.79 7940.00H 51.66 Emission Frequency MHz Ant. Polarity dB Below Carrier (dBc) 800.00V 0 1600.00V 48.11 2400.00H 39.62 3200.00H 35.32 4000.00H 47.07 4800.00H 35.47 5600.00H 29.3 6400.00H 38.51 7200.00H 36.75 8000.00H 41.04 APPLICANT: AZDEN CORPORATION FCCID: BZB30BT REPORT #: A\AZDEN\1249AUT5\1249AUT5TestReport.doc Page 8 of 10 2.1053(a)(b) Field strength of spurious emissions: NAME OF TEST: RADIATED SPURIOUS EMISSIONS Emission Frequency MHz Ant. Polarity dB Below Carrier (dBc) 806.00V 0 1612.00H 49 2418.00H 38.96 3224.00H 32.51 4030.00H 47.03 4836.00H 38.21 5642.00H 30.45 6448.00H 37.45 7254.00H 37.11 8060.00H 39.99 METHOD OF MEASUREMENT: The procedure used was TIA/EIA STANDARD 603. The spectrum was scanned from 30 to at least the tenth harmonic of the fundamental using a HP model 8566B spectrum analyzer and an appro- priate antenna. Measurements were made at the open field test site of TIMCO ENGINEERING INC. located at 849 NW SR 45 Newberry, Florida 32669. Method of Measuring Radiated Spurious Emissions APPLICANT: AZDEN CORPORATION FCCID: BZB30BT REPORT #: A\AZDEN\1249AUT5\1249AUT5TestReport.doc Page 9 of 10 2.1055 Frequency stability: S74.861(e)(4) -----------------------------…
