C5F7NF0009VCR with DVD Player

DV6T811N [Hi-Fi] DVD-VIDEO PLAYER Owner’s Manual uIn the initial settings, exclusive channel for DVD/Video is set to CH 3. Set the TV channel to CH3 before using it. uRegion code of DVD/Video player for home is 1 or ALL. In inserting a disc with other region code, it does not operate. Please only use a disc with region code 1 or ALL. uis a ‘Prohibition’ mark. If this mark is displayed in operating the product, please wait for a while, then use it. If "Prohibition" mark continues to be displayed in pressing a button after that, it means the button does not function in the currently played disc. uPress a product button on the REMOTE then use the product. • DVD operation : [DVD] button • Video operation : [VCR] button DVD-Video(USA)_DV6T811N-LT 02.4.16 4:40 PM ̆`A Product Information 1 Important Safeguards CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying the appliance. WARNING :TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION :TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. IMPORTANT FOR LASER PRODUCTS • LASER:This Digital Video Disc Player employs a Laser System. To ensure proper use of this product please read this owner’s manual carefully and retain for future reference. Should the unit require maintenance, contact an authorized service location - see service procedure. Use of control adjustments or the performance of procedures other than those specified may result in hazardous radiation exposure. To prevent direct exposure to the laser beam, do not try to open the enclosure. Visible laser radiation when open and interlocks defeated. DO NOT STARE INTO THE BEAM. • DANGER: Visible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. • CAUTION: Do not open the top cover. There are no user serviceable parts inside the Unit; leave all servicing to qualified service personnel. CLASS 1 LASER PRODUCT FCC NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rule. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception; which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experience radio/TV technical for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Any changes or modification in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. DV6T811N-LT(GB) 02.4.19 5:26 PM ̆`1 2 This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation, use and servicing. This unit is fully transistorized and does not contain any parts that can be repaired by the user. 1 READ INSTRUCTIONS All the safety and operating instructions should be read before the unit is operated. 2 RETAIN INSTRUCTIONS The safety and operating instructions should be retained for future reference. 3 HEED WARNINGS All warnings on the unit and in the operating instructions should be adhered to. 4 FOLLOW INSTRUCTIONS All operating and use instructions should be followed. 5 CLEANING Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 6 ATTACHMENTS Do not use attachments unless recommended by the unit’s manufacturer as they may cause hazards. 7 WATER AND MOISTURE Do not use this unit near water- for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool and the like. Caution : Maintain electrical safety. Powerline operated equipment or accessories connected to this unit should bear the UL listing mark or CSA certification mark on the accessory itself and should not be modified so as to defeat the safety features. This will help avoid any potential hazard from electrical shock or fire. If in doubt, contact qualified service personnel. 8 ACCESSORIES Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury to a child or adult as well as serious damage to the unit. Use this unit only with a cart, stand , tripod, bracket, or table recommended by the manufacturer. 8A A unit and ca…

Text truncated - open the document above for the full version.

AUDIO BLOCK DIAGRAM Input SelectDecoder Select TUNERTUNERTUNER CINCHEXT1(LINE1) EXT1EXT1(LINE1)PB (Hi-Fi) INPUTMUTE DVDEXT2(DVDP)MUTE SAP Line SelectSWITCHING IC AUXAUX (LINE2)EXT2(DVDP) dub mix Normal Hi-Fi IC (IC251) Normal OUT (PIN NO.21)Normal IN (PIN NO.22) (IC 252) OUTPUT (JK101 and JK102) RECORDING DIGITAL AUDIO BLOCK DIAGRAM From MPEG DECODER System CLOCKA/V IC Shift CLOCKIC301 Left and Right CLOCK(For REC.) L+R Mix Circuit DATA1Main L OUTOP-AMPSWITCHING IC Main R OUTICD03IC252 SPDIFOPTICAL out JK106 Hex Inverter Gates IC IC 102COAXIAL out JK107 2 CHANNEL D/A CONVERTER IC (ICD01) VIDEO BLOCK DIAGRAM POWER SUPPLY BLOCK DIAGRAM T801 TSW-DV6T90 SERVO & SYSCON BLOCK DIAGRAM

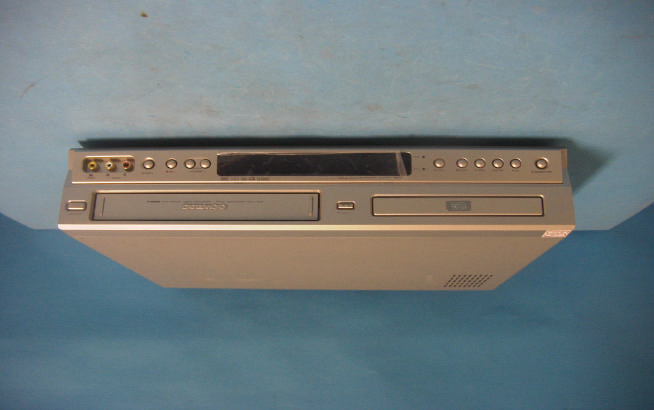

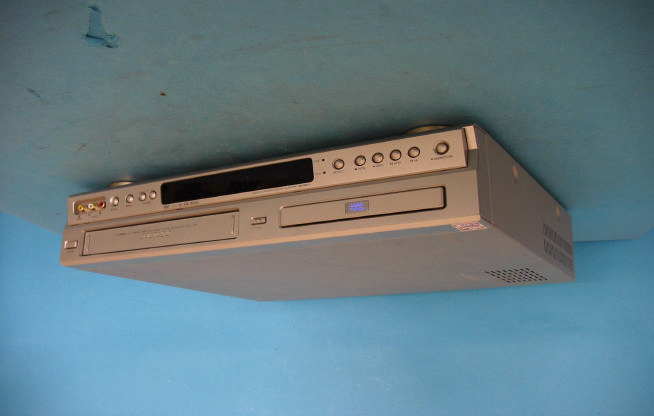

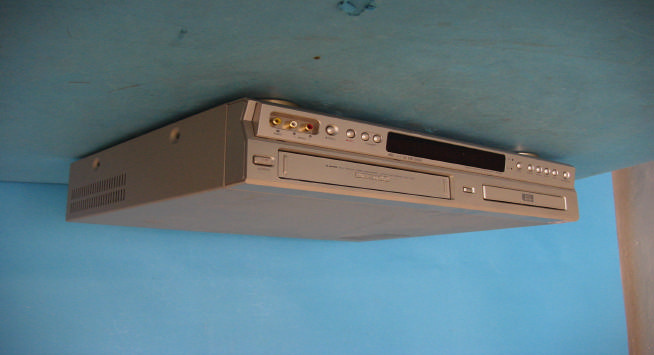

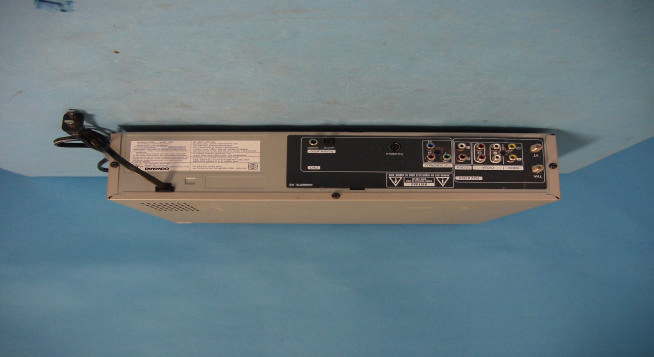

IST Co., Ltd . EMC LABORATORY External Photos.Ref.No : 02-IST-068 1 of 3 The DUT photos Front View Rear View IST Co., Ltd . EMC LABORATORY External Photos.Ref.No : 02-IST-068 2 of 3 The DUT photos Side View Side View IST Co., Ltd . EMC LABORATORY External Photos.Ref.No : 02-IST-068 3 of 3 The DUT photos Bottom View

IST Co., Ltd . EMC LABORATORY Label Location.Ref.No : 02-IST-068 1 of 1 Label Sample Label Location Label Location

IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 02-IST-068 1 of 18 The DUT photos Inner Top View Inner Top View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 02-IST-068 2 of 18 The DUT photos VCR Deck Top View VCR Deck Bottom View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 02-IST-068 3 of 18 The DUT photos Main Board PCB Parts View Main Board PCB Copper View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 02-IST-068 4 of 18 The DUT photos DVD Deck Top View DVD Deck Bottom View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 02-IST-068 5 of 18 The DUT photos MPEG Board PCB Parts View MPEG Board PCB Copper View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 02-IST-068 6 of 18 The DUT photos Power Board PCB Parts View Power Board PCB Copper View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 02-IST-068 7 of 18 The DUT photos Control Panel PCB Parts View Control Panel PCB Copper View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 02-IST-068 8 of 18 The DUT photos Top Cover/Inner Front Inner Bottom IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 02-IST-068 9 of 18 Tuner photos(LGTMI-US2-S) Front View Rear View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 02-IST-068 10 of 18 Tuner photos(LGTMI-US2-S) Inner View Inner View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 02-IST-068 11 of 18 Tuner photos(ALTMI-US3-S) Front View Rear View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 02-IST-068 12 of 18 Tuner photos(ALTMI-US3-S) Inner View Inner View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 02-IST-068 13 of 18 Tuner photos(LGTMI-US4-S) Front View Rear View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 02-IST-068 14 of 18 Tuner photos(LGTMI-US4-S) Inner View Inner View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 02-IST-068 15 of 18 Tuner photos(SSTMI-US3-S) Front View Rear View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 02-IST-068 16 of 18 Tuner photos(SSTMI-US3-S) Inner View Inner View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 02-IST-068 17 of 18 Tuner photos(SATMI-US4-S) Front View Rear View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 02-IST-068 18 of 18 Tuner photos(SATMI-US4-S) Front View Rear View

IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 1 of 112 Certification of Compliance CFR 47 Part 15 Subpart B Test Report File No. : 02-IST-068 Date of Issue : 19,April,2002 Model(s) : DV6T811N / DAEWOO : DRC6000N / THOMSON Kind of Product : Video Cassette Recorder with DVD Player(TV Interface Device) Applicant : Daewoo Electronics Co., Ltd. Address : 543, Dangjung-Dong, Kunpo-City, Kyonggi-Do 435-030, Korea Manufacturer : Daewoo Electronics Co., Ltd. Address : 295, Gondan-dong, Kumi-city, Kyungsangbuk-do, Korea Test Result Positive Negative Reviewed By Approved By J.H. Lee / General Manager G. Chung / Chief - The test report with appendix consists of 112 pages. - The test result only responds to the tested sample. - It is not allowed to copy this report even partly without the allowance of IST EMC Laboratory. - This equipment as for has been shown to be capable of continued compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4 1992. IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 2 of 112 TABLE OF CONTENTS Table of contents 2 Information of test laboratory, Environmental condition, Power used 3 Descriptions of test 4-6 Conducted Emission 4 Radiated Emission 5 Output Signal level measurements 6 Output Terminal Conducted Spurious Emission 6 Transfer Switch Isolation Measurement 6 Summary 7 Test Conditions and Data - Emission Conducted Emission 0.45MHz - 30MHz Test equipment / Data and Plots 8-48 Radiated Emission 30MHz - 1GHz Test equipment / Data and Plots 49-50 Output Signal level measurements Test equipment / Data and Plots 51-76 Output Terminal Conducted Spurious Emission 30MHz - 1GHz Test equipment / Data and Plots 77-89 Transfer Switch Isolation Measurement 30MHz - 1GHz Test equipment / Data and Plots 90-102 Information OF TUNERS Manufacture Manufacture Name Daewoo Model Name LG Innotek Co., Ltd TADC-H101F LGTMI-US2-S Korea Alps Co., Ltd TMDH2-A50A ALTMI-US3-S LG Innotek Co., Ltd TADC-H301F LGTMI-US4-S SAMSUNG Electric Co., Ltd TCMN0682PA13B SSTMI-US3-S SANYO Electric Co., Ltd VD065AW SATMI-US4-S Appendix A. The preliminary test results 103 -112 IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 3 of 112 INFORMATIONS OF TEST LABORATORY EMC LABORATORY of IST Co., Ltd.(FCC Filing Lab) San 21-8, Goan-Ri, Baekam-Myun, Yongin-City Kyonggi-Do, 449-860, Korea TEL : +82 31 333 4093 FAX : +82 31 333 4094 ENVIRONMENTAL CONDITIONS Temperature 16 Humidity 43 % Atmospheric pressure 998 mbar POWER SUPPLY SYSTEM USED Power supply system 120Vac , 60Hz PRODUCT INFORMATIONS Power supply system 120Vac / 60Hz Power consumption 24W Video signal EIA STANDARD NTSC COLOR RF input impedance 75 ohm Unbal. (U/V one input) RF output impedance 75 ohm Unbal. VHF output signal Channel 3 or 4 (selectable) Video input signal Phono type 1.0 0.2Vp-p sync negative 75 ohms unbalanced Video output signal Phono type 1.00.2Vp-p sync negative 75 ohms unbalanced Audio input signal Phono type, -8.8dBm, more then 47k ohms unbalanced Audio output signal Phono type -8.8dBm(VCR) 2Vrms(DVD), less then 1k ohms unbalanced VCR system Hi-Fi Rotary Double Azimuth 4 heads helical scanning system. DVD system DVD, VCD, CD, MP3, CD-R, CD-RW Playback system - EMC suppression device is not used during the test. - Please refer to user’s manual. IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 4 of 112 DESCRIPTIONS OF TEST Conducted Emissions: The measurement were performed over the frequency range of 0.45MHz to 30MHz using a 50/50uH LISN as the input transducer to a Spectrum Analyzer or a Field Intensity Meter. The measurements were made with the detector set for "Peak" amplitude within an bandwidth of 10KHz or for "quasi-peak" within a bandwidth of 9KHz. - Procedure of Test The line-conducted facility is located inside a shielded room No.1. A 1m X 1.5m wooden table 80cm height is placed 40cm away from the vertical wall and 1.5m away from the other wall of the shielded room. The R/S ESH3-Z5 and EMCO 3825/2 LISN are bonded to bottom of the shielded room. The EUT is located on the wooden table with distance more than 80cm from the LISN and powered from the EMCO LISN .The peripheral equipment is powered from the other LISN. Power to the LISNs are filtered by a noise cut power line filters. All electrical cables are shielded by braided tinned steel tubing with inner φ 1.2cm. If the EUT is a DC-powered device, power will be derived from the source power supply it normally will be powered from and this supply lines will be connected to the EMCO LISN. All interconnecting cables more than 1m were shortened by non-inductive bundling to a 1m length. Sufficient time for the EUT, support equipment, and test equipment was allowed in order for them to warm up to their normal operating conditions. The RF output of the LISN was connected to the R/S receiver to determine the frequency producing the maximum emission from the EUT. The frequency producing the maximum level was reexamined using Quasi-Peak mode by manual measurement, after scanned by automatic Peak mode for frequency range from 0.45 to 30MHz. The bandwidth of the receiver was set to 10kHz. The EUT, peripheral equipment, and interconnecting cables were arranged and manipulated to maximize each EME emission. 215 >150>40 80 Receiver EUT LISN 80 ≥ 80 80 40 ≥ 80 Measuring apparatus Mains Filter Mains Front side Equipment under test Coaxial cable Artificial mains network Screened room Non-metallic support 80 < Side View > < Concept Drawing > IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 5 of 112 DESCRIPTION OF TEST Radiated Emissions: The measurement was performed over the frequency range of 30MHz to 1GHz using antenna as the input transducer to a Spectrum analyzer or a Field Intensity Meter. The measurement was made with the detector set for "quasi-peak" within a bandwidth of 120KHz. - Procedure of Test Preliminary measurements were ma…

Text truncated - open the document above for the full version.

IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 51 of 112 TEST CONDITIONS AND DATA Output Signal Level Measurements Test Equipment Used Model Name Manufacturer Description Next Cal. Date 8566B Hewlett Packard Spectrum Analyzer Jul. 13, 2002 85685A Hewlett Packard RF preselector Jul. 13, 2002 RAM Rohde & Schwarz Matching Pad Sep. 21, 2002 External Peripherals Device Description Model Name Manufacture FCC Compliance Information TV Receiver F19430 Daewoo Verification Test Program Playback and record mode Test Area Compact Chamber Note : Limit Calculations For Video Signal 346.4 X 75 1/2 = 2999uV = 69.54dBuV = -37.46 dBm For Audio Signal 77.5 X 75 1/2 = 671.17uV = 56.53dBuV = -50.46 dBm The test were performed with color bar as VITS. The VITS signals, 1V and 5V peak-to-peak, were used for channel 3 and channel 4 with alternate. The above test program were employed for each channel. Find the test data in following page(s) 52 to 76. IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 52 of 112 Output Signal Level Measurements TV CH. Freq.(MHz) Level(dBuV) Limit(dBuV) Mode Margin(dB) 3(Pix) 61.28 59.6 69.54 Playback -9.94 3(Aud) 57.70 26.7 56.53 Playback -29.83 3(Pix) 61.28 57.6 69.54 Record -11.94 3(Aud) 56.77 27.1 56.53 Record -29.43 4(Pix) 67.28 57.4 69.54 Playback -12.14 4(Aud) 62.77 43.2 56.53 Playback -13.33 4(Pix) 67.27 57.5 69.54 Record -12.04 4(Aud) 62.75 43.2 56.53 Record -13.33 Output Signal Tabulated Data with Tuner (LG Innotek Co., Ltd. Model: LGTMI-US2-S) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 53 of 112 Output Signal Level Measurements TV CH. Freq.(MHz) Level(dBuV) Limit(dBuV) Mode Margin(dB) 3(Pix) 61.28 59.9 69.54 Playback -9.64 3(Aud) 65.81 41.6 56.53 Playback -14.93 3(Pix) 61.29 56.6 69.54 Record -12.94 3(Aud) 65.80 41.5 56.53 Record -15.03 4(Pix) 67.26 56.6 69.54 Playback -12.94 4(Aud) 62.73 41.8 56.53 Playback -14.73 4(Pix) 67.26 56.8 69.54 Record -12.74 4(Aud) 62.75 41.7 56.53 Record -14.83 Output Signal Tabulated Data with Tuner (Korea Alps Model: ALTMI-US3-S) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 54 of 112 Output Signal Level Measurements TV CH. Freq.(MHz) Level(dBuV) Limit(dBuV) Mode Margin(dB) 3(Pix) 61.28 57.6 69.54 Playback -11.94 3(Aud) 65.81 43.4 56.53 Playback -13.13 3(Pix) 61.27 57.4 69.54 Record -12.14 3(Aud) 65.81 43.5 56.53 Record -13.03 4(Pix) 67.27 57.7 69.54 Playback -11.84 4(Aud) 62.74 43.5 56.53 Playback -13.03 4(Pix) 67.27 57.7 69.54 Record -11.84 4(Aud) 62.75 43.5 56.53 Record -13.03 Output Signal Tabulated Data with Tuner (LG Innotek Co., Ltd. Model: LGTMI-US4-S) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 55 of 112 Output Signal Level Measurements TV CH. Freq.(MHz) Level(dBuV) Limit(dBuV) Mode Margin(dB) 3(Pix) 61.28 59.4 69.54 Playback -10.14 3(Aud) 56.76 42.7 56.53 Playback -13.83 3(Pix) 61.28 59.5 69.54 Record -10.04 3(Aud) 65.80 42.5 56.53 Record -14.03 4(Pix) 67.27 59.4 69.54 Playback -10.14 4(Aud) 62.76 42.7 56.53 Playback -13.83 4(Pix) 67.27 59.3 69.54 Record -10.24 4(Aud) 62.75 42.7 56.53 Record -13.83 Output Signal Tabulated Data with Tuner (Samsung Electric Co., Ltd. Model: SSTMI-US3-S) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 56 of 112 Output Signal Level Measurements TV CH. Freq.(MHz) Level(dBuV) Limit(dBuV) Mode Margin(dB) 3(Pix) 61.27 59.0 69.54 Playback -10.54 3(Aud) 56.74 43.5 56.53 Playback -13.03 3(Pix) 61.28 60.2 69.54 Record -9.34 3(Aud) 56.76 44.6 56.53 Record -11.93 4(Pix) 67.28 59.6 69.54 Playback -9.94 4(Aud) 62.76 44.2 56.53 Playback -12.33 4(Pix) 67.28 59.7 69.54 Record -9.84 4(Aud) 62.77 43.8 56.53 Record -12.73 Output Signal Tabulated Data with Tuner (Sanyo Electronic Co., Ltd. Model: SATMI-US4-S) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 57 of 112 Output Signal Level Measurements Tuner: LGTMI-US2-S CH3 Playback (Pix) CH3 Playback (Aud) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 58 of 112 Output Signal Level Measurements Tuner: LGTMI-US2-S CH3 Record (Pix) CH3 Record (Aud) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 59 of 112 Output Signal Level Measurements Tuner: LGTMI-US2-S CH4 Playback (Pix) CH4 Playback (Aud) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 60 of 112 Output Signal Level Measurements Tuner: LGTMI-US2-S CH4 Record (Pix) CH4 Record (Aud)) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 61 of 112 Output Signal Level Measurements Tuner: ALTMI-US3-S CH3 Playback (Pix) CH3 Playback (Aud) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 62 of 112 Output Signal Level Measurements Tuner: ALTMI-US3-S CH3 Record (Pix) CH3 Record (Aud) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 63 of 112 Output Signal Level Measurements Tuner: ALTMI-US3-S CH4 Playback (Pix) CH4 Playback (Aud) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 64 of 112 Output Signal Level Measurements Tuner: ALTMI-US3-S CH4 Record (Pix) CH4 Record (Aud) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 65 of 112 Output Signal Level Measurements Tuner: LGTMI-US4-S CH3 Playback (Pix) CH3 Playback (Aud) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 66 of 112 Output Signal Level Measurements Tuner: LGTMI-US4-S CH3 Record (Pix) CH3 Record (Aud) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 67 of 112 Output Signal Level Measurements Tuner: LGTMI-US4-S CH4 Playback (Pix) CH4 Playback (Aud) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 68 of 112 Output Signal Level Measurements Tuner: LGTMI-US4-S CH4 Record (Pix) CH4 Record (Aud) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 69 of 112 Output Signal Level Measurements Tuner: SSTMI-US3-S CH3 Playback (Pix) CH3 Playback (Aud) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 70 of 112 Output Signal Level Measurements Tuner: SSTMI-US3-S CH3 Record (Pix) CH3 Record (Aud) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 71 of 112 Output Signal Level Measurements T…

Text truncated - open the document above for the full version.

IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 81 of 112 Output Terminal Conducted Spurious Emission Tuner: LGTMI-US2-S CH4 Playback CH4 Record IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 82 of 112 Output Terminal Conducted Spurious Emission Tuner: ALTMI-US3-S CH3 Playback CH3 Record IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 83 of 112 Output Terminal Conducted Spurious Emission Tuner: ALTMI-US3-S CH4 Playback CH4 Record IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 84 of 112 Output Terminal Conducted Spurious Emission Tuner: LGTMI-US4-S CH3 Playback CH3 Record IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 85 of 112 Output Terminal Conducted Spurious Emission Tuner: LGTMI-US4-S CH4 Playback CH4 Record IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 86 of 112 Output Terminal Conducted Spurious Emission Tuner: SSTMI-US3-S CH3 Playback CH3 Record IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 87 of 112 Output Terminal Conducted Spurious Emission Tuner: SSTMI-US3-S CH4 Playback CH4 Record IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 88 of 112 Output Terminal Conducted Spurious Emission Tuner: SATMI-US4-S CH3 Playback CH3 Record IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 89 of 112 Output Terminal Conducted Spurious Emission Tuner: SATMI-US4-S CH4 Playback CH4 Record IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 90 of 112 TEST CONDITIONS AND DATA Transfer Switch Isolation Measurement Test Equipment Used Model Name Manufacturer Description Next Cal. Date 8566B Hewlett Packard Spectrum Analyzer Jul. 13, 2002 85685A Hewlett Packard RF preselector Jul. 13, 2002 RAM Rohde & Schwarz Matching Pad Sep. 21, 2002 PM5515 Philips Pattern Generator Jun. 20, 2002 External Peripherals Device Description Model Name Manufacture FCC Compliance Information TV Receiver F19430 Daewoo Verification Test Program Playback and record mode Test Area Compact Chamber Note : Transfer switch isolation measurements were made on the Channel 3 and 4 video output frequencies of 61.25 and 67.25 MHz and both position of the transfer switch. Limit calculation(Sec 15.115 (c)(1)(ii)) 0.346 X 75 1/2 = 2.996uV = 9.53dBuV = -97.46dBm The test were performed with color bar as VITS. The VITS signals, 1V and 5V peak-to-peak, were used for channel 3 and channel 4 with alternate. The above test program were employed for each channel. Find the test data in following page(s) 91 to 102. IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 91 of 112 Transfer Switch Isolation Measurement TV CH Freq.(MHz) Level(dBuV) Limit(dBuV) Mode Margin(dB) 3 61.25 5.62 9.53 Play -3.91 3 61.25 5.60 9.53 Record -3.93 4 67.25 6.01 9.53 Play -3.52 4 67.25 5.97 9.53 Record -3.56 Transfer Switch Tabulated Data with Tuner (LG Innotek Co., Ltd. Model: LGTMI-US2-S) TV CH Freq.(MHz) Level(dBuV) Limit(dBuV) Mode Margin(dB) 3 61.25 5.54 9.53 Play -3.99 3 61.25 5.51 9.53 Record -4.02 4 67.25 6.12 9.53 Play -3.41 4 67.25 6.05 9.53 Record -3.48 Transfer Switch Tabulated Data with Tuner (ALPS Electric Model: ALTMI-US3-S) TV CH Freq.(MHz) Level(dBuV) Limit(dBuV) Mode Margin(dB) 3 61.25 5.64 9.53 Play -3.89 3 61.25 5.59 9.53 Record -3.94 4 67.25 5.92 9.53 Play -3.94 4 67.25 5.93 9.53 Record -3.60 Transfer Switch Tabulated Data with Tuner (LG Innotek Co., Ltd. Model: LGTMI-US4-S) TV CH Freq.(MHz) Level(dBuV) Limit(dBuV) Mode Margin(dB) 3 61.25 5.84 9.53 Play -3.69 3 61.25 5.80 9.53 Record -3.73 4 67.25 5.69 9.53 Play -3.84 4 67.25 5.64 9.53 Record -3.89 Transfer Switch Tabulated Data with Tuner (Samsung Electronic Co., Ltd. Model: SSTMI-US3-S) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 92 of 112 Transfer Switch Isolation Measurement TV CH Freq.(MHz) Level(dBuV) Limit(dBuV) Mode Margin(dB) 3 61.25 5.96 9.53 Play -3.57 3 61.25 5.92 9.53 Record -3.61 4 67.25 5.80 9.53 Play -3.73 4 67.25 5.76 9.53 Record -3.77 Transfer Switch Tabulated Data with Tuner (Sanyo Electronic Co., Ltd. Model: SATMI-US4-S) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 93 of 112 Transfer Switch Isolation Measurement Tuner: LGTMI-US2-S CH3 Playback CH3 Record IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 94 of 112 Transfer Switch Isolation Measurement Tuner: LGTMI-US2-S CH4 Playback CH4 Record IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 95 of 112 Transfer Switch Isolation Measurement Tuner: ALTMI-US3-S CH3 Playback CH3 Record IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 96 of 112 Transfer Switch Isolation Measurement Tuner: ALTMI-US3-S CH4 Playback CH4 Record IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 97 of 112 Transfer Switch Isolation Measurement Tuner: LGTMI-US4-S CH3 Playback CH3 Record IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 98 of 112 Transfer Switch Isolation Measurement Tuner: LGTMI-US4-S CH4 Playback CH4 Record IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 99 of 112 Transfer Switch Isolation Measurement Tuner: SSTMI-US3-S CH3 Playback CH3 Record IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 100 of 112 Transfer Switch Isolation Measurement Tuner: SSTMI-US3-S CH4 Playback CH4 Record IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 101 of 112 Transfer Switch Isolation Measurement Tuner: SATMI-US4-S CH3 Playback CH3 Record IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 102 of 112 Transfer Switch Isolation Measurement Tuner: SATMI-US4-S CH4 Playback CH4 Record IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 103 of 112 Appendix A. Preliminary Test Data (Tuner: LGTMI-US2-S) CH3 Playback low-range CH3 Playback high-range CH4 Record low-range CH4 Record high-range IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 02-IST-068 104 of 112 Appendix A. Preliminary Test Data (Tuner: LGTMI-US2-S) DVD Playback low-range DVD Playback high-range DVD Playback and VCR Record low-range DVD Playback and VCR Record high-range IST Co., Ltd. EMC LABOR…

Text truncated - open the document above for the full version.

IST Co., Ltd. EMC LABORATORY Test Setup Photos. Ref. No: 02-IST-068 1 of 2 Test Setup Photos – Radiated Emissions Front View Rear View IST Co., Ltd. EMC LABORATORY Test Setup Photos. Ref. No: 02-IST-068 2 of 2 Test Setup Photos – Conducted Emissions Front View Rear View
