C5F7NF1CMO900NMicrowave Oven

WINIA Electronics Co., Ltd.

Click to zoom

Application Details

Equipment Class: 8CC - Part 18 Consumer Device
Date of Grant: Nov 23, 2014
Application Purpose: Original Equipment
Date of Application: Nov 23, 2014
Equipment Note: Microwave Oven
Frequency Range: 2400.00000000 - 2500.00000000
Company: WINIA Electronics Co., Ltd.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

vviissiioonn@ @ ccrreeaattiivveeLL@ @ iinnccNN ʷۉࣃ ΂ĸܞ ړԷ VѨݖ ێΟӂ˱ Tࠚ ABOUT THIS MANUAL ABOUT THIS MANUAL ɽʁ ɮ ݘ֪ď Ҹ͗ ̋ daewoo ضش شٙ fN@ @ model kocMQcRrWa bN@ @ model kocMQcRrWa b@ @ u@ @ y@ @ e@ @ r costco country ېլ Ĺܿ memo ߭TR ِ͊ߏ vision ɽɽʁʁ іОր telZ WSPMPVVP@faxZ WSPMSWXX QTNPYNRVMहݖL@QL@VL@WL@XL@YL@QPL@QQL@QRL@QSL@QTL@QUL QVL@QWL@QXL@QYL@RPL@RQL@RRL@RSL@RTL@RUL RVL@RWL@RXL@SU@֭Ŕ RV QTNPYNRYMहݖL@QL@RL@SL@TL@UL@VHचݖێ ߻ÃIL@WHचݖێ ߻ ÃIL@YL@QPL@QQL@QRL@QSL@QTL@QUHचݖێ ߻ÃIL QVHचݖێ ߻ÃIL@QWL@QXL@QYL@RRL@RSL@RTL@RUL RVL@RWL@RXL@RYL@SPL@STL@TPր܄@֭Ŕ SP QTNPYNSPMQL@XTQ@ր܄@֭Ŕ SU QTNQPNSPMTP@ր܄@֭Ŕ SU@H࢚ێৣ ɮI OWNER’S MANUAL MULTI-FUNCTION OVEN KOC-1C2R7A Before operating this oven, please read these manual completely. For safe use to avoid possible risk of tipping the oven, do not put heavy utensils or food on the door and tip the door. TABLE OF CONTENTS • FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT ...........2 • GROUNDING INSTRUCTIONS .................................2 • INSTALLATION ..........................................................3 • IMPORTANT SAFETY INSTRUCTIONS................... 4 • GENERAL USE ..........................................................5 • COOKING UTENSILS ................................................6 • WHICH UTENSILS CAN BE USED IN THE OVEN?. 7 • CONTROL PANEL .................................................... 8 • DISPLAY WINDOW................................................... 9 • ACCESSORIES....................................................... 10 • MEAT/FISH...............................................................11 • VEGETABLES .........................................................12 • DESSERT.................................................................13 • MELT/SOFTEN ........................................................14 • COOKING MENU CHART .......................................15 • POPCORN................................................................17 • MICROWAVE COOK............................................... 18 • SPEEDY COOK........................................................19 • CONVECTION COOK (Without Preheating) ............20 • CONVECTION COOK (With Preheating) .................21 • BROIL COOK ...........................................................22 • COMBINATION COOK (Microwave + Convection) ..23 • AUTO DEFROST (Weight Defrost with Microwave Feature) ................24 • AUTO DEFROST (Time Defrost with Microwave Feature) ...................25 • PROOFING (with Convection Feature) ....................26 • TIMER ......................................................................27 • STEAM CLEANING (with Microwave Feature).........28 • DEODORIZATION (with Convection Feature)..........29 • MEMORY COOK (with Microwave Feature).............30 • SETTING THE MEMORY COOK .............................31 • SETTING THE CLOCK ............................................32 • DISABLE THE CLOCK .............................................33 • POWER SAVE MODE .............................................34 • REMINDER...............................................................34 • CHILD LOCK ............................................................34 • TO STOP THE OVEN WHILE THE OVEN IS OPERATING ........................................................... 34 • ABNORMAL MESSAGES ........................................34 • ARCING....................................................................34 • GENERAL GUIDELINES..........................................35 • CARE OF YOUR MICROWAVE OVEN....................36 • KEEP THE OVEN CLEAN........................................37 • BEFORE CALLING FOR SERVICE .........................38 • QUESTIONS AND ANSWERS................................ 39 • SPECIFICATIONS....................................................40 • DISPOSAL OF USED ELECTRICAL & ELECTRONIC EQUIPMENT....................................40 • COOKING INSTRUCTIONS.....................................41 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the dooropen since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any objectbetween the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged.It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d)The oven should not be adjusted or repaired by anyone except properly qualified service personnel. (e) WARNING :It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. (f) WARNING :Liquids and other foods must not be heated in sealed containers since they are liable to explode. (g) WARNING :Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use. (h) WARNING : When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperature generated. (if provided) 2 FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, the grounding plug reduces the risk of electric shock by providing an escape wire for electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. WARNING: This equipment generates and…

Text truncated - open the document above for the full version.

Block Diagram

FCC ID: C5F7NF1CMO9ØØN

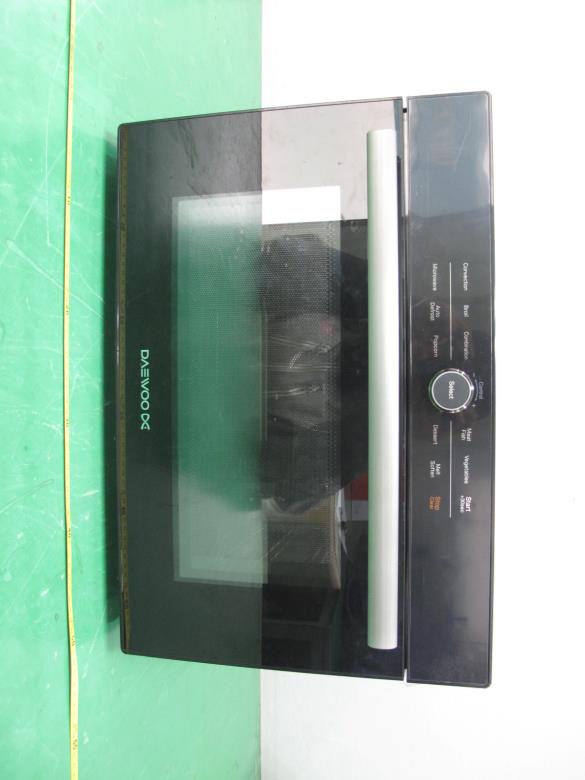

External Photos

Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 52 of 72 APPENDIX C – EUT PHOTOGRAPHS  Front View of EUT Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 53 of 72  Rear View of EUT

ID Label/Location Info

Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 46 of 72 APPENDIX A – SAMPLE LABEL The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.  FCC ID Location of EUT Labeling Requirements

Internal Photos

Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 54 of 72  Door open View of EUT Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 55 of 72  Inside View of EUT Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 56 of 72  Front View of Main Board Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 57 of 72  Rear View of Main Board Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 58 of 72  Front View of Magnetron Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 59 of 72  Rear View of Magnetron Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 60 of 72  Front View of H.V Trans Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 61 of 72  Rear View of H.V Trans Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 62 of 72  Front View of H.V Capacitor Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 63 of 72  Rear View of H.V Capacitor Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 64 of 72  Front View of Front Board Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 65 of 72  Rear View of Front Board Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 66 of 72  Front View of Noise Filter Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 67 of 72  Rear View of Noise Filter Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 68 of 72  Front View of Stirrer Motor Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 69 of 72  Rear View of Stirrer Motor

Operational Description

■ OPERATION DESCRIPTION After main power supply, When we press Start button, DC 5V enter the micom of Control panel and Main relay on and then High voltage circuit formed. DC 4KV be create by combination of H.V Transformer, H.V Capacitor and H.V Diode. This high voltage, DC 4KV get into Magnetron and then Microwave generate.

Parts List/Tune Up Info

Parts Manufacturer 1 MAGNETRONTOSHIBA 2 TRANS H.V.DPC 3 CAPACITOR H.V.BICAI 4 DIODE H.V.GAOXING 5 STIRRER MOTORELENSYS 6 BLOWER MOTOR오성 7 CONVECTION MOTO R오성 8 INTERLOCK SWITCHGERSUNG 1. Electrical Components SPEC. 16 A, 125/250 V ac 120V 60HZ OEB-2509X1 2M2542M254 DYAS80A0-1C A S 2100VAC 1.05UF #187 CL01-12 SM16F -FY26T1FY 120V 60HZ OEM-10DWX1-T09

Schematics

WIRING DIAGRAM ( SCHEMATICS ) FCC ID: C5F7NF1CMO9ØØN

Schematics

WIRING DIAGRAM ( SCHEMATICS ) FCC ID: C5F7NF1CMO9ØØN

Test Report

Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 2 of 72 TABLE OF CONTENTS SCOPE INTRODUCTION (Site Description) EUT INFORMATION DESCRIPTION OF TESTS (Radiation Hazard) DESCRIPTION OF TESTS (Input Power Measurement) DESCRIPTION OF TESTS (RF Output Power Measurement) DESCRIPTION OF TESTS (Operating Frequency Measurements) DESCRIPTION OF TESTS (Conducted Emissions) DESCRIPTION OF TESTS (Radiated Emissions) TEST DATA (Radiation Hazard) TEST DATA (Input Power Measurement) TEST DATA (RF Output Power Measurement) TEST DATA (Operating Frequency Measurements) TEST DATA (Conducted Emissions) TEST DATA (Radiated Emissions) PLOT OF EMISSIONS (Operating Frequency Measurements) ACCURACY OF MEASUREMENT LIST OF TEST EQUIPMENT APPENDIX A - SAMPLE LABEL APPENDIX B - PHOTOGRAPHS OF TEST SET-UP APPENDIX C - EUT PHOTOGRAPHS APPENDIX D - SCHEMATIC DIAGRAM APPENDIX E - USER’S MANUAL APPENDIX F - BLOCK DIAGRAM 3 4 5 6 6 6 6 7 8 9 9 9 10 12 15 22 42 45 46 47 52 70 71 72 Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 3 of 72 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 18. Responsible Party : Contact Person : Manufacturer : Factory : Dongbu Daewoo Electronics Corporation Mr. Byungseok Kim Tel No.: + 82 32 510 7919 Dongbu Daewoo Electronics Corporation (Cheongcheon-dong), 12, Bupyeongbuk-ro 236 beon-gil, Bupyeong-gu, Incheon, Korea Dongbu Daewoo Microwave Oven (Tianjin) Co., Ltd. NO. 34, CHANGHWA STREET, DAGANG DEVELOPMENT AREA, BINHAI NEW DISTRICT, TIANJIN, 300270 CHINA  FCC ID: C5F7NF1CMO900N  Model: KOC-1C2R  Trade Mark: DAEWOO  EUT Type: Microwave Oven  Applied Standard:  Test Procedure(s):  Dates of Test:  Place of Tests:  Test Report No.: FCC Part 18 & Part 2 MP-5:1986 October 01, 2014 to November 12, 2014 Nemko Korea Co., Ltd. EMC Site NK-14-E-822 Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 4 of 72 INTRODUCTION The measurement procedure described in MP5:1986 for Methods of Measurement of radiated, powerline conducted radio noise, frequency and power output was used in determining emissions emanating from Dongbu Daewoo Electronics Corporation FCC ID : C5F7NF1CMO900N, Microwave Oven. These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory. The site address is 155 & 159, Osan-Ro, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-852 KOREA, REPUBLIC OF The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18 miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to FCC Part 2. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab and Incheon Airport. ☜ Nemko Korea Co., Ltd. 155 & 159, Osan-Ro, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-852 KOREA, REPUBLIC OF Tel) + 82 31 330 1700 Fax) + 82 31 322 2332 Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 5 of 72 EUT INFORMATION EUT Information Type of appliance Counter-top Type Electric Rating : a.c. 120 V, 60 ㎐ Single Phase Magnetron Type : 2M254 (TOSHIBA) Operating Frequency : 2450 ㎒ ± 50 ㎒ Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 6 of 72 DESCRIPTION OF TESTS Radiation Hazard A 700 ㎖ water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. Input Power Measurement A 700㎖ water load was placed in the center of the oven and the oven set to maximum power. A 700 ㎖ water load was chosen for its compatibility. Input power and current were measured using a Power Analyzer. Manufacturers to determine their input ratings commonly use this procedure. Output Power Measurement The Caloric Method was used to determine maximum output power. The initial temperature of a 1000 ㎖ water load was measured. The water load was placed in the center of the oven. The oven was operated at maximum output power for 47 seconds. Then the temperature of the water re-measured. Frequency Measurements Following the above test, after operating the oven long enough to assure that stable operating temperature were obtained, the operating frequency was monitored as the input voltage was varied between 80 percent to 125 percent of the nominal rating. And the load quantity was reduced by evaporation to approximately 20 % of the original quantity with nominal rating. Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 7 of 72 DESCRIPTION OF TESTS Conducted Emissions The Line conducted emission test facility is located inside a 4 x 7 x 2.5 m shielded enclosure. It is manufactured by EM engineering. The shielding effectiveness of the shielded room is in accordance with MIL-STD-285 or NSA 65-6. A 1 m x 1.5 m wooden table 0.8 m height is placed 0.4 m away from the vertical wall and 0.5 m away from the side of wall of the shielded room Rohde & Schwarz (ESH2-Z5) of the 50 ohm / 50 uH Line Impedance Stabilization Network(LISN) is bonded to the shielde…

Text truncated - open the document above for the full version.

Test Setup Photos

Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 47 of 72 APPENDIX B – PHOTOGRAPHS OF TEST SET-UP The Conducted Test Picture and Radiated Test Picture and show the worst-case configuration and cable placement. ● Radiation hazard Test Picture  Operating Frequency Test Picture Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 48 of 72  Conducted Test Picture (Front)  Conducted Test Picture (Rear) Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 49 of 72  Radiated Test Picture : 0.15 ㎒ ~ 30 ㎒ (Front)  Radiated Test Picture : 0.15 ㎒ ~ 30 ㎒ (Rear) Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 50 of 72  Radiated Test Picture : 30 ㎒ ~ 1 ㎓ (Front)  Radiated Test Picture : 30 ㎒ ~ 1 ㎓ (Rear) Test Report No.: NK-14-E-822 FCC Certification Dongbu Daewoo Electronics Corporation FCC ID: C5F7NF1CMO900N Page 51 of 72  Radiated Test Picture : 1 ㎓ ~ 18 ㎓ (Front)  Radiated Test Picture : 1 ㎓ ~ 18 ㎓ (Rear)
