C5F7NF0011VCR/DVD Player

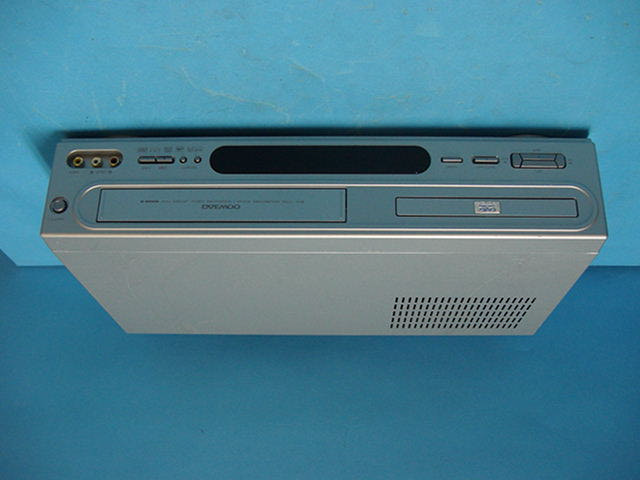

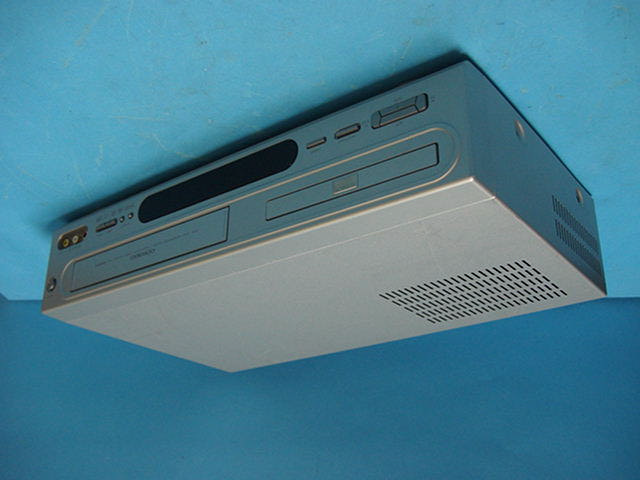

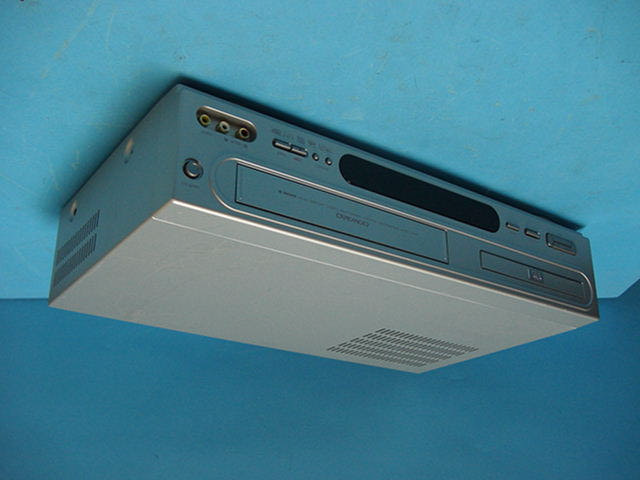

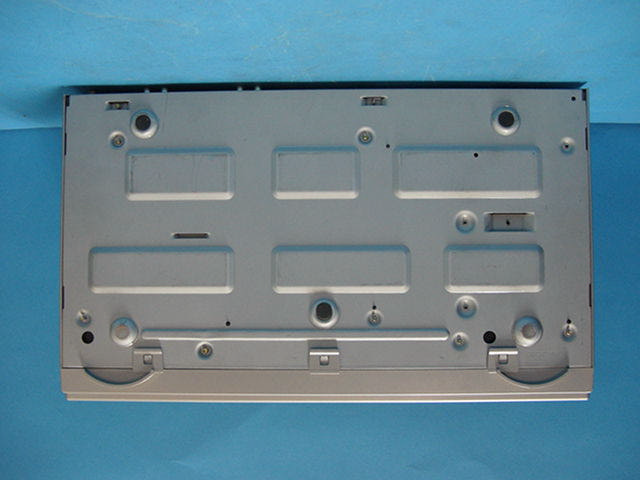

IST Co., Ltd . EMC LABORATORY External Photos.Ref.No : 03-IST-073 1 of 3 The DUT photos Front View Rear View IST Co., Ltd . EMC LABORATORY External Photos.Ref.No : 03-IST-073 2 of 3 The DUT photos Side View Side View IST Co., Ltd . EMC LABORATORY External Photos.Ref.No : 03-IST-073 3 of 3 The DUT photos Bottom View

IST Co., Ltd . EMC LABORATORY Label Location.Ref.No : 03-IST-073 1 of 1 Label Sample Label Location Label Location

IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 03-IST-073 1 of 14 The DUT photos Inner Top View Inner Top View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 03-IST-073 2 of 14 The DUT photos VCR Deck Top View VCR Deck Bottom View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 03-IST-073 3 of 14 The DUT photos Main Board PCB Parts View Main Board PCB Copper View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 03-IST-073 4 of 14 The DUT photos DVD Deck Top View DVD Deck Bottom View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 03-IST-073 5 of 14 The DUT photos Power Board PCB Parts View Power Board PCB Copper View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 03-IST-073 6 of 14 The DUT photos Control Panel PCB Parts View Control Panel PCB Copper View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 03-IST-073 7 of 14 The DUT photos AUX front Input Panel PCB Parts View AUX front Input Panel PCB Copper View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 03-IST-073 8 of 14 The DUT photos Top Cover/Inner Front Inner Bottom IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 03-IST-073 9 of 14 Tuner photos(LGTMI-US5) Front View Rear View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 03-IST-073 10 of 14 Tuner photos(LGTMI-US5) Inner Front View Inner Rear View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 03-IST-073 11 of 14 Tuner photos(ALTMI-US5) Front View Rear View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 03-IST-073 12 of 14 Tuner photos(ALTMI-US5) Inner Front View Inner Rear View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 03-IST-073 13 of 14 Tuner photos(SSTMI-US5) Front View Rear View IST Co., Ltd . EMC LABORATORY Internal Photos. Ref.No: 03-IST-073 14 of 14 Tuner photos(SSTMI-US5) Inner Front View Inner Rear View

IST Co., Ltd . EMC LABORATORY TEST REPORT NO. : 03-IST-073 1 of 72 Certification of Compliance CFR 47 Part 15 Subpart B Test Report File No. : 03-IST-073 Date of Issue : March 13, 2003 Model(s) : DV6T844N / DAEWOO Kind of Product : Video Cassette Recorder with DVD Player(TV Interface Device) Applicant : Daewoo Electronics Corporation Address : 543, Dangjung-Dong, Kunpo-City, Kyonggi-Do 435-030, Korea Manufacturer : Daewoo Electronics Corporation Address : 295, Gondan-dong, Kumi-city, Kyungsangbuk-do, Korea Test Result Positive Negative Reviewed By Approved By J.H. Lee / General Manager G. Chung / Chief - Investigations requested : Measurement to the relevant clauses of F.C.C rules and regulations Part 15 Subpart B – Unintentional Radiatiors - The test report with appendix consists of 72 pages. - The test result only responds to the tested sample. - It is not allowed to copy this report even partly without the allowance of IST EMC Laboratory. - This equipment as for has been shown to be capable of continued compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4 1992. IST Co., Ltd . EMC LABORATORY TEST REPORT NO. : 03-IST-073 2 of 72 TABLE OF CONTENTS Table of contents 2 Information of test laboratory, Environmental condition, Power used 3 Descriptions of test 4-6 Conducted Emission 4 Radiated Emission 5 Output Signal level measurements 6 Output Terminal Conducted Spurious Emission 6 Transfer Switch Isolation Measurement 6 Summary 7 Test Conditions and Data - Emission Conducted Emission 0.15MHz - 30MHz Test equipment / Data and Plots 8-32 Radiated Emission 30MHz - 1GHz Test equipment / Data and Plots 33-34 Output Signal level measurements Test equipment / Data and Plots 35-50 Output Terminal Conducted Spurious Emission 30MHz - 1GHz Test equipment / Data and Plots 51-58 Transfer Switch Isolation Measurements 30MHz - 1GHz Test equipment / Data and Plots 59-66 Information OF TUNERS Manufacture Manufacture Name Daewoo Model Name LG Innotek Co., Ltd TCMN0682PA20B LGTMI-US5 Korea Alps Co., Ltd TMZH2-004A ALTMI-US5 SAMSUNG Electric Co., Ltd TADM-H101F SSTMI-US5 Appendix A. The preliminary test results 67-72 IST Co., Ltd . EMC LABORATORY TEST REPORT NO. : 03-IST-073 3 of 72 INFORMATIONS OF TEST LABORATORY EMC LABORATORY of IST Co., Ltd. (FCC Filing Lab) San 21-8, Goan-Ri, Baekam-Myun, Yongin-City Kyonggi-Do, 449-860, Korea TEL : +82 31 333 4093 FAX : +82 31 333 4094 ENVIRONMENTAL CONDITIONS Temperature 21 Humidity 46 % Atmospheric pressure 1003 mbar POWER SUPPLY SYSTEM USED Power supply system 120Vac , 60Hz PRODUCT INFORMATIONS Power supply system : 120Vac / 60Hz Power consumption : 24W Video signal : EIA STANDARD NTSC COLOR RF input impedance : 75 ohm Unbal. (U/V one input) RF output impedance : 75 ohm Unbal. VHF output signal : Channel 3 or 4 (selectable) Video input signal : Phono type 1.0 0.2Vp-p sync negative 75ohms unbalance Video output signal : Phono type 1.0 0.2Vp-p sync negative 75ohms unbalance Audio input signal : Phono type, -8.8dBm, more then 47k ohms unbalanced Audio output signal : Phono type, -8.8dBm(VCR),2Vrms(DVD), less then 1k ohms unbalanced VCR system : Hi-Fi Rotary Double Azimuth 4 heads helical scanning system. DVD system : DVD, VCD, CD, MP3, CD-R, CD-RW Playback system - EMC suppression device is not used during the test. - Please refer to user’s manual. IST Co., Ltd . EMC LABORATORY TEST REPORT NO. : 03-IST-073 4 of 72 DESCRIPTIONS OF TEST Conducted Emissions: The measurement were performed over the frequency range of 0.15MHz to 30MHz using a 50 /50uH LISN as the input transducer to a Spectrum Analyzer or a Field Intensity Meter. The measurements were made with the detector set for "Peak" amplitude within an bandwidth of 10KHz or for "quasi-peak" within a bandwidth of 9KHz. - Procedure of Test The line-conducted facility is located inside a shielded room No.1. A 1m X 1.5m wooden table 80cm height is placed 40cm away from the vertical wall and 1.5m away from the other wall of the shielded room. The R/S ESH3-Z5 and EMCO 3825/2 LISN are bonded to bottom of the shielded room. The EUT is located on the wooden table with distance more than 80cm from the LISN and powered from the EMCO LISN .The peripheral equipment is powered from the other LISN. Power to the LISNs are filtered by a noise cut power line filters. All electrical cables are shielded by braided tinned steel tubing with inner ? 1.2cm. If the EUT is a DC-powered device, power will be derived from the source power supply it normally will be powered from and this supply lines will be connected to the EMCO LISN. All interconnecting cables more than 1m were shortened by non-inductive bundling to a 1m length. Sufficient time for the EUT, support equipment, and test equipment was allowed in order for them to warm up to their normal operating conditions. The RF output of the LISN was connected to the R/S receiver to determine the frequency producing the maximum emission from the EUT. The frequency producing the maximum level was reexamined using Quasi-Peak mode by manual measurement, after scanned by automatic Peak mode for frequency range from 0.15 to 30MHz. The bandwidth of the receiver was set to 10kHz. The EUT, peripheral equipment, and interconnecting cables were arranged and manipulated to maximize each EME emission. 215 >150 >40 80 Receiver EUT LISN 80 ? 80 80 40 ? 80 Measuring apparatus Mains Filter Mains Front side Equipment under test Coaxial cable Artificial mains network Screened room Non-metallic support 80 < Side View > < Concept Drawing > IST Co., Ltd . EMC LABORATORY TEST REPORT NO. : 03-IST-073 5 of 72 DESCRIPTION OF TEST Radiated Emissions: The measurement was performed over the frequency range of 30MHz to 1GHz using antenna as the input transducer to a Spectrum analyzer or a Field Intensity Meter. The measurement was made with the detector set for "quasi-peak" within a bandwidth of 120KHz…

Text truncated - open the document above for the full version.

IST Co., Ltd . EMC LABORATORY Test Setup Photos. Ref. No: 03-IST-073 1 of 2 Test Setup Photos – Radiated Emissions Front View Rear View IST Co., Ltd . EMC LABORATORY Test Setup Photos. Ref. No: 03-IST-073 2 of 2 Test Setup Photos – Conducted Emissions Front View Rear View
