C5F7NF0015DVD Recorder + VCR

DVD Recorder + VCR RV4000 User Manual POWER PLAY/PAUSE STOPREWFFDVD• VCR REC CH VCR EJECT VCRVCRDVDDVD ONE-TOUCH COPY DUAL RV4000 DVD RECORDER +VCR DVD EJECT INTRODUCTION 1 Important Safeguards Important Safeguards CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying the appliance. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNINGTO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTIONTO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. ATTENTIONPOUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND. WARNING: Do not install this equipment in a confined space such as a bookcase or similar unit. NOTE TO CABLE/TV INSTALLER: This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical. CAUTION: This DVD Recorder+VCR employs a Laser System. To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference. Should the DVD Recorder+VCR require maintenance, contact an authorized service center. Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM. CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus. FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. CLASS 1 LASER PRODUCT KLASSE 1LASER PRODUKT LUOKAN 1LASER LAITE KLASS 1LASER APPARAT CLASSE 1PRODUIT LASER CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S MANUAL AND THOSE MARKED ON THE PRODUCT. RETAIN THIS MANUAL FOR FUTURE REFERENCE. This product has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this product will protect you if you observe the following procedures for installation, use, and servicing. This product does not contain any parts that can be repaired by the user. DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY. 2 Important Safeguards IMPORTANT SAFETY INSTRUCTIONS REGULATORY INFORMATION: FCC Part 15 This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the product is operated in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the product and receiver. - Connect the product into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC COMPLIANCE: The responsible party for this product’s compliance is: GoVideo, 7835 East McClain Drive, Scottsdale, AZ 85260, USA. SERIAL NUMBER: The serial number is found on the back of the DVD Recorder+VCR. This number is for this unit only. You should record requested information here and retain this guide as a permanent record of your purchase. Model No. ___________________________________ Serial No. ___________________________________ 1Read these instructions. All these safety and operating instructions should be read before the product is operated. 2Keep these instructions. The safety, operating and use instructions should be retained for future reference. 3Heed all warnings. All warnings on the product and in the operating instructions should be adhered to. 4Follow all instructions. All operating and use instructions should be followed. INTRODUCTION 3 5Do not use this product near water. For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement; or near a swimming pool; and other areas located near water. 6Clean only with dry cloth. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners. 7Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Slots and openings in the cabinet are provided for venti…

Text truncated - open the document above for the full version.

55 44 33 22 11 D D C C B B A A BUFFER MM1443 MPEG2 IIC CCIR656 VCLK PCM1754 R/L ADR/CTL IIS TUNER VIDEO IN FROM SCART1VIDEO IN FROM SCART2 AUDIO DAC DATA R/L SAA7115 AUDIO OUT TOMM1443 VIDEO IN FROM TUNER RESET DDRAM(256M BIT) RESET RESET DV 1394 INPUT RESET VIDEO FROM FRONT VIDEO FLASH 16M BIT R/L CODEC VIDEO IN FROM FRONT S-Video IICSLAVE IIS ADR/CTL LSI 8602 DVD RECORDERLOADER ATAPI IIS TSB41AB1 VPS PDC IICMASTER DATA LC74793 IIC OPTION ATAPI IIC IIC AUDIOMUX IIC AUDIO ADC MSP3417 DECODER M3777 CCIR656[7 ..0] MICOM PCM 1802 CCIR656[ 7..0] VFD DRIVER IC CANAL+ MSP CCIR656 VCLK IIS IIC AUDIO FROM FRONTAUDIO IN SCART1 VFD/KEY ISPISP RGB OUT TO SCARTLPF SWITCHS-Video TO JACKCOMPOSITEOUT TO CANAL IC CANAL+ MM1443 LA73053VIDEOSWITCHANDBUFFER PSCANCOMPONENT OUTVIDEO SWITCH S-Video TO JACKRGB OUT TO SCARTPSCAN COMPONENT OUT COMPOSITEOUT TO CANAL CABLE BOX CONTROL REMOCONRECEIVER OPTION OPTION DF-L72B1N-BJ 2.0 DAEWOO ELECTRONICS Digital Media Lab. DF-L72B1N-BJ.dsn 1 Team LPP S.D.Park B.Y.Choi W.K.Ihm W.K.Ihm 01 : BLOCK DIAGRAM 19 Monday, May 31, 2004 DRAWN DESIGNED CHECKED APPROVED MODEL FILE NAMEDATEREVISED REV NO. SHEET / 55 44 33 22 11 D D C C B B A A DF-L72B1N-BJ 2.0 DAEWOO ELECTRONICS Digital Media Lab. DF-L72B1N-BJ.dsn 1 Team LPP S.D.Park S.H.Eun D.Y.Kwak D.Y.Kwak 01 : Front Board 11 Monday, May 31, 2004 DRAWN DESIGNED CHECKED APPROVED MODEL FILE NAMEDATEREVISED REV NO. SHEET / S12 AUDIO_LVIDEO S14 AUDIO_R S10 S13 S15 S16 S11 +5V_EVER_VCC +5V_EVER_VCC +5V_EVER_VCC C7120.1uF D701UZ-5.6BSB SW712SETUP + C70347uF/25V SW710STOP D7111N4148 SW703OPEN/CLOSE SW705STBY/ON R70210K JK701RCA 3X1 1 2 3 64 57 SW707REW D7061N4148 D718UZ-5.6BSB L702 10uH D7101N4148 D7121N4148 C7130.1uF C7040.1uF R70110K D715UZ-5.6BSB SW704REC R70482K D714 SSL-LXA228/SM 21 C7010.1uF G701SVA11MM14 1234562728293078910111213141516171819212223242526203132333435363738394041 F+F+ NPNP P16P15 G11G10 G9G8 P14P13P12P11P10 P9P8P7P6P5P4P3P2 NXNXNXNXNX G12 P1 G7G6G5G4G3G2G1 NPNP F-F- P701 CON21 12346789 1110 5 12131415161718192021 GNDGNDGNDLINE2_VIDEOLINE2_AUDIO_RGNDLINE2_AUDIO_L-24V_EVERF+F-GND+6V_EVERREMOCON_INGNDS_CLKS_OUTS_INS_CSGNDGNDGND SW701UP D7051N4148 SW713EJECT D704SSL-LXA228/SM 21 D7171N4148 D7091N4148 R7054.7K P703 CON9 124356789 K GNDGND KS AUDIO_L GND AUDIO_R GND VIDEO SW708ENTER C7150.1uF R707300 D7161N4148 R70875 SW711FF L701 10uH D7081N4148 C7140.1uFC7070.1uF P702 CON9 124356789 KGNDGNDKSAUDIO_LGNDAUDIO_RGNDVIDEO R703300 IC701PT6315 1234567891011 12 13 14 15 16 17 18 19 20 21 22 2324252627282930313233 34 35 36 37 38 39 40 41 42 43 44 LED1LED2LED3LED4 OSC DOUT DIN CLKSTB K1K2 VSS1 VDD1 S16 S15 S14 S13 S12 S11 S10 S9 S8 S7S6S5S4S3S2S1VEEG10G11G12 G9 G8 G7 G6 G5 G4 G3 G2 G1 VDD2 VSS2 JK703 CON4 1243 TPB- TPB+TPA+ TPA- H701TSOP2238Y 321 OUT Vcc GND C7160.1uF C7100.1uF SW702DOWN SW709PLAY P704 CON6 124356 GNDTPA+GNDTPA-TPB+TPB- C7020.1uF C7170.1uF D7071N4148 D7131N4148 SW706DVD/VCR C7110.1uF 55 44 33 22 11 D D C C B B A A DF-L72B1N-BJ 2.0 DAEWOO ELECTRONICS Digital Media Lab. DF-L72B1N-BJ.dsn 1 Team LPP S.D.Park S.H.Eun J.H.Lim J.H.Lim 01 : POWER 110 Monday, May 31, 2004 DRAWN DESIGNED CHECKED APPROVED MODEL FILE NAMEDATEREVISED REV NO. SHEET / DVD_POWER_ON 10 POWER_ON 10 +3V3_O/F +38V_EVER +14V_EVER +6V_EVER C_M/T_GND +F -F +38V_EVER C_M/T_VCC +12V_O/F +6V_EVER +5V_O/F +6V_EVER +5V_O/F_(II) +6V_EVER A_VCC+5V_EVER +38V_EVER +32V_EVER -24V_EVER D6021N4004 Q602KTC3205Y + C672 47uF/16V R670200 D617UZ-33BSB R673510 Q605KTC3205Y PJ601CON12 12345678910111213 +3V3_O/F GND(ANALOG)GND(ANALOG) +38V_EVER+14V_EVER +6V_EVER CAP_M/T_GND GNDGND DVD_POWER_ON +F -F -24V_EVER Q603KTC3198YR6691/4W 12K R6722.7K R6681/4W 12K + C66947uF/25V D614UZ-5.1BSB + C67047uF/25V Q604KTC3205Y + C673 47uF/16V D612UZ-13BSB + C67147uF/16V R6372K D6151N4148 D6131N4004 55 44 33 22 11 D D C C B B A A (/RST_PHY) (/RST_VI) (Reset_Audio and BTSC) 1.8V3.3V 5V (VO_MUTE2) Caps with smaller capacitance values to becloser to respective power pins compared tothose of larger values. All should be asclose as possible. (INT_VI) 2.5V (BIO_PHY_PD) (MUTE) (VI_AVID) (VO_I/P) (/ETHER_IRQ) General decoupling cap placement: E5_SDRAM_CS1 SDA_MASCL_MA PAL : HIGHRN51 --> 0 RN52 --> NONENTSC : LOWRN51 --> NONERN52 --> 0 DF-L72B1N-BJ 1.0 DAEWOO ELECTRONICS Digital Media Lab. DF-L72B1N-BJ.dsn 1 Team LPP S.D.Park B.Y.Choi W.K.Ihm W.K.Ihm 02 : E5.1 BGA308-SS 29 Monday, May 31, 2004 DRAWN DESIGNED CHECKED APPROVED MODEL FILE NAMEDATEREVISED REV NO. SHEET / MCONFIGE5_GPIO2E5_UART2_TXE5_UART2_RXE5_GPIO1/WAIT/DTACK/E5_CS0 AO_D1 /E5_CS1/E5_CS2E5_GPIO3 TCKTRST_L E5_GPIO5SCL_SLSDA_SL E5_GPIOx2E5_GPIOx7E5_GPIOx1E5_GPIOx5 TMS USB_OC0 E5_GPIOx0 VI_D3 E5_SDRAM_A5 E5_SDRAM_DQ2 HD3 VI_D9 E5_SDRAM_A8 E5_SPI_MOSI HD12 AOMCLKO /WAIT VI_VSYNC VI_D8CLKX HD7 AIMCLKO E5_GPIOx1 AISCLK E5_SDRAM_A12 E5_SDRAM_A1 E5_SDRAM_DQ29 E5_SDRAM_DQ20 E5_SDRAM_DQ15 E5_SPI_CLK E5_GPIO1 USB_PO0 VI_D4VI_D2 AOIEC E5_SDRAM_A6 E5_SDRAM_DQ12 E5_SDRAM_DQ9 E5_SDRAM_DQ1 E5_IRTX1 HD0 TDO VI_D6 E5_SDRAM_DQ8 E5_SDRAM_DQ10 E5_SPI_CS2 HD9 E5_GPIOx35 AO_0 E5_SDRAM_DQ22 E5_SDRAM_DQ18 SCL_SL /E5_CS2 USB_D0+ E5_GPIOx7 TMSTCK VREF E5_SDRAM_A11 E5_SDRAM_DQ24 E5_SDRAM_DQ19 E5_SDRAM_DQ13 E5_SDRAM_DQ4 E5_SDRAM_DQ3 E5_SPI_MISO SDA_SL E5_GPIO3 HD14 E5_SDRAM_A3 E5_SDRAM_DQ27 E5_SDRAM_DQ5 HD6 TDO AIFSYNC E5_SDRAM_DQ28 E5_SDRAM_DQ11 TDI CLKI E5_GPIO6 E5_SDRAM_DQ21 E5_SDRAM_DQ6 HD11 E5_SDRAM_A10 E5_SDRAM_DQ14 HD2HD8 E5_GPIOx5E5_GPIOx3E5_GPIOx2 VI_D5 E5_SDRAM_A9 E5_SDRAM_A2 E5_SDRAM_DQ23 E5_SDRAM_DQ16 E5_GPIO2 E5_GPIOx6 TDI E5_SDRAM_A15 E5_SDRAM_A14 E5_SDRAM_A0 E5_SDRAM_DQ30 E5_SDRAM_DQ25 HD10HD15 USB_D0- VI_CLK0 VI_D7 AOSCLK E5_SDRAM_A7 E5_SDRAM_DQ31 /DTACK E5_GPIO5 HD1 TRST_L E5_SDRAM_A4 E5_SDRAM_DQ17 HD4HD5 E5_GPIOx4 AOFSYNC E5_SDRAM_DQ26 E5_SDRAM_DQ0 MCONFIG HD13 E5_SDRAM_DQ7 E5_GPIOx33 E5_GPIOx35 AO_D2AO_D3 E5_GPIOx3E5_GPIOx6 E5_SDRAM_DQ[31..0] 3 CVBS_Out 5 C_Out 5 Pb/B_Out 5 Pr/R_Out 5 Y_Out 5 Y/G_Out 5 VI_CLK0 9 VI_VSYNC0 9 E5_GPIOx0 7 E5_GPIOx5 5 E5_SDRAM_DQS0 3 E5_SDRAM_DQS2 3 E5_SDRAM_DQS3 3 E5_SDRAM_DQS1 3 ATAPI_DATA14 6 E5_GPIO1 7 ATAPI_DA…

Text truncated - open the document above for the full version.

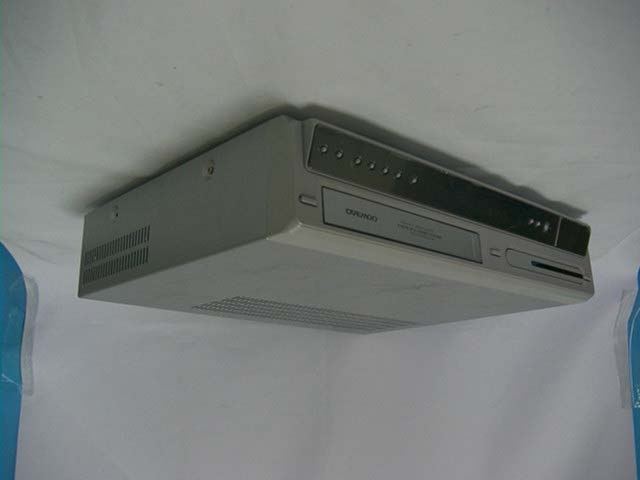

IST Co., Ltd. EMC LABORATORY External Photos.Ref.No : 04-IST-0066 1 of 3 The DUT photos Front View Rear View IST Co., Ltd. EMC LABORATORY External Photos.Ref.No : 04-IST-0066 2 of 3 The DUT photos Side View Side View IST Co., Ltd. EMC LABORATORY External Photos.Ref.No : 04-IST-0066 3 of 3 The DUT photos Bottom View

IST Co., Ltd. EMC LABORATORY Label Location.Ref.No : 04-IST-0126 1 of 2 Label Sample IST Co., Ltd. EMC LABORATORY Label Location.Ref.No : 04-IST-0126 2 of 2 Label Sample Label Location Label Location

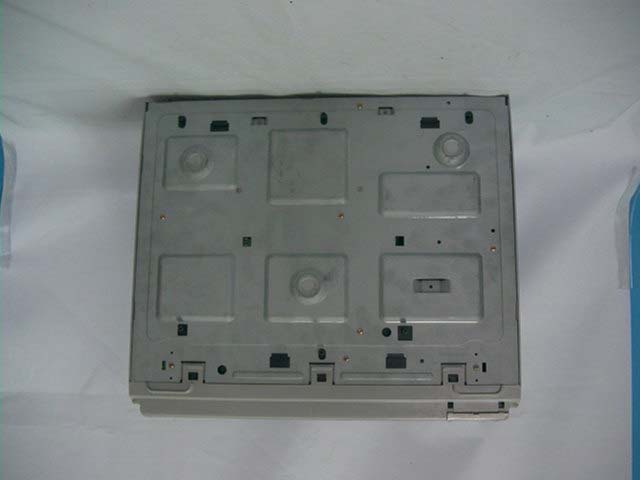

IST Co., Ltd. EMC LABORATORY Internal Photos. Ref.No: 04-IST-0126 1 of 12 The DUT photos Inner Top View Inner Top View IST Co., Ltd. EMC LABORATORY Internal Photos. Ref.No: 04-IST-0126 2 of 12 The DUT photos VCR Deck Top View VCR Deck Bottom View IST Co., Ltd. EMC LABORATORY Internal Photos. Ref.No: 04-IST-0126 3 of 12 The DUT photos Main Board PCB Parts View Main Board PCB Copper View IST Co., Ltd. EMC LABORATORY Internal Photos. Ref.No: 04-IST-0126 4 of 12 The DUT photos DVD Deck Top View DVD Deck Bottom View IST Co., Ltd. EMC LABORATORY Internal Photos. Ref.No: 04-IST-0126 5 of 12 The DUT photos DVD Deck Top View(Removed Cover) DVD Deck Bottom View(Removed Cover) IST Co., Ltd. EMC LABORATORY Internal Photos. Ref.No: 04-IST-0126 6 of 12 The DUT photos DVD Deck Cover View DVD Deck Cover View IST Co., Ltd. EMC LABORATORY Internal Photos. Ref.No: 04-IST-0126 7 of 12 The DUT photos Power Board PCB Parts View Power Board PCB Copper View IST Co., Ltd. EMC LABORATORY Internal Photos. Ref.No: 04-IST-0126 8 of 12 The DUT photos MPEG Board PCB Parts View MPEG Board PCB Copper View IST Co., Ltd. EMC LABORATORY Internal Photos. Ref.No: 04-IST-0126 9 of 12 The DUT photos AUX front Input Panel & OSD Board PCB Parts View AUX front Input Panel PCB & OSD Board Copper View IST Co., Ltd. EMC LABORATORY Internal Photos. Ref.No: 04-IST-0126 10 of 12 The DUT photos Top Cover Inner Bottom/Inner Front IST Co., Ltd. EMC LABORATORY Internal Photos. Ref.No: 04-IST-0126 11 of 12 Tuner photos(TADM-H201F) Front View Rear View IST Co., Ltd. EMC LABORATORY Internal Photos. Ref.No: 04-IST-0126 12 of 12 Tuner photos(TMZH2-030A) Front View Rear View

* PRINCIPLE OF OPERATION These VCR units are composed of PIF, Video, power, System Control & Servo & Timer and OSD ( On screen Display ) circuit. The PIF circuit consists of a tuner, a PIF & SIF circuit, and a modulator circuit. The incoming signals, induced in the VHF and UHF antenna are converted to stable, video and audio signal that may be fed to the Video and Audio circuit instead of the signals from the other Video equipments. In the playback of monitoring mode, the signals of Video and Audio circuit may be either fed out directly to the other Video equipments such as monitor TV set, converted to TV signal ( RF wave ) in a low VHF channel to receive by a TV sets. The Video circuit contains a recording and playback amplifier, a noise canceler, and the other functional circuit. The composite video signal input to the Video circuit is fed to the AGC and color circuit. The AGC circuit uses the composite Video signal itself for AGC action. A part of the AGC output signal is fed as an E-E Video signal to the video line output terminal and RF modulator. On the other hand, the other part of the AGC output signal inputs to Low Pass Filter to eliminate the C (chroma) signal component. The result is that the Y (1uminance) signal component is obtained. The Y passes the non-1inear pre-emphasis circuit and converted to FM signal by the FM modulator. The FM Y signal is fed to the recording amplifier circuit. In the color circuit, the composite Video signal inputs to the 3.58MHz Band Pass Filter to separate the C signal. The gain of C is controlled to a required amplitude by the ACC circuit. It, then is converted to 629KHz, which is fed to the recording amplifier circuit. The recoding amplifier circuit superimposes the 629KHz converted low frequency C and FM Y signal. The superimposed Video signal is connected to the pair of Video heads. In playback, the Video signal picked up by the pair of Video heads is amplified through the playback amplifier. The FM Y signal passes the DOC (Dropout compensator) circuit, enters the noise canceler, and then comes into the non-linear de-emphasis circuit where the original Y signal is obtained. The 629KHz low frequency C signal, on the other hand, is converted to 3.58MHz. The Y and 3.58MHz C signal are mixed to playback the original NTSC composite Video signal. The Audio circuit contains playback, recording, output amplifier, ALC erase oscillator, and electronic switching circuit. This circuitry has the same general arrangement as that of common monophonic tape recoder. The RCC (Ringing Choke Converter) type SMPS (Switching Mode Power Supply) is applied to power circuit. The OSD circuit is activated in superimpose and MENU mode. DVD unit is composed of Power circuit, Video & Audio circuit, Digital Audio circuit, MPEG codec(Compressor/Decompressor) circuit, DVD CPU circuit, and ATAPI DVD Loader circuit. Video/Audio circuit is same as that of VCR unit. It encodes the analog video signal(composite, Y-Cr-Cb, or RGB) to digital video signal to process the digital data, and encodes analog audio signals to digital audio signal. It also decodes digital video signal to provide recognizable signal(composite, Y-Cr-Cb, or RGB) to video terminal, and decodes and amplifies digital audio signal to provide recognizable analog audio signals to audio amplifier terminal. Digital Audio circuit transmits digital audio signal from MPEG codec circuit to the Optical and Coaxial audio output terminals. MPEG codec circuit compresses the digital data with MPEG-2(for video) and MPEG-1 Layer-2(for audio) algorithm. The compressed data is transferred to ATAPI DVD Loader circuit for recording. After parsing to raw DVD/CD stream, MPEG codec circuit transmits navigation(DVD) and TOC(VCD/CDDA/MP3) data to DVD CPU circuit. Also, after decompressing raw MPEG, AC3(or DTS), subtitle, and other DVD/VCD data, MPEG codec circuit transmits VIDEO/AUDIO signal to VIDEO/AUDIO circuit. DVD CPU circuit controls all other circuits in DVD unit. It makes navigation menu and control data when recording is completed. Also, according to user operation, navigation and control data(DVD), TOC(VCD/CDDA/MP3) data, DVD CPU circuit controls DVD Loader circuit and MPEG codec circuit to record DVD+R(+RW) disc and playback DVD/CDDA/MP3 disc. Receiving commands from DVD CPU circuit, ATAPI DVD Loader circuit writes compressed DVD data from MPEG codec circuit and DVD CPU circuit to DVD+R(+RW) disc. It also reads raw DVD, CD data from DVD, CD respectively, and transmits raw DVD, CDDA, MP3 data to DVD CPU circuit via MPEG codec circuit. The ADC(Analog to Digital Converter) which is located in VCR audio part converts analog inputs which are line inputs(front,rears), PIF, radio signals, into PCM(Pulse Code Modulation) signal and transmits PCM data to MPEG IC which has a DSP IC built in. The DSP IC in MPEG IC processes 2ch PCM data that is converted from analog signals and transferred directly from Loader.

Loc Parts code Parts name Parts description 01 PVACPSN731 ACCESSROY AS DC-B8CB1N-PS(N619,AAA) DP01 97P95600N0 MANUAL OWERNS NTSC 미주향 MODEL DP02 97P880RN15 CABLE RF NTSC 1.5M DP03 97P0424100 COVER ACCESSORY LD-PE T0.05 DP04 486A716202 BATTERY AAA 1.5V(SUPERGARD) DP08 97P880P815 CABLE RCA 3P-3P WEL-WHT-RED 1.5M 02 PVPKCPN730 PACKING AS DF-L71D1N-BJ(YW) CP01 97P4933300 PAD F/B EPS CP02 97P4809400 POLY BAG FOR SET 900*900*T0.5 PE-FOAM CP03 97P5058120 BOX CARTON 541X453X175 SW-4 COLOR CP04 47P4502205 LABEL SERIAL A PAPER (42X12X1EA) CP05 6520010020 STAPPLE M20 03 PVMCASN744 CHASSIS MAIN AS DF-L72B1N-BJ A001 97P0613410 CHASSIS MAIN HIPS(VO) A0011 97P0800602 LEG PLASTOMER A0013 97P0804401 LEG-B HI-PS(HB, SPRAY) A002 97P93617N0 LABEL SPEC PE FILM(131*47) A006 97P0996000 EARTH BACK SUS 304 CSP T=0.2 A013 97P0995301 PLATE A/V BACK PVC T0.3 A040 97P0482110 COVER TOP SECC T0.6+PAINT A040A 97P4219500 CUSHION TOP EVA 20X14 A040B 97P4219700 CUSHION TOP PLATE EVA(SOFT) T=1 175*8 A041 7173300812 SCREW TAPTITE TT2 BIN 3X8 BK A042 7173300812 SCREW TAPTITE TT2 BIN 3X8 BK A051 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN A052 97P4220200 CUSHION LEG EVA T4.0 A060 97P04822A6 COVER BOTTOM SECC T0.8, PHONE AJ01A 7173300812 SCREW TAPTITE TT2 BIN 3X8 BK AP01A 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN AT01A 7274300412 SCREW TAPPTITE TT3 RND 3X4 MFZN BK AZ01A 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN AZ04A 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN AZ04B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN D100 97P1R2KFA0 REMOCON HANDSET AS VR-F2KFA0 GY503A(AAA) M01 97PP342013 PANEL FRONT AS DF-L72B1N-BJ Z03A 7173300811 SCREW TAPPTITE TT2 RND 3*8 MFZN M011 7174301011 SCREW TAPPTITE TT2 RND 3X10 MFZN M021 7173401211 SCREW TAPPTITE TT2 BIN 4X12 MFZN M022 7174301211 SCREW TAPPTITE TT2 RND 3X12 MFZN M100 97QD021300 TOTAL DVD BDR-L04P M1000 PVDKARNB66 DECK VCR AS(T50,F/L) DRN-B610R NON,F/L A0100 97SA332200 MAIN BASE AS T4.5-MECHA A0101 97S3102000 SCREW TAPPTITE TT2 BIN-P 2.6X7 MFZN A011 97P93B2102 LABEL CD(DECK) PAPER(13X56) ALL MODEL A0200 97SA316500 S SLANT POLE AS T-MECHA A0300 97SA316600 T SLANT POLE AS T-MECHA A0400 97S8104200 MOTOR CAPSTAN F2QVB37K A0600 97SA320500 AC HEAD AS T-MECHA B0610 97SA326800 HEAD A/C HVMXA1101A(ALPS) A0601 7003300511 SCREW MACHINE BIN 3X5 MFZN A1000 97SA316800 L LOADING AS T-MECHA A1100 97SA316900 R LOADING AS T-MECHA A1200 97S2709510 RACK LOADING SECC T1.2 A1201 7008301911 SCREW MACHINE WAS M3*19 MFZN A1400 97S0904310 PLATE CONNECT-H SECC T1.0 A1500 97SA319410 REEL BRKT TOTAL AS T2-MECHA A1501 7273300511 SCREW TAPPTITE TT3 BIN 3X5 MFZN A1700 97S5500400 BELT REEL CR68 A1800 97S2623200 LEVER RELAY SECC T1.2 A1900 97S2709600 RACK FL PBT(DY4410GF) NATURAL A2000 97S2708200 GEAR CAM DERLIN 100 A2100 97SA317150 PINCH LEVER TOT AS T-MECHA B1910 97SA481050 PINCH ROLLER AS D15(DAEJIN D2.6*D7*T4.5) A2200 97SA318050 LC BRKT AS T5-MECHA B2040 97P885X146 CONN AS A/C HEAD(6P) SHIELD A2201 7273300611 SCREW TAPPTITE TT3 BIN 3X6 MFZN A2400 97SA317310 IDLER PLATE TOT AS T2-MECHA A2401 97S3108200 POLYWASHER D2.6XD6.0XT0.5 A2600 97S2909400 TABLE REEL POM(F20-03) BLACK A2700 97SA317200 TENSION LVR TOT AS T-MECHA A2800 97SA317400 S BRAKE AS T-MECHA A2900 97SA317510 T BRAKE AS T2-MECHA A3000 97S8023700 HEAD FE HVFHP0042A A3001 7174301011 SCREW TAPPTITE TT2 RND 3X10 MFZN AD001 97PA296001 DRUM PRICE AS CYN-T610R AD002 7003300511 SCREW MACHINE BIN 3X5 MFZN AF001 97SA261070 F/L AS TCE-COMBO AF002 7273300511 SCREW TAPPTITE TT3 BIN 3X5 MFZN AN002 2291131304 GREASE DELUXE 5221G(NAM-YOUNG) M200A 7174301211 SCREW TAPPTITE TT2 RND 3X12 MFZN P602A 97P88F1M10 CABLE FFC 1.25 R 21P 100MM PW01 97P69BY910 CORD POWER USA LP-11W YH396 1.7M Z001 PVMPMSN730 PCB MAIN MANUAL AS DF-L71D1N-BJ AM01 2193100801 SOLDER WIRE SN:PB=63:37 3PI(NO FLUX) AM02 2193011100 SOLDER WIRE 60 SNA 1.2D AM03 2291050305 FLUX LIQUID RF-800KN AM04 2291050306 FLUX THINNER RF-800ADD AM05 2291140501 WAX COVER AM06 97P93B2101 LABEL CD(PCB) PAPER(13X25) ALL MODEL IC603 14SEK24D08 IC EEPROM S-24C08ADP-01(8K DIP) JK101 97P6318210 JACK PIN DPAM-0274 JK103 97Q6316200 JACK DIN DUAE-9619 P201 97P62Y1318 CONN WAFER DVW250 PLUG 2.5MM 8P P202 97P62T14B2 CONN HOUSING TMC-EX-B1 RECEP 2.0MM 2P P301 97P62G06DA CONN FFC GF120-10S-TS 10P ST P301A 97P0478200 CASE SHI PREAMP ET T0.4 P601 97P62G06DM CONN FFC GF120-21S-TS 21P ST P603 97P62J012C CONN B/B JE612 PLUG 2.0 12P PJ601 97P885X195 CONN AS 13H-13S 100MM PT01 97P6269000 CONN WAFER 00-8283-0612-00000 RF101 97P7621300 TUNER 3 IN 1 LGTMI-US6 S603 97P0S02500 SENSOR REEL RPI-303N S604 97P0S02500 SENSOR REEL RPI-303N SW601 5SD0101100 SW DETE MXS00921MPC0 SW651 5S10104200 SW MODE MMS01010ZMB0 T201 560202L692 COIL OSC DEO-006 X101 5XJ18R4LAE CRYSTAL QUARTZ HC-49/S 18.43200MHZ 30PP Z0011 PVMPJ1N730 MAIN CHIP MOUNT A AS DF-L71D1N-BJ C101 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 C103 HCBK562KBA C CHIP CERA X7R 50V 5600PF K 1608 C104 HCBK562KBA C CHIP CERA X7R 50V 5600PF K 1608 C109 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 C110 HCQK240JBA C CHIP CERA 50V CH 24PF J 1608 C111 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 C112 HCQK209CBA C CHIP CERA 50V CH 2PF C 1608 C113 HCQK209CBA C CHIP CERA 50V CH 2PF C 1608 C114 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 C116 HCBK332KBA C CHIP CERA 50V X7R 3300PF K 1608 C117 HCBK332KBA C CHIP CERA 50V X7R 3300PF K 1608 C120 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608 C121 HCQK809DBA C CHIP CERA 50V CH 8PF D 1608 C125 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608 C128 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 C131 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 C146 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 C148 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 C150 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 C168 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 C171 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 C201 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 C203 HCBK272KBA C CHIP CERA 50V X7R 2700PF K 1608 C204 HCBK821KBA C CHIP CERA 50V X7R 820PF K 1608 C205 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 C207 HCB…

Text truncated - open the document above for the full version.

55 44 33 22 11 D D C C B B A A BUFFER MM1443 MPEG2 IIC CCIR656 VCLK PCM1754 R/L ADR/CTL IIS TUNER VIDEO IN FROM SCART1VIDEO IN FROM SCART2 AUDIO DAC DATA R/L SAA7115 AUDIO OUT TOMM1443 VIDEO IN FROM TUNER RESET DDRAM(256M BIT) RESET RESET DV 1394 INPUT RESET VIDEO FROM FRONT VIDEO FLASH 16M BIT R/L CODEC VIDEO IN FROM FRONT S-Video IICSLAVE IIS ADR/CTL LSI 8602 DVD RECORDERLOADER ATAPI IIS TSB41AB1 VPS PDC IICMASTER DATA LC74793 IIC OPTION ATAPI IIC IIC AUDIOMUX IIC AUDIO ADC MSP3417 DECODER M3777 CCIR656[7 ..0] MICOM PCM 1802 CCIR656[ 7..0] VFD DRIVER IC CANAL+ MSP CCIR656 VCLK IIS IIC AUDIO FROM FRONTAUDIO IN SCART1 VFD/KEY ISPISP RGB OUT TO SCARTLPF SWITCHS-Video TO JACKCOMPOSITEOUT TO CANAL IC CANAL+ MM1443 LA73053VIDEOSWITCHANDBUFFER PSCANCOMPONENT OUTVIDEO SWITCH S-Video TO JACKRGB OUT TO SCARTPSCAN COMPONENT OUT COMPOSITEOUT TO CANAL CABLE BOX CONTROL REMOCONRECEIVER OPTION OPTION DF-L72B1N-BJ 2.0 DAEWOO ELECTRONICS Digital Media Lab. DF-L72B1N-BJ.dsn 1 Team LPP S.D.Park B.Y.Choi W.K.Ihm W.K.Ihm 01 : BLOCK DIAGRAM 19 Monday, May 31, 2004 DRAWN DESIGNED CHECKED APPROVED MODEL FILE NAMEDATEREVISED REV NO. SHEET / 55 44 33 22 11 D D C C B B A A DF-L72B1N-BJ 2.0 DAEWOO ELECTRONICS Digital Media Lab. DF-L72B1N-BJ.dsn 1 Team LPP S.D.Park S.H.Eun D.Y.Kwak D.Y.Kwak 01 : Front Board 11 Monday, May 31, 2004 DRAWN DESIGNED CHECKED APPROVED MODEL FILE NAMEDATEREVISED REV NO. SHEET / S12 AUDIO_LVIDEO S14 AUDIO_R S10 S13 S15 S16 S11 +5V_EVER_VCC +5V_EVER_VCC +5V_EVER_VCC C7120.1uF D701UZ-5.6BSB SW712SETUP + C70347uF/25V SW710STOP D7111N4148 SW703OPEN/CLOSE SW705STBY/ON R70210K JK701RCA 3X1 1 2 3 64 57 SW707REW D7061N4148 D718UZ-5.6BSB L702 10uH D7101N4148 D7121N4148 C7130.1uF C7040.1uF R70110K D715UZ-5.6BSB SW704REC R70482K D714 SSL-LXA228/SM 21 C7010.1uF G701SVA11MM14 1234562728293078910111213141516171819212223242526203132333435363738394041 F+F+ NPNP P16P15 G11G10 G9G8 P14P13P12P11P10 P9P8P7P6P5P4P3P2 NXNXNXNXNX G12 P1 G7G6G5G4G3G2G1 NPNP F-F- P701 CON21 12346789 1110 5 12131415161718192021 GNDGNDGNDLINE2_VIDEOLINE2_AUDIO_RGNDLINE2_AUDIO_L-24V_EVERF+F-GND+6V_EVERREMOCON_INGNDS_CLKS_OUTS_INS_CSGNDGNDGND SW701UP D7051N4148 SW713EJECT D704SSL-LXA228/SM 21 D7171N4148 D7091N4148 R7054.7K P703 CON9 124356789 K GNDGND KS AUDIO_L GND AUDIO_R GND VIDEO SW708ENTER C7150.1uF R707300 D7161N4148 R70875 SW711FF L701 10uH D7081N4148 C7140.1uFC7070.1uF P702 CON9 124356789 KGNDGNDKSAUDIO_LGNDAUDIO_RGNDVIDEO R703300 IC701PT6315 1234567891011 12 13 14 15 16 17 18 19 20 21 22 2324252627282930313233 34 35 36 37 38 39 40 41 42 43 44 LED1LED2LED3LED4 OSC DOUT DIN CLKSTB K1K2 VSS1 VDD1 S16 S15 S14 S13 S12 S11 S10 S9 S8 S7S6S5S4S3S2S1VEEG10G11G12 G9 G8 G7 G6 G5 G4 G3 G2 G1 VDD2 VSS2 JK703 CON4 1243 TPB- TPB+TPA+ TPA- H701TSOP2238Y 321 OUT Vcc GND C7160.1uF C7100.1uF SW702DOWN SW709PLAY P704 CON6 124356 GNDTPA+GNDTPA-TPB+TPB- C7020.1uF C7170.1uF D7071N4148 D7131N4148 SW706DVD/VCR C7110.1uF 55 44 33 22 11 D D C C B B A A DF-L72B1N-BJ 2.0 DAEWOO ELECTRONICS Digital Media Lab. DF-L72B1N-BJ.dsn 1 Team LPP S.D.Park S.H.Eun J.H.Lim J.H.Lim 01 : POWER 110 Monday, May 31, 2004 DRAWN DESIGNED CHECKED APPROVED MODEL FILE NAMEDATEREVISED REV NO. SHEET / DVD_POWER_ON 10 POWER_ON 10 +3V3_O/F +38V_EVER +14V_EVER +6V_EVER C_M/T_GND +F -F +38V_EVER C_M/T_VCC +12V_O/F +6V_EVER +5V_O/F +6V_EVER +5V_O/F_(II) +6V_EVER A_VCC+5V_EVER +38V_EVER +32V_EVER -24V_EVER D6021N4004 Q602KTC3205Y + C672 47uF/16V R670200 D617UZ-33BSB R673510 Q605KTC3205Y PJ601CON12 12345678910111213 +3V3_O/F GND(ANALOG)GND(ANALOG) +38V_EVER+14V_EVER +6V_EVER CAP_M/T_GND GNDGND DVD_POWER_ON +F -F -24V_EVER Q603KTC3198YR6691/4W 12K R6722.7K R6681/4W 12K + C66947uF/25V D614UZ-5.1BSB + C67047uF/25V Q604KTC3205Y + C673 47uF/16V D612UZ-13BSB + C67147uF/16V R6372K D6151N4148 D6131N4004 55 44 33 22 11 D D C C B B A A (/RST_PHY) (/RST_VI) (Reset_Audio and BTSC) 1.8V3.3V 5V (VO_MUTE2) Caps with smaller capacitance values to becloser to respective power pins compared tothose of larger values. All should be asclose as possible. (INT_VI) 2.5V (BIO_PHY_PD) (MUTE) (VI_AVID) (VO_I/P) (/ETHER_IRQ) General decoupling cap placement: E5_SDRAM_CS1 SDA_MASCL_MA PAL : HIGHRN51 --> 0 RN52 --> NONENTSC : LOWRN51 --> NONERN52 --> 0 DF-L72B1N-BJ 1.0 DAEWOO ELECTRONICS Digital Media Lab. DF-L72B1N-BJ.dsn 1 Team LPP S.D.Park B.Y.Choi W.K.Ihm W.K.Ihm 02 : E5.1 BGA308-SS 29 Monday, May 31, 2004 DRAWN DESIGNED CHECKED APPROVED MODEL FILE NAMEDATEREVISED REV NO. SHEET / MCONFIGE5_GPIO2E5_UART2_TXE5_UART2_RXE5_GPIO1/WAIT/DTACK/E5_CS0 AO_D1 /E5_CS1/E5_CS2E5_GPIO3 TCKTRST_L E5_GPIO5SCL_SLSDA_SL E5_GPIOx2E5_GPIOx7E5_GPIOx1E5_GPIOx5 TMS USB_OC0 E5_GPIOx0 VI_D3 E5_SDRAM_A5 E5_SDRAM_DQ2 HD3 VI_D9 E5_SDRAM_A8 E5_SPI_MOSI HD12 AOMCLKO /WAIT VI_VSYNC VI_D8CLKX HD7 AIMCLKO E5_GPIOx1 AISCLK E5_SDRAM_A12 E5_SDRAM_A1 E5_SDRAM_DQ29 E5_SDRAM_DQ20 E5_SDRAM_DQ15 E5_SPI_CLK E5_GPIO1 USB_PO0 VI_D4VI_D2 AOIEC E5_SDRAM_A6 E5_SDRAM_…
