DVD Recorder DVD Recorder DG-R520 User Manual P/N : 97P95600N0-** DW-Q73D2N-LS 2005.6.3 6:2 PM ̆ ` A mac001 1200DPI 90LPI i Important Safeguards Important Safeguards CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated ‘dangerous voltage‘ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying the appliance. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNINGTO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTIONTO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. ATTENTIONPOUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND. WARNING: Do not install this equipment in a confined space such as a bookcase or similar unit. NOTE TO CABLE/TV INSTALLER: This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical. CAUTION: This DVD Recorder employs a Laser System. To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference. Should the DVD Recorder require maintenance, contact an authorized service center. Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM. CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus. FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. CLASS 1 LASER PRODUCT KLASSE 1LASER PRODUKT LUOKAN 1LASER LAITE KLASS 1LASER APPARAT CLASSE 1PRODUIT LASER DW-Q73D2N-LS 2005.6.3 6:2 PM ̆ ` i mac001 1200DPI 90LPI INTRODUCTION ii CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S MANUAL AND THOSE MARKED ON THE PRODUCT. RETAIN THIS MANUAL FOR FUTURE REFERENCE. This product has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this product will protect you if you observe the following procedures for installation, use, and servicing. This product does not contain any parts that can be repaired by the user. DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY. IMPORTANT SAFETY INSTRUCTIONS REGULATORY INFORMATION: FCC Part 15 This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the product is operated in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the product and receiver. - Connect the product into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC COMPLIANCE: The responsible party for this product’s compliance is: GoVideo, 7835 East McClain Drive, Scottsdale, AZ 85260, USA. SERIAL NUMBER: The serial number is found on the back of the DVD Recorder. This number is for this unit only. You should record requested information here and retain this guide as a permanent record of your purchase. Model No. ___________________________________ Serial No. ___________________________________ 1Read these instructions. All these safety and operating instructions should be read before the product is operated. 2Keep these instructions. The safety, operating and use instructions should be retained for future reference. 3Heed all warnings. All warnings on the product and in the operating instructions should be adhered to. 4Follow all instructions. All operating and use instructions should be followed. Important Safeguards DW-Q73D2N-LS 2005.6.3 6:2 PM ̆ ` ii mac001 1200DPI 90LPI iii 5Do not use this product near water. For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement; or near a swimming pool; and other areas located near water. 6Clean only with dry cloth. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners. 7Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Slots and openings in …

Text truncated - open the document above for the full version.

146MHz 49MHz 68MHz 33.868MHz 7.5MHz

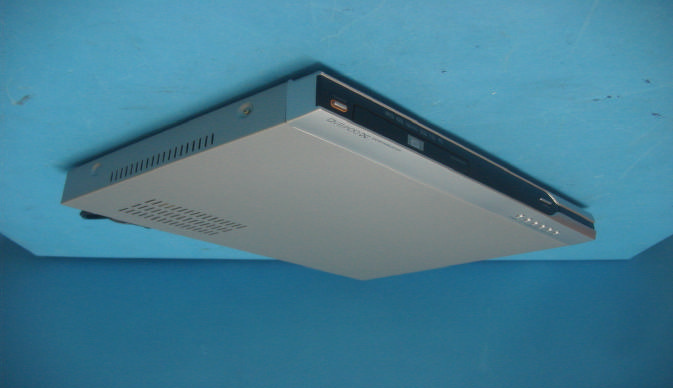

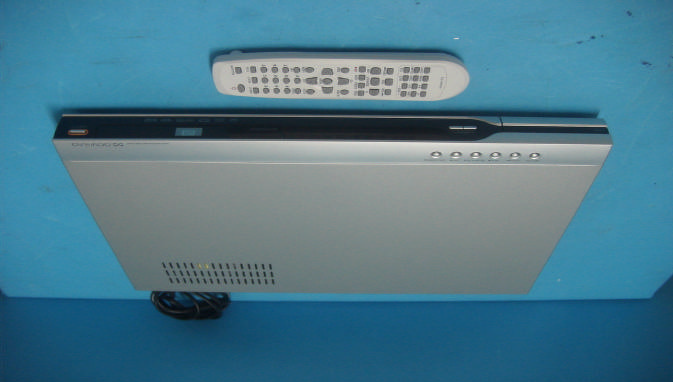

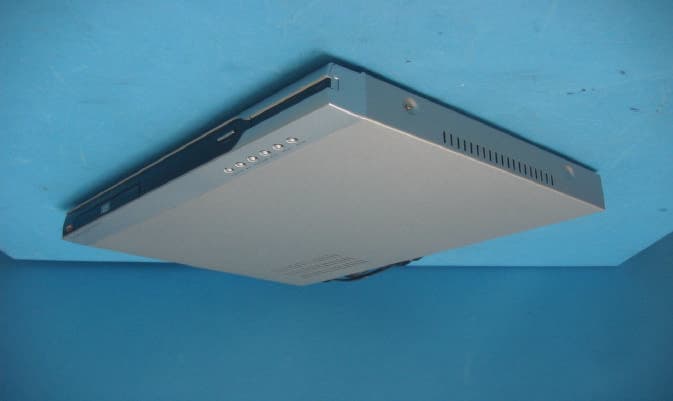

IST Co., Ltd. EMC LABORATORY External Photos.Ref.No : 05-IST-0214 1 of 2 The DUT photos Front View Rear View IST Co., Ltd. EMC LABORATORY External Photos.Ref.No : 05-IST-0214 2 of 2 The DUT photos Side View Side View

IST Co., Ltd. EMC LABORATORY Label Location.Ref.No : 05-IST-0214 1 of 1 Label Sample Label Location

IST Co., Ltd. EMC LABORATORY Internal Photos. Ref.No: 05-IST-0214 1 of 9 The DUT photos Inner Top View Bottom View IST Co., Ltd. EMC LABORATORY Internal Photos. Ref.No: 05-IST-0214 2 of 9 The DUT photos Main Board PCB Parts View Main Board PCB Copper View IST Co., Ltd. EMC LABORATORY Internal Photos. Ref.No: 05-IST-0214 3 of 9 The DUT photos Power Board PCB Parts View Power Board PCB Copper View IST Co., Ltd. EMC LABORATORY Internal Photos. Ref.No: 05-IST-0214 4 of 9 The DUT photos DVD Deck Top View DVD Deck Bottom View IST Co., Ltd. EMC LABORATORY Internal Photos. Ref.No: 05-IST-0214 5 of 9 The DUT photos AUX front Input, Control Board PCB Parts View AUX front Input, Control Board PCB Copper View IST Co., Ltd. EMC LABORATORY Internal Photos. Ref.No: 05-IST-0214 6 of 9 The DUT photos LPP Panel PCB Parts View LPP Panel PCB Copper View IST Co., Ltd. EMC LABORATORY Internal Photos. Ref.No: 05-IST-0214 7 of 9 The DUT photos Top Cover IST Co., Ltd. EMC LABORATORY Internal Photos. Ref.No: 05-IST-0214 8 of 9 Tuner photos(TADS-H151F) Front View Rear View IST Co., Ltd. EMC LABORATORY Internal Photos. Ref.No: 05-IST-0214 9 of 9 Tuner photos(TADS-H151F) Inner Front View Inner Rear View

IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 05-IST-0214 1 of 29 Certification of Compliance CFR 47 Part 15 Subpart B Test Report File No. 05-IST-0214 Date of Issue June 28,2005 Model(s) DG-R520 DAEWOO Basic Model DW-Q73D2N-LS DAEWOO Buyer Model DG-R530 DAEWOO Buyer Model DVR06 DAEWOO Buyer Model DVR07 DAEWOO Buyer Model DVR08 DAEWOO Buyer Model Kind of Product DVD Recorder FCC ID C5F7NF0017 RF Frequency Range 60MHz-72MHz RF Channels Ch.3 / Ch.4 Applicant Daewoo Electronics Corporation. 543, Dangjung-Dong, Kunpo-City, Kyounggi-DO, Korea Manufacturer GVG Digital Technology Ltd. Da Pin Precinct, Tang Xia Town, Dongguan, China Test Result Positive Negative Reviewed By Approved By S.J.Cho / EMC Group Manager J.H.LEE / Chief - Investigations requested : Measurement to the relevant clauses of F.C.C rules and regulations Part 15 Subpart B – Unintentional Radiators - The test report with appendix consists of 29 pages. - The test result only responds to the tested sample. - It is not allowed to copy this report even partly without the allowance of IST EMC Laboratory. - This equipment as for has been shown to be capable of continued compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4 2003. IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 05-IST-0214 2 of 29 TABLE OF CONTENTS Table of contents 2 Information of test laboratory, Environmental condition, Power used 3 Descriptions of test 4-6 Conducted Emission 4 Radiated Emission 5 Output Signal level measurements 6 Output Terminal Conducted Spurious Emission 6 Transfer Switch Isolation Measurement 6 Summary 7 ■ Test Conditions and Data - Emission ◆ Conducted Emission 0.15MHz - 30MHz Test equipment / Data and Plots 8-12 ◆ Radiated Emission 30MHz - 2GHz Test equipment / Data and Plots 13-15 ◆ Output Signal level measurements Test equipment / Data and Plots 16-21 ◆ Output Terminal Conducted Spurious Emission 30MHz - 1GHz Test equipment / Data and Plots 22-25 ◆ Transfer Switch Isolation Measurement 30MHz - 1GHz Test equipment / Data and Plots 26-29 Information OF TUNERS Manufacture Manufacture Name LG Innotek Co., Ltd. TADS-H151F IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 05-IST-0214 3 of 29 INFORMATIONS OF TEST LABORATORY EMC LABORATORY of IST Co., Ltd.(FCC Filing Lab) San 21-8, Goan-Ri, Baekam-Myun, Yongin-City Kyonggi-Do, 449-860, Korea TEL : +82 31 333 4093 FAX : +82 31 333 4094 ENVIRONMENTAL CONDITIONS Temperature 25 °C Humidity 49 % Atmospheric pressure 1003 mbar POWER SUPPLY SYSTEM USED Power supply system 120Vac , 60Hz PRODUCT INFORMATIONS FCC ID C5F7NF0017 Power supply system 120Vac , 60Hz Power consumption Max. 20W (Power-off : 3.4W) Signal system NTSC Antenna In Antenna or CATV input, 75ohm Video recording format Sampling frequency : 27MHz Compression format : MPEG 2 Audio recording format Sampling frequency : 48KHz Compression format : MPEG 1 Layer 2 - EMC suppression device is not used during the test. - Please refer to user’s manual. IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 05-IST-0214 4 of 29 DESCRIPTIONS OF TEST Conducted Emissions: The measurement were performed over the frequency range of 0.45MHz to 30MHz using a 50 Ω /50uH LISN as the input transducer to a Spectrum Analyzer or a Field Intensity Meter. The measurements were made with the detector set for "Peak" amplitude within an bandwidth of 10KHz or for "quasi-peak" within a bandwidth of 9KHz. - Procedure of Test The line-conducted facility is located inside a shielded room No.1. A 1m X 1.5m wooden table 80cm height is placed 40cm away from the vertical wall and 1.5m away from the other wall of the shielded room. The R/S ESH3-Z5 and EMCO 3825/2 LISN are bonded to bottom of the shielded room. The EUT is located on the wooden table with distance more than 80cm from the LISN and powered from the EMCO LISN .The peripheral equipment is powered from the other LISN. Power to the LISNs are filtered by a noise cut power line filters. All electrical cables are shielded by braided tinned steel tubing with inner φ 1.2cm. If the EUT is a DC-powered device, power will be derived from the source power supply it normally will be powered from and this supply lines will be connected to the EMCO LISN. All interconnecting cables more than 1m were shortened by non-inductive bundling to a 1m length. Sufficient time for the EUT, support equipment, and test equipment was allowed in order for them to warm up to their normal operating conditions. The RF output of the LISN was connected to the R/S receiver to determine the frequency producing the maximum emission from the EUT. The frequency producing the maximum level was reexamined using Quasi-Peak mode by manual measurement, after scanned by automatic Peak mode for frequency range from 0.45 to 30MHz. The bandwidth of the receiver was set to 10kHz. The EUT, peripheral equipment, and interconnecting cables were arranged and manipulated to maximize each EME emission. 215 >150 >40 80 Receiver EUT LISN 80 ≥ 80 80 40 ≥ 80 Measuring apparatus Mains Filter Mains Rear side Equipment under test Coaxial cable Artificial mains networ k Screened room Non-metallic support 80 < Side View > < Concept Drawing > IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 05-IST-0214 5 of 29 DESCRIPTION OF TEST Radiated Emissions: The measurement was performed over the frequency range of 30MHz to 1GHz using antenna as the input transducer to a Spectrum analyzer or a Field Intensity Meter. The measurement was made with the detector set for "quasi-peak" within a bandwidth of 120KHz. - Procedure of Test Preliminary measurements were made at 3 meter using bi-conical and log-periodic antennas, and spectrum analyzer to determine the frequency producing the max. emission in anechoic chamber. Appropriate precaution was taken to ensure that all emission from the EUT were maximized and investigated. The system configuration, mode of operation, turn table azimuth and he…

Text truncated - open the document above for the full version.

IST Co., Ltd. EMC LABORATORY Test Setup Photos. Ref. No: 05-IST-0214 1 of 2 Test Setup Photos – Radiated Emissions Front View Rear View IST Co., Ltd. EMC LABORATORY Test Setup Photos. Ref. No: 05-IST-0214 2 of 2 Test Setup Photos – Conducted Emissions Front View Rear View
