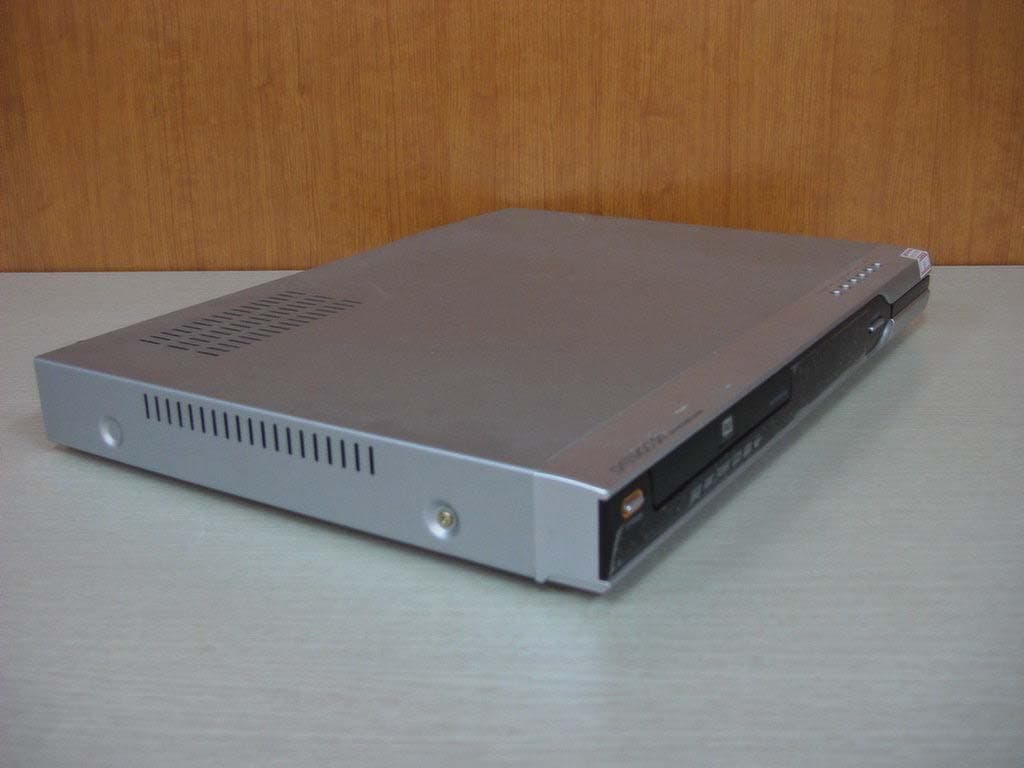

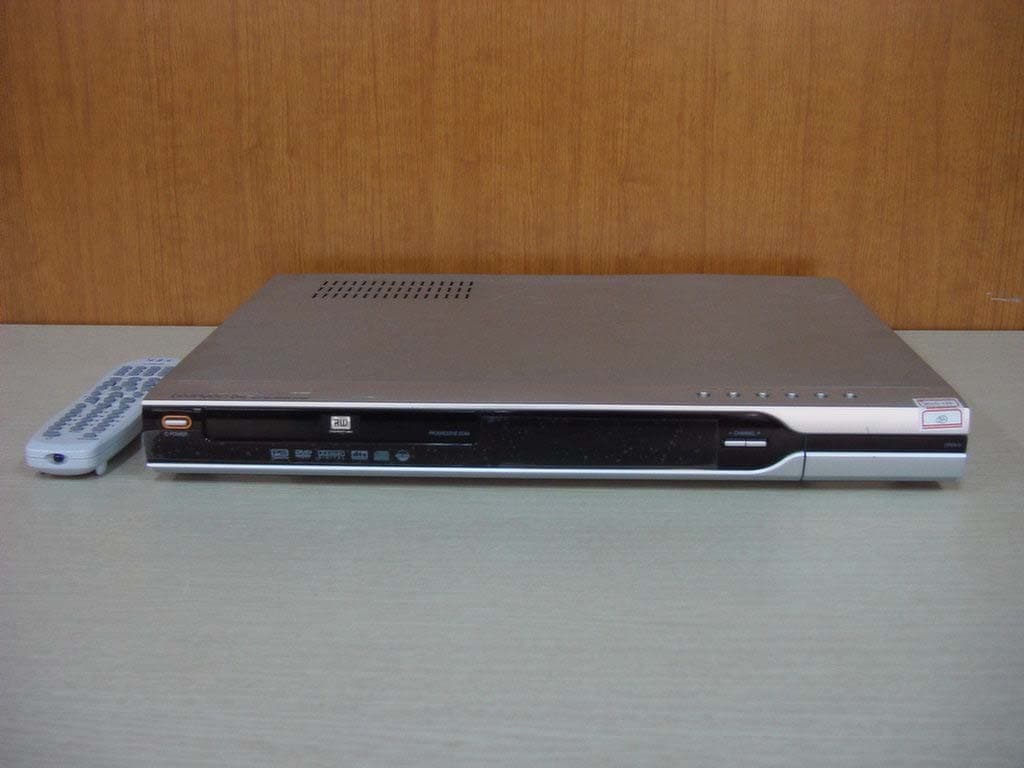

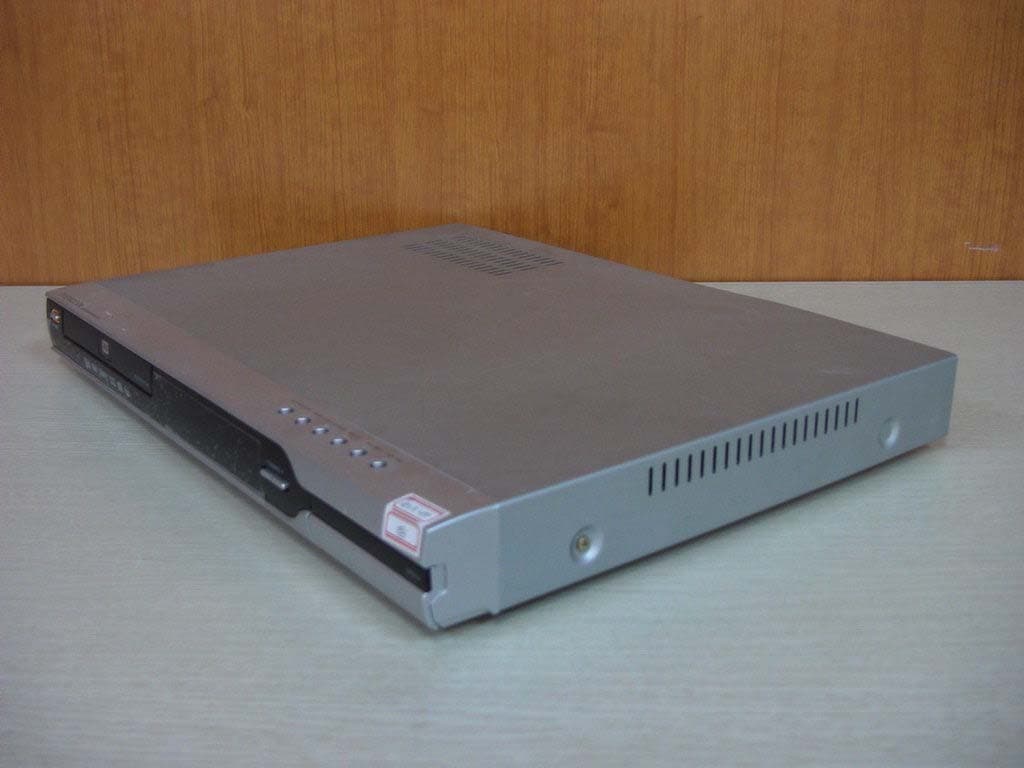

DVD Recorder DVD Recorder DVR065 User Manual DVR065(GB) 2006.1.16 1:55 PM ̆ ` A mac001 1200DPI 90LPI i Important Safeguards Important Safeguards CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated ‘dangerous voltage‘ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying the appliance. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNINGTO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTIONTO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. ATTENTIONPOUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND. WARNING: Do not install this equipment in a confined space such as a bookcase or similar unit. NOTE TO CABLE/TV INSTALLER: This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical. CAUTION: This DVD Recorder employs a Laser System. To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference. Should the DVD Recorder require maintenance, contact an authorized service center. Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM. CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus. FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. CLASS 1 LASER PRODUCT KLASSE 1LASER PRODUKT LUOKAN 1LASER LAITE KLASS 1LASER APPARAT CLASSE 1PRODUIT LASER DVR065(GB) 2006.1.16 1:55 PM ̆ ` i mac001 1200DPI 90LPI INTRODUCTION ii CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S MANUAL AND THOSE MARKED ON THE PRODUCT. RETAIN THIS MANUAL FOR FUTURE REFERENCE. This product has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this product will protect you if you observe the following procedures for installation, use, and servicing. This product does not contain any parts that can be repaired by the user. DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY. IMPORTANT SAFETY INSTRUCTIONS REGULATORY INFORMATION: FCC Part 15 This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the product is operated in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the product and receiver. - Connect the product into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC COMPLIANCE: The responsible party for this product’s compliance is: GoVideo, 7835 East McClain Drive, Scottsdale, AZ 85260, USA. SERIAL NUMBER: The serial number is found on the back of the DVD Recorder. This number is for this unit only. You should record requested information here and retain this guide as a permanent record of your purchase. Model No. ___________________________________ Serial No. ___________________________________ 1Read these instructions. All these safety and operating instructions should be read before the product is operated. 2Keep these instructions. The safety, operating and use instructions should be retained for future reference. 3Heed all warnings. All warnings on the product and in the operating instructions should be adhered to. 4Follow all instructions. All operating and use instructions should be followed. Important Safeguards DVR065(GB) 2006.1.16 1:55 PM ̆ ` ii mac001 1200DPI 90LPI iii 5Do not use this product near water. For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement; or near a swimming pool; and other areas located near water. 6Clean only with dry cloth. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners. 7Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Slots and openings in the cabinet are provi…

Text truncated - open the document above for the full version.

8 BLOCK DIAGRAM 55 44 33 22 11 D D C C B B A A MICOM IC601 TUNER MTS A-SW IC103 NJM4052BM BUFFER RF101 IC LA72702 IC IC101 Q210 IC102 V-SW IC (NJM4051BM) C/SS-CLOCKS-INS-OUT IIC_CLK IIC_DATAIIC_CLK IIC_DATA IIC_DATA NORMAL_AUDIONORMAL_AUDIO A-R A-L RF_VIDEOLINE1_VIDEO(FROM_JACK_701)FOR_REC_VIDEO(FORM_DVD_PART)LINE2_VIDEO(FROM_JACK_101) LINE1_AUDIO(FROM_JACK_701)FOR_REC_AUDIO(FORM_DVD_PART)LINE2_AUDIO(FROM_JACK_101) SIF AUDIO_IN CVBS COMPONENT S_VIDEO PSCAN_DATA FOR_REC_VIDEO COMPOSIT COMPONENT S_VIDEO JK101 JK201 JK203TUNER CVBS IC201OP_AMP_IC AUDIO_OUT FOR_REC_AUDIO JK101JK201TUNER AUDIO SPDIF JK201JK202 IIC_CLK AFT TV/VCR TO_TUNER 4FSC(14.32MHz) DVD_PART BLOCK_DIAGRAM MAIN_PART_BLOCK_DIAGRAM FSC(3.58MHz) MT8105 MPEG2 CODEC TSB41AB1 CS5340 Audio ADC REMOCON RECIEVER DDRAM(256M Bit) FLASH 16M Bit CS4344 Audio DAC MT1888E DSP + RF 2M words SDRAM Actuator & Sled motor & driver Pick-up head connector Sled & spindle & Tray connector Spindle & tray Motor driver IDE interface ADC data DV 1394 INPUT AUDIO R IN from analog board AUDIO L IN from analog board CVBS IN from analog board ADC data AUDIO R OUT to analog board AUDIO L OUT to analog board SPDIF OUT to analog board CVBS OUT to analog board COMPONENT OUT to analog board S-VODEO OUT to analog board Mpeg part BLOACK diagram FSC : 27MhzFSC : 25Mhz FSC : 24.576Mhz

IST Co., Ltd. TEL : +82 31 333 4093 FAX : +82 31 333 4094 International Standard Technology February 10, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize IST Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by IST Co., Ltd. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing IST Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; IST Co., Ltd. TEL : +82 31 333 4093 FAX : +82 31 333 4094 International Standard Technology e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Cho Yong Hee / Senior Research Engineer DAEWOO Electronics Corp.

ID Label Sample Location Information

IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 06-IST-0043 16 of 34 Output Signal Level Measurements TV CH. Freq.(MHz) Level(dBuV) Limit(dBuV) Mode Margin(dB) 3(Pix) 61.28 55.70 69.54 Playback 12.14 3(Aud) 56.75 41.70 56.53 Playback 13.33 3(Pix) 61.28 54.60 69.54 Record 12.24 3(Aud) 56.75 41.80 56.53 Record 13.53 4(Pix) 67.25 54.80 69.54 Playback 12.04 4(Aud) 62.72 41.80 56.53 Playback 13.03 4(Pix) 67.24 55.70 69.54 Record 11.94 4(Aud) 62.74 41.70 56.53 Record 13.23 Output Signal Tabulated Data with Tuner Note : IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 06-IST-0043 17 of 34 Output Signal Level Measurements CH3 Playback (Pix) CH3 Playback (Aud) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 06-IST-0043 18 of 34 Output Signal Level Measurements CH3 Record (Pix) CH3 Record (Aud) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 06-IST-0043 19 of 34 Output Signal Level Measurements CH4 Playback (Pix) CH4 Playback (Aud) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 06-IST-0043 20 of 34 Output Signal Level Measurements CH4 Record (Pix) CH4 Record (Aud) IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 06-IST-0043 21 of 34 TEST CONDITIONS AND DATA Output Terminal Conducted Spurious Emission [Applicable] ୛ Test Equipment Used The test equipment used is calibrated in regular for every year. Model Name Manufacturer Descriptions Calibration Date Serial Number 8566B Hewlett Packard Spectrum Analyzer Nov. 29, 2005 3014A07159 85685A Hewlett Packard RF preselector Nov. 29, 2005 2817A00760 RAM Rohde & Schwarz 50/75ohms matching pad - 836625/033 ୛ Auxiliary Equipment Used Model Name Manufacturer Descriptions 14C5NT Daewoo Electronics. Color TV Receiver ୛ Accessories including cables Name Length Port and Descriptions RCA 1.5m Video / Audio ୛ Environmental Conditions Temperature 17 ୅ Humidity 48 ୿ Atmosphere pressure 1004 mbar ୛ Test Program DVD Playback Mode, DVD Recording Mode ୛ Test Area Compact Chamber ୛ Test Date February 2, 2006 Note : Limit Calculation (Sec 15.115(b)(2)(ii)) 10.95 X 75 1/2 uV = 95uV = 39.55 dBuV The test were performed with color bar as VITS. The VITS signals, 1V and 5V peak-to-peak, were used for channel 3 and channel 4 with alternate. The above test program were employed for each channel. IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 06-IST-0043 22 of 34 Output Terminal Conducted Spurious Emission CH3 Playback CH3 Record Note : The frequency of marker is a operating frequency. IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 06-IST-0043 23 of 34 Output Terminal Conducted Spurious Emission CH4 Playback CH4 Record Note : The frequency of marker is a operating frequency. IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 06-IST-0043 24 of 34 Output Terminal Conducted Spurious Emission CH3 Playback CH3 Playback

IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 06-IST-0043 25 of 34 Output Terminal Conducted Spurious Emission CH3 Record CH3 Record IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 06-IST-0043 26 of 34 Output Terminal Conducted Spurious Emission CH4 Playback CH4 Playback IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 06-IST-0043 27 of 34 Output Terminal Conducted Spurious Emission CH4 Record CH4 Record IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 06-IST-0043 28 of 34 TEST CONDITIONS AND DATA Transfer Switch Isolation Measurement [Applicable] ୛ Test Equipment Used The test equipment used is calibrated in regular for every year. Model Name Manufacturer Descriptions Calibration Date Serial Number 8566B Hewlett Packard Spectrum Analyzer Nov. 29, 2005 3014A07159 85685A Hewlett Packard RF preselector Nov. 29, 2005 2817A00760 RAM Rohde & Schwarz 50/75ohms matching pad - 836625/033 ୛ Auxiliary Equipment Used Model Name Manufacturer Descriptions 14C5NT Daewoo Electronics. Color TV Receiver ୛ Accessories including cables Name Length Port and Descriptions RCA 1.5m Video / Audio ୛ Environmental Conditions Temperature 17 ୅ Humidity 48 ୿ Atmosphere pressure 1004 mbar ୛ Test Program DVD Playback Mode, DVD Recording Mode ୛ Test Area Compact Chamber ୛ Test Date February 2, 2006 Note : Transfer switch isolation measurements were made on the Channel 3 and 4 video output frequencies of 61.25 and 67.25 MHz and both position of the transfer switch. Limit calculation(Sec 15.115 (c)(1)(ii)) 0.346 X 75 1/2 = 2.996uV = 9.53dBuV = -97.46dBm The test were performed with color bar as VITS. The VITS signals, 1V and 5V peak-to-peak, were used for channel 3 and channel 4 with alternate. The above test program were employed for each channel. IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 06-IST-0043 29 of 34 Transfer Switch Isolation Measurement TV CH Freq.(MHz) Level(dBuV) Limit(dBuV) Mode Margin(dB) 3 61.25 5.29 9.53 Playback 4.24 3 61.25 5.22 9.53 Record 4.31 4 67.25 5.12 9.53 Playback 4.41 4 67.25 5.31 9.53 Record 4.22 Transfer Switch Tabulated Data with Tuner Note : IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 06-IST-0043 30 of 34 Transfer Switch Isolation Measurement CH3 Playback CH3 Record IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 06-IST-0043 31 of 34 Transfer Switch Isolation Measurement CH4 Playback CH4 Record IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 06-IST-0043 32 of 34 Appendix A. The Photos of Test Setup Conducted Emissions - Front View Conducted Emissions - Rear View IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 06-IST-0043 33 of 34 Appendix A. The Photos of Test Setup Radiated Emissions - Front View Radiated Emissions - Rear View IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 06-IST-0043 34 of 34 Appendix A. The Photos of EUT Front View Rear View
