C5F7NF12MO900NMICROWAVE OVEN

OPERATING INSTRUCTIONS & COOKING GUIDE Before operating this oven, please read these instructions completely. 22” OVER THE RANGE MICROWAVE OVEN KOT-123Q TABLE OF CONTENTS PRECAUTIONS ................................................................................................................................................ 1 IMPORTANT SAFETY INSTRUCTIONS ........................................................................................................... 2 FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFENCE STATEMENT (U.S.A ONLY) ...................................................................................................... 4 GROUNDING INSTRUCTIONS ......................................................................................................................... 4 INSTALLATION ................................................................................................................................................ 5 SPECIFICATIONS ........................................................................................................................................... 6 FEATURES DIAGRAM ..................................................................................................................................... 7 OPERATION PROCEDURE ............................................................................................................................. 9 CONTROLS ................................................................................................................................................... 10 CLOCK ..................................................................................................................................................... 10 AUTO DEFROST ....................................................................................................................................... 11 TIME DEFROST ........................................................................................................................................ 12 COOKING IN ONE STAGE ....................................................................................................................... 13 COOKING IN TWO STAGES .................................................................................................................... 13 WEIGHT DEFROST AND COOKING IN TWO STAGES .......................................................................... 14 AUTO START ............................................................................................................................................ 15 CHECKING AUTO START TIME .............................................................................................................. 15 QUICK START .......................................................................................................................................... 15 ONE TOUCH COOKING ........................................................................................................................... 16 MORE, LESS ............................................................................................................................................ 18 CHILD SAFETY LOCK .............................................................................................................................. 18 USING THE EXHAUST FAN ..................................................................................................................... 18 USING THE COOKTOP LIGHT ................................................................................................................ 18 SAVING THE ENERGY .................................................................................................................................. 19 TO STOP THE OVEN WHILE THE OVEN IS OPERATION .......................................................................... 19 MICROWAVE UTENSILS ............................................................................................................................... 19 COOKING GUIDE ........................................................................................................................................... 21 CARE AND CLEANING .................................................................................................................................. 34 HOW TO CLEAN THE INSIDE ....................................................................................................................... 34 HOW TO CLEAN THE OUTSIDE ................................................................................................................... 34 THE EXHAUST FEATURE ............................................................................................................................. 35 REUSABLE GREASE FILTER ....................................................................................................................... 35 TO REMOVE GREASE FILTER ..................................................................................................................... 35 LIGHT BULB REPLACEMENT ....................................................................................................................... 36 USE YOUR MICROWAVE OVEN SAFELY .................................................................................................... 37 BEFORE YOU CALL FOR SERVICE ............................................................................................................. 38 QUESTIONS AND ANSWERS ....................................................................................................................... 38 LIMITED 1 YEAR WARRANTY ....................................................................................................................... 39 1 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to…

Text truncated - open the document above for the full version.

Test Report No.: NK2FE291 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF12MO900N Page 51 of 59 APPENDIX C – EUT PHOTOGRAPHS z Front View of EUT Test Report No.: NK2FE291 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF12MO900N Page 52 of 59 z Rear View of EUT

Test Report No.: NK2FE291 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF12MO900N Page 46 of 59 APPENDIX A – SAMPLE LABEL The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. z FCC ID Location of EUT Labeling Requirements ID LABEL LOCATION

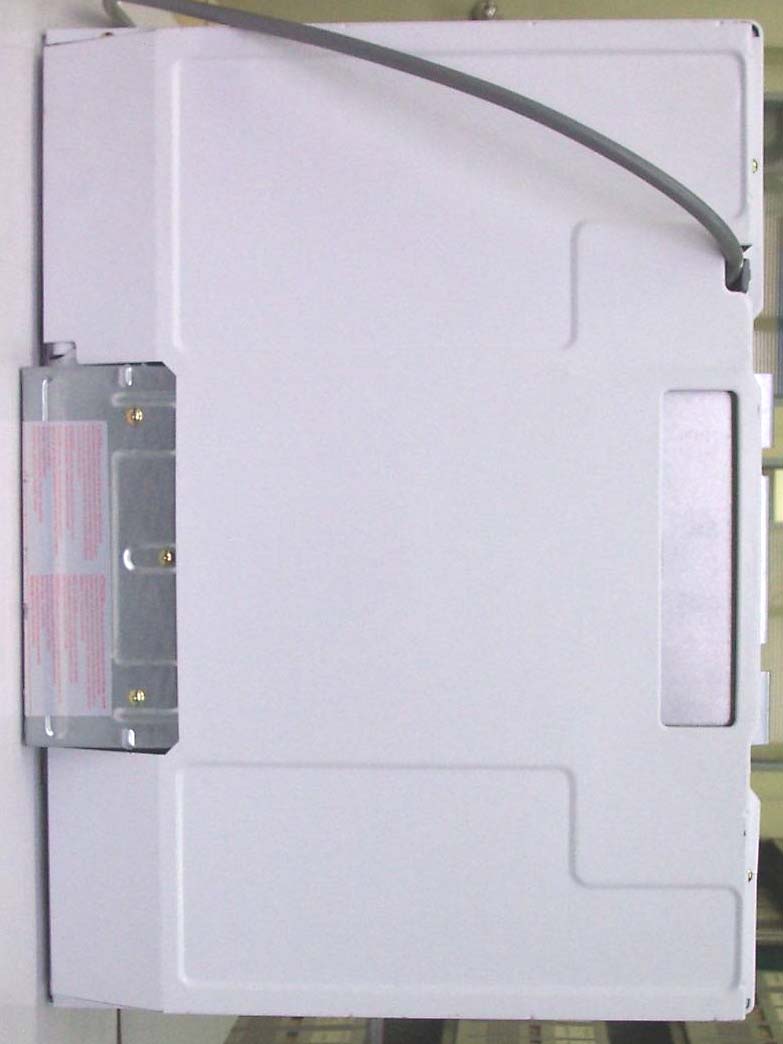

Test Report No.: NK2FE291 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF12MO900N Page 53 of 59 z Open View of EUT Test Report No.: NK2FE291 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF12MO900N Page 54 of 59 z Side View of EUT Test Report No.: NK2FE291 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF12MO900N Page 55 of 59 z Side View of EUT Test Report No.: NK2FE291 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF12MO900N Page 56 of 59 z Top View of EUT

WIRING DIAGRAM ( SCHEMATICS ) FCC ID: C5F7NF12MO9ØØN

Test Report No.: NK2FE291 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF12MO900N Page 1 of 59 Nemko Korea Co., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : Daewoo Electronics Corporation. Dates of Issue : May 25, 2005 M/W Oven Div. R&D Center, 412-2, Test Report No. : NK2FE291 Chungchun-Dong, Bupyong-Gu, Incheon, Test Site : Nemko Korea Co., Ltd. 403-032, Korea EMC site, Korea Attn : Mr. Gun-Woo, Ro FCC ID Brand Name Contact Person Applied Standard: Part 18 & 2 Classification : Consumer ISM equipment EUT Type: Microwave oven The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in MP-5:1986. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : S. H. Baek Reviewed By : H.H. Kim Engineer Manager & Chief Engineer C5F7NF12MO900N DAEWOO Daewoo Electronics Corporation. M/W Oven Div. R&D Center, 412-2, Chungchun-Dong, Bupyong-Gu, Incheon, 403-032, Korea Mr. Gun-Woo, Ro Telephone No. : +82 32 510 7923 Test Report No.: NK2FE291 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF12MO900N Page 2 of 59 TABLE OF CONTENTS SCOPE INTRODUCTION (Site Description) EUT INFORMATION DESCRIPTION OF TESTS (Radiation Hazard) DESCRIPTION OF TESTS (Input Power Measurement) DESCRIPTION OF TESTS (RF Output Power Measurement) DESCRIPTION OF TESTS (Operating Frequency Measurements) DESCRIPTION OF TESTS (Conducted Emissions) DESCRIPTION OF TESTS (Radiated Emissions) TEST DATA (Radiation Hazard) TEST DATA (Input Power Measurement) TEST DATA (RF Output Power Measurement) TEST DATA (Operating Frequency Measurements) TEST DATA (Conducted Emissions) TEST DATA (Radiated Emissions) PLOT OF EMISSIONS (Operating Frequency Measurements) PLOT OF EMISSIONS (Conducted Emissions Diagram) ACCURACY OF MEASUREMENT LIST OF TEST EQUIPMENT APPENDIX A - SAMPLE LABEL APPENDIX B - PHOTOGRAPHS OF TEST SET-UP APPENDIX C - EUT PHOTOGRAPHS APPENDIX D - SCHEMATIC DIAGRAM APPENDIX E - USER’S MANUAL APPENDIX F - BLOCK DIAGRAM 2 4 5 6 6 6 6 7 8 9 9 9 10 12 19 21 30 44 45 46 47 51 57 58 59 Test Report No.: NK2FE291 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF12MO900N Page 3 of 59 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 18. Responsible Party : Contact Person : Manufacturer : Factory : Daewoo Electronics Corporation. Mr. Gun-Woo. Ro Tel No.: +82 32 510 7923 Daewoo Electronics Corporation. M/W Oven Div. R&D Center, 412-2, Chungchun-Dong, Bupyong-Gu, Incheon, 403-032, Korea 1) Daewoo Microwave Oven Co., Ltd. 981-1, Jangduck-Dong, Gwangsan-Gu, Kwangju-Shi, 506-251, Korea 2) Daewoo Electronics Corporation. Detda, Dagang District, Tianjin, Chaina z FCC ID: C5F7NF12MO900N z Model: KOT-123Q z Brand Name: DAEWOO z EUT Type: Microwave Oven z Applied Standard: z Test Procedure(s): z Dates of Test: z Place of Tests: z Test Report No.: FCC Part 18 & Part 2 MP-5:1986 May 10, 2005 to May 17,2005 Nemko Korea Co., Ltd. EMC Site NK2FE291 Test Report No.: NK2FE291 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF12MO900N Page 4 of 59 INTRODUCTION The measurement procedure described in MP5:1986 for Methods of Measurement of radiated, powerline conducted radio noise, frequency and power output was used in determining emissions emanating from Daewoo Electronics Corporation. FCC ID : C5F7NF12MO900N, Microwave Oven. These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory . The site address is 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4-2003 Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab and Incheon Airport. Nemko Korea Co., Ltd. OPEN AREA TEST SITE 300-2, Osan-Ri, Mohyun-Myun, Yongin- City Kyungki-Do,KOREA 449-852 Tel) +82-31-322-2333 Fax) +82-31-322-2332 Test Report No.: NK2FE291 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF12MO900N Page 5 of 59 EUT INFORMATION EUT Information Electric Rating: 120V, 60Hz Clock: 4MHz Magnetron Type: 2M218 / Daewoo Electronics Corp. Operating Frequency 2.45GHz Rated Output Power 900W Test Report No.: NK2FE291 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF12MO900N Page 6 of 59 DESCRIPTION OF TESTS Radiation Hazard A 700-ml water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. Input Power Measurement The EUT was placed on a wooden table 0.8m at 1m distance Horn antenna. A 700ml water load was placed in the center of the oven and the oven set to maximum power. A 700ml water load was chosen …

Text truncated - open the document above for the full version.

Test Report No.: NK2FE291 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF12MO900N Page 47 of 59 APPENDIX B – PHOTOGRAPHS OF TEST SET-UP The Conducted Test Picture and Radiated Test Picture and show the worst-case configuration and cable placement. z Radiation hazard Test Picture z RF Output Power Test Picture Test Report No.: NK2FE291 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF12MO900N Page 48 of 59 z Operating Frequency Test Picture z Radiated Test Picture (1GHz~24GHz) Test Report No.: NK2FE291 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF12MO900N Page 49 of 59 z Conducted Test Picture (Front) z Conducted Test Picture (Rear) Test Report No.: NK2FE291 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF12MO900N Page 50 of 59 z Radiated Test Picture (Front) z Radiated Test Picture (Rear)
