C5F7NF1CMO800NMicrowave Oven

OWNER’S MANUAL Before operating this oven, please read these manual completely. For safe use to avoid possible risk of tipping the oven, do not put heavy utensils or food on the door and tip the door. MULTI-FUNCTION OVEN KOC-1C4K 1 TABLE OF CONTENTS • FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT............2 • GROUNDING INSTRUCTIONS.................................2 • INSTALLATION .........................................................3 • IMPORTANT SAFETY INSTRUCTIONS .................. 4 • GENERAL USE .........................................................5 • COOKING UTENSILS ...............................................6 • WHICH UTENSILS CAN BE USED IN THE OVEN? 7 • CONTROL PANEL.....................................................8 • DISPLAY WINDOW .................................................. 9 • ACCESSORIES .......................................................10 • SETTING THE VOLUME LEVEL .............................11 • POPCORN ...............................................................12 • AUTO COOK ...........................................................13 • INSTANT COOK ......................................................15 • MICROWAVE COOK ...............................................17 • SPEEDY COOK ...................................................... 18 • CONVECTION COOK (Without Preheating) ...........19 • CONVECTION COOK (With Preheating) ................20 • GRILL COOK ...........................................................21 • COMBINATION COOK (Microwave+Convection) ...22 • AUTO DEFROST (Weight Defrost with Microwave Feature) ................23 • AUTO DEFROST (Time Defrost with Microwave Feature) ...................24 • FERMENTATION (with Convection Feature) ..........25 • STEAM CLEANING (with Microwave Feature) ........26 • DEODORIZATION (with Convection Feature) .........27 • MEMORY COOK (with Microwave Feature) ............28 • SETTING THE MEMORY COOK ............................29 • SETTING THE CLOCK ............................................30 • POWER SAVE MODE .............................................31 • REMINDER ..............................................................31 • CHILD LOCK ...........................................................31 • TO STOP THE OVEN WHILE THE OVEN IS OPERATING ........................................................... 31 • ABNORMAL MESSAGES....................................... 31 • ARCING .................................................................. 31 • GENERAL GUIDELINES .........................................32 • CARE OF YOUR MICROWAVE OVEN ...................33 • KEEP THE OVEN CLEAN ...................................... 34 • BEFORE CALLING FOR SERVICE ....................... 35 • QUESTIONS AND ANSWERS ............................... 36 • SPECIFICATIONS ...................................................37 • DISPOSAL OF USED ELECTRICAL & ELECTRONIC EQUIPMENT...................................37 • COOKING INSTRUCTIONS ...................................38 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the dooropen since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any objectbetween the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged.It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d)The oven should not be adjusted or repaired by anyone except properly qualified service personnel. (e) WARNING :It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. (f) WARNING :Liquids and other foods must not be heated in sealed containers since they are liable to explode. (g) WARNING :Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use. (h) WARNING : When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperature generated. (if provided) 2 FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, the grounding plug reduces the risk of electric shock by providing an escape wire for electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. WARNING: This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type-tested and found to comply with limits for an ISM Equipment pursuant to part 18 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the followings. • Reorient the receiving antenna of radio or television. • Relocate the Microwave oven with respect to the receiver. • Move the microwave oven away from the receiver. • Plug the microwave oven into a different outlet so that microwave oven and receiver are on differen…

Text truncated - open the document above for the full version.

FCC ID: C5F7NF1CMO8ØØN 5. Block Diagram

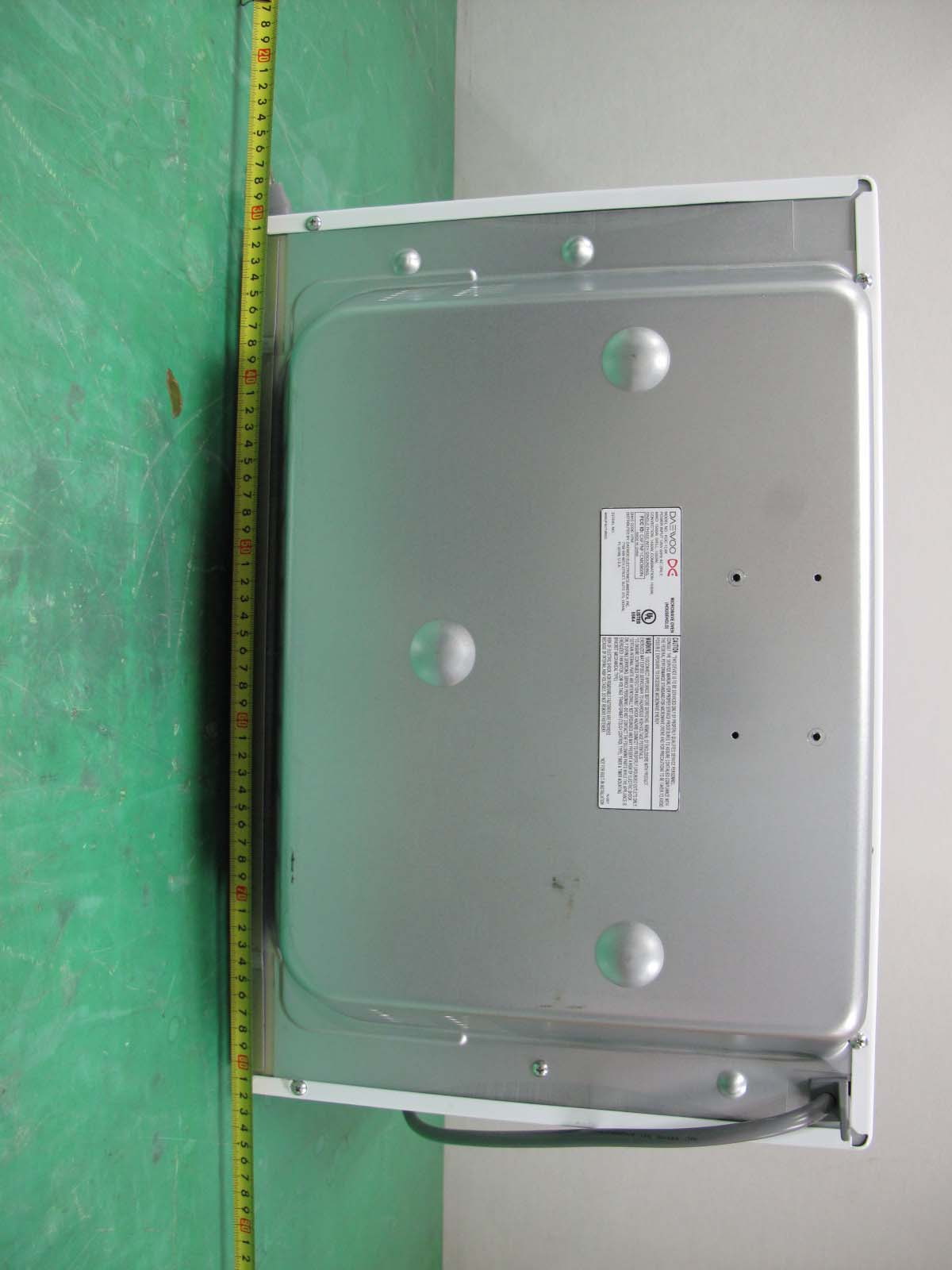

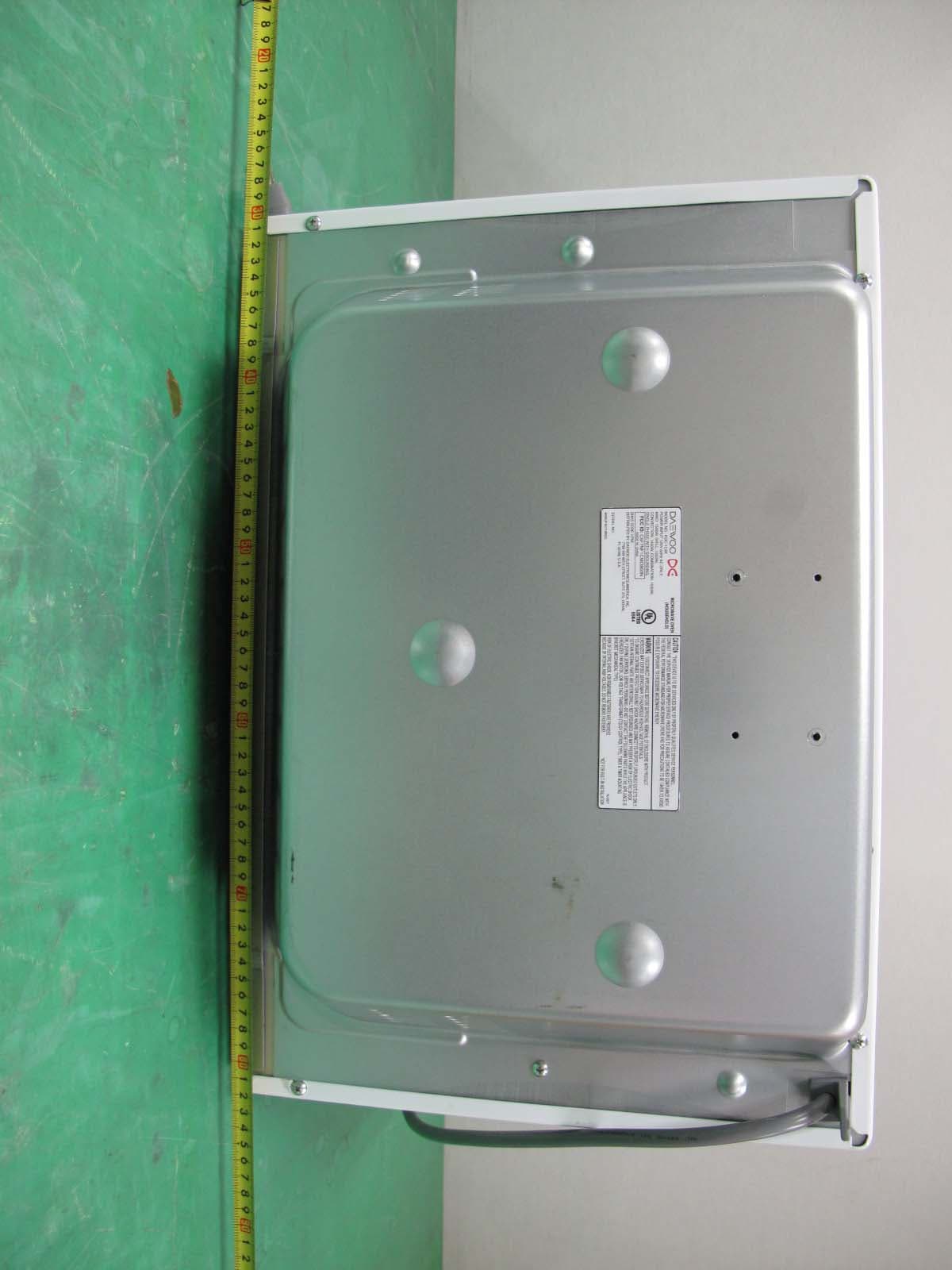

Test Report No.: NK-10-E-880 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1CMO800N Page 48 of 62 APPENDIX C – EUT PHOTOGRAPHS z Front View of EUT Test Report No.: NK-10-E-880 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1CMO800N Page 49 of 62 z Rear View of EUT

Test Report No.: NK-10-E-880 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1CMO800N Page 43 of 62 APPENDIX A – SAMPLE LABEL The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. z FCC ID Location of EUT Labeling Requirements

Test Report No.: NK-10-E-880 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1CMO800N Page 50 of 62 z Inside View of EUT Test Report No.: NK-10-E-880 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1CMO800N Page 51 of 62 z Top View of Inside Test Report No.: NK-10-E-880 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1CMO800N Page 52 of 62 z Left View of Inside Test Report No.: NK-10-E-880 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1CMO800N Page 53 of 62 z Right View of Inside Test Report No.: NK-10-E-880 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1CMO800N Page 54 of 62 z Front View of Main Board Test Report No.: NK-10-E-880 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1CMO800N Page 55 of 62 z Rear View of Main Board Test Report No.: NK-10-E-880 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1CMO800N Page 56 of 62 z Front View of Magnetron Test Report No.: NK-10-E-880 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1CMO800N Page 57 of 62 z Rear View of Magnetron Test Report No.: NK-10-E-880 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1CMO800N Page 58 of 62 z Front View of Line Filter Test Report No.: NK-10-E-880 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1CMO800N Page 59 of 62 z Rear View of Line Filter

After main power supply, When we press Start button, DC 5V enter the micom of Control panel and Main relay on and then High voltage circuit formed. DC 4KV be create by combination of H.V Transformer, H.V Capacitor and H.V Diode. This high voltage, DC 4KV get into Magnetron and then Microwave generate. FCC ID: C5F7NF1CMO8ØØN OPERATION DESCRIPTION

WIRING DIAGRAM ( SCHEMATICS ) FCC ID: C5F7NF1CMO8ØØN 4. Wiring Diagram

Test Report No.: NK-10-E-880 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1CMO800N Page 2 of 62 TABLE OF CONTENTS SCOPE INTRODUCTION (Site Description) EUT INFORMATION DESCRIPTION OF TESTS (Radiation Hazard) DESCRIPTION OF TESTS (Input Power Measurement) DESCRIPTION OF TESTS (RF Output Power Measurement) DESCRIPTION OF TESTS (Operating Frequency Measurements) DESCRIPTION OF TESTS (Conducted Emissions) DESCRIPTION OF TESTS (Radiated Emissions) TEST DATA (Radiation Hazard) TEST DATA (Input Power Measurement) TEST DATA (RF Output Power Measurement) TEST DATA (Operating Frequency Measurements) TEST DATA (Conducted Emissions) TEST DATA (Radiated Emissions) PLOT OF EMISSIONS (Operating Frequency Measurements) PLOT OF EMISSIONS (Conducted Emissions Diagram) PLOT OF EMISSIONS (Radiated Emissions Diagram) ACCURACY OF MEASUREMENT LIST OF TEST EQUIPMENT APPENDIX A - SAMPLE LABEL APPENDIX B - PHOTOGRAPHS OF TEST SET-UP APPENDIX C - EUT PHOTOGRAPHS APPENDIX D - SCHEMATIC DIAGRAM APPENDIX E - USER’S MANUAL APPENDIX F - BLOCK DIAGRAM 3 4 5 6 6 6 6 7 8 9 9 9 10 12 13 16 34 36 41 42 43 44 48 60 61 62 Test Report No.: NK-10-E-880 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1CMO800N Page 3 of 62 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 18. Responsible Party : Contact Person : Manufacturer : Factory : Daewoo Electronics Corporation Mr. Seongok, Kim Tel No.: + 82 32 510 7919 Daewoo Electronics Corporation M/W oven R&D center 412-2, Cheongcheon2-Dong, Bupyeong-Gu, Incheon, 403-032, KOREA Daewoo Microwave Oven Co., Ltd. Delta, Dagang, District, Tianjin, China z FCC ID: C5F7NF1CMO800N z Model: KOC-1C4K z Brand Name: DAEWOO z EUT Type: Microwave Oven z Applied Standard: z Test Procedure(s): z Dates of Test: z Place of Tests: z Test Report No.: FCC Part 18 & Part 2 MP-5:1986 November 11, 2010 to December 07, 2010 Nemko Korea Co., Ltd. EMC Site NK-10-E-880 Test Report No.: NK-10-E-880 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1CMO800N Page 4 of 62 INTRODUCTION The measurement procedure described in MP5:1986 for Methods of Measurement of radiated, powerline conducted radio noise, frequency and power output was used in determining emissions emanating from Daewoo Electronics Corporation. FCC ID : C5F7NF1CMO800N, Microwave Oven. These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory. The site address is 300-2, Osan-Ri, Mohyun-Myun, Cheoin-Gu, Yongin-City, Gyeonggi-Do, KOREA The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4-2003 Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab and Incheon Airport. Nemko Korea Co., Ltd. OPEN AREA TEST SITE 300-2, Osan-Ri, Mohyun-Myun, Cheoin-Gu, Yongin-City Gyeonggi-Do,KOREA 449-852 Tel) +82-31-322-2333 Test Report No.: NK-10-E-880 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1CMO800N Page 5 of 62 EUT INFORMATION EUT Information Electric Rating : a.c. 120 V , 60 Hz Clock : 4 MHz Magnetron Type : 2M218 (Daewoo) Operating Frequency : 2.45 GHz Test Report No.: NK-10-E-880 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1CMO800N Page 6 of 62 DESCRIPTION OF TESTS Radiation Hazard A 700 ml water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. Input Power Measurement The EUT was placed on a wooden table 0.8 m at 1 m distance Horn antenna. A 700ml water load was placed in the center of the oven and the oven set to maximum power. A 700 ml water load was chosen for its compatibility. Input power and current were measured using a Power Analyzer. Manufacturers to determine their input ratings commonly use this procedure. Output Power Measurement The Caloric Method was used to determine maximum output power. The initial temperature of a 1000 ml water load was measured. The water load was placed in the center of the oven. The oven was operated at maximum output power for 120 seconds. Then the temperature of the water re-measured. Frequency Measurements Following the above test, after operating the oven long enough to assure that stable operating temperature were obtained, the operating frequency was monitored as the input voltage was varied between 80 to 125 percent of the nominal rating. And the load quantity was reduced by evaporation to approximately 20 % of the original quantity with nominal rating. Test Report No.: NK-10-E-880 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1CMO800N Page 7 of 62 DESCRIPTION OF TESTS Conducted Emissions The Line conducted emission test facility is located inside a 4 x 7 x 2.5 meter shielded enclosure. It is manufactured by EM engineering. The shielding effectiveness of the shielded room is in accordance with MIL-STD-285 or NSA 65-6. A 1 m X 1.5 m wooden table 0.4 m height is placed 0.4 m away from the vertical wall and 1.5 m away from the side of wall of the shielded room Rohde & Schwarz (ESH2-Z5) of the 50 ohm/50 uH Line Impedance Stabilization Network (LISN) is bonded to the shielded room. The EUT is powered from the Ro…
