C5F7NF1GMO100NMICROWAVE OVEN

Table of Contents Introduction ............................................. 1 Precautions to Avoid Possible Exposure to Excessire Microwave Energy ....................................................... 1 Important Safety Instructions ........... 2~3 Installation Recommendations.............. 4 Control Panel ....................................... 5~6 Oven Features at a Glance ..................... 7 Operating Basics ............................... 8~12 Special Features............................... 12~16 Care and Cleaning .......................... 17~19 Questions and Answers ....................... 20 Before You Call ...................................... 21 Microwave Oven Use and Care Manual KOT-1G0A IMPORTANT SAFETY INSTRUCTION Never operate the oven when it is empty or without the glass turntable. 1 Introduction Congratulations on your purchase of an over-the range microwave oven. For best results, we suggest reading this guide carefully. You will find instructions on the proper operation and maintenance of your microwave. A. Do notattempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. B. Do notplace any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. C. Do notoperate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. D.The oven should not be adjusted or repaired by anyone except properly qualified service personnel. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY 2 IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should be followed, including the following: 11. Read all instructions before using the appliance. 12.Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” found on page 1. 13.This appliance must be grounded. Connect only to properly grounded outlet. See “GROUNDING INSTRUCTIONS” on page 4. 14.Install or locate this appliance in accordance with the provided installation instructions. Do not mount over a sink. 15. This over-the-range oven was designed for use over ranges no wider than 30 inches.It may be installed over both gas and electric cooking equipment. 16. For best operation, plug this appliance into its own electrical outlet, to prevent flickering of lights, blowing of fuse or tripping of circuit breaker. 17.Some products such as whole eggs and sealed containers - for example, closed jars - are able to explode and should not be heated in this oven. In rare instances, poached eggs have been known to explode. Cover poached eggs and allow standing time of one minute before cutting into them. 18.Foods with unbroken outer “skin” such as potatoes, sausages, tomatoes, apples, chicken livers and other giblets, and egg yolks (see previous caution) should be pierced to allow steam to escape during cooking. “Boilable” cooking pouches and tightly closed plastic bags should be slit, pierced or vented. 19.Do not heat, store or use flammable materials in or near the oven. Fumes can create a fire hazard or explosion. 10.Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or defrost food. It is not designed for industrial, laboratory or commercial use. it is intended for home use only. 11.As with any appliance, close supervision is necessary when used by children. 12.Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. 13.This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment. 14. Do not cover or block any openings on the appliance. 15.Do not use or store this appliance outdoors. Do not use this product near water - for example, near a kitchen sink, in a wet basement or near a swimming pool, or similar locations. 16.Do not immerse cord or plug in water. 17.Keep cord away from heated surfaces. 18.Do not let cord hang over edge of table or counter. 19.When cleaning surfaces of door and oven that come together on closing the door, use only mild, non- abrasive soaps or detergents applied with a sponge or soft cloth. 20.To reduce the risk of fire in the oven cavity: a.Do not overcook food. Carefully attend appliance when paper, plastic or other combustible materials are placed inside the oven to facilitate cooking. Avoid using recycled paper products. Do not use newspaper or other printed paper in the oven. Such products sometimes contain impurities which could ignite. b.Remove wire twist-ties from paper or plastic bags before placing them in oven. c.If materials inside the oven ignite, keep oven door closed, turn oven off and disconnect the power cord or shut off power at the fuse or circuit breaker panel. d.Do not use the oven for storage. Do not leave paper products, cooking utensils or food in the oven when not in use. e. Do not pop popcorn except in a microwave approved popcorn popper or in a commercial package recommended especially for microwave ovens. f. Do not overcook potatoes. They may dehydrate and catch fire. g. Do not use for drying clothes, linens, newspaper or similar non-food type items. 21. Do not operate the oven when empty or with an empty utensil to avoid damage to the oven and danger of fire. 22.Do not lean on the oven door. The door is designed to close tightly and seal properly for safe operation. Leaning on the door may warp or break the hinges. ...more WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: …

Text truncated - open the document above for the full version.

FCC ID: C5F7NF1GMO1ØØN Input 120Vac 60Hz Note: Components outlined with dotted line is optional and may not be employed in the model Magnetron LampFan Motor Turntable Motor Heating Element H.V. TransformerH.V. Capacitor Oven Cavity BLOCK DIAGRAM Control Panel (Clock fre que ncy 4Mhz) H.V.Diode

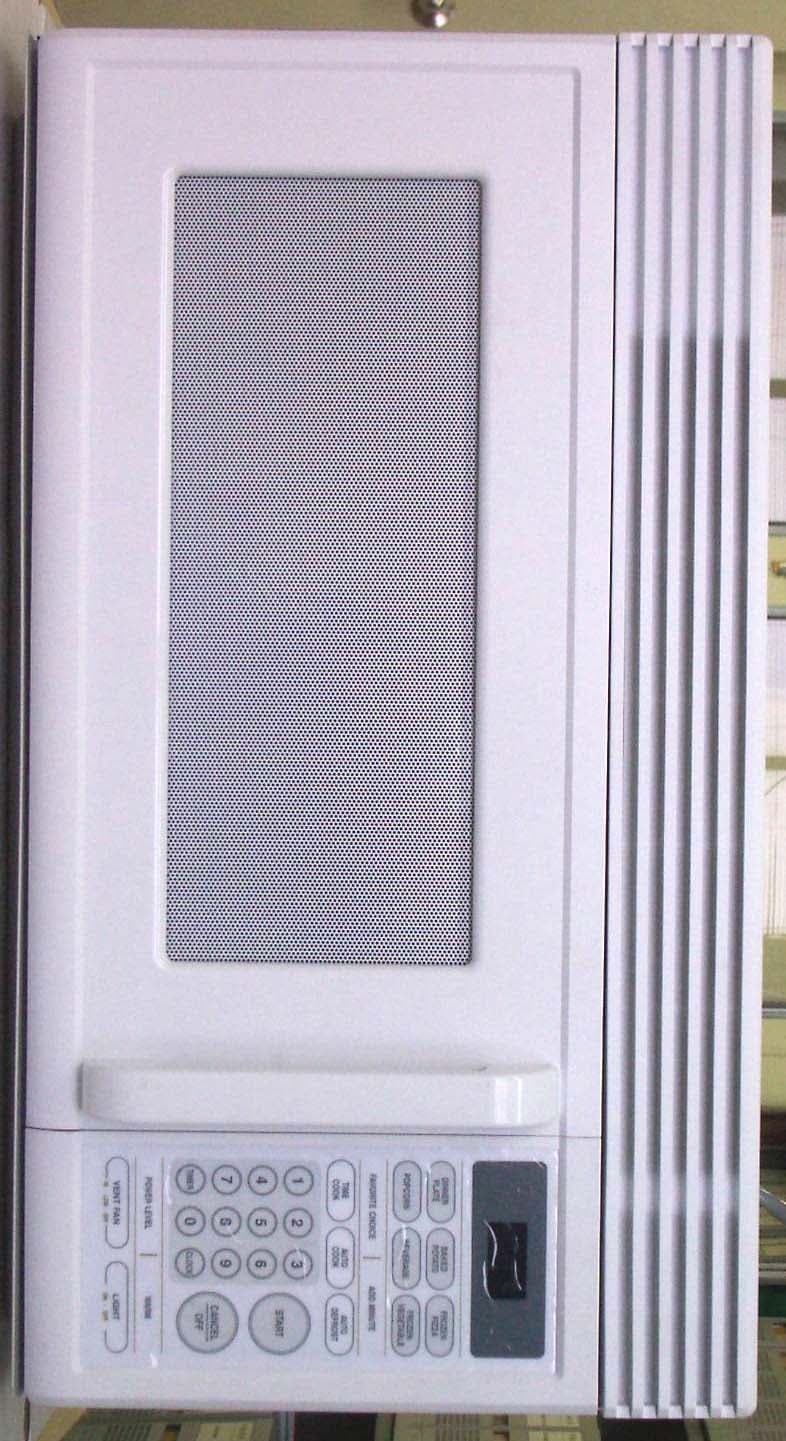

Test Report No.: NK2FE290 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1GMO100N Page 63 of 71 APPENDIX C – EUT PHOTOGRAPHS z Front View of EUT Test Report No.: NK2FE290 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1GMO100N Page 64 of 71 z Rear View of EUT

Test Report No.: NK2FE290 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1GMO100N Page 58 of 71 APPENDIX A – SAMPLE LABEL The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. z FCC ID Location of EUT Labeling Requirements ID LABEL LOCATION

Test Report No.: NK2FE290 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1GMO100N Page 65 of 71 z Open View of EUT Test Report No.: NK2FE290 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1GMO100N Page 66 of 71 z Side View of EUT Test Report No.: NK2FE290 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1GMO100N Page 67 of 71 z Side View of EUT Test Report No.: NK2FE290 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1GMO100N Page 68 of 71 z Top View of EUT

WIRING DIAGRAM ( SCHEMATICS ) FCC ID: C5F7NF1GMO1ØØN

Test Report No.: NK2FE290 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1GMO100N Page 1 of 71 Nemko Korea Co., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : Daewoo Electronics Corporation. Dates of Issue : May 23, 2005 M/W Oven Div. R&D Center, 412-2, Test Report No. : NK2FE290 Chungchun-Dong, Bupyong-Gu, Incheon, Test Site : Nemko Korea Co., Ltd. 403-032, Korea EMC site, Korea Attn : Mr. Gun-Woo, Ro FCC ID Brand Name Contact Person Applied Standard: Part 18 & 2 Classification : Consumer ISM equipment EUT Type: Microwave oven The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in MP-5:1986. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : S. H. Baek Reviewed By : H.H. Kim Engineer Manager & Chief Engineer C5F7NF1GMO100N DAEWOO Daewoo Electronics Corporation. M/W Oven Div. R&D Center, 412-2, Chungchun-Dong, Bupyong-Gu, Incheon, 403-032, Korea Mr. Gun-Woo, Ro Telephone No. : +82 32 510 7923 Test Report No.: NK2FE290 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1GMO100N Page 2 of 71 TABLE OF CONTENTS SCOPE INTRODUCTION (Site Description) EUT INFORMATION DESCRIPTION OF TESTS (Radiation Hazard) DESCRIPTION OF TESTS (Input Power Measurement) DESCRIPTION OF TESTS (RF Output Power Measurement) DESCRIPTION OF TESTS (Operating Frequency Measurements) DESCRIPTION OF TESTS (Conducted Emissions) DESCRIPTION OF TESTS (Radiated Emissions) TEST DATA (Radiation Hazard) TEST DATA (Input Power Measurement) TEST DATA (RF Output Power Measurement) TEST DATA (Operating Frequency Measurements) TEST DATA (Conducted Emissions) TEST DATA (Radiated Emissions) PLOT OF EMISSIONS (Operating Frequency Measurements) PLOT OF EMISSIONS (Conducted Emissions Diagram) ACCURACY OF MEASUREMENT LIST OF TEST EQUIPMENT APPENDIX A - SAMPLE LABEL APPENDIX B - PHOTOGRAPHS OF TEST SET-UP APPENDIX C - EUT PHOTOGRAPHS APPENDIX D - SCHEMATIC DIAGRAM APPENDIX E - USER’S MANUAL APPENDIX F - BLOCK DIAGRAM 2 4 5 6 6 6 6 7 8 9 9 9 10 12 23 25 34 56 57 58 59 63 69 70 71 Test Report No.: NK2FE290 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1GMO100N Page 3 of 71 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 18. Responsible Party : Contact Person : Manufacturer : Factory : Daewoo Electronics Corporation. Mr. Gun-Woo. Ro Tel No.: +82 32 510 7923 Daewoo Electronics Corporation. M/W Oven Div. R&D Center, 412-2, Chungchun-Dong, Bupyong-Gu, Incheon, 403-032, Korea 1) Daewoo Microwave Oven Co., Ltd. 981-1, Jangduck-Dong, Gwangsan-Gu, Kwangju-Shi, 506-251, Korea 2) Daewoo Electronics Corporation. Detda, Dagang District, Tianjin, Chaina z FCC ID: C5F7NF1GMO100N z Model: KOT-1G0A z Brand Name: DAEWOO z EUT Type: Microwave Oven z Applied Standard: z Test Procedure(s): z Dates of Test: z Place of Tests: z Test Report No.: FCC Part 18 & Part 2 MP-5:1986 May 09, 2005 to May 17,2005 Nemko Korea Co., Ltd. EMC Site NK2FE290 Test Report No.: NK2FE290 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1GMO100N Page 4 of 71 INTRODUCTION The measurement procedure described in MP5:1986 for Methods of Measurement of radiated, powerline conducted radio noise, frequency and power output was used in determining emissions emanating from Daewoo Electronics Corporation. FCC ID : C5F7NF1GMO100N, Microwave Oven. These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory . The site address is 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4-2003 Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab and Incheon Airport. Nemko Korea Co., Ltd. OPEN AREA TEST SITE 300-2, Osan-Ri, Mohyun-Myun, Yongin- City Kyungki-Do,KOREA 449-852 Tel) +82-31-322-2333 Fax) +82-31-322-2332 Test Report No.: NK2FE290 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1GMO100N Page 5 of 71 EUT INFORMATION EUT Information Electric Rating: 120V, 60Hz Clock: 4MHz Magnetron Type: RM228 / Daewoo Electronics Corp. Operating Frequency 2.45GHz Rated Output Power 1000W Test Report No.: NK2FE290 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1GMO100N Page 6 of 71 DESCRIPTION OF TESTS Radiation Hazard A 700-ml water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. Input Power Measurement The EUT was placed on a wooden table 0.8m at 1m distance Horn antenna. A 700ml water load was placed in the center of the oven and the oven set to maximum power. A 700ml water load was chosen…

Text truncated - open the document above for the full version.

Test Report No.: NK2FE290 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1GMO100N Page 59 of 71 APPENDIX B – PHOTOGRAPHS OF TEST SET-UP The Conducted Test Picture and Radiated Test Picture and show the worst-case configuration and cable placement. z Radiation hazard Test Picture z RF Output Power Test Picture Test Report No.: NK2FE290 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1GMO100N Page 60 of 71 z Operating Frequency Test Picture z Radiated Test Picture (1GHz~24GHz) Test Report No.: NK2FE290 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1GMO100N Page 61 of 71 z Conducted Test Picture (Front) z Conducted Test Picture (Rear) Test Report No.: NK2FE290 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1GMO100N Page 62 of 71 z Radiated Test Picture – 30MHz ~ 1GHz (Front) z Radiated Test Picture – 30MHz ~ 1GHz (Rear)
