C5F7NF1MMO100NMICROWAVE OVEN

Microwave Oven 164D3370P260 49-40326-1 04-03 JR KOG-1MOT Owner’s Manual www.GEAppliances.com Safety Information . . . . . . . . .2–6 Operating Instructions Browning Features . . . . . . . .16, 17 Convenience Features . . . . .14, 15 Grilling Features . . . . . . . . .18, 19 Microwave Terms . . . . . . . . . . . .22 Other Features . . . . . . . . . . .20, 21 Oven Features . . . . . . . . . . . . .7, 8 Power Levels . . . . . . . . . . . . . . . .9 Timed Features . . . . . . . . . .10–13 Care and Cleaning . . . . . . . . .23 Troubleshooting Tips . . . . . . .24 Things That Are Normal . . . . . .24 Consumer Support Consumer Support . . .Back Cover Product Registration . . . . . .25, 26 Warranty . . . . . . . . . . . . . . . . . .27 Write the model and serial numbers here: Model # __________________ Serial # __________________ You can find them on a label inside the oven. with Dual Element Browner Operating Instructions Safety Instructions Consumer Support Troubleshooting Tips IMPORTANT SAFETY INSTRUCTIONS. READ ALL INSTRUCTIONS BEFORE USING. IMPORTANT SAFETY INSTRUCTIONS. When using electrical appliances basic safety precautions should be followed, including the following. Use this appliance only for its intended purpose as described in this Owner’s Manual. Read and follow the specific precautions in the Precautions to Avoid Possible Exposure to Excessive Microwave Energysection above. This appliance must be grounded. Connect only to a properly grounded outlet. See the Grounding Instructionssection on page 4. Install or locate this appliance only in accordance with the provided installation instructions. This oven must be located at least 3 ft. above floor level. Be certain to place the front surface of the door 3′′or more back from the countertop edge to avoid accidental tipping of the appliance in normal usage. Do not mount this appliance over a sink. Do not mount the microwave oven over or near any portion of a heating or cooking appliance. Do not store anything directly on top of the microwave oven surface when the microwave oven is in operation. Do not operate this appliance if it has a damaged power cord or plug, if it is not working properly or if it has been damaged or dropped. If the power cord is damaged, it must be replaced by General Electric Service or an authorized service agent using a power cord available from General Electric. Do not cover or block any openings on the appliance. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This microwave oven is specifically designed to heat, dry or cook food, and is not intended for laboratory or industrial use. This microwave oven is not approved or tested for marine use. Do not store this appliance outdoors. Do not use this product near water—for example, in a wet basement, near a swimming pool, near a sink or in similar locations. Keep power cord away from heated surfaces. Do not immerse power cord or plug in water. Do not let power cord hang over edge of table or counter. To reduce the risk of fire in the oven cavity: — Do not overcook food. Carefully attend appliance when paper, plastic or other combustible materials are placed inside the oven while cooking. — Remove wire twist-ties and metal handles from paper or plastic containers before placing them in the oven. — Do not use the oven for storage purposes. Do not leave paper products, cooking utensils or food in the oven when not in use. — If materials inside the oven ignite, keep the oven door closed, turn the oven off and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. If the door is opened, the fire may spread. See door surface cleaning instructions in the Care and cleaning of the microwave ovensection of this manual. This appliance must only be serviced by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment. As with any appliance, close supervision is necessary when used by children. SAVE THESE INSTRUCTIONS WARNING! For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life. (a) Do Not Attemptto operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. ( b) Do Not Placeany object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do Not Operatethe oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The Oven Should Notbe adjusted or repaired by anyone except properly qualified service personnel. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY 2 Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions www.GEAppliances.com ARCING If you see arcing, press CLEAR/OFFand correct the problem. Arcing is the microwave term for sparks in the oven. Arcing is caused by: Metal or foil touching the side of the oven. Foil not molded to food (upturned edges act like antennas). Metal, such as twist-ties, poultry pins or gold- rimmed dishes, in the microwave. Recycled paper towels containing small metal pieces being used in the microwave. FOODS When microwaving, place all foods and containers on the glass microwave turntable. SUPERHEATED WATER Liquids, such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR…

Text truncated - open the document above for the full version.

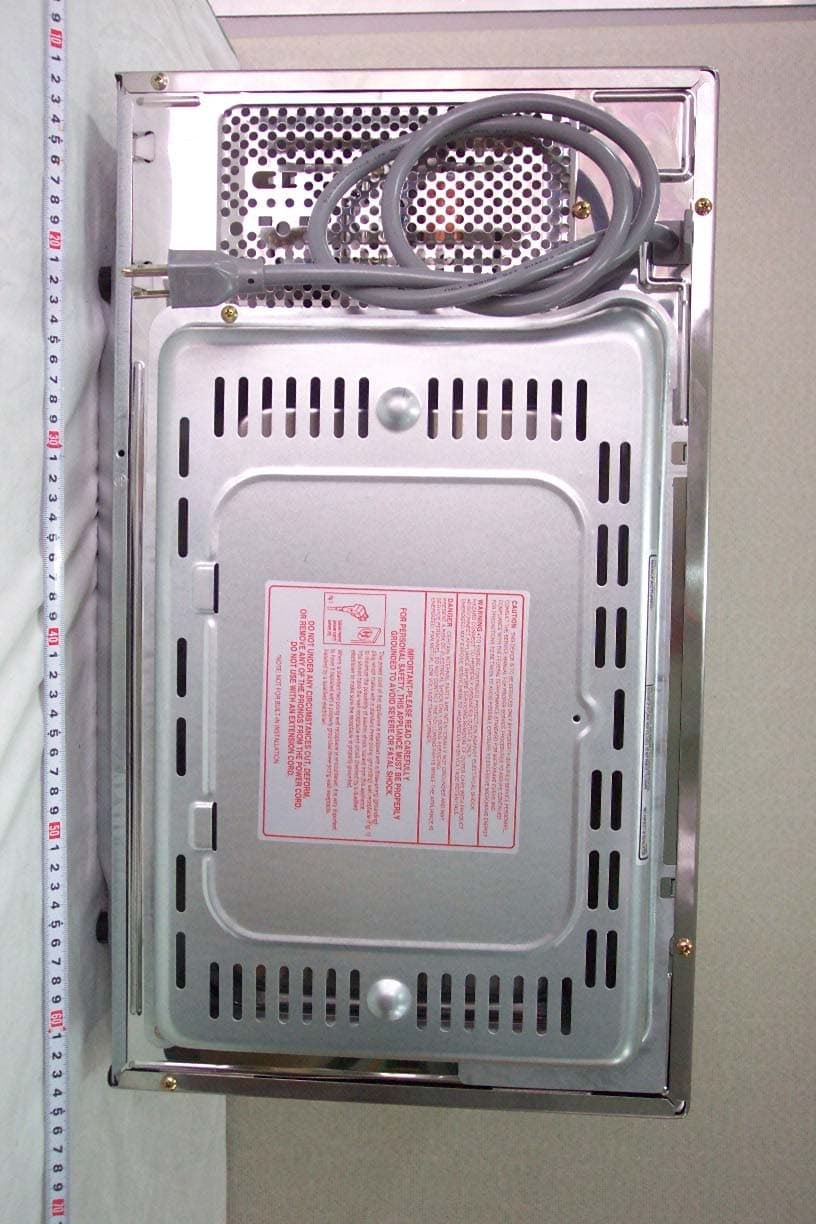

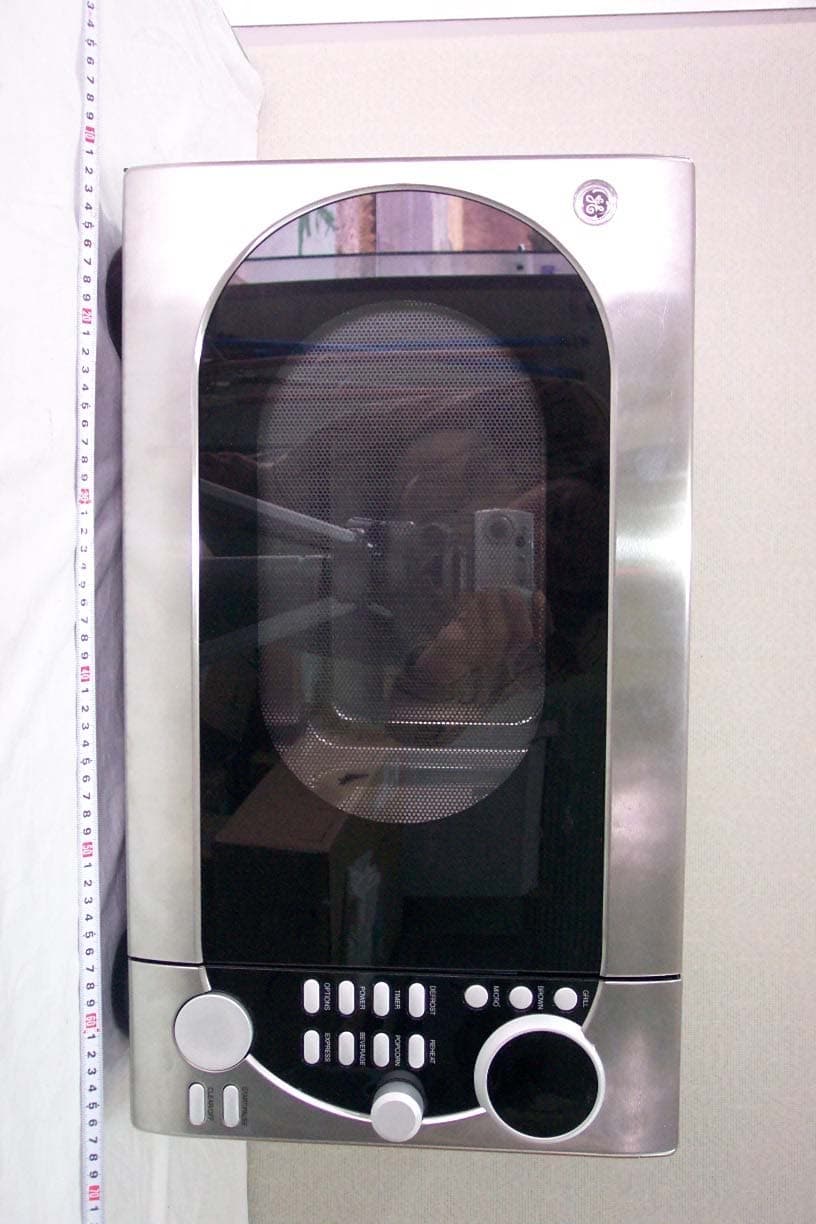

Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 32 of 48 APPENDIX C – EUT PHOTOGRAPHS z Front View of EUT Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 33 of 48 z Rear View of EUT

Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 27 of 48 APPENDIX A – SAMPLE LABEL The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. z FCC ID Location of EUT Labeling Requirements

Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 34 of 48 z Inside View of EUT Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 35 of 48 z Front View of Main Board Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 36 of 48 z Rear View of Main Board Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 37 of 48 z Front View of OSD Board Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 38 of 48 z Rear View of OSD Board Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 39 of 48 z Front View of Filter Board Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 40 of 48 z Rear View of Filter Board Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 41 of 48 z Front View of MGT Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 42 of 48 z Rear View of MGT Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 43 of 48 z Front View of Power Supply Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 44 of 48 z Rear View of Power Supply Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 45 of 48 z Front View of CAP

WIRING DIAGRAM ( SCHEMATICS ) FCC ID: C5F7NF1MMO1ØØN

Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 1 of 48 Nemko Korea Co., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 Applicant : Daewoo Electronics Corporation. Dates of Issue : April 20, 2005 M/W Oven Div. R&D Center, 412-2, Test Report No. : NK2FE238 Chungchun-Dong, Bupyong-Gu, Incheon, Test Site : Nemko Korea Co., Ltd. 403-032, Korea EMC site, Korea Attn : Mr. Gun-Woo, Ro FCC ID Brand Name Contact Person Applied Standard: Part 18 & 2 Classification : FCC Subpart C EUT Type: Microwave oven The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in MP-5:1986. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : S. H. Baek Reviewed By : H.H. Kim Engineer Manager & Chief Engineer C5F7NF1MMO100N DAEWOO Daewoo Electronics Corporation. M/W Oven Div. R&D Center, 412-2, Chungchun-Dong, Bupyong-Gu, Incheon, 403-032, Korea Mr. Gun-Woo, Ro Telephone No. : +82 32 510 7923 Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 2 of 48 TABLE OF CONTENTS SCOPE INTRODUCTION (Site Description) DESCRIPTION OF TESTS (Radiation Hazad) DESCRIPTION OF TESTS (Input Power Measurement) DESCRIPTION OF TESTS (RF Output Power Measurement) DESCRIPTION OF TESTS (Operating Frequency Measurements) DESCRIPTION OF TESTS (Conducted Emissions) DESCRIPTION OF TESTS (Radiated Emissions) TEST DATA (Radiation Hazad) TEST DATA (Input Power Measurement) TEST DATA (RF Output Power Measurement) TEST DATA (Operating Frequency Measurements) TEST DATA (Conducted Emissions) TEST DATA (Radiated Emissions) PLOT OF EMISSIONS (Operating Frequency Measurements) PLOT OF EMISSIONS (Conducted Emissions Diagram) ACCURACY OF MEASUREMENT LIST OF TEST EQUIPMENT APPENDIX A - SAMPLE LABEL APPENDIX B - PHOTOGRAPHS OF TEST SET-UP APPENDIX C - EUT PHOTOGRAPHS APPENDIX D - SCHEMATIC DIAGRAM APPENDIX E - USER’S MANUAL APPENDIX F - BLOCK DIAGRAM 2 4 5 5 5 5 6 7 8 8 8 9 11 12 14 23 25 26 27 28 32 46 47 48 Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 3 of 48 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 18. Responsible Party : Contact Person : Manufacturer : Factory : Daewoo Electronics Corporation. Mr. Gun-Woo. Ro Tel No.: +82 32 510 7923 Daewoo Electronics Corporation. M/W Oven Div. R&D Center, 412-2, Chungchun-Dong, Bupyong-Gu, Incheon, 403-032, Korea 1) Daewoo Microwave Oven Co., Ltd. 981-1, Jangduck-Dong, Gwangsan-Gu, Kwangju-Shi, 506-251, Korea 2) Daewoo Electronics Corporation. Detda, Dagang District, Tianjin, Chaina z FCC ID: C5F7NF1MMO100N z Model: KOR-1M0T z Brand Name: DAEWOO z EUT Type: Microwave Oven z Electric Rating: 120V, 60Hz AC only, 1.5kW z Clock: 4MHz z Magnetron Type: RM228 / Daewoo Electronics Corp. z Applied Standard: z Test Procedure(s): z Dates of Test: z Place of Tests: z Test Report No.: FCC Part 18 & Part 2 MP-5:1986 Aril 07, 2005 to April 19,2005 Nemko Korea Co., Ltd. EMC Site NK2FE238 Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 4 of 48 INTRODUCTION The measurement procedure described in MP5:1986 for Methods of Measurement of radiated, powerline conducted radio noise, frequency and power output was used in determining emissions emanating from Daewoo Electronics Corporation. FCC ID : C5F7NF1MMO100N, Microwave Oven. These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory . The site address is 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4-2003 Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab and Incheon Airport. Nemko Korea Co., Ltd. OPEN AREA TEST SITE 300-2, Osan-Ri, Mohyun-Myun, Yongin- City Kyungki-Do,KOREA 449-852 Tel) +82-31-322-2333 Fax) +82-31-322-2332 Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 5 of 48 DESCRIPTION OF TESTS Radiation Hazard A 700-ml water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. Input Power Measurement The EUT was placed on a wooden table 0.8m at 1m distance Horn antenna. A 700ml water load was placed in the center of the oven and the oven set to maximum power. A 700ml water load was chosen for its compatibility. Input power and current were measured using a Power Analyzer. Manufacturers to determine their input ratings commonly use this procedure. Output Power Measurement The Caloric Method was used to determine maximum outp…

Text truncated - open the document above for the full version.

Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 28 of 48 APPENDIX B – PHOTOGRAPHS OF TEST SET-UP The Conducted Test Picture and Radiated Test Picture and show the worst-case configuration and cable placement. z Radiation hazard Test Picture z RF Output Power Test Picture Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 29 of 48 z Operating Frequency Test Picture Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 30 of 48 z Conducted Test Picture (Front) z Conducted Test Picture Test Report No.: NK2FE238 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF1MMO100N Page 31 of 48 z Radiated Test Picture (Front) z Radiated Test Picture (Front)
