C5F7NF1MMO110NMicrowave Oven

Before operating this oven, please read these instructions completely. OPERATING INSTRUCTIONS & COOK BOOK MICROWAVE OVEN KOR-1N1A9A NRU04Q4[ED NRF04P8[E Microwave Oven 350A4502P44949-40429 07-04 JR JES1290 Owner’s Manual www.GEAppliances.ca Safety Information . . . . . . . . .2–6 Operating Instructions Best Cooking Methods . . . . . . . .19 Combination 1 Features . . . . . . .16 Combination 2 Features . . . . . . .17 Convection Features . . . . . . . . . .15 Convenience Features . . . . . . . .14 Cookware Tips . . . . . . . . . . . . . .20 Grill Feature . . . . . . . . . . . . . . . .18 Microwave Terms . . . . . . . . . . . .23 Other Features . . . . . . . . . . .21, 22 Oven Features . . . . . . . . . . . . . .7, 8 Power Levels . . . . . . . . . . . . . . . . .9 Timed Features . . . . . . . . . . .10–13 Care and Cleaning . . . . . . . . . .24 Troubleshooting Tips . . . . . . . .25 Things That Are Normal . . . . . .25 Consumer Support Warranty . . . . . . . . . . . . . . . . . . .29 Consumer Support . . .Back Cover Write the model and serial numbers here: Model # __________________ Serial # __________________ You can find them on a label inside the oven. with Convection and Grill Operating Instructions Safety Instructions Consumer Support Troubleshooting Tips IMPORTANT SAFETY INSTRUCTIONS. READ ALL INSTRUCTIONS BEFORE USING. IMPORTANT SAFETY INSTRUCTIONS. When using electrical appliances basic safety precautions should be followed, including the following. Use this appliance only for its intended purpose as described in this Owner’s Manual. ■Read and follow the specific precautions in the Precautions to Avoid Possible Exposure to Excessive Microwave Energysection above. ■This appliance must be grounded. Connect only to a properly grounded outlet. See the Grounding Instructionssection on page 5. ■Install or locate this appliance only in accordance with the provided installation instructions. ■This oven must be located at least 3 ft. above floor level. ■Be certain to place the front surface of the door 3wor more back from the countertop edge to avoid accidental tipping of the appliance in normal usage. ■Do not mount this appliance over a sink. ■Do not mount the microwave oven over or near any portion of a heating or cooking appliance. ■Do not store anything directly on top of the microwave oven surface when the microwave oven is in operation. ■Do not operate this appliance if it has a damaged power cord or plug, if it is not working properly or if it has been damaged or dropped. If the power cord is damaged, it must be replaced by General Electric Service or an authorized service agent using a power cord available from General Electric. ■Do not cover or block any openings on the appliance. ■Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This microwave oven is specifically designed to heat, dry or cook food, and is not intended for laboratory or industrial use. ■This microwave oven is not approved or tested for marine use. ■Do not store this appliance outdoors. Do not use this product near water—for example, in a wet basement, near a swimming pool, near a sink or in similar locations. ■Keep power cord away from heated surfaces. ■Do not immerse power cord or plug in water. ■Do not let power cord hang over edge of table or counter. ■To reduce the risk of fire in the oven cavity: — Do not overcook food. Carefully attend appliance when paper, plastic or other combustible materials are placed inside the oven while cooking. — Remove wire twist-ties and metal handles from paper or plastic containers before placing them in the oven. — Do not use the oven for storage purposes. Do not leave paper products, cooking utensils or food in the oven when not in use. — If materials inside the oven ignite, keep the oven door closed, turn the oven off and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. If the door is opened, the fire may spread. ■See door surface cleaning instructions in the Care and cleaning of the microwave ovensection of this manual. ■This appliance must only be serviced by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment. ■As with any appliance, close supervision is necessary when used by children. SAVE THESE INSTRUCTIONS WARNING! For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life. (a) Do Not Attemptto operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. ( b) Do Not Placeany object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do Not Operatethe oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The Oven Should Notbe adjusted or repaired by anyone except properly qualified service personnel. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY 2 Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions www.GEAppliances.ca ARCING If you see arcing, press CLEAR/OFFand correct the problem. Arcing is the microwave term for sparks in the oven. Arcing is caused by: ■The metal shelf installed incorrectly so it touches the microwave wall. ■Metal or foil touching the side of the oven. ■Foil not molded to food (upturned edges act like antennas). ■Metal, such as twist-ties, poultry pins or gold- rimmed dishes, in the microwave. ■Recycled paper towels containing small metal pieces being used in the microwave. FOODS ■When microwaving, place all foods and containers on the glass microwave…

Text truncated - open the document above for the full version.

4. Block Diagram FCC ID: C5F7NF1MMO11ØN Input 120Vac 60Hz Note: Components outlined with dotted line is optional and may not be employed in the model Magnetron LampFan Motor Turntable Motor Heating Element H.V. TransformerH.V. Capacitor Oven Cavity BLOCK DIAGRAM Control Panel (Clock fre que ncy 4Mhz) H.V.Diode

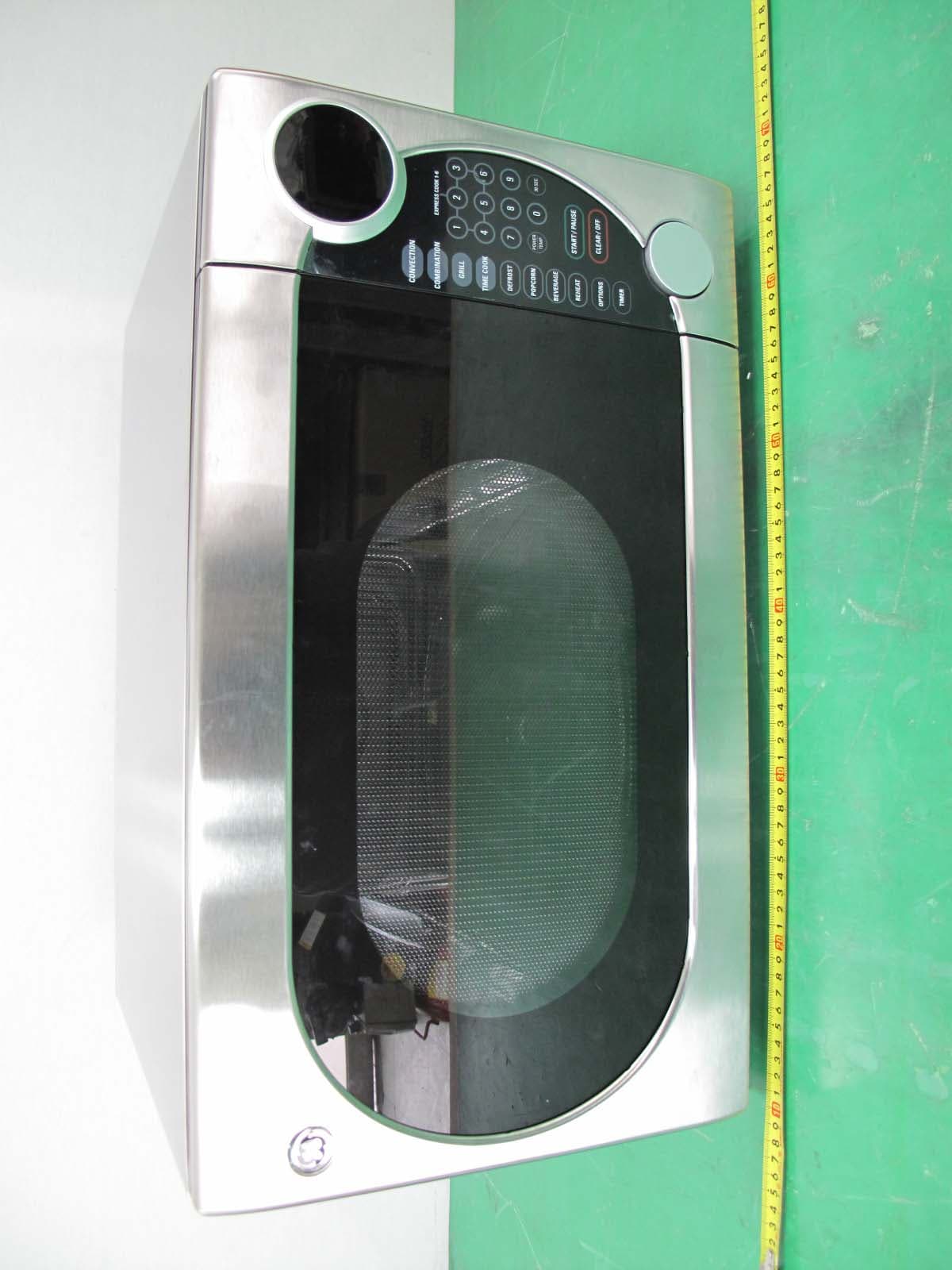

Test Report No.: NK10E413 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1MMO110N Page 48 of 62 APPENDIX C – EUT PHOTOGRAPHS z Front View of EUT Test Report No.: NK10E413 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1MMO110N Page 49 of 62 z Rear View of EUT

Test Report No.: NK10E413 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1MMO110N Page 43 of 62 APPENDIX A – SAMPLE LABEL The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. z FCC ID Location of EUT Labeling Requirements

Test Report No.: NK10E413 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1MMO110N Page 50 of 62 z Window open View of EUT Test Report No.: NK10E413 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1MMO110N Page 51 of 62 z Left View of Inside Test Report No.: NK10E413 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1MMO110N Page 52 of 62 z Right View of Inside Test Report No.: NK10E413 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1MMO110N Page 53 of 62 z Top View of Inside Test Report No.: NK10E413 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1MMO110N Page 54 of 62 z Front View of Magnetron Test Report No.: NK10E413 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1MMO110N Page 55 of 62 z Rear View of Magnetron Test Report No.: NK10E413 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1MMO110N Page 56 of 62 z Front View of Control Board Test Report No.: NK10E413 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1MMO110N Page 57 of 62 z Rear View of Control Board Test Report No.: NK10E413 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1MMO110N Page 58 of 62 z Front View of Filter Board Test Report No.: NK10E413 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1MMO110N Page 59 of 62 z Front View of Filter Board

■ OPERATION DESCRIPTION After main power supply, When we press Start button, DC 5V enter the micom of Control and Main relay on and then High voltage circuit formed. DC 4KV be create by combination of H.V Transformer, H.V Capacitor and H.V Diode. This high voltage, DC 4KV get into Magnetron and then Microwave generate. Input 120Vac 60Hz Note: Components outlined with dotted line is optional and may not be employed in the model Magnetron LampFan Motor Turntable Motor Heating Element H.V. TransformerH.V. Capacitor Oven Cavity BLOCK DIAGRAM Control Panel (Clock fre que ncy 4M hz) H.V.Diode

Parts Manufacturer 1 MAGNETRONDAEW00 2 TRANS H.V.DPC 3 CAPACITOR H.V.Several 4 DIODE H.V.Several 5 FAN MOTORSeveral 6 TRAY MOTORSeveral 7 INTERLOCK SWITCHSeveral 12 kV, 0.35A or 0.40 A 120V 60Hz, 0.45 A 120V, 3W 16 A, 125/250 V ac RM269 DY-S11A0-1MA 2100VAC, 1.10 ㎌ 2. Electrical Components SPEC.

3. Wiring Diagram SCHEMATIC DIAGRAM FCC ID: C5F7NF1MMO11ØN

Test Report No.: NK10E413 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1MMO110N Page 1 of 62 Nemko Korea Co., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Cheoin-Gu, Yongin-City, Gyeonggi-Do, KOREA TEL:+ 82 31 322 2333 FAX:+ 82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : Daewoo Electronics Corporation Dates of Issue : April 20, 2010 M/W oven R&D center Test Report No. : NK10E413 412-2, Cheongcheon2-Dong, Bupyeong-Gu, Test Site : Nemko Korea Co., Ltd. Incheon, 403-032, KOREA EMC site, Korea Attn : Mr. Seongok, Kim FCC ID Brand Name Contact Person Applied Standard: Part 18 & 2 Classification : Consumer ISM equipment EUT Type: Microwave oven The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in MP-5:1986. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : B. J. Lim Reviewed By : C. S. Choi Engineer Manager & Chief Engineer C5F7NF1MMO110N DAEWOO, Frigidaire Daewoo Electronics Corporation M/W oven R&D center 412-2, Cheongcheon2-Dong, Bupyeong-Gu, Incheon, 403-032, KOREA Mr. Seongok, Kim Telephone No. : + 82 32 510 7919 Test Report No.: NK10E413 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1MMO110N Page 2 of 62 TABLE OF CONTENTS SCOPE INTRODUCTION (Site Description) EUT INFORMATION DESCRIPTION OF TESTS (Radiation Hazard) DESCRIPTION OF TESTS (Input Power Measurement) DESCRIPTION OF TESTS (RF Output Power Measurement) DESCRIPTION OF TESTS (Operating Frequency Measurements) DESCRIPTION OF TESTS (Conducted Emissions) DESCRIPTION OF TESTS (Radiated Emissions) TEST DATA (Radiation Hazard) TEST DATA (Input Power Measurement) TEST DATA (RF Output Power Measurement) TEST DATA (Operating Frequency Measurements) TEST DATA (Conducted Emissions) TEST DATA (Radiated Emissions) PLOT OF EMISSIONS (Operating Frequency Measurements) PLOT OF EMISSIONS (Conducted Emissions Diagram) PLOT OF EMISSIONS (Radiated Emissions Diagram) ACCURACY OF MEASUREMENT LIST OF TEST EQUIPMENT APPENDIX A - SAMPLE LABEL APPENDIX B - PHOTOGRAPHS OF TEST SET-UP APPENDIX C - EUT PHOTOGRAPHS APPENDIX D - SCHEMATIC DIAGRAM APPENDIX E - USER’S MANUAL APPENDIX F - BLOCK DIAGRAM 3 4 5 6 6 6 6 7 8 9 9 9 10 12 13 16 34 36 41 42 43 44 48 60 61 62 Test Report No.: NK10E413 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1MMO110N Page 3 of 62 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 18. Responsible Party : Contact Person : Manufacturer : Factory : Daewoo Electronics Corporation Mr. Seongok, Kim Tel No.: + 82 32 510 7919 Daewoo Electronics Corporation M/W oven R&D center 412-2, Cheongcheon2-Dong, Bupyeong-Gu, Incheon, 403-032, KOREA Daewoo Microwave Oven (Tianjin) Co.Ltd. Delta, Dagang, District, Tianjin, China z FCC ID: C5F7NF1MMO110N z Model: 1) KOC-1M5XB z Alternate Model: 2) FFCT1278LS z Brand Name: 1) DAEWOO, 2) Frigidaire z EUT Type: Microwave Oven z Applied Standard: z Test Procedure(s): z Dates of Test: z Place of Tests: z Test Report No.: FCC Part 18 & Part 2 MP-5:1986 March 26, 2010 to April 19, 2010 Nemko Korea Co., Ltd. EMC Site NK10E413 Test Report No.: NK10E413 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1MMO110N Page 4 of 62 INTRODUCTION The measurement procedure described in MP5:1986 for Methods of Measurement of radiated, powerline conducted radio noise, frequency and power output was used in determining emissions emanating from Daewoo Electronics Corporation. FCC ID : C5F7NF1MMO110N, Microwave Oven. These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory. The site address is 300-2, Osan-Ri, Mohyun-Myun, Cheoin-Gu, Yongin-City, Gyeonggi-Do, KOREA The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4-2003 Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab and Incheon Airport. Nemko Korea Co., Ltd. OPEN AREA TEST SITE 300-2, Osan-Ri, Mohyun-Myun, Cheoin-Gu, Yongin-City Gyeonggi-Do,KOREA 449-852 Tel) +82-31-322-2333 Test Report No.: NK10E413 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1MMO110N Page 5 of 62 EUT INFORMATION EUT Information Electric Rating : a.c. 120 V , 60 Hz Clock : 4 MHz Magnetron Type : RM269 (Daewoo) Operating Frequency : 2.45 GHz Test Report No.: NK10E413 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1MMO110N Page 6 of 62 DESCRIPTION OF TESTS Radiation Hazard A 700 ml water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. Input Power Measurement The EUT was placed on a wooden table 0.8 m at 1 m distance Horn antenna. A 700ml water load was placed in the center of the oven and the oven set to maximum power. A 700 ml wate…

Text truncated - open the document above for the full version.

Test Report No.: NK10E413 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1MMO110N Page 44 of 62 APPENDIX B – PHOTOGRAPHS OF TEST SET-UP The Conducted Test Picture and Radiated Test Picture and show the worst-case configuration and cable placement. ● Radiation hazard Test Picture z Operating Frequency Test Picture Test Report No.: NK10E413 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1MMO110N Page 45 of 62 z Conducted Test Picture (Front) z Conducted Test Picture (Rear) Test Report No.: NK10E413 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1MMO110N Page 46 of 62 z Radiated Test Picture – 30 MHz ~ 1 GHz (Front) z Radiated Test Picture – 30 MHz ~ 1 GHz (Rear) Test Report No.: NK10E413 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1MMO110N Page 47 of 62 z Radiated Test Picture (0.15 MHz~30 MHz) z Radiated Test Picture (1 GHz~18 GHz)
