Before operating this oven, please read these instructions completely. OPERATING INSTRUCTIONS & COOK BOOK MICROWAVE OVEN KOR-1N1A9A NRU04Q4[ED PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door opensince open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any objectbetween the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged.It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. TABLE OF CONTENTS • PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY....................1 • IMPORTANT SAFETY INSTRUCTIONS...........................................................................................................2 • FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT ....................................................................................3 • GROUNDING INSTRUCTIONS ........................................................................................................................3 • INSTALLATION .................................................................................................................................................4 • SPECIFICATIONS.............................................................................................................................................5 • FEATURES DIAGRAM......................................................................................................................................6 • FEATURES DIAGRAM (CONTINUED) .............................................................................................................7 • OPERATION PROCEDURE..............................................................................................................................8 • CONTROLS.......................................................................................................................................................9 SETTING THE CLOCK ...................................................................................................................................9 WEIGHT DEFROSTING ...............................................................................................................................10 TIME DEFROSTING .....................................................................................................................................10 COOKING IN ONE STAGE ..........................................................................................................................11 COOKING IN TWO STAGES .......................................................................................................................11 +30 SEC........................................................................................................................................................12 ONE TOUCH COOK .....................................................................................................................................12 ONE TOUCH COOK (CONTINUED) ............................................................................................................13 AUTO COOK ................................................................................................................................................13 CHILD SAFETY LOCK .................................................................................................................................14 TO SET POWER SAVE MODE ....................................................................................................................14 TO STOP THE OVEN WHITE THE OVEN IS OPERATING ........................................................................14 • CARE OF YOUR MICROWAVE OVEN...........................................................................................................15 • BEFORE YOU CALL FOR SERVICE..............................................................................................................16 • CARE AND CLEANING...................................................................................................................................16 • QUESTIONS AND ANSWERS........................................................................................................................17 • COOKING INSTRUCTIONS............................................................................................................................18 • USE YOUR MICROWAVE OVEN SAFELY ....................................................................................................19 • ARCING...........................................................................................................................................................19 • MICROWAVING PRINCIPLES........................................................................................................................20 • HOW MICROWAVES COOK FOOD ...............................................................................................................20 • CONVERSION CHARTS.................................................................................................................................20 • COOKING TECHNIQUES ...............................................................................................................................21 • DEFROSTING GUIDE.....................................................................................................................................22 • COOKING & REHEATING CHART ...................................................…

Text truncated - open the document above for the full version.

Block Diagram FCC ID: C5F7NF1NMO11ØN Input 120Vac 60Hz Note: Components outlined with dotted line is optional and may not be employed in the model Magnetron LampFan Motor Turntable Motor Heating Element H.V. TransformerH.V. Capacitor Oven Cavity BLOCK DIAGRAM Control Panel (Clock fre que ncy 4Mhz) H.V.Diode

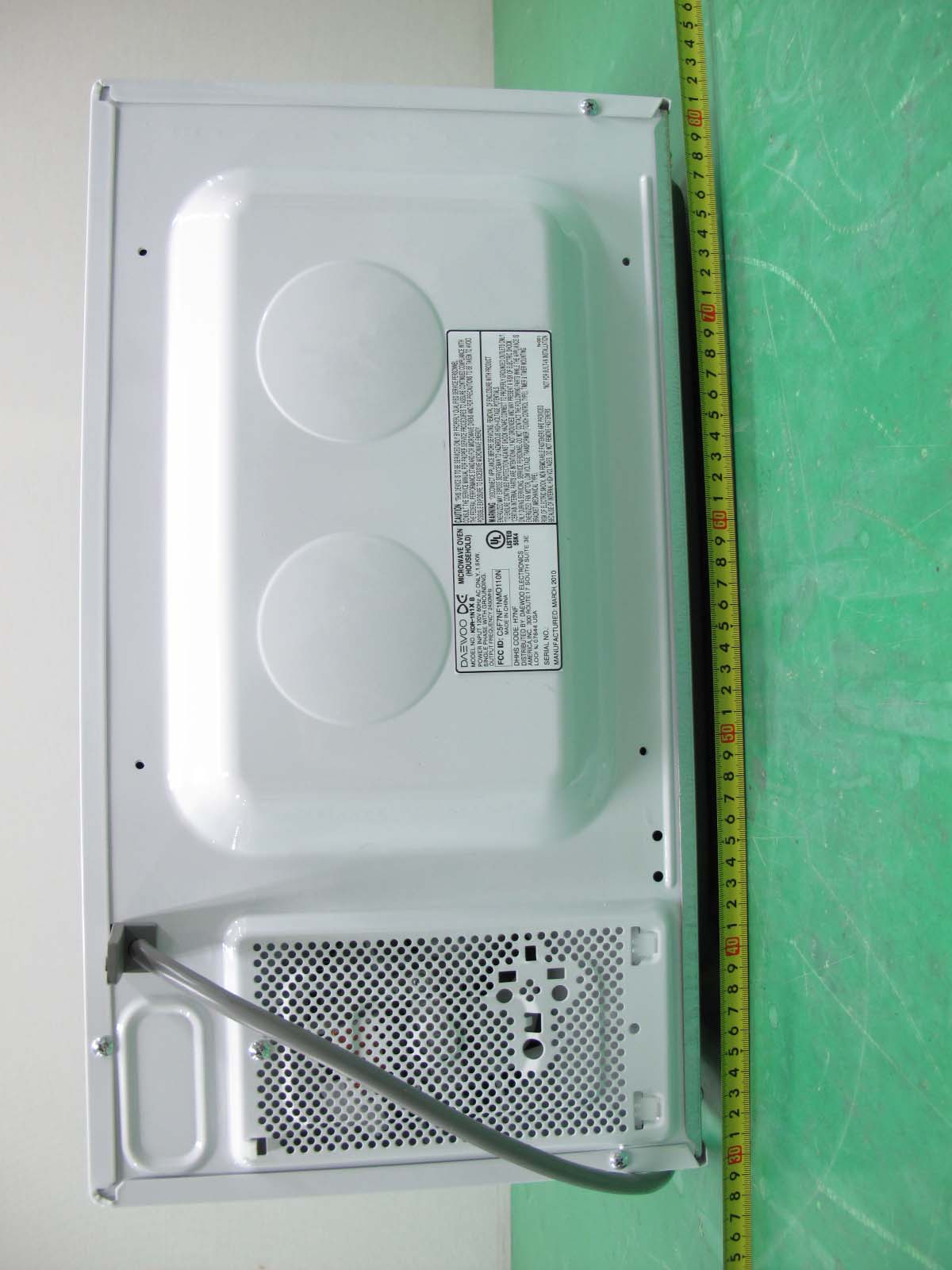

Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 75 of 87 APPENDIX C – EUT PHOTOGRAPHS z Front View of EUT Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 76 of 87 z Rear View of EUT

Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 70 of 87 APPENDIX A – SAMPLE LABEL The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. z FCC ID Location of EUT Labeling Requirements

Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 77 of 91 z Inside View of EUT Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 78 of 91 z Left View of EUT Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 79 of 91 z Right View of EUT Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 80 of 91 z Top View of EUT Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 81 of 91 z Front View of Magnetron RM269 Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 82 of 91 z Rear View of Magnetron RM269 Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 83 of 91 z Front View of Magnetron RM259 Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 84 of 91 z Rear View of Magnetron RM259 Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 85 of 91 z Front View of Control Power Board Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 86 of 91 z Rear View of Control Power Board Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 87 of 91 z Front View of Line Filter Board Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 88 of 91 z Rear View of Line Filter Board

■ OPERATION DESCRIPTION After main power supply, When we press Start button, DC 5V enter the micom of Control and Main relay on and then High voltage circuit formed. DC 4KV be create by combination of H.V Transformer, H.V Capacitor and H.V Diode. This high voltage, DC 4KV get into Magnetron and then Microwave generate. Input 120Vac 60Hz Note: Components outlined with dotted line is optional and may not be employed in the model Magnetron LampFan Motor Turntable Motor Heating Element H.V. TransformerH.V. Capacitor Oven Cavity BLOCK DIAGRAM Control Panel (Clock fre que ncy 4M hz) H.V.Diode

Object / Part No MODEL / SPEC. Manufacturer / Trademark Remark 1 MAGNETRON RM269 & RM259 DAEW00 2 TRANS H.V. DWAS11A*-1NA ELEDEX 3 CAPACITOR H.V.2100VAC, 1.10 ㎌Several 4 DIODE H.V. 12 Kv 0.35A or 0.40 A Several 5 FAN MOTOR 120V 60HZ 0.3 A Several 6 TRAY MOTOR 120V 2.4W Several 7 INTERLOCK SWITCH 15 A, 125/250 V ac Several ■ Parts list for the high voltage circuit. : Main electrical Components

Wiring Diagram WIRING DIAGRAM ( SCHEMATICS ) FCC ID: C5F7NF1NMO11ØN

Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 1 of 91 Nemko Korea Co., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Cheoin-Gu, Yongin-City, Gyeonggi-Do, KOREA TEL:+ 82 31 322 2333 FAX:+ 82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : Daewoo Electronics Corporation Dates of Issue : March 05, 2010 M/W oven R&D center Test Report No. : NK10E191 412-2, Cheongcheon2-Dong, Bupyeong-Gu, Test Site : Nemko Korea Co., Ltd. Incheon, 403-032, KOREA EMC site, Korea Attn : Mr. Seongok, Kim FCC ID Brand Name Contact Person Applied Standard: Part 18 & 2 Classification : Consumer ISM equipment EUT Type: Microwave oven The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in MP-5:1986. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision a nd are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : B. J. Lim Reviewed By : H. H. Kim Engineer Manager & Chief Engineer C5F7NF1NMO110N DAEWOO, Frigidaire Daewoo Electronics Corporation M/W oven R&D center 412-2, Cheongcheon2-Dong, Bupyeong-Gu, Incheon, 403-032, KOREA Mr. Seongok, Kim Telephone No. : + 82 32 510 7919 Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 2 of 91 TABLE OF CONTENTS SCOPE INTRODUCTION (Site Description) EUT INFORMATION DESCRIPTION OF TESTS (Radiation Hazard) DESCRIPTION OF TESTS (Input Power Measurement) DESCRIPTION OF TESTS (RF Output Power Measurement) DESCRIPTION OF TESTS (Operating Frequency Measurements) DESCRIPTION OF TESTS (Conducted Emissions) DESCRIPTION OF TESTS (Radiated Emissions) TEST DATA (Radiation Hazard) TEST DATA (Input Power Measurement) TEST DATA (RF Output Power Measurement) TEST DATA (Operating Frequency Measurements) TEST DATA (Conducted Emissions) TEST DATA (Radiated Emissions) PLOT OF EMISSIONS (Operating Frequency Measurements) PLOT OF EMISSIONS (Conducted Emissions Diagram) PLOT OF EMISSIONS (Radiated Emissions Diagram) ACCURACY OF MEASUREMENT LIST OF TEST EQUIPMENT APPENDIX A - SAMPLE LABEL APPENDIX B - PHOTOGRAPHS OF TEST SET-UP APPENDIX C - EUT PHOTOGRAPHS APPENDIX D - SCHEMATIC DIAGRAM APPENDIX E - USER’S MANUAL APPENDIX F - BLOCK DIAGRAM 3 4 5 6 6 6 6 7 8 9 9 10 11 15 16 21 57 61 68 69 70 71 75 85 86 87 Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 3 of 91 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 18. Responsible Party : Contact Person : Manufacturer : Factory : Daewoo Electronics Corporation Mr. Seongok, Kim Tel No.: + 82 32 510 7919 Daewoo Electronics Corporation M/W oven R&D center 412-2, Cheongcheon2-Dong, Bupyeong-Gu, Incheon, 403-032, KOREA 1) Daewoo Electronics Corporation 981-1, Jangduck-Dong, Gwangsan-Gu, Gwangju-Shi, 506-251, KOREA 2) DAEWOO MICROWAVE OVEN CO., LTD. Delta, Dagang District, Tianjin, China z FCC ID: C5F7NF1NMO110N z Model: 1) KOR-1N1XB z Alternate Model: 1) KOR-1N0AB, KOR-1N4AB, 2) FFCM1134LW, FFCM1134LB z Brand Name: 1) DAEWOO, 2) Frigidaire z EUT Type: Microwave Oven z Applied Standard: z Test Procedure(s): z Dates of Test: z Place of Tests: z Test Report No.: FCC Part 18 & Part 2 MP-5:1986 February 10, 2010 to March 03, 2010 Nemko Korea Co., Ltd. EMC Site NK10E191 Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 4 of 91 INTRODUCTION The measurement procedure described in MP5:1986 for Methods of Measurement of radiated, powerline conducted radio noise, frequency and power output was used in determining emissions emanating from Daewoo Electronics Corporation. FCC ID : C5F7NF1NMO110N, Microwave Oven. These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory. The site address is 300-2, Osan-Ri, Mohyun-Myun, Cheoin-Gu, Yongin-City, Gyeonggi-Do, KOREA The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4-2003 Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab and Incheon Airport. Nemko Korea Co., Ltd. OPEN AREA TEST SITE 300-2, Osan-Ri, Mohyun-Myun, Cheoin-Gu, Yongin-City Gyeonggi-Do,KOREA 449-852 Tel) +82-31-322-2333 Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 5 of 91 EUT INFORMATION EUT Information Electric Rating : a.c. 120 V , 60 Hz Clock : 4 MHz Magnetron Type : ① RM269 / Daewoo, ② RM259 / Daewoo Operating Frequency : 2.45 GHz Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 6 of 91 DESCRIPTION OF TESTS Radiation Hazard A 700 ml water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. Input Power Measurement The EUT was placed on a w…

Text truncated - open the document above for the full version.

Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 71 of 87 APPENDIX B – PHOTOGRAPHS OF TEST SET-UP The Conducted Test Picture and Radiated Test Picture and show the worst-case configuration and cable placement. ● Radiation hazard Test Picture z Operating Frequency Test Picture Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 72 of 87 z Conducted Test Picture (Front) z Conducted Test Picture (Rear) Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 73 of 87 z Radiated Test Picture – 30 MHz ~ 1 GHz (Front) z Radiated Test Picture – 30 MHz ~ 1 GHz (Rear) Test Report No.: NK10E191 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF1NMO110N Page 74 of 87 z Radiated Test Picture (0.15 MHz~30 MHz) z Radiated Test Picture (1 GHz~25 GHz)
