C5F7NF1PMO1100MICROWAVE OVEN

Before operating this oven, please read these instructions completely. OPERATING INSTRUCTIONS MICROWAVE OVEN KOR-1P55 1 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door opensince open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any objectbetween the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged.It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. TABLE OF CONTENTS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ................................................................................................................ 1 TABLE OF CONTENTS ...................................................................................................................................... 1 IMPORTANT SAFETY INSTRUCTION ............................................................................................................... 2 FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT .......................................................................................................................... 3 GROUNDING INSTRUCTIONS .......................................................................................................................... 3 INSTALLATION ................................................................................................................................................... 4 SPECIFICATIONS .............................................................................................................................................. 5 FEATURES DIAGRAM ....................................................................................................................................... 6 OPERATION ....................................................................................................................................................... 7 UTENSIL TEST ................................................................................................................................................... 8 MICROWAVE UTENSILS ................................................................................................................................... 8 CARE OF YOUR MICROWAVE OVEN .............................................................................................................. 9 MICROWAVING PRINCIPLES ......................................................................................................................... 10 HOW MICROWAVES COOK FOOD................................................................................................................. 10 CONVERSION CHARTS .................................................................................................................................. 10 COOKING TECHNIQUES ................................................................................................................................. 11 USE YOUR MICROWAVE OVEN SAFELY ..................................................................................................... 12 COOKING GUIDE ............................................................................................................................................. 13 BEFORE YOU CALL FOR SERVICE .............................................................................................................. 14 QUESTIONS AND ANSWERS .................................................................................................................. 14, 15 2 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS When using electrical appliances, basic safety precautions should be followed, including the following: WARNING-To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” found on page 1. 3. This appliance must be grounded. To ensure continued protection against shock hazard, connect only to properly grounded outlet. See “GROUNDING INSTRUCTIONS” found on page 3. 4. Install or locate this appliance only in accordance with the provided installation instructions. 5. Some products such as whole eggs and sealed containers - for example, closed glass jars-may explode and should not be heated in this oven. 6. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. 7. As with any appliance, close supervision is necessary when used by children. 8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. 9. This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment. 10. Do not cover or block any openings on the appliance. 11. Do not store this appliance outdoors. Do not use this product near water — for example, near a kitchen sink, in a wet basement, or near a swimming pool, and the like. 12. Do not immerse cord or plug in water. 13. Keep cord away from heated surfaces. 14. Do not let cord hang over edge of table or counter. 15. Either: a) When cleaning surfaces of door and oven that comes together on closing the door, use only mild, non-abrasive soaps or …

Text truncated - open the document above for the full version.

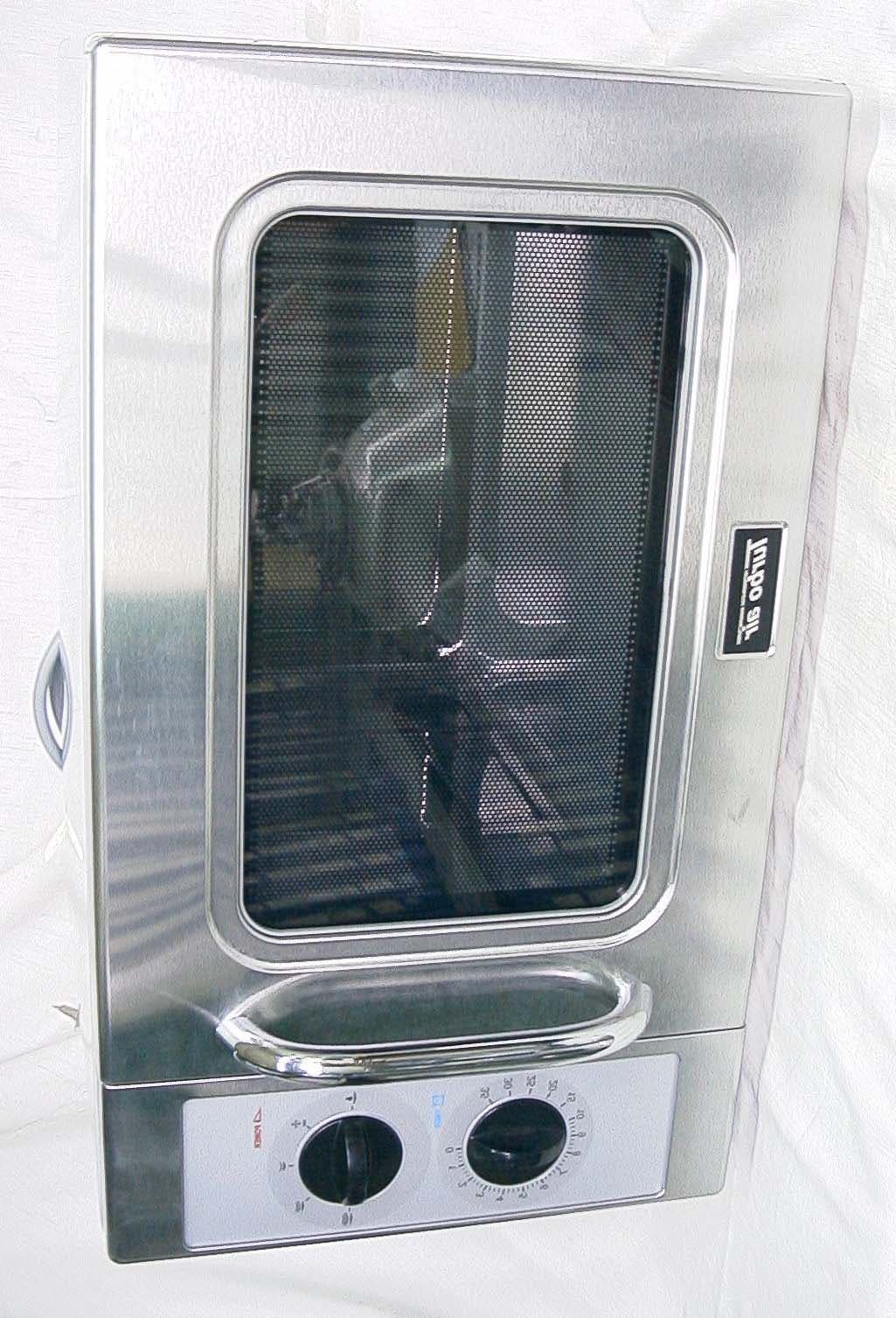

FRONT VIEW (DOOR CLOSE) FCC ID: C5F7NF1PMO11ØØ

FRONT VIEW (DOOR OPEN) FCC ID: C5F7NF1PMO11ØØ

REAR VIEW FCC ID: C5F7NF1PMO11ØØ

BOTTOM VIEW FCC ID: C5F7NF1PMO11ØØ

IDENTIFICATION LABEL FCC ID: C5F7NF1PMO11ØØ

ID LABEL LOCATION FCC ID: C5F7NF1PMO11ØØ

SIDE VIEW (LEFT) FCC ID: C5F7NF1PMO11ØØ

SIDE VIEW (RIGHT) FCC ID: C5F7NF1PMO11ØØ

TOP VIEW FCC ID: C5F7NF1PMO11ØØ

WIRING DIAGRAM FCC ID: C5F7NF1PMO11ØØ

F C C - TESTREPORT REPORT NO.: FCC-02/09-0008 pkm electronic GmbH Ohmstrasse 1 D-84160 Frontenhausen Tel : 08732 - 6381 Fax : 08732 - 2345 e-mail: [email protected] electronic GmbH Datum/date: 16.09.02 Prüfbericht-Nr.- testreport-no.:02/09-0008 Seite/page: 2 of 11 TABLE OF CONTENTS Page 1. Client Information 3 2. Equipment under test 3 3. Test site 4 4. Calibrations of measuring instruments 4 5. Description of the test conditions 4/5 6. Measuring instruments and set-up 6 7. RF-output power measurement 7 8. Test data 8,9 9. List of instrument used 10 Appendix A: Photographs 11 electronic GmbH Datum/date: 16.09.02 Prüfbericht-Nr.- testreport-no.:02/09-0008 Seite/page: 3 of 11 1.Client information: Name: DAEWOO Electronics Co., Ltd. Address:: Microwave Oven R&D Center, # 412-2, Chungchun Dong, Bupyong-Gu Incheon, 403-032 / KOREA Name of contact: Mr. Seong O. Kim, Manager Telephone: 0082 / 32 510 7917 Fax: 0082 / 32 527 7461 2. Equipment under Test: 2.1 Identification of the EUT Equipment: Microwave Oven Model: KOR-1P55 Brand name: Daewoo Serial-No.: - Manufacturer: DAEWOO Electronics Co., Ltd. Microwave Oven R&D Center, # 412-2, Chungchun Dong, Bupyong-Gu Incheon, 403-032 / KOREA Country of origin: KOREA Rating: 120V, 60Hz, AC only, 1.6kW 2.2 Additional information about the EUT The EUT consists of the following parts: Component Type / model Technical data Magnetron RM259 2,450MHz electronic GmbH Datum/date: 16.09.02 Prüfbericht-Nr.- testreport-no.:02/09-0008 Seite/page: 4 of 11 3. Test Site 3.1. Semi-anechoic chamber Measurement of radiated emissions from EUT was made at semi-anechoic chamber that has been in compliance with Federal Communications Commissions (FCC) requirements of clause 2.948 according to ANSI C63.4-1992 on April 6, 2000. 4. CALIBRATIONS OF MEASURING INSTRUMENTS All measurements were made with instruments calibrated according to the requests of EN/IEC 17025 according to which the test site is accredited. Measurement of radiated emissions was made with instruments conforming to American National Standard Specification, ANSI C63.4-1992. The calibration of measuring instrument, including any accessories that may affect test results, was performed according to the requests of EN/IEC 17025. 5. DESCRIPTION OF TEST CONDITION 5.1 Radiated emissions measurements 5.1.1 Test site Measurements were made in semi-anechoic chamber as described at 3.1 in this report. 5.1.2 Detector function selection and bandwidth In radiated emissions measurement, field strength meters that have CISPR quasi-peak and average detector were used. The bandwidth of the detector of instrument is 120 KHz over frequency range of 30 to 1000 MHz, and 1 MHz over frequency range of 1 to 18 GHz. Emissions to be measured are detected in average mode. 5.1.3 Unit of measurement Test results of radiated emissions measurement are reported in microvolts per meter at the specific distance. Using the unit of dBuV on the test instrument, indication unit was converted to field strength unit of μV/m as following method for frequencies 30MHz – 1000MHz; F/S = 10 [(R + CF)/20] here, F/S: Field strength in μV/m R: Meter reading in dB(μV) CF: Correction factor (includes cable loss, antenna factor, field deviation) For frequencies above 1000MHz; F/S = 10 [(R + CF-AG)/20] here, F/S: Field strength in μV/m R: Meter reading in dB(μV) CF: Correction factor (includes cable loss, antenna factor, field deviation, filter loss) AG: Preamplifier gain electronic GmbH Datum/date: 16.09.02 Prüfbericht-Nr.- testreport-no.:02/09-0008 Seite/page: 5 of 11 5.1.4 Antennas Measurements were made using calibrated bilog antenna in range of 30 to 1000 MHz and horn antenna in range of 1 to 18 GHz to determine the emission characteristics of the EUT. Measurements were also made for both horizontal and vertical polarization. The horizontal distance between the receiving antenna and the closest periphery of the EUT was 3 meters. 5.1.5 Frequency range to be scaned For radiated emissions measurements, the spectrum in the range of 30 to 1000 MHz and above, if found, was investigated. 5.1.6 Test conditions and configuration of EUT The EUT was configured and operated in all modes of operation so as to find the maximum RF energy generated from EUT. The power was furnished with rated (normal) AC 120 volts, as specified in the Owner’s manual of EUT. The EUT was placed on a 1 m high non metallic 1m diameter table. The turn table containing the system was rotated and the antenna height was varied 4 m to find the maximum RF energy generated from EUT. Each type of accessory provied by manufacturer or typically used and support equipment were connected to the EUT during measurements to the typical usage and applicable as nearly as practicable. 5.1.7 Measurement uncertainty Radiated emissions measurements, bilog antenna: + 4.9dB Radiated emissions measurements, horn antenna: + 5.0dB The measurement uncertainty describes the overall uncertainty of the given measured value during the operation of the EUT in the above mentioned way. The measurements uncertainty was calculated in accordance with NAMAS NIS 81: “The treatment of uncertainty in EMC measurement”. The measurement uncertainty was given with a confidence of 95%. electronic GmbH Datum/date: 16.09.02 Prüfbericht-Nr.- testreport-no.:02/09-0008 Seite/page: 6 of 11 6. MEASURING INSTRUMENTS AND SET-UP 6.1 Radiated emission 6.1.1 Test receiver a) Rohde & Schwarz, Model ESHS-30 (20MHz – 1000MHz) Detector function: Average IF bandwidth: 120kHz b) Rohde & Schwarz, Model FSMS 26 (100Hz – 26.5GHz) Detector function: Average IF bandwidth: 1MHz 6.1.2 Receiving antennas a) Chase, Model CBL6111: Bilog antenna (30MHz – 1000MHz) b) Electro Metrics, Model RGA-60 Horn antenna (1GHz – 18GHz) 6.1.3 Preamplifier / filter Model MWPAFB003: Amplifier/Filter bank 1GHz – 18GHz Amplifier gain 30dB 6.2. Frequency measurements 6.2.1 Test receiver Rohde & Schwarz, Model FSMS 26 (100Hz – 26.5GHz) Detector function: Average IF bandwidth…
