C5F7NF22MO1200MICROWAVE OVEN

Operating Instructions Safety Instructions Consumer Support Troubleshooting Tips IMPORTANT SAFETY INSTRUCTIONS. READ ALL INSTRUCTIONS BEFORE USING. For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life. IMPORTANT SAFETY INSTRUCTIONS. This microwave oven is not approved or tested for marine use. Use this appliance only for its intended purpose as described in this Owner’s Manual. Read and follow the specific precautions in the Precautions to Avoid Possible Exposure to Excessive Microwave Energysection above. This appliance must be grounded. Connect only to a properly grounded outlet. See the Grounding Instructionssection on page 4. Install or locate this appliance only in accordance with the provided installation instructions. Be certain to place the front surface of the door three inches or more back from the countertop edge to avoid accidental tipping of the appliance in normal usage. Do not mount this appliance over a sink. Do not mount the microwave oven over or near any portion of a heating or cooking appliance. Do not store anything directly on top of the microwave oven surface when the microwave oven is in operation. Do not operate this appliance if it has a damaged power cord or plug, if it is not working properly, or if it has been damaged or dropped. If the power cord is damaged, it must be replaced by General Electric Service or an authorized service agent using a power cord available from General Electric. Do not cover or block any openings on the appliance. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This microwave oven is specifically designed to heat, dry or cook food, and is not intended for laboratory or industrial use. Do not store this appliance outdoors. Do not use this product near water—for example, in a wet basement, near a swimming pool or near a sink. Keep power cord away from heated surfaces. Do not immerse power cord or plug in water. Do not let power cord hang over edge of table or counter. To reduce the risk of fire in the oven cavity: – Do not overcook food. Carefully attend appliance if paper, plastic or other combustible materials are placed inside the oven while cooking. – Remove wire twist-ties and metal handles from paper or plastic containers before placing them in the oven. – Do not use the oven for storage purposes. Do not leave paper products, cooking utensils or food in the oven when not in use. – If materials inside the oven should ignite, keep the oven door closed, turn the oven off and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. If the door is opened, the fire may spread. See door surface cleaning instructions in the Care and cleaning of the microwave ovensection of this manual. This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment. As with any appliance, close supervision is necessary when used by children. SAVE THESE INSTRUCTIONS WARNING! (a) Do Not Attemptto operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. ( b) Do Not Placeany object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do Not Operatethe oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The Oven Should Notbe adjusted or repaired by anyone except properly qualified service personnel. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY 2 Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions ARCING If you see arcing, press the CLEAR/OFFpad and correct the problem. Arcing is the microwave term for sparks in the oven. Arcing is caused by: Metal or foil touching the side of the oven. Foil not molded to food (upturned edges act like antennas). Metal, such as twist-ties, poultry pins or gold- rimmed dishes, in the microwave. Recycled paper towels containing small metal pieces being used in the microwave. FOODS Do not pop popcorn in your microwave oven unless in a special microwave popcorn accessory or unless you use popcorn labeled for use in microwave ovens. Some products such as whole eggs and sealed containers—for example, closed jars—will explode and should not be heated in this microwave oven. Such use of the microwave oven could result in injury. Do not boil eggs in a microwave oven. Pressure will build up inside egg yolk and will cause it to burst, possibly resulting in injury. Operating the microwave with no food inside for more than a minute or two may cause damage to the oven and could start a fire. It increases the heat around the magnetron and can shorten the life of the oven. Foods with unbroken outer “skin” such as potatoes, hot dogs, sausages, tomatoes, apples, chicken livers and other giblets, and egg yolks should be pierced to allow steam to escape during cooking. SUPERHEATED WATER Microwaved water and other liquids do not always bubble when they reach the boiling point. They can actually get superheated and not bubble at all. Superheated liquid will bubble up out of the cup when it is moved or when something like a spoon or tea bag is put into it. To prevent this from happening and causing injury, do not heat any liquid for more than 2 minutes per cup. After heating, let the cup stand in the microwave for 30 seconds before moving it or putting anything into it. Avoid heating baby food in glass jars, even with the lid off. Make sure all infant food is thoroughly cooked. Stir food …

Text truncated - open the document above for the full version.

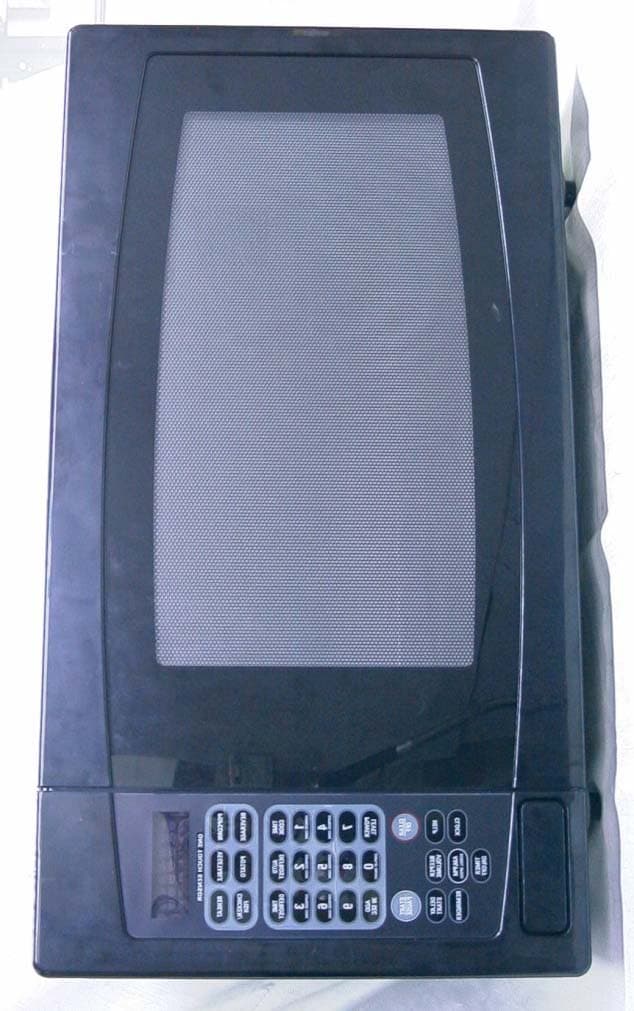

FRONT VIEW (DOOR CLOSE) FCC ID: C5F7NF22MO12ØØ

FRONT VIEW (DOOR OPEN) FCC ID: C5F7NF22MO12ØØ

REAR VIEW FCC ID: C5F7NF22MO12ØØ

BOTTOM VIEW FCC ID: C5F7NF22MO12ØØ

IDENTIFICATION LABEL FCC ID: C5F7NF22MO12ØØ

LABEL LOCATION FCC ID: C5F7NF22MO12ØØ

SIDE VIEW (LEFT) FCC ID: C5F7NF22MO12ØØ

SIDE VIEW (RIGHT) FCC ID: C5F7NF22MO12ØØ

TOP VIEW FCC ID: C5F7NF22MO12ØØ

WIRING DIAGRAM FCC ID: C5F7NF22MO12ØØ

F C C - TESTREPORT REPORT NO.: FCC-02/09-0010 pkm electronic GmbH Ohmstrasse 1 D-84160 Frontenhausen Tel : 08732 - 6381 Fax : 08732 - 2345 e-mail: [email protected] electronic GmbH Datum/date: 16.09.02 Prüfbericht-Nr.- testreport-no.:02/09-0010 Seite/page: 2 of 12 TABLE OF CONTENTS Page 1. Client Information 3 2. Equipment under test 3 3. Test site 4 4. Calibrations of measuring instruments 4 5. Description of the test conditions 4/5 6. Measuring instruments and set-up 6 7. RF-output power measurement 7 8. Test data 8,9,10 9. List of instrument used 11 Appendix A: Photographs 12 electronic GmbH Datum/date: 16.09.02 Prüfbericht-Nr.- testreport-no.:02/09-0010 Seite/page: 3 of 12 1.Client information: Name: DAEWOO Electronics Co., Ltd. Address:: Microwave Oven R&D Center, # 412-2, Chungchun Dong, Bupyong-Gu Incheon, 403-032 / KOREA Name of contact: Mr. Seong O. Kim, Manager Telephone: 0082 / 32 510 7917 Fax: 0082 / 32 527 7461 2. Equipment under Test: 2.1 Identification of the EUT Equipment: Microwave Oven Model: KOR-220S Brand name: Daewoo Serial-No.: - Manufacturer: DAEWOO Electronics Co., Ltd. Microwave Oven R&D Center, # 412-2, Chungchun Dong, Bupyong-Gu Incheon, 403-032 / KOREA Country of origin: KOREA Rating: 120V, 60Hz, AC only, 1.65kW 2.2 Additional information about the EUT The EUT consists of the following parts: Component Type / model Technical data Magnetron RM259 2,450MHz Or Magnetron RM269 2,450MHz electronic GmbH Datum/date: 16.09.02 Prüfbericht-Nr.- testreport-no.:02/09-0010 Seite/page: 4 of 12 3. Test Site 3.1. Semi-anechoic chamber Measurement of radiated emissions from EUT was made at semi-anechoic chamber that has been in compliance with Federal Communications Commissions (FCC) requirements of clause 2.948 according to ANSI C63.4-1992 on April 6, 2000. 4. CALIBRATIONS OF MEASURING INSTRUMENTS All measurements were made with instruments calibrated according to the requests of EN/IEC 17025 according to which the test site is accredited. Measurement of radiated emissions was made with instruments conforming to American National Standard Specification, ANSI C63.4-1992. The calibration of measuring instrument, including any accessories that may affect test results, was performed according to the requests of EN/IEC 17025. 5. DESCRIPTION OF TEST CONDITION 5.1 Radiated emissions measurements 5.1.1 Test site Measurements were made in semi-anechoic chamber as described at 3.1 in this report. 5.1.2 Detector function selection and bandwidth In radiated emissions measurement, field strength meters that have CISPR quasi-peak and average detector were used. The bandwidth of the detector of instrument is 120 KHz over frequency range of 30 to 1000 MHz, and 1 MHz over frequency range of 1 to 18 GHz. Emissions to be measured are detected in average mode. 5.1.3 Unit of measurement Test results of radiated emissions measurement are reported in microvolts per meter at the specific distance. Using the unit of dBuV on the test instrument, indication unit was converted to field strength unit of μV/m as following method for frequencies 30MHz – 1000MHz; F/S = 10 [(R + CF)/20] here, F/S: Field strength in μV/m R: Meter reading in dB(μV) CF: Correction factor (includes cable loss, antenna factor, field deviation) For frequencies above 1000MHz; F/S = 10 [(R + CF-AG)/20] here, F/S: Field strength in μV/m R: Meter reading in dB(μV) CF: Correction factor (includes cable loss, antenna factor, field deviation, filter loss) AG: Preamplifier gain electronic GmbH Datum/date: 16.09.02 Prüfbericht-Nr.- testreport-no.:02/09-0010 Seite/page: 5 of 12 5.1.4 Antennas Measurements were made using calibrated bilog antenna in range of 30 to 1000 MHz and horn antenna in range of 1 to 18 GHz to determine the emission characteristics of the EUT. Measurements were also made for both horizontal and vertical polarization. The horizontal distance between the receiving antenna and the closest periphery of the EUT was 3 meters. 5.1.5 Frequncy range to be scaned For radiated emissions measurements, the spectrum in the range of 30 to 1000 MHz and above, if found, was investigated. 5.1.6 Test conditions and configuration of EUT The EUT was configured and operated in all modes of operation so as to find the maximum RF energy generated from EUT. The power was furnished with rated (normal) AC 120 volts, as specified in the Owner’s manual of EUT. The EUT was placed on a 1 m high non metallic 1m diameter table. The turn table containing the system was rotated and the antenna height was varied 4 m to find the maximum RF energy generated from EUT. Each type of accessory provied by manufacturer or typically used and support equipment were connected to the EUT during measurements to the typical usage and applicable as nearly as practicable. 5.1.7 Measurement uncertainty Radiated emissions measurements, bilog antenna: + 4.9dB Radiated emissions measurements, horn antenna: + 5.0dB The measurement uncertainty describes the overall uncertainty of the given measured value during the operation of the EUT in the above mentioned way. The measurements uncertainty was calculated in accordance with NAMAS NIS 81: “The treatment of uncertainty in EMC measurement”. The measurement uncertainty was given with a confidence of 95%. electronic GmbH Datum/date: 16.09.02 Prüfbericht-Nr.- testreport-no.:02/09-0010 Seite/page: 6 of 12 6. MEASURING INSTRUMENTS AND SET-UP 6.1 Radiated emission 6.1.1 Test receiver a) Rohde & Schwarz, Model ESHS-30 (20MHz – 1000MHz) Detector function: Average IF bandwidth: 120kHz b) Rohde & Schwarz, Model FSMS 26 (100Hz – 26.5GHz) Detector function: Average IF bandwidth: 1MHz 6.1.2 Receiving antennas a) Chase, Model CBL6111: Bilog antenna (30MHz – 1000MHz) b) Electro Metrics, Model RGA-60 Horn antenna (1GHz – 18GHz) 6.1.3 Preamplifier / filter Model MWPAFB003: Amplifier/Filter bank 1GHz – 18GHz Amplifier gain 30dB 6.2. Frequency measurements 6.2.1 Test receiver Rohde & Schwarz, Model FSMS 26 (100Hz – 26.5GHz) Detector…
