C5F7NF63MO6000Microwave Oven

MICROWAVE OVEN OPERATING INSTRUCTIONS & COOK BOOK Model No.: KOR-63FB8 Before operating this oven, please read these instructions completely. KOR-63FB9A(¿ ) 02.8.6 6:13 PM ̆`2 1 (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by any one except properly qualified service personnel. TABLE OF CONTENTS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ......................... 1 IMPORTANT SAFETY INSTRUCTIONS ....... 2 FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT (U.S.A. ONLY) ........................................... 3 GROUNDING INSTRUCTIONS ............. 4 SAFETY PRECAUTIONS ........................ 4 INSTALLATION ........................................ 6 CARE OF YOUR MICROWAVE OVEN SAFETY ...................................................... 6 HOW TO USE YOUR MICROWAVE OVEN SAFELY .......................................... 7 OPERATION PROCEDURE .....................7 FEATURES ................................................. 8 HOW TO SET THE OVEN CONTROLS ........ 9 TO STOP THE OVEN WHILE THE OVEN OPERATING ................................12 COOKING GUIDE .................................. 13 COOKING UTENSILS.............................13 COOKING TECHNIQUES ......................13 AUTO DEFROSTING ..............................14 AUTO DEFROSTING CHART ..............15 COOKING CHART ..................................16 REHEATING CHART..............................17 WEIGHT & MEASURE CONVERSION CHART .......................................................19 SPECIFICATIONS ................................... 19 BEFORE YOU CALL FOR SERVICE ....... 19 LIMITED WARRANTY ......................... 20 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY SAVE THESE INSTRUCTIONS KOR-63FB9A(¿ ) 02.8.6 6:13 PM ̆`1 2 When using electrical appliances, basic safety precautions should be followed, including the following: WARNING To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY”found on page 1. 3. This appliance must be grounded. Connect only to properly grounded outlet. See “GROUNDING INSTRUCTIONS” found on page 4. 4. Install or locate this appliance only in accordance with the provided installation instructions. 5. Some products such as whole eggs and containers-for example sealed closed glass jars-may explode and should not be heated in this oven. 6. Use this appliance only for its intended in this manual. Use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. 7. As with any appliance, close supervision is necessary when used by children. 8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. 9. This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment. 10. Do not cover or block any openings on the appliance. 11. Do not store this appliance outdoors. Do not use this product near water - for example, near a kitchen sink, in a wet basement, or near a swimming pool, and the like. 12. Do not immerse cord or plug in water. 13. Keep cord away from heated surfaces. 14. Do not let cord hang over edge of table or counter. 15. Either: a) When cleaning surfaces of door and oven that comes together on closing the door, use only mild, non-abrasive soaps or detergents applied with a sponge or soft cloth, or b) When separate cleaning instructions are provided, See door surface cleaning instructions on(specific page or section to be included) 16. To reduce the risk of fire in the oven cavity: (a) Do not overcook food. Carefully attend appliance if paper, IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS KOR-63FB9A(¿ ) 02.8.6 6:13 PM ̆`2 3 plastic, or other combustible materials are placed inside the oven to facilitate cooking. (b) Remove wire twist-ties from paper or plastic bags before placing bag in oven. (c) If materials inside the oven should ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. (d) Do not use the cavity for storage purposes. Do not leave paper products, cooking, utensils, or food in the cavity when not in use. 17. Do not use this microwave oven to heat corrosive chemicals (for example, sulfides and chlorides). Vapours from such corrosive chemicals may interact with the contact and springs of the safety interlock switches thereby rendering them inoperable. 18. Keep the waveguide cover clean at all times. Wipe the oven interior with a soft damp cloth after each use. If you leave grease or fat anywhere in the cavity it may overheat, smoke or even catch fire when next using the oven. 19. Never heat oil or fat for deep frying as you cannot control the temperature and doing so may lead to overheating and fire. WARNING: This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer’s instructions, may cause interference to radio and television reception. I…

Text truncated - open the document above for the full version.

FRONT VIEW (DOOR CLOSE) FCC ID: C5F7NF63MO6ØØØ

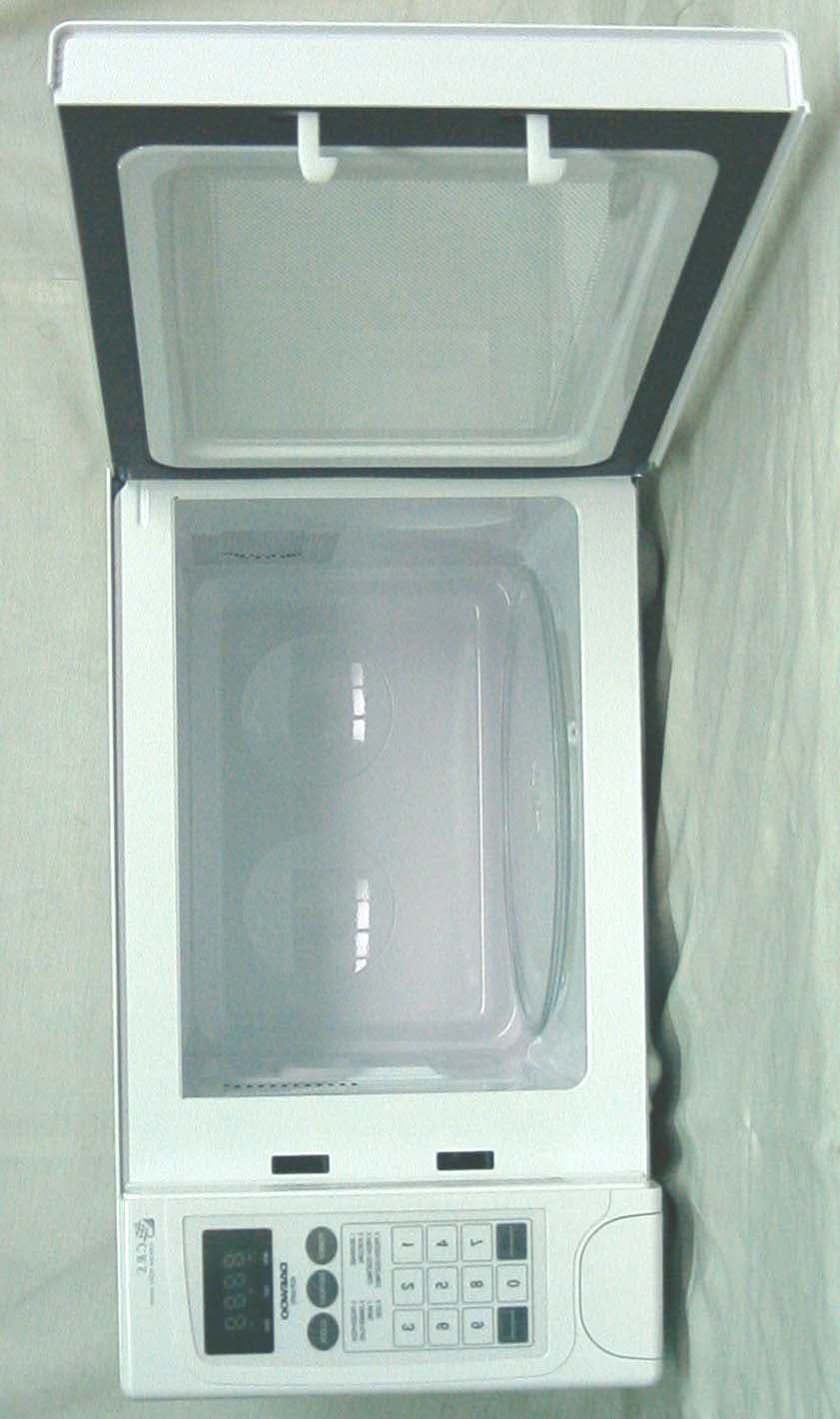

FRONT VIEW (DOOR OPEN) FCC ID: C5F7NF63MO6ØØØ

REAR VIEW FCC ID: C5F7NF63MO6ØØØ

BOTTOM VIEW FCC ID: C5F7NF63MO6ØØØ

IDENTIFICATION LABEL FCC ID: C5F7NF63MO6ØØØ

ID LABEL LOCATION FCC ID: C5F7NF63MO6ØØØ

SIDE VIEW (LEFT) FCC ID: C5F7NF63MO6ØØØ

SIDE VIEW (RIGHT) FCC ID: C5F7NF63MO6ØØØ

TOP VIEW FCC ID: C5F7NF63MO6ØØØ

WIRING DIAGRAM FCC ID: C5F7NF63MO6ØØØ

< FRONT VIEW > < REAR VIEW >
