C5F7NF63MO800NMICROWAVE OVEN

Before operating this oven, please read these instructions completely. OPERATING INSTRUCTIONS MICROWAVE OVEN KOR-631G5 1 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door opensince open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any objectbetween the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged.It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. PRECAUTIONS...................................................................................................................................1 IMPORTANT SAFETY INSTRUCTIONS ..........................................................................................2 FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT (U.S.A. ONLY) ............................................................................. 3 GROUNDING INSTRUCTIONS........................................................................................................ 3 INSTALLATION .................................................................................................................................. 4 SPECIFICATIONS ............................................................................................................................. 5 FEATURES DIAGRAM ...................................................................................................................... 6 OPERATION PROCEDURE .............................................................................................................8 CONTROLS ........................................................................................................................................ 9 SETTING THE CLOCK ................................................................................................................ 9 TIME DEFROSTING .................................................................................................................... 9 WEIGHT DEFROSTING ............................................................................................................ 10 COOKING IN ONE STAGE ....................................................................................................... 11 COOKING IN TWO STAGES .................................................................................................... 11 KITCHEN TIMER MODE ........................................................................................................... 12 SPEEDY COOK.......................................................................................................................... 13 ONE TOUCH COOKING ........................................................................................................... 13 AUTO COOK .............................................................................................................................. 14 LESS, MORE .............................................................................................................................. 15 CHILD SAFETY LOCK...............................................................................................................15 TO STOP THE OVEN WHILE THE OVEN IS OPERATING .................................................. 15 UTENSIL TEST ................................................................................................................................ 16 MICROWAVE UTENSILS ............................................................................................................... 16 DEFROSTING FROZEN FOODS CHART .................................................................................... 17 COOKING CHART........................................................................................................................... 18 REHEATING CHART....................................................................................................................... 19 CARE OF YOUR MICROWAVE OVEN ......................................................................................... 17 USE YOUR MICROWAVE OVEN SAFELY .................................................................................. 18 BEFORE YOU CALL FOR SERVICE............................................................................................. 19 QUESTIONS AND ANSWERS ....................................................................................................... 19 TABLE OF CONTENTS 2 IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should be followed, including the following: WARNING-To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” found on page 1. 3. This appliance must be grounded. Connect only to properly grounded outlet. See “GROUNDING INSTRUCTIONS” found on page 3. 4. Install or locate this appliance only in accor- dance with the provided installation instructions. 5. Some products such as whole eggs and sealed containers - for example, closed glass jars-may explode and should not be heated in this oven. 6. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. 7. As with any appliance, close supervision is necessar…

Text truncated - open the document above for the full version.

FCC ID: C5F7NF63MO8ØØN Input 120Vac 60Hz Note: Components outlined with dotted line is optional and may not be employed in the model Magnetron LampFan Motor Turntable Motor Heating Element H.V. TransformerH.V. Capacitor Oven Cavity BLOCK DIAGRAM Control Panel (Clock fre que ncy 4Mhz) H.V.Diode

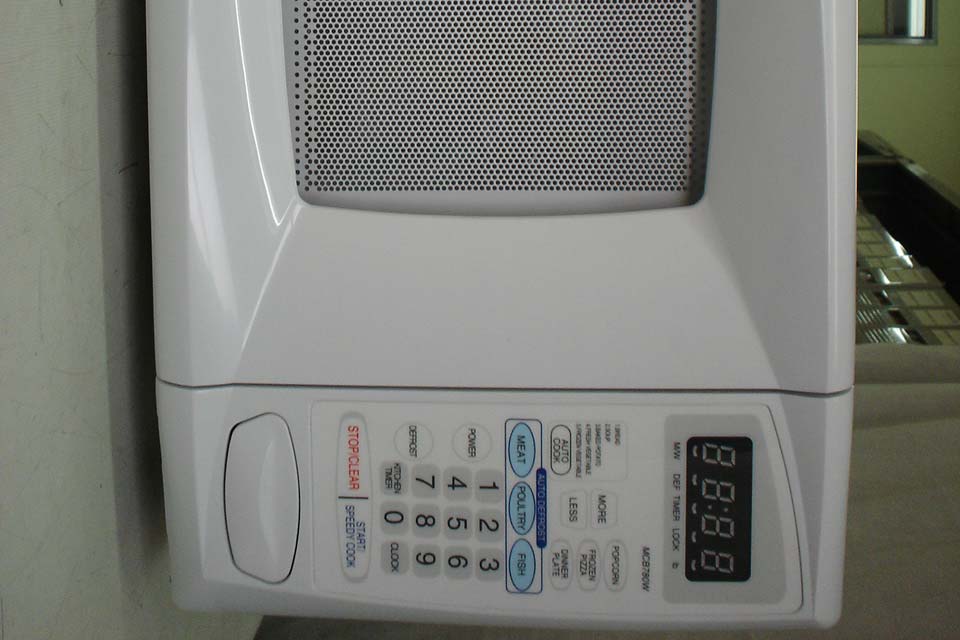

Test Report No.: NK2FE367 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF63MO800N Page 35 of 43 APPENDIX C – EUT PHOTOGRAPHS z Front View of EUT Test Report No.: NK2FE367 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF63MO800N Page 36 of 43 z Rear View of EUT

Test Report No.: NK2FE367 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF63MO800N Page 30 of 43 APPENDIX A – SAMPLE LABEL The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. z FCC ID Location of EUT Labelling Requirements

Test Report No.: NK2FE367 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF63MO800N Page 37 of 43 z Open View of EUT Test Report No.: NK2FE367 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF63MO800N Page 38 of 43 z Side View 1 of EUT Test Report No.: NK2FE367 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF63MO800N Page 39 of 43 z Side View 2 of EUT Test Report No.: NK2FE367 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF63MO800N Page 40 of 43 z Top View of EUT

WIRING DIAGRAM ( SCHEMATICS ) FCC ID: C5F7NF63MO8ØØN

Test Report No.: NK2FE367 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF63MO800N Page 1 of 43 Nemko Korea Co., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : Daewoo Electronics Corporation. Dates of Issue : June 21, 2005 M/W Oven Div. R&D Center, 412-2, Test Report No. : NK2FE367 Chungchun-Dong, Bupyong-Gu, Incheon, Test Site : Nemko Korea Co., Ltd. 403-032, Korea EMC site, Korea Attn : Mr. Gun-Woo, Ro FCC ID Brand Name Contact Person Applied Standard: Part 18 & 2 Classification : Consumer ISM equipment EUT Type: Microwave oven The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in MP-5:1986. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : S. H. Baek Reviewed By : H.H. Kim Engineer Manager & Chief Engineer C5F7NF63MO800N DAEWOO Daewoo Electronics Corporation. M/W Oven Div. R&D Center, 412-2, Chungchun-Dong, Bupyong-Gu, Incheon, 403-032, Korea Mr. Gun-Woo, Ro Telephone No. : +82 32 510 7923 Test Report No.: NK2FE367 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF63MO800N Page 2 of 43 TABLE OF CONTENTS SCOPE INTRODUCTION (Site Description) EUT INFORMATION DESCRIPTION OF TESTS (Radiation Hazard) DESCRIPTION OF TESTS (Input Power Measurement) DESCRIPTION OF TESTS (RF Output Power Measurement) DESCRIPTION OF TESTS (Operating Frequency Measurements) DESCRIPTION OF TESTS (Conducted Emissions) DESCRIPTION OF TESTS (Radiated Emissions) TEST DATA (Radiation Hazard) TEST DATA (Input Power Measurement) TEST DATA (RF Output Power Measurement) TEST DATA (Operating Frequency Measurements) TEST DATA (Conducted Emissions) TEST DATA (Radiated Emissions) PLOT OF EMISSIONS (Operating Frequency Measurements) PLOT OF EMISSIONS (Conducted Emissions Diagram) PLOT OF EMISSIONS (Radiated Emissions Diagram) ACCURACY OF MEASUREMENT LIST OF TEST EQUIPMENT APPENDIX A - SAMPLE LABEL APPENDIX B - PHOTOGRAPHS OF TEST SET-UP APPENDIX C - EUT PHOTOGRAPHS APPENDIX D - SCHEMATIC DIAGRAM APPENDIX E - USER’S MANUAL APPENDIX F - BLOCK DIAGRAM 2 4 5 6 6 6 6 7 8 9 9 9 10 12 13 16 25 27 28 29 30 31 35 41 42 43 Test Report No.: NK2FE367 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF63MO800N Page 3 of 43 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 18. Responsible Party : Contact Person : Manufacturer : Factory : Daewoo Electronics Corporation. Mr. Gun-Woo. Ro Tel No.: +82 32 510 7923 Daewoo Electronics Corporation. M/W Oven Div. R&D Center, 412-2, Chungchun-Dong, Bupyong-Gu, Incheon, 403-032, Korea 1) Daewoo Microwave Oven Co., Ltd. 981-1, Jangduck-Dong, Gwangsan-Gu, Kwangju-Shi, 506-251, Korea 2) Daewoo Electronics Corporation. Detda, Dagang District, Tianjin, Chaina z FCC ID: C5F7NF63MO800N z Model: KOR-631G5 z Brand Name: DAEWOO z EUT Type: Microwave Oven z Applied Standard: z Test Procedure(s): z Dates of Test: z Place of Tests: z Test Report No.: FCC Part 18 & Part 2 MP-5:1986 June 08, 2005 to June 15,2005 Nemko Korea Co., Ltd. EMC Site NK2FE367 Test Report No.: NK2FE367 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF63MO800N Page 4 of 43 INTRODUCTION The measurement procedure described in MP5:1986 for Methods of Measurement of radiated, powerline conducted radio noise, frequency and power output was used in determining emissions emanating from Daewoo Electronics Corporation. FCC ID : C5F7NF63MO800N, Microwave Oven. These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory . The site address is 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4-2003 Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab and Incheon Airport. Nemko Korea Co., Ltd. OPEN AREA TEST SITE 300-2, Osan-Ri, Mohyun-Myun, Yongin- City Kyungki-Do,KOREA 449-852 Tel) +82-31-322-2333 Fax) +82-31-322-2332 Test Report No.: NK2FE367 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF63MO800N Page 5 of 43 EUT INFORMATION EUT Information Electric Rating: 120V, 60Hz Clock: 4MHz Magnetron Type: RM228 / Daewoo Electronics Corp. Operating Frequency 2.45GHz Rated Output Power 800W Test Report No.: NK2FE367 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF63MO800N Page 6 of 43 DESCRIPTION OF TESTS Radiation Hazard A 700-ml water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. Input Power Measurement The EUT was placed on a wooden table 0.8m at 1m distance Horn antenna. A 700ml water load was placed in the center of the oven and the ove…

Text truncated - open the document above for the full version.

Test Report No.: NK2FE367 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF63MO800N Page 31 of 43 APPENDIX B – PHOTOGRAPHS OF TEST SET-UP The Conducted Test Picture and Radiated Test Picture and show the worst-case configuration and cable placement. z Radiation hazard Test Picture z Operating Frequency Test Picture Test Report No.: NK2FE367 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF63MO800N Page 32 of 43 z Conducted Test Picture (Front) z Conducted Test Picture (Rear) Test Report No.: NK2FE367 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF63MO800N Page 33 of 43 z Radiated Test Picture – 30MHz ~ 1GHz (Front) z Radiated Test Picture – 30MHz ~ 1GHz (Rear) Test Report No.: NK2FE367 FCC Certification Daewoo Electronics Corporation. FCC ID:C5F7NF63MO800N Page 34 of 43 z Radiated Test Picture (1GHz~24GHz)
