C5F7NF9GMO900NMicrowave Oven

Before operating this oven, please read these instructions completely. OPERATING INSTRUCTIONS & COOK BOOK MICROWAVE OVEN KOR-9G2B7A PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door opensince open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any objectbetween the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged.It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. TABLE OF CONTENTS • PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY....................1 • IMPORTANT SAFETY INSTRUCTIONS...........................................................................................................2 • FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT ....................................................................................3 • GROUNDING INSTRUCTIONS ........................................................................................................................3 • INSTALLATION .................................................................................................................................................4 • SPECIFICATIONS.............................................................................................................................................5 • FEATURES DIAGRAM......................................................................................................................................6 • FEATURES DIAGRAM (CONTINUED) .............................................................................................................7 • OPERATION PROCEDURE..............................................................................................................................8 • CONTROLS.......................................................................................................................................................9 SETTING THE CLOCK ..................................................................................................................................9 DEFROSTING AUTOMATICALLY...............................................................................................................10 SETTING COOKING TIMES & POWER LEVELS .......................................................................................11 EXPRESS COOKING ..................................................................................................................................11 AUTO COOK................................................................................................................................................12 QUICK DEFROST........................................................................................................................................13 POPCORN ...................................................................................................................................................13 BEVERAGE..................................................................................................................................................14 FROZEN MEAL............................................................................................................................................14 CHILD SAFETY LOCK.................................................................................................................................15 DISPLAY OFF. .............................................................................................................................................15 TO STOP THE OVEN WHITE THE OVEN IS OPERATING........................................................................15 • CARE OF YOUR MICROWAVE OVEN...........................................................................................................16 • BEFORE YOU CALL FOR SERVICE..............................................................................................................17 • CARE AND CLEANING...................................................................................................................................17 • QUESTIONS AND ANSWERS........................................................................................................................18 • COOKING INSTRUCTIONS............................................................................................................................19 • USE YOUR MICROWAVE OVEN SAFELY ....................................................................................................20 • ARCING...........................................................................................................................................................20 • MICROWAVING PRINCIPLES........................................................................................................................21 • HOW MICROWAVES COOK FOOD ...............................................................................................................21 • CONVERSION CHARTS.................................................................................................................................21 • COOKING TECHNIQUES ...............................................................................................................................22 • DEFROSTING GUIDE.....................................................................................................................................23 • COOKING & REHEATING CHART .........................................................…

Text truncated - open the document above for the full version.

4. Block Diagram FCC ID: C5F7NF9GMO9ØØN Input 120Vac 60Hz Note: Components outlined with dotted line is optional and may not be employed in the model Magnetron LampFan Motor Turntable Motor Heating Element H.V. TransformerH.V. Capacitor Oven Cavity BLOCK DIAGRAM Control Panel (Clock fre que ncy 4M hz) H.V.Diode

Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 43 of 66 APPENDIX A – SAMPLE LABEL The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. z FCC ID Location of EUT Labeling Requirements

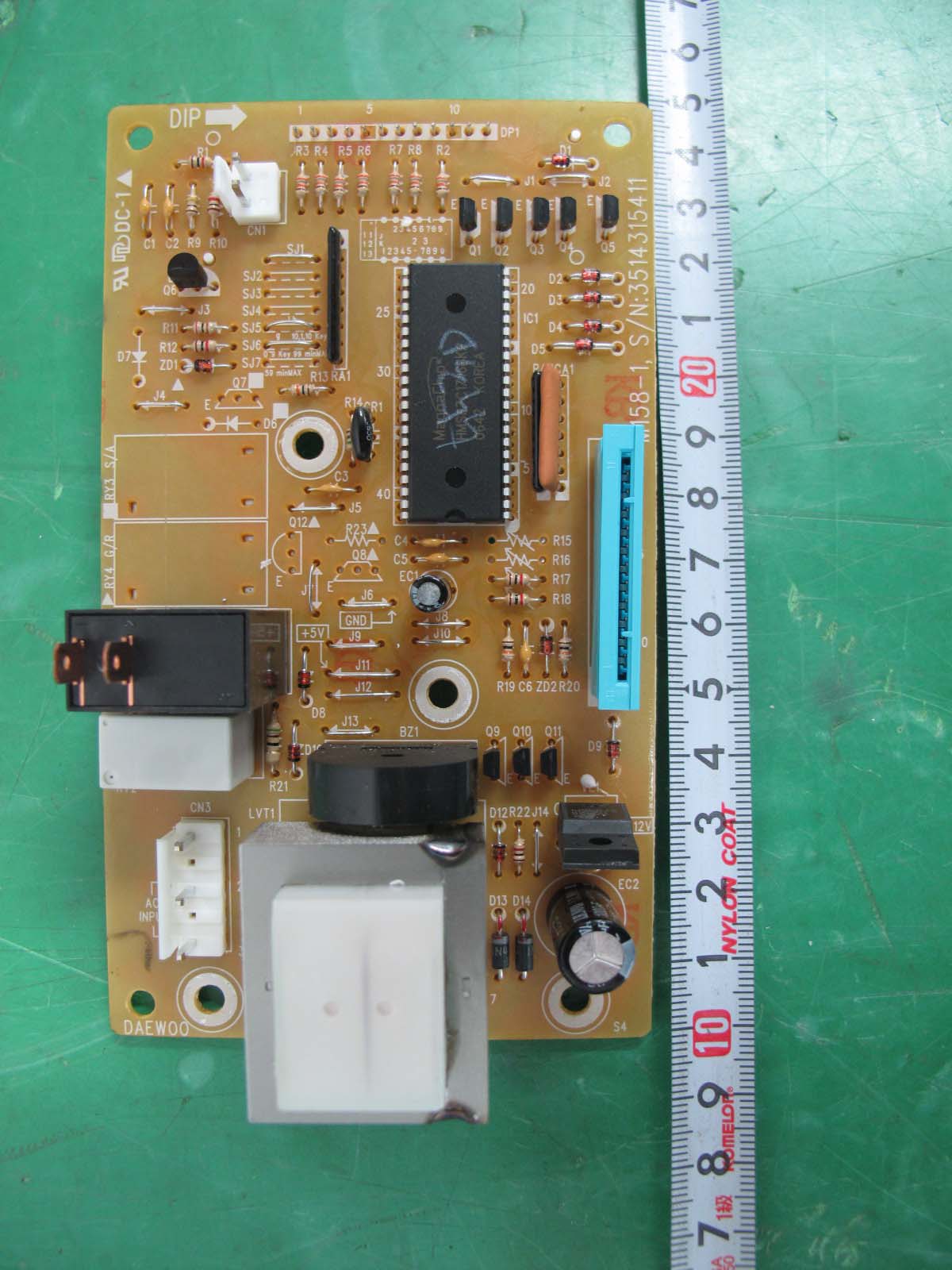

Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 50 of 66 z Door open View of EUT Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 51 of 66 z Left View of Inside Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 52 of 66 z Right View of Inside Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 53 of 66 z Top View of Inside Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 54 of 66 z Front View of Magnetron Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 55 of 66 z Rear View of Magnetron Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 56 of 66 z Front View of Control Board Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 57 of 66 z Rear View of Control Board Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 58 of 66 z Front View of Filter Board Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 59 of 66 z Front View of Filter Board Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 60 of 66 z Front View of Trans Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 61 of 66 z Rear View of Trans Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 62 of 66 z Front View of Capacitor Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 63 of 66 z Side View of Capacitor

■ OPERATION DESCRIPTION After main power supply, When we press Start button, DC 5V enter the micom of Control and Main relay on and then High voltage circuit formed. DC 4KV be create by combination of H.V Transformer, H.V Capacitor and H.V Diode. This high voltage, DC 4KV get into Magnetron and then Microwave generate.

3. Wiring Diagram WIRING DIAGRAM ( SCHEMATICS ) FCC ID: C5F7NF9GMO9ØØN

Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 2 of 66 TABLE OF CONTENTS SCOPE INTRODUCTION (Site Description) EUT INFORMATION DESCRIPTION OF TESTS (Radiation Hazard) DESCRIPTION OF TESTS (Input Power Measurement) DESCRIPTION OF TESTS (RF Output Power Measurement) DESCRIPTION OF TESTS (Operating Frequency Measurements) DESCRIPTION OF TESTS (Conducted Emissions) DESCRIPTION OF TESTS (Radiated Emissions) TEST DATA (Radiation Hazard) TEST DATA (Input Power Measurement) TEST DATA (RF Output Power Measurement) TEST DATA (Operating Frequency Measurements) TEST DATA (Conducted Emissions) TEST DATA (Radiated Emissions) PLOT OF EMISSIONS (Operating Frequency Measurements) PLOT OF EMISSIONS (Conducted Emissions Diagram) PLOT OF EMISSIONS (Radiated Emissions Diagram) ACCURACY OF MEASUREMENT LIST OF TEST EQUIPMENT APPENDIX A - SAMPLE LABEL APPENDIX B - PHOTOGRAPHS OF TEST SET-UP APPENDIX C - EUT PHOTOGRAPHS APPENDIX D - SCHEMATIC DIAGRAM APPENDIX E - USER’S MANUAL APPENDIX F - BLOCK DIAGRAM 3 4 5 6 6 6 6 7 8 9 9 9 10 12 13 16 34 36 41 42 43 44 48 64 65 66 Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 3 of 66 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 18. Responsible Party : Contact Person : Manufacturer : Factory : Daewoo Electronics Corporation Mr. Seongok, Kim Tel No.: + 82 32 510 7919 Daewoo Electronics Corporation M/W oven R&D center 412-2, Cheongcheon2-Dong, Bupyeong-Gu, Incheon, 403-032, KOREA Daewoo Microwave Oven Co., Ltd. Delta, Dagang, District, Tianjin, China z FCC ID: C5F7NF9GMO900N z Model: KOR-9G2B z Brand Name: DAEWOO z EUT Type: Microwave Oven z Applied Standard: z Test Procedure(s): z Dates of Test: z Place of Tests: z Test Report No.: FCC Part 18 & Part 2 MP-5:1986 September 30, 2010 to October 15, 2010 Nemko Korea Co., Ltd. EMC Site NK-10-E-786 Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 4 of 66 INTRODUCTION The measurement procedure described in MP5:1986 for Methods of Measurement of radiated, powerline conducted radio noise, frequency and power output was used in determining emissions emanating from Daewoo Electronics Corporation. FCC ID : C5F7NF9GMO900N , Microwave Oven. These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory. The site address is 300-2, Osan-Ri, Mohyun-Myun, Cheoin-Gu, Yongin-City, Gyeonggi-Do, KOREA The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4-2003 Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab and Incheon Airport. Nemko Korea Co., Ltd. OPEN AREA TEST SITE 300-2, Osan-Ri, Mohyun-Myun, Cheoin-Gu, Yongin-City Gyeonggi-Do,KOREA 449-852 Tel) +82-31-322-2333 Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 5 of 66 EUT INFORMATION EUT Information Electric Rating : a.c. 120 V , 60 Hz Clock : 4 MHz Magnetron Type : RM228 (Daewoo) Operating Frequency : 2.45 GHz Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 6 of 66 DESCRIPTION OF TESTS Radiation Hazard A 700 ml water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. Input Power Measurement The EUT was placed on a wooden table 0.8 m at 1 m distance Horn antenna. A 700ml water load was placed in the center of the oven and the oven set to maximum power. A 700 ml water load was chosen for its compatibility. Input power and current were measured using a Power Analyzer. Manufacturers to determine their input ratings commonly use this procedure. Output Power Measurement The Caloric Method was used to determine maximum output power. The initial temperature of a 1000 ml water load was measured. The water load was placed in the center of the oven. The oven was operated at maximum output power for 120 seconds. Then the temperature of the water re-measured. Frequency Measurements Following the above test, after operating the oven long enough to assure that stable operating temperature were obtained, the operating frequency was monitored as the input voltage was varied between 80 to 125 percent of the nominal rating. And the load quantity was reduced by evaporation to approximately 20 % of the original quantity with nominal rating. Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 7 of 66 DESCRIPTION OF TESTS Conducted Emissions The Line conducted emission test facility is located inside a 4 x 7 x 2.5 meter shielded enclosure. It is manufactured by EM engineering. The shielding effectiveness of the shielded room is in accordance with MIL-STD-285 or NSA 65-6. A 1 m X 1.5 m wooden table 0.4 m height is placed 0.4 m away from the vertical wall and 1.5 m away from the side of wall of the shielded room Rohde & Schwarz (ESH2-Z5) of the 50 ohm/50 uH Line Impedance Stabilization Network (LISN) is bonded to the shielded room. The EUT is powered from the R…

Text truncated - open the document above for the full version.

Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 44 of 66 APPENDIX B – PHOTOGRAPHS OF TEST SET-UP The Conducted Test Picture and Radiated Test Picture and show the worst-case configuration and cable placement. ● Radiation hazard Test Picture z Operating Frequency Test Picture Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 45 of 66 z Conducted Test Picture (Front) z Conducted Test Picture (Rear) Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 46 of 66 z Radiated Test Picture – 30 MHz ~ 1 GHz (Front) z Radiated Test Picture – 30 MHz ~ 1 GHz (Rear) Test Report No.: NK-10-E-786 FCC Certification Daewoo Electronics Corporation FCC ID: C5F7NF9GMO900N Page 47 of 66 z Radiated Test Picture (0.15 MHz~30 MHz) z Radiated Test Picture (1 GHz~18 GHz)
