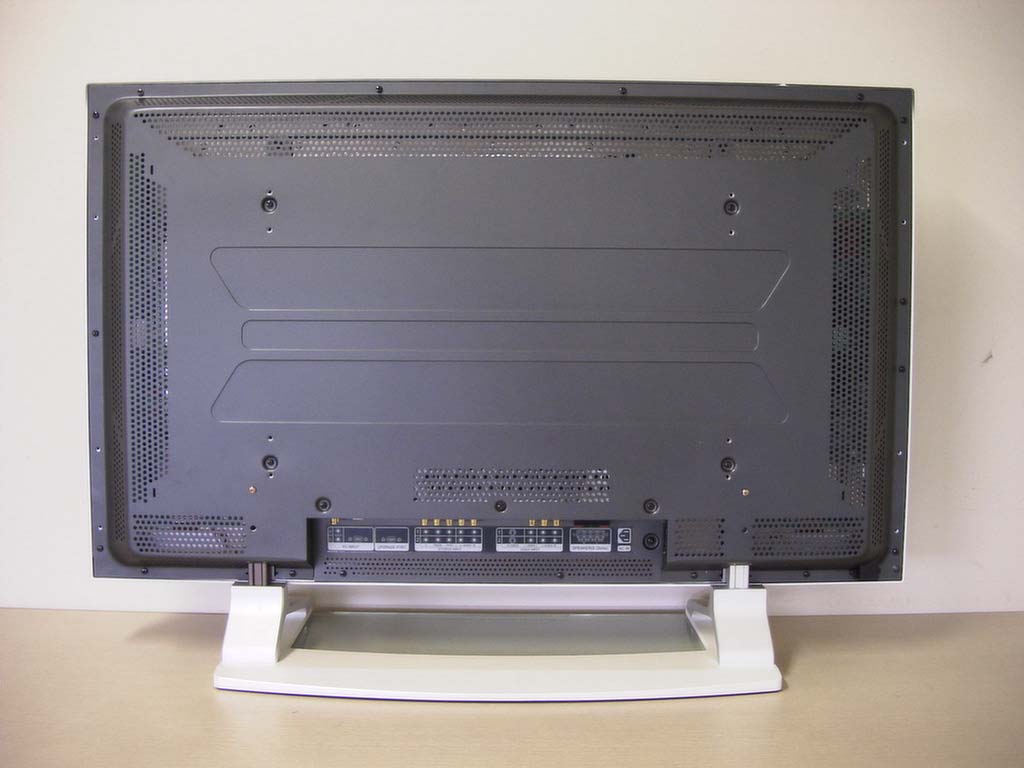

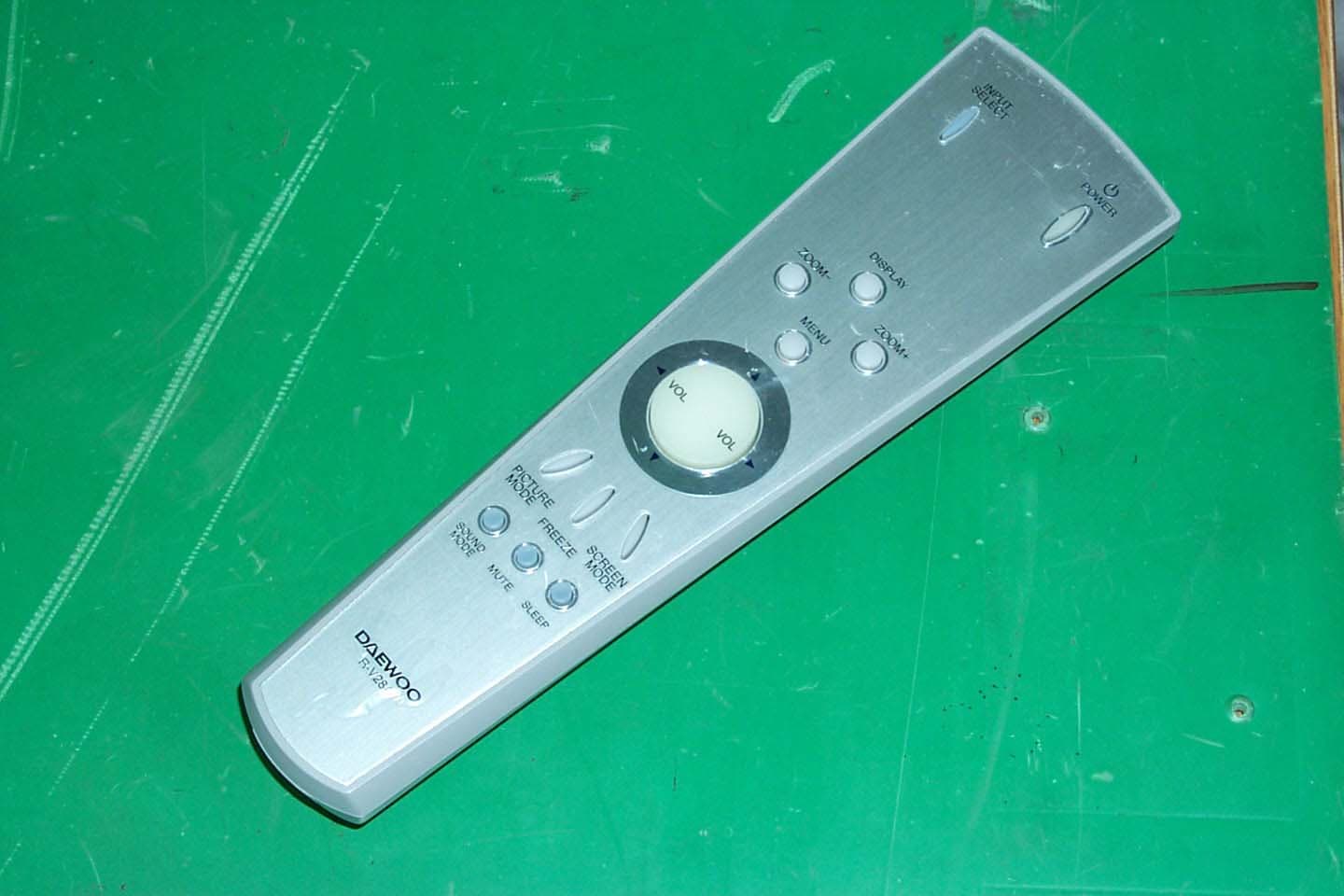

C5FDSP4280GM42" PDP ( Plasma Display Panel )

PLASMA DISPLAY USER’S MANUAL DAEWOO ELECTRONICS, LTD. DSP-4280GM DSP-4282GM Proper use guarantees product life. Before using the product, be advised that you read this owner’s manual well and try to operate it. - Product Warranty is included - 2 This Owner’s Manual presents safety precautions and how to use the product. After reading it thoroughly, use the product safely. Keep this manual where the user can see it easily. Failure to comply with warnings and cautions for the safe use of electric appliances may cause fire or human injury. • 42” super-wide, 8 cm Ultra Slim Wall-mounting TV SUMMUS PLASMA opens new TV era with advanced plasma technology – 8 cm ultra slim TV. Light weight of only 30 Kg allows installing in narrow space. • DVD Direct Connection / Outstanding Picture Quality Digital Broadcasts Receive (SD Grade) DVD can be directly connected so that you can view clear digital images, and by connecting digital broadcasts connecting terminal with which digital broadcasts can be viewed, you can enjoy high quality images. (When using digital broadcasting set-top box) •PC Direct Connection PC can be connected to the PDP without separate device, and can be used as clear monitor so that the effect of presentation gets maximized, making it popular in various events and exhibitions. •PDP TV with Minimized Noise Up to now, although PDP TV had outstanding picture quality, there was problem with the noise by cooling fan. SUMMAS PLASMA does not need cooling fan any more since it adopts air circulation method with excellent heat transfer, eliminating the fan noise. •160o wide-Angle Viewing Area •Flat Panel with No Distortion and Color Blurring Since Plasma TV has no problems such as distortion, blurring, flickering unlike with existing brown tube type, you can enjoy Home Theater with super speaker. •Various Video Control - 11 languages OSD - 10 step screen zooming function - full-screen still function - Various aspect ratio (16:9, Panorama, Normal, Zoom2, Zoom1) •3 Way 6 Speaker Stereo Sound System •Worldwide : NTSC, PAL, SECAM / Free Volt (100-240V 50/60Hz) Features Features FCC RF INTERFERENCE ST FCC RF INTERFERENCE ST A A TEMENT TEMENT NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio, TV technical for help. - Only shielded interface cable should be used. Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the users authority to operate such equipment, Always obey all safety messages. • All the safety and operating instructions should be read before the product is operated. If anything strange happens, unplug this product from the wall outlet. • Do not disassemble or replace any parts of the monitor. Refer servicing to qualified service personnel. Safety Precautions 4 WARNING You can be killed or seriously injured if you don’t follow instructions. During a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. It can result in fire. When unplugging your monitor, always grip plug firmly and pull straight out from the receptacle. It can result in fire or electric shock due to damaged power cord. This product must be properly grounded. • Improper grounding may cause malfunction or electric shock. • When proper grounding is not possible, install circuit breaker. • Do not ground to gas pipe, water pipe, lightning rod, and telephone line. During a lightning storm, unplug the monitor from the wall outlet, and do not touch antenna. It can cause fire or electric shock. Power Installation Do not use this product in the neighborhood of a bath or shower. It can result in electric shock or fire. Do not place this monitor on an unstable cart, stand, or table It may cause the product and cart to overturn, damaging equipment or causing possible injury. 5 While Using Monitor Do not open cover (or back) because high voltage is present within the monitor’s enclosure. It may cause electric shock. Never push objects of any kind into this product through opening at the back of monitor. It may cause fire or electric shock. No objects filled with liquids, such as vases, shall be placed on the monitor. Spilled liquids may cause electric shock or fire. Do not allow children to play or hang on the monitor. These actions may tip it over, causing personal injury. Do not place candle or lighted cigarette on the monitor. If these fall into the inside of the monitor, it may cause fire or explosion. Do not disassemble batteries, and do not allow children to swallow them. Heavy metal may contaminate environment, and can be harmful or detrimental to human health. (When children swallow the batteries, go to hospital and consult with him.) Do not pray water to the monitor or wipe with damp cloth. It may cause electric shock or fire. Unplug the monitor from the wall outlet when smoke or strange smell occur, then refer servicing to service personnel. In the case of continuous use, it may cause fire or ele…

Text truncated - open the document above for the full version.

4280gm_blockdiagram_lpp.sch-1 - Wed Jun 26 11:50:36 2002

File No. 02-IST-116/FB IST EMC LAB. Page 1 of 23 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. IST EMC LAB. EMISSION TEST REPORT Test report file No. : 02-IST-116/FB Date of issue : Jun. 20, 2002. Model / Type No. Kind of product Brand name Applicant Manufacturer Address : DSP-4280GM : PDP(Plasma Display Panel) : DAEWOO : Daewoo Electronics Co., Ltd. : Daewoo Electronics Co., Ltd. : 543, Dangjung-Dong, Kunpo-City, Kyunggi-Do, Korea. Test result according to the regulation(s) ■ Positive □ Negative at page 3. This test report without appendix consists of 23 pages. It is not allowed to copy this report even partly without the allowance of the Test Laboratory. This equipment is complied with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. File No. 02-IST-116/FB IST EMC LAB. Page 2 of 23 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. DIRECTORY A) Documentation. Page Directory Test regulations Environmental Conditions Test Conditions Equipment under Test Test Result Test-setups (Photos ) Test-setup (Figures) Summary 2 3 3 4~5 6 7 8~11 12 23 B) Test Data. Conducted emissions (Mains) Radiated emissions : 450 kHz - 30 MHz : 30 MHz – 1 GHz 13~18 19~22 C) Appendix File No. 02-IST-116/FB IST EMC LAB. Page 3 of 23 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST REGULATIONS The tests were performed according to the following regulations ; ■ - FCC Part 15, Subpart B (Unintentional Radiators, Class B) Information of Test Laboratory IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, Korea International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. ENVIRONMENTAL CONDITIONS Temperature Humidity Atmospheric pressure 22 41 % 1003 mbar File No. 02-IST-116/FB IST EMC LAB. Page 4 of 23 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST CONDITIONS The measurement of the conducted emissions (Interference voltage) was performed in a shielded room. Test location : Shielded room. No.1 Compact chamber 2 Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESH 3 Test Receiver Rohde & Schwarz Jun. 16, 2001 861742/015 3725/2 LISN EMCO Jul. 30, 2001 9101-2068 KNW-407 LISN Hyup-Rip Jul. 26, 2001 8-883-10 ESH 3-Z2 Pulse Limiter Rohde & Schwarz Jul. 13, 2001 357.8810.52 Test - accessories : Type Manufacturer Aneroid Barometer Sato Hygrometer Sato Measurement Procedures : Conducted emissions measurments were made in accordance with ANSI C-63.4-1992, “Method of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurement were performed over the frequency range of 0.45MHz to 30MHz using a 50 Ω /50uH LISN as the input transducer to an EMI/Field Intensity Meter. The measurements were made with the detector set for “Peak” amplitude within an IF bandwidth of 10kHz or for “quasi-peak” within a bandwidth of 9kHz. All used test-instruments as well as the test-accessories are calibrated regularly. Test engineer : Y.J.Kim / Research Engineer IST EMC Lab. File No. 02-IST-116/FB IST EMC LAB. Page 5 of 23 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. The measurement of the radiated emissions (Electric field) in the frequency range from 30 MHz to 1GHz was performed in horizontal and vertical antenna polarization at a open-site which meet the site attenuation requirement of ANSI C63.4-1992 and a test distance of : Location : Open Site No. 1 Open Site No. 2 Open Site No. 3 Distance : 3 meters 10 meters Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESVP Test Receiver Rohde & Schwarz Jun. 12, 2001 861744/018 VULB 9160 Antenna Schwarzbeck Jun. 04, 2001 3048 Test - accessories : Type Manufacturer Aneroid Barometer Sato Hygrometer Sato Measurement procedures Radiated measurements were in accordance with ANSI C63.4-1992 “Method of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurements were performed over the frequency range of 30MHz to 1GHz using antenna as the input transducer to a EMI/Field Intensity Meter. The measurements were made with the detector set for “quasi-peak” within a bandwidth of 120kHz. All used test-instruments as well as the test-accessories are calibrated regularly. Test engineer : Y.J.Kim / Research Engineer IST EMC Lab. File No. 02-IST-116/FB IST EMC LAB. Page 6 of 23 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. EQUIPMENT UNDER TEST Equipment Description The Equipment Under Test (EUT) is the PDP of Daewoo Electronics Co., Ltd. Outer dimensions Without Stand : WxHxD=1,055 x 652 x 85 mm With Stand : WxHxD=1,055 x 730 x 85 mm Weight Without Stand - 41 Kg, With Stand - 47 Kg Power requirements 100 ~ 240 Vac, 50/60Hz, 3.2 ~ 1.3A Rated input power 320W External port PC IN(2), Component(2), Video IN(2), Speaker Out(2) Product PDP(Plasma Display Pannel) EUT Type : Table-Top. Floor-Standing. Table-Top a…

Text truncated - open the document above for the full version.

Radiated Emission 30MHz ~ 1000MHz Mode : Scrolling “H” Pattern Conducted Emission 450kHz ~ 30MHz Mode : Scrolling “H” Pattern Radiated Emission 30MHz ~ 1000MHz Mode : Color bar Conducted Emission 450kHz ~ 30MHz Mode : Color bar
