C9O-QOLL1Qollector2

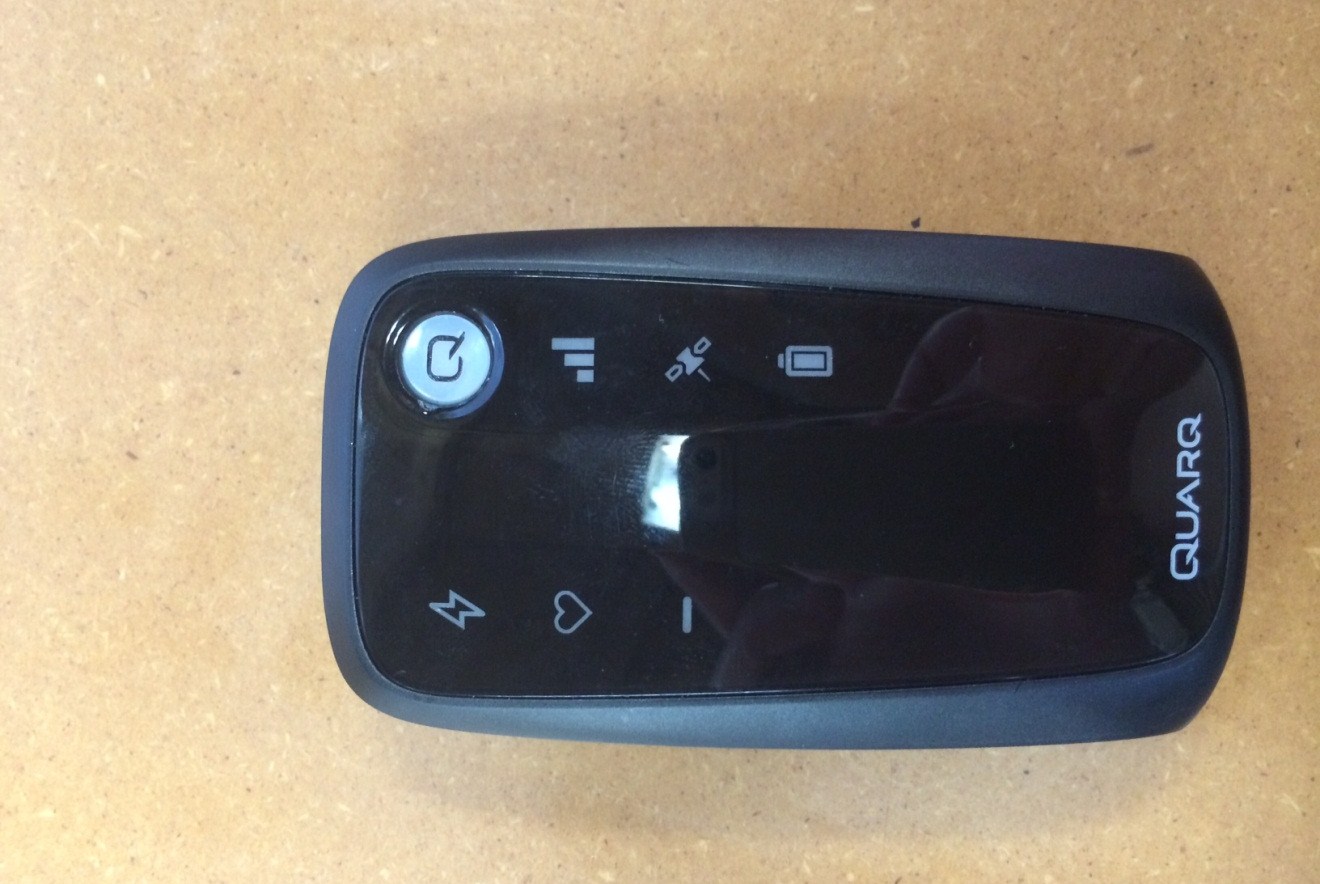

Q Button Cellular Status GPS Status Battery Statuss Power Meter Indicator Charging Port Heart Rate Indicator Other Ant+ Indicator Qollector To pair the Qollector with a sensor, press and release the and hold the Qollector near the sensor. The corresponding white icon will light up when the sensor is paired. Up to 7 sensors can be paired with the Qollector. Press the to check the Cellular Status, Battery Status, and GPS Status. The will blink often when on and connected. Double tap the front surface of the device to drop a pin and record a specific point in your activity. You can view the pin in your autosync destinations. The Qollector will collect and store data when it is first turned on, but you will need to create an account on QuarqNet.com to view, download and sync your data. To Start or Finish an Activity: Power the Qollector on and allow the cellular towers and GPS to sync before starting your activity. When you have finished your activity, power the Qollector off. Your activity will automatically be named and synced up with your autosync destinations. Using the Qollector For complete instructions, visit our website at quarq.com/qollector. Press and hold the for three seconds to power the Qollector on or off. When powering on, the status icons will light up green and the Qollector will beep and vibrate. When powering off, the icons will flash red and the Qollector will beep and vibrate. Front Surfaces Commands Press Press - 3 Sec Double Tap Qollector Quick Start Guide Data collection and tracking for endurance athletes. Solid Light: Connected to a tower - Data synced Two second fade: Connected to a tower - Data unsynced One second fade: No tower found Solid Light: GPS locked Two second fade: GPS searching One second fade: GPS disabled Solid Light: Battery Status Good: 100% - 35% Two second fade: Battery Status Low: 35% - 10% One second fade: Battery Status Critical: 10% or less Power Meter Paired Heart Rate Monitor Paired Ant+ Device Paired Color Definitions DRAFT For complete instructions, visit our website at quarq.com/qollector.

TCB reviewer’s comment: Is the attached Guide may be considered as User’s Manual? If yes, it should have all required FCC Statements: FCC 21, FCC 105. Applicant response: So, I’ve attached the latest “Qollector Quick Start Guide” and on the guide it has this statement: “For complete instructions, visit our website at quarq.com/qollector.” So this webpage will be the user manual. The qollector part of the website is not live but will be when the device goes to market. The below statements will be the first thing on this webpage. Statement of Compliance: SRAM LLC. Model#: CDMA FCC ID: C9O-QOLL1 IC: 10161A- QOLL1 Model#: GSM FCC ID: C9O-QOLL2 IC: 10161A-QOLL2 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1 This device may not cause harmful interference. 2 This device must accept any interference received, including interference that may cause undesired operation. Warning: Any changes or modifications not expressively approved by SRAM could void the user's authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generats, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: 1 Reorient or relocate the receiving antenna. 2 Increase the separation between the equipment and receiver. 3 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4 Consult the dealer or an experienced radio/TV technician for help. This product meets the applicable Industry Canada technical specifications. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference that may cause undesired operation of the device. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. Statement of RoHS Compliance SRAM LLC. certifies that this product and its packaging are in compliance with European Union Directive 2002/95/EC on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronics Equipment, commonly known as RoHS. ANT+™ Product Certification This product is ANT+ certified and complies with the bicycle power ANT+ Device Profile. For a complete listing of ANT+ Certified Products and their specific interoperability, please visit www.thisisant.com.

731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com TEST REPORT Report Number: 101941214LEX-003 Project Number: G101941214 Evaluation of Model Number: Qollector2 Tested to the SAR Criteria in FCC Part 2.1093 per KDB 447498 IC RSS-102 Issue 4 For SRAM Test Performed by: Test Authorized by: Intertek 731 Enterprise Drive Lexington, KY 40510 SRAM 1333 North Kingsbury 4th Floor Chicago, IL 60622 Prepared By:_______________________________Date:_______________ Jason Centers, Staff Engineer Approved By:______________________________Date:________________ Bryan Taylor, Team Leader 3/10/15 3/10/15 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. 731 Enterprise Drive, Lexington KY 40510 Evaluation For:SRAM Model Number: Qollector2 Report Number: 101941214LEX-003 TABLE OF CONTENTS 1.0 DOCUMENT HISTORY ................................................................................................................ 3 2.0 INTRODUCTION ............................................................................................................................ 4 M ODIFICATIONS MADE TO TEST SAMPLE .................................................................................................. 4 3.0 TEST SITE DESCRIPTION ........................................................................................................... 5 M EASUREMENT EQUIPMENT ..................................................................................................................... 6 M EASUREMENT UNCERTAINTY ................................................................................................................ 7 4.0 JOB DESCRIPTION ....................................................................................................................... 9 5.0 SYSTEM VERIFICATION .......................................................................................................... 10 S YSTEM VALIDATION.............................................................................................................................. 10 T ISSUE SIMULATING LIQUID DESCRIPTION AND VALIDATION ............................................................... 11 6.0 EVALUATION PROCEDURES .................................................................................................. 13 T EST POSITIONS: ..................................................................................................................................... 13 R EFERENCE POWER MEASUREMENT: ..................................................................................................... 13 A REA SCAN: ............................................................................................................................................ 13 Z OOM SCAN: ........................................................................................................................................... 13 I NTERPOLATION, EXTRAPOLATION AND DETECTION OF MAXIMA: ........................................................ 15 P OWER DRIFT MEASUREMENT: .............................................................................................................. 16 RF AMBIENT ACTIVITY:.......................................................................................................................... 16 7.0 CRITERIA ...................................................................................................................................... 17 8.0 TEST CONFIGURATION ............................................................................................................ 17 9.0 TEST RESULTS ............................................................................................................................ 19 C ONDUCTED OUTPUT POWER MEASUREMENTS: .................................................................................... 19 S IMULTANEOUS TRANSMISSION CALCULATIONS (ANT+ AND CELLULAR RADIO): .............................. 21 SAR TEST EXCLUSIONS: ......................................................................................................................... 21 10.0 REFERENCES ........................................................................................................................... 22 11.0 APPENDIX – WORST CASE SAR PLOTS ............................................................................ 23 12.0 APPENDIX – DIPOLE VALIDATION PLOTS ..................................................................... 41 13.0 APPENDIX – DESCRIPTION OF THE FLAT PHANTOM USED FOR TESTING ......... 47 Page 2 of 48 731 Enterprise Drive, Lexington KY 40510 Evaluation For:SRAM Model Number: Qollector2 Report Number: 101941214LEX-003 1.0 DOCUMENT HISTORY Revision/ Project Number Writer Initials Date Change 1.0 /G101941214 JC 3/10/15 Original document Page 3 of 48 731 Enterprise Drive, Lexington KY 40510 Evaluation For:SRAM Model Number: Qollector2 Report Number: 101941214LEX-003 2.0 INTRODUCTION At the request of SRAM, the Qollector Activity Monitor was evaluated for SAR in accordance with the requirements for FCC Part 2.1093 and …

Text truncated - open the document above for the full version.

731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com TEST REPORT Report Number: 101941214LEX-003 Project Number: G101941214 Report Issue Date: 3/10/15 Product Name: Qollector Activity Monitor Model Number: Qollector2 Standards: Title 47 CFR Part 15 Subpart C and RSS-210 Issue 8 Tested by: Client: Intertek Testing Services NA, Inc. 731 Enterprise Drive Lexington, KY 40510 SRAM 1333 North Kingsbury 4th Floor Chicago, IL 60622 Report prepared by Report reviewed by Jason Centers, Staff Engineer Bryan Taylor, Team Leader This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. EMC Report for SRAM on the Qollector Activity Monitor Page 1 of 27 Intertek Report Number: 101941214LEX-003 Issued: 3/10/15 TABLE OF CONTENTS 1 Introduction and Conclusion .............................................................................................................. 3 2 Test Summary ...................................................................................................................................... 3 3 Description of Equipment Under Test ............................................................................................... 4 4 Peak Conducted Power ....................................................................................................................... 6 5 Occupied Bandwidth ........................................................................................................................... 8 6 Conducted Spurious Emissions ....................................................................................................... 13 7 Power Spectral Density ..................................................................................................................... 15 8 Radiated Spurious Emissions (Transmitter) ................................................................................... 17 9 Radiated Spurious Emissions (Receiver) ........................................................................................ 22 10 Antenna Requirement per FCC Part 15.203 ................................................................................. 25 11 Measurement Uncertainty.............................................................................................................. 26 12 Revision History ............................................................................................................................. 27 EMC Report for SRAM on the Qollector2 Page 2 of 27 Intertek Report Number: 101941214LEX-003 Issued: 3/10/15 1 Introduction and Conclusion The tests indicated in section 2 were performed on the product constructed as described in section 3. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test method, a list of the actual test equipment used, documentation photos, results and raw data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complied with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. The INTERTEK-Lexington is located at 731 Enterprise Drive, Lexington Kentucky, 40510. The radiated emission test site is a 10-meter semi-anechoic chamber. The chamber meets the characteristics of CISPR 16-1 and ANSI C63.4. For measurements, a remotely controlled flush-mount metal-top turntable is used to rotate the EUT a full 360 degrees. A remote controlled non-conductive antenna mast is used to scan the antenna height from one to four meters. The test site is listed with the FCC under registration number 485103. The test site is listed with Industry Canada under site number IC 2042M-1. 2 Test Summary Page Test full name FCC Reference IC Reference Result 6 Peak Conducted Power § 15.247(b)(3)(4) RSS-210 (A8.4) Pass 8 Occupied Bandwidth § 15.247(a)(2) RSS-210 (A8.2), RSS-GEN (4.6.1) Pass 13 Conducted Spurious Emissions § 15.247(d) RSS-210 (A8.5) Pass 15 Power Spectral Density § 15.247(e) RSS-210 (A8.2b) Pass 17 Radiated Spurious Emissions (Transmitter) § 15.247(d), § 15.209, and § 15.205 RSS-210 (2.2) (A8.5) Pass 22 Radiated Spurious Emissions (Receiver) § 15.109 RSS-Gen (6.1) Pass --- Conducted Voltage Emissions on the AC Mains Terminals § 15.107, § 15.207 RSS-Gen (7.2.4) NA 25 Antenna Requirement per FCC Part 15.203 § 15.203 RSS-Gen (7.1.2) Pass EMC Report for SRAM on the Qollector2 Page 3 of 27 Intertek Report Number: 101941214LEX-003 Issued: 3/10/15 3 Description of Equipment Under Test Equipment Under Test Manufacturer SRAM Model Number Qollector2 Serial Number Not Labeled Receive Date 12/17/14 Test Start Date 12/17/14 Test End Date 12/31/14 Device Received Condition Good Test Sample Type Production Frequency Band 2402MHz – 2480MHz Mode(s) of Operation ANT+ Modulation Type GFSK Transmission Control Test Commands Test Channels 2, 40, 80 (2402, 2440, 2480 MHz) Antenna Type (15.203) Internal Power Supply Battery Powere…

Text truncated - open the document above for the full version.

Conducted Emissions Radiated Emissions Radiated Emissions (Horn)
