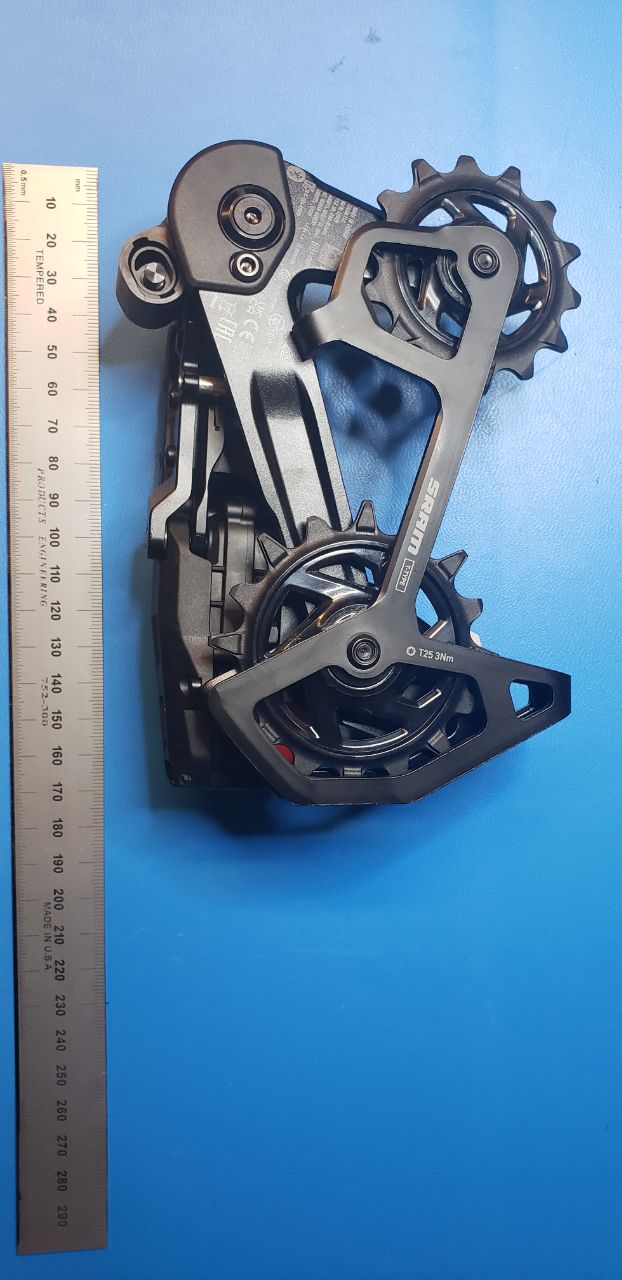

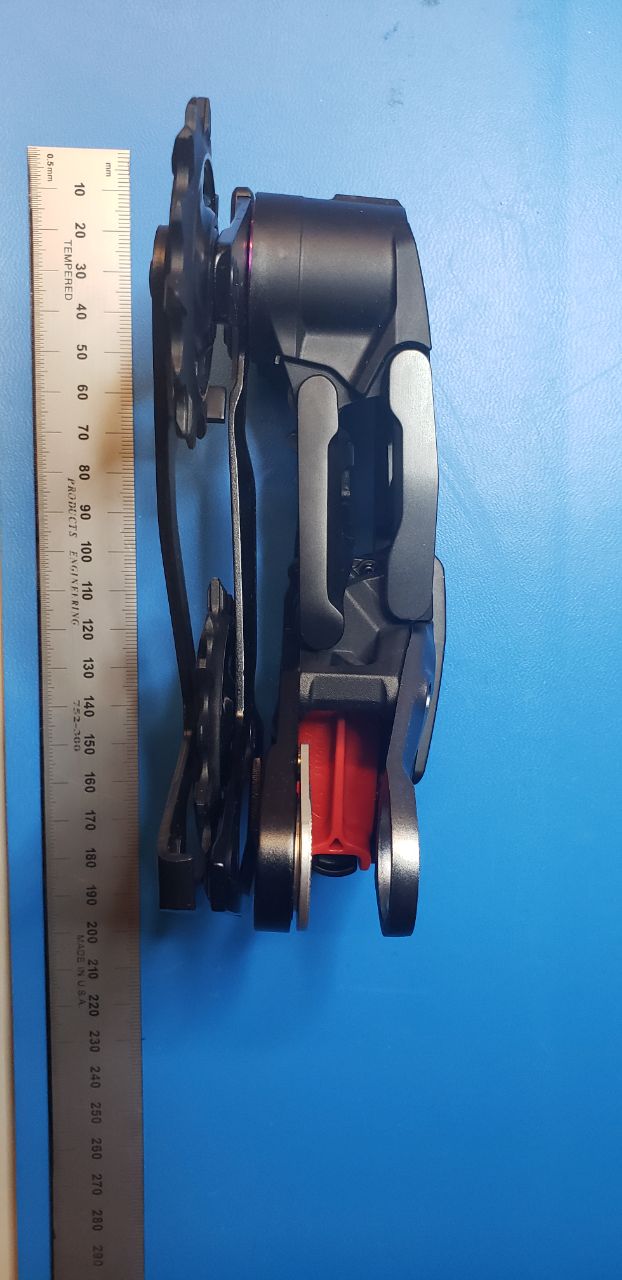

C9O-RDMB2Rear Derailleur with BLE, AIREA and ANT+ Radios

95-3018-022-000 Rev B 1 © 2019 SRAM, LLC Electronic Regulatory Compliance Manual 2 Electronic Regulatory Compliance Manual 3 Konformitätserklärung für elektronische Geräte 4 Manual de cumplimiento de la normativa electrónica 5 Manuel sur le respect des règlements concernant l'électronique 6 Manuale di Conformità Normativa Elettronica 7 Handleiding over de regelnaleving voor elektronische apparatuur 8 Manual de Conformidade com os Regulamentos de Electrónica 9 電子関連規制コンプライアンス・マニュアル 10 电子监管合规手册 11 Elektroniczny podręcznik zgodności z przepisami 12 Vedledning vedr. overholdelse af regulativer for elektronik 13 Příručka shody se zákonnými nařízeními pro elektroniku 14 Manual de conformare reglementări echipamente electronicei 15 Εγχειρίδιο ρυθμιστικής συμμόρφωσης σχετικά με τα ηλεκτρονικά 16 전자규정 준수를 위한 안내 17 電子監管合規手冊 18 Руководство по соответствию нормативным требованиям электронного устройства 2 Complies with ID A Standards D A107248 HIDF16000136 HIDF16000136 Electronic Regulatory Compliance Manual SRAM LLC certifies that this product and its packaging are in compliance with: RE Directive, the Radio Equipment Directive 2014/53/EC WEEE Directive, the Waste Electrical and Electronic Equipment Directive 2012/19/EU RoHS Directive, the restriction of the use of certain hazardous substances in electrical and electronic equipment 2002/95/EC REACh Directive, the Regulation on Registration, Evaluation, Authorization and Restriction of Chemical Directive 1907/2006/EC Batteries and Accumulators and Waste Batteries and Accumulators Directive 2006/66/EU This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. This device complies with Industry Canada’s license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The term “IC”: before the radio certification number only signifies that Industry Canada technical specifications were met. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. RF Radiation Exposure Statement: Models 00010, 00110, 00210, 12810, 12910, 13200, 00220, 12920, 00030, 00130, 00020, 00120, 13000, 13100, 00500, 00601, 00610, 65501, 00230 and 09601 have been tested and complies with IC RSS 102 RF radiation exposure limits set forth for an uncontrolled environment when used with SRAM accessories supplied or designated for this product. To satisfy IC exposure requirements, a separation distance of at least 1.5 cm must be maintained between the antenna of this device and persons during device operation. The use of any other accessories may not ensure compliance with IC RSS 102 RF exposure guidelines. Declaration d'exposition aux radiations: Les modèles 00010, 00110, 00210, 12810, 12910, 13200, 00220, 12920, 00030, 00130, 00020, 00120, 13000, 13100, 00500, 00601, 00610, 65501, 00230 et 09601 ont été testés conformemment aux normes d'exposition d'emission RF de la IC RSS 102 pour un environement non controle lors d'utilisation avec les accessoires fournis or recommendes par SRAM. Pour satisfaire aux exigences d'exposition IC, une distance de separation d'au moins 1.5 cm doit etre maintenue entre l'antenne de cet appareil et des personnes pendant le fonctionnement de l'appareil. L'utilisation d'accessoires autres que ceux recommendes par SRAM ne guarantis pas la compatibilite avec les normes d'emission RF de la IC RSS 102. Warning: Any changes or modifications not expressively approved by SRAM could void the user's authority to operate this equipment. This product is ANT+ certified and complies with the bicycle power ANT+ Device Profile. For a complete listing of ANT+ Certified Products and their specific interoperability, please visit www.thisisant.com. 3 Complies with ID A Standards D A107248 HIDF16000136 HIDF16000136 Electronic Regulatory Compliance Manual Model #FCC IDIC TRA Dealer No: D A51171/16 ISRAEL מספר אישור אלחוטי של משרד התקשורת אסור להחליף את האנטנה המקורית של המכשיר ולא לעשות בו כל שינוי טכני אחר Left Shifter00010C90-LSBB110161A-LSBB1 ER64861/1851-75254 Right Shifter00110C90-RSBB110161A-RSBB1 ER64862/1851-75255 BlipBox00210C90-BOXB110161A-BOXB1 ER64863/1851-75256 Front Derailleur12810C90-FDB110161A-FDB1 ER64864/1851-75257 Rear Derailleur12910C90-RDB110161A-RDB1 ER64865/1851-75258 Seatpost13200C90…

Text truncated - open the document above for the full version.

3 4 Battery ChargingCharge de la batterie Carregar a Bateria Laden der Batterie Carica della batteria 電池の充電 Recarga de la batería De batterij opladen 电池充电 1 2 Derailleur Battery InstallationInstallation de la batterie du dérailleurInstalação da bateria do derailleur (desviador) Einsetzen der Batterien für das SchaltwerkInstallazione della batteria del deragliatgore ディレイラーへの電池の取り付け Instalación de la batería del desviadorInstallatie van de derailleurbatterij 变速器电池安装 AB NOTICE Do not discard the derailleur battery block (A) or the battery cover (B). To prevent battery damage or depletion, install the derailleur battery block and battery cover whenever the battery is not installed. AVIS Ne jetez pas la cale de la batterie du dérailleur (A) ni la protection de la batterie (B). Afin d'éviter tout dommage ou déchargement involontaire de la batterie, mettez en place la cale de la batterie du dérailleur ainsi que la protection de la batterie à chaque fois que la batterie a été retirée. NOTIFICAÇÃO Não descarte o bloco da bateria do derailleur/desviador (A) nem a tampa da bateria (B). Para evitar a descarga da bateria ou danos a ela, instale o bloco da bateria do derailleur e a tampa da bateria sempre que a bateria não esteja instalada. HINWEIS Bewahren Sie den Batterietrenner (A) und die Batterieabdeckung (B) für das Schaltwerk auf. Um ein Entladen oder Beschädigungen der Batterie zu vermeiden, bringen Sie den Batterietrenner und die Batterieabdeckung für das Schaltwerk an, wenn die Batterie nicht eingesetzt ist. AVVISO Non gettare via li blocco batteria deragliatore (A) o il coperchio della batteria (B). Per evitare danni o esaurimento della batteria, installare il blocco della batteria del deragliatore e il coperchio della batteria quando la batteria non è installata. 注意事項 ディレイラーの電池ブロック(A)または電池カバー(B)を廃棄しない でください。電池の損傷と消耗を防ぐため、電池が取り付けられてい ないときは、常にディレイラーの電池ブロックと電池カバーを取り付 けてください。 AVISO No tire el bloque de batería del desviador (A) ni la tapa de batería (B). Para evitar que se dañe o se agote la batería, instale el bloque de batería del desviador y la tapa de batería siempre que la batería no esté instalada. MEDEDELING Gooi het derailleurbatterijblokje (A) of de derailleurbatterijkap (B) niet weg. Om schade of het onnodig ontladen van de batterij te voorkomen, installeer het derailleurbatterijblokje en de derailleurbatterijkap telkens de batterij niet is geïnstalleerd. 注意 不要丢弃变速器电池块 (A) 或电池防护罩 (B)。为避免电池损坏或耗 竭，每当电池不予以安装时，请安装变速器电池块和电池防护罩。 It may take up to one hour to reach a full charge. The amber LED indicates the battery is charging, and the green LED indicates the battery is charged. La charge complète de la batterie peut prendre jusqu’à une heure. La DEL orangée s’allume lorsque la batterie est en train de se charger et la DEL verte s’allume lorsque la batterie est chargée. Para alcançar a carga total poderá durar até uma hora. O LED de cor âmbar indica que a bateria está a carregar e o LED verde indica que a bateria está carregada. Es kann bis zu einer Stunde dauern, bis die Batterie vollständig geladen ist. Die gelbe LED zeigt an, dass die Batterie geladen wird. Die grüne LED zeigt an, dass die Batterie vollständig aufgeladen ist. Potrebbe essere necessaria fino a un'ora per raggiungere una carica completa. Il LED giallo indica che la batteria è in carica e il LED verde indica che la batteria è carica. 電池がフルに充電されるまで、最長で1時間ほどかかります。黄 色のLEDの点灯は電池が充電中であることを示し、緑色のLED の点灯は電池の充電が完了したことを示します。 La batería puede tardar hasta una hora en recargarse completamente. El LED ámbar indica que la batería se está cargando, y el verde que está ya cargada. Het kan tot één uur duren voordat de batterij volledig is opgeladen. De amberkleurige LED geeft aan dat de batterij aan het opladen is en de groene LED geeft aan dat de batterij opgeladen is. 电池完全充满可能需要一个小时。橙黄色LED表示电池正充 电，绿色LED表示充电已完成。 Remove Protective CoversRetirer les protections Retire as tampas protectoras Entfernen der SchutzabdeckungenRimuovere le coperture di protezione 保護カバーの取り外し Retire las tapas protectoras De beschermkappen verwijderen 拆下防护罩 SRAM AXS AppApplication SRAM AXSApp SRAM AXS SRAM AXS App App SRAM AXS SRAM AXS アプリ Aplicación SRAM AXSSRAM AXS app SRAM AXS App When installed correctly, the latch will snap into place.Si l’installation est correcte, le loquet s’emboîtera avec un petit déclic. Quando a instalação for feita correctamente, o trinco encaixará no seu lugar. Wenn die Batterie ordnungsgemäß eingesetzt ist, rastet die Verriegelung ein. Una volta installata correttamente, il fermo scatterà in posizione. 正しく取り付けると、ラッチが所定の場所にきちんと収ま ります。 Si se instala correctamente, el pestillo encajará en su posición.Bij een juiste installatie komt het slot op zijn plaats vast te zitten. 若安装正确，卡扣可以扣到位。 95-3018-029-000 Rev A© 2022 SRAM LLC Eagle AXS Transmission Quick Start Guide Eagle AXS-Antrieb Kurzanleitung Guía rápida de la transmisión Eagle AXS Guide de démarrage rapide pour transmission Eagle AXS Guida rapida alla trasmissione Eagle AXS Snelstartgids Eagle AXS- schakelgroep Guia de Início Rápido da Transmissão Eagle AXS Eagle AXS トランスミッシ ョン・クイックスタート・ ガイド Eagle AXS 传动系统快速 入门指南 Eagle AXS Transmission 1 2 12 Utilisez l'application SRAM AXS, disponible gratuitement dans les app stores, pour créer votre compte, ajouter vos composants et personnaliser votre expérience SRAM AXS. Pour les instructions complètes d'installation et d'utilisation, rendez-vous sur www.sram.com/service. Use a app AXS da SRAM, que está disponível gratuitamente nas lojas de apps, para criar a sua conta, acrescentar os seus componentes e personalizar a sua experiência AXS SRAM. Para instruções completas de instalação e utilização, visite www.sram.com/service. Nutzen Sie die in den App-Stores kostenlos erhältliche SRAM AXS App, um Ihr Konto zu erstellen, Ihre Komponenten hinzuzufügen und Ihr SRAM AXS-Benutzererlebnis anzupassen. Eine ausführliche Installations- und Bedienungsanleitung finden Sie auf www.sram.com/service. Utilizzare l'app SRAM AXS, disponibile gratuitamente negli app s…

Text truncated - open the document above for the full version.

Date: 10/26/2022 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) fulfill the requirements for the scope of certification requested, including implementing any appropriate changes requested by UL Verification Services Telecommunications Certification Body (TCB) and / or the FCC; b) supply any and all information needed for the evaluation of the products for which certification is sought; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) not use our product certification in such a manner as to bring the TCB or FCC into disrepute and to not make any statement regarding product certification which the TCB or FCC may consider misleading or unauthorized; e) discontinue use of all advertising matter that contains any reference thereto and complies with any and all actions required by the FCC upon suspension or cancellation of certification; f) use certification only to indicate that products are certified in conformity with specified standards; g) endeavor to ensure that no certificate or report or any part thereof is used in a misleading manner, and any copies of the grants/certificates shall be reproduced in their entirety; h) comply with the requirements of the TCB and FCC, including the use of marks and label information prescribed for the scope of certification, when making reference to product certification in communication media such as documents, brochure or advertisements; i) comply with the requirements for certification, supply any information needed for evaluation of products to be certified and, where applicable, make provision for the participation of observers; j) ensure that products marketed under the scope of the requested certification continue to comply with the certification requirements; k) provide a sample of a production unit for testing within 30 days of the request should this product be selected as part of either the TCB’s or the FCC’s market surveillance requirements; l) keep a record of all complaints relating to product’s compliance with requirements of relevant standard; make records available to UL or FCC when requested; take appropriate action with respect to such complaints and any deficiencies found in the product that affect compliance with requirements for certification; document the actions taken with respect to complaints and/or deficiencies; m) inform the TCB immediately of any changes that may affect its ability to comply with the certification requirements. This authorization is valid until further written notice from the applicant. Sincerely Yours, Kyle Brenner Compliance Specialist SRAM, LLC [email protected]

Date: 10/26/2022 Attn: FCC Office of Engineering and Technology / UL Verification Services TCB Subject: Request for Confidentiality FCC ID: (C9O - RDMB2) To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. • Schematic Diagram • Block Diagram • Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 05/01/2023: • External Photos • Internal Photos • Test Setup Photos • User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Kyle Brenner Compliance Specialist SRAM, LLC

Date: 11/4/2022 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Signatory Authorization FCC Grantee Code: C9O To whom it may concern: I, Leo Yermakov, the undersigned, hereby authorize Kyle Brenner to sign FCC related documents for SRAM. Sincerely Yours, Leo Yermakov Regulatory Compliance Director SRAM, LLC

A B C D E F G 12345678910 100mm 1112131415 12345678910 1112131415 H J K A B C D E F G H J K A DRAWING NUMBERREVISION DRAWING NAME/DESCRIPTION CONFIDENTIAL - THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO SRAM CORPORATION AND MAY NOT BE DISCLOSED WITHOUT PERMISSION. FORMAT: A2SHEET: 1/1 ALL DIMENSIONS ARE mm UNSPECIFIED LENGTH TOLERANCE X.X +/- 0.5 DO NOT SCALE DRAWING GEOMETRIC DIMENSIONING AND TOLERANCING TO BE INTERPRETED PER ASME Y 14.5-2009 UNSPECIFIED ANGLE TOLERANCE +/- 2degrees AMNAUMANINITIAL REVISION REVRESPONSIBLEREVISION RECORD DOCUMENT MAY NOT REPRESENT COMPLETE REQUIREMENTS. REFER TO PRODUCT STRUCTURE 12° 22.8 90-XXXX ARTWORK PLACEMENT RD OC AXS TG3 DRAFT 8.55 20.0 47° 2 1 NOT TO SCALE 3.1 28.4 3 28SEP22 XXX GREY = PANTONE COOL GRAY 9

TEST REPORT Report Number. : 14507330-E3V4 Applicant : SRAM LLC 1000 W Fulton Market 4 th Floor Chicago, IL 60607, United States Models : 12930 FCC ID : C9O-RDMB2 ISED : 10161A-RDMB2 EUT Description : Rear Derailleur with BLE, AIREA and ANT+ Radios Test Standard(s) : FCC 47 CFR PART 15 SUBPART C ISED RSS-210 ISSUE 10 ISED RSS-GEN ISSUE 5 + A1 + A2 Date of Issue: 2022-11-21 Prepared by: UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538 U.S.A. TEL: (510) 319-4000 FAX: (510) 661-0888 REPORT NO: 14507330-E3V4 DATE: 2022-11-21 FCC ID: C9O-RDMB2 ISED: 10161A-RDMB2 Page 2 of 40 UL VERIFICATION SERVICES INC. 47173 Benicia Street, Fremont, CA 94538; USA TEL:(510) 319-4000 FAX:(510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Pg. 7)REPORT REVISION HISTORY Rev. Issue Date Revisions Revised By V1 2022-11-02 Initial Issue --- V2 2022-11-11 Updated Section 7 and 9 Kiya Kedida V3 2022-11-18 Updated Section 4.3, 5.2, 6, 9.1 (pg.20) and 9.2 Dan Coronia V4 2022-11-21 Added Test Results Summary Dan Coronia REPORT NO: 14507330-E3V4 DATE: 2022-11-21 FCC ID: C9O-RDMB2 ISED: 10161A-RDMB2 Page 3 of 40 UL VERIFICATION SERVICES INC. 47173 Benicia Street, Fremont, CA 94538; USA TEL:(510) 319-4000 FAX:(510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS REPORT REVISION HISTORY .................................................................................................... 2 TABLE OF CONTENTS ............................................................................................................... 3 1. ATTESTATION OF TEST RESULTS .................................................................................... 5 2. TEST RESULTS SUMMARY ................................................................................................ 7 3. TEST METHODOLOGY ........................................................................................................ 8 4. FACILITIES AND ACCREDITATION .................................................................................... 8 5. DECISION RULES AND MEASUREMENT UNCERTAINTY ................................................ 9 5.1. METROLOGICAL TRACEABILITY ................................................................................ 9 5.2. DECISION RULES ......................................................................................................... 9 5.3. MEASUREMENT UNCERTAINTY ................................................................................. 9 5.4. SAMPLE CALCULATION ............................................................................................. 10 6. EQUIPMENT UNDER TEST ............................................................................................... 11 6.1. EUT DESCRIPTION ..................................................................................................... 11 6.2. MAXIMUM FUNDAMENTAL FIELD STRENGTH ........................................................ 11 6.3. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 11 6.4. SOFTWARE AND FIRMWARE .................................................................................... 11 6.5. WORST-CASE CONFIGURATION AND MODE .......................................................... 11 6.6. DESCRIPTION OF TEST SETUP ................................................................................ 12 7. MEASUREMENT METHOD ................................................................................................ 14 8. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 15 9. ANTENNA PORT TEST RESULTS .................................................................................... 16 9.1. ON TIME AND DUTY CYCLE ...................................................................................... 16 9.2. 99% BANDWIDTH ........................................................................................................ 17 9.3. 20 dB BANDWIDTH ..................................................................................................... 18 10. RADIATED TEST RESULTS ........................................................................................... 20 10.1. LIMITS AND PROCEDURE ...................................................................................... 20 10.2. FUNDAMENTAL FREQUENCY RADIATED EMISSION .......................................... 22 10.3. TRANSMITTER ABOVE 1 GHz ................................................................................ 23 10.4. WORST CASE BELOW 30 MHz .............................................................................. 33 10.5. WORST CASE BELOW 1 GHz ................................................................................. 34 REPORT NO: 14507330-E3V4 DATE: 2022-11-21 FCC ID: C9O-RDMB2 ISED: 10161A-RDMB2 Page 4 of 40 UL VERIFICATION SERVICES INC. 47173 Benicia Street, Fremont, CA 94538; USA TEL:(510) 319-4000 FAX:(510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 10.6. WORST CASE 18-26 GHz ....................................................................................... 36 11. SETUP PHOTOS ............................................................................................................. 38 REPORT NO: 14507330-E3V4 DATE: 2022-11-21 FCC ID: C9O-RDMB2 ISED: 10161A-RDMB2 Page 5 of 40 UL VERIFICATION SERVICES INC. 47173 Benicia Street, Fremont, CA 94538; USA TEL:(510) 319-4000 FAX:(510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SRAM LLC 1000 W Fulton Market 4 th Floor Chicago, IL 60607, United States EUT DESCRIPTION: Rear Derailleur with BLE, AIREA and ANT+ Radios…

Text truncated - open the document above for the full version.

2450 MHz Small SMD Chip AntennaP/N 2450AT42B100 Ground Clearance Requirements Minimized. This antenna was designed for corner or end-mounting Detail Specification: 10/08/13 Page 1 of 4 Inmm No. L ±± 1 W ±± 2 L1 ±± 3 W1 ±± 4 T a ±± Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver 2.1 2013 Johanson Technology, Inc. All Rights Reserved Note: It is recommended that the designer leave available slots for a "pi" (or shunt-series- shunt) network. The antenna matching network values here are used when antenna is mounted on Johanson's evaluation board. The matching values on clinet's PCB will be different, go to: johansontechnology.com/tuning and see how to obtain the new values. If you need further help, contact our RF Applications Eng Team at: www.johansontechnology.com/en/ask-a-technical-question.html We peform layout review as well as antenna tuning and characterization services. Go to page 2 for details. General Specifications -40 to +85°C 2W max. (CW) 2,000 50 Ω 9.5 dB min. -1.5 dBi typ. (XZ-V) 0 dBi typ. (XZ-V) 2400 - 2500 Mhz 0.0200.0120.500.30 0.0792.00+.004/-.008+0.1/-0.2 0.0080.20 0.50 0.0080.20 2.600.20 +5 ~ +35 °C,Humidity 45~75%RH -40 to +85°C "High Frequency Ceramic Solutions" 0.20 2.00 0.020 0.1020.008 0.008 0.197 0.079 5.00 NC NC NC 2450AT42B100 Mounting Considerations Part Number Frequency Range Peak Gain Average Gain Return Loss Impedance Reel Quanity Power Capacity Function Mechanical DimensionsTerminal Configuration Feeding Point Operating Temperature Recommended Storage Condition Storage Period a T W1 L1 W L     2.810.71 1 0.7 1.0 3 0.7 0.8 2 0.7 1 22 8 3.8 6 3.3 nH 1.5 nH Line width should be designed to match 50Ωcharacteristic impedance (Grounded Co‐Planar Waveguide), depending on PCB material and thickness. (The matching circuit and component values will be different on clients PCB layout, se notes below and go to page 2 for details). Top View Bottom View Side View Yellow area=Ground/Metal Clearance. The "0.82mm" dimmension is a min. requirement, if the designer can make this larger, the better radiation and gain will occur (i.e. 2.0 or 4.0mm) RF Via"stich" around antenna clearance and feed trace for best radiation 2450 MHz Small SMD Chip AntennaP/N 2450AT42B100 Detail Specification: 10/08/13 Page 2 of 4 Test Board: P/N: 2450AT42B100-EB1SMA (orderable item) To order, go to: www. johansontechnology.com/samplerequest Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver 2.1 2013 Johanson Technology, Inc. All Rights Reserved Typical Electrical Characteristics (T=25 o C) We offer antenna layout review, tuning, and characterization services, go to: www.johansontechnology.com/ipcantennaservices for details and instructions Johanson Evaluation Board (orderable item) "High Frequency Ceramic Solutions" 3.86 40 20 8 (Units in mm) Return Loss (with matching) This 50ΩFeedline can be as short as needed, this lenth is just for reference to our EVB 2450 MHz Small SMD Chip AntennaP/N 2450AT42B100 Detail Specification: 10/08/13 Page 3 of 4 Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver 2.1 2013 Johanson Technology, Inc. All Rights Reserved Typical Electrical Characteristics (T=25 o C) Radiation Patterns "High Frequency Ceramic Solutions" XY-V/XY-H 180 o 270 o 0 o 90 o X Z Y XY-cut scanning directio n XZ-V/XZ-H 180 o 270 o 0 o 90 o X Z Y XZ-cut scanning directio n YZ-V/YZ- H 180 o 270 o 0 o 90 o X Z Y YZ-cut scanning directio n XY cut @2.45GHz Vertical Horizontal XZ cut @2.45GHz Vertical Horizontal YZ cut @2.45GHz Vertical Horizontal 2450 MHz Small SMD Chip AntennaP/N 2450AT42B100 Detail Specification: 10/08/13 Page 4 of 4 Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver 2.1 2013 Johanson Technology, Inc. All Rights Reserved www.johansontechnology.com/technical-notes/rohs-compliance.html RoHS Compliance MSL Info www.johansontechnology.com/technical-notes/msl-rating.html www.johansontechnology.com/ipcantennaservices "High Frequency Ceramic Solutions" Part Number Explanation P/N Suffix Packing Style Bulk (loose pieces)Suffix = Seg.2450AT42B100S T & RSuffix = Eeg. 2450AT42B100E Temperature:+5C to +35°CShelf Life: 18 months max. T & R (Reverse)Suffix = Reg. 2450AT42B100R (MOQ Applies) 100% TinSuffix = None eg. 2450AT42B100(S, E, R) Eval Board (1-port SMA antenna test boards) 2450AT42B100-EB1SMA (Page 2) More Details www.johansontechnology.com/ipc-pn-explained Storage Conditions and Shelf Life (On T&R or Bulk) Relative Humidity: 45 to 75% Packaging information Soldering Information Antenna layout and tuning techniques www.johansontechnology.com/ipcsoldering-profile www.johansontechnology.com/ipcpackaging.html Antenna layout review, tuning, and characterization services www.johansontechnology.com/tuning

REPORT NO: 14507330-E3V4 DATE: 2022-11-21 FCC ID: C9O-RDMB2 ISED: 10161A-RDMB2 Page 38 of 40 UL VERIFICATION SERVICES INC. 47173 Benicia Street, Fremont, CA 94538; USA TEL:(510) 319-4000 FAX:(510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 11. SETUP PHOTO…

Text truncated - open the document above for the full version.
