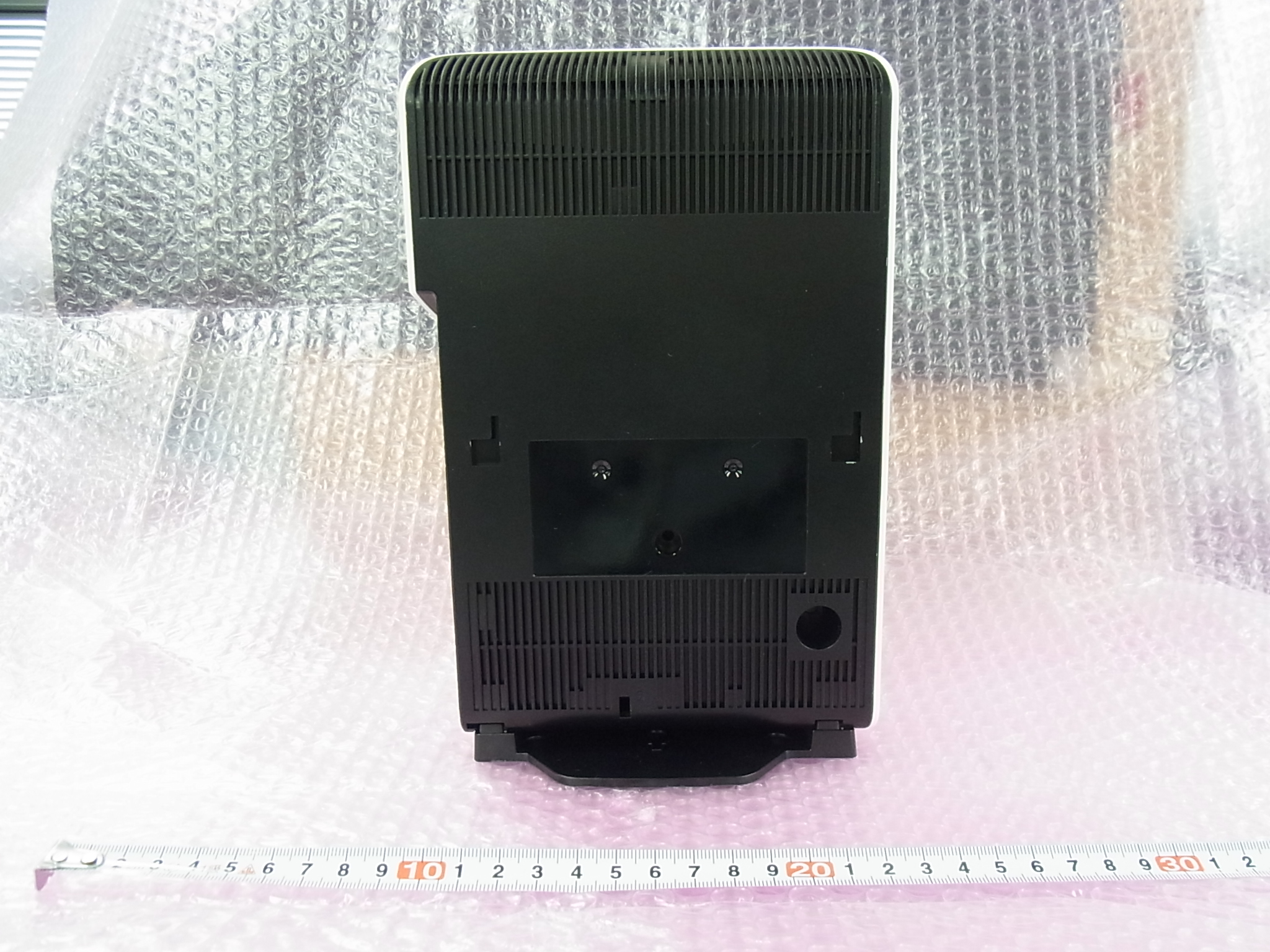

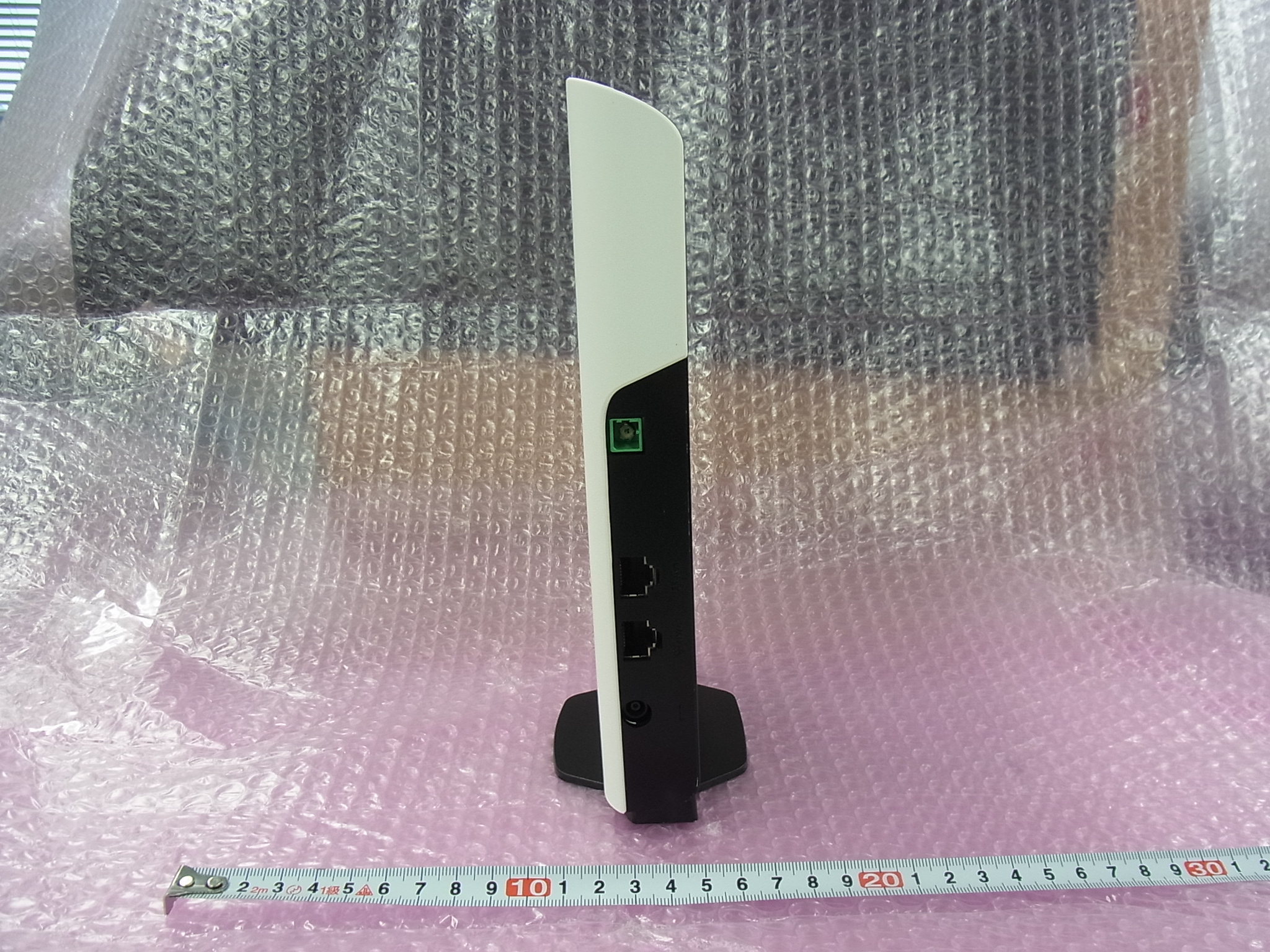

CFDLS1032X2 MIMO, low power cellular base station

shaping tomorrow with you BroadOne™ LS110 Residential Femtocell Release 14 Issue 1, May 2015 FNC-LS110-0014-100 User Guide Fujitsu Network Communications Inc.Fujitsu and Fujitsu Customer Use Only https://partners.fnc.fujitsu.com BroadOne ™ is a trademark of Fujitsu Network Communications Inc. (USA). All Rights Reserved. Buildex ® , E-Z Ancor ® , and Twist-N-Lock ™ are registered trademarks or trademarks of Illinois Tool Works, Inc. Macintosh ® is a registered trademark of Apple Computer, Inc. Microsoft ® and Windows ® are registered trademarks of Microsoft Corporation. All other products or services mentioned in this document are identified by the trademarks, service marks, or product names as designated by the companies that market those products or services or own those marks. Inquiries concerning such products, services, or marks should be made directly to those companies. This document and its contents are provided by Fujitsu Network Communications Inc. for guidance purposes only. This document is provided “as is” with no warranties or representations whatsoever, either express or implied, without notice, to make including without limitation the implied warranties of merchantability and fitness for purpose. Fujitsu Network Communications Inc. does not warrant or represent that the contents of this document are error free. Furthermore, the contents of this document are subject to update and change at any time without notice by Fujitsu Network Communications Inc., since it reserves the right, changes in equipment design or components as progress in engineering methods may warrant. No part of the contents of this document may be copied, modified, or otherwise reproduced without the express written consent of Fujitsu Network Communications Inc. Fujitsu and Fujitsu Customer Use Only Contents 1Welcomep. 5 2Important Precautionsp. 6 3Exemptions and Liabilitiesp. 9 4Customer Servicep. 10 5What's in the Boxp. 11 6Ports and Reset Buttonp. 12 7LEDsp. 13 8Before You Beginp. 14 9Installation and Setupp. 15 9.1Physically Mount the Productp. 16 9.1.1Mount the Product on a Flat Surfacep. 16 9.1.2Mount the Product on a Wallp. 17 9.2Connect the Product to a LAN Portp. 19 9.3Connect the GPS Antennap. 21 9.4Connect the AC Adapterp. 22 9.5Perform Initial Setupp. 23 10Reset the Productp. 27 11Troubleshootingp. 29 12Specificationsp. 32 13Radio Frequency Energyp. 33 User GuidePage 3 BroadOne LS110 Residential Femtocell Release 14 Issue 1, May 2015 FNC-LS110-0014-100 Fujitsu and Fujitsu Customer Use Only 14FCC Radio Frequency Emissionp. 34 15Limited Warrantyp. 36 16End-User License Agreementp. 37 17Open Source Softwarep. 41 17.1Guide to Micro Base Station Open Source Softwarep. 42 17.2Open Source Software Licensingp. 45 User GuidePage 4 BroadOne LS110 Residential Femtocell Release 14 Issue 1, May 2015 FNC-LS110-0014-100 Fujitsu and Fujitsu Customer Use Only 1 Welcome Thank you for buying the BroadOne ™ LS110 Residential Femtocell. The LS110 Residential Femtocell allows you to connect your 4G LTE–capable devices, such as smartphones, tablets, and PCs, to the 4G LTE cellular network and the Internet in areas where 4G LTE cellular signal strength is too weak or nonexistent. Think of the LS110 as a Wi- Fi hotspot for your 4G LTE network. The product is also GPS capable to support location-based services. This product can be used alone in a residential (home) environment, or it can be deployed in clusters in a small- business environment. Although your 4G LTE–capable devices connect to the LS110 wirelessly, the product itself connects to the cellular network and the Internet by way of a wired Ethernet connection (LAN cable) to your router, modem, or other device used for connecting to the Internet. Important! Before using your new LS110 Residential Femtocell, read this entire manual to ensure that the product is installed and used correctly. To avoid personal injury or damage to the equipment, carefully read and adhere to the Important Precautions. About this User Guide This manual assumes that you are familiar with the basic operations of Microsoft ® Windows ® and Macintosh ® operating systems as well as mobile devices such as smartphones and tablets. Screens and illustrations shown in this manual may differ from the actual product. In some cases, minor details or a part of a screen may be omitted to help clarify a point. User Guide Welcome Page 5 BroadOne LS110 Residential Femtocell Release 14 Issue 1, May 2015 FNC-LS110-0014-100 Fujitsu and Fujitsu Customer Use Only 2 Important Precautions Before using this product, please read and make sure you understand the following precautions. If you have any questions, contact Customer Support. Warning of 911 Limitations: Basic 911 and Enhanced 911 (E911) services may be limited in areas outside of wireless network coverage. This device extends the reach of wireless network coverage in your area. Therefore, in the event of an electrical power outage, broadband connection failure, termination of broadband service, or other service disruption, you may not be able to make 911 calls using this device. Always be prepared to report your location to the 911 operator. Danger: Cell phones or other electronic devices that emit radio waves, including this product, may affect the operation of implanted pacemakers, implanted cardioverter-defibrillators, or other electronic medical devices. Therefore, it is important that you observe the following precautions when operating the product near such medical devices: • People with an implanted pacemaker or cardioverter-defibrillator should keep such devices at least 9 inches away from their pacemaker or cardioverter-defibrillator. • Do not bring such devices into operating theaters, intensive-care units (ICUs), and coronary care units (CCUs), and turn off such devices when entering hospital wards. • Even if you are in a lobby or waiting room, turn off such devices when there are electronic medical devices nearby. • When using electronic m…

Text truncated - open the document above for the full version.

FUJITSU NETWORK COMMUNICATIONS, INC. 2801 Telecom Parkway, Richardson, Texas 75082-3515 Telephone: (972) 690-6000 (800) 777-FAST (U.S.) May 7, 2015 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent FCC On our behalf, I appoint Jenny Gibbs of Nemko USA, Inc. 2650 FM 407, Suite 255P Bartonville, TX 76226, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides (Fujitsu Network Communications, Inc., 2801 Telecom Parkway, Richardson, TX 75082-3515) Dated this 7th Day of May 2015 Agency agreement expiration date: 05/07/2016 By: Corey Dayton Signature Printed Title: Manager of Compliance Engineering On behalf of : Fujitsu Network Communications, Inc. Telephone: 845-731-2114

FUJITSU NETWORK COMMUNICATIONS, INC. 2801 Telecom Parkway, Richardson, Texas 75082-3515 Telephone: (972) 690-6000 (800) 777-FAST (U.S.) May 7, 2015 Nemko Canada Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 FCC ID: CFDLS103 Product Name: BroadOne, Model LS103-xx Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held under long term confidentiality: • Schematics • Block diagram • Bill of Materials These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 7th Day of May 2015 By: Corey M. Dayton Signature Printed Title: Manager of Compliance Engineering On behalf of : Fujitsu Network Communications, Inc., 2801 Telecom Parkway, Richardson, TX 75082-3599 Telephone: 845-731-2114

FUJITSU NETWORK COMMUNICATIONS, INC. 2801 Telecom Parkway, Richardson, Texas 75082-3515 Telephone: (972) 690-6000 (800) 777-FAST (U.S.) FCC ID: CFDLS103 Product Name: BroadOne™ Femtocell RF Tune-up Information This is to certify that there is no procedure for tuning up the LS103-Z2 unit the field or during end-user installation. The RF power for the LS103-Z2 is already preset to the rated power of 25 watts at the factory during the manufacturing process and no adjustment is needed. Dated this 2nd Day of June 2015 By: Corey M. Dayton Signature Printed Title: Manager of Compliance Engineering On behalf of : Fujitsu Network Communications Inc. Telephone: 845-731-2114

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:19.5(dBm)* Maximum peak output power at antenna input terminal:89.1(mW) Antenna gain(maximum):0 (dBi)* Maximum antenna gain:1.00(numeric) Time Averaging:100(%)* Prediction distance:20(cm)* Prediction frequency:763(MHz)* FCC MPE limit for uncontrolled exposure at prediction frequency:0.509 (mW/cm 2 ) IC MPE limit for uncontrolled exposure at prediction frequency:7.74(W/m 2 ) Power density at prediction frequency:0.018(mW/cm 2 ) This equates to:0.18(W/m 2 ) 2 4R PG S π =

Master: ktlPT24BASE Date: April 19, 1999 Nemko Test Report: 2015 281848 FCC PT90 Applicant: Fujitsu Network Communications, Inc. Two Blue Hill Plaza 2 nd Floor Pearl River, NY 10965 Equipment Under Test: LS103-Z2 (E.U.T.) In Accordance With: CFR 47, Part 90, Subpart R Regulations Governing the Licensing and Use of Frequencies in the 763-775 AND 793-805 MHz Bands Tested By: Nemko USA, Inc. 2210 Faraday Ave, Suite 150 Carlsbad, CA 92008 TESTED BY: DATE: 30 April 2015 David Light, Wireless Engineer APPROVED BY: DATE: 6 May 2015 Number of Pages: 31 Nemko USA, Inc. CFR 47, PART 90, SUBPART R Regulations Governing the Licensing and Use of Frequencies in the 763-775 AND 793-805 MHz Bands EQUIPMENT: LS103-Z2 PROJECT NO.:2015 281848 FCC PT90 Page 2 of 31 Table of Contents Section 1. Summary of Test Results ............................................................................. 3 Section 2. General Equipment Specification ................................................................. 5 Section 3. RF Power Output .......................................................................................... 6 Section 4. Occupied Bandwidth..................................................................................... 7 Section 5. Spurious Emissions at Antenna Terminals ................................................. 10 Section 6. Field Strength of Spurious .......................................................................... 23 Section 7. Frequency Stability ..................................................................................... 24 Section 8. Test Equipment List .................................................................................... 26 Section 9 – Test Setup Photo ........................................................................................ 27 ANNEX A - TEST DIAGRAMS ...................................................................................... 28 Nemko USA, Inc. CFR 47, PART 90, SUBPART R Regulations Governing the Licensing and Use of Frequencies in the 763-775 AND 793-805 MHz Bands EQUIPMENT: LS103-Z2 PROJECT NO.:2015 281848 FCC PT90 Page 3 of 31 Section 1. Summary of Test Results Manufacturer: Fujitsu Network Communications, Inc. Model No.: LS112-Z3 Serial No.: None General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 90, Subpart R. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE 200116-0 Nemko USA, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA, Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA, Inc. CFR 47, PART 90, SUBPART R Regulations Governing the Licensing and Use of Frequencies in the 763-775 AND 793-805 MHz Bands EQUIPMENT: LS103-Z2 PROJECT NO.:2015 281848 FCC PT90 Page 4 of 31 Summary of Test Data NAME OF TEST PARA. NO. SPEC. RESULT RF Power Output 90.542 1000W/MHz Complies Occupied Bandwidth 90.543(d) Not defined Complies Spurious Emissions at Antenna Terminals 90.543(c) and (e) -13 dBm \ -46 dBm Complies Field Strength of Spurious Emissions 90.543(c) and (e) -13 dBm \ -46 dBm Complies Frequency Stability 90.539(d) 1 ppm Complies* Note – Manufacturer has included a temperature cutoff function to ensure EUT ceases operation at any temperature between -3°C to -10C. Nemko USA, Inc. CFR 47, PART 90, SUBPART R Regulations Governing the Licensing and Use of Frequencies in the 763-775 AND 793-805 MHz Bands EQUIPMENT: LS103-Z2 PROJECT NO.:2015 281848 FCC PT90 Page 5 of 31 Section 2. General Equipment Specification Supply Voltage Input: 120 Vac Frequency Bands: 758 to 768 MHz Type of Modulation and Designator: LTE LTE (5M00G7W) 10M0G7W Maximum No. of Carriers: 1 Output Impedance: 50 ohms RF Output (Rated): Per channel:0.05 W Total:0.05 W System Description LTE, band selectable, 2x2 MIMO, low-power cellular base station, typically designed for use in a home or small business. Nemko USA, Inc. CFR 47, PART 90, SUBPART R Regulations Governing the Licensing and Use of Frequencies in the 763-775 AND 793-805 MHz Bands EQUIPMENT: LS103-Z2 PROJECT NO.:2015 281848 FCC PT90 Page 6 of 31 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.1046 TESTED BY: David Light DATE: 21 April 2015 Test Results: Complies. Measurement Data: Emission Bandwidth (MHz) Antenna Port Frequency (MHz) Measured Output Power (dBm) Measured Output Power (W) 5 1 763.0 16.4 0.044 10 1 763.0 16.6 0.046 5 2 763.0 16.5 0.045 10 2 763.0 16.4 0.044 Composite power: 5 MHz Carrier 19.5 dBm 0.089 Watts 10 MHz Carrier 19.5 dBm 0.090 Watts Note: These measurements were made using FCC Measurement Guidance document 662911 Equipment Used: E1061 Measurement Uncertainty: +/- 1.7 dB Temperature: 22 C Relative Humidity: 45 % Nemko USA, Inc. CFR 47, PART 90, SUBPART R Regulations Governing the Licensing and Use of Frequencies in the 763-775 AND 793-805 MHz Bands EQUIPMENT: LS103-Z2 PROJECT NO.:2015 281848 FCC PT90 Page 7 of 31 Section 4. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 2.1049 TESTED BY: David Light DATE: 21 April 2015 Test Results: Complies. Test Data: See attached plot(s). Equipment Used: 1036 Measurement Uncertainty: +/- 1.6 dB Temperature: 22 C Relative Humidity: 45 % Note: All measurements presented were made with the EUT in QPSK mode. These measurements are consistent with all …

Text truncated - open the document above for the full version.
