CH89100VMXX-10Wireless Broadband router with WiFi

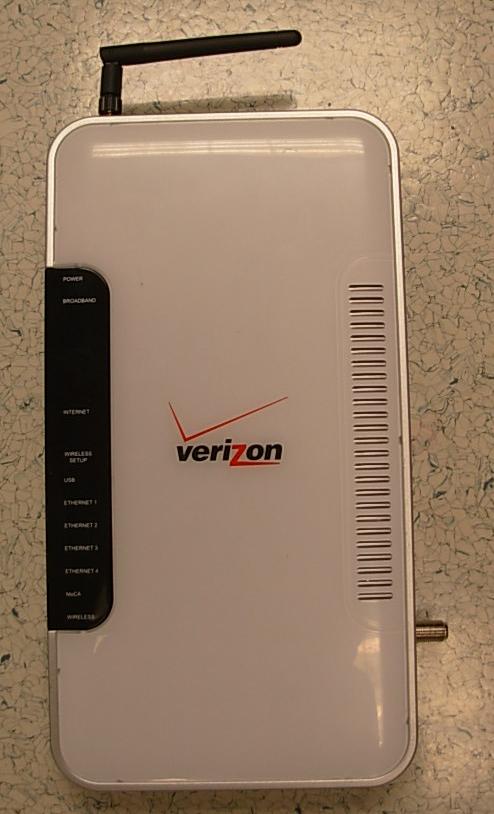

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] External EUT Photographs FCC ID: CH89100VMXX-10 Figure 1. Front of EUT Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Figure 2. Rear of EUT Figure 3. Right side of EUT Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Figure 4. Left side of EUT

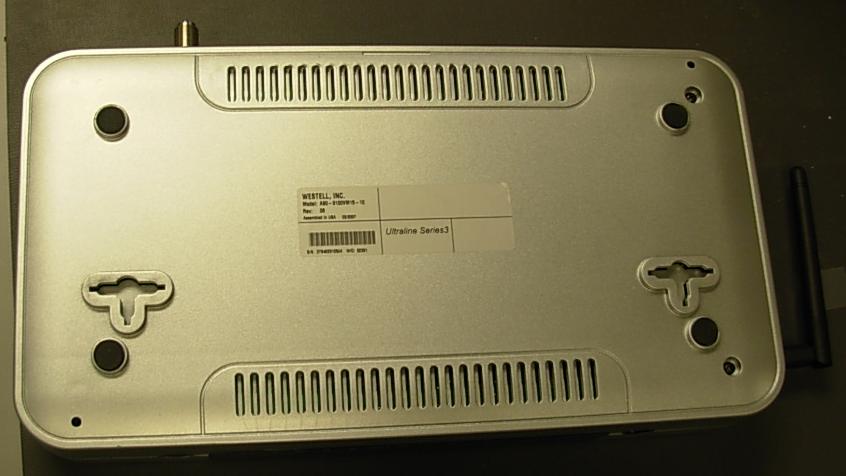

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] ID Label/Location Photograph of label The label is a polyester material with approximate size of 3” wide by 1” high with UL approved permanent adhesive. The label is located on the bottom center of the exterior of the product. Photograph showing placement of label on EUT

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Internal EUT Photographs FCC ID: CH89100VMXX-10 Photograph of Radio board: Component side, shield removed Photograph of Radio board: Foil Side Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Photograph of inside of front & rear covers Photograph showing Antenna Connection Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Photograph of Main Board: Component side Photograph of Main Board: Foil side

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] RF exposure The following information provides the minimum separation distance for the EUT, as calculated from FCC OET 65 Appendix B, Table 1B “Guidelines for General Population/Uncontrolled Exposure” This calculation is based on the highest EIRP possible from the EUT considering maximum power and antenna gain. The following formulas were used: The peak output power of the EUT is 286 mW (24.6 dBm) and the gain of the antenna is 2 dBi. The EUT is not handheld. SMaximum AntennaMSD Freq.GP limitRF power GainEIRPEIRPd MHzmW/cm^2 dBmdBidBmwattsmeters 2450124.6226.60.4570.060 GP is the limit for general Population/Uncontrolled Exposure MSD is the minimum Seperation Distance Note on above table. (S) GP limit is from OET 65 table 1B EIRP = Power in dBm + Antenna Gain in dBi MSD (Minimum Separation Distance) = ((EIRP*30)/3770*S))^0.5 NOTE: For mobile or fixed location transmitters, minimum separation distance is 20 cm, even if calculations indicate MPE distance is less

Radiometrics Midwest Corporation (815) 293-0772 – www.radiomet.com Page 1 of 30 Electromagnetic Compatibility Test Report Tests Performed on a Westell, Inc. ULS3 w/Ikanos Gateway with WIFI, Model A90-9100VM15-10 Radiometrics Document RP-5986B Product Detail: FCC ID: CH89100VMXX-10 Equipment type: 2.4 GHz Digitally Modulated Transmitter Test Standards: US CFR Title 47, Chapter I, FCC Part 15 Subpart C FCC Part 15 CFR Title 47: 2007 Industry Canada RSS-210, Issue 7: 2007 as required for Category I Equipment This report concerns: Measurement and Test Data for Original Filing FCC Part 15.247 Tests Performed For: Test Facility: Westell, Inc. 750 West Commons Dr. Aurora, IL 60504 Radiometrics Midwest Corporation 12 East Devonwood Romeoville, IL 60446 Test Date(s): (Month-Day-Year) Feb 26, 27 and 28, 2007 Document RP-5986B Revisions: Rev. Issue Date Affected Pages Revised By 0 November 30, 2007 RADIOMETRICS MIDWEST CORPORATION - EMC Test Report Testing of the Westell, Inc., Model A90-9100VM15-10, ULS3 w/Ikanos VDSL2 Gateway RP-5986B Rev. 0 Page 2 of 30 Table of Contents 1 ADMINISTRATIVE DATA ................................................................................................................... 3 2 TEST SUMMARY AND RESULTS .....................................................................................................3 2.1 RF Exposure Compliance Requirements ..................................................................................... 3 3 EQUIPMENT UNDER TEST (EUT) DETAILS .................................................................................... 4 3.1 EUT Description ........................................................................................................................... 4 3.1.1 FCC Section 15.203 Antenna Requirements......................................................................... 4 4 TESTED SYSTEM DETAILS .............................................................................................................. 4 4.1 Tested System Configuration ....................................................................................................... 4 4.2 Special Accessories ..................................................................................................................... 5 4.3 Equipment Modifications .............................................................................................................. 5 5 TEST SPECIFICATIONS AND RELATED DOCUMENTS.................................................................. 5 6 RADIOMETRICS’ TEST FACILITIES .................................................................................................5 7 DEVIATIONS AND EXCLUSIONS FROM THE TEST SPECIFICATIONS......................................... 6 8 CERTIFICATION ................................................................................................................................ 6 9 TEST EQUIPMENT TABLE ................................................................................................................ 7 10 TEST SECTIONS ............................................................................................................................. 7 10.1 AC Conducted Emissions........................................................................................................... 7 Figure 1. Conducted Emissions Test Setup.................................................................................... 9 10.2 Occupied Bandwidth (6 dB)........................................................................................................ 9 10.3 Peak Output Power .................................................................................................................. 13 10.4 Power Spectral Density ............................................................................................................ 13 10.5 Band-edge Compliance of RF Conducted Emissions .............................................................. 13 10.6 Spurious RF Conducted Emissions.......................................................................................... 16 10.7 Spurious Radiated Emissions (Restricted Band) ..................................................................... 25 10.7.1 Radiated Emissions Field Strength Sample Calculation.................................................... 26 Figure 2. Drawing of Radiated Emissions Setup .......................................................................... 27 10.7.2 Spurious Radiated Emissions Test Results ....................................................................... 27 10.7.3 Radiated Emissions Below 2 GHz ..................................................................................... 29 Figure 3. Radiated Emissions Photographs.....................................Error! Bookmark not defined. Figure 4. Conducted Emissions Photograph ...................................Error! Bookmark not defined. Notice: This report must not be reproduced (except in full) without the written approval of Radiometrics Midwest Corporation. RADIOMETRICS MIDWEST CORPORATION - EMC Test Report Testing of the Westell, Inc., Model A90-9100VM15-10, ULS3 w/Ikanos VDSL2 Gateway RP-5986B Rev. 0 Page 3 of 30 1 ADMINISTRATIVE DATA Equipment Under Test: A Westell, Inc., ULS3 w/Ikanos VDSL2 Gateway Model: A90-9100VM15-10 Serial Number: 07BS02540641 This will be referred to as the EUT in this Report Date EUT Received at Radiometrics: (Month-Day-Year) Test Date(s): (Month-Day-Year) Feb. 26, 2007 Feb 26, 27 and 28, 2007 Test Report Written By: Test Witnessed By: Joseph Strzelecki Senior EMC Engineer Robert Tarasewicz Westell, Inc. Radiometrics’ Personnel Responsible for Test: Test Report Approved By Joseph Strzelecki Senior EMC Engineer NARTE EMC-000877-NE Chris W. Carlson Director of Engineering NARTE EMC-000921-NE 2 TEST SUMMARY AND RESULTS The EUT (Equipment Under Test) is a ULS3 w/Ikanos VDSL2 Gateway, Model A90-9100VM15-10, manufactured by Westell, Inc…
