Copyright © 2011 Westell, Inc. 1 February 2011 V ERSALINK ® WIRELESS GATEWAY (MODEL 7550) USER GUIDE 030-300629 Rev. A 2 February 2011 User Guide VersaLink Wireless Gateway (Model 7550) CONTENTS 1. PRODUCT DESCRIPTION ..................................................................................................................................5 2. SAFETY INSTRUCTIONS...................................................................................................................................5 3. REGULATORY INFORMATION........................................................................................................................6 3.1 FCC Compliance Note...............................................................................................................................6 4. NETWORKING REQUIREMENTS .....................................................................................................................8 5. HARDWARE FEATURES....................................................................................................................................9 5.1 LED Indicators...........................................................................................................................................9 5.2 Cable Connectors and Switch Locations..................................................................................................10 5.3 Connector Descriptions............................................................................................................................10 5.4 Installation Requirements ........................................................................................................................11 5.5 Before you begin......................................................................................................................................11 5.6 Microfilters ..............................................................................................................................................11 6. HARDWARE INSTALLATIONS.......................................................................................................................12 6.1 Connecting VersaLink to Your DSL Network.........................................................................................13 6.2 Connecting VersaLink to Your Network via E1/UPLINK ......................................................................13 6.3 Connecting Other Networking Devices to Your VersaLink ....................................................................14 7. INSTALLING THE USB DRIVERS...................................................................................................................17 7.1 Installing the USB Driver for Windows 98 SE........................................................................................17 7.2 Installing the USB Driver for Windows ME............................................................................................23 7.3 Installing the USB Driver for Windows 2000..........................................................................................25 7.4 Installing the USB Driver for Windows XP.............................................................................................28 7.5 Installing the USB Driver for Windows Vista™ .....................................................................................30 8. ACCESSING VERSALINK ................................................................................................................................31 8.1 Logging on to VersaLink.........................................................................................................................31 8.2 Changing the Password............................................................................................................................32 9. CONFIGURING YOUR BROADBAND CONNECTION .................................................................................35 9.1 Confirming Your DSL Connection..........................................................................................................35 9.2 Setting Up an PPP Connection Profile.....................................................................................................36 9.3 Connecting to the Internet........................................................................................................................41 9.4 Disconnecting from the Internet...............................................................................................................42 10. SETTING UP MACINTOSH OS X.....................................................................................................................44 10.1 Opening the System Preference Screen ...................................................................................................44 10.2 Choosing the Network Preferences..........................................................................................................44 10.3 Creating a New Location .........................................................................................................................45 10.4 Naming the New Location.......................................................................................................................45 10.5 Selecting the Ethernet Configuration.......................................................................................................45 030-300629 Rev. A 3 February 2011 User Guide VersaLink Wireless Gateway (Model 7550) 10.6 Checking the IP Connection ....................................................................................................................46 10.7 Accessing Your Router............................................................................................................................47 11. BASIC CONFIGURATION .....................................................................................................................…

Text truncated - open the document above for the full version.

030-300629 Rev. A 91 February 2011 User Guide VersaLink Wireless Gateway (Model 7550) 14.2.3.3 Editing the VC Protocol Settings for WAN Uplink Port NOTE: The instructions in this section refer to the Router configured for Ethernet WAN Uplink port mode. Be sure that you have selected WAN Uplink port in the VersaPort screen. 14.2.3.3.1 Configuring the WAN Uplink Protocol Settings for PPPoE After you have selected WAN Uplink port, in the preceding steps, select the desired protocol from the Protocol drop-down menu. If you select PPPoE, the following screen will appear. Select the desired options, and then click Apply to save the settings. NOTE: 1. If you experience any problems, reset the Router by pressing the reset button on the rear of the Router. Or follow the instructions in section 16.2, “Restore Defaults,” to restore the Router to factory default settings. The actual information displayed in this screen may vary, depending on network connection established. 2. PPPoE is the factory default setting for WAN Uplink port. Uplink Settings for WAN Uplink Port (PPPoE protocol) Tunneling Factory Default = Enable If Enabled, this option allows PPP traffic to be bridged to the WAN. This feature allows you to use a PPPoE shim on the host computer to connect to the Internet Service Provider, by bypassing the Router’s capability to do this. Factory default is “Enable.” Secondary WAN Factory Default = Disable The secondary WAN interface is used for multicast traffic. This feature applies only when you are using PPPoE as the Primary WAN protocol. Proxy ARP Factory Default = Disable When this feature is activated, the VersaLink will respond to ARP requests. To activate this feature, click Enable. 030-300629 Rev. A 92 February 2011 User Guide VersaLink Wireless Gateway (Model 7550) 14.2.3.3.2 Configuring the WAN Uplink Protocol Settings for Routed IP If you select Routed IP from the Protocol drop-down menu, the following screen will appear. Enter the desired options, and then click Apply to save the settings. NOTE: 1. If you experience any problems, reset the Router by pressing the reset button on the rear of the Router. Or follow the instructions in section 16.2, “Restore Defaults,” to restore the Router to factory default settings. The actual information displayed in this screen may vary, depending on the network connection established. 2. PPPoE is the factory default setting for Ethernet WAN Uplink. Uplink Settings for WAN Uplink Port (Routed IP protocol) Tunneling Factory Default = Enable If Enabled, this option allows PPP traffic to be bridged to the WAN. This feature allows you to use a PPPoE shim on the host computer to connect to the Internet Service Provider, by bypassing the Router’s capability to do this. DHCP Client Selecting a option allows you to either Enable or Disable the DHCP Client. Click the top option labeled (enable DHCP Client) to allow the Router to obtain an IP address automatically from your service provider. Click the bottom option labeled (disable DHCP Client) to allow the Router to accept static IP address information. Then, manually enter the IP values into the fields. Obtain these values from your ISP. IP Address The IP network address that your Router is on. Subnet The IP subnet address that your Router is on. Gateway The Router’s IP gateway address. DNS Primary Provided by your Internet service provider. DNS Secondary Provided by your Internet service provider. Note: The values for the IP Address, Gateway, DNS Primary, and DNS Secondary are all “Override of the value obtained from the PPP connection,” They default to “0.0.0.0,” in which case the override is ignored. It is recommended that you do not change the values unless your Internet service provider instructs you to do so. 030-300629 Rev. A 93 February 2011 User Guide VersaLink Wireless Gateway (Model 7550) 15. FIREWALL SETTINGS 15.1 General Firewall Security Settings This section explains how to configure your Router’s firewall security features. The Router’s firewall security settings allow you reduce the risk of unauthorized access to your network by prohibiting certain types of inbound and outbound network traffic and by allowing you to configure specific firewall rules. To change your firewall security level, click the option next to the desired security setting. Next, click Apply to allow the changes to take effect. IMPORTANT: It is recommended that you do not change the settings in this User Defined Firewall Rules screen. If you need to reset your Router to factory default settings, push the reset button on the rear of the Router. Or follow the instructions in section 16.2, “Restore Defaults,” to restore the Router to factory default settings. The factory default security level for your Router is No Security (None). General Firewall Settings Maximum Security (High) High security level only allows basic Internet functionality. Only Mail, News, Web, FTP, and IPSEC are allowed. All other traffic is prohibited. Typical Security (Medium) Like High security, Medium security only allows basic Internet functionality by default. However, Medium security allows customization through NAT configuration so that you can enable the traffic that you want to pass. Minimum Security (Low) Low security setting will allow all traffic except for known attacks. With Low security, your Router is visible to other computers on the Internet. No Security (None) Factory Default = No Security (None) The Firewall is disabled. (All traffic is passed) Custom Security (Custom) Custom is a security option that allows you to edit the firewall configuration directly. Note: Only the most advanced users should try this. 030-300629 Rev. A 94 February 2011 User Guide VersaLink Wireless Gateway (Model 7550) 15.2 Editing Firewall Security Rules To edit the firewall security rules and customize them to your preference, at the General screen, select the security option that want to edit, and then click Apply. To set up custom security rules, select th…

Text truncated - open the document above for the full version.

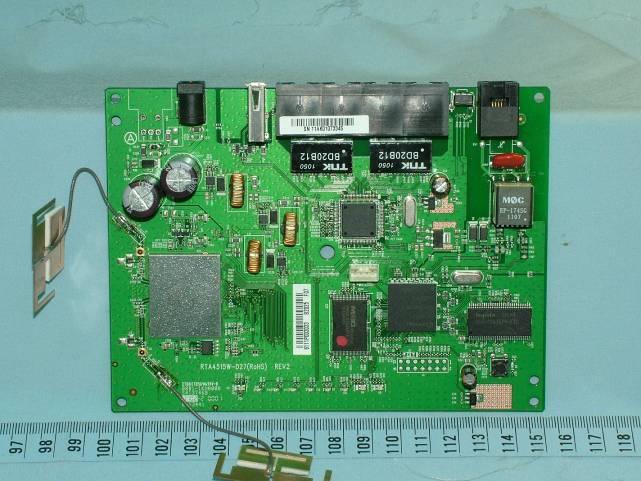

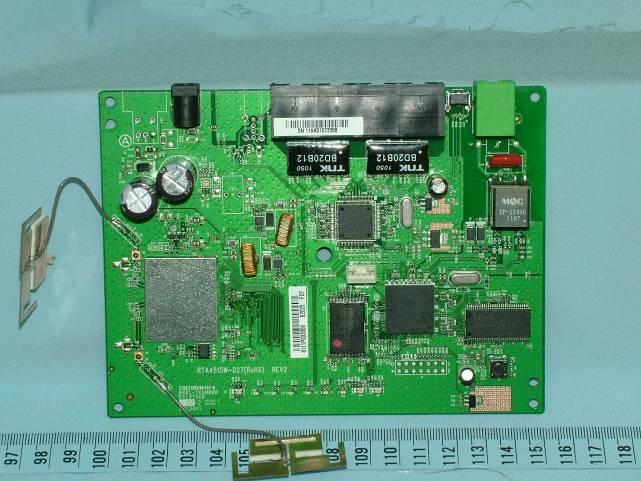

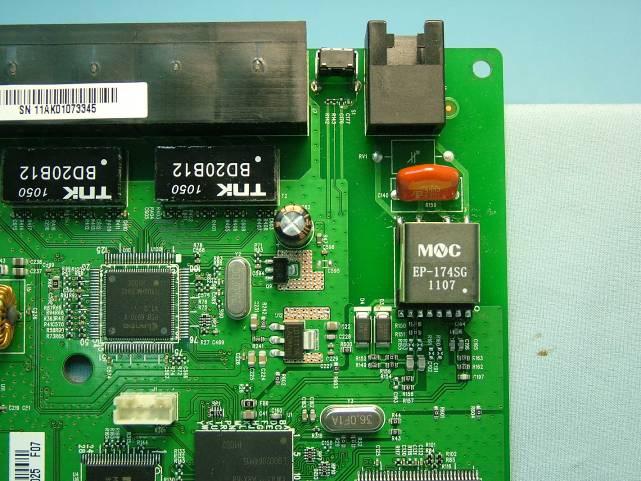

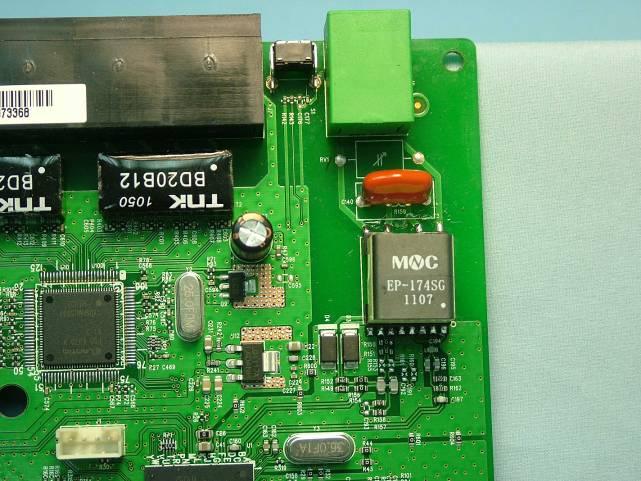

Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 1 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 B90-755015-15 1. External / Internal Photograph of EUT 720510 720510 Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 2 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 720510 Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 3 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 720510 Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 4 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 Transformer 52237 720510 Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 5 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 6 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 720510 Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 7 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 720510 Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 8 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 720510 Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 9 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 Transformer EP-174SG 720510 Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 10 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 720510 Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 11 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 12 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 13 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 720510 Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 14 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 B90-755025-15 (no USB port and no external power on/off switch) Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 15 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 16 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 17 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 18 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 19 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 20 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 21 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 22 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 B90-755075-15(no USB port) Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 23 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 24 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 Photographs of EUT Report No.: EP0D2914 Brand Name: WESTELL SPORTON INTERNATIONAL INC. Page Number : 25 of 43 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CH8B755 Photographs of EUT Rep…
